Samsung RH25H5613** User manual

Refrigerator
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
Free Standing Appliance
SSEDA FSR-1 EN-.indd 1 14. 11. 28.  1:11
RH25H5613**
English

English - 2
Safety information
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and retain
it in a safe place near the
appliance for your future
reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual.
This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
Children shall not play with
the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
• Warnings and Important
Contents
SAFETY INFORMATION……………………………………………………………… 2
SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR …………………………… 16
OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR………………… 27
TROUBLESHOOTING………………………………………………………………… 38
SSEDA FSR-1 EN-���.indd 2 14. 11. 28. �� 1:11

English - 3
SAFETY INFORMATION
Safety Instructions in this
manual do not cover all
possible conditions and
situations that may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models, the
characteristics of your
refrigerator may differ slightly
from those described in this
manual and not all warning
signs may be applicable.
If you have any questions
or concerns, contact your
nearest service center or find
help and information online
at www.samsung.com.
Important safety symbols
and precautions:
WARNING
Hazards or unsafe
practices that may
result in severe
personal injury or
death.
CAUTION
Hazards or unsafe
practices that may
result in minor
personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center
for help.
Note.
SSEDA FSR-1 EN-���.indd 3 14. 11. 28. �� 1:11

English - 4
These warning signs are
here to prevent injury to you
and others.
Please follow them carefully.
After reading this section,
keep it in a safe place for
future reference.
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/
EC) implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should be
taken to ensure that no
parts of the refrigerating
circuit are damaged.
• R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
• When this product contains
flammable gas (Refrigerant
R-600a),
-Refrigerant leaking from the
pipe work could ignite or
cause an eye injury.
If a leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance
is standing for several
minutes.
-In order to avoid the creation
of a flammable gas-air
mixture if a leak in the
WARNING
SSEDA FSR-1 EN-���.indd 4 14. 11. 28. �� 1:11

English - 5
SAFETY INFORMATION
refrigerating circuit occurs,
the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.
-Never start up an appliance
showing any signs of
damage. If in doubt, consult
your dealer.
The room where the
refrigerator will be sited must
be 1m³ in size for every 8g
of R-600a refrigerant inside
the appliance.
The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
• Refrigerant squirting out of
the pipes could ignite or
cause an eye injury.
When refrigerant leaks from
the pipe, avoid any naked
flames and move anything
flammable away from the
product and ventilate the
room immediately.
-Failing to do so may result in
fire or explosion.
-If the appliance contains
isobutane refrigerant
(R-600a), a natural gas
with high environmental
compatibility that is, however,
also combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
SEVERE WARNING
SIGNS FOR
INSTALLATION
• Do not install this
appliance in a humid,
oily or dusty location, in
a location exposed to
direct sunlight and water
(rain drops).
-Deteriorated insulation of
electrical parts may cause an
electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose to
the heat from stoves, room
heaters or other appliances.
• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical
outlet which has a voltage
WARNING
SSEDA FSR-1 EN-���.indd 5 14. 11. 28. �� 1:11

English - 6
rating that matched the
rating plate.
-This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
If the wall socket is loose, do
not insert the power plug.
-There is a risk of electric
shock or fire.
• Do not use a cord that
shows cracks or abrasion
damage along its length or at
either end.
• Do not bend the power cord
excessively or place heavy
articles on it.
• Do not use aerosols near the
refrigerator.
-Aerosols used near the
refrigerator may cause an
explosion or fire.
• Do not install this appliance
in a location where gas may
leak.
-This may result in an electric
shock or fire.
• Keep the packing materials
out of reach of children.
-There is a risk of death from
suffocation if children put
them on their head.
• Do not stand on top of the
appliance or place objects
(such as laundry, lighted
candles, lighted cigarettes,
dishes, chemicals, metal
objects, etc.) on the
appliance.
-This may result in an electric
shock, fire, problems with the
product, or injury.
• The installation or any
service of this appliance
is recommended by a
qualified technician or
service company.
-Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
• This refrigerator must be
properly installed and located
in accordance with the
manual before it is used.
• Connect the power plug in
the proper position with the
cord hanging down.
-If you connect the power
plug upside down, the wire
can get cut off and cause fire
or an electric shock.
• Make sure that the power
plug is not squashed or
SSEDA FSR-1 EN-���.indd 6 14. 11. 28. �� 1:11

English - 7
SAFETY INFORMATION
damaged by the back of the
refrigerator.
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
-This constitutes a fire hazard.
• The appliance must be
positioned so that the plug is
accessible after installation.
• The refrigerator must be
grounded.
-You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
• Never use gas pipes,
telephone lines or other
potential lightening rods as
ground.
-Improper use of the ground
plug can result in an electric
shock.
• If the power cord is
damaged, have it
replaced immediately by
the manufacturer or its
service agent.
• The fuse on the refrigerator
must be changed by a
qualified technician or service
company.
-Failing to do so may result in
an electric shock or personal
injury.
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation
opening in the appliance
enclosure or mounting
structure clear of
obstruction.
• Allow the appliance to stand
for 2 hours before loading
foods after installation and
turning on.

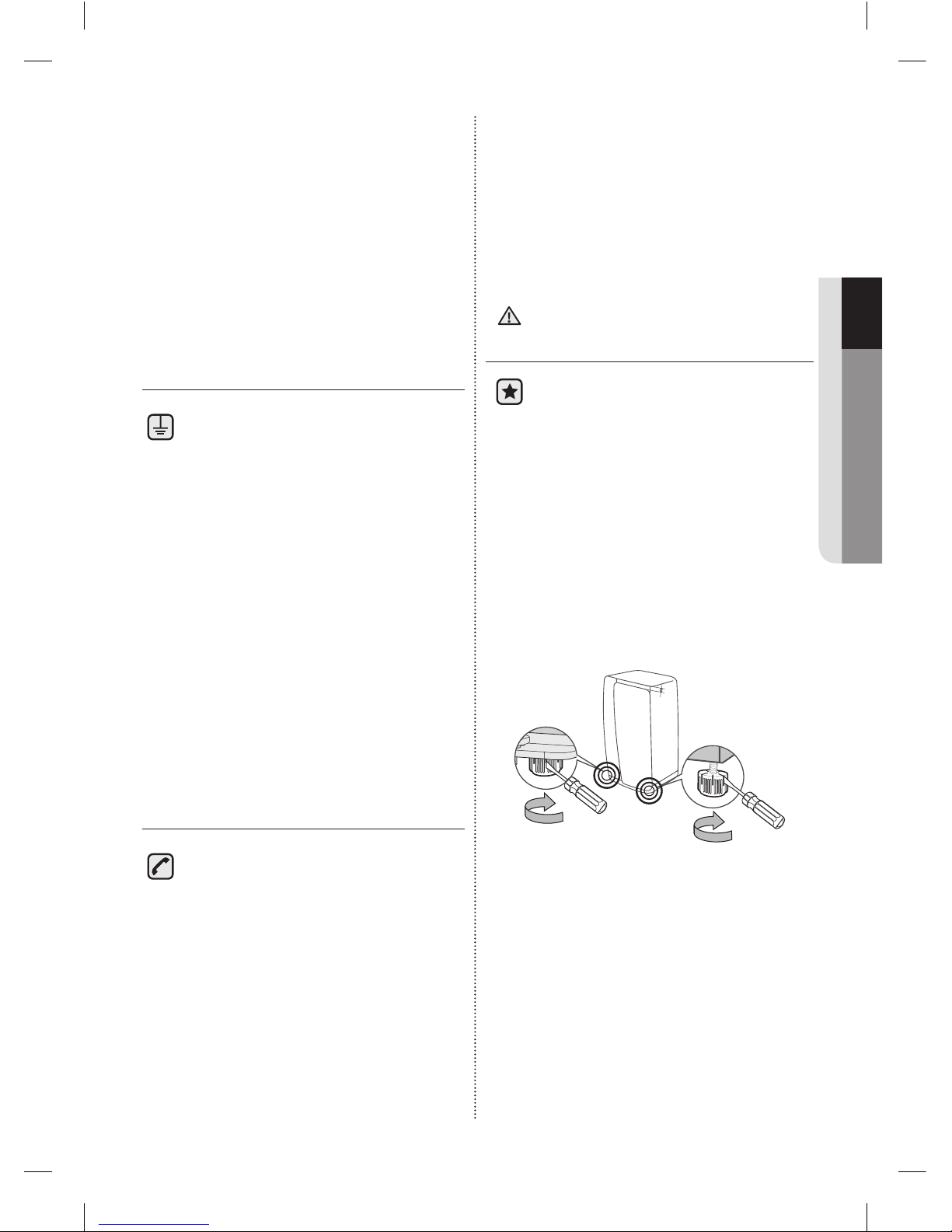

-When installing the
refrigerator, make sure both
legs contact the floor for
secure installation.
Legs are located at the
bottom back of each door.
Insert a flathead screwdriver
CAUTION
SSEDA FSR-1 EN-���.indd 7 14. 11. 28. �� 1:11

English - 8
and turn it in the direction of
the arrow until it is level.
-Always balance the load on
each door.
-Overload on any one door
may fell the refrigerator,
causing physical injury.
SEVERE WARNING
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
• Do not store items on top of
the appliance.
-When you open or close
the door, items may fall and
cause a personal injury and/
or material damage.
• Do not put a container filled
with water on the refrigerator.
-If spilled, there is a risk of fire
or electric shock.
• Do not let children hang on
the door.
-Failure to do so may cause
serious personal injury.
• Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside the refrigerator.
WARNING
• Do not allow babies or
children to go inside the
drawers.
-It can cause death from
suffocation by entrapment or
personal injury.
• Do not sit on the Freezer
door.
-The door can be broken and
cause personal injury.
• When remove the divider
from the drawer to clean
or other reason, should
reassemble the divider with
provided screws to prevent
children trapped.
• Never put fingers or other
objects into the dispenser
hole.
-Failure to do so may cause
personal injury or material
damage.
• Do not insert hands, feet
or metal objects (such as
chopsticks, etc.) into the
bottom or the back of the
refrigerator.
-This may result in an electric
shock or injury.
-Any sharp edges may cause
a personal injury
• Do not store volatile or
flammable substances such
SSEDA FSR-1 EN-���.indd 8 14. 11. 28. �� 1:11

English - 9
SAFETY INFORMATION
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
-The storage of any of such
products may cause an
explosion.
• Do not store low
temperature-sensitive
pharmaceutical products,
scientific materials or other
low temperature-sensitive
products in the refrigerator.
-Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use electrical
appliances inside the
refrigerator, unless they are of
a type recommended by the
manufacturer.
• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odours.
-This may result in an electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
-This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• If gas leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance
is standing for several
minutes.
• This product is intended
only for the storage
of food in a domestic
environment.
• Bottles should be stored
tightly together so that they
do not fall out.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without touching
the power plug.
Do not touch the appliance
or power cord.
-Do not use a ventilating fan.
-A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
SSEDA FSR-1 EN-���.indd 9 14. 11. 28. �� 1:11

English - 10
service agent.
• Children should be
supervised to ensure that
they do not play with and/or
climb into the appliance.
• Do not disassemble or
repair the refrigerator by
yourself.
-You run a risk of causing
a fire, malfunction and/ or
personal injury.
In case of malfunction,
please contact your service
agent.
• If the appliance
generates a strange
noise, a burning or smell
or smoke, unplug the
power plug immediately
and contact your nearest
service centre.
-Failing to do so may result
in an electric shock or fire
hazards.
• If you experience difficulty
when changing the light,
contact service agent.
• If the products is equipped
with LED Lamps, do not
disassemble the Lamp Cover
and LED Lamps by yourself.
-Please contact your service
agent.
• If any dust or water is in the
refrigerator, pull out power
plug and contact your
Samsung Electronics service
centre.
-There is a risk of fire.
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
-Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
-Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
-Do not put any newly
introduced food for freezing
near to already existing food.
• Do not place carbonated
or fizzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.
-When the contents freeze,
CAUTION
SSEDA FSR-1 EN-���.indd 10 14. 11. 28. �� 1:11

English - 11
SAFETY INFORMATION
the glass may break and
cause personal injury and
property damage.
• Do not change or modify
the functionality of the
refrigerator.
-Changes or modifications
may result in a personal
injury and/or property
damage. Any changes or
modifications performed by a
3rd party on this completed
appliance are neither covered
under Samsung warranty
service, nor is Samsung
responsible for safety issues
and damages that result from
3rd party modifications.
• Do not block air holes.
-If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled.
If this cooling period lasts
too long, the water filter
may break and cause water
leakage.
-Do not put any newly
introduced food for freezing
near to already existing food.
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
-As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not apply strong shock
or excessive force onto the
surface of glass.
-Broken glass may result
in a personal injury and/or
property damage.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
-There is a risk of fire or
electric shock.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry ice,
medicine, or chemicals near
the refrigerator.
Do not keep volatile or
inflammable objects or
substances (benzene,
CAUTION
SSEDA FSR-1 EN-���.indd 11 14. 11. 28. �� 1:11

English - 12
thinner, propane gas, etc.) in
the refrigerator.
-This refrigerator is for storing
food only.
-This may result in a fire or an
explosion.
• Do not spray cleaning
products directly on the
display.
-Printed letters on the display
may come off.
• Remove any foreign matter
or dust from the power plug
pins.
But do not use a wet or
damp cloth when cleaning
the plug, remove any foreign
material or dust from the
power plug pins.
-Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
-It may cause a personal
injury or material damage.
• Clean the unreachable parts
such as hinges by using a
brush or toothbrush.
• Unplug the refrigerator
before cleaning and
performing maintenance.
• If any foreign substance
such as water has entered
the appliance, unplug the
power plug and contact your
nearest service centre.
-Failing to do so may result in
an electric shock or fire.
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Ensure that none of the
pipes on the back of the
appliance are damaged
prior to disposal.
• R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as an
insulation blowing gas.
The gases in insulation
material require special
WARNING
SSEDA FSR-1 EN-���.indd 12 14. 11. 28. �� 1:11

English - 13
SAFETY INFORMATION
disposal procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product.
Ensure that none of the
pipes on the back of the
appliances are damaged
prior to disposal.
The pipes shall be broken in
the open space.
• When disposing of this
product or other refrigerators,
remove the door/door seals,
door latch so that small
children or animals cannot
become trapped inside.
Leave the shelves in place so
that children may not easily
climb inside.
Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
• Keep all packaging materials
well out of the reach of
children, as packaging
materials can be dangerous
to children.
-If a child places a bag over
its head, it may result in
suffocation.
ADDITIONAL TIPS
FOR PROPER USAGE
• In the event of a power
failure, call the local office of
your Electricity Company and
ask how long it is going to
last.
-Most power failures that are
corrected within an hour
or two will not affect your
refrigerator temperatures.
However, you should
minimise the number of door
openings while the power is
off.
-Should the power failure last
more than 24 hours, remove
all frozen food.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in the
refrigerator) when sited
for an extended period of
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
SSEDA FSR-1 EN-���.indd 13 14. 11. 28. �� 1:11

English - 14
• In case of particular foods,
keeping it under refrigeration
can have a bad effect on
preservation due to its
properties.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will be
carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent an
undue rise in the temperature
of the frozen food while
defrosting the appliance,
please wrap the frozen
food up in several layers of
newspaper.
• If you need to freeze a large
amount of food, activate the
power freezer function when
you put the food into the
freezer.
When you use this function
the energy consumption of
the refrigerator will increase.
Remember to turn it off when
you don’t need it and return
the freezer to your original
temperature setting.
• The temperature of two
star section (sections)
or compartment
(compartments) which have
two star symbol
( ) is slightly higher than
other freezer compartment
(compartments).
The two star section
(sections) or compartment
(compartments) is (are)
based on the instruction and/
or the condition as delivered.
SSEDA FSR-1 EN-���.indd 14 14. 11. 28. �� 1:11

English - 15
SAFETY INFORMATION
Saving Energy Tips
-Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
-Not to block any vents and
grilles is recommended for
energy efficiency.
-Allow warm food to cool
down before placing it in the
appliance.
-Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
-Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
-Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
-Do not set temperature
colder than necessary.
-Ensure sufficient air flow
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
-It is recommended to
install the refrigerator with
clearance to the back and
sides. This will help reduce
power consumption and
keep your energy bills lower.
-For the most efficient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
-staff kitchen areas in shops,
offices and other working
environments;
-farm houses and by
clients in hotels, motels
and other residential type
environments;
-bed and breakfast type
environments;
-catering and similar non-retail
applications.
SSEDA FSR-1 EN-���.indd 15 14. 11. 28. �� 1:11

English - 16

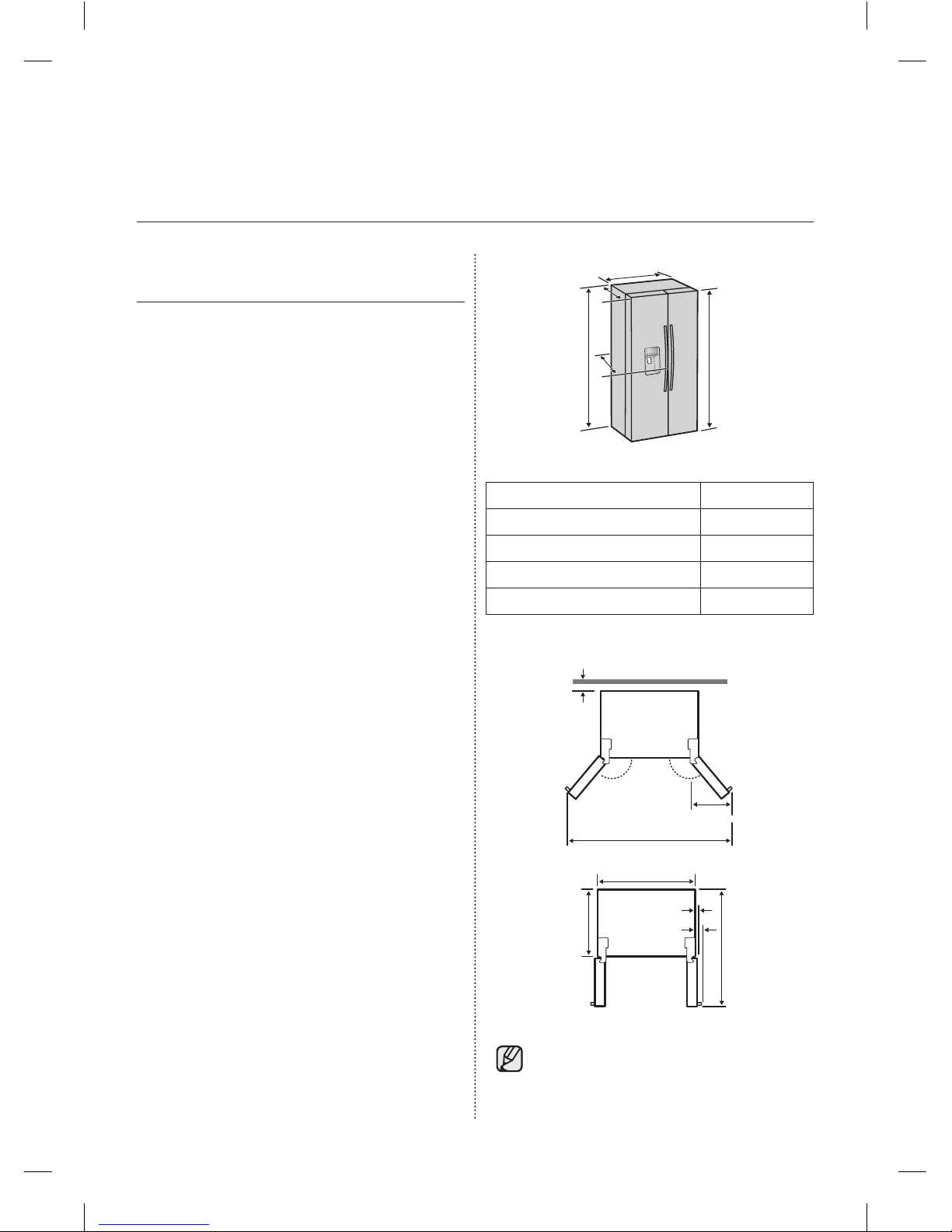

GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator.
We hope you will enjoy the many state-of-the-art
features and efficiencies that this new appliance
has to offer.
Selecting the best location for the
refrigerator
Choose:
• A location with easy access to a water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) flooring.
• A location with enough space for the
refrigerator doors to open easily.
• A location that allows sufficient space to the
right, left, back, and top for air circulation. If
the refrigerator does not have enough space,
it can cause the bad influence to refrigeration
efficiency and power consumption.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator in locations where
the temperature is over 110°F (43°C) or below
50°F (10°C ).
BB
C
CDD
AA
E
E
Depth “A” 864 mm
Width “B” 908 mm
Height “C” 1740 mm
Overall Height “D” 1775 mm
Depth “E” 930 mm
1581 mm
427 mm
135°135°
50.8 mm
908 mm
740 mm
1290 mm
26 mm
53 mm
Each measurement based on the design
dimension, so it may differ depending on
the measuring method.
Setting up your side-by-side
refrigerator
SSEDA FSR-1 EN-���.indd 16 14. 11. 28. �� 1:11

English - 17

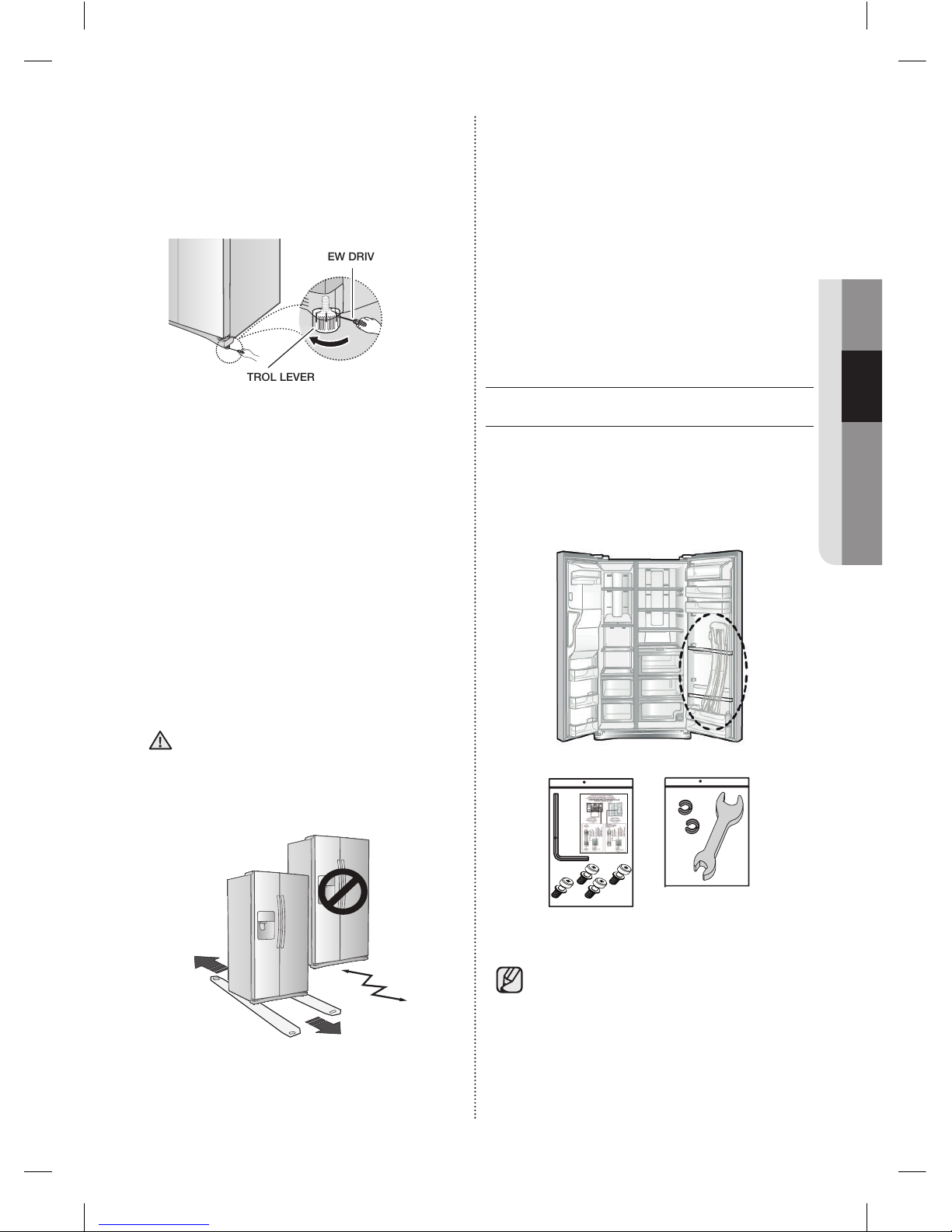

SETTING UP
When moving your refrigerator
To prevent floor damage, be sure the front leveling
legs are in the up position (above the floor).
Refer to ‘Leveling the refrigerator’ in the manual
(page 21).
SCREW DRIVER(-)
CONTROL LEVER
Flooring
For proper installation, you must place this
refrigerator on a level, hard surface that is the
same height as the rest of the floor.
This surface should be strong enough to support a
fully loaded refrigerator.
To protect the finish of the flooring during
installation, cut a large section of the cardboard
carton and place it under the refrigerator where
you are working.
When moving the refrigerator, you need to pull and
push it straight forwards or back.
Do not wiggle it from side to side.
When installing, servicing, or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after finishing.
CAUTION
Important: Make sure that you can easily move
your refrigerator to its final location by measuring
doorways (both width and height), thresholds,
ceilings, stairways, etc.
•Make sure you disconnect the water supply line
BEFORE removing the freezer door.
To avoid damage, refer to ‘Separating the water
line from the refrigerator’ in the manual (page
19).
SETTING UP THE REFRIGERATOR
Installing the handles
Important : If you need to remove the refrigerator’s
doors to move it into place, install the handles after
you put the doors back on.
Take the handles out of the right side door.
(Only RH25* models)
The handles are included in the box.
Fixer screw quantity is optional.
SSEDA FSR-1 EN-.indd 17 14. 11. 28.  1:11

English - 18

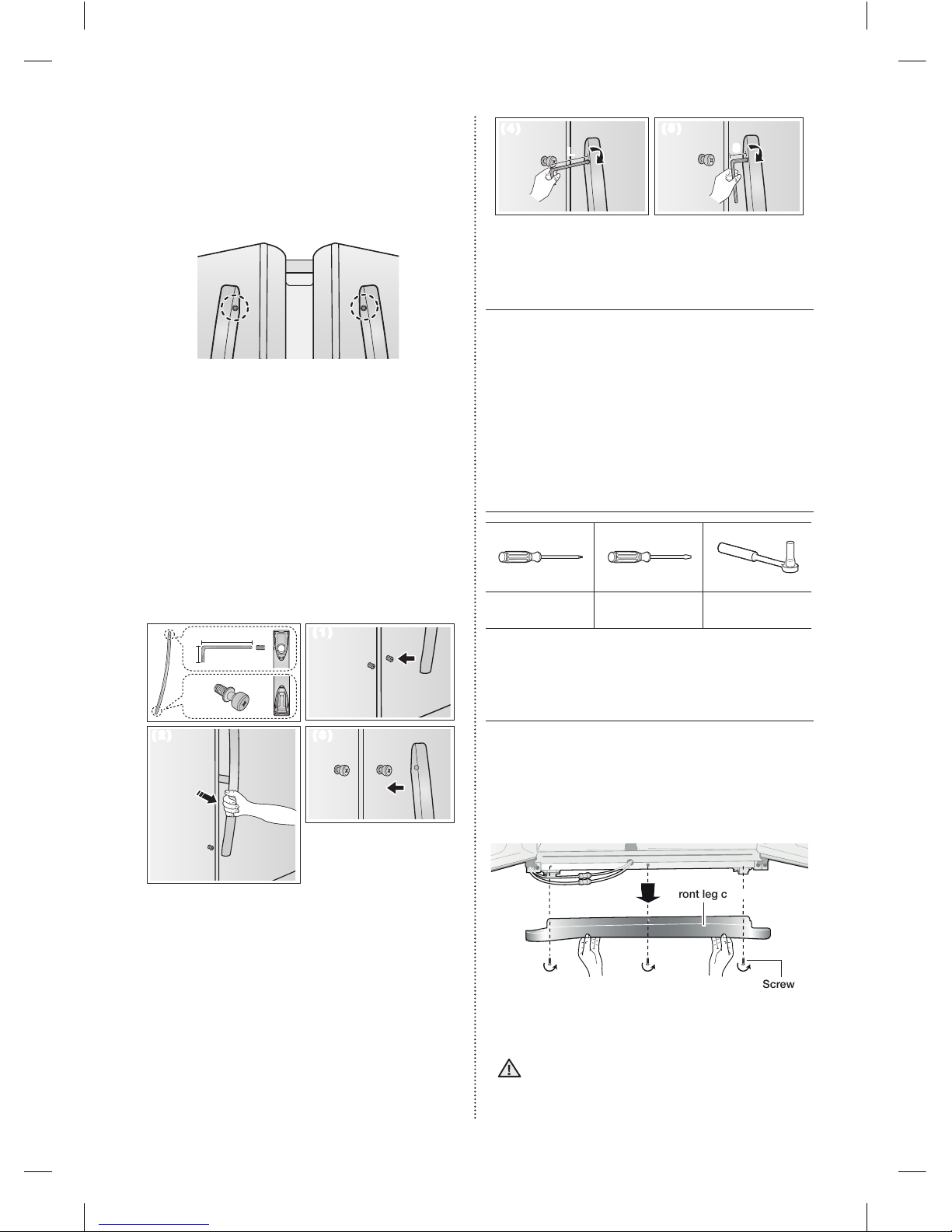

How to install the handles
Using a Philips head screwdriver, attach fixer
screws to the screw holes on each door.
If your refrigerator already has the fixer screws
installed, skip this step.
Orient each handle so that the end with the sticker
attached is at the top and the holes for the screws
are facing the screw holes on the refrigerator door.
Place a handle over the fixer screws on one door,
and then slide the handle down firmly.
Repeat with the second handle on the other door.
For Models with a lever attached to the right
handle, push the lever button on the handle in,
hold it in place, and then slide the bottom of the
handle down over the fixer screw.
Fix the handles to the doors
by sliding them down firmly.
( 1 )
( 3 )( 2 )
L
S
Using the include hex wrench, tighten the set
screw on the top inside section of each handle.
Use the longer part of the hex wrench to begin
tightening, and then the shorter part to tighten the
screw fully, as shown in the diagram below.
( 4 ) ( 5 )
LS
REMOVING THE REFRIGERATOR
DOORS
If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the refrigerator
doors.
To remove the doors, follow the steps below.
If you do not need to remove the doors, go to
“Leveling the Refrigerator” on page 21.
Tools You’ll Need
Philips
Screwdriver
Flat-blade
Screwdriver
10mm Socket
Wrench
1. Remove the Front Leg Cover
Open both the freezer and refrigerator doors.
Unscrew the three screws holding the front leg
cover in place by turning them counter-clockwise.
When the screws are loose, remove the front leg
cover.
Screw
Front leg cover
When disassembling, make sure the unit
is turned off.
CAUTION
SSEDA FSR-1 EN-���.indd 18 14. 11. 28. �� 1:11

English - 19
SETTING UP

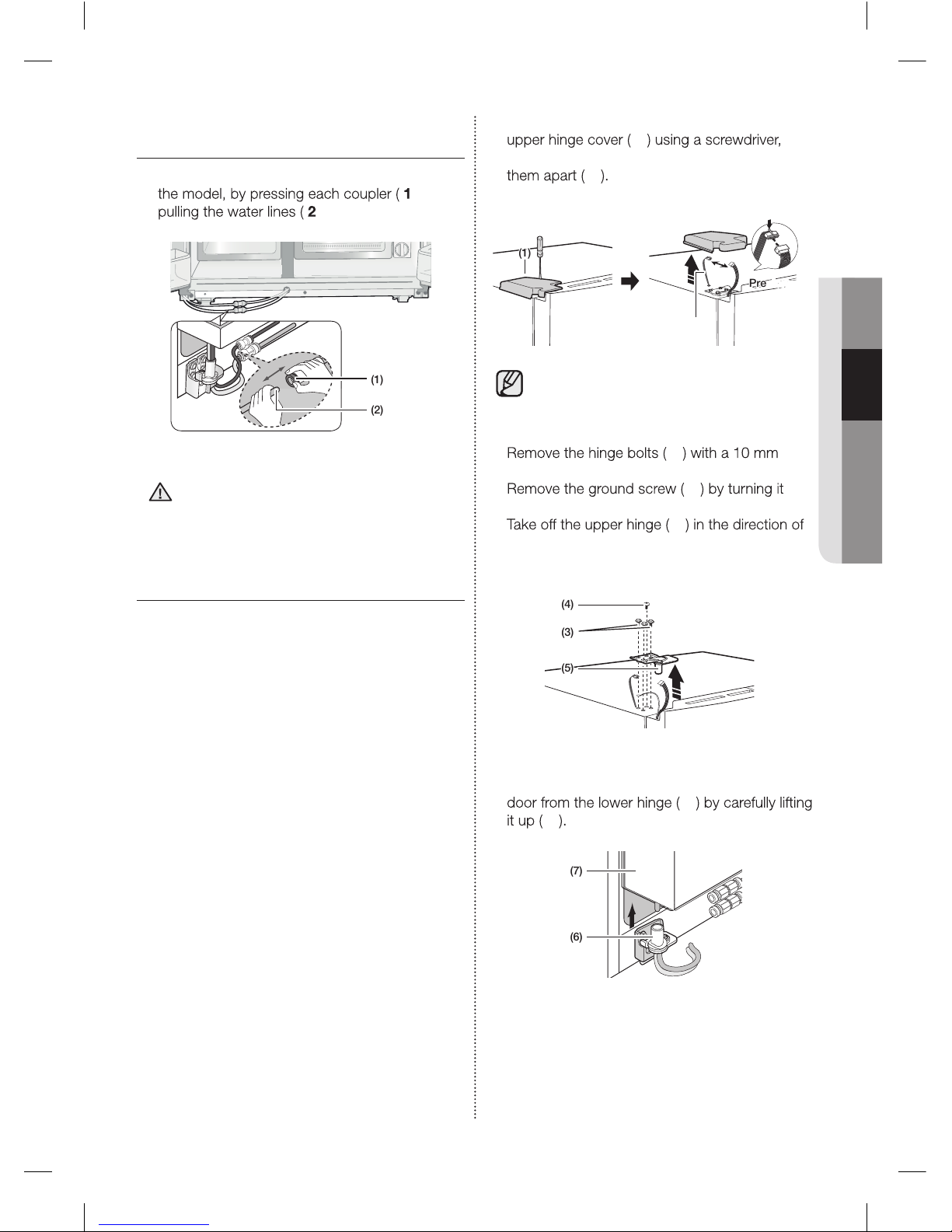

2. Separate the water supply line from
the refrigerator
1. Remove one or two water lines, depending on
) and
) away.
(1)
(2)
Do not cut the water line.
Gently separate it from the coupler.
3. Remove the freezer door
A few things to mention first.
•Make sure that you lift the door straight up so
the hinges are not bent or broken.
•Be careful not to pinch the water tubing and
wire harness on the door.
•Place doors on a protected surface to prevent
scratching or damage.
•Is necessary, have two people disassemble the
doors.
CAUTION
1. With the Freezer door closed, remove the
1
and then disconnect the wires by gently pulling
2
Be careful not to damage the sensor
harness with the hinge cover.
2. 3
Socket Wrench.
4
counter-clockwise.
5
the arrow.
Take care that the door does not fall on you.
(4)
(3)
(5)
3. Open the Freezer door, and then remove the
6
7
(7)
(6)
SSEDA FSR-1 EN-.indd 19 14. 11. 28.  1:11
(2)
(1)
Pressing

English - 20

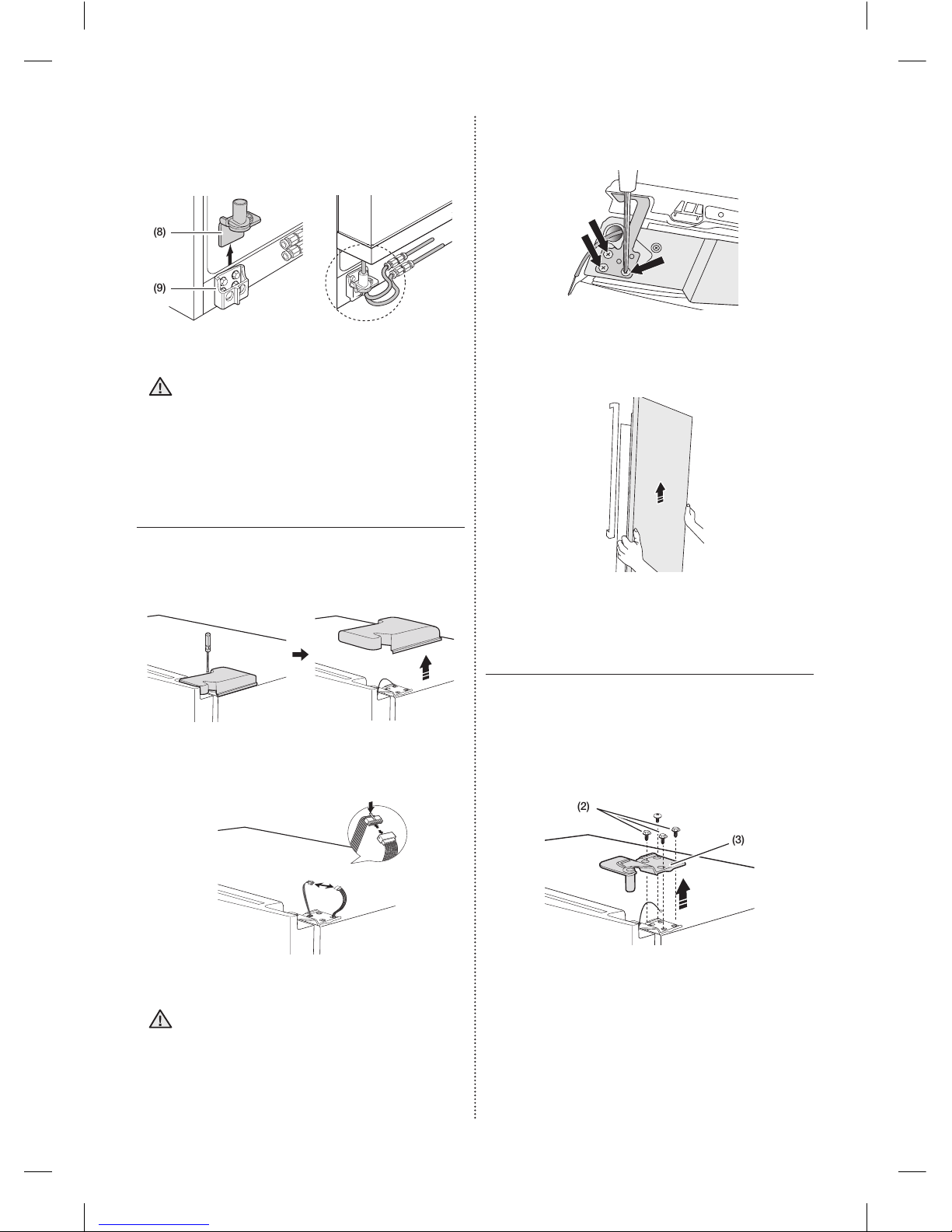

4. Remove the lower hinge (8) from the lower
hinge bracket (9) by lifting the lower hinge up
in the direction of the arrow.
(8)
(9)
Make sure to put the water line through
the lower hinge before assembling it.
4. REMOVE THE FRIDGE
SHOWCASE
1. With the door closed, remove the upper hinge
cover (1) using a screwdriver.
(1)
2. Disconnect the wires.
Pressing
When disassembling, make sure the unit
is turned off.
CAUTION
CAUTION
3. Disassemble the three fastening screws on the
top hinge of the show case.
4. Disassemble the show case.
Lift the door straight up.
5. REMOVE THE FRIDGE DOOR
1. Remove the hinge bolts (2) with a 10mm
Socket Wrench.
Take off the upper hinge (3) in the direction of
the arrow.
Take care that the door does not fall on you.
(2)
(3)
SSEDA FSR-1 EN-���.indd 20 14. 11. 28. �� 1:11
