Samsung RS2530B SERIES Safety guide

CONTENTS
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTING UP THE REFRIGERATOR ........................................................ 4
MAJOR FEATURES .....................................................................................4

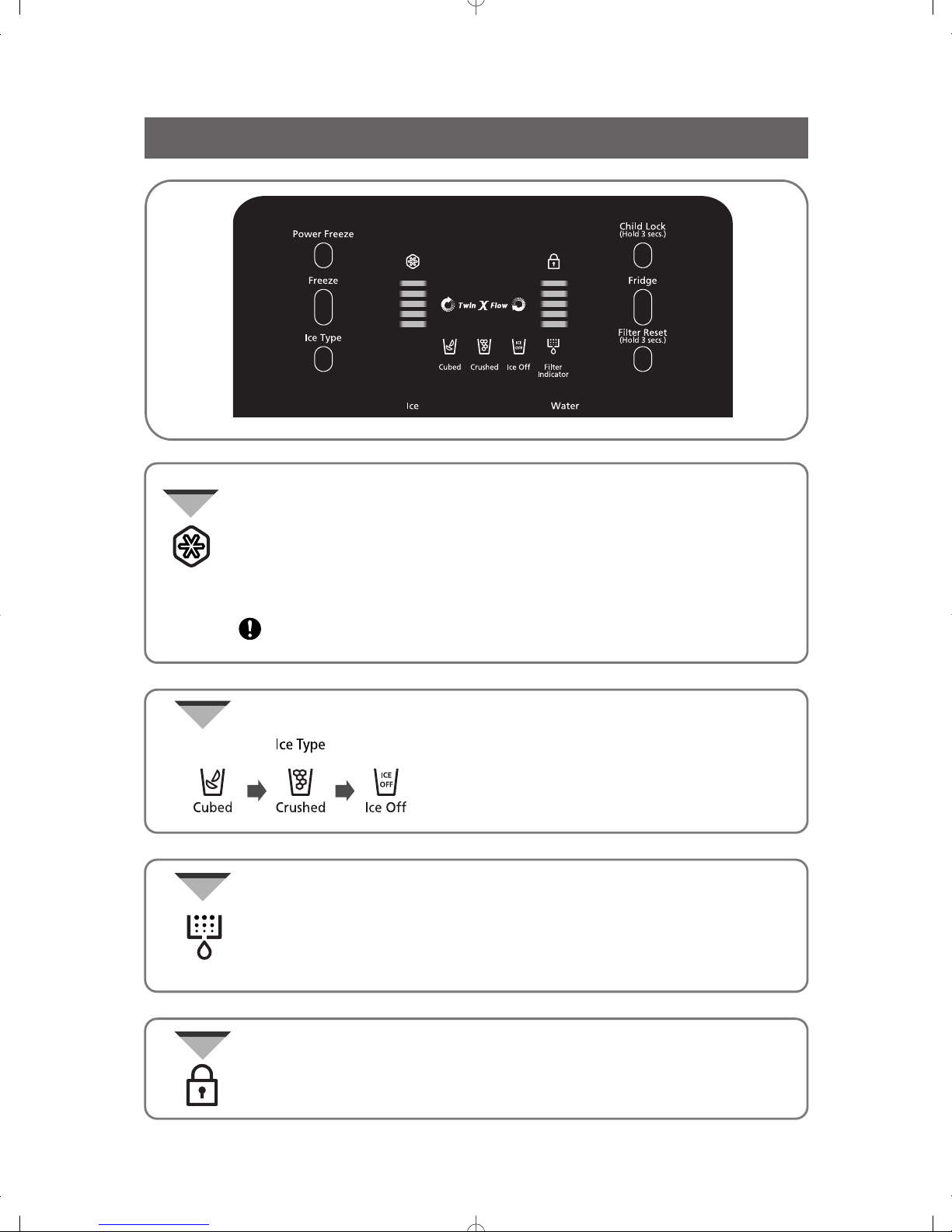

CONTROL PANEL........................................................................................5
DIGITAL PANEL............................................................................................6
TEMPERATURE CONTROL .......................................................................7
ICE and COLD WATER DISPENSER .........................................................7
SHELVES and BINS.....................................................................................8

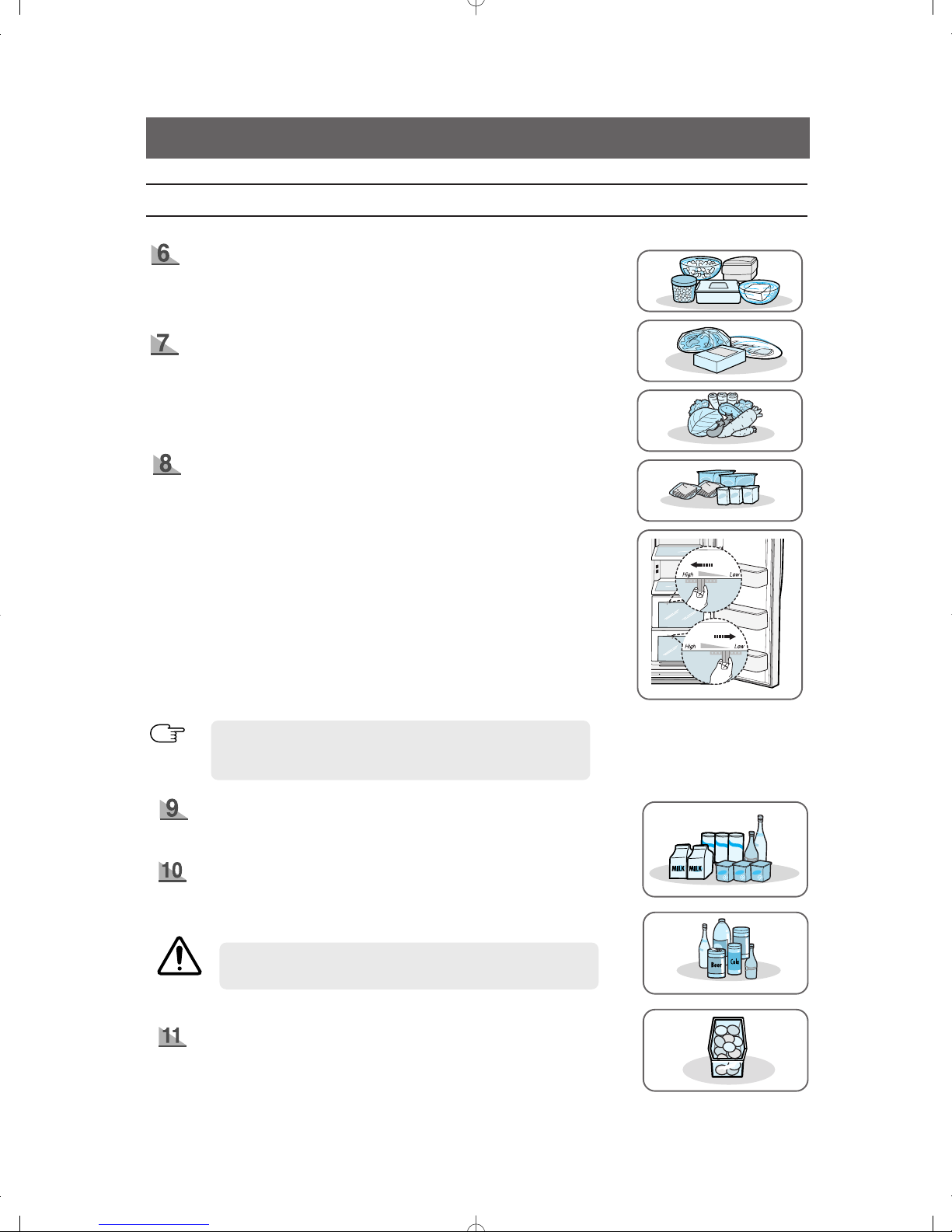

FOOD STORAGE GUIDE ...........................................................................9
REMOVING THE FREEZER ACCESSORIES..........................................11
REMOVING THE FRIDGE ACCESSORIES .............................................11
CARE AND CLEANING .............................................................................12
CHANGING THE INTERIOR LIGHT .........................................................13
WATER FILTER ..........................................................................................14
DOORS.......................................................................................................14
INSTALLATION INSTRUCTIONS................................................15
INSTALLATION OF THE REFRIGERATOR .............................................15
REMOVING THE REFRIGERATOR DOORS ..........................................16

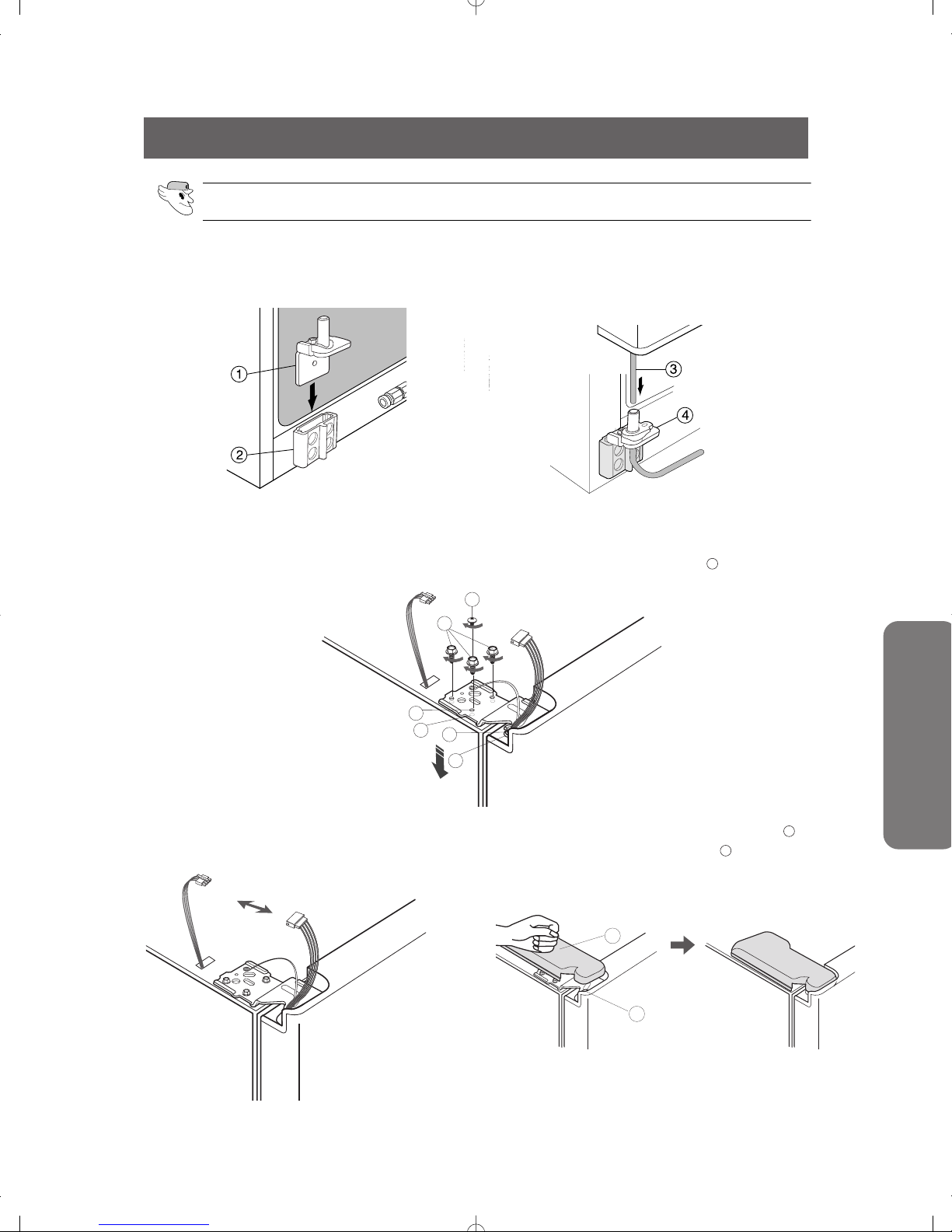

REATTACHING THE REFRIGERATOR DOORS ....................................19
LEVELING THE REFRIGERATOR............................................................22
ADJUSTING THE HEIGHT BETWEEN THE DOORS .............................23
CHECKING THE WATER DISPENSER LINE...........................................24
INSTALLATION OF THE WATER DISPENSER LINE...............................25
BEFORE YOU CALL FOR SERVICE ........................................................28
CONSUMER SUPPORT ....................................................................30
WARRANTY ...............................................................................................30
REFRIGERATOR
RS2530B**
OWNER’S MANUAL AND INSTALLATION
In the U.S.A, for questions about features,
operation/performance, parts, accessories or service, call:
1-800-726-7864 (1-800-SAMSUNG)
www.samsung.com
Write the model and serial number here:
Model #
Serial #
These numbers can be found inside on the left of the
refrigerator.
DA68-01606A REV(0.0)
Register your product at www.samsung.com/global/register
DA68-01606A-0.0 9/2/06 10:47 AM Page 1

2
SAFETY WARNING SIGNS
Please follow the warning signs to prevent injury to users or other persons.
After reading the warning signs, keep them in a safe place for future reference.
CAUTION/WARNING SIGNS USED OTHER SIGNS USED
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
WARNING Represents
something you must NOT
touch.
Represents
something you must
follow.
Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
electric shock.
It is recommended that this action be
handled by a service person.
Represents something you must NOT
disassemble.
Represents something you must NOT do.
CAUTION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
Do not plug several appliances into the same
receptacle.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or dam-
aged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not directly spray water inside or outside the refrig-
erator/freezer.
• There is a risk of electric shock.
Do not use aerosols near the refrigerator .
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place
heavy articles on it .
• This constitutes a fire hazard. If the power cord is dam-
aged, have it replaced immediately by the manufacturer
or its service agent.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the refrigera-
tor.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
•Deteriorated insulation of the electrical parts may cause
electric shock or fire.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas
and other such products may cause explosions.
Do not disassemble or repair the refrigerator by your-
self.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Pull the power plug out of the socket before changing
the interior light of the refrigerator.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the refrigerator / freezer throw
it away after first removing the doors and seals.
• Do so in a way that it is not possible for a child to remain-
trapped inside.
The refrigerator must be grounded.
• You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes, telephone lines or other potential
lightning rods as ground.
• Improper use of the ground plug can result in a risk of
electric shock. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade round
plug and a 3-slot receptacle that will accept the plug on
the appliance. The marked rating of the extension cord
should be AC 115V~120V, 10A, or more. if a grounding
adapter is used, make sure the receptacle box is fully
grounded.
WARNING SIGNS
DA68-01606A-0.0 9/2/06 10:47 AM Page 2

SAFETY WARNING SIGNS
3
SAFETY WARNING SIGNS
CAUTION SIGNS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or glass containers in the
freezer
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance .
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceutical products, scientific
materials and temperature-sensitive products in the
refrigerator.
• Products with require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door, a serious injury
may occur.
If you sense a strange smell or smoke, pull out the
power plug immediately and contact your SAMSUNG
Electronics service center.
Do not touch the inside walls of the freezer or prod-
ucts stored in the freezer with wet hands.
• It may cause frostbite.
Do not insert your hands into the bottom area under
the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause personal
injury or material damage
• In refrigerators with automatic icemakers,avoid con-
tact with moving parts. Do not place fingers or hands
on the automatic icemaking mechanism while the
refrigerator is plugged in.
• Keep fingers out of the “pinch point” areas; clear-
ances between the doors and between the doors
and cabinet are necessarily small. Be careful closing
doors when children are in the area.
• Do not refreeze frozen foods that have thawed com-
pletely.
If the refrigerator is not to be used for a long period of
time, pull out the power plug.
• Deterioration in the insulation may cause fire.
• The appliance is not intended for use by young children
or infirm persons without supervision.
Young children should be supervised to ensure that they
do not play with the appliance.
• Do not place the equipment directly under the sunlight.
etc
• The appliance must be positioned so that the plug is
accessible after installation.
• If the power cord is damaged, it must be replaced by
manufacturer, a certified service agent or qualified ser-
vice personnel.
Before You Throw Away Your Old Refrigerator or
Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easi-
ly climb inside.
CFC Disposal
• Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone.
• If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant you can be subject to fines and imprisonment
under provisions of environmental legislation.
Service warranty section
• Any changes or modifications performed by a 3rd
party on a finished product is not covered under
Samsung warranty service
Safety Caution section
• Samsung does not recommend 3rd party modifica-
tion, therefore Samsung is not responsible for safety
issues that result from 3rd party modifications.
Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter or dust from the
power plug pins.
• Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power supply,
you should wait for at least five minutes before plugging it
back in.
DANGER
Risk of child entrapment. Before you throw away
your old refrigerator or freezer
• Take off the doors
• Leave the shelves in places so that children may not
easily climb inside.
DA68-01606A-0.0 9/2/06 10:47 AM Page 3

4
Twin X AirFlow
• Cool air circulates through side vents on every shelf
level. This provides even distribution of cooling
inside cabinets to keep your food fresh longer.
Xtra SpaceTM
• Vertical room next to the ice maker in the freezer
provides space for pizza etc.
Door Alarm
• Beep sound reminds you the door is open.
Vegetable Crisper
• Optimized humidity control keeps vegetables &
fruits fresh.
SETTING UP THE REFRIGERATOR
MAJOR FEATURES
Once you have performed the following steps, your refrigerator should be fully operational. If not, check
the power supply and electricity source. If you have any questions, contact your SAMSUNG
service center.
Place the refrigerator in an appropriate
location with reasonable clearance between
the wall and the refrigerator.
(refer to installation instructions in this
manual)
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is suffi-
ciently low, you can store food in the
refrigerator. After starting the refrigerator, it
takes a few hours to reach the appropriate
temperature.
You can arrange the Power cable with this
Cable tie, after you plug in the refrigerator.
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
Cable tie
DA68-01606A-0.0 9/2/06 10:47 AM Page 4

5
OPERATING INSTRUCTIONS
CONTROL PANEL
ICE TYPE BUTTON
Use this button to choose Cubed or Crushed ice
or Ice off.
FREEZER TEMP. BUTTON
To set the freezer temperature, press the button
repeatedly to change the set temperature in
sequence between cold and coldest.
POWER FREEZE BUTTON
Speeds up the freezing process in the freezer.
CHILD LOCK BUTTON
When this button is pressed for 3seconds, all
functions are locked and can not be modified.
The water and ice dispenser are locked.
FRIDGE TEMP. BUTTON
To set the fridge temperature, press the button
repeatedly to change the set temperature in
sequence between cool and coolest.
FILTER RESET BUTTON
When the water filter is replaced, reset the indica-
tor by pressing the button for 3 seconds.
DA68-01606A-0.0 9/2/06 10:47 AM Page 5

6
DIGITAL PANEL
•This light goes on when you press the Power Freezer button.
Power Freeze speeds up the freezing process.
•If you select Power Freeze, the interior temperature of the freezer will decrease
for 2 hr.30 min.
•Press the Power Freeze button again to cancel the Power Freeze function.
•This feature enables you to get ice faster.
If you use this function, energy consumption will increase.
•Press the Ice Type button in sequence to choose
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
•An indicator will light to show the ice type currently
chosen.
Cubed Ice, Crushed Ice and Ice Off
•When the green light changes to orange, it is time to replace the water filter.
If the indicator is red, quick replacement is strongly recommended.
•When the water filter is replaced, reset the indicator by pressing the filter reset
buttons for 3 seconds.
•To turn off this indicator off, press the filter reset buttons for 3 seconds.
Filter Indicator
Child Lock Button
•When this button is pressed for 3sec., all functions are locked and can
not be modified. The water and ice dispenser are also locked.
Power Freeze
DA68-01606A-0.0 9/2/06 10:47 AM Page 6

Push the ice dispenser lever with a cup.
•Place a cup to the dispenser lever line to
prevent ice from dropping out.
7
OPERATING INSTRUCTIONS
ICE and COLD WATER DISPENSER
Ice Dispenser
The ice maker produces 8 cubes at once and about
120 cubes a day automatically. This quantity may be
influenced by factors such as the freezer temperature,
Power Freeze function and the number of door open-
ings. When your refrigerator is plugged in, the Cubed
ice mode is automatically selected .
Water Dispenser
The capacity of the water tank is approximely 0.3
gal.
Cold Water
•
Push the water dispenser lever with a cup.
•
If you have just installed the
refrigerator ,
throw away the first six glassfuls of water to
flush out impurities in the water supply sys-
tem.
If you won’t use the water or ice
dispensers for a long period of
time (long vacation or business
trip), close the water valve and
shut off the water supply to the
refrigerator.
Otherwise, water leakage may
occur.
Push
Push
CAUTION
CAUTION
Preparing for Vacation
Set the Ice Type to the ICE OFF
position and shut off the water
supply to the refrigerator.
TEMPERATURE CONTROL
Cool Down Period
•To ensure safe food storage, allow the refrigerator to operate with the doors closed for 8 to 12 hours before load-
ing it with food.
Temperature Adjustment
•After 24 hours, adjust the controls as needed. Adjust temperature gradually: push the button in small increments,
allowing the temperature to stabilize.
•Press the button(Freezer Temp or Fridge Temp) repeatedly until the desired temperature is set.
•For lower temperature, press the button(Freezer Temp or Fridge Temp) until more LEDs light (coldest).
•For higher temperature, press the button(Freezer Temp or Fridge Temp) until less LEDs light (cold).
freeze freeze freeze freeze freeze
For example:
• When ice cream is stored at a higher temperature than setting 2 in the Freezer, it may melt.
• When you put ice cream back into the freezer compartment after it has been exposed to room
temperature, it may harden.
WARNING
No ice
For Cubed ice
For Crushed ice
For ice off
Normal
Higher Temperature(cold) Lower Temperature(coldest)
Never put fingers or any other objects in the
dispenser opening. It may cause injury.
NOTE
•Cubed ice
•Crushed ice
•No ice
Press the Ice Type button to select the type of ice:
Step 1 Step 2 Step 3 Step 4 Step 5
DA68-01606A-0.0 9/2/06 10:47 AM Page 7

Dairy Compartment
Light Switch
Deli Bin
Spill-proof glass Shelf
Vegetable & Fruit Drawer (upper)
Vegetable & Fruit Drawer (lower)
Gallon Door Bins
Egg Container
8
SHELVES and BINS
Freezer
Fridge
Xtra SpaceTM
Ice Maker
Door Bin
Door Bin
Light
Ice Chute
Wire Shelf
Drawers
Front Leg Cover
CAUTION
Preparing to Move
Secure all loose items such as shelves and drawers by taping them securely in place to prevent
damage. When using a hand truck to move the refrigerator, do not rest the front or back
of the refrigerator against the hand truck.This could damage the refrigerator. Handle only from the
sides of the refrigerator. Be sure the refrigerator stays in an upright position when moving.
DA68-01606A-0.0 9/2/06 10:47 AM Page 8

9
OPERATING INSTRUCTIONS
FOOD STORAGE GUIDE
FROZEN FOOD STORAGE IN FREEZER
Xtra SpaceTM
•
Can be used for frozen foods such as pizza, pasta, burritos,
and fajitas.
•
In order to prevent odor penetration to the ice, stored food
should be wrapped securely.
WireShelf
•
Can be used to store all types of frozen food.
Door Bin
•
Can be used for small packages of frozen food.
Drawer
•Can be used to store meat and dry foods. Stored food should
be wrapped securely using foil or other suitable wrapping
materials or containers.
Ice chute
WARNING
Do not put your fingers, hands or any other insuitable objects in the chute or ice-maker bucket.
This may result in personal injury or material damage.
DA68-01606A-0.0 9/2/06 10:47 AM Page 9

10
FOOD STORAGE GUIDE
Deli Bin
•
Can be used to store all types of chilled food.
Tempered Spill Proof Glass Shelf
•
Can be used to store all types of chilled food.
•
Safe and break resistant.
•
Circular marks on the glass surface are a normal phenomenon.
Fruit & Vegetable Drawer (Upper and Lower)
• Used to store fruits and vegetables.
• The drawer is airtight. Optimized humidity control design helps to pre-
serve the freshness of stored vegetables and fruits.
• Adjust the “Optimized humidity control”, as needed.
- To keep vegetables and fruits fresher and to help prevent drying, set the
“Optimized humidity control” to “High”.
- To reduce the time it takes to lower the temperature in the drawer, set
the “Optimized humidity control” to “Low”.
CHILLED FOOD STORAGE IN FRIDGE
High Low
High Low
Dairy Compartment
• Can be used to store butter, margarine.
Gallon Door Bins
• Can be used to store foods in packages, such as milk and yogurt.
Egg Container
•
Put eggs in the container and place them on the shelf.
CAUTION
Bottles should be stored tightly together so that they do not
fall out.
Storage Drawers
Excess water that may accumulate in the bottom of the
drawers should be wiped dry.
NOTE
DA68-01606A-0.0 9/2/06 10:47 AM Page 10

11
OPERATING INSTRUCTIONS
REMOVING THE FREEZER ACCESSORIES
Wire Shelf
•
Pull the shelf out as far as
it goes. Then lift it up and
remove it.
Door Bin
•
Hold the door bin with both
hands and then lift it up.
Drawer
•
Remove the drawer by
pulling it out and lifting it up
slightly.
Ice Maker Bucket
•
Remove the bucket by lift-
ing up and pulling out.
Front Leg Cover
•
Open the freezer and fridge
doors, remove three screws
and detach the cover.
•
To reattach the front leg
cover, put it back to original
position and tighten the three screws.
NOTE
REMOVING THE FRIDGE ACCESSORIES
Spill Proof Glass Shelf
•Pull the shelf out as far as it will go. Then lift it up and gently remove it.
Vegetable & Fruit Drawer
•Remove the drawer by holding the handle, pulling the drawer out, and then
lifting up the back side of the drawer bottom smoothly with the other hand.
Deli Bin
•Remove the drawer by holding the handle, pulling the drawer out, and then
lifting up the back side of the drawer bottom smoothly with the other hand.
Gallon Door Bin
•Hold the bin with both hands and remove it by lifting it up.
NOTE
•Before removing the freezer and fridge accessories, please remove the stored foods.
• Do not use excessive force when
removing the cover. It may cause an
injury.
DA68-01606A-0.0 9/2/06 10:47 AM Page 11

12

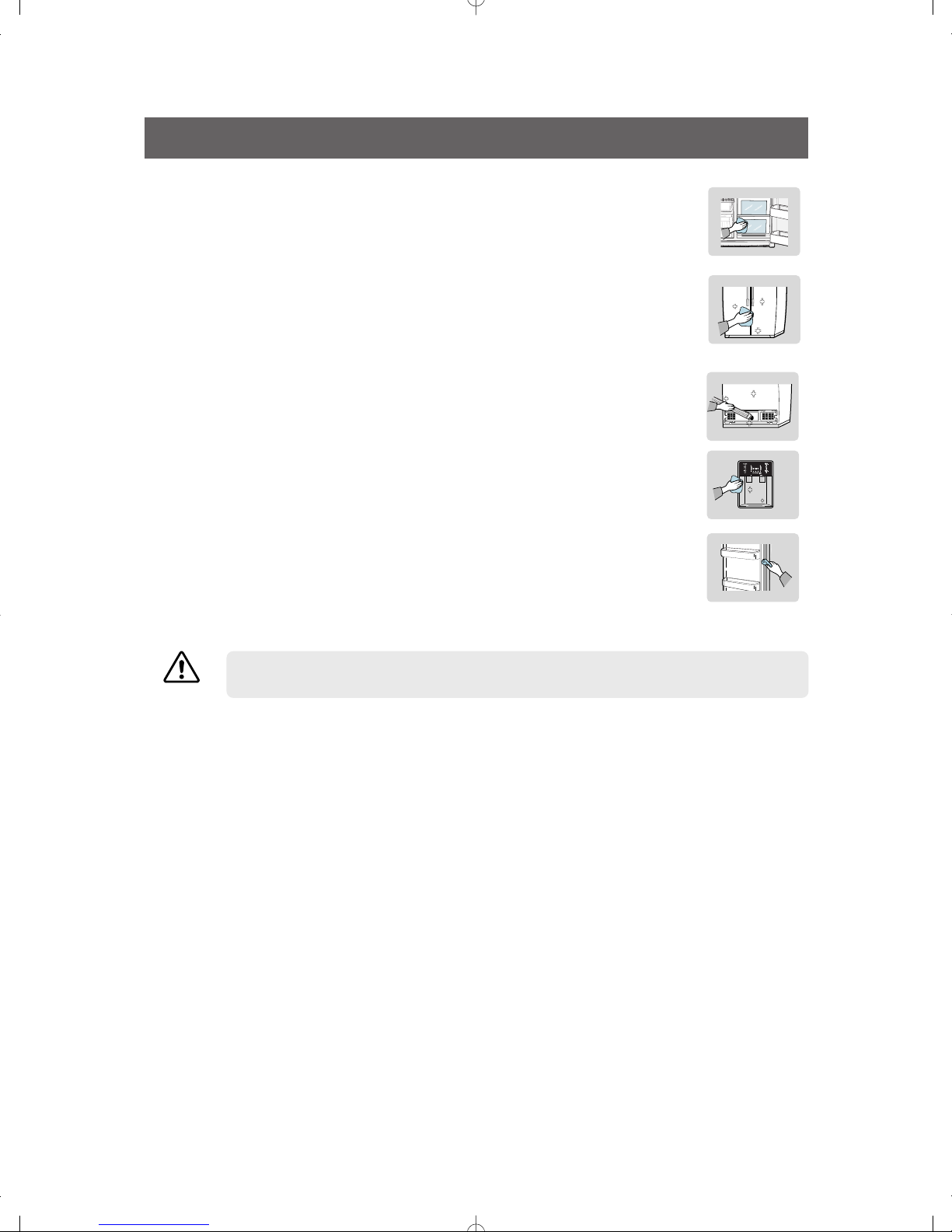

CARE AND CLEANING
•
Do not spray the refrigerator with water. It may cause an electric shock.
•
Do not clean it with benzene, thinner or car detergent. It may cause a fire.
Interior
•
Clean the accessories with a mild detergent, then wipe out with a dry cloth.
•
After washing the accessories, make sure that they are dry before using them again.
Exterior
•
Wipe the digital panel and display panel with a clean cloth.
•
Clean the surface of doors, handles and cabinet with a mild detergent and soft cloth, then
wipe off the surface with a dry cloth.
- Do not use Benzene, Thinner and CloroxTM for cleaning
- Do not spray water directly on the surface of refrigerator while cleaning.
•
The exterior part of refrigerator should be polished once or twice a year.
Rear
• Use a vacuum cleaner to remove dust once or twice a year.
Ice and water dispenser
• Before cleaning, lock the dispensor by pressing the Child lock button. Use a damp cloth to
clean the ice and water dispenser. Then wipe it out with a dry cloth.
•
To keep the drainage grid dry, do not touch the ice and water dispenser without a cup or glass
in place.
Rubber door seals
•
If the rubber door seals are dirty, the door will not close properly, The refrigerator will not be
able to function efficiently. Clean the doors with a mild detergent and damp cloth. Then wipe
with a dry cloth.
WARNING
DA68-01606A-0.0 9/2/06 10:47 AM Page 12

13
OPERATING INSTRUCTIONS
CHANGING THE INTERIOR LIGHT
WARNING
INTERIOR LIGHT IN THE FRIDGE
Before changing the interior lights, unplug the refrigerator from the power supply. If you
have difficulty in changing the lights, contact your service center.
•Light bulbs may be hot.
CAUTION
NOTE
•Replacement bulbs for both the freezer and fridge are at available retail outlets such as Wal-mart,
The Home Depot and Lowe's.
Use replacement bulb size A15, maximum 40 watts.
INTERIOR LIGHT IN THE FREEZER
NOTE
Use a screwdriver to remove
the light cover (
➀
).
Replace the bulb with a new
one (
➁
)
Reattach the light cover.
•Replacement bulbs for both the freezer and fridge are at available retail outlets such as Wal-mart,
The Home Depot and Lowe's.
Use replacement bulb size A15, maximum 40 watts.
The freezer light is located in the bottom of the auger motor case.
Place a flat screwdriver under
the light cover hooks and
remove it by pushing and
lifting in the direction of the
arrow.
After changing the bulb, reattach
the light cover.
A15
40W
A15
40W
DA68-01606A-0.0 9/2/06 10:47 AM Page 13

WATER FILTER
14
The water “Filter Indicator” light
•
“Filter Indicator” light lets you know when it is time to change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red or every six months.
(see “Install the water filter” section on the page 26 for more information.)
Using the dispenser without the water filter
•
You can not use the water and ice dispenser without a water filter cartridge because the water line
blocks at the water supply.
Ordering replacement filters
•
To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003A or contact your authorized Samsung dealer.
DOORS
The refrigerator doors have a special door opening and closing feature to make sure they close all the
way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
DA68-01606A-0.0 9/2/06 10:47 AM Page 14

15
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE REFRIGERATOR
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Dimension
(inches)
Width
Capacity (Cu. Ft)
Model RS2530B**
24.8
35.9"
68.7"
70"
34.8"
28.9"
without hinge
with hinge
with handle
without door
Case Height
Depth
Checking the Dimensions of your Entrance Door
NOTE
1 inch
1/8 inch
1 inch
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Before disassembling the freezer door, the water supply line needs to be disconnected.
(If not, the water supply line may be damaged.)
• See “Separating the water supply line from the refrigerator” on the next page.
Selecting the Location for the Refrigerator
Allow sufficient space to circulate the air at the internal cooling system.
•When the refrigerator doesn't have enough space, the internal cooling system may not work correctly.
NOTE
• Allow clearance to the right, left, back and top when installing the refrigerator.
This has the advantage of reducing power consumption.
• Do not install the refrigerator where the temperature will go below 50°F(10°C).
DA68-01606A-0.0 9/2/06 10:48 AM Page 15

16
REMOVING THE REFRIGERATOR DOORS
Remove the water tube by pressing the coupler (➁) and pulling the water tube (➀) away.
Open the freezer and fridge doors, and then take off the front leg cover by turning the
three screws counter-clockwise.
FRONT LEG COVER
SCREW
Removing the Front Leg Cover
Separating the Water Supply Line from the Refrigerator
NOTE
Be careful not to cut the water tube when separating it from the coupler.
DA68-01606A-0.0 9/2/06 10:48 AM Page 16

17
INSTALLATION INSTRUCTIONS
REMOVING THE REFRIGERATOR DOORS
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver, and then disconnect the
wires (➁)
2) Remove hinge screws (➂) and ground screw (④) counter-clockwise, and take off the upper hinge (➄)
in the direction of the arrow (➅). Be careful when removing the door to ensure that it does not fall on
you.
3) Remove the door from the lower hinge (
➆
) by
carefully lifting the door (➇).
4) Remove the lower hinge (⑨) from the bracket
lower hinge (⑨) by lifting the lower hinge ( ) in
the direction of the arrow.
Removing the Freezer Door
•Lift the door straight up.
•Be careful not to pinch the water tubing and wire harness on the door.
•Place doors on a protected surface.
NOTE
NOTE
Be careful not to pinch the water tubing and the wire harness at the bottom of the door.
CAUTION
Unplug the refrigerator before removing the doors.
10
DA68-01606A-0.0 9/2/06 10:48 AM Page 17

18
REMOVING THE REFRIGERATOR DOORS
3) Remove the door from the lower hinge (➅) by
lifting the door (➆).
4) Remove the lower hinge ( ➇ ) from the bracket
(➈) by lifting the lower hinge ( ➇ ).
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver
2) Remove hinge screws (➁) and ground screw (➂) counter-clockwise, and take off the upper hinge
(④) in the direction of the arrow (➄). Be careful when removing the door to ensure that it does not
fall on you.
Removing the Fridge Door
CAUTION
Unplug the refrigerator before removing the doors.
DA68-01606A-0.0 9/2/06 10:48 AM Page 18

5
8
10
7
6
9
19
INSTALLATION INSTRUCTIONS
Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS
4) Connect the wires. 5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
from the front part of the upper hinge cover first.
9
10
3) Insert the upper hinge shaft (➄) into the hole on the top of the door (➅). After levelling between the upper
hinge hole (➆) and cabinet hole (➇), reattach the hinge screws (⑨) and ground screw ( ) in a clockwise
direction.
9
10
10
1) Insert the lower hinge (➀) in the bracket lower
hinge (➁).
2) Before reattaching the freezer door, insert the
hose (➂) in the lower side of the door into the hole
in the lower hinge (➃) and pull the hose down.
Lower the door onto the lower hinge (➃) .
DA68-01606A-0.0 9/2/06 10:48 AM Page 19

20
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Fridge Door
1) Insert the lower hinge (➀) in the bracket lower
hinge (➁).
2) Place the hole in the fridge door (➂) over the
lower hinge (➃).
Lower the door onto the hinge.
3) Insert the upper hinge shaft (➄) into the hole at the top of the door(➅). After levelling between the
upper hinge hole (➆) and cabinet hole( ➇ ), reattach the hinge screws ( ) and ground screw ( ) in
the clockwise direction.
7
6
5
8
9
4) Connect the wire. 5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
it from the front part of the upper hinge cover first.
910
11
12
DA68-01606A-0.0 9/2/06 10:48 AM Page 20
