Samsung RS64R55 Series User manual

English............................................ 1
French - Français ........................10
German - Deutsch ......................19
Dutch - Nederlands................... 28
Italian - Italiano ..........................37
Portuguese - Português........... 46
Spanish - Español...................... 55
Hungarian - Magyar.................. 64
Polish - Polski..............................73
Czech - Čeština........................... 82
Slovakian - Slovenčina...............91
Romanian - Română................100
Serbian - Srpski........................ 109
Greek - ελληνικά.......................118
Bulgarian - Български............127
Croation - Hrvatski...................136
Albanian - Shqip .......................145
Macedonian - Македонски ....154
Latvian - Latviešu.....................163
Estonian - Eesti keel ................172
Lithuanian - Lietuvių kalba.....181
Danish - Dansk......................... 190
Norwegian - Norsk...................199
Finnish - Suomi ........................208
Swedish - Svenska....................217
Slovenian - Slovenščina ......... 226

English - 1
User servicing manual
1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts
available for purchase. The model code is labelled on the outer side of your product.
‐You can check the model code and version on the barcode label at the bottom left of the
product.
3. For replacement parts, make sure the part name matches that of the illustration in this
manual.
‐User-serviceable parts are limited to handles (some models only), gaskets, drawers, and
hinges.
NOTE
Following the repair by a non-authorised service provider, self-repairor non-professional repair
of the product, Samsung is not liable for any damage to the product, any injury or any other
product safety issue caused by any attempt to repairthe product which does not carefully
follow these repair and maintenance instructions. Any damage to the product caused by an
attempt to repair the product by any person other than a Samsung certiÿed service providerwill
not be covered by the warranty.
CAUTION
•The part name listed on the site may di°er from that in this manual. Please make sure you
choose the right part name.
•Replacing hinges requires extreme caution because it involves detaching the door.
•Be sure to wear safety gloves while making repairs.

English - 2

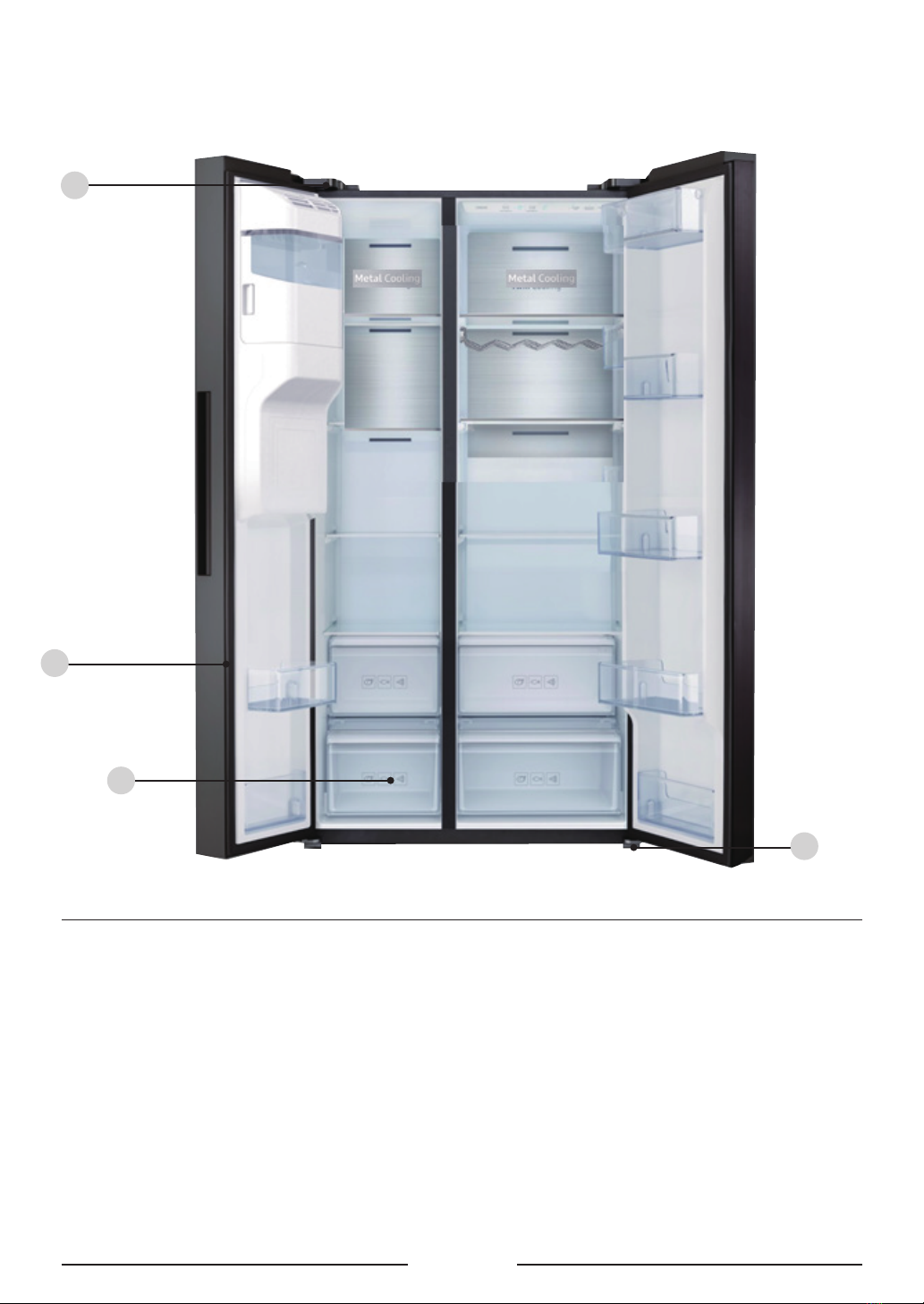

01 Top hinge (Left and Right) 02 Gasket (Ref and Fre Door)
03 Drawer (Tray and Basket) 04 Bottom hinge (Left and Right)
The actual image and provided parts of the refrigerator may differ, depending on the model and
the country.
01
02
03
04

English - 3

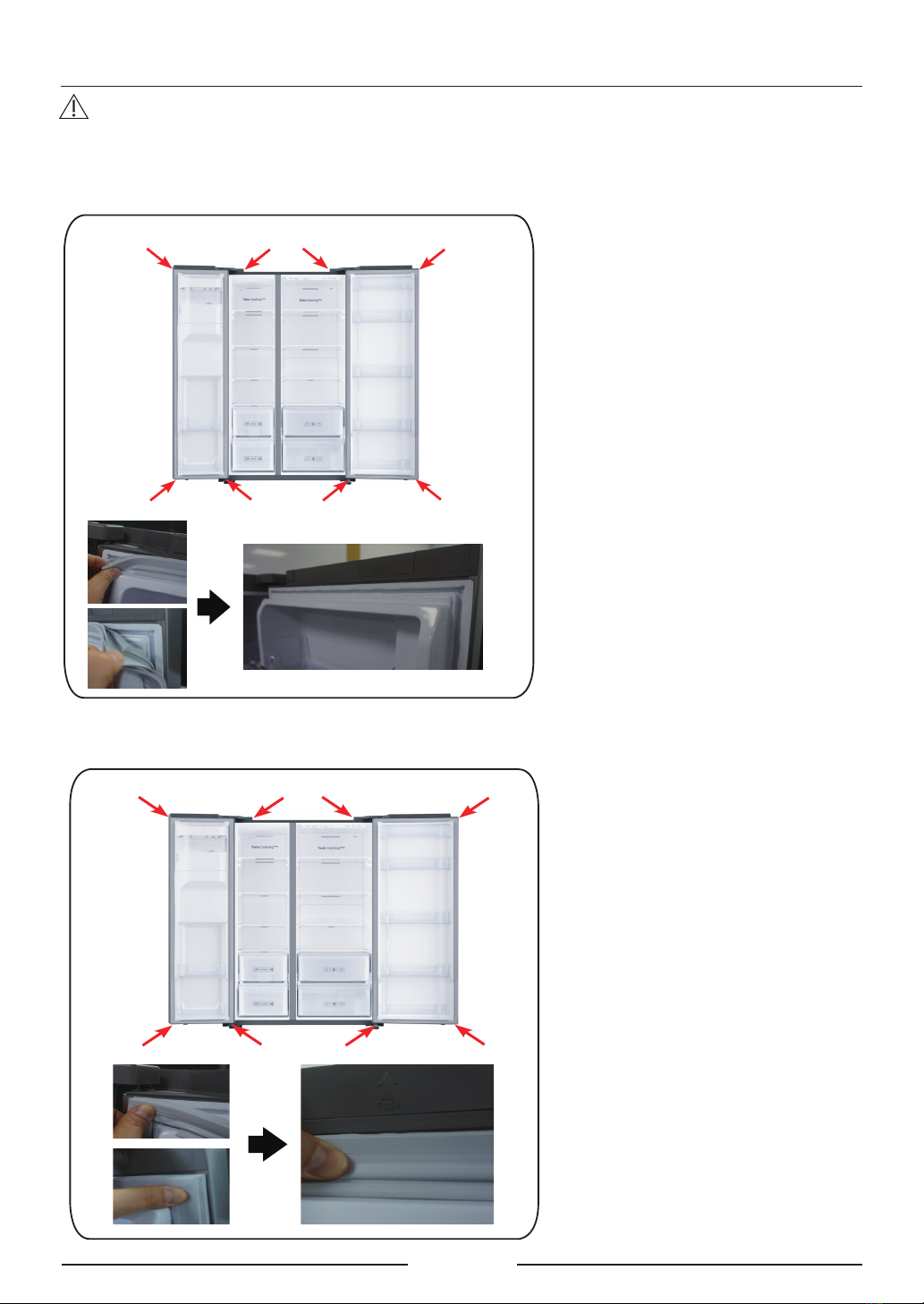

Gasket replacement
CAUTION
Make sure you firmly attach the gasket. Otherwise, cold airfrom the refrigerator may leak.
To remove the gasket
Open the door and remove the
gasket from the door.
[Disassembly]
1. Pull the 4 corners of gasket.
2. Pull the center of gasket.
To replace the gasket
Attach a new gasket to the
refrigerator door.
Make sure there is no gap between
the new gasket and the door.
[Assembly]
1. Push the 4 corners of gasket.
2. Push the center of gasket.
Pull the cornerof Gasket
Push the cornerof Gasket

English - 4
Drawerreplacement
CAUTION
Check that the drawer is inserted properly into the rail during assembly.
To remove the gasket
Gently lift up the front of the drawer and
slide it out.
To reattach the drawers
Reattaching the drawers follows the reverse order of their respective removal steps.
Reattaching the drawers follows the reverse
order of their respective removal steps.

English - 5
Hinge replacement

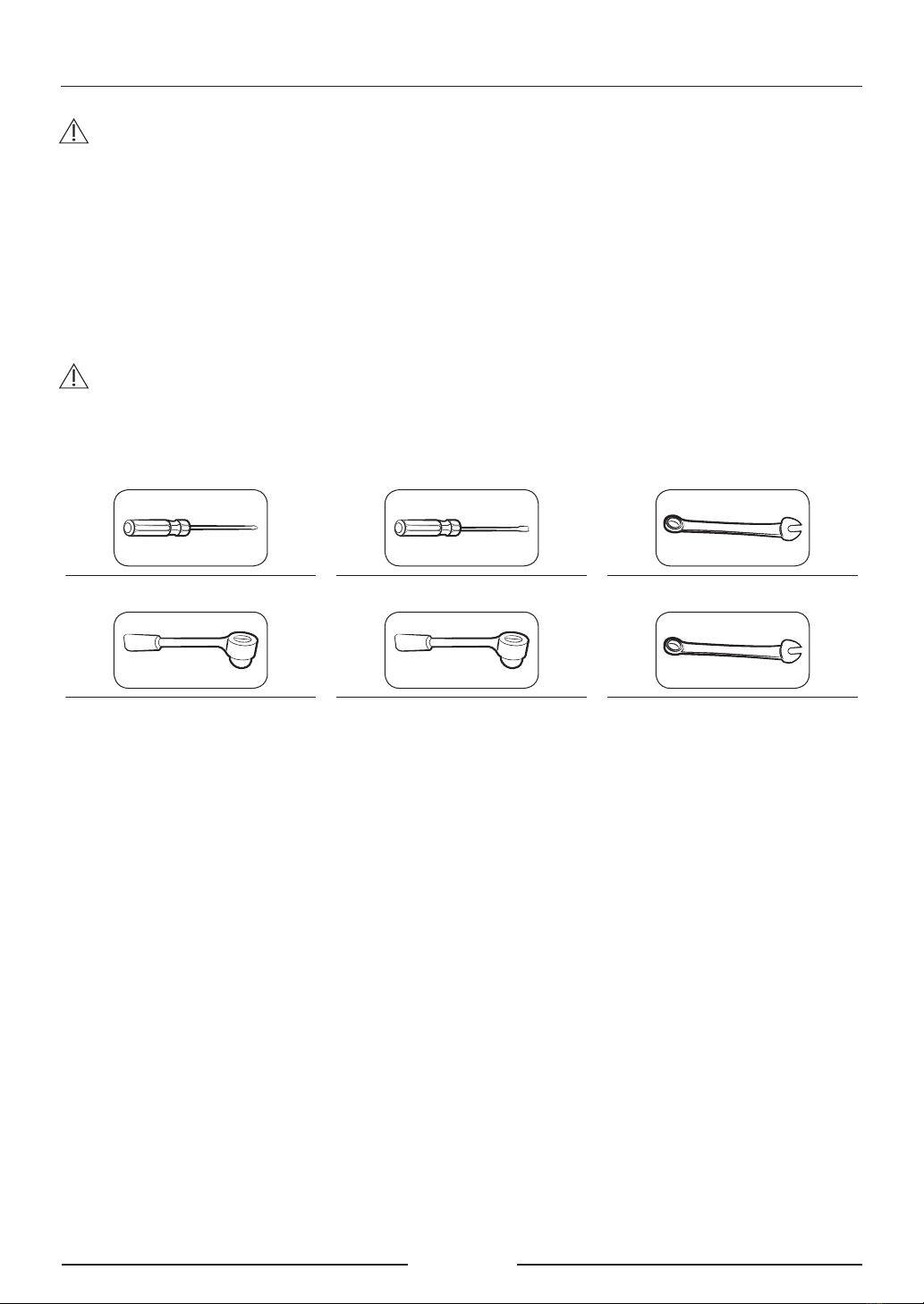

Tools required (not provided)
Philips screwdriver Flat-head screwdriver 11 mm spanner
10 mm socketwrench 8 mm socketwrench 10 mm spanner
To replace the hinges, you must remove the doors ÿrst.
CAUTION
•When removing the doors, take extreme caution because the doors are heavy.
•Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent
scratches on the doorwhen you place the doors down.
•As the hinges must be handled carefully and replaced by two or more persons, we
recommend you to call forprofessional technical service.
•If you remove the hinge without holding the door, the door may fall and cause injury.
•Ensure that the shaft is rmly tightened on the hinge.
•Check that the hinge is rmly attached to the cabinet.
•Make sure the wire connectors are connected properly.
•Be careful not to damage the wires when fastening the top cover.
WARNING
•Tilting/laying the refrigerator requires a minimum of 2 people.
•Disconnect the power cord before reversing the doors.

English - 6
Hinge replacement
Top Hinge
1. Disconnect the power cord, and
remove1 cover screws using a Phillips
screwdriver.
Then open the Freezer door and pull
the hooks on the sides to loosen the
cover.
Lift up the cover towards you to
detach it.
2. Disconnect the two top housings.
3. Remove the three bolts holding the
hinge.
4. Disassemble the top hinge from the
front of the door.

English - 7
Hinge replacement
Model name looks like this: RS64R55**, RS64R56**, RS65R55**, RS65R56**, RS74R55**,
RS75R56**, RS63R55**, RS63R56**

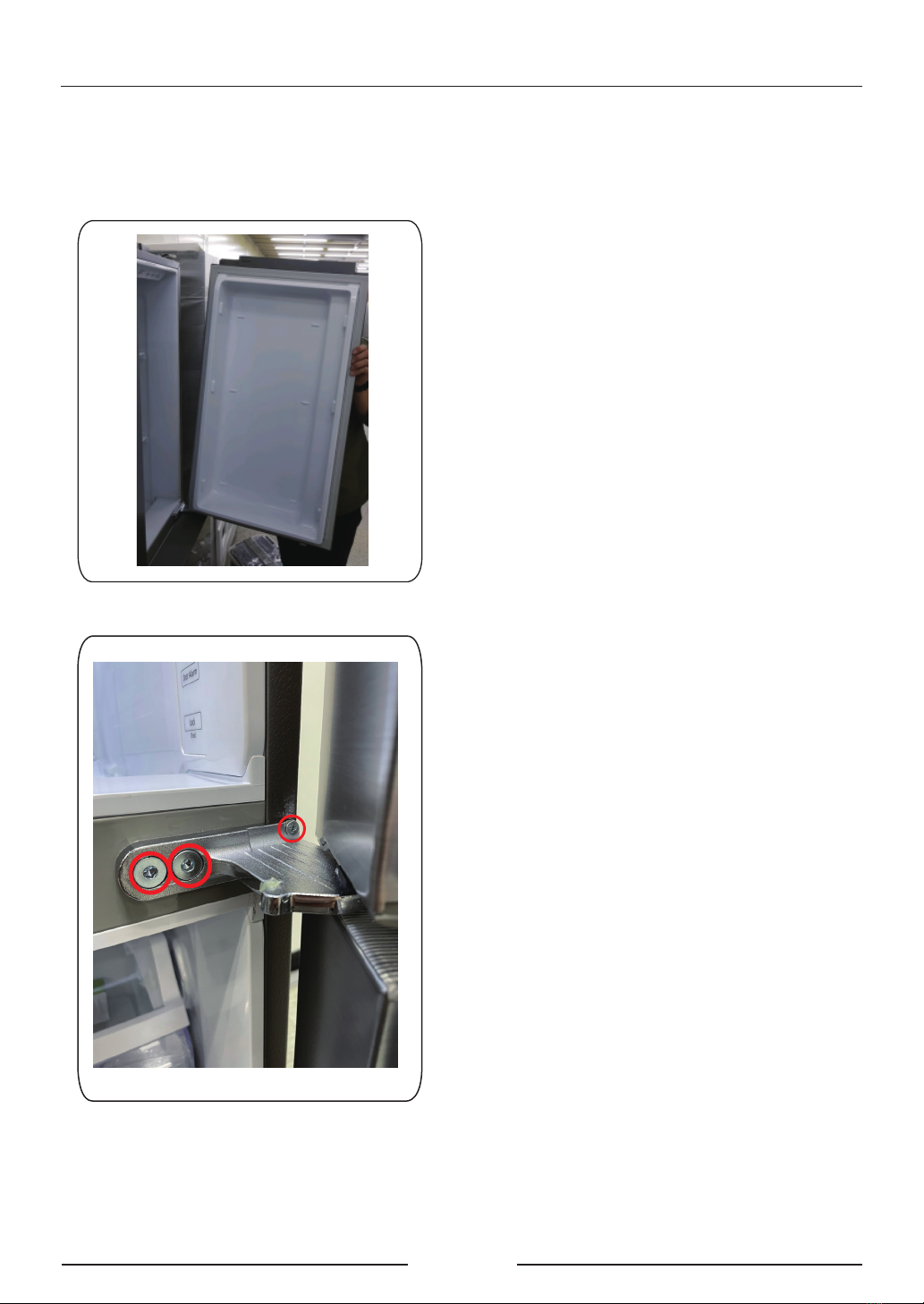

Mid Hinge (Only For 3-Door)
1. After disassemble the top hingerihgt,
disassemble the Fridge door up.
2. Remove the three bolts holding the
hinge, disassemble the Hinge-Mid

English - 8

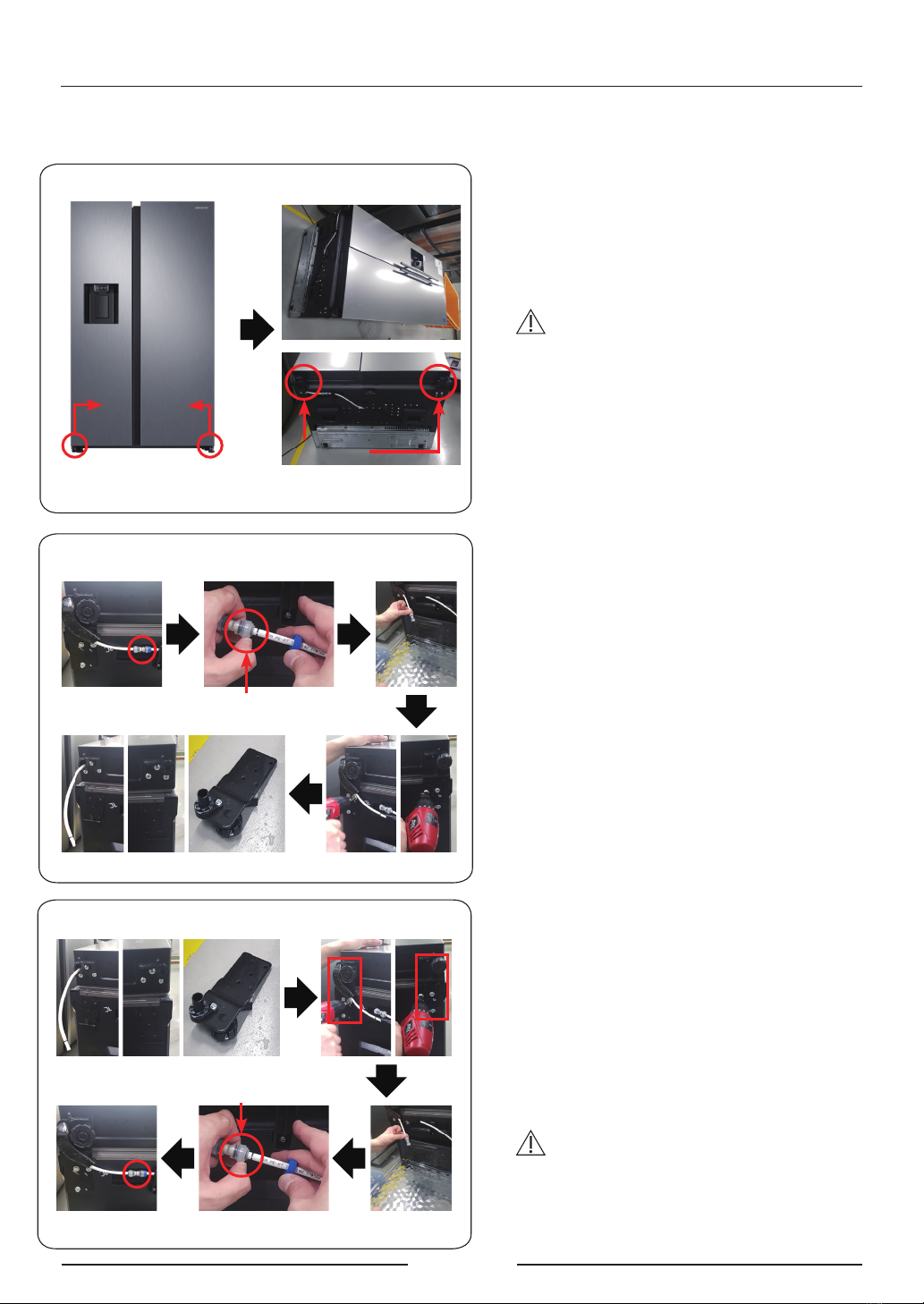

Bottom Hinge
[Disassembly]
1. Disconnect the Power Cord.
2. Lay down the set.
CAUTION
•Must working more than 2 people.
•Be sure to unplug the power cord
beforeperforming the operation
above.
[Disassembly]
1. Disconnect Hose.
(Only Hinge Low Left)
2. Exhaust water in Hose.
(Only Hinge Low Left)
3. Remove Bolt(3ea).
(Using spanner or10mm Box wrench)
4. Remove Hinge Low R/L.
[Assembly]
1. Assemble hinge low on bottom.
(Using spanner or10mm Box wrench)
2. Connect Hose (Only Hinge Low Left)
3. Assemble water in Hose.
(Only Hinge Low Left)
CAUTION
•Be sure to unplug the power cord
before performing the operation
above.
pull the guide and hose
Push the guide and hose
Hinge lowHinge low
Hinge lowHinge low
Hinge replacement

English - 9

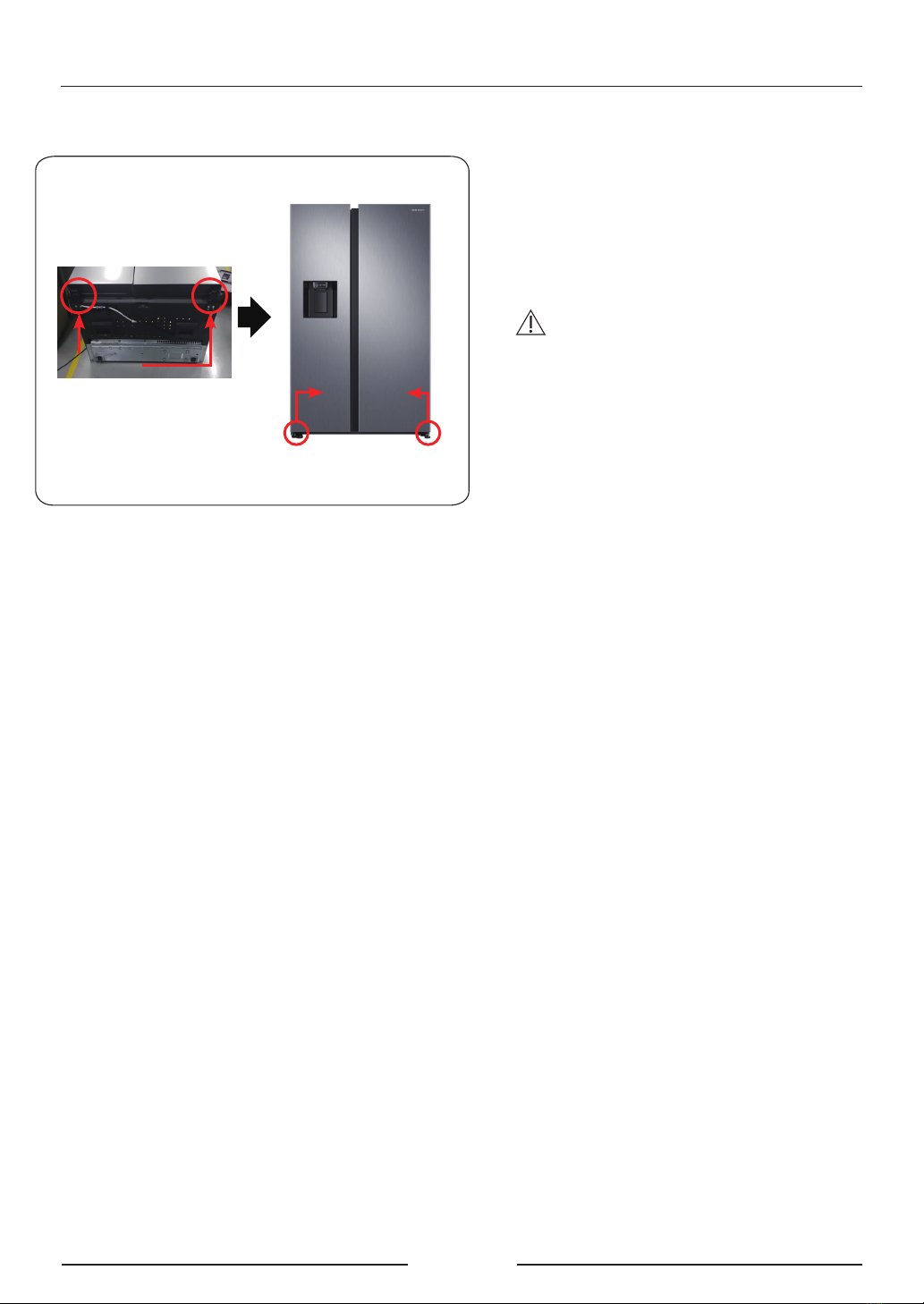

Hinge replacement
Bottom Hinge
[Assembly]
1. Assemble Hinge low R/L.
2. Put up the set.
CAUTION
•Must working more than 2 people.
•Be sure to unplug the power cord
before performing the operation
above.
Hinge lowHinge low
Hinge lowHinge low
