Samsung RT22S User manual

2:1(5·6,16758&7,216
Before operating the unit, please read this manual thoroughly,
and retain for future reference.
5()5,*(5$725
(1*/,6+
576
576

1
%LJDQG:LGH'RRU%LQ
- Increase storage area for keep several food.
%LJ9HJHWDEOH%R[
- Large space for vegtable.
)($785(6
-XPER6WRUDJH*XDUG
- Holds large bottles securely.
6LOYHU1DQR'HRGRUL]HU
- Powerful deodorizer through catalyst and filter.
7ZLVW,FH&XEH7UD\
- Easy to make and dispense ice.

2
This manual is made on the basis of model
RT25S
Date of Purchase :
Model No. :
Serial No. :
FEATURES ......................................... 1

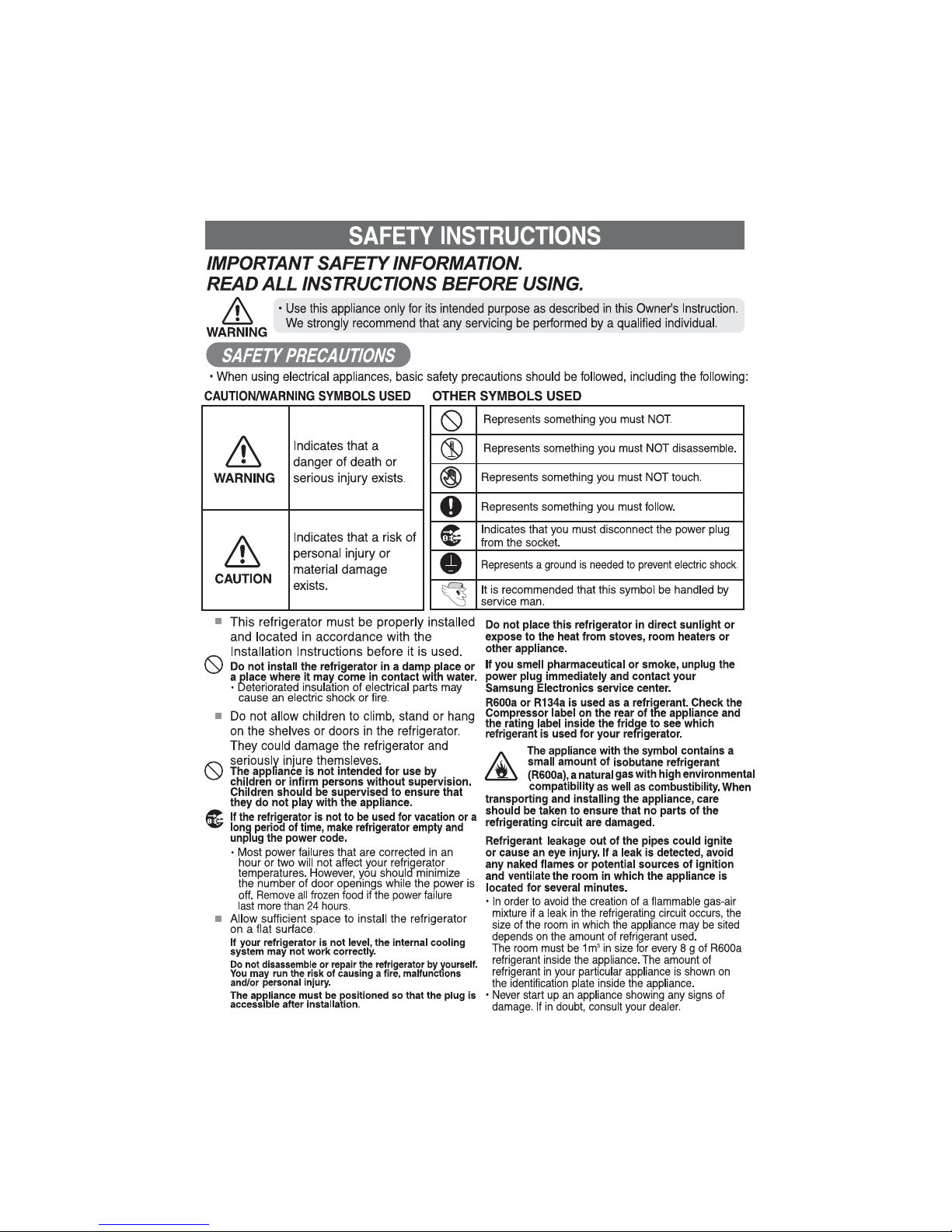

SAFETY INSTRUCTIONS ............... 3~6

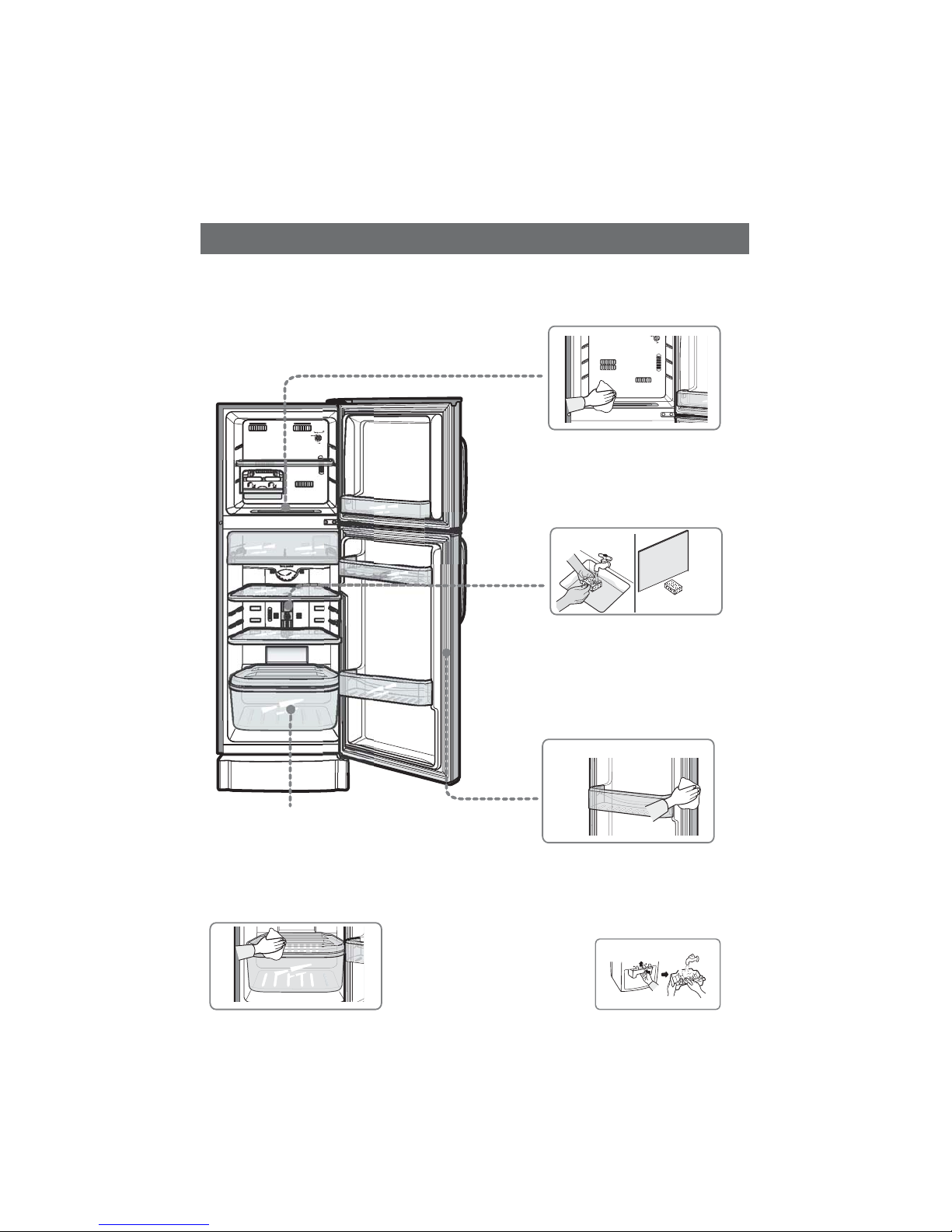

PARTS ................................................ 7
INSTALLATION............................... 8~9
LEVELING THE APPLIANCE............ 10
- Standtable...................................... 10
- Before using................................... 10
CAUTIONS WHILE USING...........11~13
STORING FOOD IN THE
REFRIGERATOR OR FREEZER ....... 13
HOW TO USE ................................... 14
- Temperature control ....................... 14
- Making ice cubes............................ 15
- Chiller compartment ........................ 15
- Vegetable Bin................................. 15
- Storing food.................................... 16
REMOVING ACCESSORIES ....... 17~18
CLEANING THE REFRIGERATOR.... 19
BEFORE CALLING SERVICE ........... 20
Additional tips for proper usage ......... 21
Ambient room temperature limits ....... 22
Contents
Read Instructions.
: Please read all safety and operating precautions
before operating this appliance.
Retain Instructions.
: Please keep this Owner's Manual for future
reference.
Heed Warnings.
: All warnings, Cautions and Notes on this manual
are important ; please pay attention to them.
Follow Instructions.
: For best results, follow all instructions given in
this manual.

3

4

5

6

8
Install this refrigerator on a
firm, flat surface.
For optimum operation,
normal room temperature
is recommended.
Avoid locations
affected by draughts
or dampness.
Allow the enough space for opening
drawers.
Drawers can be easily
opened with this
condition.
,167$//$7,21
1
1
2
2
3
3

9

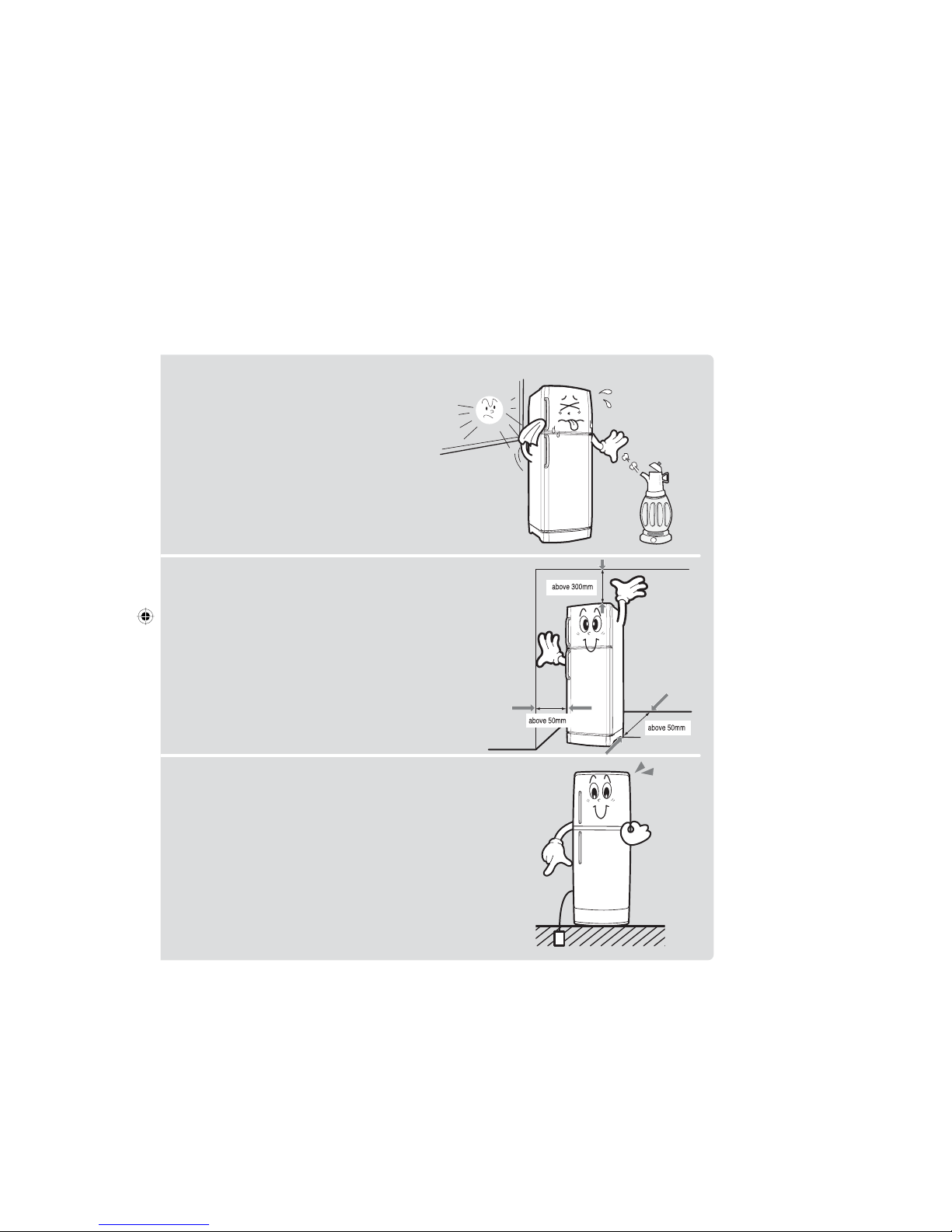

For optimum operation,
normal room temperature is
recommended. Avoid locations
in direct sunlight, near heaters,
radiators, stoves or ovens.
Allow 50mm space between the
refrigerator and the wall. If your
refrigerator is placed in a recessed area,
allow at least 300mm clearance above
the refrigerator.
For personal safety, properly ground this
appliance.
Never use gas pipes, telephone lines or other
potential lightening rods as ground.
4
4
5
5
6
6

:$51,1*
- Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.
- Do not use mechanical devices or any other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type
recommended by the manufacturer.
- When disposing the refrigerators; should be followed the disposal law of your country.
/(9(/,1*7+($33/,$1&(
- When the refrigerator leans to
the left, turn the left front foot
counterclockwise.
- When the refrigerator leans to
the right, turn the left front foot
clockwise.
To compensate for any floor unevenness, adjust the
height of the appliance by turning the adjustable foot
clockwise or counterclockwise. The adjustable foot is at
the front along the lower edge of the refrigerator chassis.
6WDQGWDEOH
127( Standtable is used as base of refrigerator in Thailand
and some contries, If the Standtable is used, the leg
cannot be adjustable. (Standtable is applied by model)
Insert
%HIRUHXVLQJ
Wipe the appliance inside and outside using a cloth
dampened with warm water and a small amount of detergent.
1
Before plugging in for the first time, allow the refrigerator to
stabilize for at least one hour. Allow the freezer compartment
to cool for 2 to 3 hours before storing food.

10

11

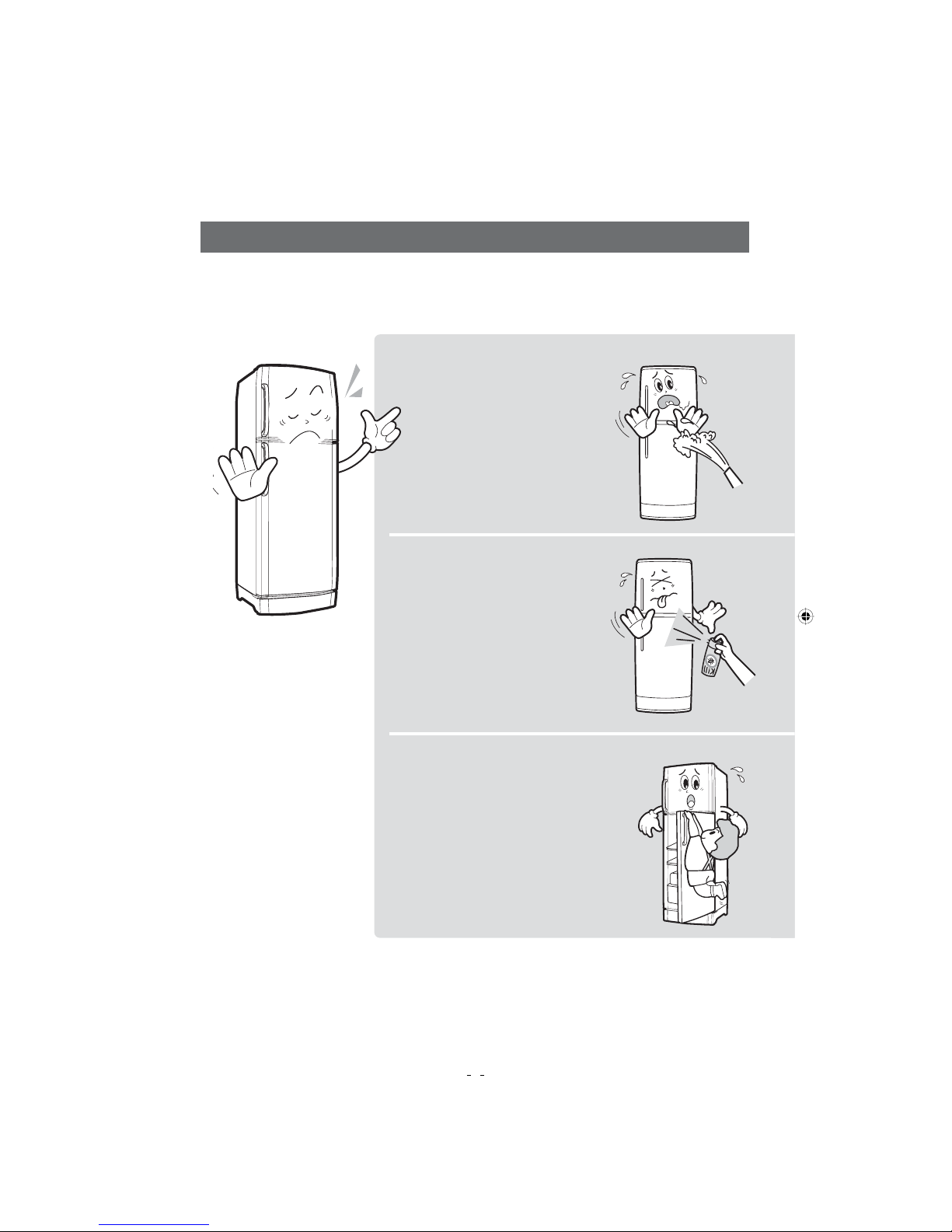

- Do not allow water to splash onto
the back of the refrigerator.
- Water impairs the insulation of
electric parts and may cause
an electrical short or a shock
hazard.
- Do not use flammable sprays
such as lacquer and paint near
the refrigerator.
- Heat from the refrigeration unit
may ignite flammable aerosols.
- Do not allow unattended children
to play in or around refrigerators
and other large appliances.
Children may get hurt or they
could damage the appliance.
- To avoid damage to the refrigerator
or injury to the children, do not
allow children to hang on the
refrigerator door.

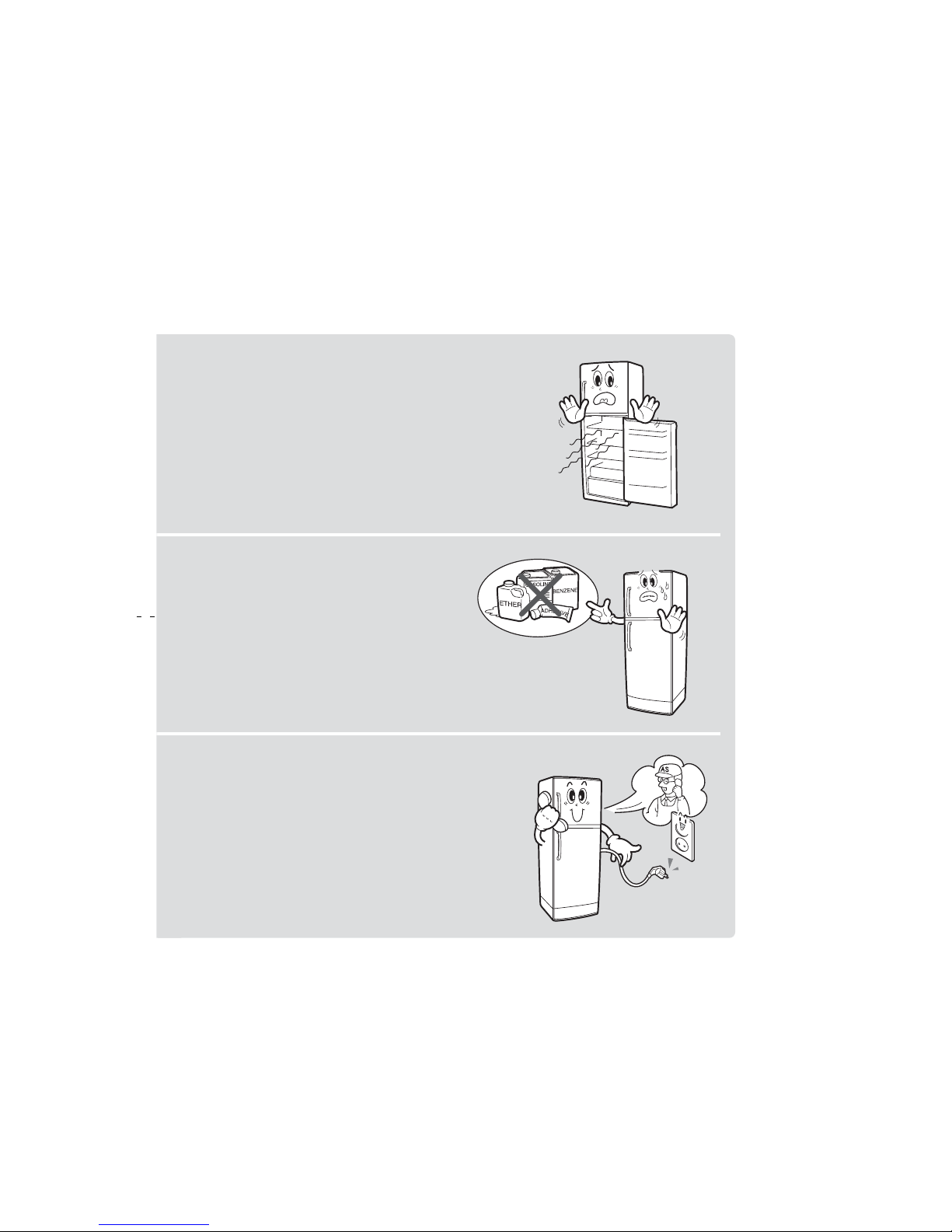

&$87,216:+,/(86,1*
1
1
2
2
3
3

12
- For optimum operation, do not leave the door
open for any longer than necessary.
- Leaving the door open allows warmer air to enter
the refrigerator and causes the refrigeration
unit to use more energy to maintain the cool
temperature.
- Do not store volatile chemicals
such as ether and benzene in the
refrigerator.
- The fumes, besides damaging
food, can build up and cause an
explosion.
- Do not use the refrigerator if it is not operating
correctly or has been damaged. Disconnect
it from the power supply and call your local
service center.
- If the power cord is damaged, avoid a hazard
by replacing it through the manufacturer or its
service agent or a similarly qualified person.
4
4
5
5
6
6

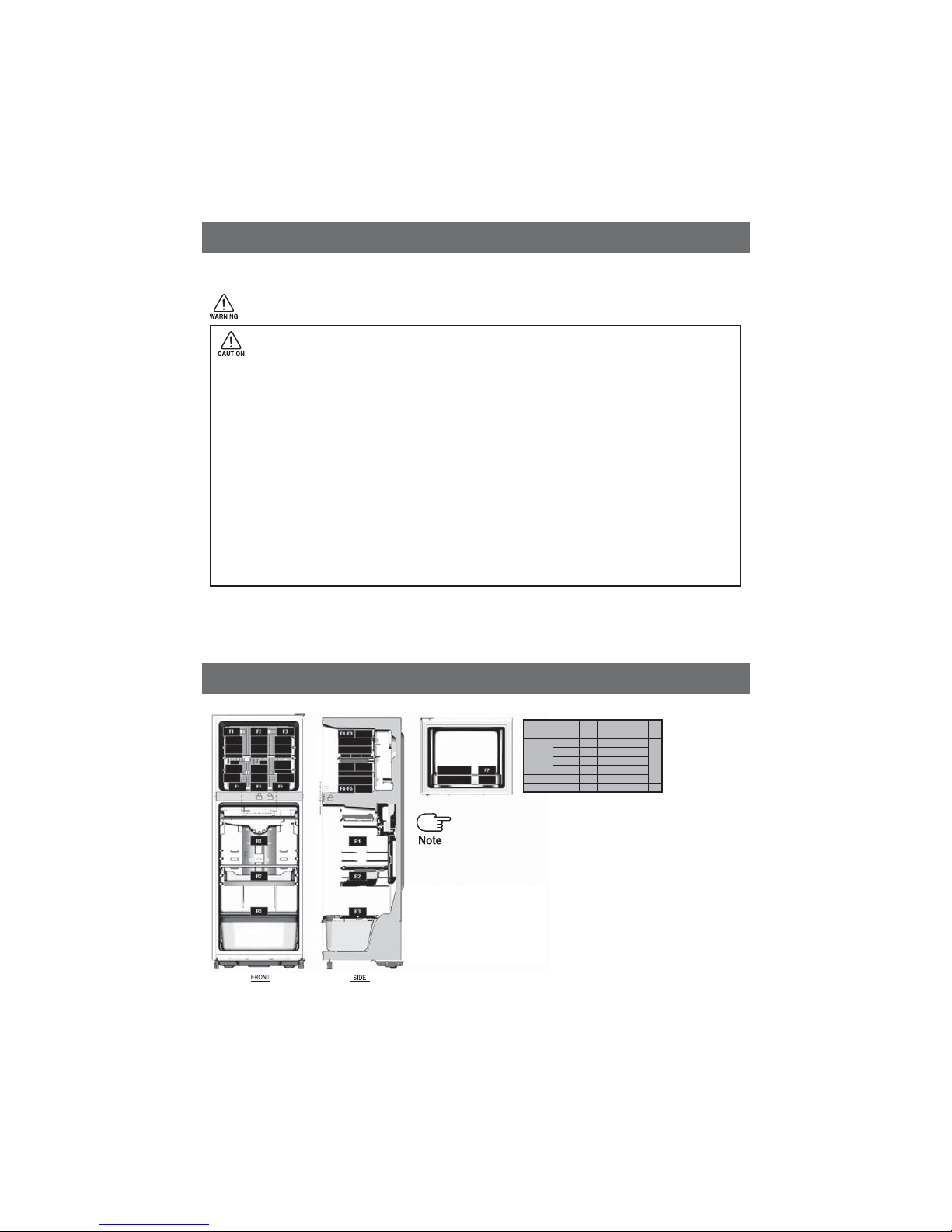

Load Name Dimensions Mass(g) Quantites Total
(kg)
23.13
(Freezer Compartment)
200*100*50
200*100*25
100*100*50
100*50*25
100*100*50
100*100*50
1000
500
500
125
500
500
13(13kg)
1(0.5kg)
8(4kg)
13(1.625kg)
8(4kg)
31.5
(W*D*H)
Test Package
F-M Package
R-M Package
• Manufacturer's recommended storage times should be adhered to. Refer to relevant instructions.
• The appliance might not operate consistently (possibility of defrosting of contens or temperature
becoming too warm in the frozen food compartment) when sited for an extended period of time
below the cold end of the range of temperatures for which the refrigerating appliance is designed.
• Do not store food which goes bad easily at low temperature, such as bananas.
• Your appliance is frost free, which means there is no need to manually defrost your appliance, as
this will be carried out automatically.
• Temperature rising during the defrost can comply with ISO requirement, But If you want to prevent
an undue rise in the temperature of the frozen food while defrosting the appliance, please wrap the
frozen food in several layers of newspaper.
Do not place carbonated or fizzy drinks in the freezer compartment
127(Any increase in temperature of frozen food during defrosting can shorten its storage life.
13
&$87,216:+,/(86,1*
6725,1*)22',17+(5()5,*(5$72525)5((=(5
• To get more space, you can store food with
tray ice removed since it does not affect
thermal and mechanical characteristics.
A declared storage volume of frozen food
storage compartment in calculated with
those drawers removed.

14
Temperature control
(Semi Electric Model)
HOWTOUSE
COLDER
Turn the Temperature Control to "COLDER" if you :
- Have a lot of food to store (refrigerator or freezer)
- Want to make ice quickly(freezer)
- Require fast freezing(freezer)
Between COLD and COLDER
Turn the Temperature Control to the midway
point between "COLDER" and "COLD" for normal
refrigerating or freezing mode.
COLD
Turn the Temperature Control to "COLD" if you want
to store only a small amount of food in the refrigerator
or freezer.
: When the room air surrounding the refrigerator is
below 5°C, turn the Temperature Control to "COLD"
to avoid freezing. In the case of vacation for a long
period consider emptying the refrigerator of food &
disconnecting from the power to conserve power
usage.

15

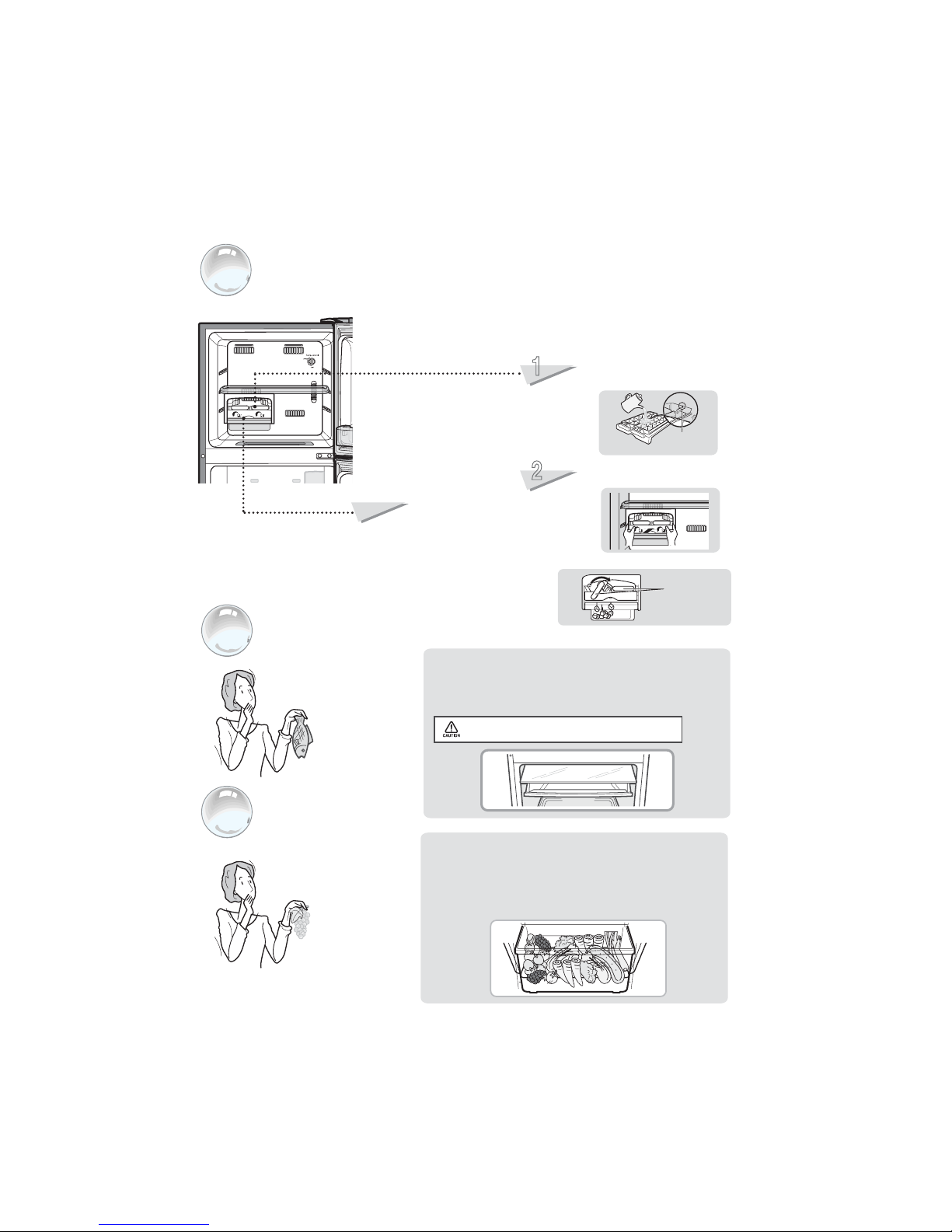

Making ice cubes
Fill the ice cube tray with water. Be
careful not to overfill.
1
Slide the tray onto the cube shelf.
2
Removing Ice cubes
Remove the ice cubes from the ice
cube tray by twisting the ice tray
lever. Make sure the ice
storage bin is beneath the ice cube
tray (see diagram below)
Chiller Compartment
Vegetable Bin
This compartment maintains the moisture and
freshness of vegetables. The vegetable bin is
enclosed to protect the vegetables from direct
draughts of cold air and to help maintain the
humidity which prevents drying.
This compartment helps preserve the taste of food
and prolongs its freshness by freezing the surface
Maximum water
level mark
Ice tray
levers
of the food only. Use the chiller for storing cheese,
meat, snacks, fish or any food to be used soon.
Please close the chill room cover.
If not, guard contents can freeze.

16
Seal food in containers with lids, in
plastic wrap or in plastic bags to prevent
drying and the mingling of odors.
Allow sufficient room between food to
help the circulation of cool air.
Place liquid at the front of the refrigerator
to avoid freezing.
Dry fruits and vegetables after washing
before placing them in the refrigerator.
Storing food
Allow hot food and drinks to cool to room
temperature before placing them in the
refrigerator or freezer.
Store food in small portions.
Avoid placing food at the front of cover vegetable bin,
because the door can not close and food should be
damage.

17
Freezer Shelf
- Pull the ice cube tray unit forward.
- Lift the front of the freezer shelf upward
to release the hooks and pull the shelf
out of the freezer.
Tray ice
- Pull the ice maker toward you.
Refrigerator Shelf
- Pull the shelf towards you until it
meets the stopper.
- Tilt the front of the shelf up and
continue pulling the shelf out.
REMOVING ACCESSORIES
Chiller compartment
- Pull the chiller compartment towards
you until it meets the stopper..
- Till the front upward and continue
pulling the compartment out.

18
Vegetable Bin and Cover
- Pull the vegetable bin toward you until
it meets the stopper.
- Tilt the front of the vegetable bin and
continue pulling the vegetable box.
- Lift the cover up and pull it out of the
refrigerator.
Storage Guards
Lift straight upward to release
the tabs, then pull it out of the
refrigerator.(This bottle storage guard
is not adjustable ; it fits in only one
position. )
- Unplug the appliance duing this
procedure.
- Press upper tab of the lamp cover with a
−driver and remove it. Remove the
existing lamp and replace it with new one.
Use only the correct wattage lamp.
- Replace the lamp cover by aligning the
cover at the top and carefully pressing it
into place until it is secure.
Replacing the lamp
Loosen
Fasten

19
4. Dry all cleaned surfaces with a clean cloth.
5. Plug in the refrigerator and allow 1~2 hours for adequate
cooling before restoring food items.
Interior Parts
After removing all the shelves, wipe
the appliance using a clean, soft cloth
dampened with warm water and a mild
detergent.
CLEANING THE REFRIGERATOR
1. Unplug the refrigerator from the power during this procedure.
2. Remove the food and store safely to avoid a deterioration
3. Clean surfaces with a damp ened cloth and a mild defer gent.
Evaporation Slot in Freezer
Wipe the slot area with a clean, dry, soft cloth.
Caution: Do not allow any foreign substance or
particles to clog these openings.
Evaporation Tray
The evaporation tray is on the back of the
refrigerator
- Pull the refrigerator out and away from the wall.
- Remove all screws securing the avaporation tray.
- Pull the evaporation tray out of the appliance.
- Empty the water out
of the tray and clean
the tray before
replacing it.
Door Seals
Clean the door seals often using a clean, soft cloth
dampened with warm water and a mild detergent.
Be careful not to damage the seals.
Caution: Dirt encrusted door seals prevent the
doors from closing properly. Poorly
closed doors waste energy and add
unnecessary cost to your electricity bills.
The Nano-Silver deodorizer
After removing the deodorizer, lightly wash that
with flowing water under the faucet and
dry that in the shade.
