Samsung RT62K7 Series User manual

English
User servicing manual
MODEL CODE: RT62K7*
1. You may nd the installation, maintenance, repair, cleaning information about the device,
the list of spare parts of the device, and the necessary information for ordering spare
parts that can be supplied by authorized service http://samsung.com/support or call
center 4447711
2. The model code is labelled on the outer side of your product.
- You can check the model code and version on the barcode label at the bottom left of
the product.
3. For replacement parts, make sure the part name matches that of the illustration in this
manual.
- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and
hinges.
NOTE
Following the repair by a non-authorised service provider, self-repair or non-professional
repair of the product, Samsung is not liable for any damage to the product, any injury or
any other product safety issue caused by any attempt to repair the product which does
not carefully follow these repair and maintenance instructions. Any damage to the product
caused by an attempt to repair the product by any person other than a Samsung certied
service provider will not be covered by the warranty.
CAUTION
• The part name listed on the site may differ from that in this manual. Please make sure you
choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.
TMF_RT7000_User-servicing-manual_EN.indd 1 2021-02-04  11:56:58

English
The actual image and provided parts of the refrigerator may differ, depending on the model
and the country.
01
03
06
01
02
03
05
04
06

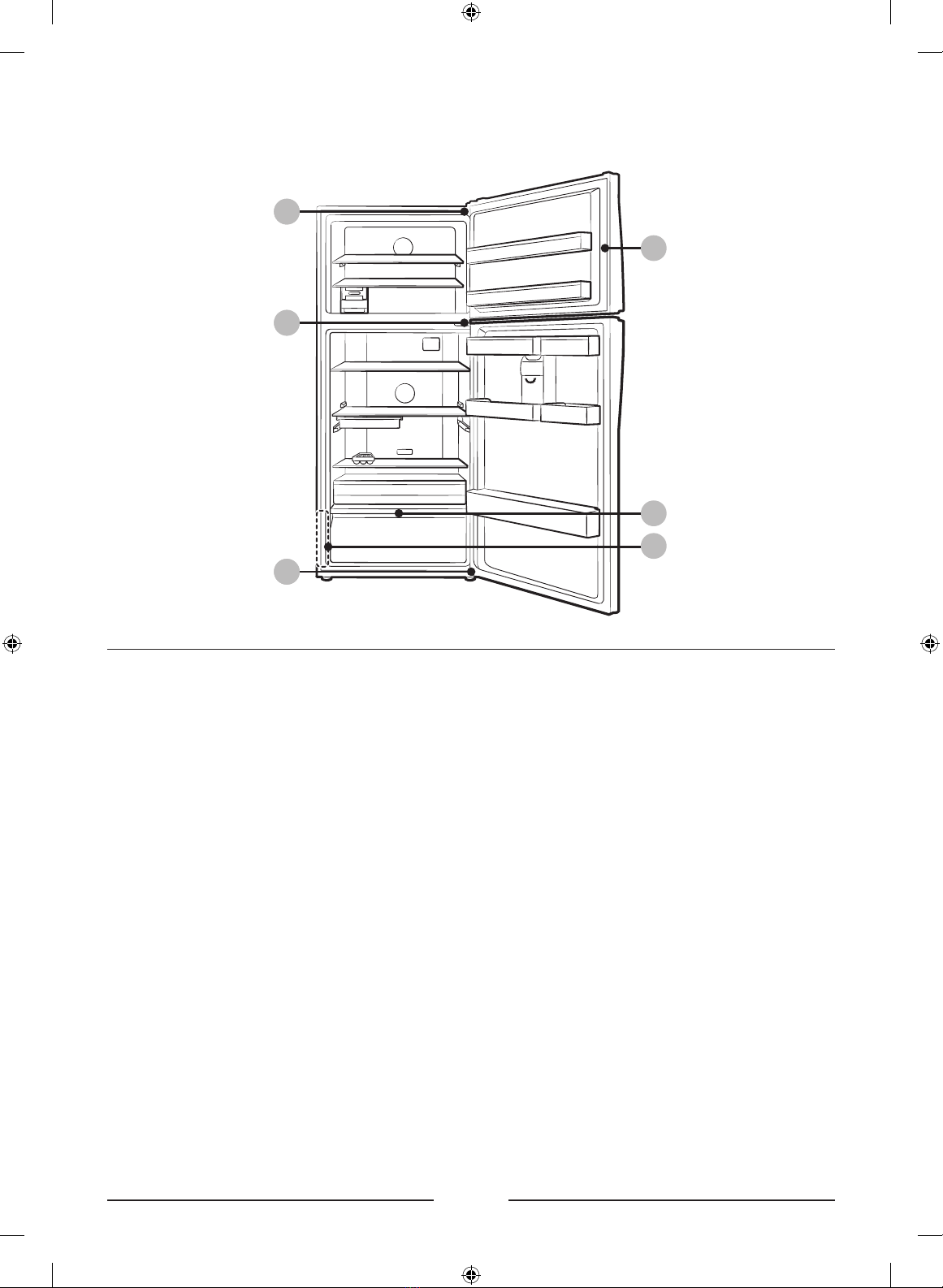

01 Hinge Up 02 Hinge Mid
03 Hinge Low 04 Gasket
05 Drawer 06 Barcode label
TMF_RT7000_User-servicing-manual_EN.indd 2 2021-02-04  11:56:58

English
Handle replacement
CAUTION
• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports
and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is rmly attached before using the product.
To detach the handles
NOTE
This procedure applies to both the fridge and freezer compartment.

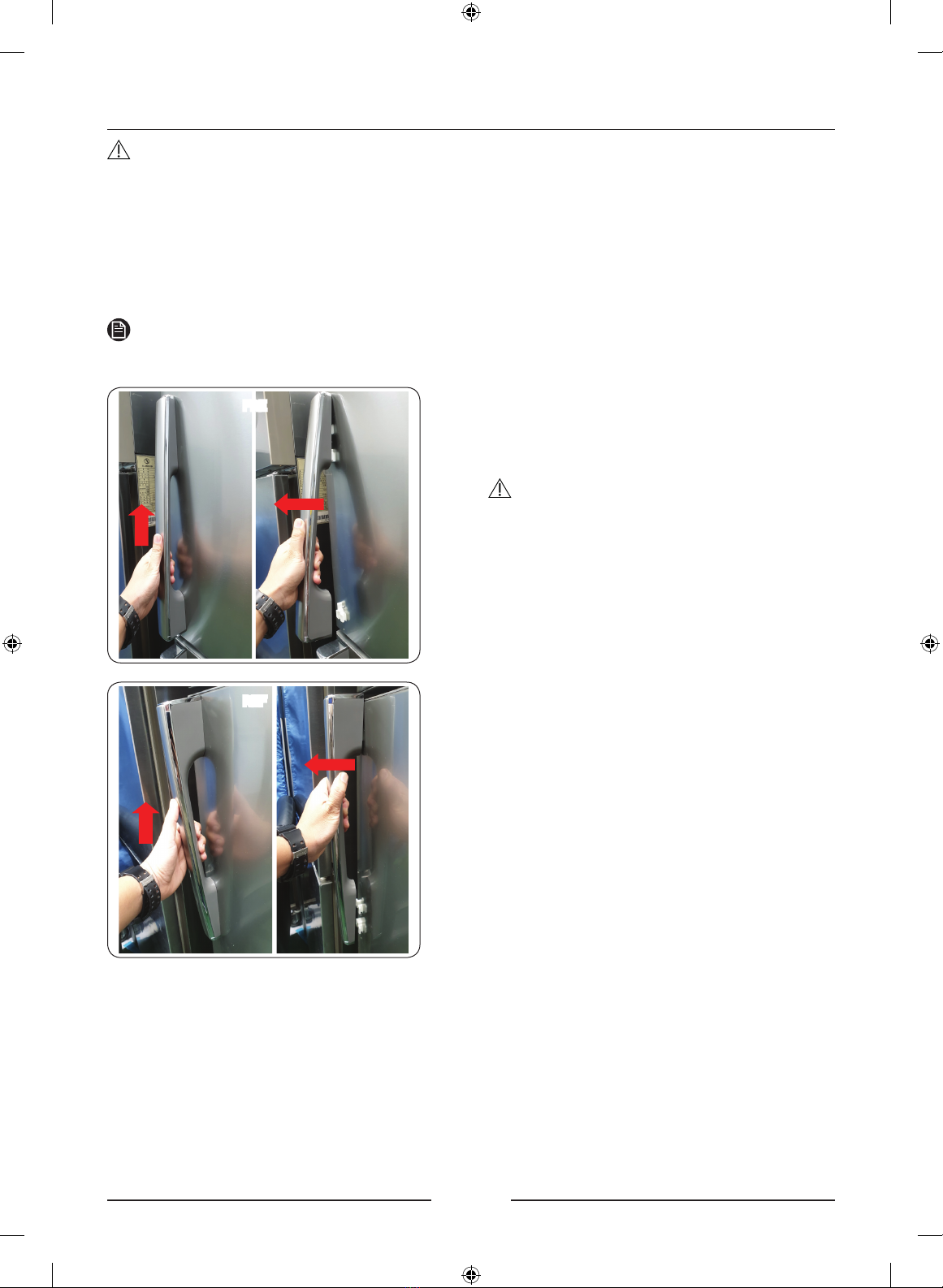

FRE 1. Pull out the handle and hit the handle
vertically. When the handle is released
from the lock To pull the handle toward
you(Refer to the picture)
CAUTION
• Be careful not to scratch.
• When disassembling, make sure the unit
turned off if you want to assembly fellow
the reverse order.
REF
TMF_RT7000_User-servicing-manual_EN.indd 3 2021-02-04  11:56:59

English
Gasket replacement
CAUTION
Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.
To remove the gasket
01
FRE
REF

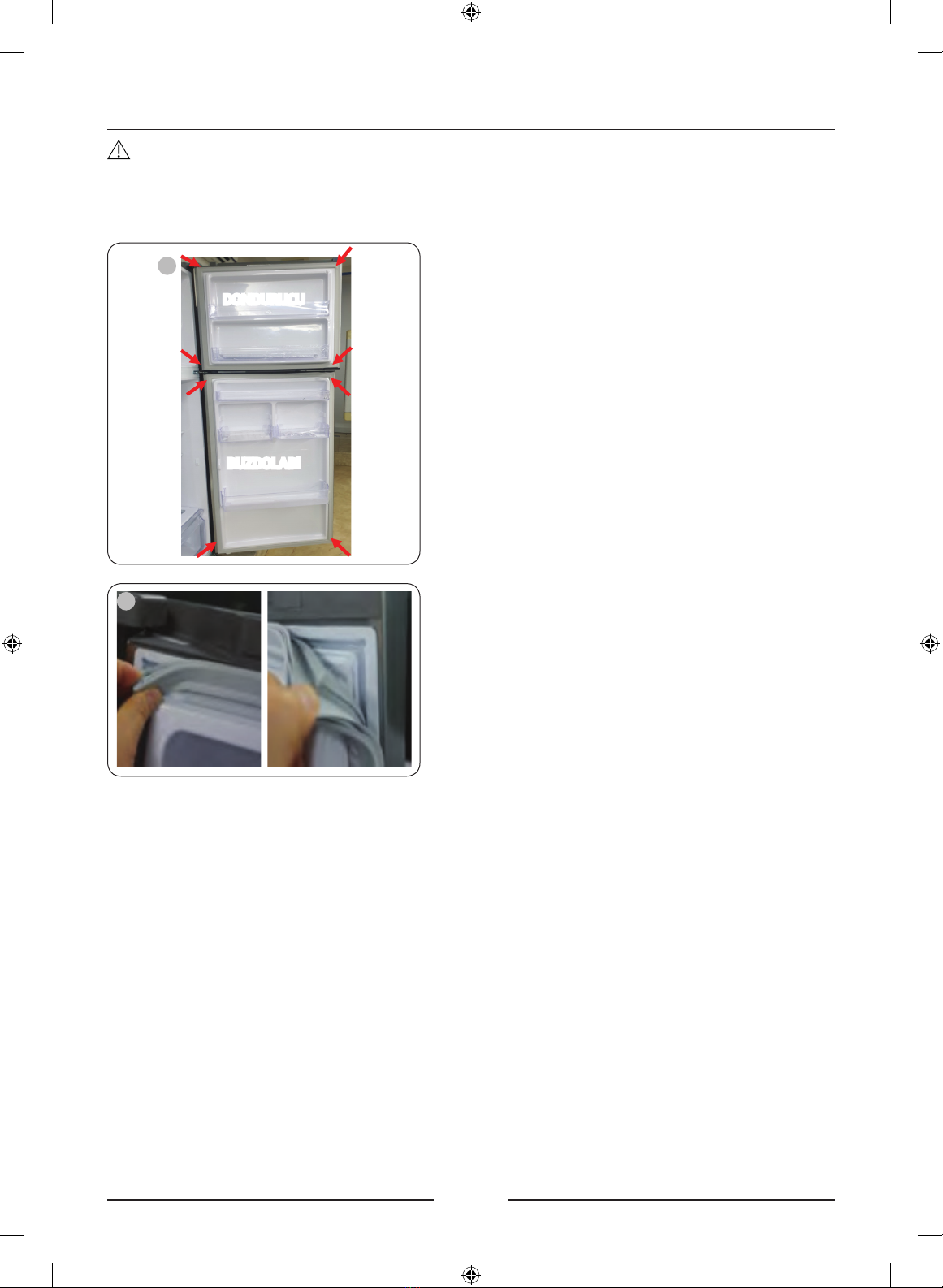

1. Pull the 4 corners of gasket Fre & Ref.
02
2. Pull the center of gasket.
To replace the gasket
Attach a new gasket to the refrigerator door. Make sure there is no gap between the new
gasket and the door.
TMF_RT7000_User-servicing-manual_EN.indd 4 2021-02-04  11:56:59

English
Drawer replacement
CAUTION
Check that the drawer is inserted properly into the rail during assembly.
To remove the drawer

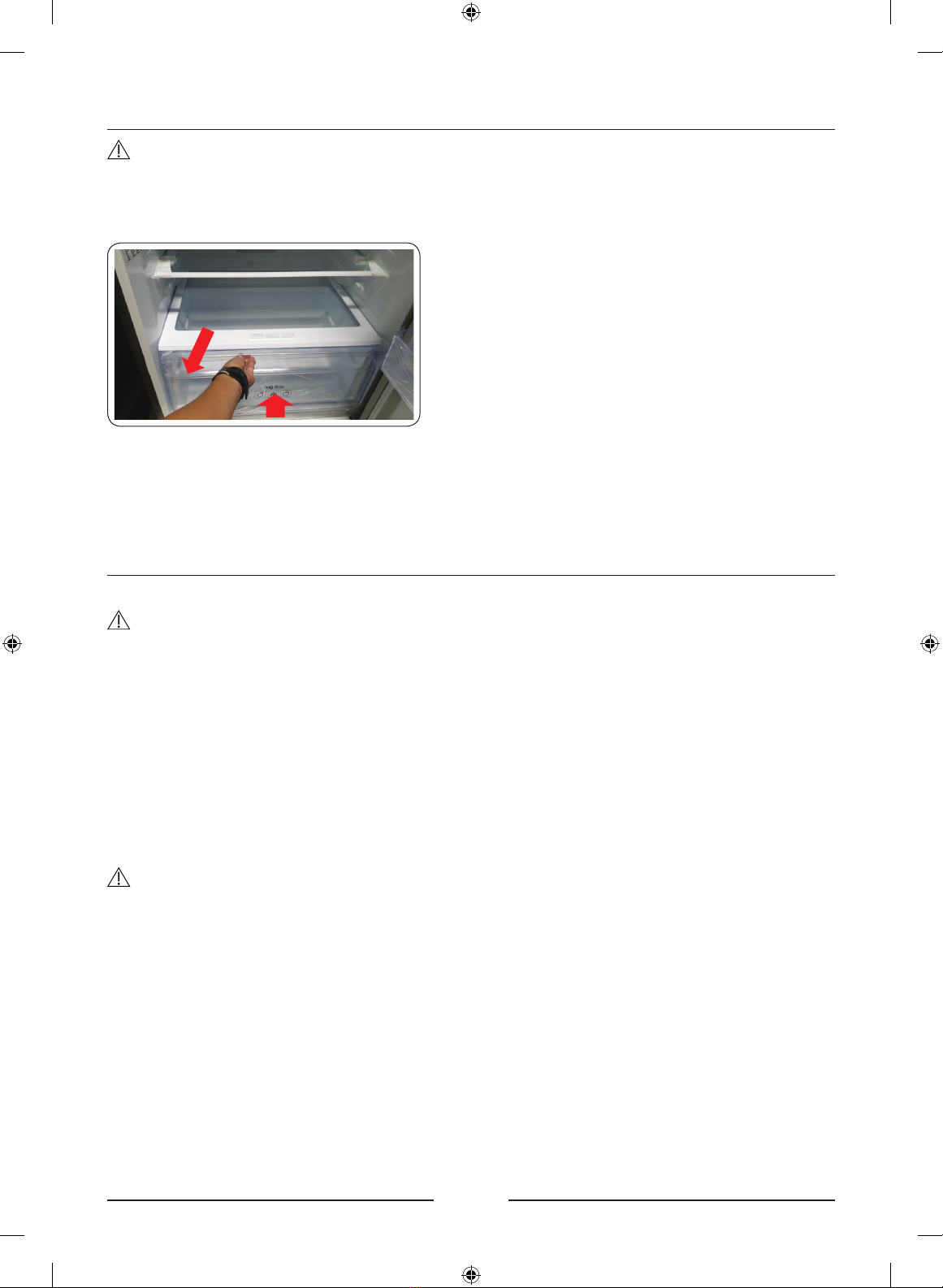

1. Remove the drawer by pulling the roller
part and lifting it up.
To reattach the drawers
Reattaching the drawers follows the reverse order of their respective removal steps.
Hinge replacement
To replace the hinges, you must remove the doors rst.
CAUTION
• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent
scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we
recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is rmly tightened on the hinge.
• Check that the hinge is rmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.
WARNING
• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.
TMF_RT7000_User-servicing-manual_EN.indd 5 2021-02-04  11:56:59

English
Tools required (not provided)
Phillips screwdriver Flat-head screwdriver 11 mm spanner
10 mm socket wrench Allen wrench (5 mm) 10 mm spanner
Reversing the door
Hinge Up


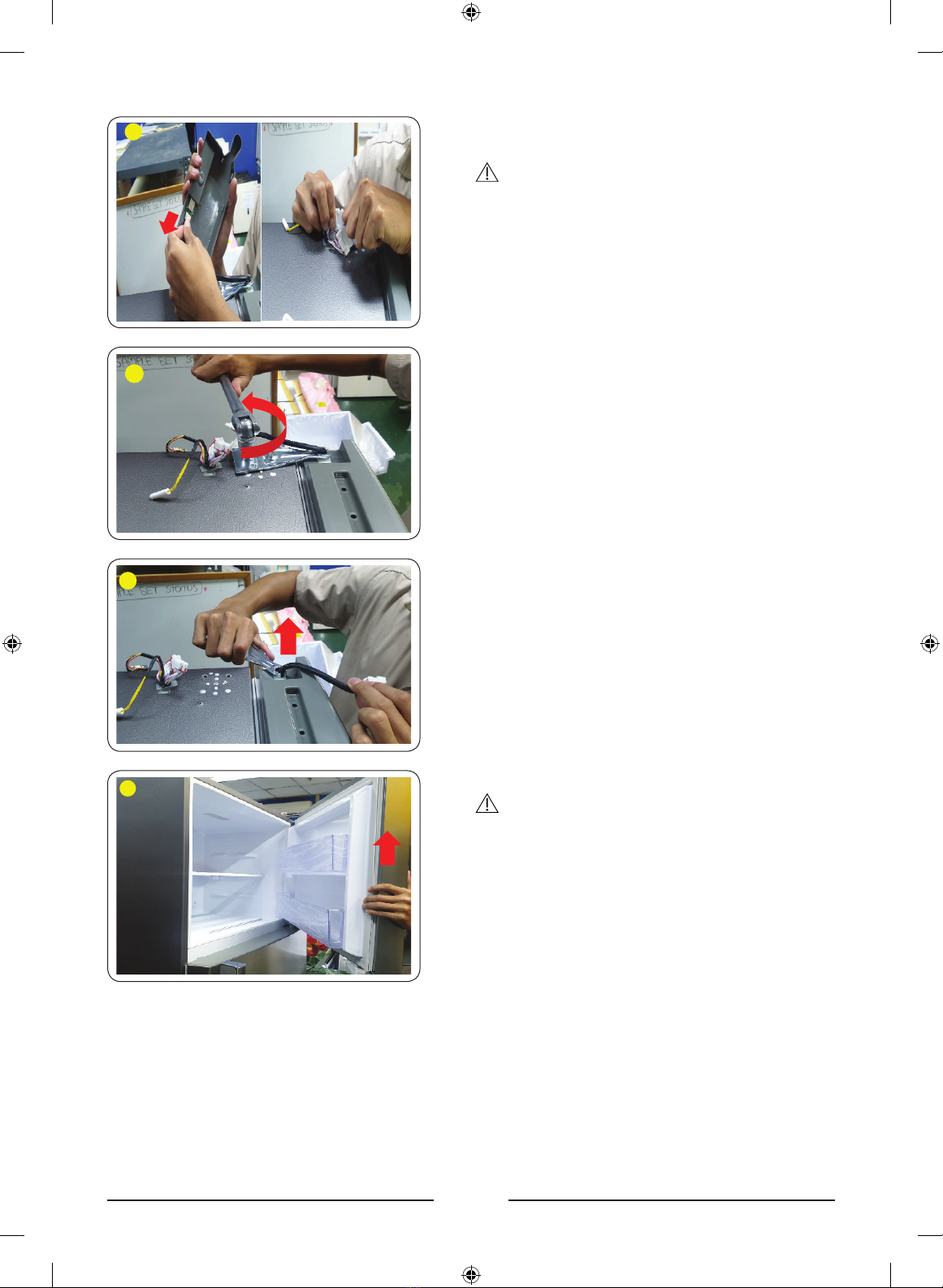

1. Remove cap cover hinge.

2. Remove screw 1 ea Cover hinge with the
(+) screwdriver and Open.

3. Pull the hooks and lift Cover hinge.
TMF_RT7000_User-servicing-manual_EN.indd 6 2021-02-04  11:57:00

English

4. Disconnect the wire connector on the
hinge up.
CAUTION
Be sure to unplug the power cord before
performing the operation above.

5. Remove the 2 hex bolts that hold the
hinge on the top of the refrigerator with
the 10mm socket wrench.

6. Remove Hinge up R/L.

7. Remove Door.
CAUTION
Must working more than 2 people. One
person grab the door to prevent falling door.
TMF_RT7000_User-servicing-manual_EN.indd 7 2021-02-04  11:57:01

English
Hinge Mid

1. Remove the 2 hex bolts screw by
Hexagon wrench.

2. Remove the screw 1 ea the hinge With
(+) screwdriver.

3. Diassembly hinge mid from door ref up.
CAUTION
• Must working more than 2 people.
• Be sure to unplug the power cord before
performing the operation above.
TMF_RT7000_User-servicing-manual_EN.indd 8 2021-02-04  11:57:01

English
Hinge Low


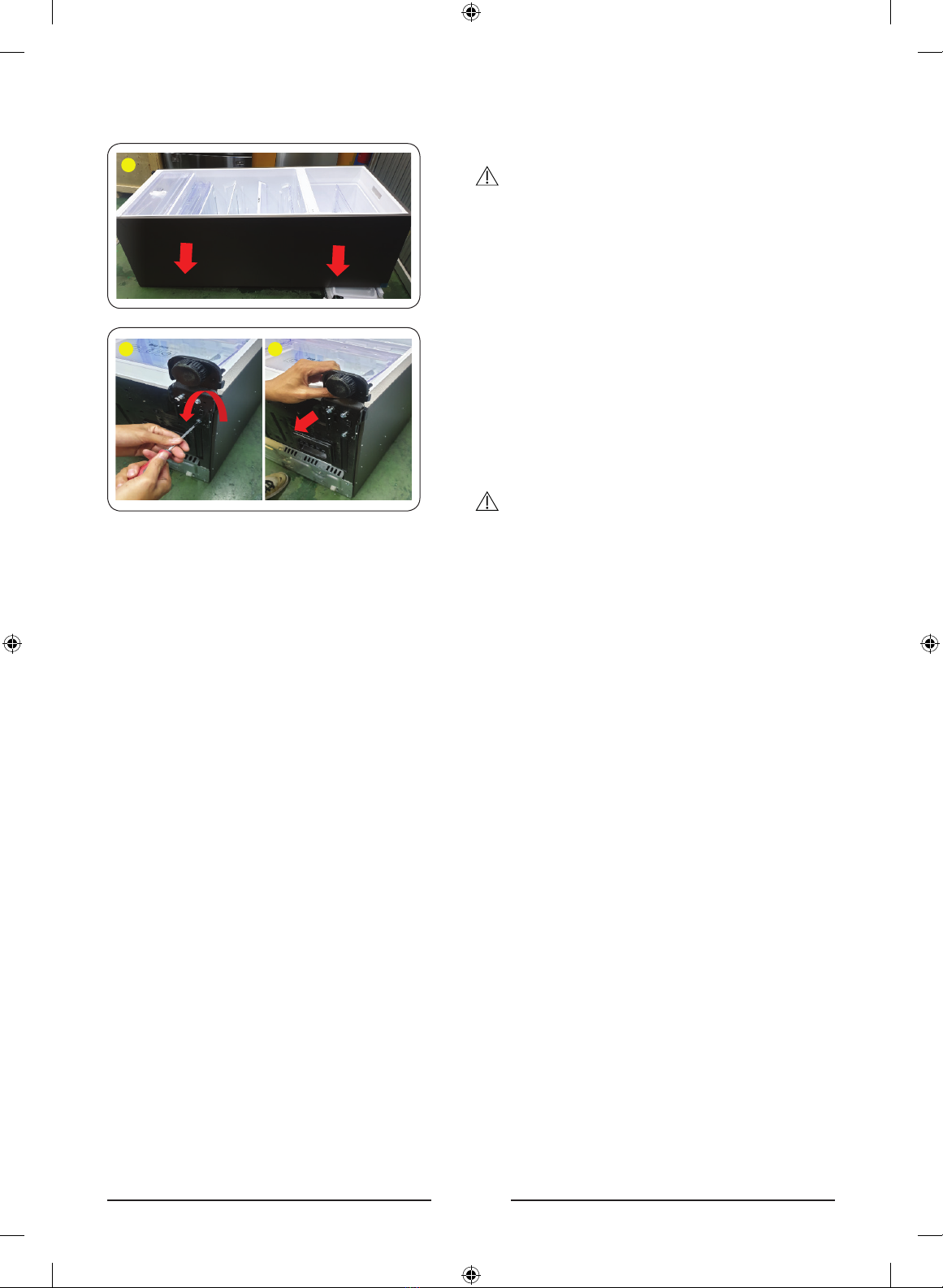

1. Lay down product (Refer picture).
CAUTION
• Must to a pad underneath to protect the
back of the product from being damaged.
• Must working more than 2 people.
• Be sure to unplug the power cord before
performing the operation above.
 

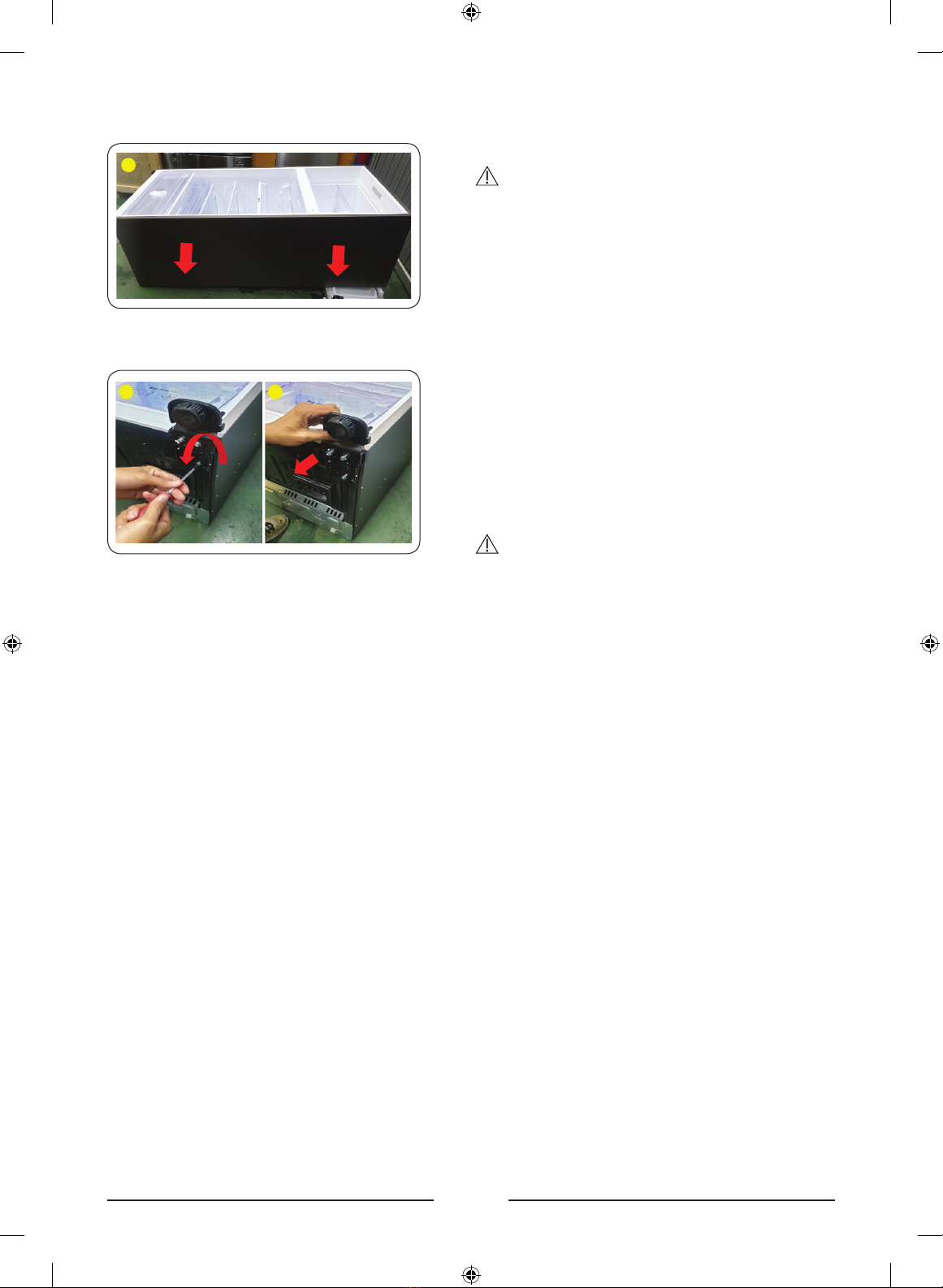

2. Remove the 3 hex bolts that hold the
hinge with the 8 mm socket Wrench or
using (+) screwdriver.
3. Remove Hinge Low.
4. Reassemble in the opposite order of
disassembly after replacing the top,
middle, and/or bottom hinge.
CAUTION
• Make sure the wire connectors are
connected properly.
• Be careful not to damage the wires when
fastening the top cover.
TMF_RT7000_User-servicing-manual_EN.indd 9 2021-02-04  11:57:01

Türkçe
Kullanıcı servis kılavuzu
MODEL KODU: RT62K7*
1. Cihaza ilişkin kurulum, bakım, onarım, temizlik bilgileri, cihazın yedek parçalarının
listesi ve yetkili servis aracılığıyla temin edilebilecek yedek parçaların siparişi için
gerekli bilgilere http://samsung.com/support adresinden veya 4447711 numaralı çağrı
merkezinden ulaşabilirsiniz.
2. Model kodu ürününüzün dış tarafına etiketlenmiştir.
- Model kodunu ve sürümü ürünün sol altında bulunan barkod etiketinde görebilirsiniz.
3. Yedek parçalar için parça adının bu kılavuzdaki çizimdekiyle eşleştiğinden emin olun.
- Kullanıcının bakımını yapabileceği parçalar kollar (yalnızca bazı modellerde), contalar,
çekmeceler ve menteşeler ile sınırlıdır.
NOT
Yetkisi olmayan bir servis sağlayıcının yaptığı onarım, kendi kendini onarım veya
ürünün profesyonel olmayan onarımı sonrasında, üründe meydana gelen hasarlardan,
yaralanmalardan veya bu onarım ve bakım talimatlarını dikkatli bir şekilde izlemeden
onarmaya çalışmaktan kaynaklanan ürünle ilgili diğer güvenlik sorunlarından Samsung
sorumlu değildir. Samsung yetkili servis sağlayıcısı haricinde birinin ürünü onarmaya
çalışmasından kaynaklanan üründeki hasarlar garanti kapsamına alınmaz.
DİKKAT
• Sitede listelenen parça adı bu kılavuzdakinden farklı olabilir. Lütfen doğru parça adını
seçtiğinizden emin olun.
• Kapıyı çıkarmak gerektiğinden menteşeleri değiştirme aşırı dikkat gerektirir.
• Onarım yaparken güvenlik eldiveni taktığınızdan emin olun.
TMF_RT7000_User-servicing-manual_TR.indd 1 2021-02-04  11:56:53
