English - 1
Userservicing manual
1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts
available for purchase. The model code is labelled on the outer side of your product.
‐You can check the model code and version on the barcode label at the bottom left of the
product.
3. For replacement parts, make sure the part name matches that of the illustration in this
manual.
‐User-serviceable parts are limited to handles (some models only), gaskets, drawers, and
hinges.
NOTE
Following the repair by a non-authorised service provider, self-repair or non-professional repair
of the product, Samsung is not liable for any damage to the product, any injury or any other
product safety issue caused by any attempt to repairthe product which does not carefully
follow these repairand maintenance instructions. Any damage to the product caused by an
attempt to repair the product by any person other than a Samsung certiÿed service providerwill
not be covered by the warranty.
CAUTION
•The part name listed on the site may di°er from that in this manual. Please make sure you
choose the right part name.
•Replacing hinges requires extreme caution because it involves detaching the door.
•Be sure to wear safety gloves while making repairs.

English - 2

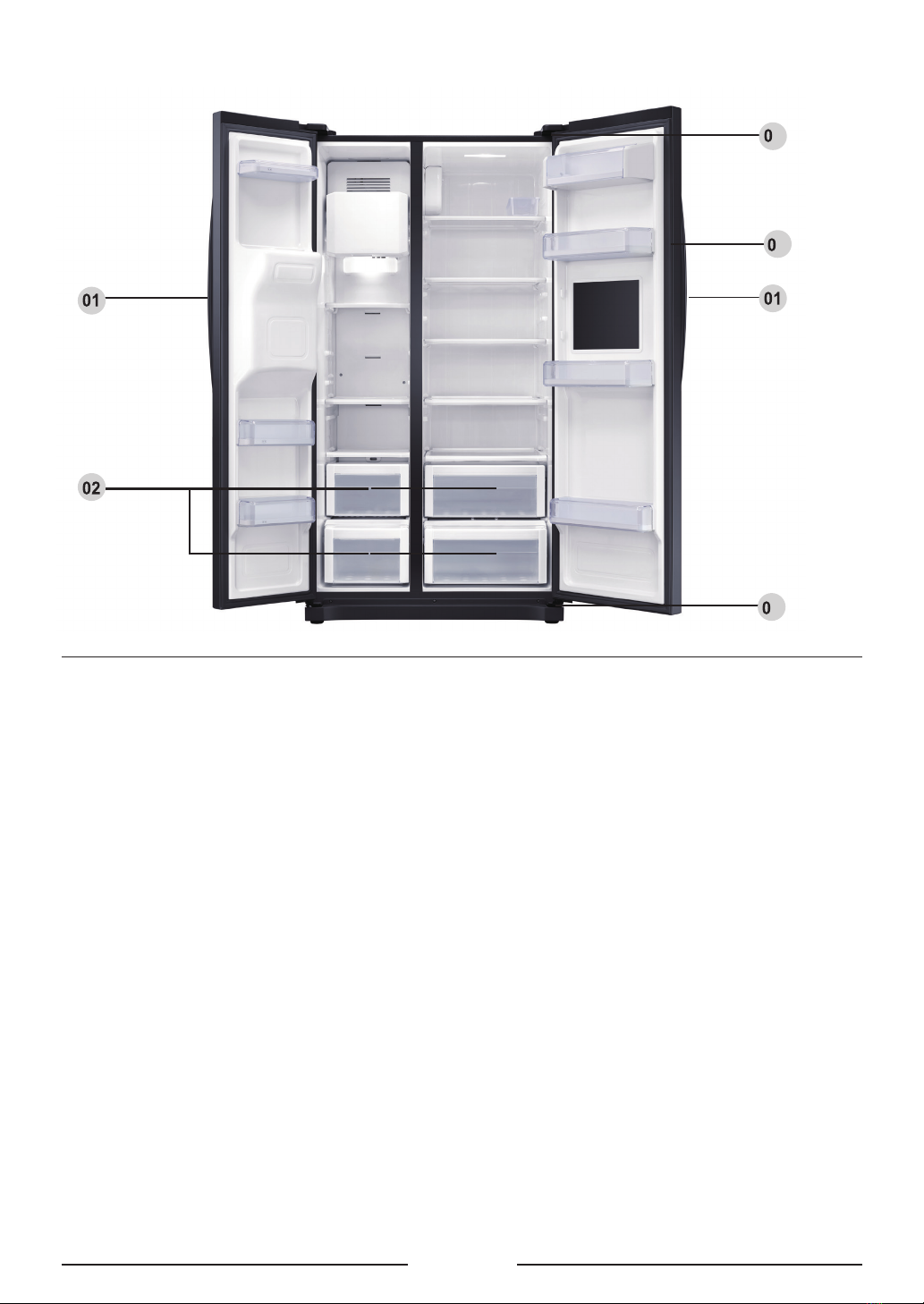

01 Handle 02 Drawer
03 Top hinge 04 Gasket
05 Bottom hinge
5
4
3
The actual image and provided parts of the refrigerator may differ, depending on the model and
the country.

English - 3
Handle replacement
Tools required (not provided)
To detach the handles
NOTE
This procedure applies to both the fridge and freezer compartment.
Model name looks like this: RS54**3****, RS52**3****, RS50**3****, What replaces the asterisks
may differ depending the model.
Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model
code.
CAUTION
•When replacing the door handle, take care not to scratch the front of the door.
•Firmlypress the handles at the supports. Make sure there is no gap between the supports and the
door.
•Tightlyfasten the screwswhen attaching the handle.
•Check that the handle is rmlyattached before using the product.
Philips screwdriver Flat-head screwdriver
1. Handle Assemblies are located on the
front of the refrigeratordoor.
2. Insert the small flat-head driverto the
hole at the bottom of Cap support handle
and pull the handle assembly out to the
front sidewith turning driverto one side.
Turn around the Handle assembly
to one side to dissemble about the
bottom position

English - 4
3. Unscrew 4 screws to diassemble Cap
support handle and Support handle.
4. Pull the Support handle out using hex
wrench as shown orflat-head driver
pushing the back side.

English - 5

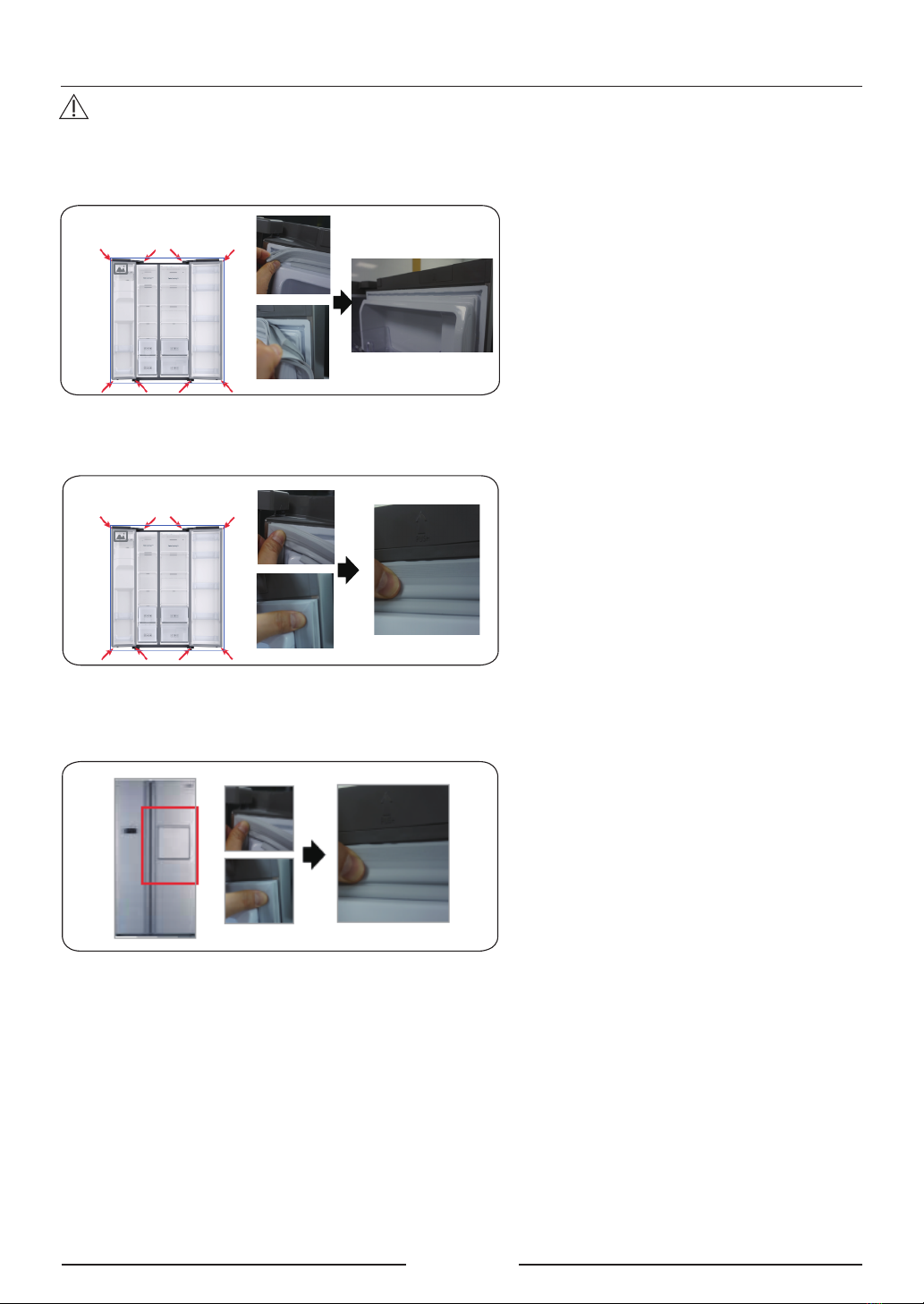

Gasket replacement
CAUTION
Make sure you ÿrmly attach the gasket. Otherwise, cold air from the refrigeratormay leak.
To remove the gasket
1. Pull the 4 corners of gasket.
2. Pull the centerof gasket.
To replace the gasket
1. Push the 4 corners of gasket.
2. Push the centerof gasket.
1. Push the 4 corners of gasket.
2. Push the centerof gasket.
Pull the corne of Gasket
Pull the corne of Gasket

English - 6

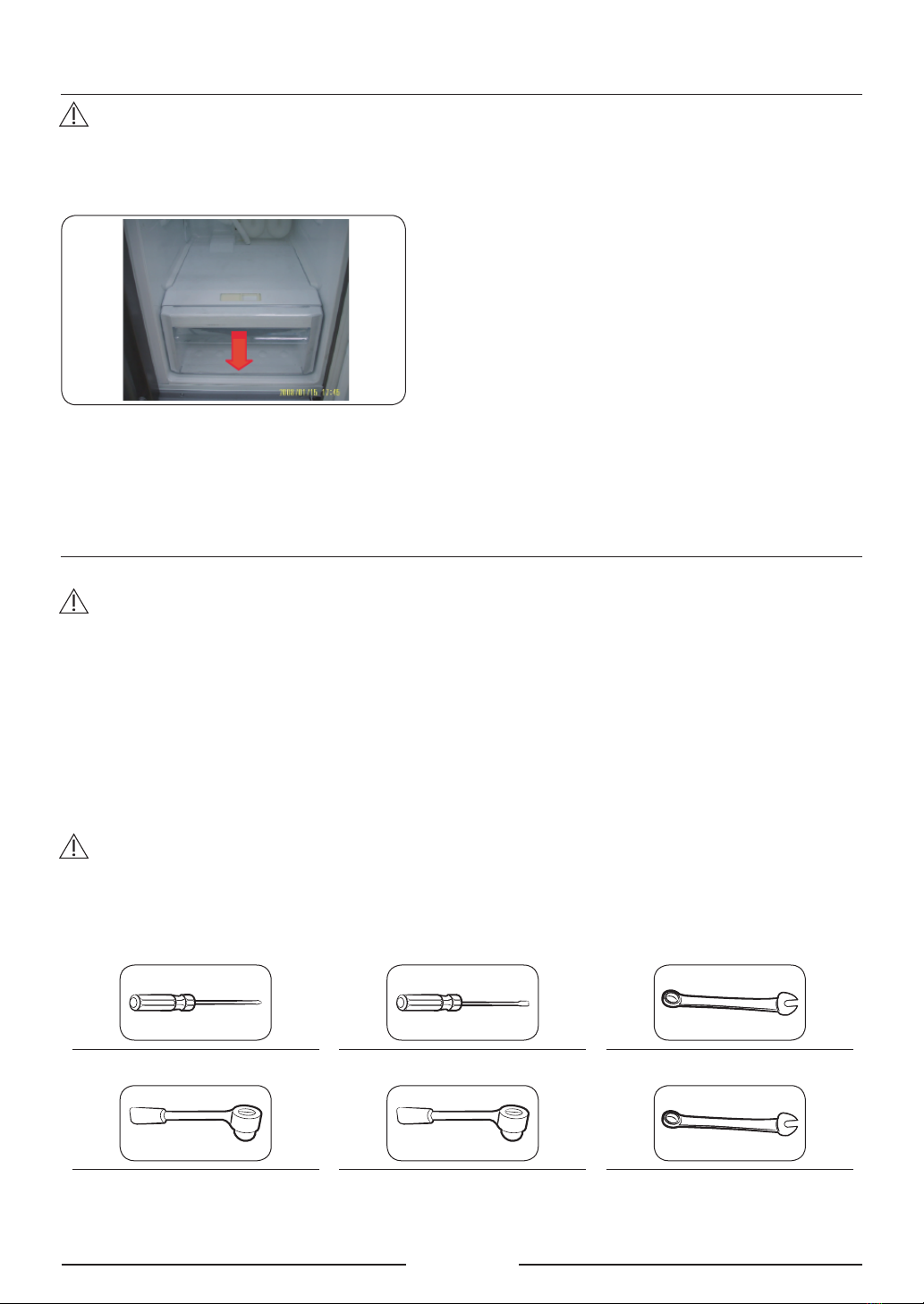

Drawerreplacement
Hinge replacement
CAUTION
Check that the drawer is inserted properly into the rail during assembly.
To replace the hinges, you must remove the doors first.
CAUTION
•When removing the doors, take extreme caution because the doors are heavy.
•Before replacing the hinges, put a soft pad such as cardboard on the floorto prevent scratches on
the doorwhen you place the doors down.
•As the hinges must be handled carefullyand replaced bytwo ormore persons,we recommend you
to call forprofessional technical service.
•If you remove the hingewithout holding the door, the doormay fall and cause injury.
•Ensure that the shaft is firmlytightened on the hinge.
•Check that the hinge is firmly attached to the cabinet.
•Make sure thewire connectors are connected properly.
•Be careful not to damage the wires when fastening the top cover.
WARNING
•Tilting/laying the refrigeratorrequires a minimum of 2 people.
•Disconnect the powercord before reversing the doors.
To remove the drawer
1. Pull out the draweras faras it goes.
2. Tilt the drawerup and pull it out until it
is removed.
To reattach the drawers
Reattaching the drawers follows the reverse order of their respective removal steps.
Tools required (not provided)
Philips screwdriver Flat-head screwdriver 11 mm spanner
10 mm socketwrench 8 mm socketwrench 10 mm spanner

English - 7

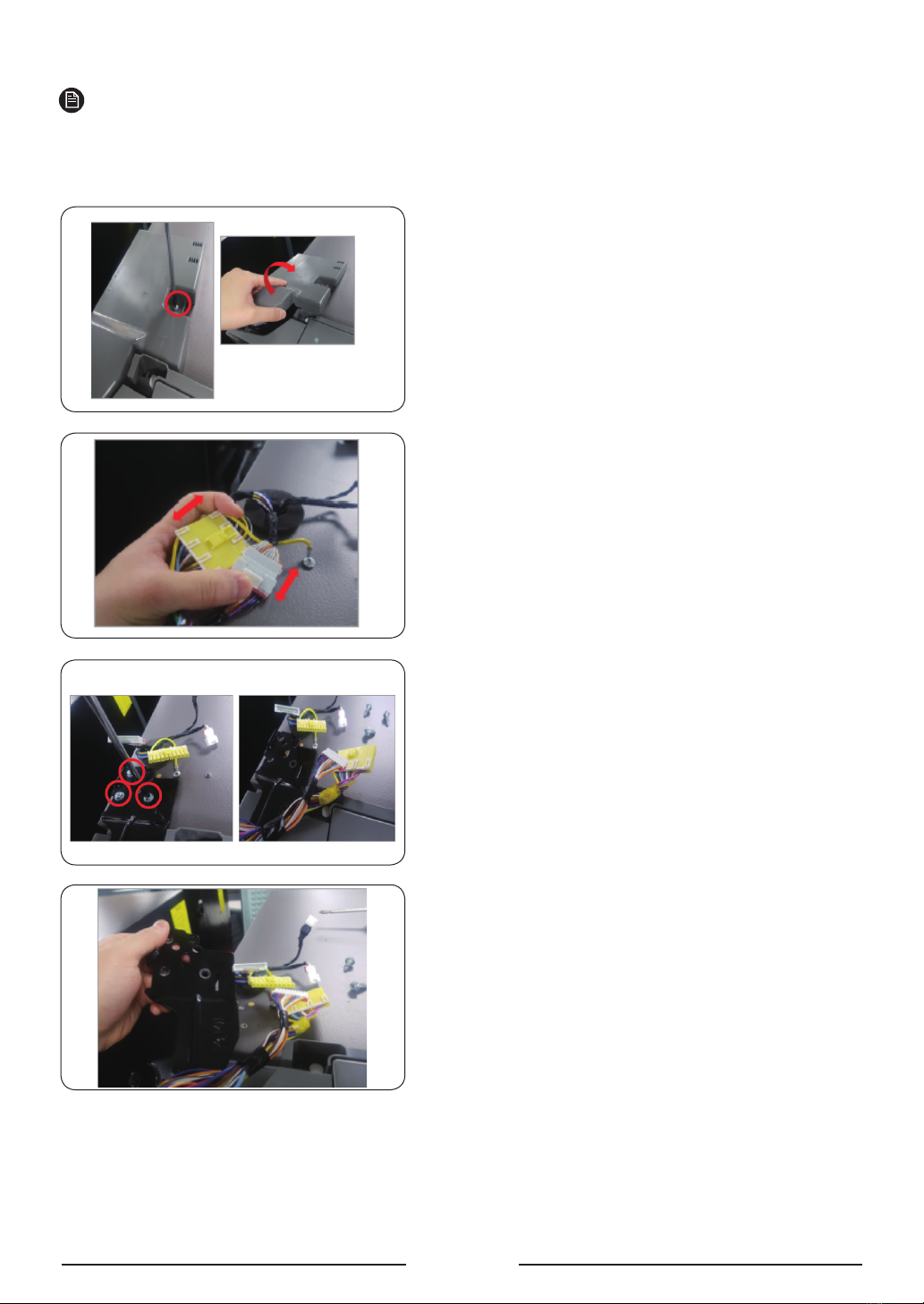

Reversing the door
NOTE
Forthe models with handles, reverse the handles first. (For detailed information, see the
“Reversing the door handle position (Formodels with barhandles)” section.)
1. Disconnect the powercord, andremove1 cover
screws using a Phillips screwdriver.
Then open the Freezerdoorand pull the hooks on
the sides to loosen the cover.
Lift up the covertowards you to detach it.
2. Disconnect the two top housings.
3. Remove the three bolts holding the hinge.
4. Disassemble the top hinge from

English - 8

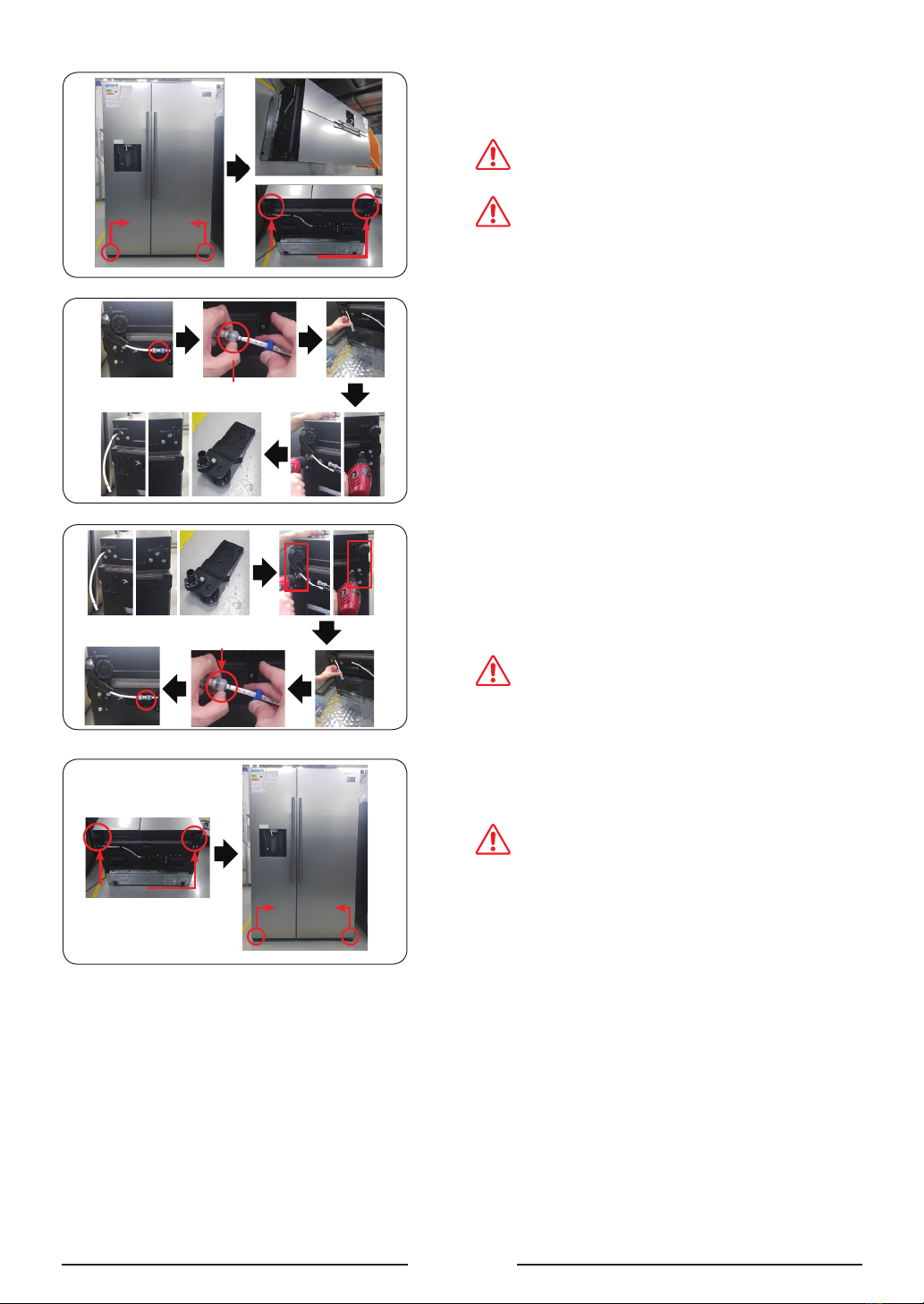

1. Disconnect the PowerCord.
2. Lay down the set.
Must working more than 2 people.
Be sure to unplug the power cord before
performing the operation above.
1. Disconnect Hose.
(Only Hinge Low Left)
2. Exhaust waterin Hose.
(Only Hinge Low Left)
3. Remove Bolt(3ea).
(Using spanneror10mm Box wrench)
4. Remove Hinge Low R/L.
1. Assemble hinge low on bottom.
(Using spanneror10mm Box wrench)
2. connect Hose (Only Hinge LowLeft)
3. Assemble waterin Hose.
(Only Hinge Low Left)
Be sure to unplug the power cord before
performing the operation above.
1. Assemble Hinge low R/L.
2. Put up the set.
Must working more than 2 people.
CAUTION
CAUTION
CAUTION
CAUTION
pull the guide and hose
Push the guide and hose
Hinge lowHinge low Hinge lowHinge low
Hinge lowHinge low
Hinge lowHinge low
