Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommend safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
11 What’s Included

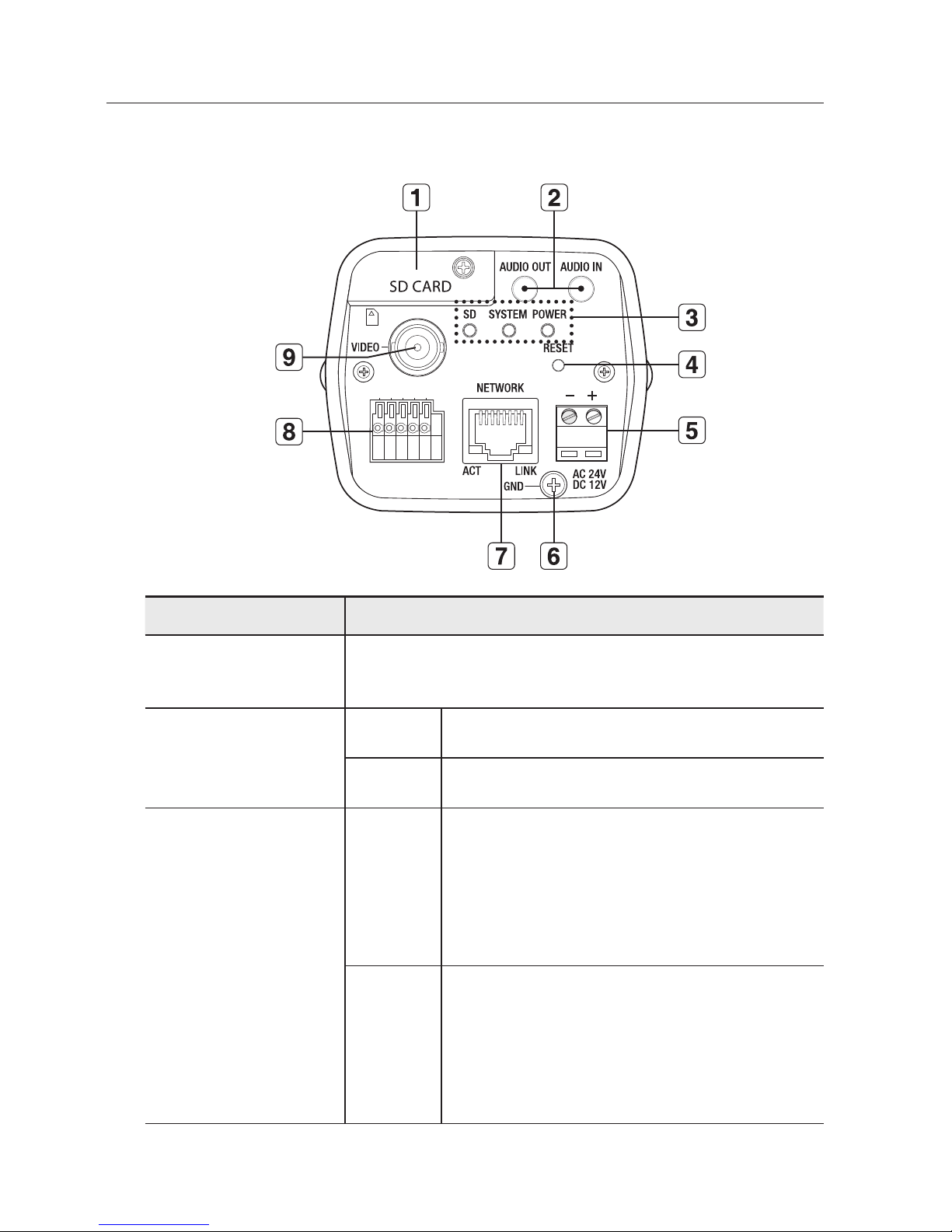

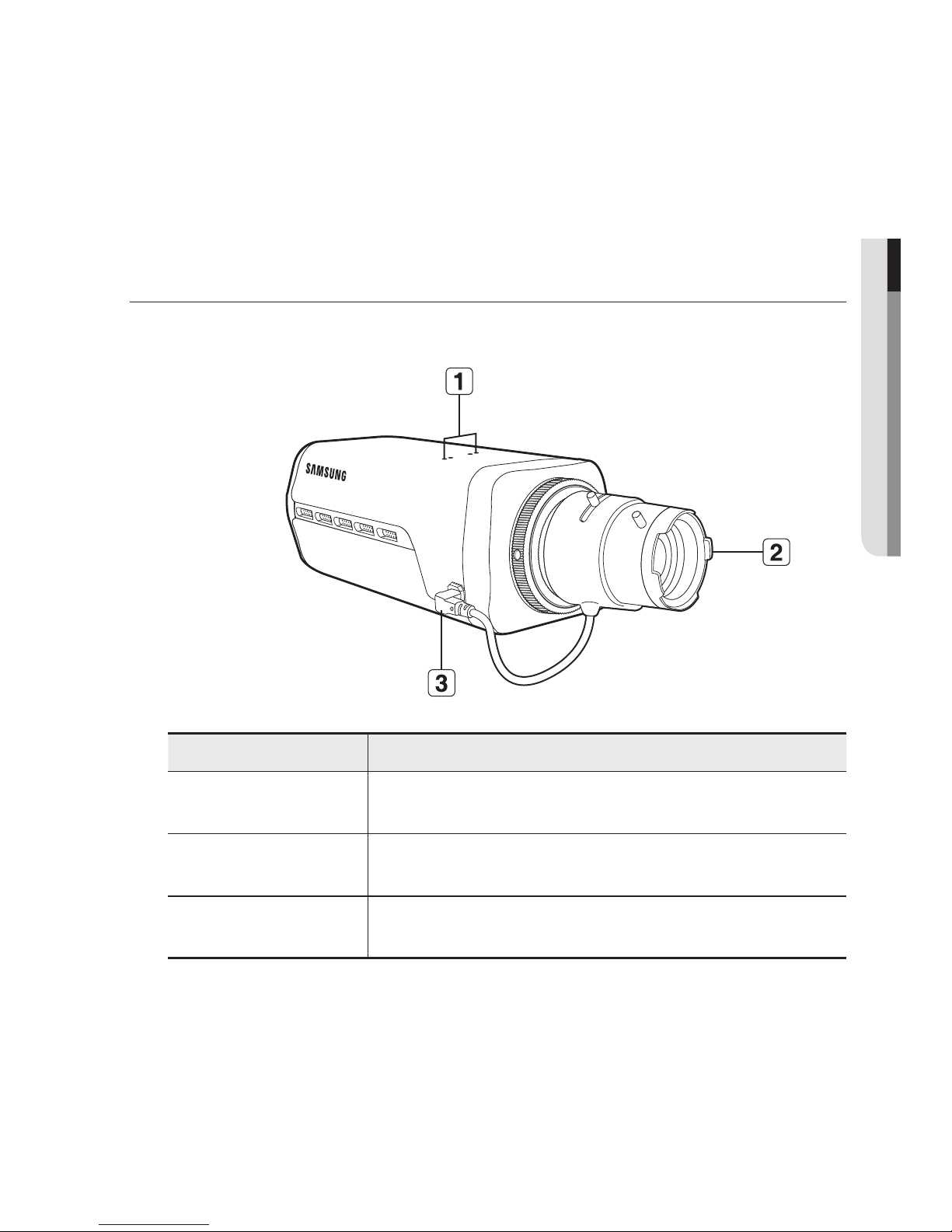

13 At a Glance (SNB-5000)

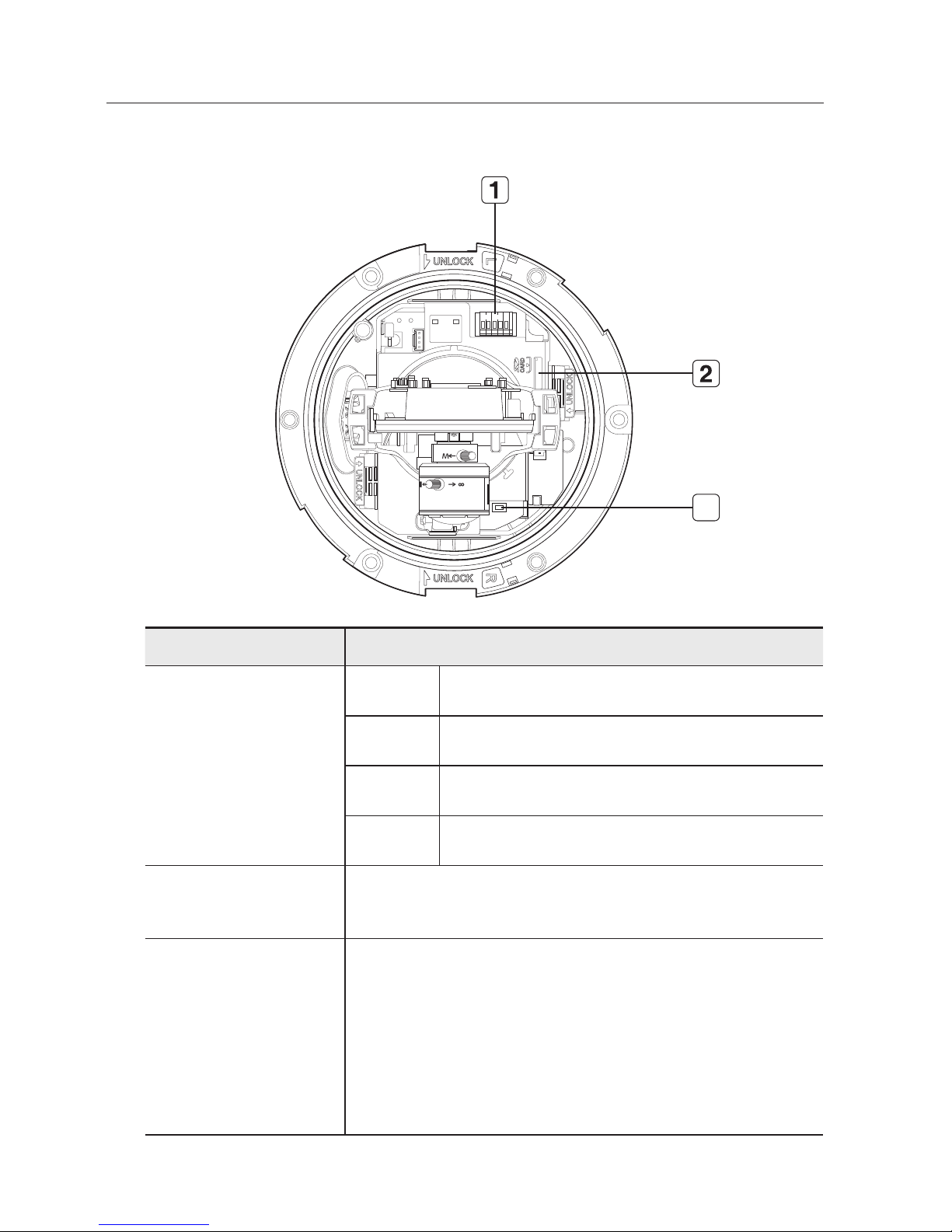

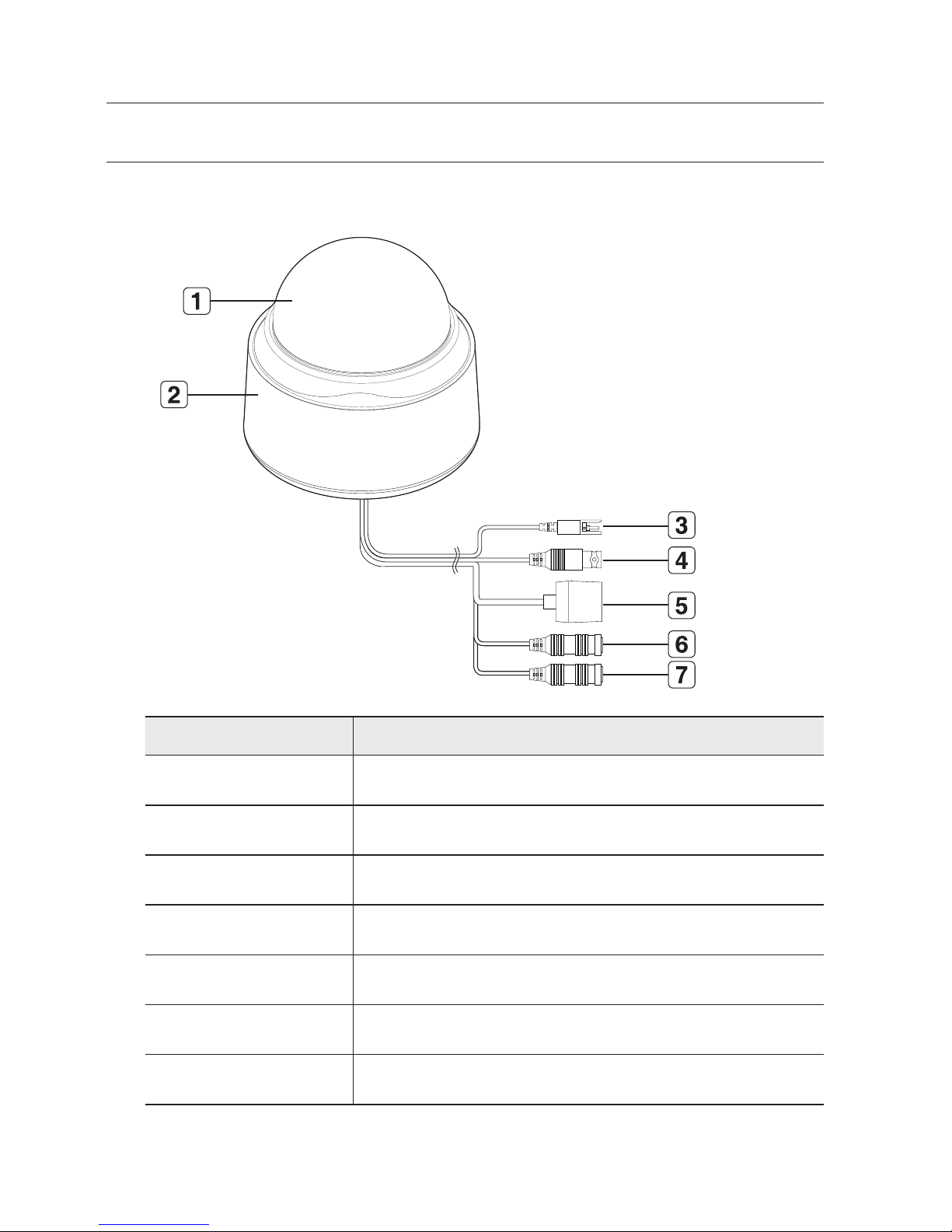

16 At a Glance (SND-5080)
19 At a Glance (SND-5080F)
22 At a Glance (SNV-5080)
INSTALLATION &
CONNECTION
25
25 Installation (SND-5080)
27 Installation (SND-5080F)
29 Installation (SNV-5080)
34 Mounting the Lens (SNB-5000)
35 Inserting/Removing a SD Memory
Card
38 Memory Card Information
(Not Included)
39 Connecting with other Device
NETWORK CONNECTION
AND SETUP
44
44 Connecting the Camera Directly
to Local Area Networking
45 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
46 Connecting the Camera Directly
to a PPPoE Modem
47 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
48 Buttons used in IP Installer
49 Static IP Setup
53 Dynamic IP Setup
54 Port Range Forward (Port Mapping)
Setup
56 Connecting to the Camera from a
Shared Local PC
56 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
71
71 Setup
71 Video & Audio Setup
83 Network Setup
92 Event Setup
106 System Setup
APPENDIX
114
114 Specification
119 Troubleshooting
121 Open Source Announcement
WEB VIEWER
57
57 Connecting to the Camera
58 Password setting
59 Login
60 Installing Silverlight Runtime
64 Installing STW WebViewer Plugin
66 Using the Live Screen
68 Search and play by event
69 Search and play by time

English _9
●OVERVIEW
PRODUCT FEATURES
yHD Video Quality
yMulti-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
M`However, MPEG-4 video can not be played on a web page. Use CMS software if you want to play
the video on a web page.
yWeb Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
yAlarm
If an event occurs, the event-related video will be transferred to the FTP/email specified
by the user or saved to the SD memory, or the event signal will be sent to the Alarm Out
port.
yTampering Detection
Detects tempering attempts on video monitoring.
yMotion Detection
Detects motion from the camera’s video input.
yIntelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
yAuto Detection of Disconnected Network
Detects network disconnection before triggering an alarm.
yONVIF Compliance
This product supports ONVIF.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMENDED PC SPECIFICATIONS
yCPU : Intel(R) Core(TM)2 2.00 GHz or higher
yOperating System : Windows XP, VISTA, 7, Mac OS
yResolution : 1280X1024 pixels or higher
yRAM : 1GB or higher
yWeb Browser : Internet Explorer 7.0 or Higher, Firefox 3.0 or Higher, Chrome 8.0 or
Higher, Safari 4.0 or Higher
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`It is recommended to connect to IPv6 in Windows 7.
yVideo Memory : 128MB or higher
J `If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
RECOMENDED SD/SDHC MEMORY CARD SPECIFICATIONS
y4GB ~ 32GB
yIt is recommended to use memory cards of at least class 6 speed.

English _11
●OVERVIEW
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Instruction book,
Installer S/W CD 1
SNB-5000 or
SND-5080 or
SND-5080F or
SNV-5080
Quick Guide
(Optional) 1
Warranty card
(Optional) 1
Jack Modular 1LAN cable gender
SND-5080/5080F
SNV-5080
Cable for the testing
monitor 1
Used to test the camera
connection to a portable display
device
Alarm Cable 1Used to connect to Alarm I/O
Template 1Product installation guide SND-5080F
SNV-5080
Iron Screw 3Used for fixing to an iron plate SND-5080/5080F
Dustproof Plate 1Preventing dust inflow SND-5080

overview
12_ overview
Appearance Item Name Quantity Description Model Name
C Mount Adapter
Auto Iris Lens Connector 1Used to install the camera lens
SNB-5000
Camera Holder (Mount) 1Used to install the camera
holder
Camera Holder (Mount)
Screws 2Used to install the mount
ASSY-Tapping Screw 4Used for installation on the wall
or ceiling
SNV-5080
L Wrench 1Used to remove/fix the dome
cover
Plastic Anchor 4
For fixing a screw, Inserted in
a hole (reinforced anchoring
force)
Rubber cap 3Insulation cap for improved
EMC performance.
Tapping Screw 1Used to fix the safety bracket
SND-5080F
Bracket Safety 1Safety Bracket
Lens Options (not included)
CS/C Lens Optional lens to be inserted in a
camera SNB-5000

English _13
●OVERVIEW
M `The Test Monitor Cable is connected to a portable displayer and used for testing the camera.
If you intend to use it for an actual monitoring camera, use the BNC cable instead.
`For improved EMC performance, it is recommended to use the insulation cap provided as an
accessory.
AT A GLANCE (SNB-5000)
Front Side
Item Description
a
Camera Holder
(Mount) Holes
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
b
Auto Iris Lens
(Optional)
Installed on the lens adaptor.
c
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.
M `Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.

overview
14_ overview
Rear Side
Item Description
a
SD Memory Card
Compartment Compartment for the SD memory card.
b
Audio terminal
AUDIO OUT Terminal for audio output.
AUDIO IN Terminal for audio input.
c
System, Power,
SD Indicators
SD
ON : A memory card is inserted and operates normally.
Flashing : Failed to record, insufficient space, or inserted
abnormally.
OFF : Camera is off, camera is restarting, memory card is
not in place, or when record is off.
SYSTEM
ON : The camera is turned on and connected to the network
properly.
Flashing : During DDNS setup, or in case of setup failure, or
in a state of unstable network connection.
OFF : When the system is rebooting, or turned off.
1 2 3 4 5
1 : ALARM IN 4 : -
2 : ALARM OUT 5 : GND
3 : ALARM COM

English _15
●OVERVIEW
Item Description
c
System, Power,
SD Indicators POWER ON : While the power is on
OFF : If the power is off
d
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
e
Power Port Used to plug the power cable.
f
GND Used for earth-grounding.
g
Network Port Used to connect a PoE or LAN cable.
h
I/O Port
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.
i
Video Out Port Analog video output port. (for installation)

overview
16_ overview
AT A GLANCE (SND-5080)
Appearance
Item Description
a
Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.
d
Video Out Port Analog video output port. (for installation)
e
Network Port Used to connect a PoE or LAN cable.
f
Audio In Jack Used to connect to a microphone.
g
Audio Out Jack Used to connect to speakers.

English _17
●OVERVIEW
Inside
Item Description
a
Alarm In / Out
terminals
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.
b
SD Memory Card
Compartment
Compartment for the SD memory card.
c
Reset Button
Resets the camera settings to the default. Press and hold for about 5
seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
< SND-5080 >
SND-5080-1 SND-5080-2 SND-5080-3 SND-5080-4
SND-5080-5 SND-5080-6 SND-5080-7 SND-5080-8
SND-5080-9
3

overview
18_ overview
Components
Item Description
a
Inner Cover Cover for the main unit’s protection.
b
Side wing hooks By lifting it while gently pressing the both ends, you can separate the inner
cover.
c
ZOOM lever Turn the barrel left or right to adjust the zoom, and turn the knob clockwise
to lock the zoom.
d
Focus lever Turn the barrel left or right to adjust the focus, and turn the knob clockwise
to lock the focus.
e
SD Memory Card
Compartment Compartment for the SD memory card.
f
Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test.
g
Wiring Cover
If you drill a hole in the wiring cover for wiring,
remove the cover and attach the provided dustproof
plate to it, and arrange the cables through the plate.
h
Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.
< SND-5080 >
SND-5080-1 SND-5080-2 SND-5080-3 SND-5080-4
SND-5080-5 SND-5080-6 SND-5080-7 SND-5080-8
SND-5080-9
1
2
7
< SND-5080 >
SND-5080-1 SND-5080-2 SND-5080-3 SND-5080-4
SND-5080-5 SND-5080-6 SND-5080-7 SND-5080-8
SND-5080-9
4
6
5
3
8

English _19
●OVERVIEW
AT A GLANCE (SND-5080F)
Appearance
Item Description
a
Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.
d
Video Out Port Analog video output port. (for installation)
e
Network Port Used to connect a PoE or LAN cable.
f
Audio In Jack Used to connect to a microphone.
g
Audio Out Jack Used to connect to speakers.

overview
20_ overview
Inside
Item Description
a
Alarm In / Out
terminals
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.
b
SD Memory Card
Compartment Compartment for the SD memory card.
c
Reset Button
Resets the camera settings to the default. Press and hold for about 5
seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3
