Samsung SCB-6000 User manual

HD-SDI CAMERA
User Manual SCB-6000

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization
of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this document and the subsequent
results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to
change the contents of this document without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin
will resolve the problem for free of charge. The warranty period is 3 years. However, the followings
are excluded:
• If the system behaves abnormally because you run a program irrelevant to the system operation.
• Deteriorated performance or natural worn-out in process of time
Design and specifications are subject to change without prior notice.
HD-SDI Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
Do not expose the camera to radioactivity.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
8Product Features
9What’s Included
10 At a Glance
INSTALLATION &
CONNECTION
13
13 Mounting the Lens
15 Connecting with other Device
OPERATING YOUR CAMERA
18
18 Menu Configuration
19 Menu Setup
APPENDIX
32
32 Specification
34 Product Overview
35 Troubleshooting

overview
8_ overview
PRODUCT FEATURES
• Supports Full HD-SDI Video
By adopting a diagonal 6mm (1/3”) 2M pixel CMOS, the camera produces clear picture
quality.
• Excellent low-illumination image quality
By adopting high-sensitive colour CMOS, the camera provides clear image quality under a
severe low illumination condition of 0.017 Lux (with SENS-UP, x60).
• SSNR3 (Samsung Super Noise Reduction) Function
The high-performance WN2 DSP chip effectively removes low-light gain noise and afterimage
to provide clear images even in dark environments.
• Electrical Day&Night
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in night-time conditions to enhance the
definition of the image.
• Motion Detection
Since the camera detects motion without any additional external sensor, you can monitor
activity more efficient.
• SSDR (Samsung Super Dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting conditions
such as backlighting, this camera selectively illuminates darker areas while retaining the same
light level for brighter areas to even out the overall brightness.
• Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM and PRIVACY
functions are provided.
• OSD
By providing multi-lingual user-friendly OSD (On-screen Display) menu, the camera provides
easy handling of the camera.

English _9
●OVERVIEW
WHAT’S INCLUDED
Check if the main unit and all the following accessories are included in the product package.
Appearance Item Name Quantity Description
Camera
1
User Manual
1
Quick Guide
1
C Mount Adapter
Auto Iris Lens Connector
1
Used to install the camera lens
Cable for the testing monitor
1
Used to test the camera connection to a
portable display device
Camera Holder (Mount)
1
Used to install the camera holder
Camera Holder (Mount) Screws
2
Used to install the mount

overview
10_ overview
AT A GLANCE
Front Side
Item Description

Camera Holder
(Mount) Holes
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
b
Auto Iris Lens
(Optional) Installed on the lens adaptor.
c
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.
M
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.

English _11
●OVERVIEW
Rear Side
Item Description

HD-SDI Video Out
terminal BNC terminal for HD-SDI video signal output.
b
Power LED This lamp turns green when the proper power is applied to the camera.
c
C-VIDEO
Analogue video output terminal of C-Video.
Use a monitor cable for testing the camera with a portable display.
(for installation)

SETUP Switch
The switch is used for setting and adjusting the camera’s functions and
properties.
Press and hold this switch more than 2 seconds to display the main menu
on the screen.
◄
/
►
Move this switch left or right to move the cursor or change
the value in the menu.
▲
/
▼
Move this switch up or down to move the cursor in the
menu.

Press the switch to set the function in menu. To move to a sub-
menu item in the menu, press this switch.
HD-SDI POWER
C-Video
GND
AC 24V
DC 12V
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-485-
3 : MD_OUT
1 2 3 4 5

overview
12_ overview
Item Description

Power Port Used to plug the power cable.

GND Used for earth-grounding.

I/O Port
1:GND Earth-grounding port for external signal.
2:EXT_D/N External signal input port for Day/Night mode setup.
3:MD_OUT Output port that signals when a motion is detected.
4:RS-485+ Signal port for RS-485 communication.
5:RS-485– Signal port for RS-485 communication.

English _13
●INSTALLATION & CONNECTION
installation & connection
MOUNTING THE LENS
Disconnect the power before proceeding.
M
The C lens and CS lens are not included in the product package.
J
If using a normal commercial lens, you may encounter out of focus when switching to BW mode .
To prevent this, it is recommended to use the IR mega lens.
Mounting the CS lens
Turn the optional CS lens clockwise to insert it.
Mounting the C lens
Turn the C mount adaptor clockwise to insert it and do the same with the C lens.
CS Lens
C Lens

installation & connection
14_ installation & connection

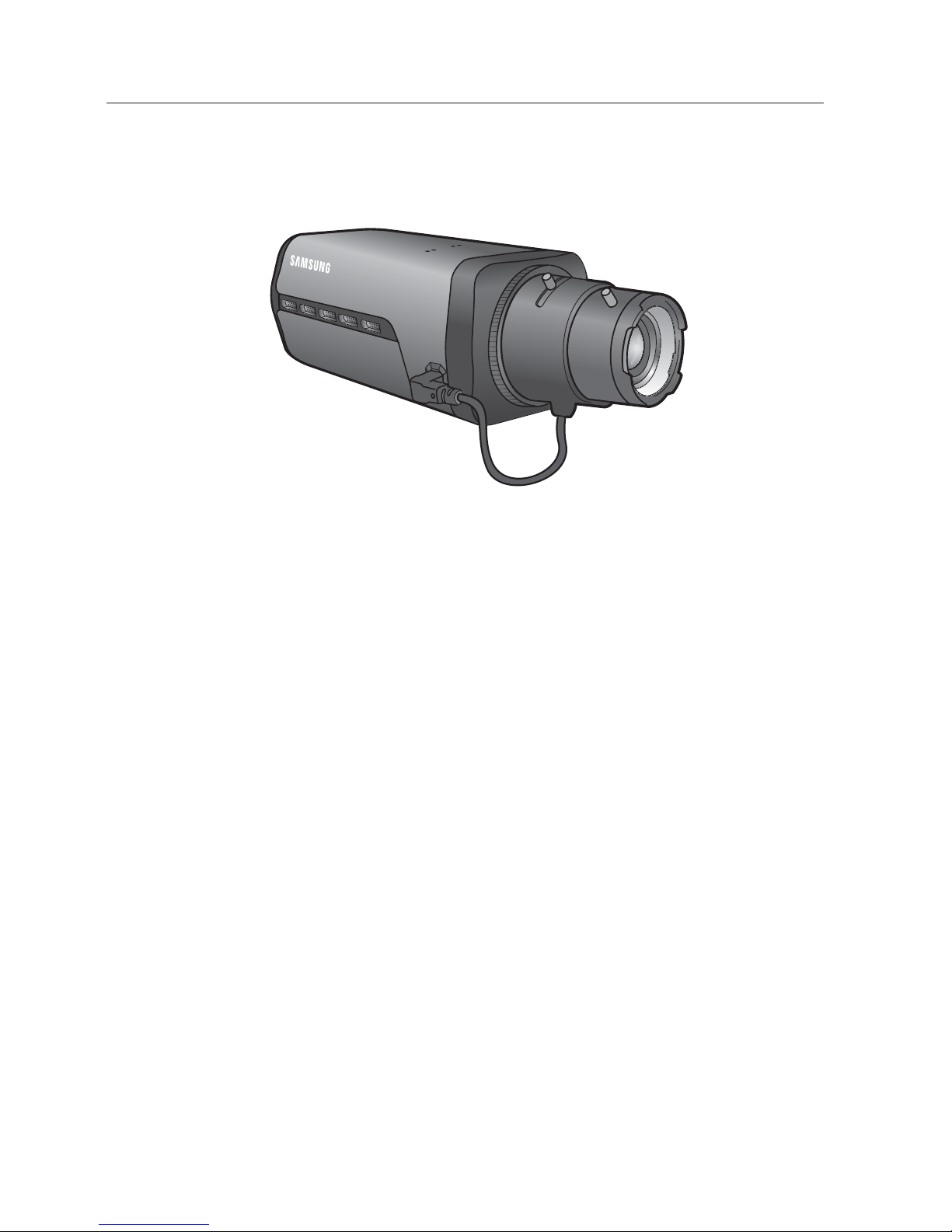

Connecting the Auto Iris Lens connector
Insert the lens connector into the corresponding hole of the camera.
Focusing
Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.

English _15
●INSTALLATION & CONNECTION
CONNECTING WITH OTHER DEVICE

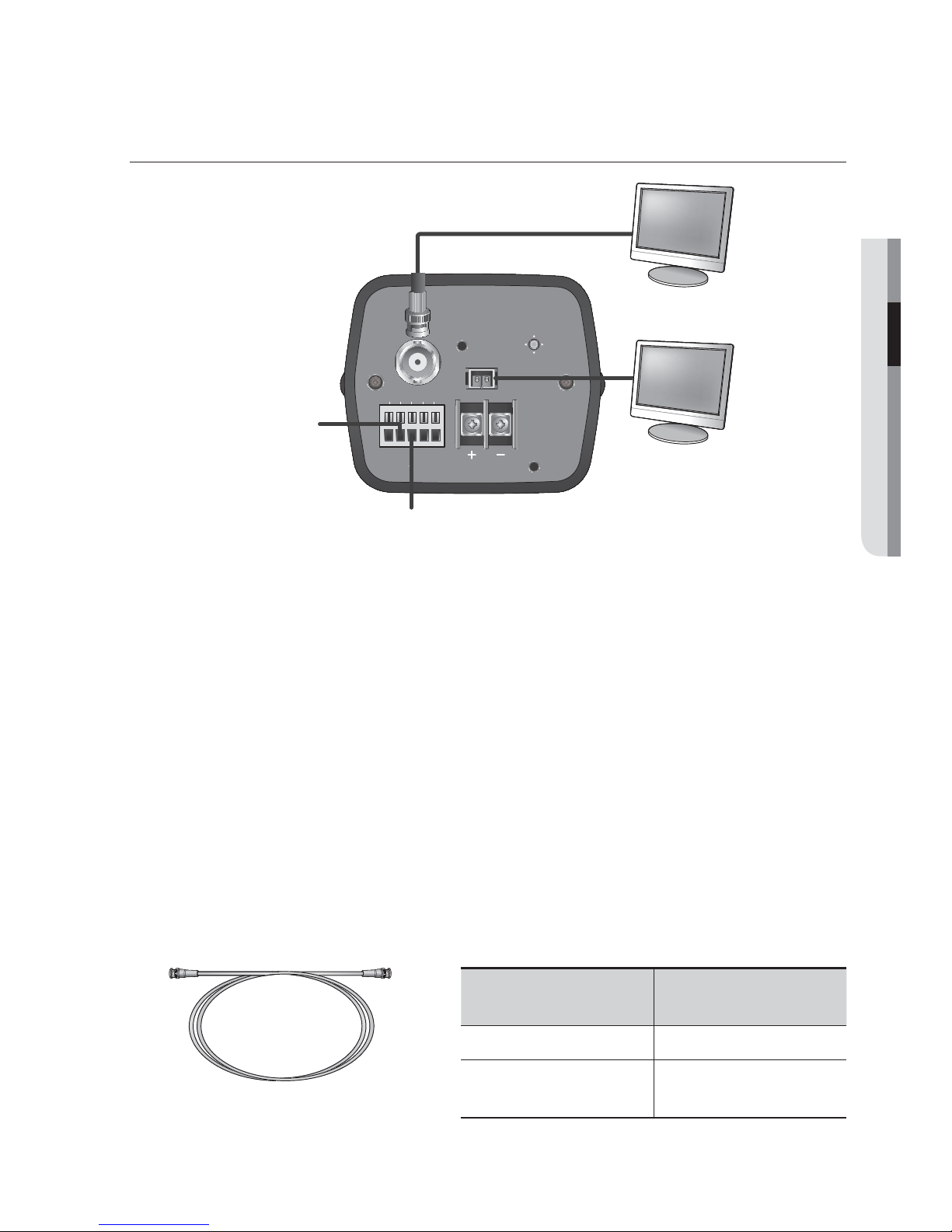

Connecting to the monitor
Connect the video out port of the camera to the video input port of the monitor.
M
In the initial installation of the camera, you can connect the camera to the monitor for checking
the connection status.
When connecting a general monitor device to the HD-SDI video output, you need to use a signal
converter.
You can set the video output type to either NTSC or PAL. (page 29).
Video Cable
The cable connecting the camera’s video output and a monitor is a BNC coaxial cable as
shown below.
If the distance between the camera and the monitor exceeds the recommended maximum,
please us an auxiliary video amp.
Maximum video transfer
distance
Recommended cable
specification
100~140m 5C2V(75ohm)
200m L-6CHD(75ohm)
(SDI-specific Cable)
HD-SDI POWER
C-Video
GND
AC 24V
DC 12V
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-485-
3 : MD_OUT
1 2 3 4 5
HD-SDI Monitor
Motion detection output device
Test monitor for
installation
Day/Night mode
controller

installation & connection
16_ installation & connection
External Day/Night Switching Input
Day/Night mode of the camera can be switched by signal from an external device.
M
To use this function, <DAY/NIGHT> setting of the camera should be set to the <EXTERN>.
(Page 27)
Motion Detection Signal Out
Upon a motion detection, the port outputs signal for an external device for display or operation.
When a motion is detected, the port outputs 3.3V signal.
M
To use this function, <ALARM OUT> setting of the camera should be set to <ON>. (Page 30)
Power Supply
Use the screwdriver to connect each line (+, –) of the power cable to the corresponding
power port of the camera.
J
Be careful not to reverse the polarity when you connect the power cable.
Be sure to turn the power off the device to be connected.
For AC/DC Power Supply
You can use either one of AC 24V/1A~2A and DC 12V/2A~4A adaptor.
HD-SDI POWER
C-Video
GND
AC 24V
DC 12V
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-485-
3 : MD_OUT
1 2 3 4 5
RS232C RS485, 422
CONVERTER
T+ T- R- R+
or
DVR
System Controller
PC
POWER
RS-485 Converter

English _17
●INSTALLATION & CONNECTION
Resistance of copper wire [at 20°C (68°F)]
Wire specification (AWG) #24(0.22mm
2
) #22(0.33mm
2
) #20(0.52mm
2
) #18(0.83mm
2
)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
Recommended Distance (m) Less than 20 Less than 30 Less than 30 Less than 30
•As shown in the table above, you may encounter a voltage-sag depending on the
wire length. If you use an excessively long wire for camera connection, the camera
may not work properly.
Voltage for proper camera operation: DC 12V±10%, AC 24V±10%
Voltage drop shown in the table above may show difference from the actual depending on the
manufacturer and cable type.

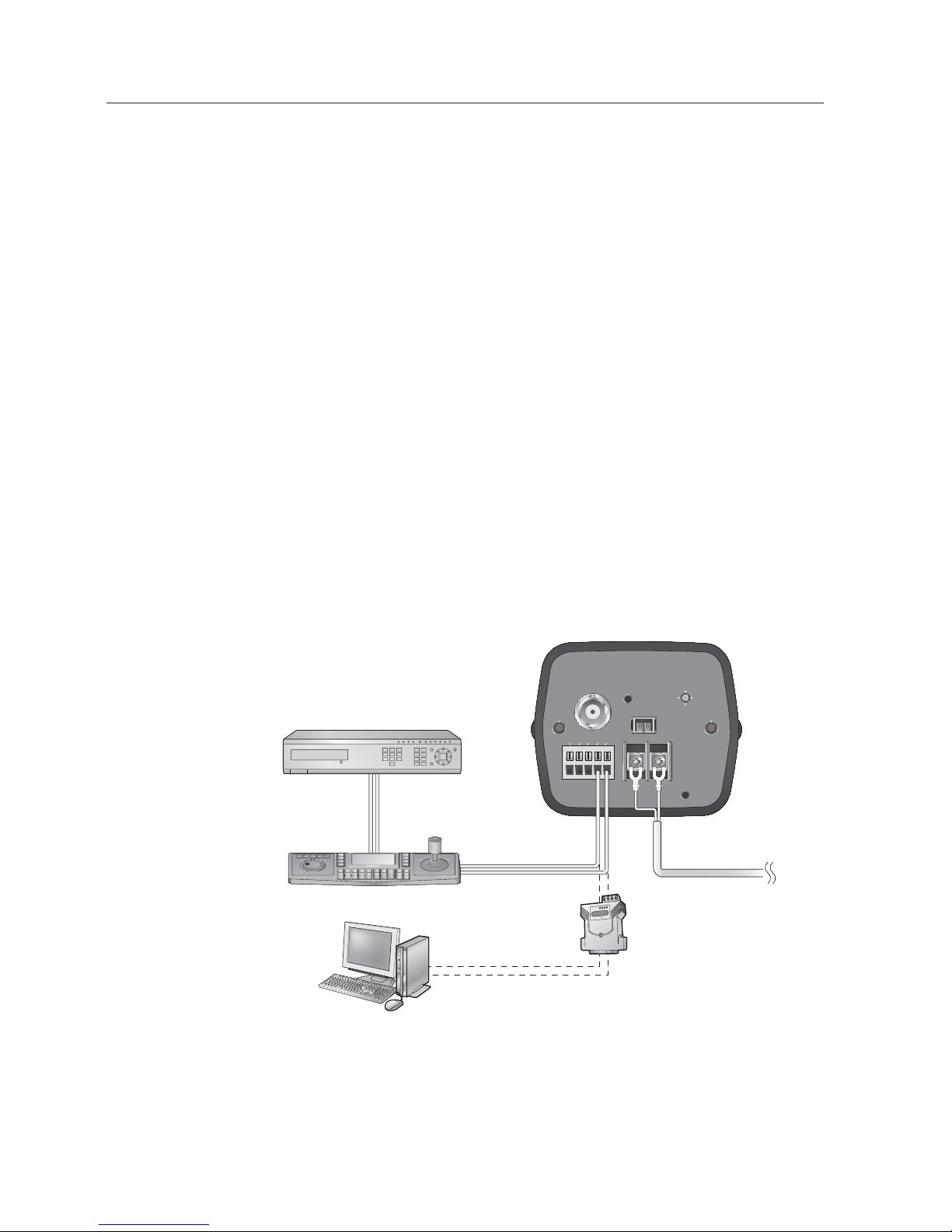

RS-485 Communications
Using RS-485 communication, the camera menu can be accessed using Samsung
Techwin’s System Controller or the DVR.
•For accessing the camera from a computer
Use a RS-485 converter to connect the camera’s control port with the computer’s
serial cable.
Ex) Serial port (COM1) of computer Serial Cable RS-485 Converter Camera’s
RS-485 control port
•For accessing the camera from a DVR or the System Controller
connect the camera’s RS-485+ and RS-485– terminals to the RS-485 control board’s
terminals of desired device with a RS-485 cable (TRX+ and TRX–).
Control ports of RS-485 Controller RS-485 ports of the camera
(+) CONNECTION TERMINAL (TRX+) 485+
(–) CONNECTION TERMINAL (TRX–) 485–
Default RS-485 communication settings
Item Camera Number Transfer Rate Communication Mode Return Data
Default 1 9600 8-NONE-1 Not used
J

When constructing a proprietary controller for direct camera control, apply Pelco-D or Samsung-Techwin
protocol.

Use only a DVR model that supports HD-SDI saving.

18_ Operating Your Camera
MENU CONFIGURATION
MAIN SETUP
LENS •
DC • MANUAL
EXPOSURE
•
BRIGHTNESS • SHUTTER • AGC
• SENS-UP • RETURN
WHITE BAL
•
ATW • OUTDOOR • INDOOR
• MANUAL • AWC ➝SET
SSDR • OFF • ON
BACKLIGHT • OFF • BLC • HLC
SSNR3 • ON • OFF
DAY/NIGHT
•
AUTO • EXTERN • COLOR
• B/W
SPECIAL
•
CAM TITLE • IMAGE ADJ • MOTION DET
• PRIVACY • COMM ADJ • LANGUAGE
• RESET • RETURN
EXIT • EXIT
Operating Your Camera

English _19
●OPERATING YOUR CAMERA
MENU SETUP
To configure the camera’s function settings, use the button on the rear side of the product.
•▲▼ : Moves up/down in menu.
•◄► : Moves right/left in menu.
•SET : Press the switch to set the function in camera menu.
To move to a sub-menu item in the menu, press this switch.
1. Press the SET button.
•Enters the function menu.
The selected function’s menu appears on the monitor.
2. Use the Up/Down buttons to select a desired function.
•Move the button up or down to move the arrow up or down.
Set the arrow to indicate the desired item.
HD-SDI POWER
C-Video
GND
AC 24V
DC 12V
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-485-
3 : MD_OUT
1 2 3 4 5
Use right/left buttons
to change the
selection.
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
►
Use up/down buttons
to set the desired item.

Operating Your Camera
20_ Operating Your Camera
3. Use the Up/Down buttons to select a desired function.
•Move the button right or left to display available values or settings.
Set the desired setting value using the button.
4. To finish, select <EXIT> and press the SET button.
M
An item with the icon also has sub menus. To select a sub menu, select an item with the icon and
press the Function Setup switch.
An item with the --- icon is unavailable due to function settings.
LENS
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed,
select <LENS> by using the Function Setup
switch so that the arrow indicates <LENS>.
2. Select the connected lens type by using the
Function Setup switch.
•Manual : Select Manual Lens
•DC : Select Auto Iris Lens.
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
►
