Samsung SCD-2022 User manual

High Resolution Dome Camera
User Manual
SCD-2022

␃
㢜
■



■




User Manual
Copyright
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
•
•
 Design and specifications are subject to change without prior notice.
High Resolution Dome Camera
Samsung Techwin Co., Ltd. All rights reserved.©


⏥
Before operating the camera, confirm the camera model and correct input power voltage.
To help you understand this manual thoroughly, we’ll introduce our model description.
■
• POWER SOURCE
SCD-2022N / SCD-2022P : DC12V
SCD-2022 SERIES
• PAL MODEL
SCD-2022P
• NTSC MODEL
SCD-2022N

ᔔ
8
9
1
1
2
3
4
5
6
7
8
9
1
4_ Safety information
Safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
•
•
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. insecure connection may cause
fire.
When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.
1.
2.
3.
4.
5.

English_5
●SAFETY INFORMATION
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
filled with water on top of the camera. doing so may cause personal injury due to fire,
electric shock, or falling objects.
If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. never
disassemble or modify this product in any way. (samsung is not liable for problems caused
by unauthorized modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product. doing so may cause
fire or electric shock.
6.
8.
9.
10.
Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or
electric shock.
7.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibrationor magnetic interference.
Do not install in a location subject to high temperature (over 55°C), low temperature (below
-10°C), or high humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so
may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this
may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

㺺
1
2
3
4
5
6
7
8
9
1
1
1
1
1
Safety information
6_ Safety information
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products.The Eco mark represents
Samsung Techwin’s will to create environment-friendly products, and indicates
that the product satisfies the EU RoHS Directive.

English_7
●SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the
cart/ apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as powersupply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

ᄔ
y
y
y
y
y
y
y
y
y
y
y
⮈
INTRODUCTION
9
9Features
10 What’s included
11
Component names and Functions
INSTALLATION
1
12 Before Installation
14
SETUP Menu Configration
Menu Setup
TROUBLESHOOTING 27 Troubleshooting
SPECIFICATIONS Specifications
7
18
18
18
Contents
8_ Contents
2
28
28
Dimension
30
12 Installation
15
16 Using coaxial communications
Connecting to Power

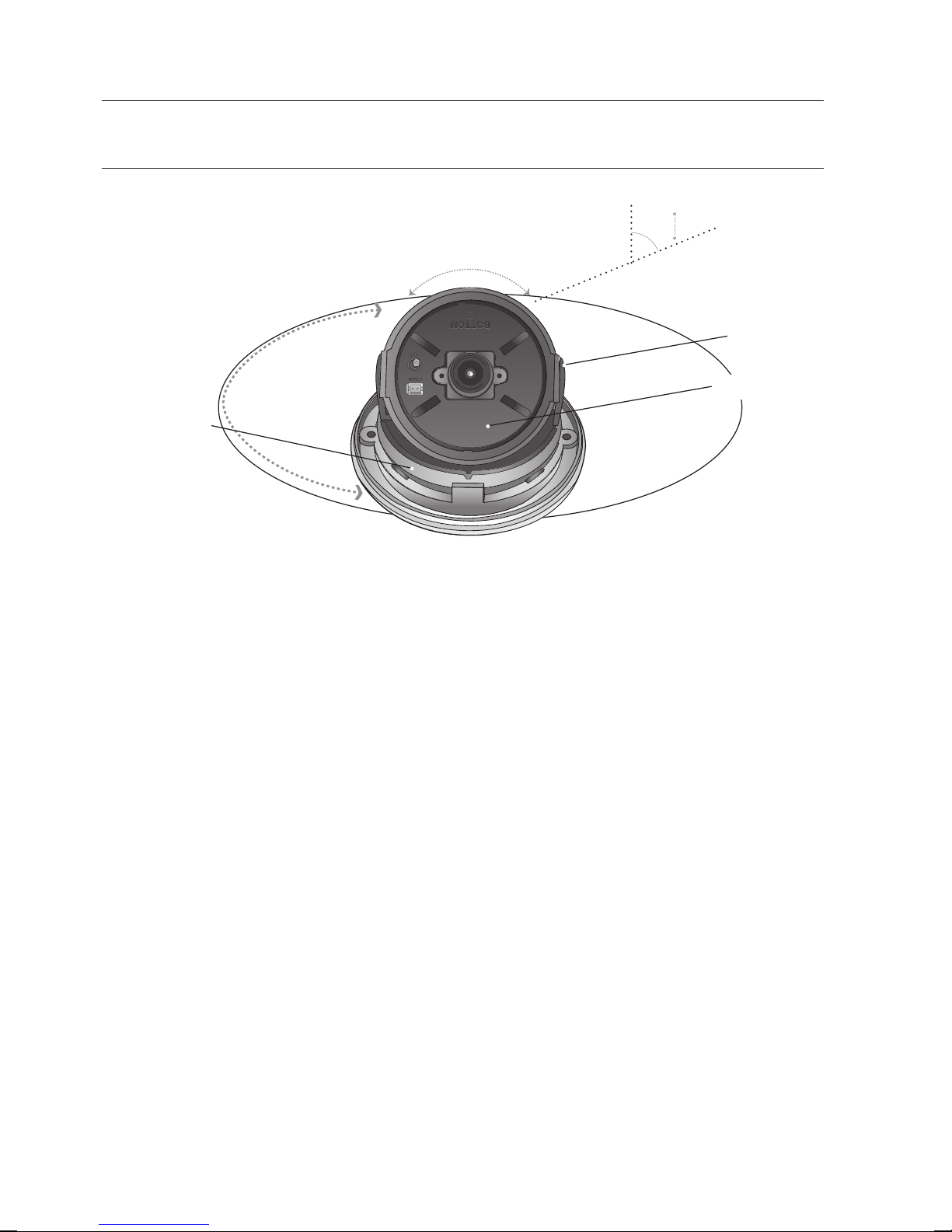

Adjust the panning and tilting
rotating while watching the monitor
2
CONNECTION
15
15 Connecting to Monitor

FEATURES
Introduction
●INTRODUCTION
English_9
High Resolution
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a clear image.
0.15 Lux (50IRE, @F1.2) , 0.002Lux (Sens-up.x64)
Samsung Super Noise Reduction) Function
Day & Night
Defog
SSDR (Samsung Super Dynamic Range)
Miscellaneous Functions
The high-performance B4 DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.
This camera has a function that automatically selects the mode that is appropriate
for daytime or night-time conditions. The COLOR mode operates in daytime
conditions to provide optimum colors, and B/W mode operates in night-time conditions
to enhance the definition of the image.
The camera is able to recognize the concerntration of fog in the image, and automatically
defog, correct image of the bad weather such as fog, rain, mist, fumes, etc to make it clear.
For images with high contrast between bright and dark areas from difficult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.
are provided.
Communication
Coaxial communication methods are supported.
- Protocol : Pelco Coaxitron
Osd
6615
(
HLC(High Light Compensation),SENS-UP, H-REVERSE , SHARPNESS, PRIVACY
and MOTION DET. functions
The camera control is convenient by using 17 different foreign language O.S.D.
- PAL : English, French, German, Spanish, Italian, Chinese, Russian, Polish,
Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
- NTSC : English, Japanese, Spanish, French, Portuguese,Korean
By adopting a diagonal 6mm (1/3”) 520,000 pixel (NTSC), 610,000 pixel (PAL)
SONY CCD, the camera produces clear picture quality with a horizontal resolution
of 650TV lines in color mode and 700TV lines for BW .

ಲ
y
y
Introduction
WHAT’S INCLUDED
Check if the following items are included in the product package.
10_ Introduction
SCD-2022
Tapping Screw 3EA
SCD-2022
Quick Manual
High ResolutionDome Camera
Quick Manual

COMPONENT NAMES AND FUNCTIONS
English_11
●INTRODUCTION
3
8
93
8
9
77
44
❶❶
22
❿
55
66
❶
❷
❸
4
7Function Setup Switch :
Display the menu on the screen and move the cursor to four directions
to confirm status or after changing a selected item.
8
Dome Cover
Shield Case
Rotate Base : Control rotating angle of camera.
Pan Base : Control panning angle of camera.
5
Tilt Base : Control tilting angle of camera.
6
Video Output Terminal to Monitor
Video Output Jack
9Power Input Connector
❿
Lens Module : SCD-2022P - f=3.8mm, F2.0

Installation
BEFORE INSTALLATION
Before installing your camera, you have to read the following cautions ：
•
You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
• Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise
it may cause a breakdown or fire.
• Before installing your camera, you have to adjust the lens focus, zoom, and switch settings.
• When installing your camera, don’t allow any person to approach the installation site. If you have any
valuable things under the place, move them away.
INSTALLATION
12_ Installation
1.
Separate the dome cover by turning anti-clockwise and separate the shield case by pulling from
the camera body.
Latch
Main Body
(Camera)
Shield Case
Unlocking direction
(Anti-clockwise)
Locking direction
(Clockwise)
Dome cover

●



2.
3.
4.
5.
Originalpositionof
the cable
Hole
Cover
Theinstallationshould be done byqualified
service personnel or system installers.

Iftheceilingmaterialisnotstrongenoughto
hold the installation screws, the camera may
falloff.Reinforcetheceilingasneeded.

Tochangethepositionofthecable,take
awaytheHoleCoverandpassthecable
through.
INSTALLATION
English_13
the camera by rotating it anti-clockwise.
Hold the ceiling bracket (located where the arrow points to) and separate it from the main body of
Place the separated ceiling bracket so that the “Front” side faces the area to be monitored
and install it with the M4 tapping screws.
To combine the main body with the ceiling bracket,make sure that the pan base fixation screw
face the opposite side of the “Front” side of the ceiling bracket and rotate it clockwise.
Adjust the camera lens to face the area to be monitored and fix the main body and
the dome cover by aligning the grooves and rotating the body clockwise.
PanBase
fixation
screw
tapping
screw

If

you

want

to

install

the

camera

with

the

ceiling
bracketcombined,fixitusingtwotapping
screws
atthesideofthemainbody
＊
Ceilingbracket
tappingscrew

⻸
ಲ
㎫
ಲ
6
㎫
※
y
y
Installation
Adjust the panning and tilting, rotating while watching the monitior
75°
176°
174° 174°
176°
Tilt Base
Rotate Base
Pan Base
1) You can adjust camera to any direction by using Pan,Tilt, Rotate mechanism.
 •PanBasemovesby176°toeachsidedirectionand352°onthewhole.
 •TiltBasecovers75˚angle.
 •RotateBasemovesby174°toeachsidedirectionand348°onthewhole.
2) Methods of adjustment
 •The case of wall installation
…1 After mounting the camera on a wall, adjusting the panning angle so that the camera can
face the direction to monitor when tilted.
…2
Adjust the tilting angle by rotating the tilt base.
…3
Loosen the rotate base hold screw and adjust rotate base for the best view.
…4
Tighten the rotate base hold screw.
 •The case of ceiling installation
…1 After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing
position by rotating the pan base.
…2
Adjust the tilting angle by rotating the tilt base.
…3
Loosen the rotate base hold screw and adjust rotate base for the best view.
…4
Tighten the rotate base hold screw.
14_ Installation

English_15
●CONNECTION
Connection
CONNeCTING TO mONITOR
----
Connect the Video Output jack to the VIDEO-IN jack of monitor.

Only connect the cable when the power is turned off.
As the connecting method varies with the instruments, refer to the manual
supplied with the instrument.
CCTVCamera
Monitor
Connect the adaptor to the power input connector as shown in the figure below.
The recommended adaptor specification for SCD-2022 is DC12V/500mA.
CONNeCTING TO pOWeR
Power Input Terminal

ಲ
y
y
Connection

PP



PP



PP



PP



PP



PP




*
*
DC 12V ±10%
When the resistance value of copper wire is at [20°C(68°F)]
Voltage Drop (V/m)
Copper wire size (AWG)
     
     
Resistance ( Ω/m)
 As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively
long adaptor output line for connection to the camera may affect the performance of the camera.
Standard voltage for camera operation ：
There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
Be sure to connect power only after all the installation is complete.
Note that DC adaptor is not supplied with camera.
Us ING COA xIAl COmmUNICATIONs
Coaxial Communications System
OSD Control method
CAMERA
SET
UP
DOWN
LEFT
RIGHT
DVR CONTROLLER
MENU/ENTER OSD KEY
UP KEY JOYSTICK UP
DOWN KEY JOYSTICK DOWN
LEFT KEY JOYSTICK LEFT
RIGHT KEY JOYSTICK RIGHT
16_ Connection


1234
5678
9 101112
13 14 15 16
ALARM HDD NETWORK BACKUP REC
DVDRECORDER
REC
ZOOM
MODE
FREEZE
AUDIO
BACKUP
ALRAM
SEARCH
TELE WIDE VIEW PRESET
MENU
RETURN
USB
OPEN/CLOSE
MENU
SEARCH
MULTI
REC
MENU
PRESET
GROUP
TRACK
CAM
12345
67890
MON
CLOSEOPEN
NEARFAR
WIDETELE
PTZDVRMTXSETUP
ESC
FUNCENTER
DVR
• : BNC
• ---- : RS-485


English_17
●CONNECTION
-Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial cable, shown
below : If the distance between the camera and the monitor exceeds the recommended
maximum, please use an auxiliary video amp.
Distance Recommended Cable Specification
300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
It is recommended that pure copper coax cable is used and not copper coated steel, as
this will cause issues with the communication over the coaxial cable.
To ensure picture quality, only single-channel video output connector can be used while
camera connected to other video equipments.

㔤
ܓ
ܓ
㖳
● ● ●
●
●●
● ● ●
●●
●
● AUSER BLC ● HLC
● ●
● ● ●
● ● ●
● ● ●
●SSDR
●
●●●
●
COAX
Setup
18_ Setup
meNU CONfIGURATION
mAIN seTUp
expOsURe
defOG
WhITe bAl
bACKlIGhT
dAy/NIGhT
speCIAl
exIT
SSNR3
BRIGHTNESS AGC SENS-UP
RETURN
OFF AUTO MANUAL
ATW OUTDOOR INDOOR
MANUAL AWC
→SET
OFF
ON OFF
AUTO COLOR B/W
CAM TITLE PRIVACY
SYNC
RETURN
IMAGE ADJ
MOTION DET
SAVE NOT SAVE RESET
Use the Function Setup switch within the camera.
Function Setup switch
meNU seTUp
1. Press the Function Setup switch.
Main setup menu is displayed on the monitor screen.

English_19
●SETUP


▶
 x2
MAIN SETUP
EXPOSURE
2.DEFOG OFF
3.WHITE BAL ATW
5.
BACKLIGHT OFF
6.
7.
DAY/NIGHT AUTO
8.
SPECIAL
EXIT SAVE
1.
4.
SSNR3 ON
Select the function
using the Function
Setup switch up/
down.
Change the status
using the Function
Setup switch
left/right.
2. Select a desired function using the Function Setup switch.
Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select ‘EXIT’ and press the Function Setup switch.
An item with the icon is unavailable due to function settings.

An item with the
icon also has sub menus. To select a sub menu, select an
item with the icon and press the Function Setup switch.
expOsURe
1. When the SETUP menu screen is displayed, select EXPOSURE by using the Function Setup
switch so that the arrow indicates 'EXPOSURE'.
2. Select a desired mode using the Function Setup
switch.
BRIGHTNESS : Adjusts the video brightness.
AGC (AUTO GAIN CONTROL)（
):
but the higher the noise.
OFF/ LOW / MID /
HIGH The higher the gain level, the brighter the
screen
SENS-UP : When it is night or dark,the camera
automatically detects the light level and
maintains a clear picture if this model is
activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
RETURN ：Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.
EXPOSURE SETUP
 1.
BRIGHTNESS
IIIIIIIII*IIIIIIII
10
3 . SENS-UP
HIGH
4. RETURN
2. AGC
AUTO
LIMIT
AUTO
Press SET to Return

Setup
20_ Setup

defOG
Through the defogging function, camera can automatically recognize fog concentration of the image, defog,
self correct in hazy, rainy, flue gas and other inclement weather to get a clear image.
1. When the SETUP menu screen is displayed, select ‘DEFOG’ by using the Function Setup switch.
2. Select a desired mode.
AUTO :

(low, middle, high).
OFF: Turn off Defogging function.
The camera will automatically correct image
according to the defogging level (low, middle,
high) set by the user.
Manual : The camera will adjust the definition of the
image according to user's preferences
through the defogging level
.
Defogging and SSDR function cannot be run simultaneously. When defogging function is set
to AUTO or MANUAL mode, SSDR function is not available. When SSDR functions is turned
on, defogging would become inactive
WHite bal(WHite balaNCe)
Use the White Balance function to adjust the screen color.
1.
2. Select a desired mode using the Function Setup switch.
※ Select one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1,700°K and 11,000°K.
When the SETUP menu screen is displayed, select ‘White Bal’ by using the Function Setup switch
so that the arrow indicates ‘White Bal’.
OUTdOOR
IN d OOR : Select this when the color temperature is between 4,500°K and 8,500°K.
: Select this when the color temperature is between 1,700°K and 11,000°K.
(sodium light inclusion)
MaNU al : Select this to fine-tune White Balance
manually. Set White Balance first by using the ATW
or AWC mode. After that switch to MANUAL mode,
fine-tune the White Balance and then press the
Function Setup switch.
WB MANUAL
RED GAIN
IIIIII*IIIIIIIIIIIIIIIIIIII
106
BLUE GAIN
IIIIIIIIIIIIIIIII*IIIIIIIIII
259
Press SET to Return
aWC →Set : To find the optimal luminance
level for the current environment, point the camera
towards a sheet of white paper and press the Function Setup switch. If the environment
changes, readjust it.
DEFOG SETUP
 1.
LEVEL
MIDDLE
2.RETURN
↑SET
mode.
When the color temperature of the environment surrounding the subject is out of the control range
When the ambient illumination of the subject is dim.
3
If the camera is directed towards a fluorescent light or is installed in a place where illumination

White Balance may not work properly under the following conditions. In this case, select
AWC
1
2
