QUICK SETUP GUIDE
WAM1500-ZC-QSG-0826.indd 01 2016-09-05  5:31:11

· 1 · English
Speaker Main Features
Wi-Fi connection is recommended for this speaker
Provides a wide range of sound sources, Internet radio available, and supports
group play with multiple connections or stereo sound feature
Features Wi-Fi
Bluetooth
Multiroom
feature Connect multiple devices at once One device connection
Music service
Variety of music services available
with the Samsung Multiroom
App
-Sound source service
-Internet radio (Tuneln)
App installation
per music service
required
NOTE

Bluetooth Setup, please refer to page 11
WAM1500-ZC-QSG-0826.indd 1 2016-09-05  5:31:34

· 2 · English
Checking the Components
Do not place any items on
top off or sit on the main
unit
MODE
Getting Started
1 Follow the installation steps in this user manual
2 Please download Samsung Multiroom app on your smart device
Inst
1 M
(S
co
2 O
3 C
WAM1500-ZC-QSG-0826.indd 2 2016-09-05  5:31:34

· 3 · English
son
ain
Installation
1 Make sure your smart device
(Smart Phone, Tablet, PAD, etc) is
connected to your Wi-Fi network
NOTE

All the devices need to connect to the
same network
2 On your smart device, download and install the Samsung Multiroom app
3 Connect your speaker to power
Speaker
Sk
SPK ADD/Wi-FiSETUP SERVICE
DC 19V
Smart device Router
td i
Rout
er
WAM1500-ZC-QSG-0826.indd 3 2016-09-05  5:31:37
Android iOS
Application Samsung Multiroom

· 4 · English
Installation
4 Launch the Samsung Multiroom app on your smart device, and then follow
the instruction on the screen to complete setup
-Play music after speaker setup is complete

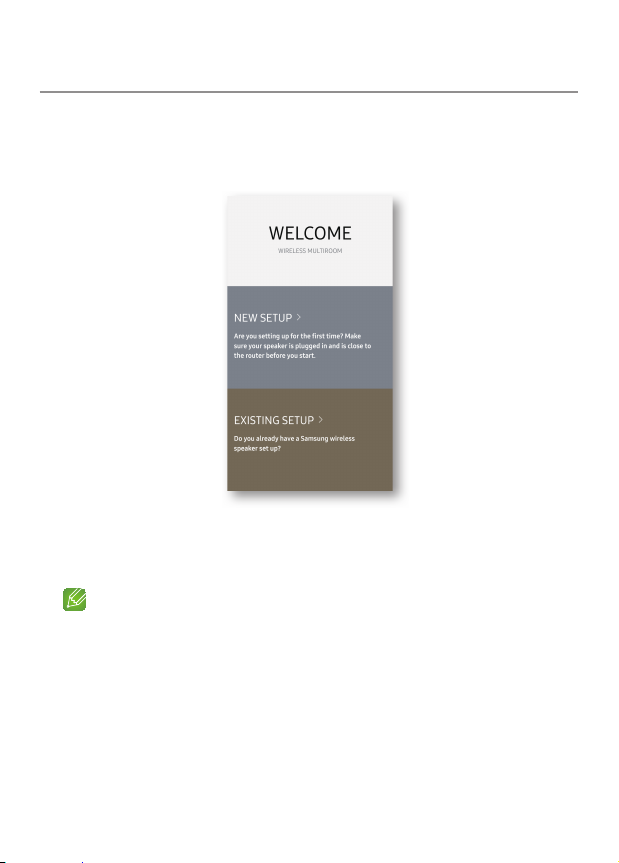

Welcome Screen
If Auto Set-up fails, follow the on-screen instructions
NOTE

If speaker setup continually fails,
Press and hold the volume ( +,- ) buttons on top of the speaker simultaneously for
five seconds to reset the speaker
Next, restart the app and follow the displayed instructions to configure the
speaker again
Spe
WAM1500-ZC-QSG-0826.indd 4 2016-09-05  5:31:38

· 5 · English
ow
ly for
Speaker Top
Volume button
MODE VOL
Touch to select TV SoundConnect
/Bluetooth/Wi-Fi
Previous
Song
Next
Song
Swipe
Indicator
LED
Play/Pause
Tap
NOTES

Tap/Swipe : Whole area is available except MODE, Volume (-,+) key area on the
TOP

The speaker will enter standby mode to reduce energy consumption after
15 minutes of idle time
WAM1500-ZC-QSG-0826.indd 5 2016-09-05  5:31:40

· 6 · English

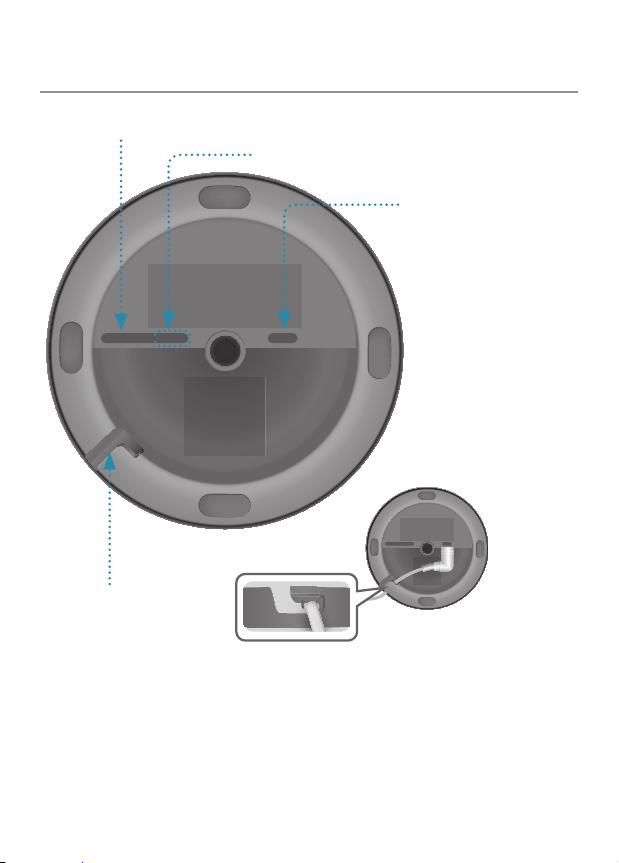

Speaker Bottom
SPK ADD/Wi-Fi SETUP SERVICE
DC 19V
SPK ADD/Wi-Fi SETUP
Notch forPowerCable
SERVICE
For service only
DC 19V
1 Connect the
adaptor’s input
power cord to the
adaptor
2 Connect the
adaptor’s output
power cord (with the
round plug) to the
DC 19V jack on the
speaker
SPK ADD/Wi-FiSETUP SERVICE
DC 19V
Usi
WAM1500-ZC-QSG-0826.indd 6 2016-09-05  5:31:40

· 7 · English
e
the
e
he
Using the Samsung Multiroom App (on Main Screen)
1
View the full list of connected
speakers
2
Enter a keyword to search for
the music desired
3
Access the settings menu
4
Select a source of music and
play the music you want
Scroll left or right to view
different sources of music
5
A different screen is displayed
according to the music source
selected
6
Different categories of music
are listed below the bar
Scroll down to select your
favorite categories of music
4
3
12
5
6
NOTES

Some of app image might be different Please refer to Web Manual for the detail
information

Sign-up or log-in may be required to access some streaming services

Some TuneIn radio channels may be restricted depending on their site policies

Supported streaming services are provided by third parties and may be
terminated at any time
WAM1500-ZC-QSG-0826.indd 7 2016-09-05  5:31:42

· 8 · English
Connecting Additional Speakers
You can add additional speakers
Use an app to add speakers to the network
1 Connect the new speaker to an electrical outlet
2 On the main screen, touch at the top left to display a list of speakers
3 Touch More
4 Touch
Add New Speaker in the app, and then follow the instructions on the
app screen
Usi
Sett
Grou
mus
1 O
2 To
3 To
sp
WAM1500-ZC-QSG-0826.indd 8 2016-09-05  5:31:44

· 9 · English
e
Using Multiple Speakers
Setting up a group
Group multiple speakers, connected over the same network, to play the same
music via the speakers
1 On the main screen, touch at the top left to display a list of speakers
2 Touch next to the speaker name
3 Touch Group If you have more than two connected speakers, select the
speakers you want to set up as a group, and then select Done
NOTES

If two speakers are available, touch Group to automatically group the speakers

You cannot use Group with Bluetooth or a TV SoundConnect connection
WAM1500-ZC-QSG-0826.indd 9 2016-09-05  5:31:49

· 10 · English
Using Multiple Speakers
Setting up Stereo Mode

If connecting to a Samsung Smart TV over Wi-Fi, use multiple speakers to configure a
surround sound system Refer to “Connecting to a Samsung Smart TV over Wi-Fi” for
details
Use multiple speakers to enjoy stereo sound
1 On the main screen, touch at the top left to display a list of speakers
2 Touch next to the speaker name
3 Touch Stereo Setup
4 Touch and hold a speaker, drag and drop it to a desired location, and then
select Done
󱂨
󱂧
NOTES

If two speakers are connected, touch Stereo Setup to enable stereo sound mode

Speaker testing and volume adjustment are optional

You cannot use Stereo Setup with Bluetooth or a TV SoundConnect connection
Usi
1 To
yo
2 E
th
3 U
WAM1500-ZC-QSG-0826.indd 10 2016-09-05  5:31:52

· 11 · English
a
n
ode
on
Using Bluetooth®
1 Touch the MODE button on the TOP of your speaker one or more times until
you hear “Bluetooth is ready”

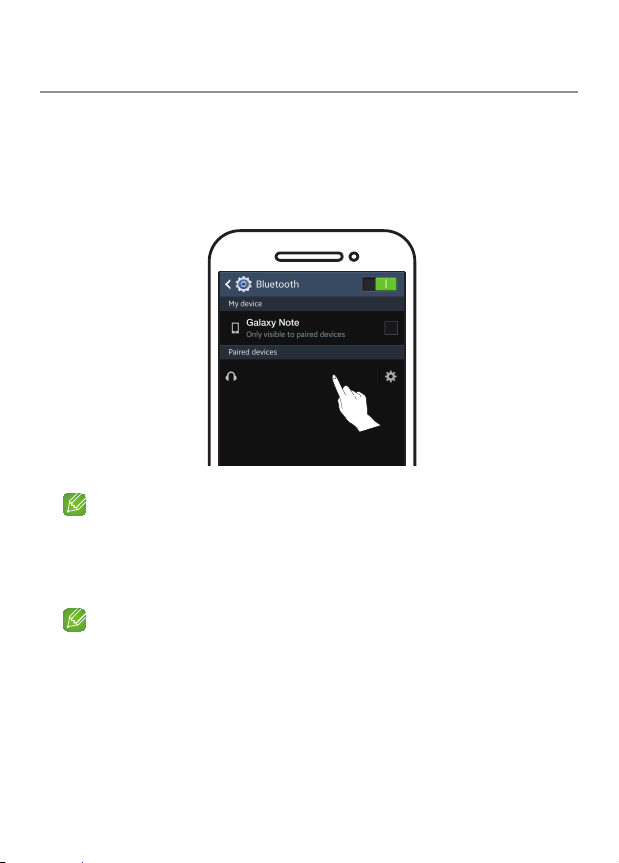

2 Enable Bluetooth on your smart phone, and then select [Samsung] R1 from
the Bluetooth list
[Samsung] R1
NOTE

Without connection with Samsung Multiroom app, you might see
“Samsung Wireless Audio” on your Bluetooth list
3 Use any music app on your device to play music on your speaker
NOTE

In Bluetooth mode, the Play/Pause/Next/Prev functions are available in
Bluetooth devices supporting AVRCP
WAM1500-ZC-QSG-0921.indd 11 2016-09-21  5:40:10

· 12 · English
Connecting to a TV via TV SoundConnect (Bluetooth)
TV SoundConnect allows an easy wireless connection between a Samsung
TV and your speaker so you can enjoy listening to your TV’s sound through the
speaker
1 Touch the MODE button one or more times until you hear “TV SoundConnect
is ready”
NOTE

TV SoundConnect can be used to connect a single speaker to a TV
(to connect multiple speakers to a TV, refer to “Connecting to a Samsung Smart
TV over Wi-Fi”)
2 Press and hold MODE button for 5 seconds to initialize TV SoundConnect
Mode
3 A pop-up appears on the TV asking you to approve the connection
Approve to continue
NOTES

Once connection completed, skip above step 2 and 3 when you connect the TV
again

To connect a new TV, follow above all 3 steps

The TV SoundConnect (SoundShare) feature is available on several Samsung TV
models released after 2012
Con
Wh
If yo
on th
soun
Ch
※
WAM1500-ZC-QSG-0826.indd 12 2016-09-05  5:31:58

· 13 · English
he
ect
art
TV
TV
Connecting to a Samsung Smart TV over Wi-Fi
What is the Wi-Fi surround sound connection?
If your Samsung TV supports the Wi-Fi mode, connect the TV and audio devices
on the same Wi-Fi network You can enjoy sound experience from the surround
sound system

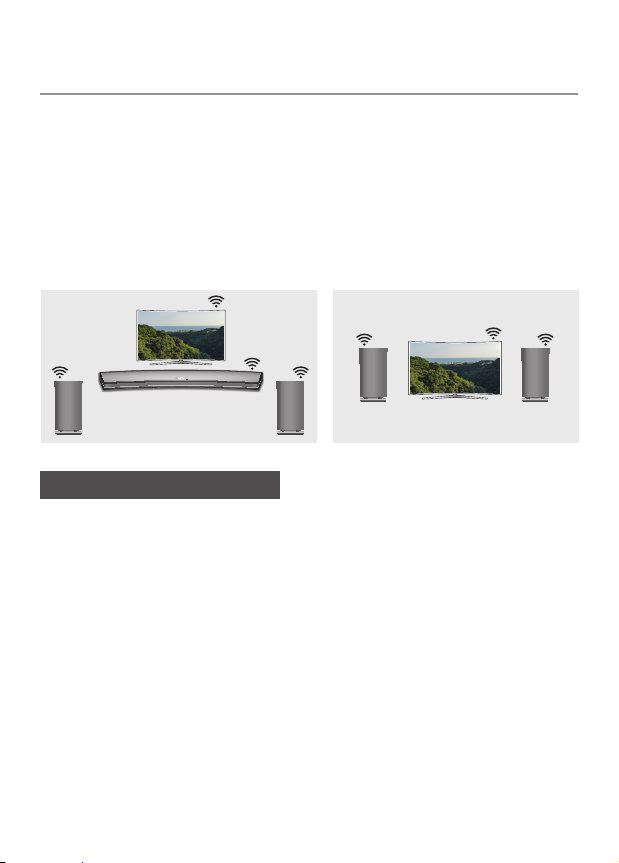

Playing TV sound using the
Soundbar and speakers
Playing TV sound using speakers
only (up to five speakers can be
connected)
Checklist before Connection
※
Check information foryourTV model
For connection to a TV over Wi-Fi, only Samsung Smart TVs, released after
2014, are compatible (See the User Manual provided with your TV)
When using a smart TV manufactured by otherthan Samsung,
-Use a wired connection to connect between your TV and Samsung
Soundbar that supports the multiroom feature Then use the
Multiroom app to set up your surround sound system
(Refer to the Soundbar user manual at the Samsung website)
WAM1500-ZC-QSG-0826.indd 13 2016-09-05  5:32:06

· 14 · English
Connecting to a Samsung Smart TV over Wi-Fi
1 Check to make sure that the Soundbar and audio device are connected to a
(Wi-Fi) network
NOTE

Download the Samsung Multiroom app to your smart device, then follow the
instructions in the app to connect the speakers and/or Soundbar to the (Wi-Fi)
network
2 Check to make sure that the TV is connected to the network
• How to check : Menu  Network  Network Status
3 Check to make sure that the TV, Soundbar and speakers are connected to the
same network
Connecting to a Samsung Smart TV released in 2016
Connecting a single speakerorSoundbar
From the menus, select Sound Output
Home Menu

Settings ( )

Sound

Sound Output

Model name(Wi-Fi)
Connecting multiple speakers orconnecting a single speakeralong with
the Soundbar
1 On the TV menu, select Wireless SpeakerManager
Menu Sound Expert Settings Wireless Speaker Manager
Con
2 S
W
O
M
M
3 S
s
• Su
Fro
Cen
Spe

p
WAM1500-ZC-QSG-0826.indd 14 2016-09-05  5:32:10

· 15 · English
a
e
Fi)
othe
Fi)
h
Connecting to a Samsung Smart TV over Wi-Fi
2 Select Multiroom Link Type
• Surround :
Set up with 2 to 5 speakers
• Soundbar+Surround :
Set up with one Soundbar and two
speakers
NOTE

The surround sound system is not
available with a combination of one
Soundbar and one speaker
Wireless Speaker Manager
Other Audio Device ( )
Multiroom Link Type
Multiroom Link Settings
Surround 
Soundbar+Surround
3 Select Multiroom Link Settings Select a speaker for each channel and
select Save to complete configuration
• Surround
Front
Center
LR
None None
R7
Speaker Level Surround Test
Save
Cancel
• Soundbar+Surround
Center
Surround LR
Speaker Level Surround Test
Save
Cancel
R3 R3
HW-K850
If a connection cannot be established,see “Checklist before Connection” on
pages 13 and 14
WAM1500-ZC-QSG-0826.indd 15 2016-09-05  5:32:11

· 16 · English
Connecting to a Samsung Smart TV over Wi-Fi
Connecting to a Samsung Smart TV released in 2015
Connecting a single speakerorSoundbar
1 On the TV menu, select SpeakerList
Menu Sound Speaker List
2 Select a connected speaker from the list of speakers
Sound
Sound Mode Standard
Sound Effect
3D Audio Low
Speaker List
Additional Settings
Sound Customizer
Reset Sound
TV Speaker
HW-K850(HDMI)
HW-K850(Wi-Fi)
R1(Wi-Fi)
R3(Wi-Fi)
Make sure that
“(Wi-Fi)” is included
in the name
IMPORTANT

Soundbars are indicated by the ‘Model name(Wi-Fi)’
Connecting multiple speakers orconnecting a single speakeralong with
the Soundbar
1 Follow the instructions under “Connecting a single speaker or Soundbar” to
connect a speaker
IMPORTANT

To configure the surround sound system aligned with a Soundbar, select a
Soundbar first
Con
2 W
co
co
C
C


p
WAM1500-ZC-QSG-0826.indd 16 2016-09-05  5:32:12

· 17 · English
ed
h
to
Connecting to a Samsung Smart TV over Wi-Fi
2 With the speakerselected, press the right directional key on the remote
control Select a speaker for each channel and select Save to complete
configuration
Connecting only a speaker
Wi-Fi Surround Setup
Front Left
[Samsung] R3 [Samsung] R1
Front Right
Speaker Level Start Test
ExitSave
We’ve automatically configured your
surround setup You can manually edit this
configuration or select Exit to cancel
TV Speaker
R1(Wi-Fi)
R3(Wi-Fi)
Connecting a speaker along with the Soundbar

The surround sound system is not available with a combination of one Soundbar and
one speaker
Wi-Fi Surround Setup
Surround Left
[Samsung] R3 [Samsung] R5
[Samsung] HW-K850
Surround Right
Soundbar
Speaker Level Start Test
ExitSave
We’ve automatically configured your
surround setup You can manually edit this
configuration or select Exit to cancel
TV Speaker
HW-K850(HDMI)
HW-K850(Wi-Fi)
R3(Wi-Fi)
R5(Wi-Fi)
HW-K850
Clear Voice
Movie
Surround
Surround Setup
Music
Sports
Night
Woofer & Equalizer
Settings
If a connection cannot be established,see “Checklist before Connection” on
pages 13 and 14
WAM1500-ZC-QSG-0826.indd 17 2016-09-05  5:32:15

· 18 · English
Connecting to a Samsung Smart TV over Wi-Fi
Connecting to a Samsung Smart TV released in 2014
1 From the menus, select Multiroom Link - Settings
Menu Sound Speaker Settings Multiroom Link - Settings
Sound
Sound Mode Standard
Sound Effect
3D Audio Low
Speaker Settings
Additional Settings
Reset Sound
Speaker Settings
TV Sound Output Multiroom Link
TV Speaker
• TV Installation Type Stand
TV SoundConnect
• Samsung Audio Device List
• Add New Device On
Multiroom Link
• Settings Surround
Bluetooth Headphone
• Bluetooth Headphone List
OK
2 Select the Multiroom Link type
Settings
Multiroom Link Surround
Multiroom
Soundbar+Surround
OK Volume Level Speaker Test Edit Name
Front Left
[Samsung]R5[Samsung]R3
• Surround :
Set up with one to five speakers
• Soundbar+Surround :
Set up with one Soundbar, or with
one Soundbar and two speakers
NOTE

The surround sound system is not
available with a combination of one
Soundbar and one speaker
Con
3 S
e
4 S
Set
Mult
O
5 S

p
WAM1500-ZC-QSG-0826.indd 18 2016-09-05  5:32:16

· 19 · English
h
ne
Connecting to a Samsung Smart TV over Wi-Fi
3 Select the number of speakers to connect
eg, one speaker 1CH, two speakers 2CH
Settings
Multiroom Link 서라운드
OK Volume Level Speaker Test Edit Name
Front RightFront Left
[Samsung]R3[Samsung]R3
2CH
Front Ri
g
4 Select the speaker in the position you want and select OK
Settings
Multiroom Link Surround
OK Volume Level Speaker Test Edit Name
2CH

[Samsung]R3
[Samsung]R3
[Samsung]R5
Front RightFront Left
Settings
Multiroom Link Surround
OK Volume Level Speaker Test Edit Name
2CH
Front RightFront Left
5 Set TV sound output to Multiroom Link
If a connection cannot be established,see “Checklist before Connection” on
pages 13 and 14
WAM1500-ZC-QSG-0826.indd 19 2016-09-05  5:32:18
