Samsung CB21K5ML User manual

COLOUR
TELEVISION
Owner’s Instructions
ENG
REMOTE CONTROL
ON-SCREEN MENUS
ENJOY GAME
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference

2
Mode System
CS PAL-B/G, D/K, I, SECAM-B/G,D/K, I,
NTSC4.43 (NTSC3.58; option)
CB PAL-B/G
☛
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
!
CZ PAL-B/G, D/K, I, SECAM-B/G,D/K, I,
NTSC4.43
!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO PREVENT ELECTRICAL SHOCK,DO
NOT REMOVE REAR COVER, NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT DAMAGE WHICH MAY
RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
The main voltage is indicated on the rear of
the TV set and the frequency is 50 or 60Hz.

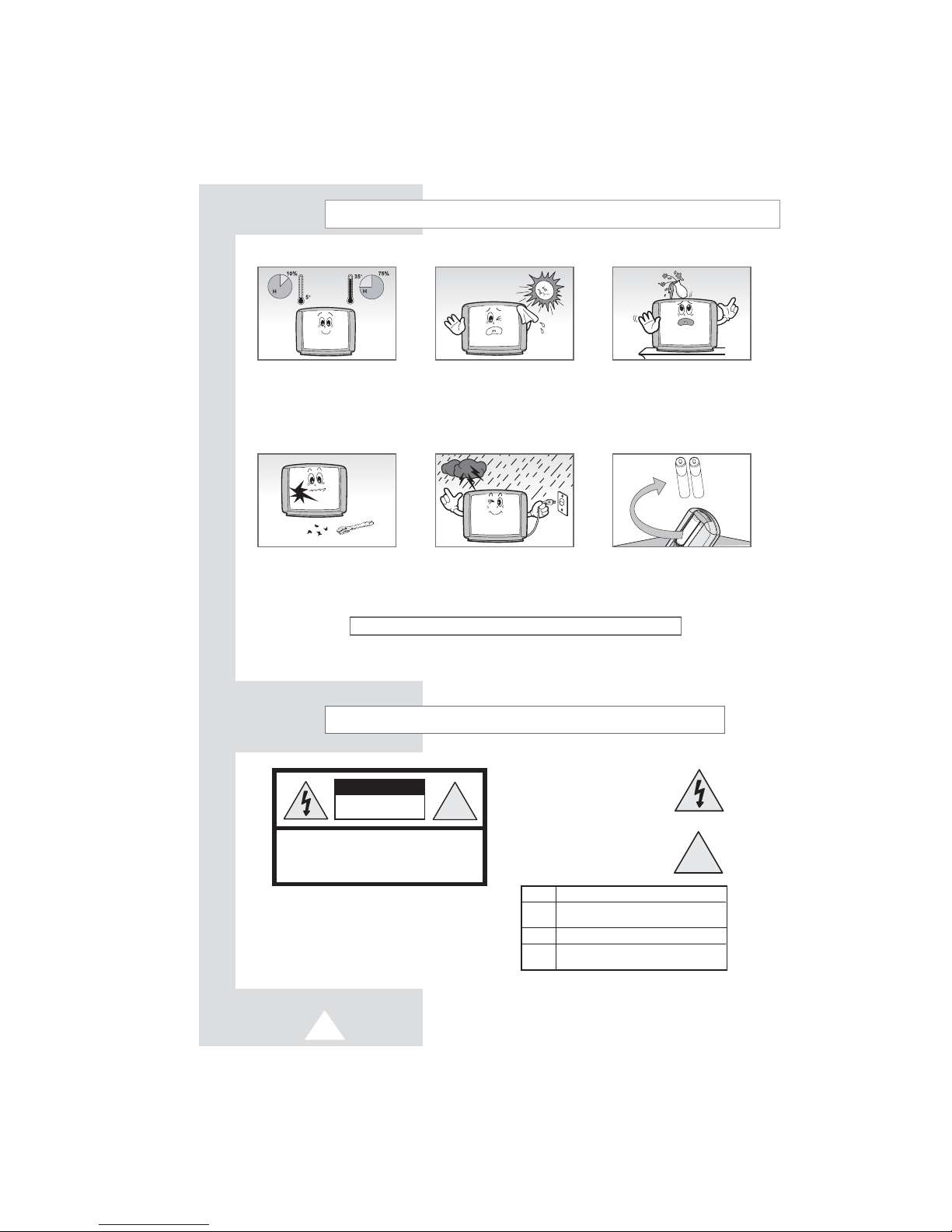

Safety Instructions
Caution
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS
➢Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.
The following illustrations represent the precautions to be taken when using and moving your television
Do NOT expose the television to
extreme temperature conditions
(below 50C and above 350C) or
to extreme humidity conditions
(less than 10% and more than
75%).
Do NOT expose the television to
direct sunlight.
Do NOT expose the television to
any liquids.
If the television is broken, do not
try to repair it yourself. Contact
qualified survice personnel.
During a storm conditions
(especially when there is
lightening) unplug the television
from the mains socket & aerial.
If the remote control is not used
for a long period of time, remove
the batteries and store it in a cool,
dry place.

Infrared Remote Control (Depending on Model)
Buttons and markings are subject to change
3
➣
The performance of the remote control may be affected by bright light.
TELEVISION STAND-BY
DIRECT CHANNEL SELECTION
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
MENU DISPLAY
MOVE TO THE REQUIRED MENU
OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
GAME KEY
EXTERNAL INPUT SELECTION
EXIT FROM ANY DISPLAY
PREVIOUS CHANNEL
CHANGE CONFIRMATION
INFORMATION DISPLAY
AUTOMATIC SWITCH OFF
ONE/TWO /THREE-DIGIT
CHANNEL SELECTION
TUNER/CABLE NETWORK
SELECTION
SWITCH REPEATEDLY
BETWEEN THE LAST TWO
CHANNELS DISPLAYED
PICTURE SIZE
VOLUME DECREASE
NEXT CHANNEL
SOUND EFFECT SELECTION
TURBO SOUND
CHANNEL SCAN KEY
PICTURE MODEL SLECTION
SOUND MODE SELECTION

1 Press the POWER button on the remote control.
Result : The screen is turned off and the standby indicator on
the front of the television lights up.
4 To swith your television off, press the POWER (ON/OFF) button
again on the front of the television,
3 Press the POWER button on the remote control to switch the
television on.
Result : The last watched programme reselected automatically.
2 Press the POWER (ON/OFF) button on the front of the television.
Result : The standby indicator lights up on the front panel
2 To switch the screen back on, simply press the power button
again on the remote control.
To view television channel correctly,a signal must be received by
the set from one of the following sources:
The mains lead is attached to the rear of the television
Your television can be placed in Standby mode, in order to reduce:
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
The television is placed automatically in Standby mode when you
turn it On.
1 Plug the mains lead into an appropriate socket.
➢ The mains voltage is indicated on the ear of the TV set and the
frequency is 50 or 60Hz.
➢ Do not leave your television in standby mode for long period of time
(when you are away on holiday, for example).
In this case, you should switch it off completely.
Plug the arrial or cable network input cable to the 75 Ω coaxial socket on
the rear of the television.
An outdoor aerial
A cable television network
Power consumption
Wear of the cathode ray tube
Connecting the Aerial (or Cable Television Network)
Switching Your Television On and Off
Placing Your Television in Standby mode
75Ω
Cable
Television
Network
Rear of TV
4

Plug & play Feature
Choosing Your Language
5
Plug & Play
RETURN
Ant. Input Check
Move Exit
Clock - - : - - am
Time
ENJOY YOUR WATCHING
When you start using your television for the first time you must
select the language, which will be used for displaying menus and
indications.
1 If the television is in standby mode, press the POWER button on
the remote control.
Result : The The message ‘Plug & Play’ is displayed. It flickers
for little while and then the ‘Language’ menu is
automatically displayed.
2 Press the or button to select required language. Press the
ENTER button to enter the language and then the message
“Ant Input Check” is displayed.
3 Make sure that the antenna is connected to the TV, and then press
the ENTER button to store the channel.
Result : The horizontal bar is displayed, and then channels are
stored in an order which reflects their position in the
frequency range.
4 When searching and storing is complete, the “Time” menu is
displayed.
2 Press +or -button to select the “Language” and select a particular
language by pressing the Enter button repeatedly.
3 When you have finished, press the EXIT button or press the MENU
button repeatedly to return to normal viewing.
5 Press the or button to move to the hour or minute. Set the
hour or minute by pressing the or button.
6 When you have finished, press the MENU button.
Result : The message “ENJOY YOUR WATCHING” is displayed.
7 If you want to reset this feature...
1 Press the MENU button then pess the or button to select
the “Set UP”,and then press Enter button.
2 Select the “Plug & Play” by pressing the or button,and then
press the Enter button.
Result : The message “Plug & Play ” is displayed.

ENTER
ENTER EXIT
STOP
P 1 102MHZ
7%
SEARCH
ENTER
MOVE ENTER RETURN
TV SETUP
LANG. : ENGLISH
PLUG & PLAY
TIME
CHILD LOCK
MORE
MOVE ENTER RETURN
TV SETUP
LANG. : ENGLISH
PLUG & PLAY
TIME
CHILD LOCK
MORE
“Set UP”.

7

You can exchange the numbers of two channels, in order to:
Modify the numeric order in which the channels have been
automatically stored.
Give easily remembered numbers to the channels that you
watch most often.
1 Press the MENU button and Press the or button to select the
“Channel” and Press the Enter button.
2 Press the or button to select the “Sort” and Press the Enter
button.
Result : The “Sort” menu is displayed with the “From” selected.
3 Press the or button until the channel number that you wish to
change is displayed.
Result : The Selected channel’s picture is displayed.
4 Press the or button to select the “To”.
5 Press the or button until the new number by which you wish to
identify the channel is displayed.
Result : The seleted channel is exchanged with the one
pervious stored to the chosen number.
Example : If you select “P1” for the “From” and “P3” for the “To” :
Channel 1 become channel 3.
Channel 3 become channel1.
Sorting the Stored Channels
8
ADJUST RETURN
MOVE
FROM : P 1
SORTTV
TO : P---
STORE : ?
6To Press the...
or button to select the “Store”.
Enter button.
Result : “OK” is displayed.
Confirm the exchange of
channel number
7 When you have finished, sorting channels, Press the EXIT
button or press the MENU button repeatedly to return to normal
viewing.
ENTER RETURN
MOVE
FROM : P 1
SORT
TV
TO : P--3
STORE : OK
You can exchange other channel numbers by seleting “From”
and returning to step 3
ENTER EXITMOVE
AUTO STORE
CHANNEL
TV
MANUAL STORE
ADD/DELETE
SORT

Changing the Picture Standard
9
You can select the type of picture which best corresponds
to your viewing requirements. The following picture effects are
available in the order given:
Dynamic,Standard,Movie,Custom.
1 Press the MENU button & Press button to select picture.
Result : The “Picture” menu is displayed.
2 Press the ENTER button.
Result : The “Mode” menu is selected.
3 Select to satisfy your preference by pressing the ENTER button.
4When you have finished, press the EXIT button or press the MENU
button repeatedly to return to normal viewing.
You can select the required picture effect by simply pressing
the “P.MODE” button on the remote control.
MOVE ENTER RETURN
TV
MODE : DYNAMIC
CUSTOM
COLOR TONE : NORMAL
SIZE : NORMAL
MORE
or

Press the b utton to select the picture
Press the ENTER button
ENTER button
& press the button to select the picture
Press the ENTER button
To adjust Color Tone Press Menu button & press button to select
pictutre menu.
Press ENTER button to select the required option (Normal, Warm1,
Warm2, Cool2, Cool1.)
ENTER
Press Enter button & press button to select color tone.
5
6
7

press the ENTER
“Set up” & press the ENTER button.
To display the Channel information & Current time press the “INFO”
button

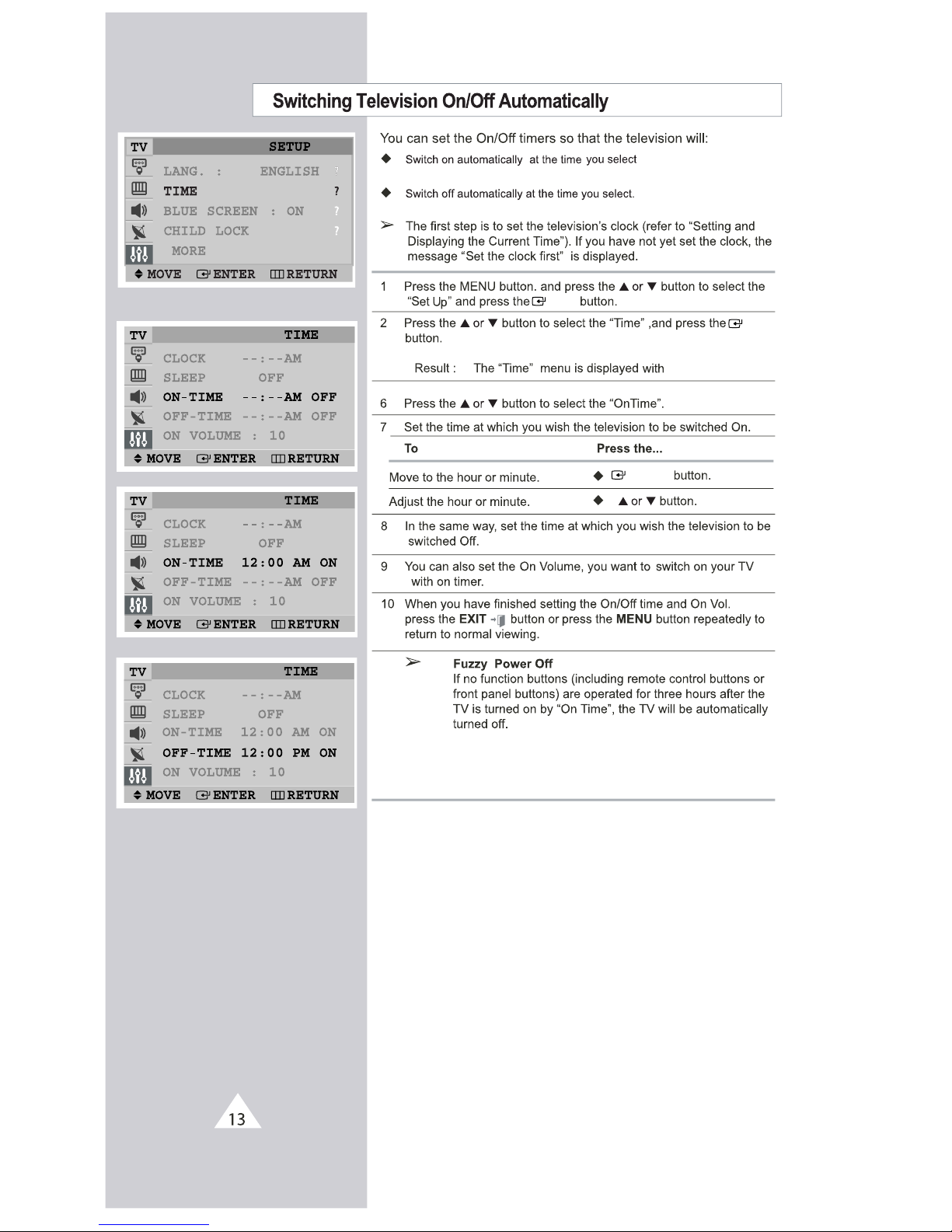

“Set up” & press the ENTER button.
ENTER

ENTER
clock selected.
ENTER
ENTER

ENTER
ENTER

ENTER
ENTER
ENTER
ENTER
ENTER

ENTER
ENTER
ENTER
ENTER
ENTER

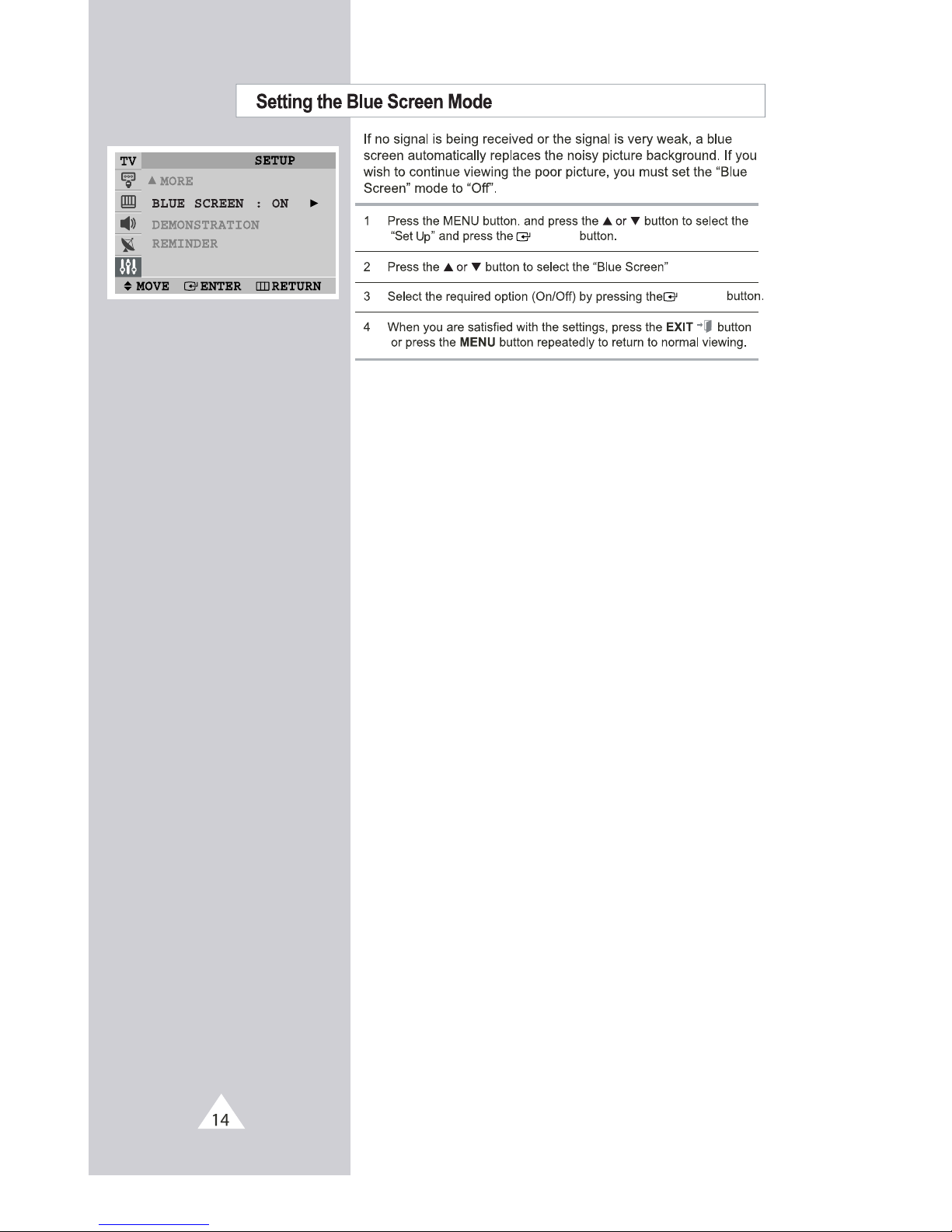

“Message”

The objective of the game is to move all the
yellow boxes to the blank boxes. The Blank box.
will become red when the yellow box is placed in it.
Press the game button to enter the game mode.
Result: The Push game window will be displayed
with following options:
New Game
Stage
Help
Exit Game
When you select STAGE, you can selectfrom
stage 1 to stage 10 by the k eys defind as enter &
select up/do wn. As y ou finished select stage ,
just press Menu up k ey to select ne w game and
press enter key to start a new game.
The little man will mo ve left-r ight with <-> . K ey &
up down by key.
Ev ery time you push in one box, you will gain one
score . And after you move all of the boxes to the red
destination, you succeessfully pass the stage ,
and then you will see a prompt as shown in the
picture.
If you press k ey up, y ou can continue to challenge
yourself to stage 2, but if you do not w ant to continue,
you can just prss key doen to return to the game
selection menu.
The most important instruction is , y ou can have
one chance to step back if you move a wrong step.
When y ou come across the bad luck, you just need
to press the menu key & select step back option.
During the game time , y ou can exit game any time
by pressing menu key, and continue the game anytime
you want unless you turn off theTV set and if you
made an irreversib le mistak e , y ou can select
RESTAR T GAME to replay the current stage.
You can enjoy the game programmed in this TV:
Push Box.

AA68-03662A-00 (ENG)
