Samsung JUPITER Series User manual
ENGLISH
Vacuum Cleaner
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only.
JUPITER Series
DJ68-00605F-00
DJ68-00605F-00.indb 1 2015. 4. 4. �� 10:07
02_ safety information
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and retain it for
your reference.
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in this
manual.
CAUTION/WARNINGSYMBOLSUSED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHERSYMBOLSUSED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
This vacuum cleaner is designed for domestic household use only.
Do not use this vacuum cleaner to clean building waste and debris.
Regularly keep the filters in clean conditions to prevent of collecting fine dust in
them.
Do not use this vacuum cleaner with any of the filters removed.
Failure to meet these requirements could cause damage to the internal parts
and void your warranty.
WARNING
WARNING
WARNING
DJ68-00605F-00.indb 2 2015. 4. 4. �� 10:08
safety information _03
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully.
Before switching on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate on the side
of the cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or floor is
wet. Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or
near children.
Do not allow the vacuum cleaner to be used as a toy.
Do not allow the vacuum cleaner to run unattended at any time.
Use the vacuum cleaner only for its intended use as described in
these instructions.
4. Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best
efficiency.
5. Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts.
Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolour the plastic parts of the unit.
Also do not use your vacuum cleaner to pick up sugar, salt, dust of
building materials (e.g. cement, metal shavings and so on).
6. Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the machine before
unplugging from the electrical outlet.
Disconnect the plug from the electrical outlet before emptying the
dust bin.
To avoid damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
DJ68-00605F-00.indb 3 2015. 4. 4. �� 10:08
04_ safety information
8. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
9. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
10.The plug must be removed from the socket outlet before cleaning or
maintaining the appliance.
11.The use of an extension cord is not recommended.
12.If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
13.If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
14.Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
15.Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
DJ68-00605F-00.indb 4 2015. 4. 4. �� 10:08
contents _05
contents
ASSEMBLINGTHECLEANER
06
06 Assembling the cleaner
OPERATINGTHECLEANER
07
07 Power control
07 Using accessory
MAINTAINTOOLSANDFILTER
09
09 Emptying the dust bin
09 Check dust filter indicator
10 Cleaning the dust filter
11 Maintain tools
11 Power cord
11 Dust bin
TROUBLESHOOTING
12
DJ68-00605F-00.indb 5 2015. 4. 4. �� 10:08
06_ assembling
assembling the cleaner
ASSEMBLING THE CLEANER
• Before using the vacuum cleaner put the
brush and cleaner, accessory out of the dust
bin.
• For storage, park the floor nozzle.
Optional
• Features may vary according to model.
DJ68-00605F-00.indb 6 2015. 4. 4. �� 10:08
operating _07
02 OPERATING
operating the cleaner

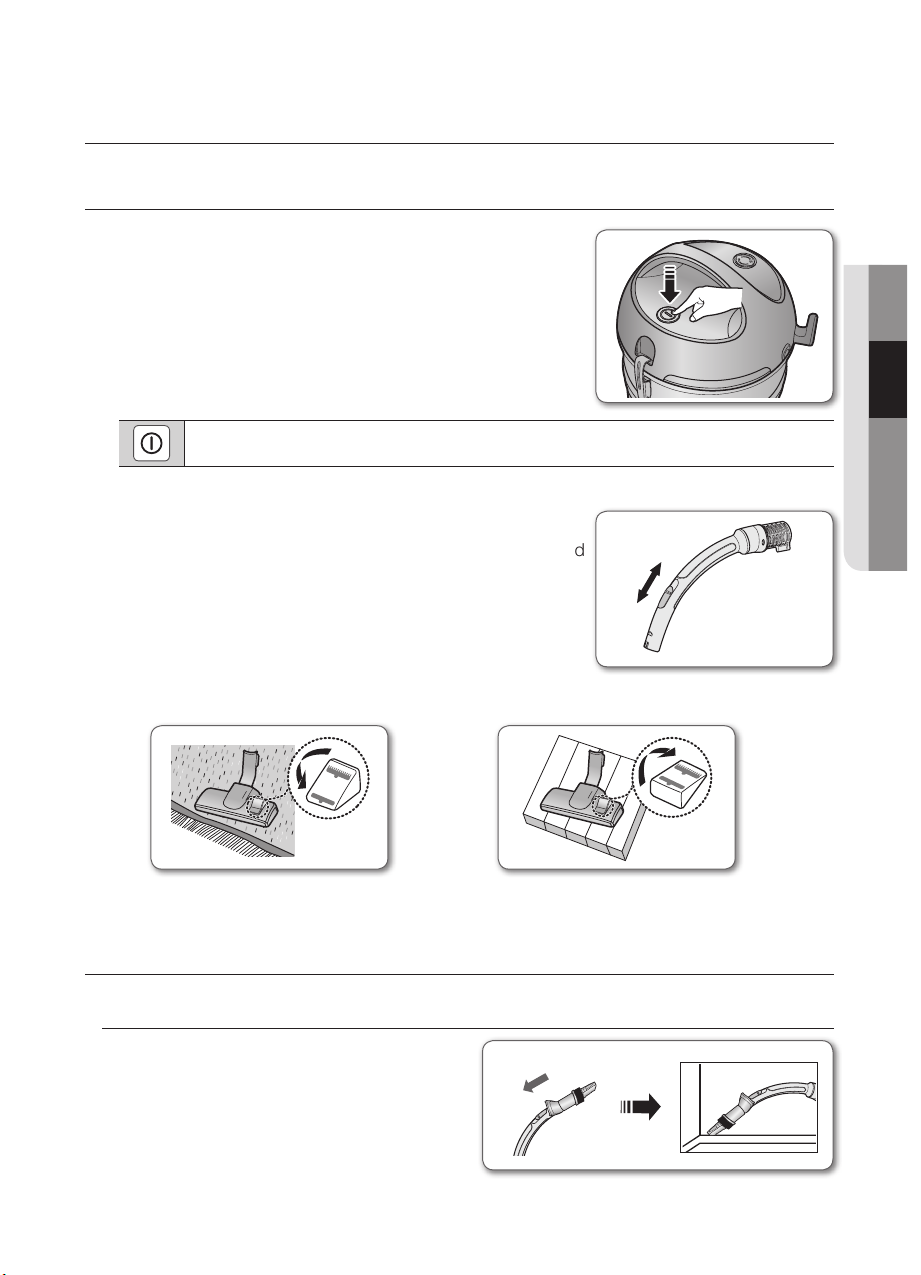

POWER CONTROL
-BODY
Press the power control button repeatedly to select the
correct mode.
(ON↔OFF)
The Power control button operates the vacuum cleanner or stops it.
-HOSE
To reduce suction for cleaning draperies, small rugs and
other light fabrics, pull the tap air until the hole is open.
-BRUSH
FLOOR NOZZLE
USING ACCESSORY
Accessory
• Push the accessory on to the end of the
hose handle.
Using on carpet Using on tile or floor
DJ68-00605F-00.indb 7 2015. 4. 4. �� 10:08
08_ operating
• To use the dusting tool, push the
accessory on to the end of the hose
handle.
• To use the upholstery tool, push the
accessory on to the end of the hose
handle.
Pipe (Optional)
• Adjust the length of the telescopic pipe by sliding
the length control button located in the center of the
telescopic pipe back and forth.
Using the blower
1. Disconnect the hose from the body of the cleaner.
2. Connect the hose clamper to the blow hole.
3. Turn the hose clamper to the clockwise and lock the
clamper properly.
• To use the blower, disassemble the pipe and the
brush.
DJ68-00605F-00.indb 8 2015. 4. 4. �� 10:08
maintain _09
03 MAINTAIN
maintain tools and filter

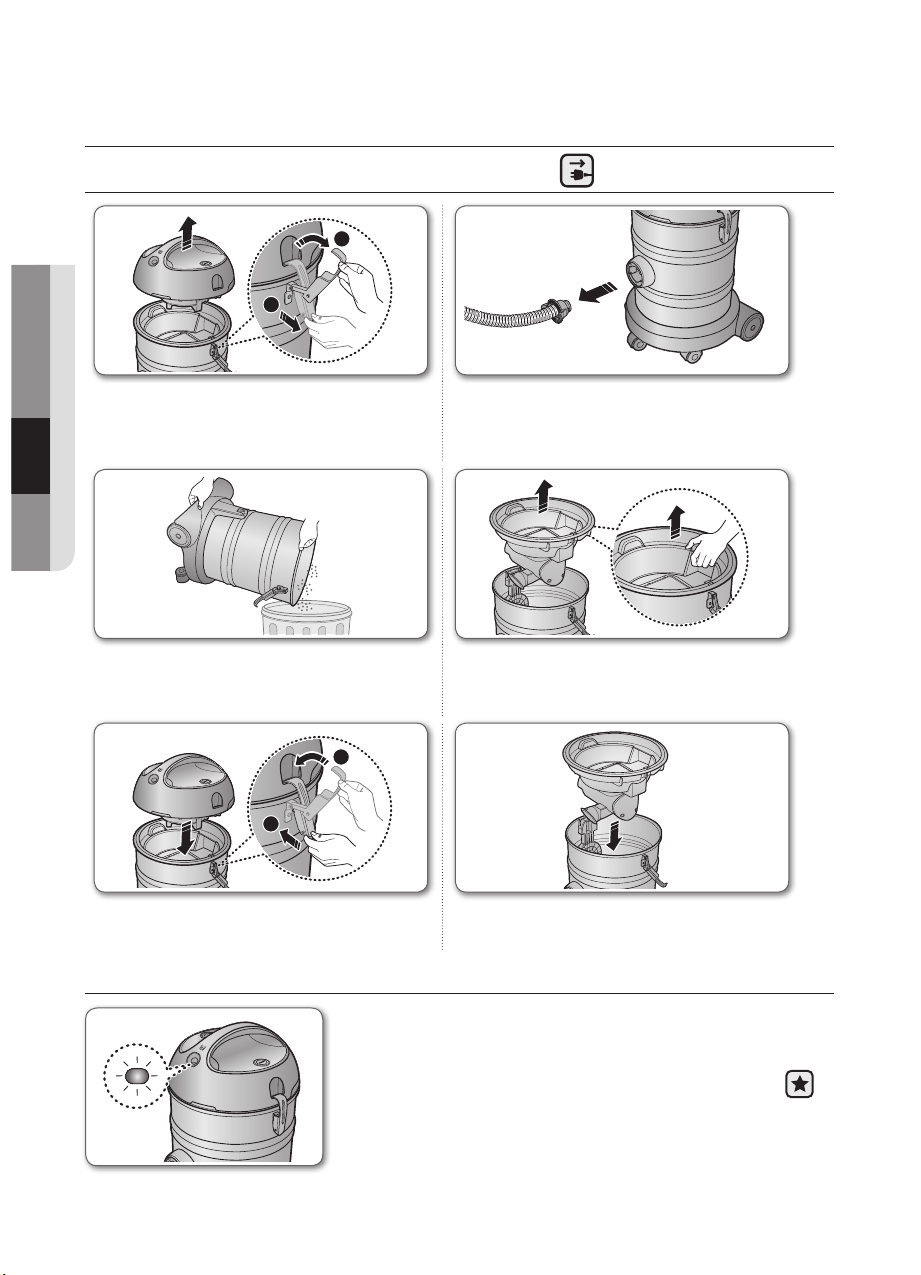

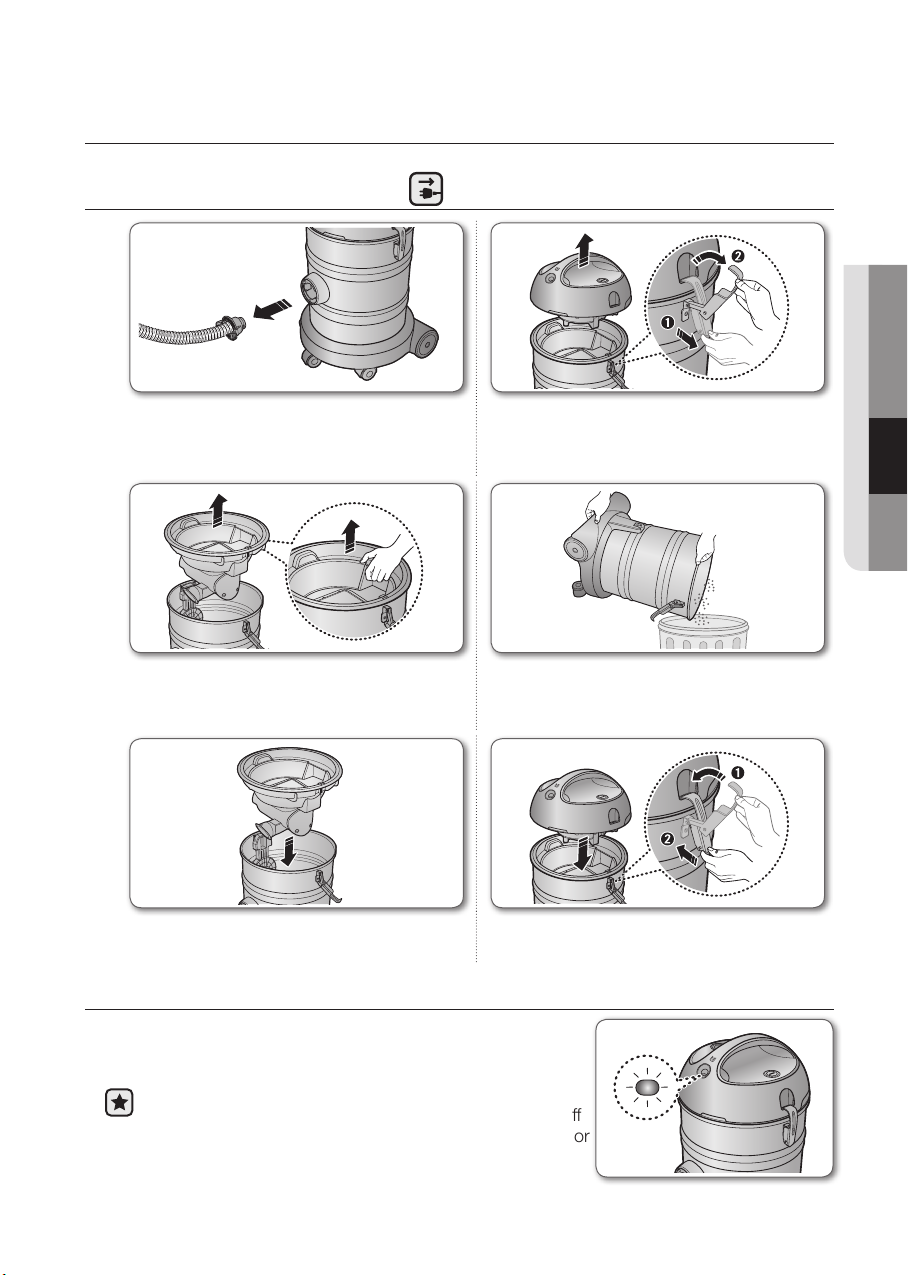

EMPTYING THE DUST BIN
1. Disassemble the suction hose clamper. 2. Unlock the body clamper at both side
and lift the upper body to disassemble
it from the dust tank.
3. Lift the dust cover to open and put it
down carefully. Please beware of dust
falling off from the dust cover.
4. Dispose dust materials.
5. Assemble the dust cover properly. 6. Assemble the upper body and lock the
body clamper at both side.
CHECK DUST FILTER INDICATOR
If the indicator turns to yellow color while you are
cleaning, the dust filter is required to be cleaned.
If the indicator continues to display yellow color even
after cleaning the dust filter, turn the vacuum cleaner off
and check if there is any clogging in the hose, tube, floor
nozzle or inlet of the dust cover.
DJ68-00605F-00.indb 9 2015. 4. 4. �� 10:08
10_ maintain

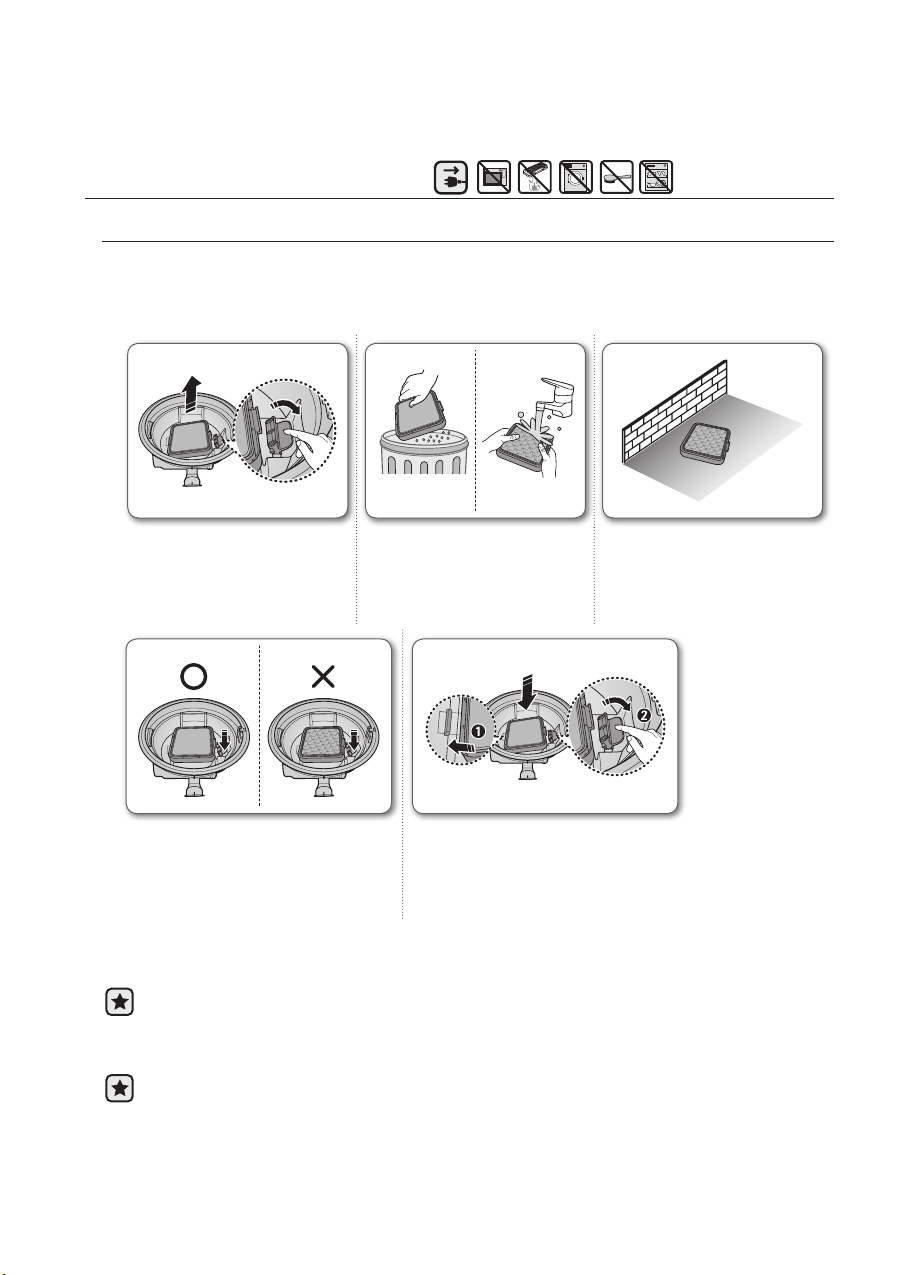

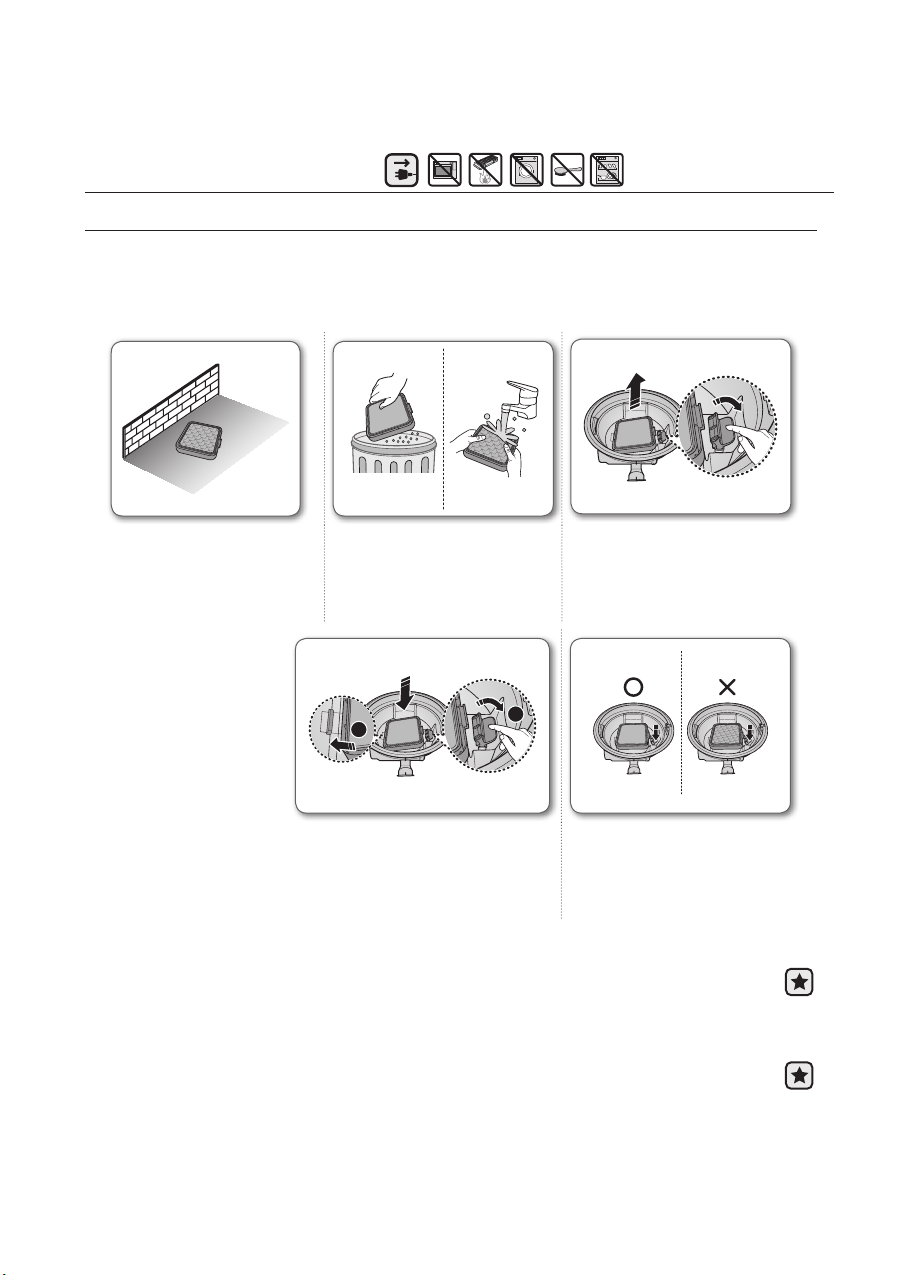

CLEANING THE DUST FILTER
When to clean the dust filter
• When suction is noticeably reduced continuously.
• When the sponge is heavily polluted.
1. Pull the lever and
disassemble the dust
filter.
2. Wash the dust filter with
water.
3. Let the dust filter dry in
the shade for more than
12 hours.
4. Please assemble dust filter
with the direction as shown.
5. Assemble the dust filter after
pulling the lever and insert the
dust filter properly.
Make sure that the dust filter is changed once a year.
If you use a vacuum cleaner very often, resource filter can be reduced.
In this case it is recommended to change the dust filter with greater frequency.
Try to keep the dust filter clean constantly. Regularly check its condition.
Ignoring this requirement can lead to motor and body overheating, failure and reduce
the service life of the appliance.
DJ68-00605F-00.indb 10 2015. 4. 4. �� 10:08
maintain _11
03 MAINTAIN
maintain tools and filter

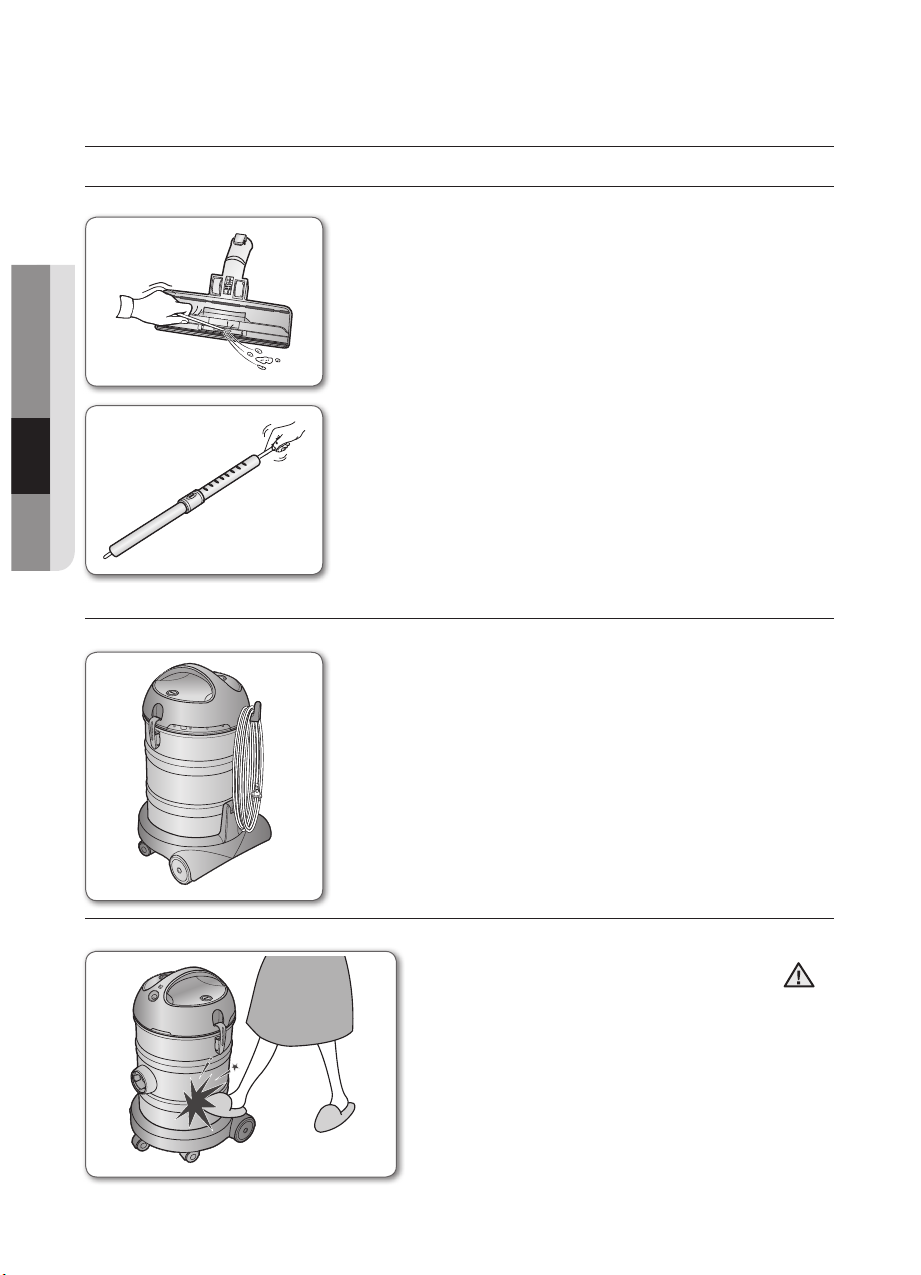

MAINTAIN TOOLS
2-stepbrush
• Remove waste matter completely if the inlet is blocked.
Pipe(Optional)
• To check for blockages, separate the telescopic pipe
and adjust to shorten.
This allows for easier removal of waste clogging the
tube.
POWER CORD
After cleaning, wind the power cord and hang it on the
hanger.
DUST BIN
Do not give any impact to the dust bin.
The dust bin can be dented by external
impact.
WARNING
DJ68-00605F-00.indb 11 2015. 4. 4. �� 10:08
12_ troubleshooting
troubleshooting
PROBLEM SOLUTION
Motor downs and does
not start.
• Check cable, plug and socket.
• Leave to cool.
Suction force is gradually
decreasing.
• Check for blockage and remove.
Vacuum cleaner downs,
does not pick up dirt • Check hose and replace if required.
Low or decreasing
suction.
• Please check dust filter.
If required clean it as illustrated in the instruction.
Body overheating • Please check dust filter.
If required clean it as illustrated in the instruction.
Unpleasant smell during
vacuuming
• Please note that there may be a slight smell during vacuuming
when the cleaner is new (4-5 days).
DJ68-00605F-00.indb 12 2015. 4. 4. �� 10:08
memo
DJ68-00605F-00.indb 13 2015. 4. 4. �� 10:08
