Samsung SV-643B User manual

VIDEO
CASSETTE RECORDER
SV-645B
SV-643B
SV-640B
Instruction Manual
PAL
www.samsungvcr.com

GB
3
About this manual
Thank you for purchasing a Samsung Video Cassette Recorder (VCR).
Your Owner’s Instructions contain much valuable information on setting up and
using your VCR. Please take the time to read them as they will help you take full
advantage of your VCR’s features.
The instructions in this manual are for models, SV-645B, SV-643B and SV-640B.
Before you start reading this manual please check your model number.
It is displayed on the rear of the VCR.
Features Chart
- ★(SV-645B): Exceptions only for a certain model, for example SV-645B.
- Gray shaded areas marked with a star indicate instructions that are
only relevant to one model.
2
Safety Precautions
CAUTION. TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER. NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The mains lead on this equipment is supplied with a
moulded plug incorporating a fuse. The value of the fuse is
indicated on the pin face of the plug. If it requires
replacing, a fuse approved to BS1362 of the same rating
must be used.
Never use the plug with the fuse cover omitted if the cover
is detachable. If a replacement fuse cover is required, it
must be of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your
house or the cable is not long enough to reach a power
point, you should obtain a suitable safety approved
extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug,
remove the fuse and then safely dispose of the plug. Do
not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code: -
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows: -
The wire coloured BLUE must be connected to the
terminal marked with the letter N or coloured BLUE or
BLACK. The wire coloured BROWN must be connected to
the terminal marked with the letter L or coloured BROWN
or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR
COLOURED GREEN OR GREEN AND YELLOW.
This symbol is intended to alert you to the
presence of dangerous voltage within the
product.
IMPORTANT NOTE
DANGER
This symbol is intended to alert you to the
presence of important instructions
accompanying the product.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Feature Model SV-645B SV-643B SV-640B
VIDEOPLUS+ Recording
●●
AV2 IN socket
●●●
Format 16:9
●●●
Child Door Lock
●●
IPC (Intelligent Picture Control)
●●●
Timer Programming
●●●
Auto Clock Setting
●●●
PDC (Programme Delivery Control)
●●●
Changing recording speed (SP/LP)
●●●
Hi-Fi & NICAM
●●●
Connecting an RCA Audio/Video cable
●

GB
54
Contents (cont.)
◆SEARCHING FOR A SEQUENCE
■Playing a Cassette in Slow Motion................................................................ 33
■Playing a Sequence Frame by Frame........................................................... 34
■Picture Search, Fast Forward/Rewind........................................................... 34
■Searching for a Specific Sequence ............................................................... 35
■Auto Repeat Play........................................................................................... 36
■Interval Repeat Play...................................................................................... 36
◆EASY OPERATION
■VPS/PDC Default .......................................................................................... 37
■VIDEOPLUS+ EXTEND (SV-645B/SV-643B Only)....................................... 38
■Using the Tape Counter ................................................................................ 38
◆ADVANCED RECORDING FEATURES
■Connecting an RCA Audio/Video Input cable (SV-645B Only)...................... 39
■Using the Assemble Edit Function................................................................. 40
■Recording from Another VCR or Camcorder................................................. 40
◆OTHER FUNCTIONS AND USEFUL RECOMMENDATIONS
■Auto Power Off.............................................................................................. 41
■Child Door Lock System (SV-643B/SV-640B Only) ...................................... 41
■ECO Mode-Reducing Standby power consumption...................................... 41
■Technical Specifications................................................................................ 42
◆SOLVING PROBLEMS
■Problems and Solutions................................................................................. 43
■Service Centers List ...................................................................................... 44
☛
➢
NoteImportantHold downPress/push
Symbols
11
1
= Step number
★
Option
Contents
◆FOREWORD
■Safety Instructions......................................................................................... 6
◆VCR OVERVIEWS
■Front View of the VCR................................................................................... 7
■Rear View of the VCR ................................................................................... 7
■Infrared Remote Control................................................................................ 8
■Display Indicators.......................................................................................... 9
■Accessories................................................................................................... 9
◆CONNECTING YOUR VIDEO CASSETTE RECORDER
■Deciding How to Connect Your VCR............................................................. 10
■ Connecting Your VCR to the TV using the Coaxial Cable and SCART cable ..... 11
■Connecting Your VCR to the Satellite receiver or Other Equipment............. 12
■Connecting the Audio Output Cable.............................................................. 13
■Plug & Auto Set Up........................................................................................ 13
■Tuning Your Television for the VCR.............................................................. 14
◆SETTING UPYOUR VIDEO CASSETTE RECORDER
■Inserting Batteries in the Remote Control...................................................... 15
■Setting the Date and Time............................................................................. 15
■Displaying/Hiding On-Screen Information ..................................................... 16
■Setting the VCR Output Channel................................................................... 16
■Presetting the Stations Automatically............................................................ 17
■Presetting the Stations Manually................................................................... 18
■Clearing a Preset Station............................................................................... 19
■Changing the Preset Station Table................................................................ 20
◆RECORDING TELEVISION BROADCASTS
■Selecting the Cassette Type.......................................................................... 21
■Selecting the Recording Speed..................................................................... 21
■NICAM........................................................................................................... 22
■Protecting a Recorded Cassette.................................................................... 23
■Recording a Programme Immediately........................................................... 23
■Recording a Programme with Automatic Stop............................................... 24
■Using the VIDEOPLUS+ Feature (SV-645B/SV-643B Only)......................... 25
■Modifying VIDEOPLUS+ Programming (SV-645B/SV-643B Only)............... 26
■Using the Timer Programming Feature......................................................... 27
■Checking a Preset Recording........................................................................ 28
■Cancelling a Preset Recording...................................................................... 28
◆PLAYING BACK
■Playing a Cassette......................................................................................... 29
■Adjusting Picture Alignment Automatically.................................................... 29
■Adjusting Picture Alignment Manually........................................................... 29
■Intelligent Picture Control .............................................................................. 30
■Format 16:9 (Wide Screen)........................................................................... 31
■Selecting the Colour Mode............................................................................ 31
■Selecting the Audio Output Mode.................................................................. 32

GB
76
Front View of the VCR
Rear View of the VCR
The following illustrations represent precautions.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
DO NOT OPEN THE VCR. Refer to service personnel.
HH
5°C
40°C
10% 75%
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
Safety Instructions
Do NOT expose the VCR to
extreme temperature condi-
tions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the VCR to
direct sunlight. Do NOT expose the VCR to
any liquids.
Do NOT place any objects on
the VCR or remote control. During a storm and/or light- ning, unplug the VCR from the
mains socket and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
AV2 (SATELLITE) IN SCART
(EURO-21) SOCKET
AV1 (EURO AV) IN/OUT
SCART (EURO-21) SOCKET
AERIAL IN
CONNECTOR
OUT TO TV
CONNECTOR RCA AUDIO L, R OUTPUT
SOCKETS
VIDEO CASSETTE
COMPARTMENT
PLAY
BUTTON
RECORD
BUTTON
EJECT
BUTTON
F.F
BUTTON
PROGRAMME SELECTION
BUTTONS
REW
BUTTON
REC STOP
PROG
EJECT STANDBY/ON
REW F.F
PLAY
STANDBY/ON
BUTTON
STOP
BUTTON
AUX
VIDEO L-AUDIO - R
STANDBY/ON EJECT
PROG
REC IIP/S
REW
F.F
STOP
VIDEO CASSETTE
COMPARTMENT
STOP
BUTTON
REW
BUTTON F.F
BUTTON
RECORD
BUTTON
EJECT
BUTTON
INFRARED REMOTE
SENSOR
PROGRAM SELECTION
BUTTONS PAUSE/STILL BUTTON PLAY BUTTON
STANDBY/ON
BUTTON
AUX VIDEO INPUT
SOCKET AUX AUDIO L, R INPUT SOCKETS
(SV-645B)
(SV-643B/SV-640B)

GB
98
Infrared Remote Control Display Indicators
Accessories
You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.
OK
STANDBY/ONEJECT
SLOW
SHUTTLE
V-LOCK
CLR/RST F.ADVINDEX
A.TRK IPC INPUT
REPEAT
TRKPROG
AUDIO
RECMENU
SPEEDDUBTV/VCRTIMER
DISPLAY
REMOTE CONTROL &
BATTERIES “AA”AUDIO CABLE
OWNER’S
INSTRUCTIONS
COAXIAL CABLE
OK
STANDBY/ON EJECT
SLOW
SHUTTLE
V-LOCK
CLR/RST F.ADV INDEX
A.TRK IPC INPUT
REPEAT
TRK PROG
AUDIO
REC MENU
SPEED DUB TV/VCR TIMER
DISPLAY
STANDBY/ON BUTTON
SLOW BUTTON
SHUTTLE BUTTON
V-LOCK BUTTON
CLEAR AND RESET BUTTON
AUTO TRACKING BUTTON
IPC BUTTON
TRACKING BUTTONS
AUDIO MODE SELECTION BUTTON
STOP BUTTON
REWIND/REVERSE PICTURE
SEARCH BUTTON
RECORD BUTTON
MENU SELECTION BUTTON
MENU SELECTION DOWN BUTTON
RECORDING SPEED SELECTION BUTTON
EJECT BUTTON
INDEX BUTTON
FRAME ADVANCE BUTTON
TUNER, AV1, AV2, AUX ★(SV-645B ONLY)
SELECTION / REPEAT SELECTION BUTTON
PROGRAMME SELECTION BUTTON
DISPLAY BUTTON
PLAY/PAUSE/STILL BUTTON
FAST-FORWARD/FORWARD
SEARCH BUTTON
MENU BUTTON
MENU SELECTION UP BUTTON
MENU SELECTION BUTTON
OK BUTTON
TIMER BUTTON
1Cassette loaded indicator
2ECO Mode display
3 Multi-function display
4 Timer indicator
5Hi-Fi indicator
6Rec indicator
VCR
5 6
12 3 4
Hi-Fi
1Cassette loaded indicator
2ECO Mode display
3 Multi-function display
4 Timer indicator
5Hi-Fi indicator
6Rec indicator
VCR
5 6
12 3 4
Hi-Fi
(SV-645B)
(SV-643B/SV-640B)

To receive television programmes a signal must be received from
one of the following sources:
◆An outdoor aerial
◆An indoor aerial
◆A cable television network
◆A satellite receiver
☛Make sure that both the television and the VCR are
switched off before connecting the cables.
1Remove the aerial or network input cable from the television.
2Connect this cable to the 75Ωcoaxial socket marked on the
rear of your VCR.
3Plug the coaxial cable supplied into the socket on your VCR.
4Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5Connect one end of the scart cable to the AV1 (EURO AV) socket
on the rear of the VCR. You must connect your VCR to the
television via the scart cable.
6Plug the other end into the appropriate connector on the
television.
TV
GB
Connecting Your VCR to the TV using the Coaxial
Cable and SCART cable
1110
Deciding How to Connect Your VCR
TV
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
5
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
4
2
TV
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
3
You must take into account various factors when connecting audio or video systems:
◆Types of connectors available on your systems
◆Systems connected permanently to the VCR (satellite receiver for example) or temporarily
(camcorder for example)
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use
AV1 (EURO AV) Rear SCART In/Out ◆Television
◆Satellite receiver
◆Other VCR
AV2 Rear SCART In ◆Satellite receiver
(DEC./EXT.) ◆Other VCR
Audio output Rear Audio RCA Out ◆Audio Hi-Fi system
OUT TO TV Rear 75 ΩOut ◆Television
coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
coaxial ◆Cable television network
◆Satellite receiver
AUX Front Audio/Video RCA In ◆Audio Hi-Fi system
◆Camcorder
★
(SV-645B Only)
☛Whenever you connect an audio or video system to your VCR, ensure that all elements are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.
AUX
VIDEO L- AUDIO-R
TV
R/D
L/G
AUDIO
OUT/SORTIE
AV2 (DEC./EXT.)
AV1 (EURO AV)

GB
1312
Plug & Auto Set Up
Your VCR will automatically set itself up when it is plugged into the
mains for the first time. TV stations will be stored in memory. The
process takes a few minutes. Your VCR will then be ready for use.
1Connect the coaxial cable as indicated on page 11.
(Connecting Your VCR to the TV Using the Coaxial Cable)
2Plug the VCR into the mains.
Result: A message appears.
3Press OK button to start the auto scanning
◆ The number of stations automatically stored by the VCR
depends on the number of stations that it has found.
◆ The process will finish after a few minutes.
4The current time and date are displayed automatically.
Check the date and time.
if it is :
◆ Correct, Press MENU button twice to exit the menu.
◆ incorrect, see page 15.
➢Now, you only have to switch the VCR on and it is ready
for use.
☛Function for “Plug & Auto Set Up” is fixed already.
So if you want to change this fixed one, you can change
it by Presetting the Stations Automatically in OSD “ Auto
Set Up” menu. (see page 17)
You can connect your VCR to a Satellite receiver or other VCR using the SCART cable if the appropriate
outputs are available on the equipment chosen. The following illustrations give a few examples of the
connection possibilities.
1. AV2(DEC./EXT.): By means of 21-pin Scart Cable
Plug the SCART Cable with satellite receiver or other equipment into the AV2(DEC./EXT.) socket on the rear of
the VCR.
After making this connection, select the source by pressing the INPUT button for the AV2 input sources.
2. By means of RF Coaxial Cable
After making this connection, you must preset the station received through the satellite tuner.
RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the VCR,
e.g. re-adjust to channel 65.
Connecting the Audio Output Cable
You can connect your VCR to a Hi-Fi system.
Example: You wish to take advantage of the quality of your Hi-Fi
stereo system when watching a programme or recording
via your VCR.
☛◆Regardless of the type of connection chosen, you
must always connect the coaxial cable supplied.
Otherwise, no picture will be visible on the screen
when the VCR is switched off.
◆Make sure that both the television and the VCR are
switched off before connecting the cables.
1Connect the coaxial cable or SCART as indicated on page 11.
2Plug the audio output cable into the audio connectors on the rear
of your VCR.
➢Respect the colour coding of the left and right channels.
3Plug the other end of the audio cable into the appropriate input
connectors on your Hi-Fi stereo system.
Connecting Your VCR to the Satellite receiver or Other
Equipment
Satellite Receiver or other Equipment
AV1 (EURO AV)
Aerial
Aerial Connector
2
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
SCART Cable
TV
1
SCART Cable
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
2
2
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
1
TV
TV
AV2 (SATELLITE) IN
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
2

14
Tuning Your Television for the VCR
You must tune your television for the VCR only if you are not using
a Scart cable
➢To view pictures from your VCR when a Scart cable is
used, the television must be set to the audio/video mode
(AV).
1Switch on the television.
2Switch on the VCR by pressing STANDBY/ON on the front of the
VCR or STANDBY/ON on the remote control.
3Select a programme position on the television to be reserved for
use with your VCR.
4Insert the video cassette in the VCR. Check that the VCR starts
reading the cassette; if not, press
❿
II
button.
5Start a scan on your television or set the television to UHF
channel 60.
6Fine tune the television until the pictures and sound are obtained
clearly.
7If you cannot find the pictures and sound, or there is interference
from nearby channels, it may be necessary to change the setting
of the VCR output channel (see Setting the VCR Output Channel
on page 16 and Problems and Solutions on page 43).
8When the picture and sound are perfectly clear, store this channel
at the desired programme position on the television.
Result: That programme is now reserved for use with your VCR.
OK
REC MENU
STANDBY/ON EJECT
SLOW
SHUTTLE
V
-
LOCK
2
4

GB
15
Setting the Date and Time
You must insert or replace the batteries in the remote control when
you:
◆Purchase the video cassette recorder
◆Find that the remote control is no longer working
correctly
1Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2Insert two AA, R6 or equivalent batteries, taking care to respect
the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3Replace the cover by aligning it with the base of the remote
control and pushing it back into place.
➢Do not mix different battery types (manganese and
alkaline for example).

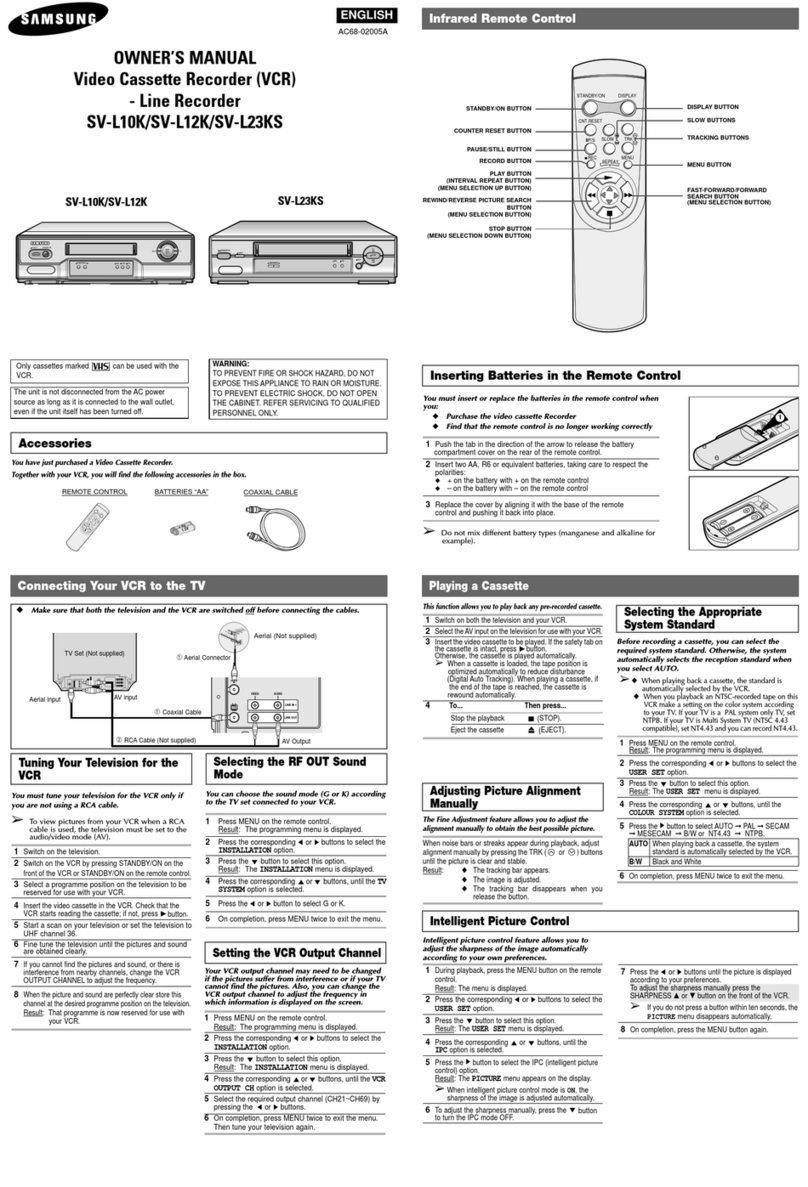

Inserting Batteries in the Remote Control
Your VCR contains a 24-hour clock and calendar used to:
◆Automatically stop programme recording
◆Preset your VCR to record a programme automatically
You must set the date and time when:
◆You purchase the video cassette recorder
☛◆The time and date are set automatically from the
broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set automati-
cally. In this case, they should be set manually.
◆Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
CLOCK SET option.
3Press the OK button to select this option.
Result: The CLOCK SET menu is displayed.
4Press ➛ or ❿ to select the hour, minutes, day, month and year.
Result: The option selected flashes.
5Press the " or ❷ buttons to increase or decrease the value.
Result: The day of the week is displayed automatically.
➢You can hold the " or ❷ buttons down to scroll more
quickly through the values.
6On completion, press MENU twice to exit the menu.
OK
REC MENU
SPEED DUB TV/VCR TIMER
2
2
2
1
3
2
CLOCK SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
CLOCK
CLOCK
MON
AUTO CLOCK : ON
12:00 1/JAN/2001
➛❿!!!!!!!!!!! "❷ END:MENU
1
"❷!! ➛❿!! OK END:MENU

GB
17
GB
16
Presetting the Stations Automatically
Displaying/Hiding On-Screen Information
Your VCR displays most information both on the VCR and the
television.
You can choose to display or hide this information on the television
screen (except for the Index, Programming MENU and
VIDEOPLUS+ functions ★(SV-645B/SV-643B only), which cannot
be hidden).
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding " or ❷ buttons, until the OSD option is
selected.
5To... Press ➛ or ❿ , until...
Display on-screen information ON is displayed.
Hide on-screen information OFF is displayed.
6On completion, press MENU twice to exit the menu.
Your VCR output channel may need to be changed if the pictures
suffer from interference or if your TV cannot find the pictures.
Also, you can change the VCR output channel to adjust the
frequency in which information is displayed on the screen.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding " or ❷ buttons, until the VCR OUTPUT
CH option is selected.
5Select the required output channel (CH21~CH69) by pressing the
➛ or ❿ buttons.
6On completion, press MENU twice to exit the menu.
Then tune your television again (see page 14).
Setting the VCR Output Channel
AUTO SET UP
PLEASE WAIT
2%
I--------------------I
END:MENU
YOUR DATA WILL BE LOST
PRESS OK TO CONTINUE
MENU TO EXIT
☛You do not need to preset the stations if you have already
set them automatically (see Plug & Auto Set Up on
page 13).
Your VCR contains a built-in tuner used to receive television
broadcasts.
You must preset the stations received through the tuner. This can
be done:
◆Plug & Auto Set up (see page 13)
◆Automatically
◆Manually (see page 18)
You can store up to 80 stations.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding " or ❷ buttons, until the AUTO SET
UP option is selected. And then press the
❿ button to select this
option.
Result: A message appears, indicating that any channels
already preset on your VCR will be deleted.
5Press OK to start the auto scanning.
Result:◆The PLEASE WAIT indication flashes on the
television screen.
◆The first frequency band is scanned and the first
station found is displayed and stored.
◆The VCR then searches for the second station and
so on.
◆When the automatic scanning procedure has
finished, the VCR switches automatically to pro-
gramme 1.
➢The number of stations automatically stored by the VCR
depends on the number of stations that it has found.
6If you wish to cancel the auto scanning before the end, press the
MENU button three times to exit the menu.
➢◆The time and date are set automatically from the
broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set automati-
cally. In this case, they should be set manually (see
page 15).
◆Once the auto scanning procedure has finished, some
stations may have been stored more than once; select
the stations with the best reception and delete the
ones no longer required (see page 19).
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG
INSTALL
"❷!! ➛❿!! OK END:MENU
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!! ➛❿!! OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷ ❿ END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
VCR OUTPUT CH :CH60
"❷ ❿ END:MENU
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG
INSTALL
"❷!!
➛❿!!
OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
VCR OUTPUT CH :CH60
"❷ ❿ END:MENU

GB
19
GB
18
If you have stored a TV station:
◆That you do not require
◆At the wrong programme position
you can cancel it.
1Press the MENU button on the remote control.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding " or ❷ buttons, until the MANUAL SET
UP option is selected.
5Press the ❿ button to select this option.
Result: The TV STATION TABLE menu is displayed.
6Press the corresponding " or ❷ buttons, until the required preset
TV station (PR) is selected.
7Press the CLR/RST button.
8Repeat the same procedure from Step 6onwards until all the
required stations have been cleared.
9On completion, press the MENU button three times to exit the
menu.
Clearing a Preset StationPresetting the Stations Manually
☛You do not need to preset the stations manually if you
have already set them automatically.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding " or ❷ buttons, until the MANUAL SET
UP option is selected.
5Press the ❿ button to select a MANUAL SET UP option.
Result: The TV STATION TABLE menu is displayed.
6Press the " or ❷ buttons to select a programme number as
required.
7Press the ❿! button to preset the station.
Result: The MANUAL TUNING menu is displayed.
8Press the ➛ or ❿ buttons to start scanning.
Result: The frequency band is scanned and the first station
found is displayed.
9Press the " or ❷ buttons until the cursor is placed in front of the
NAME.
The station name is set automatically from the broadcast signal.
10 To change the programme’s name, press the ❿! button.
Result: The first letter of the name flashes.
11 To... Then...
Select a character Press the " or ❷ button until the
in the name required character is displayed
(letters, numbers or “-”character).
Move to the next or Press the ❿ or ➛ buttons
previous character respectively.
12 If you... Then...
Wish to store the ◆ Press the corresponding " or ❷! buttons,
station displayed until the MFT is selected.
◆Press the ➛ or ❿ buttons to adjust the
picture, if necessary.
◆Press OK to store the station
Do not wish to ◆ Press the corresponding " or ❷! buttons,
store the station until the CH is selected.
displayed ◆Press the
➛ or ❿ buttons to go on
scanning the frequency band and display
the next station
◆Go back to the beginning of Step 12
13 Repeat this procedure from Step 6onwards, until all the required
stations have been stored.
14 On completion, press the MENU button three times to exit the
menu.
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG
INSTALL
"❷!! ➛❿!! OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
VCR OUTPUT CH :CH60
"❷ ❿ END:MENU
** MANUAL TUNING **
PR : 1
CH : ---
MFT : -
NAME : ----
"❷ ➛❿ MEMORY: OK
END:MENU
** TV STATION TABLE **
PR CH NAME
1 027 CAEB
2 --- ----
3 --- ----
4 --- ----
5 --- ----
"❷ ❿ SWAPPING:OK
DELETE:CLR/RST MENU
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG
INSTALL
"❷!! ➛❿!! OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
VCR OUTPUT CH :CH60
"❷ ❿ END:MENU
** TV STATION TABLE **
PR CH NAME
1 027 CAEB
2 --- ----
3 --- ----
4 --- ----
5 --- ----
"❷ ❿ SWAPPING:OK
DELETE:CLR/RST MENU

GB
21
GB
20
You can record a cassette at two different speeds:
◆SP (Standard Play)
◆LP (Long Play)
In Long Play modes:
◆Each cassette lasts twice as long
◆The recording is of a slightly lower quality
To record a cassette... Press the SPEED button on the
remote control, until...
In standard play mode SP is displayed.
In long play mode LP is displayed.
Selecting the Cassette Type
If you wish to use the tape counter to display the time remaining on
a cassette, you must indicate the type of cassette inserted.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
4Press the corresponding " or ❷ buttons, until the TAPE
SELECT option is selected.
5Press the ➛ or ❿ buttons as many times as required, until the
correct cassette length is displayed.
E180 E240
E 300 E260
6Press MENU twice to exit the menu.
Selecting the Recording Speed
T ype Recording Time (in SP)
E-180 180 mins. or 3 hours
E-240 240 mins. or 4 hours
E-260 260 mins. or
4 hours and 20 mins.
E-300 300 mins. or 5 hours
You can rearrange the Station Table and give different programme
numbers to the stations listed according to your own preferences.
1Press the MENU button on the remote control.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the " or ❷ buttons to select MANUAL SET UP option.
And then press the
❿ button to select this option.
Result: The TV STATION TABLE menu is displayed.
5Press the corresponding " or ❷ buttons, until the required preset
TV programme is selected.
Result: The selected station is displayed at the same time on
the television screen.
6To change the programme number assigned to a station press the
OK button on the remote control. (For example, To move a TV
station in programme 1 to programme 3)
7Press the " or ❷ buttons to select required position. And then
press OK again to swap the position.
8You can modify this station by repeating the same procedure from
Step 5onwards.
9On completion, press the MENU button three times to exit the
menu.
Changing the Preset Station Table
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG
INSTALL
"❷!! ➛❿!! OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
VCR OUTPUT CH :CH60
"❷ ❿ END:MENU
** TV STATION TABLE **
PR CH NAME
1 027 CAEB
2 --- ----
3 --- ----
4 --- ----
5 --- ----
"❷ SWAPPING:OK
MENU
** TV STATION TABLE **
PR CH NAME
1 --- ----
2 --- ----
3 027 CAEB
4 --- ----
5 --- ----
"❷ SWAPPING:OK
MENU
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!! ➛❿!! OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷ ❿ END:MENU
OK
SPEED DUB TV/VCR TIMER

GB
23
GB
22
Recording a Programme Immediately
Protecting a Recorded Cassette
Video cassettes have a safety tab to prevent accidental erasure.
When this tab has been removed, you cannot record on the tape.
1If you wish to protect a cassette, break off the tab using a small
screwdriver.
2To re-record over a protected cassette (safety tab broken), cover
the hole with adhesive tape.
NICAM
NICAM programmes are divided into 3 types. NICAM Stereo,
NICAM Mono and Bilingual (transmission in another language).
NICAM programmes are always accompanied by a standard mono
sound broadcast and you can select the desired sound.
Please refer to page 32.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding " or ❷ buttons, until the NICAM option
is selected.
5To... Press ➛ or ❿ , until...
Mono mode OFF is displayed.
OFF: Only set at this position to record the
standard mono sound during a
NICAM broadcast if the stereo sound
is distorted due to inferior reception
conditions.
NICAM mode ON is displayed.
ON: Normally set at this position.
6On completion, press MENU twice to exit the menu.
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!! ➛❿!! OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷
❿
END:MENU
1
REPEAT
TRK PROG
AUDIO DISPLAY
SPEED DUB TV/VCR TIMER
TRK
PROG
REC MENU
6
4
4
5
7
Before recording a programme, you must have preset the corres-
ponding station (unless you are recording via an external video
source). If you have not done so, refer to pages 17 and 18.
1Switch on the television.
2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used).
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening
covered with adhesive tape.
Result: The VCR is switched on automatically.
4Select:
◆ The station to be recorded using the PROG ( " or ❷ ) buttons
or
◆The AV1, AV2 or AUX
★
(SV-645B only) source using the
INPUT button for a satellite tuner or external video source
Result: The station number is displayed and the programme
can be seen on the television.
5Select the recording speed by pressing the SPEED button as
many times as required (see page 21).
6Hold REC down for a while to start recording.
Result:
The record indicator appears on the television and VCR
display. An index is recorded on the tape (see page 35).
7To stop recording, press
■
once.
➢◆If your VCR ejects the cassette when you start
recording, check to make sure that the cassette’s
safety tab is intact or that the opening (created by a
broken safety tab) is covered with adhesive tape.
◆If you reach the end of the tape while recording, the
cassette rewinds automatically.

GB
24
Recording a Programme with Automatic Stop
3
LENGTH 2:30
SET LENGTH :
PRESS REC
A.TRK IPC INPUT
REPEAT
TRK PROG
AUDIO DISPLAY
OK
REC MENU
6
4
4
4
SPEED DUB TV/VCR TIMER
5
This function enables you to record up to nine hours (LP) of
programmes.
Your VCR stops automatically after the requested length of time.
1Switch on the television.
2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used).
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening
covered with adhesive tape.
Result: The VCR is switched on automatically.
4Select:
◆ The station to be recorded using the PROG ( " or ❷ ) buttons
or
◆The AV1, AV2 or AUX
★
(SV-645B only) source using the
INPUT button for a satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
5Select the recording speed by pressing the SPEED button as
many times as required (see page 21).
6Hold the REC button down for a while to start recording.
Result: The record indicator appears on the television screen
and VCR display. An index is recorded on the tape
(see page 35).
7Press the REC button several times to increase the recording time
in:
◆30-minute intervals up to four hours
◆1-hour intervals up to nine hours (LP)
Result: The length is displayed on the television displays. The
selected programme is recorded for the length of time
requested. At the end of that time, the VCR stops
recording automatically.
8If you wish to cancel the recording before the end, press
STANDBY/ON.
☛If the end of the tape is reached while recording:
◆The recording stops
◆The VCR automatically turns off

GB
25
Using the VIDEOPLUS+ Feature ★(SV-645B/SV-643B Only)
Before presetting your VCR:
◆Switch on both the television and your VCR
◆Check that the date and time are correct
◆Insert the cassette on which the programme is to be
recorded (safety tab intact)
Up to six programmes can be preset.
1Press the TIMER button.
Result: The TIMER METHOD is displayed.
2Press the corresponding " or ❷ buttons, until the VIDEOPLUS
option is selected.
3Press the ❿! button to select VIDEOPLUS.
Result: A message is displayed to allow you to enter the
VIDEOPLUS+ code.
☛If all six programmes have been set, the message TIMER
IS FULL is displayed. Refer to page 28 if you wish to
cancel a preset recording.
4Press the numeric buttons to enter the code opposite the
programme that you wish to record in your television magazine.
➢If you wish to correct the VIDEOPLUS+ code that you are
entering:
◆Press the ➛ button until the digit to be corrected is
cleared
◆Enter the correct digit
5Press the MENU button.
Result:
The information concerning the programme is displayed.
☛When using the VIDEOPLUS+ function for the first time with
stored stations, the programme number flashes. This one
time, you must enter the station number manually by
pressing the
" or ❷ buttons. Refer to the following page if:
◆The programme number or times flash
◆You wish to modify the programme
6 If the programme and times are correct, press the MENU button.
7Press the STANDBY/ON button to activate the timer.
8Refer to page 28 if you wish to:
◆Check that your VCR has been programmed correctly
◆Cancel a preset recording
☛The numbers next to each TV programme listing are
VIDEOPLUS+ code numbers, which allow you to
programme your videorecorder instantly with the remote
control. Tap in the VIDEOPLUS+ code for the programme
you wish to record.
™ VIDEOPLUS+ is a trademark of Gemstar Development Corporation. The VIDEOPLUS+
system is manufactured under licence from Gemstar Development Corporation.
SPEED DUB TV/VCR TIMER
1
VIDEOPLUS
CODE ---------
CODE:0-9 CORRECT: ➛
END:MENU
** TIMER METHOD **
STANDARD
VIDEOPLUS
"❷ ❿ END:MENU
STANDBY/ON EJEC
T
SLOW
SHUTTLE
PROG
1/JAN MON 21:28
PR DAY START
→ STOP V/P
1 MO 1 12:00 → 12:50SP ON
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
"❷ ➛❿
DELETE:CLR/RST MENU
7

GB
2726
Using the Timer Programming Feature
Modifying VIDEOPLUS+ Programming
★(SV-645B/SV-643B Only)
TIMER PROGRAMMING
PROG OPTIONS INSTALL
CLOCK BONUS LANG
PROG
"❷!! ➛❿!! OK END:MENU
The Timer Programming feature allows you to preset the VCR to
record a programme up to one month before that programme is to
be broadcast. Up to six programmes can be preset.
☛Before presetting a recording, check that the date and
time are correct.
1- Insert the cassette. Press the TIMER button.
Press the
" or ❷ buttons to select the STANDARD option and
then press the
❿! button or,
◆Press MENU on the remote control.
Result: The programming menu is displayed.
◆Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
2Press ❿! to select the input source.
3Select the required station by pressing the " , ❷ buttons or INPUT
to select the AV1, AV2 or AUX
★
(SV-645B only) input sources.
4Press ❿ to select the recording day.
5Select the required day by pressing the " or ❷ buttons.
6Press ❿ to select the recording start time.
7Select the required hour value by pressing the " or ❷ buttons.
8Press ❿ to select the minutes.
9Select the required minute value by pressing the " or ❷ buttons.
10 Press ❿ to select the recording end time.
11 Select the required recording end time by pressing the " or ❷
buttons, following the same procedure as when selecting the
recording start time.
12 Press ❿ to select the recording speed.
13 Press the " or ❷ buttons to select the SP (Standard Play), LP
(Long Play), AUTO (Auto Tape Speed Select) recording speeds.
14 Press ❿ to select the PDC recording mode.
15 Press the " or ❷ buttons to toggle between the PDC mode
(marked ON) and the non-PDC mode (marked -).
16 When you have finished, press the MENU button.
17 Press the STANDBY/ON button to activate the timer.
Result: Before starting recording, the VCR compares the timer
duration with the remaining time on the cassette.
➢Auto Tape Speed Select. The VCR’s “Auto Tape Speed
Select” function compares the duration of the timer
recording to the actual recording time remaining on the
tape loaded. If there is insufficient tape to complete a
timer recording in AUTO mode, the VCR automatically
switches to LP mode to record the whole programme.
** TIMER METHOD **
STANDARD
VIDEOPLUS
"❷
❿
END:MENU
PROG
1/JAN MON 21:28
PR DAY START
→ STOP V/P
1 MO 1 12:00
→ 12:50SP ON
-- ---- --:-- → --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:--
→ --:---- -
"❷
➛❿
DELETE:CLR/RST MENU
STANDBY/ON EJECT
SLOW
SHUTTLE
17
★(SV-645B/SV-643B)
If you wish to correct the programme displayed or modify certain elements, such as the recording
speed, you can do so before you press MENU a second time to confirm.
If you wish to... Then...
Select an input source other ◆Press the ➛ or ❿ buttons, until the PR selection flashes.
than the tuner (AV1, AV2 or ◆Press the INPUT button one or more times to change the
AUX
★
(SV-645B only) ) input source selection.
Result: The programme number is replaced by:
•The AV1, AV2 or AUX
★
(SV-645B only) source
using the INPUT button for a satellite tuner or
external video source
➢The input source must be selected before changing any
other value.
Record a programme every day ◆Press the ➛ or ❿ buttons, until the DAY selection flashes.
(Monday to Sunday) at the same time ◆Press the
" or ❷ buttons, until the DLY (Daily) value is
displayed.
Record a programme every week ◆Press the ➛ or ❿ buttons, until the DAY selection flashes.
on the same day and at the same time ◆Press the
" or ❷ buttons, until the W- (Week) value is
displayed, followed by the required day.
Example:W-SA (Weekly Saturday)
Extend the recording time ◆Press the ➛ or ❿ buttons, until the STOP selection flashes.
◆Press the " or ❷ buttons to increase or decrease the stop
time.
Select the recording speed ◆Press the ➛ or ❿ buttons, until the recording speed selection
flashes.
◆Press the " or ❷ buttons until the correct indication is
displayed:
•AUTO (Auto Tape Speed Select) : see page 27
•SP (Standard Play)
•LP (Long Play)
Select the PDC recording ◆Press the ➛ or ❿ buttons, until the V/P selection flashes.
◆Press the " or ❷ buttons until the “ON”indication is displayed.
☛ Do not select PDC unless you are sure the programme you
wish to record is broadcast with PDC. If you do set PDC ON
(by selecting “ON”in the right - hand column on the screen),
then you must set up the start-time EXACTLY according to
the published TV schedule. Otherwise the timer recording
won’t take place.

GB
2928
The Picture Adjustment feature allows you to adjust the alignment
manually to obtain the best possible picture.
When noise bars or streaks appear during playback, adjust alignment
manually by pressing the TRK
( or ) buttons until the picture is clear
and stable.
Result:◆The tracking bar appears.
◆The image is adjusted.
◆The tracking bar disappears when you release the button.
Adjusting Picture Alignment Manually
This function allows you to play back any pre-recorded cassette.
1Switch on both the television and your VCR.
2Insert the video cassette to be played. If the safety tab on the
cassette is intact, press
❿ll .
Otherwise, the cassette is played automatically.
➢When a cassette is loaded, the tape position is optimized
automatically to reduce disturbance (Digital Auto Tracking).
When playing a cassette, if the end of the tape is reached,
the cassette is rewound automatically.
NTSC tapes can be played back but cannot be recorded
with this VCR.
3To... Then press...
Stop the playback
■
(STOP).
Eject the cassette (EJECT).
Playing a CassetteChecking a Preset Recording
Cancelling a Preset Recording
PROG
1/JAN MON 21:28
PR DAY START → STOP V/P
1 MO 1 12:00 → 12:50SP ON
-- ---- --:-- → --:---- -
-- ---- --:-- → --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:-- → --:---- -
-- ---- --:--
→ --:---- -
"❷ SET: ❿
DELETE:CLR/RST MENU
PROG
1/JAN MON 21:28
PR DAY START → STOP V/P
1 MO 1 12:00
→ 12:50SP ON
-- ---- --:-- → --:---- -
-- ---- --:--
→ --:---- -
-- ---- --:-- → --:---- -
-- ---- --:-- → --:---- -
-- ---- --:--
→ --:---- -
"❷ SET: ❿
DELETE:CLR/RST MENU
CLR/RST F.ADV INDEX
A.TRK IPC INPUT
REPEAT
AUDIO DISPLAY
3
Adjusting Picture Alignment Automatically
The Picture Alignment feature enables you to optimize the tape
position automatically to obtain the best possible picture.
When noise bars or streaks appear during playback, adjust picture
alignment by pressing the A.TRK button.
Result:◆The tracking bar appears.
◆The picture is automatically adjusted.
◆The tracking bar disappears when digital auto tracking has
been completed.
A.TRK IPC INPUT
REPEAT
TRK PROG
AUDIO DISPLAY
A
.
TRK
IPC
INPUT
REPEAT
TRK PROG
AUDIO DISPLAY
OK
REC MENU
32
You can check your preset recordings:
◆When you have finished presetting the VCR
◆If you have forgotten which programmes will be
recorded
1- Insert the cassette. Press the TIMER button.
Press the
" or ❷ buttons to select the STANDARD option and
then press the
❿! button or,
◆Press MENU on the remote control.
Result: The programming menu is displayed.
◆Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
2Press the " or ❷ buttons to select the required programme.
3Press the ➛ or ❿ buttons to select and change any values as
required. For more details, refer to the previous page.
4On completion, press MENU twice.
You can cancel any programmes that are:
◆Incorrect
◆No longer required
1- Insert the cassette. Press the TIMER button.
Press the
" or ❷ buttons to select the STANDARD option and
then press the
❿! button or,
◆Press MENU on the remote control.
Result: The programming menu is displayed.
◆Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
2Select the programme to be cancelled by pressing the " or ❷
buttons.
3Press the CLR/RST button to cancel the selected programme.
Result: All the recording information is deleted and the broad-
cast will not be recorded.
4On completion, press MENU twice.

GB
3130
Format 16:9 (Wide Screen)
Your VCR can automatically play Wide Screen format prerecorded
tapes. It can also record Wide Screen format programmes received
from sources such as a satellite receiver.
☛
Connect equipment compatible with Wide Screen to the VCR
using the 21 pin SCART cable.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding " or ❷ buttons, until the
FORMAT 16:9 option is selected.
5Press the ❿!! button to select AUTO ➝ ON ➝ OFF.
AUTO Set when you use a wide TV. The VCR automatically
detects if programmes being played back or recorded
are in normal or Wide Screen format.
ON The VCR always plays back and records in 16:9 Wide
Screen format. Set if the VCR cannot detect Wide
Screen TV programmes with “AUTO”set.
OFF Set if you do not use a Wide Screen TV.
6On completion, press MENU twice to exit the menu.
Before recording or playing back a cassette, you can select the
required system standard.
Otherwise, the system automatically selects the reception standard
when you select AUTO.
➢ ◆When playing back a cassette, the standard is
automatically selected by the VCR.
◆When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV.
If your TV is a PAL system only TV, set NTPB.
If your TV is Multi System TV (NTSC 4.43 compatible), set
NT4.43 and you can record NT4.43.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding " or ❷ buttons, until the
COLOUR SYSTEM option is selected.
5Press the ❿ button to select AUTO ➝ PAL ➝ B/W.
AUTO When playing back a cassette, the system standard is
automatically selected by the VCR.
B/W Black and White
6On completion, press MENU twice to exit the menu.
Selecting the Colour Mode
Intelligent Picture Control
The Intelligent Picture Control Feature allows you to adjust the
sharpness of the image automatically, according to your own
preferences.
1During playback, press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding " , ❷ or ➛ , ❿ buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding " or ❷ buttons, until the IPC option is
selected.
5Press the ❿! button to select the IPC (intelligent picture control)
option.
➢When intelligent picture control mode is ON, the sharpness
of the image is adjusted automatically.
6To adjust the sharpness manually, press the ❷
button to turn the
IPC mode OFF.
7Press the ➛ or ❿ buttons until the picture is displayed according to
your preferences.
➢If you do not press a button within ten seconds, the
PICTURE menu disappears automatically.
8On completion, press the MENU button again.
1During playback, press the IPC button.
Result: The PICTURE menu is displayed.
2Press the ❷ button to turn the IPC (Intelligent Picture Control)
option ON and OFF.
➢When Intelligent Picture Control mode is ON, the sharpness
of the image is adjusted automatically.
3To adjust the sharpness manually, select Intelligent Picture
Control mode OFF.
◆The horizontal picture adjusting appears.
4Press the ➛ or ❿ buttons until the picture is displayed according to
your preferences.
➢If you do not press a button within ten seconds, the
PICTURE menu disappears automatically.
5On completion, press the IPC button again.
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!! ➛❿!! OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷ ❿ END:MENU
CLR/RST F.ADV INDEX
A.TRK IPC INPUT
REPEAT
TRK PROG
AUDIO DISPLAY
1
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!!
➛❿!!
OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷ ❿ END:MENU
OPTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
"❷!! ➛❿!! OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON
"❷ ❿ END:MENU
** PICTURE **
IPC : OFF
SOFTEN SHARPEN
--------*-----
➛❿ ON/OFF: ❷

GB
3332
Playing a Cassette in Slow Motion
You can play a cassette in slow motion.
➢No sound is heard when playing back a cassette in slow
motion.
1Press:
◆ ❿ll to start playing the cassette
◆SLOW ( ) as many times as required to decrease or
increase the speed respectively
◆To return to the normal speed, press the ❿ll
button twice.
2When playing back in slow motion, picture interference may occur.
Press the TRK
( or ) buttons to minimize this effect.
☛When you have been using the Slow Motion function for
more than about five minutes, the VCR will automatically
play to protect the:
◆Cassette
◆Video heads
SLOW
When monitoring a TV programme or playing back a Hi-Fi
recorded video tape, press the AUDIO button to select a desired
sound output. As the AUDIO button is pressed, the sound output
and the indicator change as below:
Selecting the Audio Output Mode
REPEAT
TRK PROG
AUDIO
REC MENU
DISPLAY
SLOW
SHUTTLE
V-LOCK
A.TRK IPC INPUT
REPEAT
TRK PROG
AUDIO DISPLAY
1
1
2
2
L R
MIX
MONO
L
R
Heard in stereo.
(left channel and
right channel)
Left channel heard
from both the left
and right
speakers.
Right channel
heard from both
the left and right
speakers.
Heard in
monaural.
Channel I(MAIN)
heard from the left
speaker, channel
II (SUB) heard
from the right
speaker.
Channel I (MAIN)
heard from both
the left and the
right speakers.
Channel II-(SUB)
heard from both
the left and the
right speakers.
Channel I (MAIN)
heard from both
the left and the
right speakers.
Heard in
monaural.
Heard in
monaural.
Heard in
monaural.
Heard in
monaural.
Sound mixed the left and right channels, and the
normal audio track.
OSD display
Sound type Stereo sound Bilingual sound Standard
sound
broadcast

GB
3534
Searching for a Specific Sequence
Each time you record a cassette on this VCR, an “index” is
automatically marked on the tape when recording starts.
The Search function allows you to fast-forward or rewind to a
specific index and start playback from that point. Depending on the
direction selected, the indexes are numbered as follows:
etc. Prev
Seq. Seq. being
played Next Seq. etc.
21 12
➞
➢This VCR uses a standard indexing system (VISS). As a
result, it will recognize any indexes marked by other
VCRs using the same system and vice versa.
INTRO SCAN
1To search for a specific index, press INDEX.
2Press the ➛➛
or
❿❿
buttons depending on the direction
where your desired programme is located.
3When an Index mark is found the VCR will playback the tape for 5
seconds, after which it will continue searching for the next Index
mark.
4If you want to watch the tape from a particular Index, simply press
❿
II
.
Index Skip Search:
This feature will enable you to fast forward/rewind to a specific
point on a tape: E.g. if you have recorded 3 different programmes
on a tape and you have rewound the tape to the beginning, by
using this feature you can go directly to the start of programme 2
simply by pressing the INDEX button.
1Press the INDEX to start the Index search.
2Press the ➛➛
or
❿❿
buttons twice more. This will take
you directly to the start of the desired programme is located.
3These Index searches can be made forwards: (press ❿❿ ) or
backwards: (press
➛➛ ).
4 To cancel an Index search simply press the ❿
II
or
■
button.
You can:
◆Stop the cassette at a given frame (image)
◆Advance one frame at a time
➢No sound is heard when playing back frame by frame.
1Press:
◆ ❿ll to start playing the cassette
◆ ❿ll to stop the tape at a given frame
◆F.ADV ( ) to advance frame by frame
2To return to normal playback, press ❿ll .
☛When you have been using the Frame-by-Frame function
for more than about five minutes, the VCR will auto-
matically play to protect the cassette and video heads.
➢Vertical stability: When playing back frame by frame,
interference may be seen on the screen. Press the
V-LOCK ( ) buttons to minimize this effect.
Playing a Sequence Frame by Frame
Picture Search, Fast Forward/Rewind
F.ADV
Picture Search enables you to Fast Forward or Rewind and look for
a particular part of a tape.
1Press PLAY, the VCR will enter normal play mode. While in play,
press and release the
❿❿ (or ➛➛ ) button. The VCR will search at 5
times the normal playback speed.
2To return to normal playback mode, press the ❿
II
button.
3If you press and HOLD down the ❿❿ (or ➛➛ ) button the VCR will
search at 9 times the normal speed. Releasing the
❿❿ button will
return the VCR to search at 5 times the normal speed. To return to
normal playback mode, press the
❿
II
button.
4Whilst in Picture Search mode, if you press the ❿❿ button again,
the VCR will enter normal Fast Forward mode.
5Likewise, whilst in Picture Search ➛➛ mode, if you press the ➛➛
button again, the VCR will enter normal Rewind mode.
6If, when Redwing ( ➛➛ ) or Fast Forwarding ( ❿❿ ), you press the ➛➛
(or ❿❿ ) button, the VCR will enter the Picture Search mode.
TRK PROG
REC MENU
1
V-LOCK
CLR/RST F.ADV INDEX
A.TRK IPC INPUT
REPEAT
1
INDEX: ➛➛!!!!!❿❿
INDEX SEARCH: ❿❿!!!! +01
V-LOCK
