Samsung WA7000A1 User manual

FEATURES 1
SAFETY INSTRUCTIONS 2
DESCRIPTION OF PARTS 3
CONTROL PANEL 4
WASHING PROCEDURE 5
Fuzzy course 5
Soak course 5
Speedy course 5
MANUAL FUNCTIONS 6
INSTALLATION & MAINTENANCE 7
Environment 7
In case of pump-drained washer 7
Assembling the sound absorbing panel 7
Connecting the drain hose 7
Levelling 7
Connecting the water supply hose 7

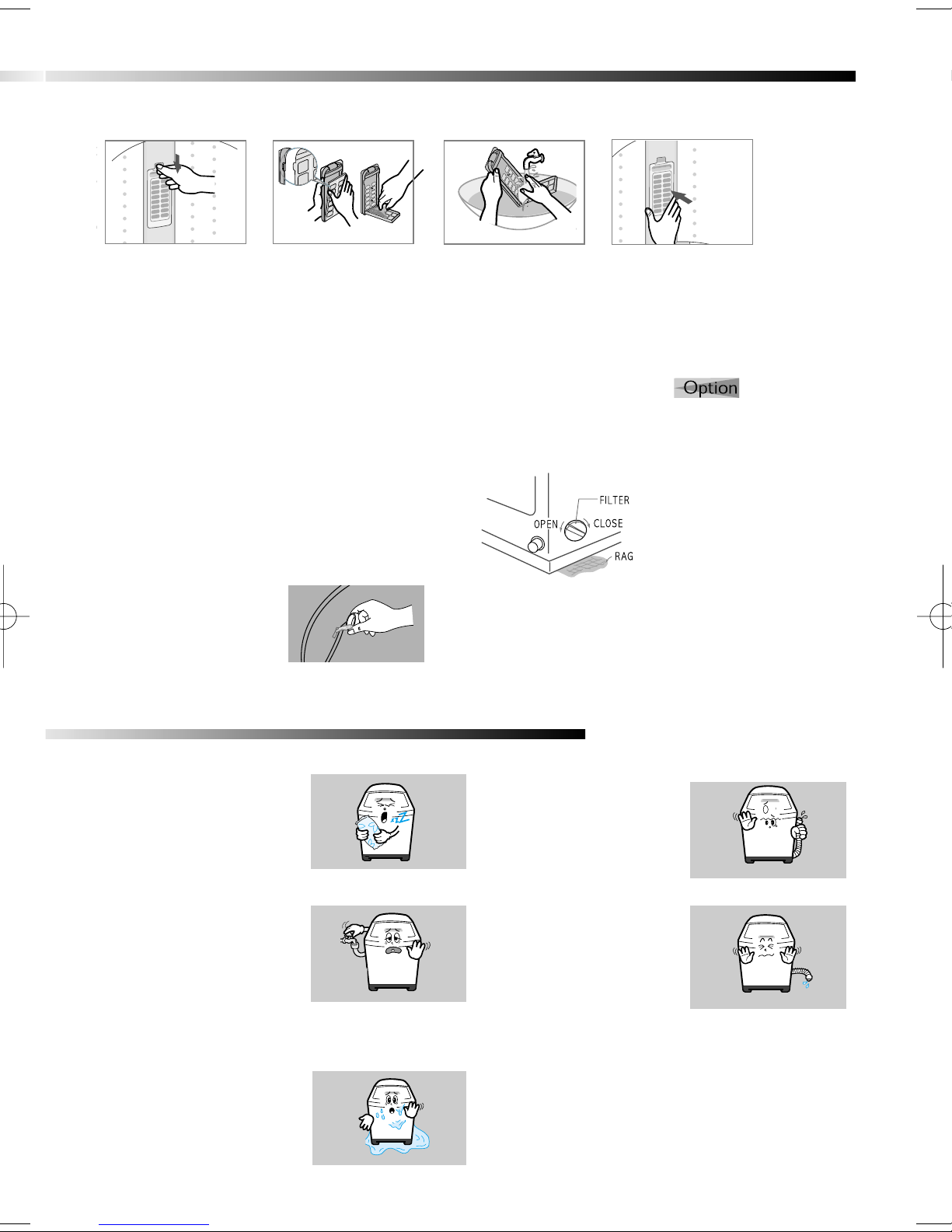

Cleaning the magic filter 8
How to add the fabric softener 8
How to clean the filter 8
TROUBLESHOOTING 8
SPECIFICATIONS
Before operating the unit, please read this manual
throughly, and retain for future reference.
Owner’s Instructions
WA7010 DC68-00701A 10/24/01 9:27 AM Page 1

1
FUZZY CONTROL
Fuzzy control operates with best washing course
by sensing the washload like artificial intelligence.
TRANSPARENT WINDOW
This Transparent Window is the new concept to solve the curiosity
of users to see inside of washing machine while operation.
While operation, the laundry progress inside of washing machine can be checked by looking
through the transparent window.

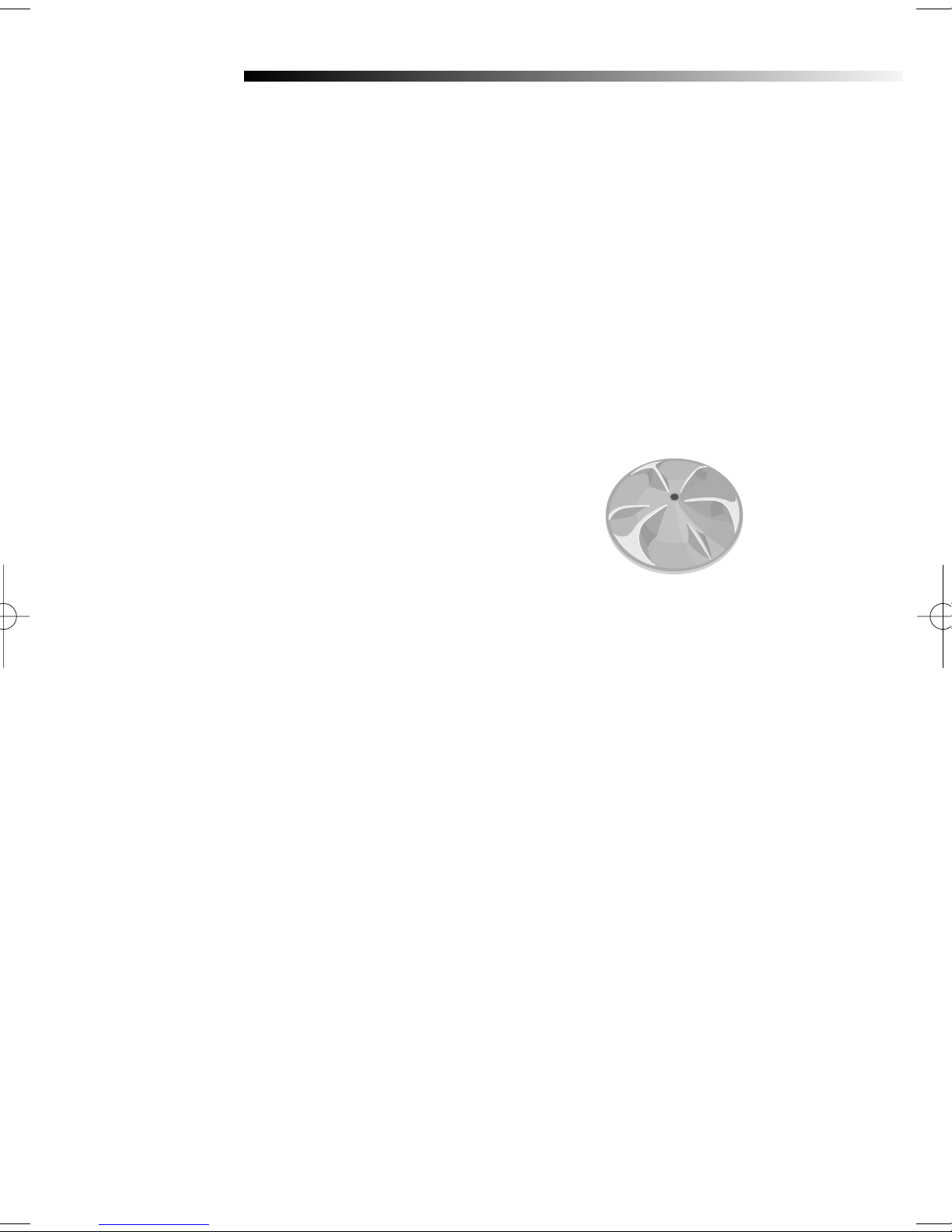

BOOMERANG PULSATOR
The Boomerang Pulsator helps water
and detergent to go through fabrics efficiently while providing both the
powerful water action to clean larger and heavier clothes and the gentle
water action to clean all delicates with less wear and tear on clothes.
WATERFALL FLOW
The Waterfall Flow injected from under the pulsator cascades
with full force back into the tub, pushing down any clothes that float right
under the water surface. It is this Waterfall Flow that enables this washing
machine to effectively wash large and heavy items, such as bluejeans and blankets.
MAGIC FILTER
This unique magic Filter ensures that all the lint inside the tub is captured
for top quality filtering results to deliver consistently effective cleaning
results.
SOFTENER DISPENSER
The Softener Dispenser releases the fabric softener at the appropriate
time when the last rinsing proceeds.
FEATURES
WA7010 DC68-00701A 10/24/01 9:27 AM Page 2

2
SAFETY INSTRUCTIONS
● Where an unearthed power cord is not fitted,
be sure that the washer is grounded.
To avoid electrical shock use metal piping for the ground
connection.
Take care not to ground the washer to gas pipes or
telephone cables due to the danger of explosion from
lightning strikes.
● During spinning, don't put your
hand in the spin basket.
Because the spin basket is rotating
at the high speed, rotating parts
may injure your hand.
● Openings must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.
● Turn off water taps when the washer is not in
use to avoid water pressure damage to the
pump.
● To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the washer at the household
distribution panel by removing the fuse or
switching off the circuit breaker before
attempting any maintenance or cleaning.
● The appliance is not intended for use by young
children or infirm persons without supervision.
● Young children should be supervised to ensure
that they do not play with the appliance.
● If the power supply cord is damaged,
it must be replaced by the manufacturer
or its service agent or a similary qualified
person in order to avoid a hazard.
● Place clothes evenly into the washer
as unevenly distributed laundry may cause
excessive out-of-balance noise and vibration.
● Don't use excessively hot water.
(50˚C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or bleached.
● Before washing, check all pockets.
If nails or pins remain in pockets, they may
damage the washer or clothes.
● Don’t press the control panel with a
sharp object.
Panel damaged or malfunction may occur.
If the control panel for this
washer is damaged, it must be
replaced by a repair shop appointed
by the manufacturer, as special
purpose tools are required.
● Do not operate this appliance
if it is damaged, malfunctioning,
partially disassembled, or has
missing or broken parts, including
a damaged cord or plug.
● Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of this
or any other appliance.
● The instructions for use shall specify the
maximum mass or dry cloth in kg, for which
the appliance is designed.
● If the appliance is supplied from a cord
extension set or electrical portable outlet
device the cord extension set or electrical
portable outlet device should be positioned
so it is not subject to splashing or ingress
of moisture.
WARNING!
To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
take care to adhere to the following precautions.
WA7010 DC68-00701A 10/24/01 9:27 AM Page 3

3
DESCRIPTION OF PARTS
LID
Be sure to keep the lid
closed during washing
and spinning.
Lint will be collected in the
filter during washing.
When the water pipe is metal,
make sure to cover the end
of the ground wire.
Adjust the length of the
legs when installing
the washer.
MAGIC FILTER
POWER CORD
“BOOMERANG”
PULSATOR
WATER DRAIN HOSE
(NO PUMP)
DRAIN-HOSE
(PUMP)
SOUND ABSORPTION
PANEL
GROUND LEAD
FABRIC SOFTENER
DISPENSER
BLEACH INLET
ADJUSTABLE LEGS
WATER SUPPLY
HOSE
Stainless
SPIN BASKET
WA7010 DC68-00701A 10/24/01 9:27 AM Page 4

4

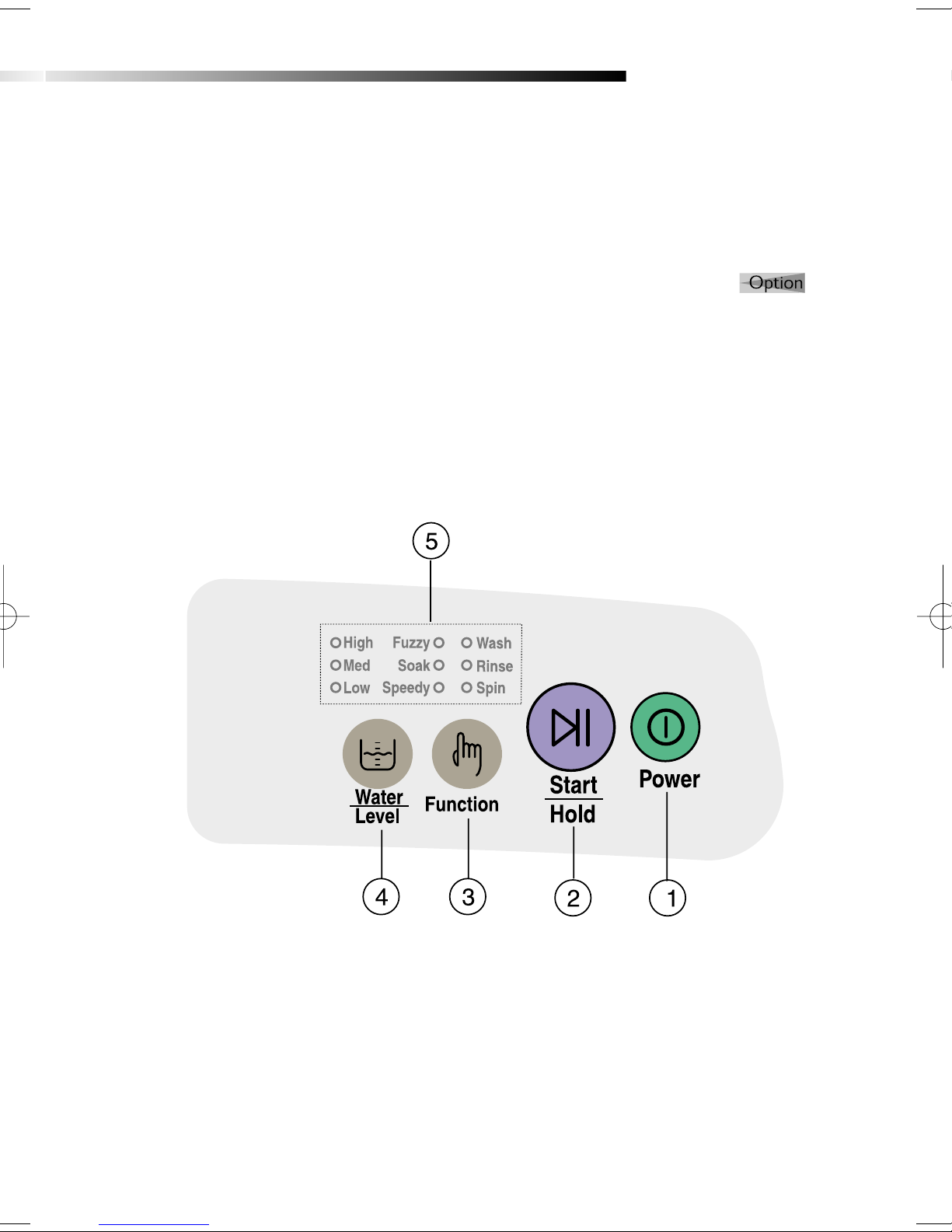

①
POWER BUTTON
Press this button once to operate.
Press once again to turn the washer off.
➁ START/HOLD BUTTON
Use to pause and restart the operation.
To change the washing procedure during
operation, press this button to stop, and
once again to restart after changing the procedure.
➂ FUNCTION SELECT BUTTON
With every press of this button, the
function changes;
FUZZY ➔ SOAK ➔ SPEEDY ➔ WASH ➔ RINSE ➔
SPIN ➔ RINSE&SPIN ➔ FUZZY
➃ WATER LEVEL SELECT BUTTON
According to the washload,select the
water level ; HIGH
➔ MED ➔ LOW ➔ HIGH
➄ FUNCTION INDICATOR LIGHT
The function in use indicator shows the
current function as a flashing symbol.
The light goes out at the end of the function.
CONTROL PANEL
WA7010 DC68-00701A 10/24/01 9:27 AM Page 5

5
3. Press the START/HOLD button
Water level is selected automatically.
Washing,rinsing, and spinning follow.
If you want to pause, press the START/HOLD
button again.You can change the course when paused.

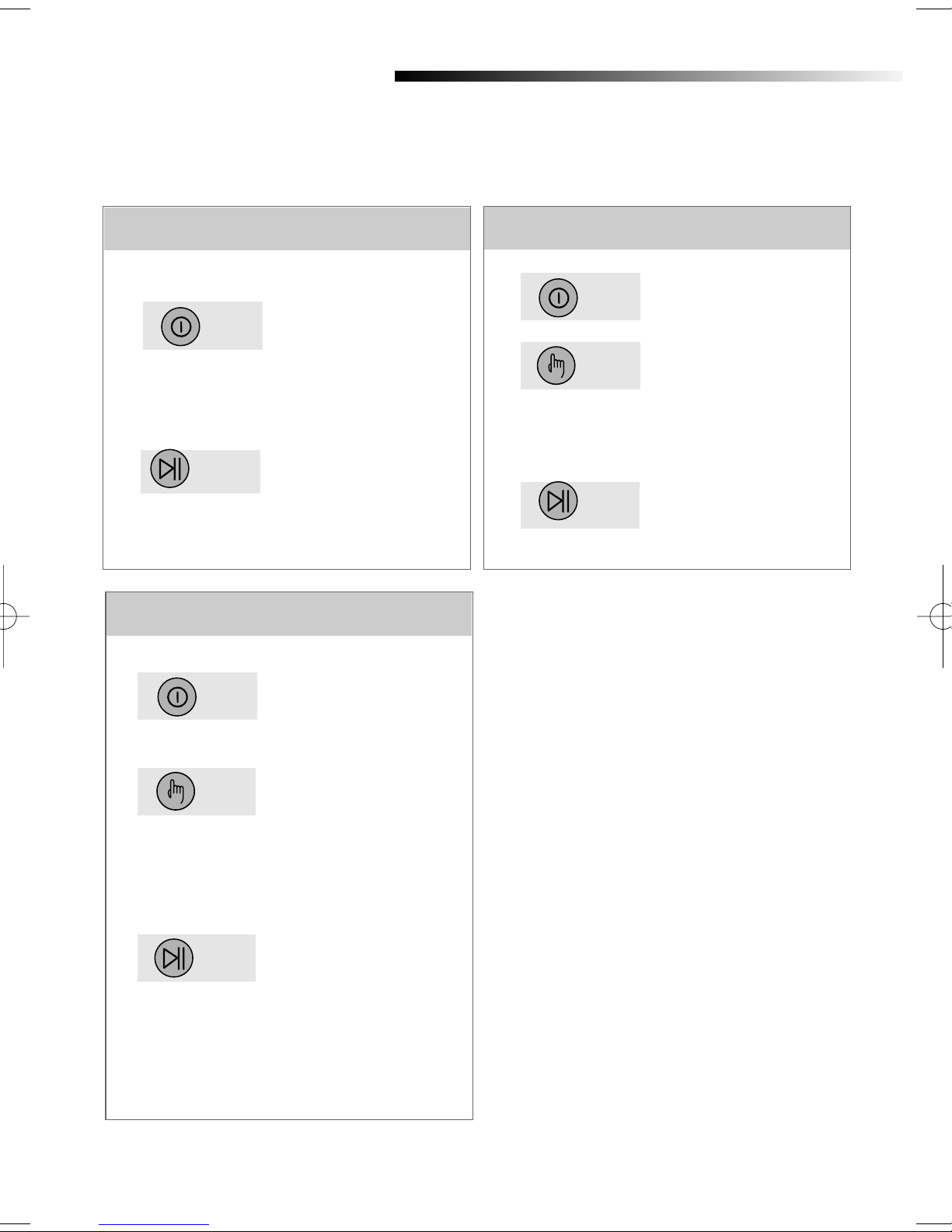

WASHING PROCEDURE
Selects the best washing course
automatically.
1. Press the POWER Button to"ON".
2. Press the START/HOLD button.
Water level is selected automatically.
Washing,rinsing, and spinning follow.
If you want to pause, press the START/HOLD
button again.You can change the course when paused.
3. Close the lid.
POWER
START/HOLD
FUZZY COURSE
Before starting washing, check the following;
Connect the water supply hose to the water tap. Leave a tap open.
Plug the power cord in. Make sure to lay down the drain hose.(In case no drain pump)
Put the laundry into the washer and add detergent,too.
Be careful not to overload. Use right detergent for the fabrics you are washing.
The laundry is soaked in water so that the
dirt can be eliminated completely.
POWER
START/HOLD
FUNCTION
1. Press the POWER button to "ON".
2. Press the FUNCTION select button once.
SOAK COURSE
START/HOLD
FUNCTION
POWER
1.Press the POWER button to "ON".
4. Close the lid.
3. Press the START/HOLD button
Water level is selected automatically.
Washing, rinsing, and spinning follow.
If you want to pause, press the START/HOLD button
again.You can change the course when paused.
2. Press the COURSE select button twice.
Because washing is speedy, it is
good for light or less stained laundry.
SPEEDY COURSE
4. Close the lid.
WA7010 DC68-00701A 10/24/01 9:27 AM Page 6

6
FUNCTION BUTTON

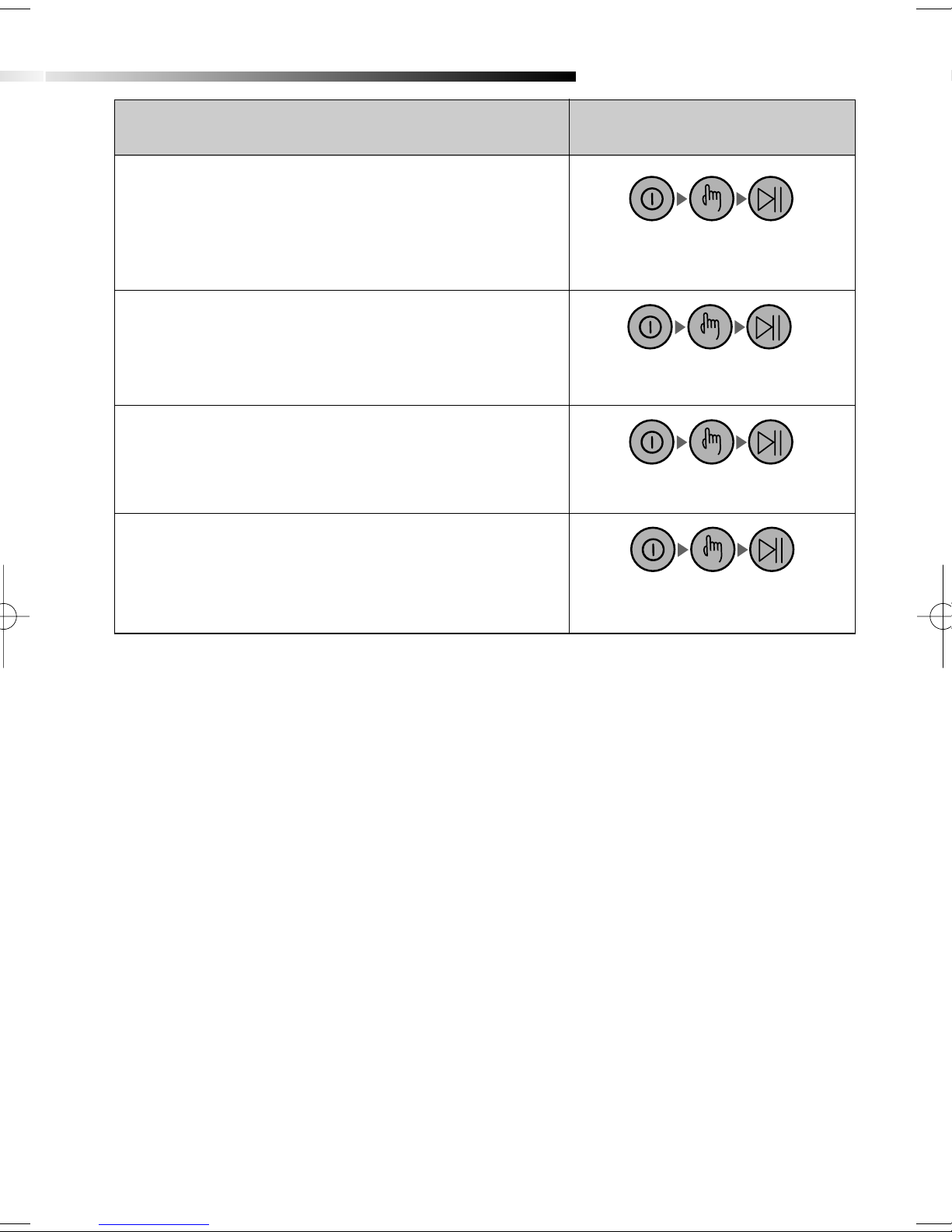

MANUAL FUNCTIONS
RINSE ONLY
Press the FUNCTION button four times.
Press the START/HOLD button once.
RINSE AND SPIN
Press the FUNCTION button six times.
Press the START/HOLD button once.
Rinsing and spin drying follow.
SPIN ONLY
Press the FUNCTION button five times.
Press the START/HOLD button once.
WASH ONLY
Press the POWER button.
Press the FUNCTION SELECT button three times.
Press the START/HOLD button once.
Function
Button
Three times
Function
Button
Four times
Function
Button
Five times
Function
Button
Six times
WA7010 DC68-00701A 10/24/01 9:27 AM Page 7

7
1.Remove the adaptor
from the water
supply hose.
2.First,using a "+" type
screw driver, loosen the
four screws on the adaptor.
Next,take the adaptor and
turn part(b) following the
arrow for gap about 5mm
between them.
3. Connect adaptor to the
water tap by tightening
the screws firmly.
Then, turn part (b)
following the arrow and
put (a) and (b)together.
5. Connect the other end of
the water supply hose to
the inlet water valve at the
back of the washer.
Screw the hose clockwise
all the way in.
If the water tap is a screw
type,assemble a water
supply hose that fits to the
tap as shown.
NOTICE After completing connection,if water leaks from the hose,then repeat the same steps.
Use the most conventional type of faucet for water supply.
In case the faucet is square or too big,remove the spacing ring before inserting the faucet into the adaptor.
INSTALLATION & MAINTENANCE
CONNECTING THE WATER SUPPLY HOSE
4.Connect the water supply
hose to the adaptor. Pull down
the part (c) of the water supply
hose .When the part (c)is released,
the hose is automatically
connected to the adaptor
making a 'click' sound.
Leave some space
Maintain at least 10cm between the washer and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak surface,
noise or vibration occurs. (Allowable is 1˚)
Adjust the legs for even placement.
Never install the washer near water.
Do not place the washer in steamy rooms or where
the washer is directly exposed to rain.Moisture may
destroy the electrical insulation causing an electrical
shock hazard.
Avoid direct sunlight or heaters.
As plastic and electrical components are affected
by direct heat,never place the washer near furnaces,
boilers,etc. Do not place under direct sunlight.
After pressing the joint ring(a), insert the drain hose(b)
to drain direction.
Rear-side
ENVIRONMENT
ASSEMBLING THE SOUND ABSORBING
PANEL
CONNECTING THE DRAIN HOSE
(a)
(b)
LockLoosen
70~80cm
● Be sure to join tightly
the drain hose into the
drain-outlet on theback
of the machine.
● Take out the
cap-hose and
connect the
outlet-hose.
● Install the drain
hose in the position
of about 70~80cm
above the ground.
IN CASE OF PUMP-
DRAINED WASHER
Tilt the washer a little and lift up the panel until it clicks,
filnaly fix the panel with screw to the base as shown in the figure.
● Adjust the legs on feet for levelling .
SEE IF THE MACHINE IS PLACED LEVEL BY CHECKING THE
POSITION OF THE WASHING TUB.
● Open the lid of the machine, pour water into the tub up to the level
just below the pulsator, and adjust the legs so that the pulsator
is positioned at the center of the water as shown in the figure.
● Place the machine more than 10cm away from the wall.
LEVELLING
cap-hose
outlet-hose
WA7010 DC68-00701A 10/24/01 9:27 AM Page 8

● When a proper amount (one time does) of fabric
softener is stored in the softener inlet,it is
automatically put in at the last rinsing cycle.
● Do not use detergent, bleach or starch into
the Softener Inlet.
● Using too much softener may produce
unsatisfactory results.
● Do not open the lid during the Spin Dry cycle.
If added too early, its effectiveness will decrease.
● Do not leave the softener
into the Softener
Dispenser for a long time.
Because softner
became stiff.
8
1. Place a rag under the washer filter not to wet the floor.
2. Rotate the filter counterclockwise and pull out the filter.
3. Remove dirts and rotate the filter clockwise until it locks in position.
HOW TO CLEAN THE FILTER
TROUBLESHOOTING
Washing machine won't work
Is the water tap opened?
Is the washer plugged in?
Is the power cut off?
Is there enough water?
Is the water tap opened?
Is the water cut off?
Is the water supply hose or hose
connection clogged?
Is the water tap frozen?
If water is not supplied in 1 hour,a
buzzer will sound.
Water is not supplied Spinning does not work
Is the laundry spread out evenly
in the washer?
Is the washer set on a sturdy
flat surface?
Water is overflowed
Restart after spinning.
If the error sign still indicates,
call agency.
Water dose not drain
Is the drain hose down?(No pump)
Is the drain hose frozen?
Is the drain hose clogged?
If the water dose not drain in 6
minutes, a buzzer will sound.
CLEANING THE MAGIC FILTER
HOW TO ADD THE FABRIC SOFTENER
1. Push the upper part
of the filter and pull in.
2. Open the cover as
shown in the figure.
3. Clean the filter. 4. Close the cover and insert t
he lower part of the filter in the
basket first and then push the
filter with "click" sound .
Pour it slowly
ure.
WA7010 DC68-00701A 10/24/01 9:27 AM Page 9

STANDARD
WATER LEVEL
RATED POWER
CONSUMPTION
DIMENSIONS
WEIGHT
WATER PRESSURE
WATER USAGE
164 l
126rpm
760rpm
WASHING TYPE Stirring Type
PULSATOR
ROTATING SPEED
SPINNING TUB
ROTATING SPEED
SPECIFICATIONS
IN CASE THE NEED FOR SERVICING ARISES.
Don't hesitate to call any agency nearby with your name, address
and telephone number when anything wrong with your product occurs.
If the power supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similary qualified person
in order to avoid a hazard.
WASH
SPIN
HIGH
MED
LOW
56 l
48 l
41 l
CODE NO. : DC68-00701A
300W
240W
W540xD560xH850mm
31kg
0.05~0.78 MPa
(0.5 ~ 8.0 kg . f/cm2)
WA7010 DC68-00701A 10/24/01 9:27 AM Page 10
