Samurai Industrial Floor Stripper User manual

Copyright 2006.
All rights reserved.
READ ALL the sections in this manual PRIOR to attempting to
service, maintain or operate this equipment.
!
DO NOT operate this equipment until you have read and
understood all the enclosed Operator’s Manual.
Industrial Floor Stripper
Operator’s Manual

A
Warranty Statement
The SAMURAI Industrial Floor Stripper, is guaranteed to be free from any manufacturer’s defects in material and
workmanship for a period of six (6) months from the date of purchase. This warranty is exclusive of any normal
wear and tear and/or consumable parts, such as, but not limited to, rubber bushings and blades. All normal wear and
tear and/or consumable parts are protected from manufacturer’s defects in material and workmanship for a period of
thirty (30) days from the date of purchase.
Warranty Summary Protection
1. SAMURAI Industrial Floor Stripper 6 months parts and labour
2. SAMURAI normal wear and tear parts
or consumable parts
30 days parts and labour
To make a warranty claim within this time period, please contact the Service Manager at your local authorized
service centre, who will advise the validity and claim procedure. Once the claim has been accepted, the unit and/or parts
should be shipped to the specified Authorized Service Centre at the customer’s expense. Be sure to securely pack the unit
and parts in a strong container. Damage in transit is not covered by this warranty. All approved repairs under this war-
ranty will be returned free of charge.
Warranties expressed in this document are void if repairs are attempted by anyone other than an Authorized
Service Centre or if the unit has been modified from original factory design in any way. This warranty is expressly
conditional upon the customer’s compliance with all precautions and instructions contained in this manual and
excludes any claims made as a result of abuse, neglect, accident, normal wear and tear and misuse. This warranty is
nontransferable.
Our liability under warranty is limited to the repair of the product and/or replacement of parts and is given to the
purchaser in lieu of all other remedies including incidental and consequential charges. There are no expressed warranties
other than those specified herein.
English Service
T : 1-888-332-4012
F : 1-866-567-0956
French Service
T : 1-800-332-4012
F : 1-866-825-2221
Technical Support Hotline
c/o Technical Service
Uniquip Canada Inc.
SAMURAI North American Authorized Dealer
www.uniquip.ca

B
Warranty Registration
Congratulations for purchasing the SAMURAI Industrial Floor Stripper to meet all your tough jobsite needs! Please
file your original bill of purchase for this unit in a safe place. For warranty service of the SAMURAI you will need to pro-
vide a copy of this document to confirm your warranty status.
Product registration is a key step toward enjoying your new product! While registration is not necessary to enjoy
our manufacturer’s warranty, there are many benefits to participating in this program. Registration helps to facilitate war-
ranty service, and notify you of any updates, changes, and service advisories on your product. Complete this Warranty
Registration Card and mail it to the address on the back of this card or fax it to:
SAMURAI Warranty Programme
c/o Technical Service
Uniquip Canada Inc.
North American Authorized Dealer
P: 1-888-332-4012
F: 1-866-825-2221
Warranty Registration Information
A.Ownership Information
Owner’s Name:
Company Name:
Company Address:
Company Telephone:
Company Fax:
Company E-Mail:
Company Website:
B.Machine Information
Machine Make:
Machine Model #
Machine Serial #
Date of Purchase:
C.Product Information Update
Can we contact you with any product-related news?
Who should we contact?
Contact Telephone:
Contact Fax:
Contact E-Mail:
What is the preferred contact method?

Place
Stamp
Here
SAMURAI Warranty Programme
c/o Uniquip Canada Inc.
North American Authorized Dealer
4101 boul.Industriel
Laval QC
H7L 6G9
ATTN: TECHNICAL SERVICE
Fold along dotted line
Fold along dotted line

Copyright 2006.
All rights reserved.
READ ALL the sections in this manual PRIOR to attempting to
service, maintain or operate this equipment.
!
DO NOT operate this equipment until you have read and
understood all the enclosed Operator’s Manual.
Contents
Pre-Operation Note 1
Safety Precautions 2
Guide to Parts Breakdown 4
Parts Breakdown 5
Information on Safety Decals 8
Contents List 9
Pre-Operating Procedures 9
Operating Procedures 10
A. Installing the blades and support mounts for the SAMURAI 10
A. Attaching the 5-3/8” blade 11
B. Attaching the 4” blade 11
C. Attaching the 9” blade 11
B. General principles in using the SAMURAI floor stripper 13
C. Using the SAMURAI on stairs and other difficult to maneuver areas 14
D. Using the SAMURAI with the handle extension 14
Storing the SAMURAI 15
Maintenance Procedures 16
A. Inspection Schedule 17
B. General Service Procedures 17
1.Changing the bushings for the SAMURAI Floor Stripper 17
A. Disassembling the SAMURAI Floor Stripper 17
B. Changing the bearing SA-49 and rubber bearing cup SA-50 18
C. Replacing all the bushings, washers and bolts 19
2. Changing Motor Brushes 20
3. Changing Nylon Wheels 20

1
Pre-Operation Note
Thank you for your purchase of the SAMURAI Industrial Floor Stripper. This floor stripper has been designed and
manufactured to our highest quality demands for durability and performance.
We are committed to offering durable products and quality after-market service. The SAMURAI Industrial Floor
Stripper is warranted to be free from manufacturer’s defects in material and workmanship for a period of six (6) months
from the date of purchase. This warranty will be void if the machine has not been operated and maintained in the
manner prescribed in this Operator’s Manual. Any machine malfunctions, and/or warranty claims that arise from the
misinterpretation or the misunderstanding of the instructions and cautions discussed in this booklet will not be eligible for
warranty protection.
In order for the floor stripper to perform at its optimum capabilities, the operator must read this manual
thoroughly before using this unit. This Operator’s Manual contains important product operation procedures, safety
precautions, maintenance and troubleshooting tips as well as other advisories. Please keep this manual nearby at all
times when operating the machine as a reference should any questions arise. If the machine is sold or transferred to
another user, please ensure that this manual accompanies it.
The SAMURAI Floor Stripper is designed to remove existing laminate, vinyl and parquet flooring. NOT
RECOMMENDED FOR USE WITH CERAMICS. The machine should not be used for any other purpose than that
stated above. The inappropriate use of any machine can cause serious damage and/or bodily harm to the environment
and operator. It is imperative that the operator of this equipment be responsible for the operational environment of the
floor stripper. Please be prepared and well-informed for all specific requirements precautions and work hazards that may
and/or do exist at the jobsite.
Powered by a 1/2 hp, 5A induction electric motor, the SAMURAI is an industrial-use unit designed to make floor
stripping fast and easy. The SAMURAI has many features which are designed to improve your working experience. It
comes with a complete set of accessories, including 3 different kinds of blades and their support mounts to help you
tackle each type of flooring with the right tool! The nut driver included is a handy tool to help you change blades and
perform maintenance quickly and safely. The removable extension handle maximizes comfort and ease of use of the floor
stripper for both floors and stairways.
In order for you to enjoy the most out of your new floor stripper, always keep safety as a priority. Inspect your
jobsite for any debris such as chipped tiles, glass, wiring, string or any other items that can become hazardous during
work. Ensure that there are no electrical hazards, such as the presence of water, hazardous and flammable substances.
Make sure that the main power switch, located on the main unit, is switched OFF when there is no operator present.
The jobsite environment, floor conditions, job specifications and operator experience will all be factors that must be
considered to select the proper tool for the job. Failure to maintain the floor stripper in a proper manner will lead to
decreased productivity of the tool and hazards to the operator and bystanders. Do not use the machine if it has been
modified or improperly maintained.
All jobsites are different. Please ensure that when using the SAMURAI Floor Stripper, all local bylaws and codes
are followed. All operators and mechanics of this machine should be trained in general machine use and safety.
Every care and effort has been made to ascertain the accuracy and completeness of procedures described in this
document to ensure your enjoyment and satisfaction. If you have any questions or concerns, please contact the Service
Department at your authorized dealer.
Pre-Operation Notes

2
Safety Precautions
1. READ AND UNDERSTAND OPERATOR’S MANUAL PRIOR TO USE OF FLOOR STRIPPER.
2.Before operating floor stripper, ensure that it is structurally and mechanically safe by checking the following:
a. Is the motor functioning within acceptable tolerances?
b. Are the bushings for the enclosure and vibrating plate showing excessive wear and tear
or uneven wear patterns?
c. Are all the electrical cords and strain reliefs in good condition, with no evidence of rips, tears,
cut insulation or bare wire showing?
3. Before using the floor stripper on proposed jobsite, perform the following environmental checks:
a. Inspect the entire work area for unexpected hazards, such as gas and water pipes, electrical wiring or
cabling, under-floor heating systems, damp areas or leakages.
b. Clean work area of any litter or debris, such as wire, boards, rocks, or any other potential hazards.
c. Verify that the machine will not used in an area of standing water, or that its power cord will be routed
through such conditions.
d. Electrical power is supplied from a grounded and safe source, and that the source is of the same
voltage to that specified on the machine.
4. Before using the floor stripper on proposed jobsite, make sure that the operator is thoroughly familiar
with the machine and its components (see “Machine Overview”).
5. When operating the floor stripper, follow these guidelines for operator’s personal safety:
a. Always wear proper safety clothing and equipment for the job. These can and should include eye and
ear protection, protective helmets, gloves, dust mask and any other items that are appropriate for the
job and jobsite requirements
b. Never wear any jewelry, neck ties, or other loose or hanging items that can be caught on any part of
the machine
c. Tie back or remove any loose hair, clothing and any other potential hazards and obstructions
d. Keep all hands, loose clothing, hair, jewelry and all other personal parts and belongings away from
moving parts of the machine.
e. The last operator may have been negligent and his possible oversight could cause you death or serious
injury. Inspect machine before each use.
i. Verify that all enclosures and blades are whole and undamaged (ie.: no cracks) and
will operate properly and perform its intended functions.
ii. Verify that the moving parts are properly aligned and installed
f. Always use the proper size grounded outdoor use extension cord, conforming to your local electrical
codes and ordinances. Minimum acceptable gauge is 14 AWG.
g. NEVER allow machines to run unattended. ALWAYS disconnect and store the machine
away if operator is not available.
h. The electrical motor will heat up when machine is in use. Machine must be allowed to cool before
touching it or attempting to perform any maintenance!
i. Always allow blade and the motor to completely stop before attempting service or changing blades.
!If any of the above checks fail, please take
necessary steps to maintain or repair the unit
before operating it in any environment.
!Call your local utility company so that they can
locate and mark these lines for you. Any cut elec-
trical cable or gas line can result in injury or fatality.

3
Safety Precautions cont’d ...
6. For the safety of others and that of the operator, observe the following precautions:
a. Keep observers and bystanders away from the floor stripper and its immediate working environment
(i.e.: the room or staircase that is being stripped etc.) while the machine is in use.
b. Before using the floor stripper, power on the floor stripper and observe if there is any unusual wobbling
or vibrations that indicate poorly installed blades or bushings that may require replacement. DO NOT
USE IF MACHINE SHOWS SIGNS OF ABUSE OR POOR MAINTENANCE.
c. Stop operations or if anyone or anything (i.e.: humans, animals, debris etc.) approaches from any
direction while the machine is in operation.
d. Stop work and turn off the floor stripper if it hits any debris that jams the machine or causes it to
labour unnecessarily. Inspect the floor stripper and surrounding environment for any possible causes.
e. If the machine is jammed, turn the unit off using the main switch and disconnect the floor stripper
from its power source before attempting to clear any jams in the unit.
f. Stop all work, turn off floor stripper, unplug power cord(s) and ensure that motor is turned off and
cooled before performing any diagnostics or repairs.
g. VIBRATIING FLOOR STRIPPER BLADES CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT ATTEMPT
TO PERFORM ANY REPAIRS, SERVICE, OR DIAGNOSTICS OR TO TRANSPORT OR MOVE THE UNIT
UNTIL THE BLADE AND MOTOR HAVE BOTH COME TO A COMPLETE STOP. FAILURE TO DO SO MAY
RESULT IN SEVERE INJURY OR DEATH.
h. Never leave machine unattended
i. DO NOT, under any circumstances, operate machine if any of the following conditions are applicable:
i. Any impairment (i.e.: medical conditions, medicinal side-effects, alcohol, drugs etc.) of the
operator.
ii. The operator has not read or understood the operator’s manual for this machine.
iii. The operator does not clearly understand the operations of the machine.
iv. The machine is in need of repair
v. The operator is inappropriately attired to operate the machine.
7. Due to the nature of the machine and the tasks that it is designed to perform, consider the following
cautionary recommendations:
a. The machine is designed to operate at optimum efficiency. DO NOT FORCE THE MACHINE TO
FUNCTION FASTER THAN THE RATE AT WHICH IT HAS BEEN SET.
b. ALWAYS guard against electrical shock. DO NOT come into contact with grounded surfaces, such as
pipes, radiators, refrigerators etc.
c. ALWAYS wear protective eyewear and gloves when using the SAMURAI Floor Stripper.
Removing flooring materials creates a dusty environment in which the operator should always
be protected.
SAVE THESE INSTRUCTIONS!!

4
Guide to Parts Breakdown
Regular maintenance and parts replacement are important steps to extending the life of your equipment and
enjoying its optimum performance. When performing or conducting any maintenance or repairs, always check that your
working surroundings are safe and well-ventilated and that the technician is familiar and comfortable with all aspects of
the machine and required procedures.
This guide aims to serve as a representational guide to the SAMURAI. Any other uses or application beyond the
scope of this document are strictly prohibited. While every attempt has been made to maintain its accuracy, SAMURAI
reserves the right to update and modify the equipment without prior notification. Prior to undertaking to perform any
maintenance or repair procedures, please contact our Technical Support Hotline for clarification and to acquire appropriate
parts.
To order spare parts, please provide the following information:
1. Machine Make
2. Model Number
3. Machine Serial Number
4. Quantity Required of Each Part
5. Part Numbers
6. Part Descriptions.
All SAMURAI parts are guaranteed by a thirty (30) day warranty against any manufacturer’s defects in workman-
ship and material. Consult page A in the Operator’s Manual for further details on our Warranty Policy.
English Service
T : 1-888-332-4012
F : 1-866-567-0956
French Service
T : 1-800-332-4012
F : 1-866-825-2221
Technical Support Hotline
c/o Technical Service
Uniquip Canada Inc.
SAMURAI North American Authorized Dealer
www.uniquip.ca

5
Parts Breakdown

6
Parts Breakdown cont’d ...
Diagram
Reference #
Item
Number Description Qty. Req’d for Each Machine
1 SA-01 Lower Enclosure 1
2 SA-02 Vibrating Plate 1
3 SA-03 Upper Enclosure 1
4 SA-04 Brush Cap 2
5 SA-05 Motor Brush 2
6 SA-06 Electrical Control Protection Plate 1
7 SA-07 7/8” Fan Cap 2
8 SA-08 Bracket for Top Handle 2
9 SA-09 Lower Support Bracket for 9” Blade 1
10 SA-10 Motor Fan 1
11 SA-11 Upper Support Bracket for 9” Blade 1
12 SA-12 Upper Support Bracket for 6” Blade 1
13 SA-13 9” Blade 1
14 SA-14 5.5” Blade 1
16 SA-16 Counterweight 1
17 SA-17 Rear Handle 1
18 SA-18 Foam Grip for Rear Handle 1
19 SA-19 Foam Grip for Top Handle 1
20 SA-20 Nylon Roller 2
21 SA-21 1/4” Nylon Tube 2
22 SA-22 Axle Bolt for Nylon Rollers 1
23 SA-23 Top Handle Bar 1
24 SA-24 Support Washer 8
25 SA-25 Lower Rubber Bushing for Vibrating Plate 4
26 SA-26 Rubber Shock 4
27 SA-27 Upper Rubber Bushing for Vibrating Plate 4
28 SA-28 Hex M6 Set Screw 1
29 SA-29 M6 Cap Nut 4
30 SA-30 Knob for Attaching Handle Extension 1
31 SA-31 4” Parquet Blade 1
32 SA-32 M6 Nut for Axle Bolt 1
33 SA-33 Support Bracket for 4” Parquet Blade 1
34 SA-34 M6×18 Hex Bolts for Attaching Blade Supports 15
35 SA-35 Hexagonal Bolts for Bushings 4
36 SA-36 Steel Washer 8
37 SA-37 M4×20 Hex Bolts for Attaching Top Handle 4
38 SA-38 M6×25 Countersunk Bolt for Top Handle 2
39 SA-39 M6×12 Fastening Bolt for Vibrating Plate Enclosure 4
40 SA-40 M6×20 Bolts for Motor 4
41 SA-41 Rubber Cap for Motor 2
42 SA-42 10m×150 Hexagonal Bolt 1

7
Parts Breakdown cont’d ...
Diagram
Reference #
Item
Number Description Qty. Req’d for Each Machine
43 SA-43 Electric Motor 5800 RPM-110V 1
44 SA-44 Electric Relay 1
45 SA-45 1” Fan Cap 1
46 SA-46 Main Power Switch 1
47 SA-47 12” 3-pole Power Cord 1
48 SA-48 Vibrating Plate Counterweight 1
49 SA-49 Bearing 1
50 SA-50 Rubber Cup for Bearing 1
51 SA-51 Extension Handle Shaft & Bracket 1
52 SA-52 Strain Relief 2
53 SA-53 Foam Grip for Extension Handle 1
54 SA-54 Trigger 1
55 SA-55 Power Cord for Extension Handle 1
56 SA-56 Power Cord Strain Relief 1
57 SA-57 M6X32 Bolts for Plastic Handle 2
58 SA-58 M4X12 Screw 3
59 SA-59 Plastic Handle 2
60 SA-60 Main Motor Connector 1
61 SA-61 Threaded Inserts 5
62 SA-62 Aluminum Inserts 3
63 SA-63 M4×16 Bolt for Relay 1
64 SA-64 M4×12 Mounting Bolts for Electrical Relay Protection Plate 2
65 SA-65 Nut Driver 1
66 SA-66 M6×25 Bolts for Vibrating Plate Counterweight 2
67 SA-67 Steel Inserts 2
68 SA-68 Protector Caps for Brushes 2
English Service
T : 1-888-332-4012
F : 1-866-567-0956
French Service
T : 1-800-332-4012
F : 1-866-825-2221
Technical Support Hotline
c/o Technical Service
Uniquip Canada Inc.
SAMURAI North American Authorized Dealer
www.uniquip.ca

8
Information on Safety Decals
Below are the decals available for re-ordering to facilitate maintenance. All decals are available for replacement
except that with the serial number of the unit for each number serves as an unique identifier for warranty and support
purposes.
If you have any questions, please do not hesitate to contact your local authorized service centre for further
assistance.
SAMURAI-LABEL01:
Qty Required = 1
4()3(!.$,%)3./4!,%6%2
$ONOTUSETOFORCEMACHINETOMOVE
!LLOWMACHINETODOTHEWORKBYPUSHING
FORWARD'%.4,9
#%-!.#(%.%340!35.,%6)%2
.EPASFORCERLAMACHINEÌAVANCER
0OUSSER,³'¶2%-%.4SURLEMANCHEENLASISSANT
LAVANCEMENTNATURELDELAMACHINEFAIRELETRAVAIL
SAMURAI-LABEL02:
Qty Required = 1
SAMURAI-LABEL03:
Qty Required = 1
SAMURAI-LABEL04:
Qty Required = 1

9
Contents List
Prior to setting up the SAMURAI Industrial
Floor Stripper, check that the following items
are enclosed:
Item Quantity Check if enclosed
SAMURAI Industrial Floor Stripper Unit 1 ____Yes ____No
Extension Handle for SAMURAI 1 ____Yes ____No
Bag of accessories for the SAMURAI, including nut driver,
blades, bolts, and support mounts 1 ____Yes ____No
SAMURAI Industrial Floor stripper Operator’s Manual 1 ____Yes ____No
If any of these items are missing, please contact your local authorized dealer at once.
DO NOT ATTEMPT ASSEMBLY OR OPERATION WITHOUT ANY OF THESE LISTED PARTS!
Before using the SAMURAI Industrial Floor stripper, please perform the following procedures for the per-
sonal and property safety of the operator and jobsite and for optimal performance.
1. Before operating the floor stripper ensure that it is structurally and mechanically safe by checking the
following:
a. Perform a detailed visual inspection on the machine with particular attention to the following:
i. Are there any loose, worn or damaged parts? If so, DO NOT ATTEMPT TO OPERATE THE
MACHINE. Make note of required parts, and contact your authorized service centre for
replacement parts and further assistance to service the unit PRIOR to any further use.
ii. Is the machine, particularly the cutting blade and support mounts, clean and free of debris?
Small debris and other foreign objects can jam machine and cause the unit to malfunction,
leading to serious injury to the operator and property damage on the jobsite.
iii. Are the blades and support mounts balanced and securely attached to the floor stripper?
iv. Are there any cracks or damage on the machine? Contact your authorized service centre
immediately for advice and corrective measures. DO NOT ATTEMPT TO OPERATE THE
MACHINE until it is refurbished to factory standards.
b. Inspect the handles and power switch for the following:
i. Are both top and rear handles, as well as the power switch on the main unit properly and
securely attached to the machine?
ii. On the extension handle, are all the sections and pieces secured to each other? Is
the trigger switch working to factory standards? Consult your local health and safety
organization for any pointers for jobsite and machine operation safety.
Pre-Operating Procedures
!If any of the above checks fail, please take necessary
steps to maintain or repair the unit before operating it
in any environment.

10
Pre-Operating Procedures cont’d ...
2. Before operating the floor stripper, perform the following environmental checks:
a. Is the work area free and clear of damp areas, leaks, flammable substances, electrical hazards, or
any other similar conditions?
b. Are there any standing pools of water or other conductive liquids and materials that can interfere
with the safe operation of the machine at the jobsite?
c. Has the work area been cleared of debris such as rags, string, wire, rocks, metal and other materials?
Such items could cause malfunction or damage to the floor stripper that could also be potentially
hazardous to the machine and operator.
d. Voltage Warning: Before connecting the tool to a power source, verify that the voltage supplied is
equal to 120V. A power source whose voltage is greater than that specified for the operation of the
tool can cause serious injury to the operator, as well as damaging the machine. If in doubt, DO NOT
CONNECT THE MACHINE TO THE UNKNOWN POWER SUPPLY.
e. Is there a reliable source of grounded electricity available? Use only GFCI receptacles.
f. If using an extension cord, is it in good condition and conforming to local safety codes?
Extension cords must be a 3-pole cord with a 3-pole plug and socket, rated for outdoor use. Our
recommendation is as follows:
A. Up to 100’ ft. = 14 AWG
B. Up to 200’ ft. = 12 AWG
C. Up to 300’ ft. = 10 AWG
D. Up to 400’ ft. = 8 AWG
Operating Procedures
A. Installing the blades and support mounts for the SAMURAI
1. Ensure that the floor stripper is completely turned off, cooled, and at a complete stop prior to adjusting or
relocating the unit. Disconnect unit from power source.
2. Select the appropriate blade and mount required. Both the 4” parquet flooring blade and the 5-3/8”
multi-purpose blade (ideal for stairs) are used with different 3-hole top mounts. The 9” blade requires
both the 5-hole top mount and the matching plate extender. See Figs. 1, 2, & 3 to ensure that the
appropriate mounts are matched to the proper blade. Remove corresponding quantity of bolts for
mounting.
3. Place the unit, blade(s), support mount(s) and bolts on a clean and sturdy work bench. Due to the
weight of the unit and the sharpness of the blades, NEVER perform any adjustments to the floor stripper
without proper support. Failure to do so may lead to severe bodily harm, jobsite and machine damage.

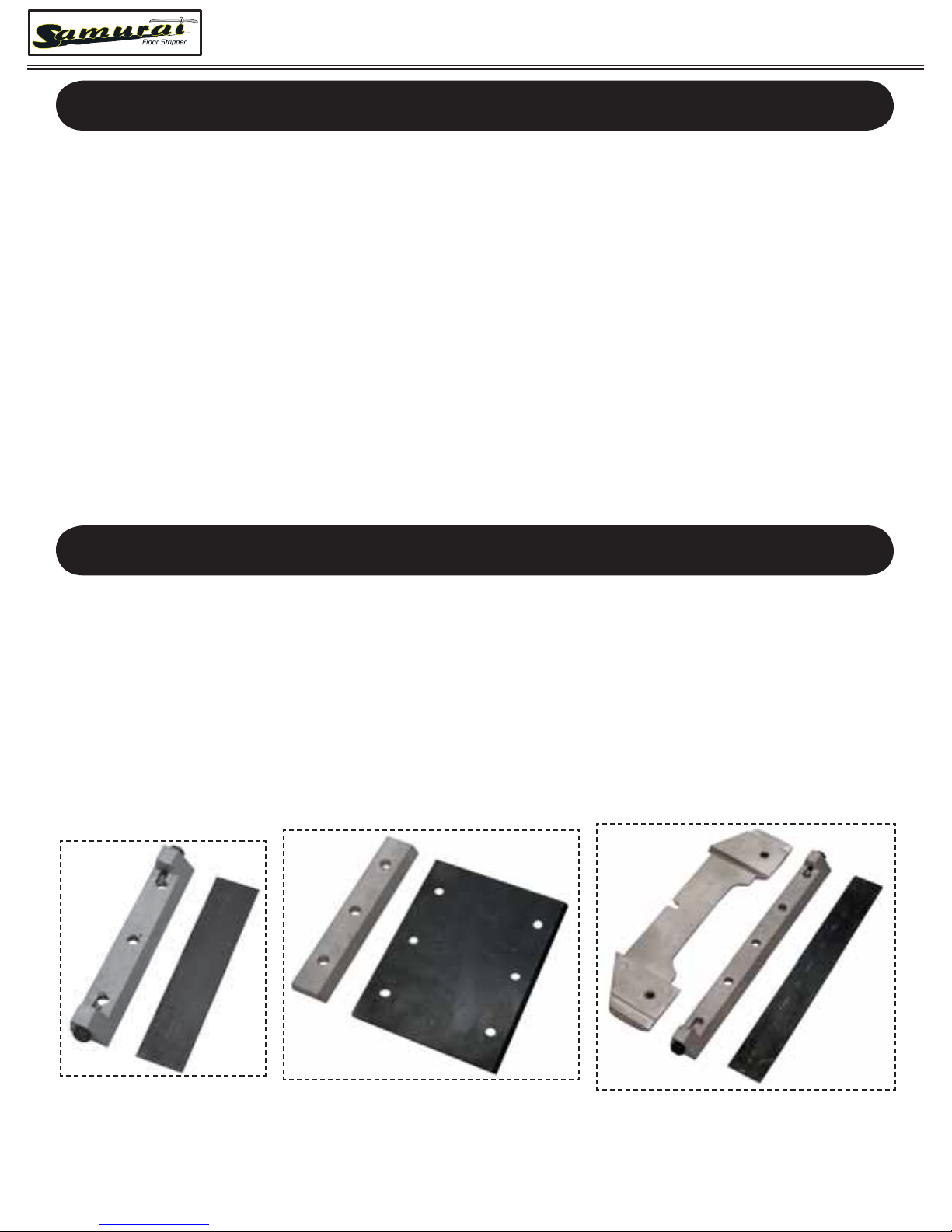

Fig.1: Support mount and
5-3/8” multi-purpose blade
Fig.2: Support mount and
4” parquet blade Fig.3: Support mount and
9” multi-purpose blade

11
A. Installing the blades and support mounts for the SAMURAI cont’d ...

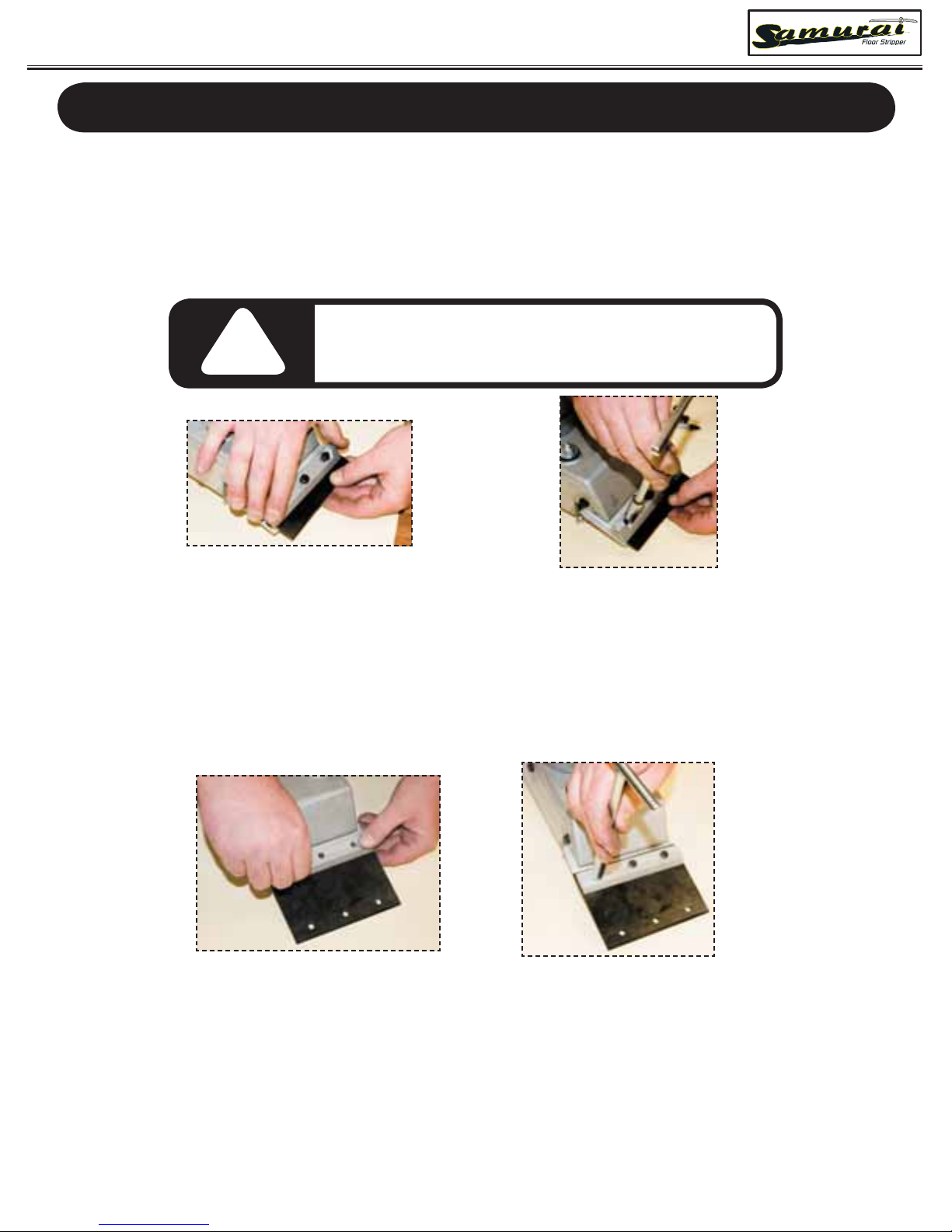

4. Attaching the 5-3/8” blade:
i. Place 3-hole top-mount, flat side down, on top of protruding lip of the vibrating plate.
ii. Insert 3 bolts through the top mount into the vibrating plate. Finger tighten to set.
iii.Slide the blade in between the top mount and vibrating plate. (Fig.4)
iv. Using the nut driver included with the SAMURAI, tighten down each bolt such that the
blade is securely “sandwiched” in between the top mount and the vibrating plate. DO NOT
OVERTIGHTEN BOLTS. (Fig.5)
Operation Procedures cont’d ...
Fig.4: Inserting the blade in between
the support mount and vibrating plate.
5. Attaching the 4” blade:
i. Align the 4” blade with the vibrating plate, then place 3-hole top-mount, flat side down, on top
of protruding lip of the vibrating plate. Make sure that the holes of all three pieces are lined up.
(Fig.6)
ii. Insert 3 bolts through both the top mount and blade into the vibrating plate.
iii.Using the nut driver included with the SAMURAI, tighten down each bolt such that the
blade is securely “sandwiched” in between the top mount and the vibrating plate. DO NOT
OVERTIGHTEN BOLTS. (Fig.7)
Fig.5: Tightening nuts with
nut driver
!Blade is sharpened on BOTH sides.
Take care when handling.
Fig.6: Align holes on support
mount to blade. Fig.7: Tightening nuts with
nut driver
6. Attaching the 9” blade:
i. Place plate extender, 5-hole top mount and 2 bolts as shown. (Fig.8)
ii. Insert one bolt through both the top mount and plate extender on either end as shown. (Fig.9)
iii.Finger tighten bolts just until both pieces are set together. Slip the protruding lip of the vibrating
plate in between the top mount and plate extender. (Fig.10)
iv.Insert 3 bolts through the remaining holes in the top mount into the vibrating plate and tighten
until support mount is attached to machine. (Fig.11)
v. Slide the blade in between the top mount and vibrating plate. (Fig.12)
vi.Using the nut driver included with the SAMURAI, tighten down each bolt such that the
blade is securely “sandwiched” in between the top mount and the vibrating plate. DO NOT
OVERTIGHTEN BOLTS. (Fig.13)

12
Operating Procedures cont’d ...
!When attaching any of the blades to the SAMURAI Floor
Stripper, the beveled edge of the blade must be used as
shown in Fig.14.
Fig.14: Verify that beveled
edges on blades are facing the
right direction.
!Blade is sharpened on BOTH sides.
Take care when handling.
Fig.8: Ensure that all necessary
pieces are available.
Fig.9: Fasten support mount to
plate extension. Fig.10: Fit extension assembly
to vibrating plate.
Fig.11: Bolt extension to machine. Fig.12: Slide blade in
between support mount
and extension plate.
Fig.13: Tightening nuts with
nut driver

13
B. General principles in using the SAMURAI floor stripper
The SAMURAI floor stripper is designed for use either as a standalone unit for small or difficult jobs, such as
stairs, or with the handle extension for clearing large areas. The following instructions apply to both usages.
1. Before connecting the unit to a grounded power source, flip ON/OFF switch (Fig.15) between both
positions to ensure that switch works. Press and release trigger switch verify that it is in good working
order.
2. Ensure that the floor stripper is completely turned off prior to adjusting or relocating the unit.
3. Verify that electrical power is supplied from a grounded and safe source, and that the source is of the
same voltage to that specified on the machine.
4. If using an extension cord, connect it to the machine, then plug the other end into the grounded
receptacle.
5. Position blade on the surface of the material to be removed.
6. Flip on ON/OFF switch to the ON position and tilt the machine forward, maintaining a steady and
consistent angle. If using with handle extension, pull on trigger.
7. Proceed as fast as the machine will allow. DO NOT FORCE MACHINE TO MOVE AT ANY OTHER RATE.
The nylon wheels at the bottom of the machine (Fig.16) are designed to allow the floor stripper to
glide on floor surface. These wheels MUST REMAIN IN CONTACT with the floor at ALL TIMES. The
floor stripper is operating at an incorrect angle if wheels are not touching the flooring surface. An
incorrectly positioned floor stripper may lead to severe damage to the floor, operator and the machine
itself.
8. Blade must be flush to the surface that it is scraping AT ALL TIMES. Uneven scraping results and
possible damage to job surface can result otherwise. Depending on the width of blade used, the
machine can remove material from 4” to 9” wide. Account for this working width as job proceeds.
9. If unit does not power on, check that the main power switch is switched ON, and that the unit is
connected to a live, grounded receptacle
Operating Procedures cont’d ...
!
DO NOT USE THE SAMURAI AS A PRY BAR, NAIL REMOVER, OR ANY
OTHER PURPOSES EXCEPT THOSE EXPLCITLY STATED IN THIS MANUAL.
ANY UNAUTHORISED OR NON-RECOMMENDED USE CAN LEAD TO SEVERE
BODILY HARM, JOBSITE & MACHINE DAMAGE.
Fig.15: Location of main power switch
Fig.16: Location of nylon wheels

14
Operating Procedures cont’d ...
C. Using the SAMURAI on stairs and other difficult to maneuver areas
1. Verify that handle extension is disconnected and removed from main unit.
2. Place one hand on top handle to guide machine and other hand on side handle to gently push the unit
along floor surface.
3. Tilt machine to proper operating angle as described above by simultaneously
gently pushing down unit with guiding hand and lifting with pushing hand.
(Fig.17).
4. Guide the machine in the direction required to strip the material.
5. Consult “General principles in using the SAMURAI floor stripper” as detailed
above for detailed instructions in using the SAMURAI floor stripper.
D. Using the SAMURAI with the handle extension
1. Disconnect the machine from any source of power, and wait until both the motor and blade have stopped
moving and are cool to touch.
2. Place the unit upright on clear and safe work surface, such as a work bench or protected floor area.
3. Unscrew the back handle attachment knob and set aside. (Fig.18)
4. Hook the handle extension (Fig.19) as shown (Fig.20 & Fig.21) onto top handle.
5. Press down on the base of the handle with one hand and screw the back handle attachment knob back
onto the handle as shown in Fig 22 to attach the extension to the floor stripper.
6. Connect the lower power cord of the handle extension to that of main unit as shown. (Fig.23)
7. Plug the power cord of the handle extension into a safe and grounded electrical source, directly or
through an appropriate extension cord as required.
8. Flip the power switch on the main unit to the ON position as shown (Fig.24). Leave this switch in the
ON position when using the floor stripper with the handle extension. The trigger switch on the handle
extension will act as the ON/OFF switch for the machine in this formation.
Fig.17: How to use the SAMURAI
Fig.18: Removing the
back handle attachment knob
Fig.19: Handle extension. Fig.20: Attaching the ex-
tension onto the SAMURAI.
Fig.21: Make sure that extension
hooks on securely to top handle.
Fig.22: Re-attaching the back handle
attachment know to secure handle
extension to unit.
Fig.23: Connecting the power
cord to the handle extension to
the main unit.
Fig.24: Turn main
power switch ON.

15
Operating Procedures cont’d ...
D. Using the SAMURAI with the handle extension cont’d ...
9. With a guiding hand on the handle extension’s foam grip and the other hand on the handle to activate
the trigger switch as needed, push machine along flooring surface to strip material as needed. (Fig.25).
Due to the design of the machine, there should be NO downward pressure being applied by the operator
at any time. (Fig.26). DO NOT LEAN, PUSH DOWN, OR OTHERWISE TREAT THE UNIT AS A
SUPPORTING MECHANISM. Doing so may result in damage to the machine, jobsite, and severe
bodily harm to the operator.
10. Consult “General principles in using the SAMURAI floor stripper” as detailed as above for detailed
instructions in using the SAMURAI floor stripper.
!
DO NOT APPLY ANY DOWNWARD PRESSURE TO HANDLE EXTENSION.
The floor stripper is designed neither to support the weight of the
operator nor to be used to perform any function beyond those described
in the “Pre-Operating Note”.
Storing the SAMURAI
1. Ensure that the area in which the machine will be stored is well-ventilated and free of any potential
fire hazards such as open flames, gas appliances, furnaces, water heaters, and other appliances.
2. Clean and lubricate machine prior to storage.
3. Remove blades and support mounts and store away with nut driver.
4. Touch-up any scratches or damaged areas.
5. Order and re-apply any safety labels. Refer to “Information on Safety Decals” in “Parts Breakdown
Section” of the manual for placement and parts numbers.
6. Store the machine in a covered or indoor storage area at temperatures above freezing for increased
protection and longevity.

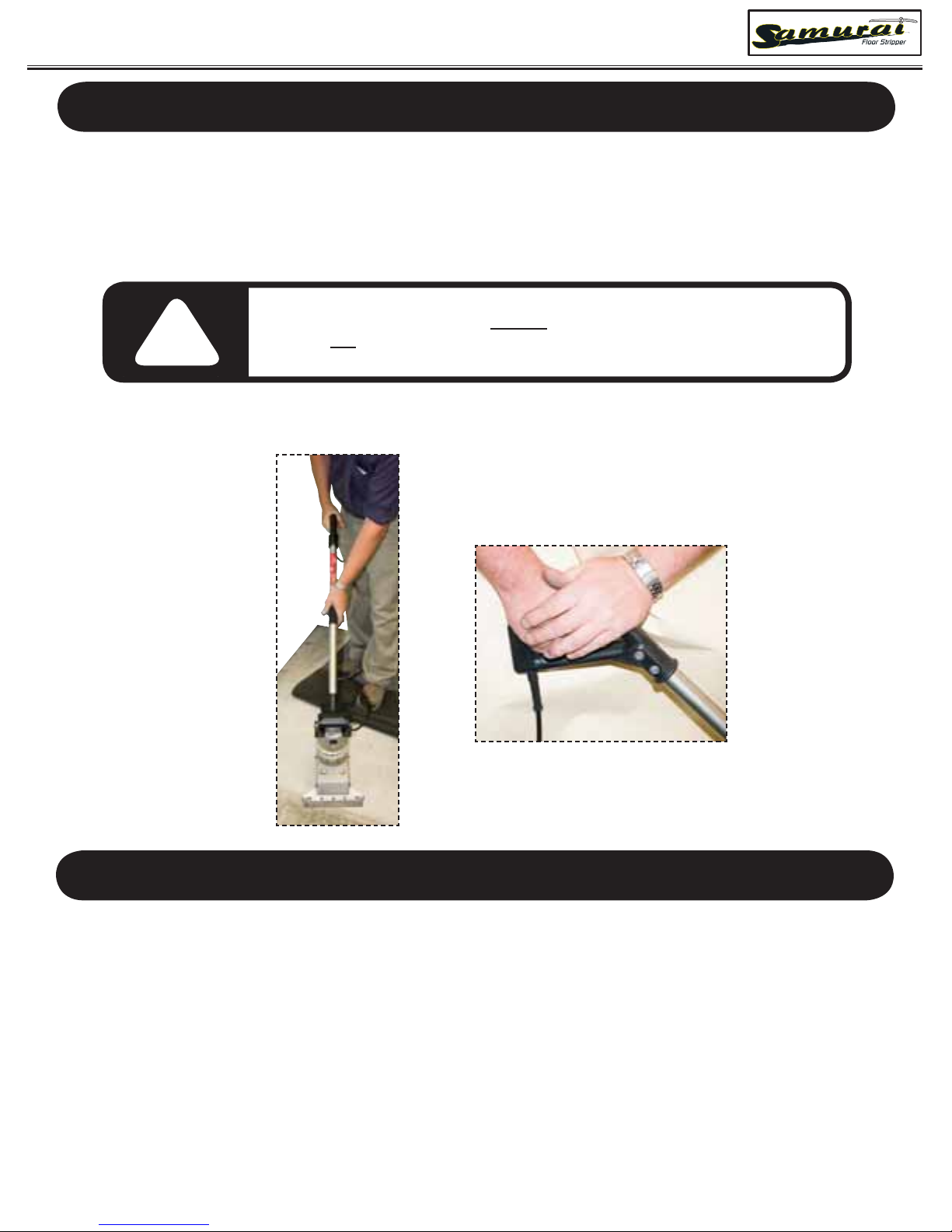

Fig.26: Improper use of handle extension.
Fig.25: Proper use
of the SAMURAI with
handle extension.
