ADIATEK quartz 66 User guide

quartz
66
quartz 80
07 2016
Use and maintenance
Warning! Please read the instructions before use.

TECHNICAL DESCRIPTION U/M quartz 66 quartz 80
Cleaning width mm 685 785
Squeegee width mm 860 990
Working capacity, up to m2/h 4110 4710
Brushes diameter mm 2 x 355 2 x 405
Brushes rpm rpm 160 160
Pressure on the brushes kg 52 57
Brushes motor W 2 x 350 2 x 350
Traction motor W 500 500
Suction motor W 570 570
Suction vacuum mbar 160 160
Type of drive automatic automatic
Movement speed (max) km/h 5 5
Maximum gradient % 10 10
Solution tank l 98 98
Recovery tank l 106 106
Machine length mm 1544 1532
Machine height mm 1388 1388
Machine width (without squeegee) mm 765 860
Weight of the machine (empty and without batteries ) kg 213 218
Gross weight of the machine
(in conformity with EN 60335-2-72 art. 5.z102)
kg 521 526
Battery voltage V 24 24
Capacity of the batteries Ah5210 210
Weight of the batteries kg 135 135
Battery van RIGHT (LxPxH) mm 532x187x325 532x187x325
Battery van LEFT (LxPxH) mm 532x187x325 532x187x325
Acoustic pressure level (in conformity with EN 60704-1) Lpa dB (A) <70 <70
Sound power level Lwa dB (A) <70 <70
Class
Protection level IP 23 23
III III

3
INTRODUCTORY COMMENT
Thank you for having chosen our machine. This floor cleaning machine is used for the industrial and civil cleaning and is able to clean any type of
floor. During its advance movement, the combined action of the brushes and the detergent solution removes the dirt which is aspirated through the
rear suction assembly, giving a perfectly dry surface.
The machine must be used only for such purpose. It gives the best performance if it is used correctly and maintained in perfect efficiency. We therefore ask you to read
this instruction booklet carefully whenever difficulties arise in the course of the machine’s use. In case of need, we ask you to contact our service department for all
advice and servicing as may prove necessary.
SUMMARY
STEERING WHEEL PANEL 5
CONTROLS BOARD LEGEND 5
MACHINE LEGEND 5
DISPLAY READING 6
battery settings 6
software Release 6
CONTROLS DISPLAY 6
NAVIGATION CONTROLS 7
General settingS 7
DISPLAY LANGUAGE SELECTION 7
Display tune (display CONTRAST) 7
CHANGING THE BATTERY SETTING 7
Display brightness 7
MANUAL SYMBOLOGY 8
OPTIONALS 8
InstallING THE BATTERIES 9
BATTERY CHARGER 10
BATTERY CHARGING 10
BATTERY CHARGING USING THE ON-BOARD BATTERY CHARGER
(OPTIONAL) 10
Batteries disposal 10
Squeegee assembly 11
AdjustING the squeegee 11
ASSEMBLING AND DISASSEMBLING THE SPLASH GUARDS 11
ASSEMBLING THE BRUSHES 11
FLOOR CLEANING 12
CONNECTING THE BATTERY CONNECTOR AND SWITCHING ON THE
MACHINE 12
RECOVERY TANK 12
DETERGENT SOLUTION TANK 12
3S Solution Saving System (opTIONAL) 12
WORK 13
MANUAL MODE WORK 13
BRUSHES PRESSURE ADJUSTMENT 13
SPEED ADJUSTMENT, FORWARD AND BACKWARD 13
AUTOMATIC MODE WORK 14
SUCTION MOTOR SILENT MODE 14
Standby MODE 14
HORN 14
EMERGENCY BUTTON 14
PARKING BRAKE 14
MANUAL MOVEMENT OF THE MACHINE 14
BRUSHES MOTOR OVERLOAD PROTECTION SYSTEM 14
OVERFLOW SYSTEM 14
STOP OF THE MACHINE AFTER CLEANING OPERATION 15
DAILY MAINTENANCE 15
DRAINING AND CLEANING THE RECOVERY TANK 15
CLEANING THE SUCTION FILTER 15
DISASSEMBLING THE BRUSHES 15
AUTOMATIC DISASSEMBLE OF THE BRUSHES 15
CLEANING THE BRUSHES 16
CLEANING THE SQUEEGEE 16
WEEKLY MAINTENANCE 16
REAR SQUEEGEE RUBBER CHECK 16
CLEANING THE SQUEEGEE HOSE 16
CLEANING THE SOLUTION TANK 16
CLEANING THE OUTER FILTER 17
TWO-MONTHLY MAINTENANCE 17
FRONT SQUEEGEE RUBBER CHECK 17
SIX-MONTHLY MAINTENANCE 17
Splash guard rubber check 17
TROUBLESHOOTING GUIDE 17
THE SUCTION MOTOR DOES NOT WORK 17
BRUSHES MOTOR DOES NOT WORK 18
traction motor does not work 18
Water does not come down onto the brushes 18
The machine does not clean properly 18
The squeegee does not dry perfectly 18

4
GENERAL RULES OF SAFETY
The rules below have to be followed carefully in order to avoid injury
to the operator and damage to the machine.
−Read the labels carefully on the machine. Do not cover them for
any reason and replace them immediately if damaged.
−ATTENTION: The machine must be used exclusively by authorized
staff that have been instructed on its correct and proper use.
−ATTENTION: Do not use the machine on areas having a higher
gradient than the one stated on the number plate.
−ATTENTION: The machine is not to be used by persons, children
included, with reduced physical, sensorial or mental capabilities, or
with lack of experience or knowledge, unless they could benefit,
through the intermediation of a responsible person for their safety,
by a supervision or instructions concerning to its use.
−During the operation of the machine, pay attention to other people
and especially to the children.
−Children shall not play with the machine.
−Children cannot carry out cleaning and maintenance of the
machine.
TRANSFER
−Do not strike shelvings or scaffoldings where there is danger of
falling objects.
−Leaving the machine in parking position, take off the key.
−Do not use the machine as a means of transport.
−Adapt the working speed to the adhesion conditions: particularly,
slow down before narrow curves have to be faced.
STORAGE AND DISPOSAL
−Storage temperature: between 0°C and +55°C (32°F and 131°F).
−Perfect operating temperature: between 0°C and +40°C (32°F and
104°F).
−The humidity should not exceed 95%.
−Provide for the scrapping of the material of normal wear following
strictly the respective rules.
−The batteries need to removed from the machine before its
scrapping.
−When your machine has to stop activity, provide for the
appropriate waste disposal of its materials, especially oils, batteries
and electronic components, and considering that the machine itself
has been, where possible, constructed using recyclable materials.
CORRECT USE
−Do not use the machine on surfaces covered with inflammable
liquids or dusts (for example hydrocarbons, ashes or soot).
−In case of fire, use a powder based fire-extinguisher. Do not use
water.
−Do not use the machine in explosive atmosphere.
−The machine has to carry out simultaneously the operations of
washing and drying. Different operations must be carried out in
restricted areas prohibited to non-authorized personnel and the
operator has to wear suitable shoes.
−Signal the areas of moist floors with suitable signs.
−Do not mix different detergents, avoiding harmful odours.
−Avoid brushes operation when the machine is standing still in order
to prevent floor damages.
MAINTENANCE
−If the machine does not work properly, check by conducting simple
maintenance procedures. Otherwise, as for technical advice from
an authorized assistance centre.
−For any cleaning and/or maintenance operation take off the power
supply from the machine.
−Where parts are required, ask for ORIGINAL spare parts from the
distributor and/or from an authorized dealer.
−Use only ORIGINAL brushes indicated in the paragraph
“RECOMMENDED BRUSHES".
−Do not take off the protections which require the use of tools for
their removal.
−Do not wash the machine with direct water jets or with high water
pressure nor with corrosive material.
−Every 200 working hours have a machine check by an authorized
service department.
−Before using the machine, check that all panels and coverings are
in their position as indicated in this use and maintenance
catalogue.
−Restore all electrical connections after any maintenance operation.

5
STEERING WHEEL PANEL
1. DISPLAY
2. UP/DOWN BRUSHES BUTTON
3. ON/OFF SUCTION MOTOR BUTTON
4. UP/DOWN SQUEEGEE BUTTON
5. AUTOMATIC/MANUAL MODE BUTTON
6. OPEN/CLOSE SOLENOID VALVE
7. SOLUTION LEVEL BUTTON (ONLY FOR 3S/3SD)
8. MAXIMUM SPEED INCREASE BUTTON
9. MAXIMUM SPEED DECREASE BUTTON
CONTROLS BOARD LEGEND
1. SPEED ADJUSTMENT KNOB
2. WATER VALVE
3. HORN
4. DIRECTION LEVER (FORWARD/BAKWARD)
5. EMERGENCY BUTTON
6. KEY SWITCH
MACHINE LEGEND
1. STEERING WHEEL PANEL
2. CONTROLS BOARD
3. SQUEEGEE HOSE
4. SOLUTION LEVEL HOSE
5. SPEED PEDAL
6. FOOTBOARD
7. STEERING WHEEL
8. DRAINING HOSE CAP
9. DRAINING HOSE
10. RECOVERY TANK COVER
11. RECOVERY TANK
12. SOLUTION TANK
13. HEADLIGHT
14. TRACTION WHEEL
15. BRUSH BASE ASSEMBLY
16. SQUEEGEE ASSEMBLY
17. REAR WHEELS
18. SOLUTION EXHAUST
19. DETERGENT SOLUTION FILTER
20. SOLUTION FILLING HOLE CAP

6

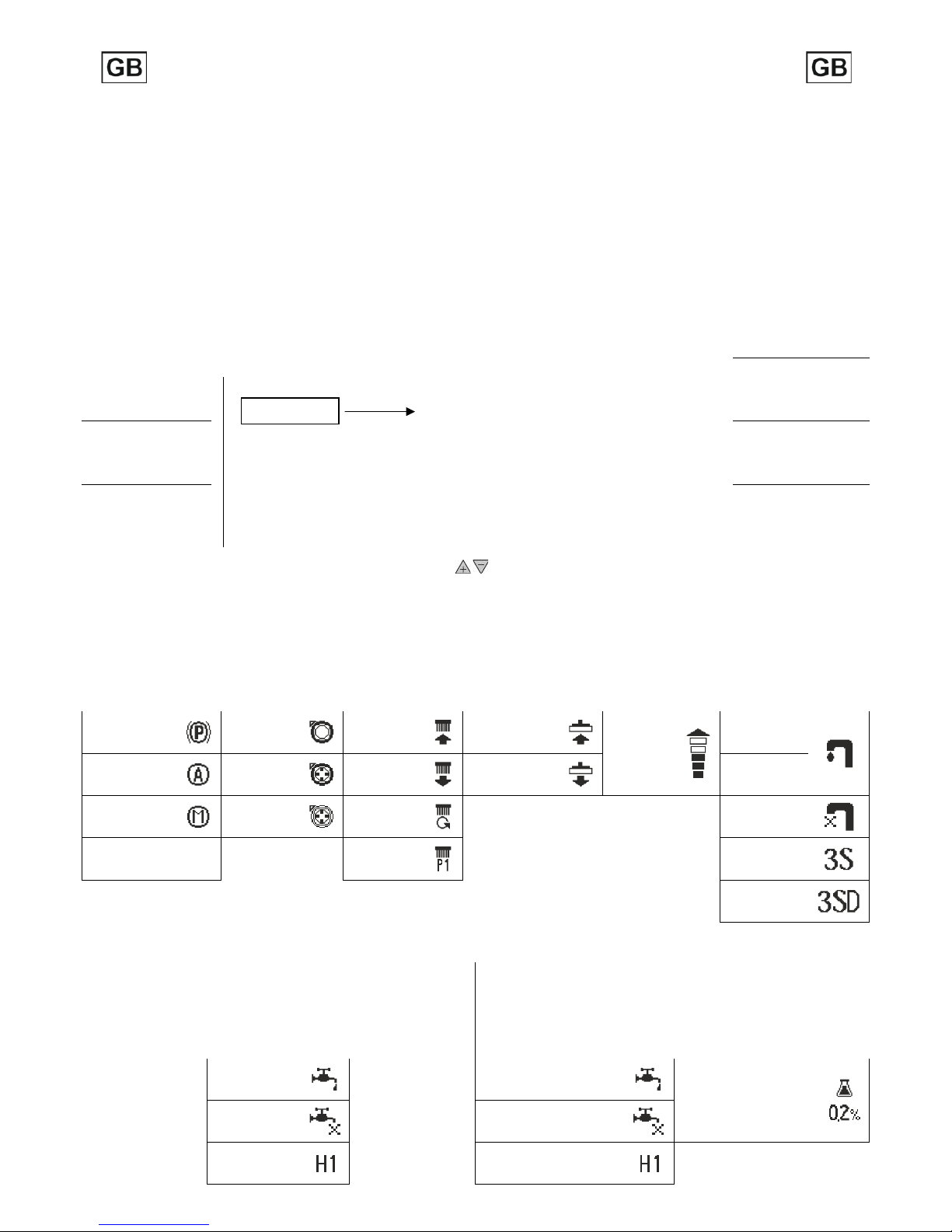

DISPLAY READING
DISPLAY WHILE SWITCHING ON
When the machine is switched on, the display shows the following screen
Next screen will be displayed as follows:
BATTERY SETTINGS
SOFTWARE RELEASE Gel batteries settings
Display card sotware
release AGM batteries settings
Chopper card software
release
Lead/acid batteries
settings
This screen can be displayed any time by pressing simultaneously the buttons
CONTROLS DISPLAY Standard Mode
Parking brake
on
Suction
motor off
Brush base
up Squeegee up Maximum
speed level
set
Standard
mode
selection
Automatic
mode
Suction
motor on
Brush base
down
Squeegee
down
Solenoid
valve on
Manual mode
Suction
motor
quiet mode
Brushes on Solenoid
valve off
Battery charge
level
Brush base
pressure
level
3S mode
selection
3SD mode
selection
After selectiong the 3S or the 3SD mode (see the 3S/3SD mode paragraph), the display will show the following controls:
3S mode
3SD mode
Solenoid valve
on Solenoid valve on
Detergent percentage
Solenoid valve
off Solenoi valve off
Water carried
level Water carried level
HOUR METER

7
NAVIGATION CONTROLS
Scroll UP
Increase
Enter
Scroll
DOWN
Decrease
GENERAL SETTINGS
To enter the general settings menu use the controls panel as follows:
1. Keep the buttons (1) and (4) pressed simultaneously.
2. Turn the key in.
3. When "INSERT PASSWARD:0",is displayed press the ENTER button
(3).
Once entered the GENERAL SETTINGS it will be possible to change the
following settings by simply scrolling the controls menu using buttons
(1) and (5).
DISPLAY LANGUAGE SELECTION
English is the default language that can be switched to Italian.
To select the language first display “Language", thene select it using
buttons (2) and (4).
Use button (3) to confirm.
DISPLAY TUNE (DISPLAY CONTRAST)
Once entered the general setting it is possible to improve the display
contrast using button (2) to increase it and button (4) to decrease it.
Use button (3) to confirm.
CHANGING THE BATTERY SETTING
Once entered the general settings it is possible to set the machine
depending on the batteries installed (AGM / GEL / LEAD-ACID).
To select the proper setting first display "BATTERY",
then select it
scrolling with buttons (2) and (4).
Use button (3) to confirm.
A wrong setting may result in an irreversible damage of the battery.
ALWAYS check to have set the proper parameter.
You can the battery setting when the machine is switched on (see
"BATTERY SETTINGS or DISPLAY READING").
DISPLAY BRIGHTNESS
Once entered the general setting it is possible to increase or decrease
the display brightness using button (2) to increase it and button (4) to
decrease it.
Use button (3) to confirm

8
MANUAL SYMBOLOGY
Symbol denoting the open book.
Indicates that the operator has to read the
manual before the use of the machine.
Obligation symbol requiring the wear of
protection glasses.
Symbol denoting the open book.
For the good functioning of the incorporated
battery recharger (optional), read the manual of
the constructor.
Obligation symbol requiring the wear of
protection gloves.
Warning symbol.
Read carefully the
sections marked with this
symbol, for the security of both the operator
and the machine.
Symbol preceding an information about the
correct use of the machine.
Warning symbol.
Risk of acid leakage from the batteries.
Symbol indicating operations to be carried out
only by qualified personnel.
Obligation symbol, disconnect the installation
from the batteries acting upon the connector
before any operation on the machine.
OPTIONALS
On-board battery charger
Optionals support
3S System (Solution Saving System)
3SD System (Solution Saving System Dispenser)

9
BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
The total weight is 268kg (590lbs.).
Packing dimensions:
Base: 178 cm x 93 cm (70"x37")
Height: 138 cm (54")
Weights (packed machine):
−66 version: 223kg
−80 version: 228kg
Do not place more than 2 packagins on top of each other
UNPACKING THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets (1+2) that secure the machine to the
pallet.
3. Before moving the machine from the pallet, it is necessary to
unblock the parking brake that blocks the traction motor wheel.
To do this, keep the lever (3) lifted. With the delivery of the
machine we also supply a cord that permits the lever operation
(3). After having moved the machine, take off the cord and keep
it for eventual re-use.
.
When the parking brake is released manually, for example when the
machine has to be moved without batteries, avoid covering slopes
and do not park on them either.
4. Move the machine backwards, as indicated in the figure,
avoiding heavy contacts to mechanical parts.
5. Keep the pallet and the brackets for eventual transport.
ACCESS TO THE BATTERY COMPARTMENT
To reach the battery compartment, first of all make sure that the
recovery tank (1) is empty by opening the cover (2).
If the tank is full, proceed as indicated under “RECOVERY TANK
CLEANING”, otherwise take off the squeegee hose (3) and lift the
tank.
Thanks to a blocking system of 2 levels, the machine allows the
battery charging with a partial tank opening.
INSTALLING THE BATTERIES
The standard machine is provided with the batteries set on lead/acid.
For different settings see chapter “BATTERY SETTINGS”.
The machine requires the use of serial connected batteries placed in
their dedicated vans. Batteries must be handled using suitable lifting
equipment (due to weight, considering the type of batteries chosen,
and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
Strictly follow manufacturer/distributor indications for the
maintenance and recharge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
For batteries installation it is necessary to reach the battery
compartment as indicated under paragraph “ACCESS TO THE BATTERY
COMPARTMENT”.
1. Place the batteries in its compartment.
2. Connect the terminals, respecting the polarities, avoiding
contact with other parts that could create short circuit.

10
BATTERY CHARGER
Make sure that the battery recharger is suitable for the installed
batteries both for their capacities and type (lead/acid or GEL and
equivalent).
In the plastic bag containing the use and maintenance you will find
the coupling connector for the recharger. It must be assembled onto
the cables of your recharger, following the instructions given by the
manufacturer.
ON-BOARD BATTERY RECHARGER (OPTIONAL)
If the machine is equipped with the incorporated battery recharger
(see under "OPTIONAL ACCESSORIES”) please refer to the instructions
of the constructor of this accessory what the recharging operations
concern.
The battery recharger is connected directly to the battery poles.
During the charge a system is activated that do not allow the
machine functioning.
The battery charger cable have a maximum length of 2 meters and
must be connected to a single phase plug CEE 7/7 type
BATTERIES CHARGE LEVEL INDICATOR
The battery charge level is visualized on the display with its respective
symbol (see " CONTROLS DISPLAY").
When the last segment of charge starts blinking, the
battery is almost low and the suction and brushes
functions are disabled.
When
even the last segment of charge turns off, the
battery is completely low and the machine stops.
BATTERY CHARGING
BATTERIES RECHARGING
1. Plug the connector (2) of the battery recharger into the battery
connector (1).
2. Proceed for the recharging.
Once that the battery recharging is completed:
3. Disconnect the connector of the battery recharger from the
battery connector (1).
4. Connect instead the machine connector (2).
BATTERY CHARGING USING THE ON-BOARD BATTERY CHARGER
(OPTIONAL)
Take the machine to a plain surface near a power plug.
1. Turn off the machine using the key switch.
2. Insert the plug into the mains socket.
3. Proceed to the recharging keeping the recovery tank lifted (see
paragraph “ACCESS TO THE BATTERY COMPARTMENT” in
“BEFORE USE”).
4. Do not take off the plug from the mains socket until the
indication of the end of charge is not visualized.
At the end of the recharging, take off the plug from the mains
socket.
Never charge a GEL battery with a non suitable recharger. Strictly follow
the instructions supplied by the batteries and recharger manufacturer
NOTE: Never leave the batteries completely discharged for long
periods even if the machine is not used. In case of traditional
batteries, please check the electrolyte level every 20 recharging cycles
and eventually fill them up with distilled water. Never leave the
batteries discharged for more than two weeks.
If lead/acid batteries are installed there could be the risk of gas
exhalations and emission of corrosive liquids.
Fire danger: do not approach with free flames.
BATTERIES DISPOSAL
It is compulsory to hand over exhausted batteries, classified as
dangerous waste, to an authorized institution according to the
current laws.

11
SQUEEGEE ASSEMBLY
1. Maintain the squeegee support (1) slightly lifted from the floor.
2. Insert the threaded parts of the two knobs (2) making them slide
inside the two slots present on the support. Pay attention to put
the washers (3) into position, they are two for each knob, so that
they are assembled one under and the other on top of the two
slots present on the support.
3. Block the squeegee by rotating the two knobs (2) clockwise.
4. Insert the squeegee hose (4) into its coupling, respecting its
position as indicated in the figure.
ADJUSTING THE SQUEEGEE
In order to have a perfect drying result through the squeegee, the
rear rubber must have the lower bending uniformly adjusted in all its
length. For the adjustment, it is necessary to put oneself in working
condition and therefore the suction motor has to be switched on and
the brushes have to function together with the detergent solution.
The bending is not uniform
Adjust the squeegee inclination rotating counterclockwise the knob
(1) to increase the bending in the central part, or clockwise to
increase the bending on the extremities.
Height adjustment
Once that the squeegee inclination has been adjusted, it is necessary
to fix this optimum condition making touch slightly the wheels onto
the floor. Release the wheels rotating counterclockwise the register
(2), rotate the register (3) to raise or to lower the wheels until the
desired bending is reached.
At the end block again the wheels through the register (2).
ASSEMBLING AND DISASSEMBLING THE SPLASH GUARDS
The two splash guards have to be assembled onto the brushes base
group as indicated in the following figures. Insert the metal strips
inside the suitable slots present on the rubber.
Fix the ends of the strip to the screw (1).
Lock the lever (2) to the ring placed at the free end of the meal strip.
These operations have to be done for both the splash guards. With
the brushes assembled, the splash guards must slightly touch the
floor.
To disassemble the splash guards do the same operations contrariwise.
ASSEMBLING THE BRUSHES
To assemble the brushes it is necessary that the brushes base is in the
lifted position. If it is not lifted, proceed as follows:
Without the operator seated, turning the key switch clockwise, the
display comes on and after 3 seconds all working groups come off
automatically and are lifted from the floor.
Switch off the machine turning the key counterclockwise.
With the brushes base group in lifted position lock the brushes
rotating them as in the picture below.
For a longer life of the brushes we suggest to invert daily their
position. Whenever brushes result to be deformed we suggest to
reassemble them in the same position, in order to avoid that the
different inclination of the bristles causes excessive motor overload
or troublesome vibrations.

12
Use only brushes supplied with the machine or the ones indicated in
the manual “RECOMMENDED BRUSHES”. The use of other brushes can
compromise the good washing result.
FLOOR CLEANING
CONNECTING THE BATTERY CONNECTOR AND SWITCHING ON
THE MACHINE
Once that the battery recharging has been completed:
1. Disconnect the connector (2) of the battery recharger from the
battery connector (1).
2. Connect then the battery connector (1) to the machine
connector (3).
RECOVERY TANK
Verify that the squeegee hose coupling (1) is correctly inserted into
its seat and that the exhaust hose plug (2) is well closed.
The recovery tank is provided with a cover (3) that blocks itself thanks
to the vacuum created by the suction motor during the use.
The avoide the tank to open accidentaly use the block (4).
DETERGENT SOLUTION TANK
The solution tank is provided with an inspection hole. This hole allows
to clean the exit area of the detergent solution.
Be sure that the cap is closed tight.
The capacity of the detergent solution tank is indicated in the
technical data.
Open the screw plug placed in the left part of the machine and fill
the detergent solution tank with clean water at a maximum
temperature of 50°C. Add the liquid detergent in the percentage and
conditions foreseen by the manufacturer. To avoid excessive foam
presence, which could cause problems to the suction motor, use the
minimum percentage of detergent. Screw down the plug to close the
tank.
On the rear part of the machine is placed a level hose that permits to
see easily the solution quantity inside the tank both during the filling
of the solution and during the working.
Screw the solution tank cap.
Use always low foam detergent. To avoid foam presence, before
starting working operation, introduce into the recovery tank a
minimum quantity of anti-foam product.
Never use pure acid.
3S SOLUTION SAVING SYSTEM (OPTIONAL)
It is a system that allows the controlled use of the detergent solution
during work.
To turn it on press
button (1)
two times
, then on the display
the water symbol will blink.
Select the 3SD system using
buttons (2).
When the 3S stops blinking the system is being selected.
SELECTING THE FLOW RATE - 3S SYSTEM
Using the flow rate button (1) the H value can be adjusted from H1
to H7.

13
Even in the 3S mode to enable the emission of detergent solution the
solenoid valve button has to be pressed (2).
If the detergent solution is disabled the display will show the disabled
solenoid valve symbol.
WORK
A safety device avoids the machine’s movement if the operator is not
properly placed on the footboard.
To turn on the machine:
1. Step on the footboard.
2. Turn the key (1) clockwise to turn on the machine.
3. Check the battery level on the display.
The machine will go automatically in manual mode (MAN).
MANUAL MODE WORK
1. Check that the machine is set in manual mode, if not press
button (1) and the display will show the corresponding symbol.
2. Press the suction motor button (2); the suctin motor symbol
changes depending if the motor is turned on or off, the motor
will then start to work.
3. Press the solenoid valve button (3); the solenoid valve symbol
changes depending if the valve is closed or open
4. Lift down the brush base on the floor pressng button (4); the
display will show first the lifting down symbol and then the
brushes on symbol.
5. To lift down the squeegee press the button (6).
6. While running the first meters check that the squeegee
adjustment guarantees a perfect drying action and that the
detergent solution flow is appropriate. It has to be sufficient to
wet the floor uniformly avoiding the leakage of detergent from
the splash guards. Always consider that the correct quantity of
solution detergent depends on the type of floor, dirtiness and
machine speed.
BRUSHES PRESSURE ADJUSTMENT
The brushes pressure can be
adjusted only in manual mode,
if not in that mode press the
button (1).
To adjust the pressure press two
times button (2).
On the display value P1, P2 or P3 will blink.
Press the buttons (+) and (-) to select the pressure, the value will set
once it will stop blinking on the display.
SPEED ADJUSTMENT, FORWARD AND BACKWARD
Before running the machine select the maximum speed level during
work. Press buttons (+) and (-) to see the speed level on the display.
To move the machine select the
direction using the lever (1)
placed on the dashboard.
Press the pedal (2) placed on the
footboard to enable the speed.
Use the knob (3)
to adjust the
speed during work.
The speed
will change from the minimum
to the maxium previously set
and visible on the display.
If backward movement is selected the brush base will stay down, the
squeegee will lift up and the suction motor will shut itself.
When the forward movement will be selected again the squeegee will
go down and the suction motor will turn back on.

14
DETERGEN SOLUTION FLOW RATE ADJUSTMENT
1. Turn the valve knob (1) to
adjust the detergent
solution flow rate.
2. On the 3SD equipped models it will be necessary to press the
dedicated button to activate the detergent solution supplying
selecting between the tradition mode using the valve or the
optimal fixed supply system (see chapter “3S Solution Saving
System”).
AUTOMATIC MODE WORK
Automatic mode is hepful to simplify the operator work,
1. Check that the machine is set in automatic mode, if not press
button (1) and the display will show the corresponding symbol
2. Press the pedal placed on the footboard.
Once the pedal is pressed the machine runs forward, the brush base
goes down and simultaneously the squeegee goes down, then the
solenoid valve opens itself and brushes and suction motor start
working.
Before running the machine it is possible to set the brushes pressure
and the water and/or detergent solution flow rate (3S and 3SD
versions).
The values set will show immediately on the display.
After releasing the pedal: the brush base goes up, the brushes motors
stop, the solenoid valve closes itslef and the suction motor shuts off.
To lift the squeegee at the end of the work press the button (2).
SUCTION MOTOR SILENT MODE
It is possible to start the silent mode of the suction motor by pressing
for a few seconds the switch-on button (1) of the suction motor.
When the silent mode is on the symbol on the display changes.
STANDBY MODE
After 10 minutes of inactivity, if the machine is on, it goes in stand-
by mode and the display turns off. To start again press any button on
the instrument board, the display will turn on again and after few
seconds the machine returns operative.
HORN
The machine is provided with a
horn that can be activated
pressing button (1).
EMERGENCY BUTTON
In case of emergency press
buttonIn (1)
placed on the
dashboard. All the fucntions and
the movement will be
immediately disabled.
To reactivate them turn the
button clockwise..
PARKING BRAKE
The machine is equipped with a parking brake on the traction wheel
which disable itself when traction is activated.
On the display it will be shown when the brake is on.
MANUAL MOVEMENT OF THE MACHINE
To move the machine manually, it is necessary to unblock the parking
brake that blocks the traction motor wheel. To do this, keep the lever
(3) lifted. With the delivery of the machine we also supply a cord that
allows the lever operation (3).
After having moved the machine, take off the cord and keep it for
eventual re-use.
When the parking brake is released manually, for example when the
machine has to be moved without batteries, avoid covering slopes
and do not park on them either.

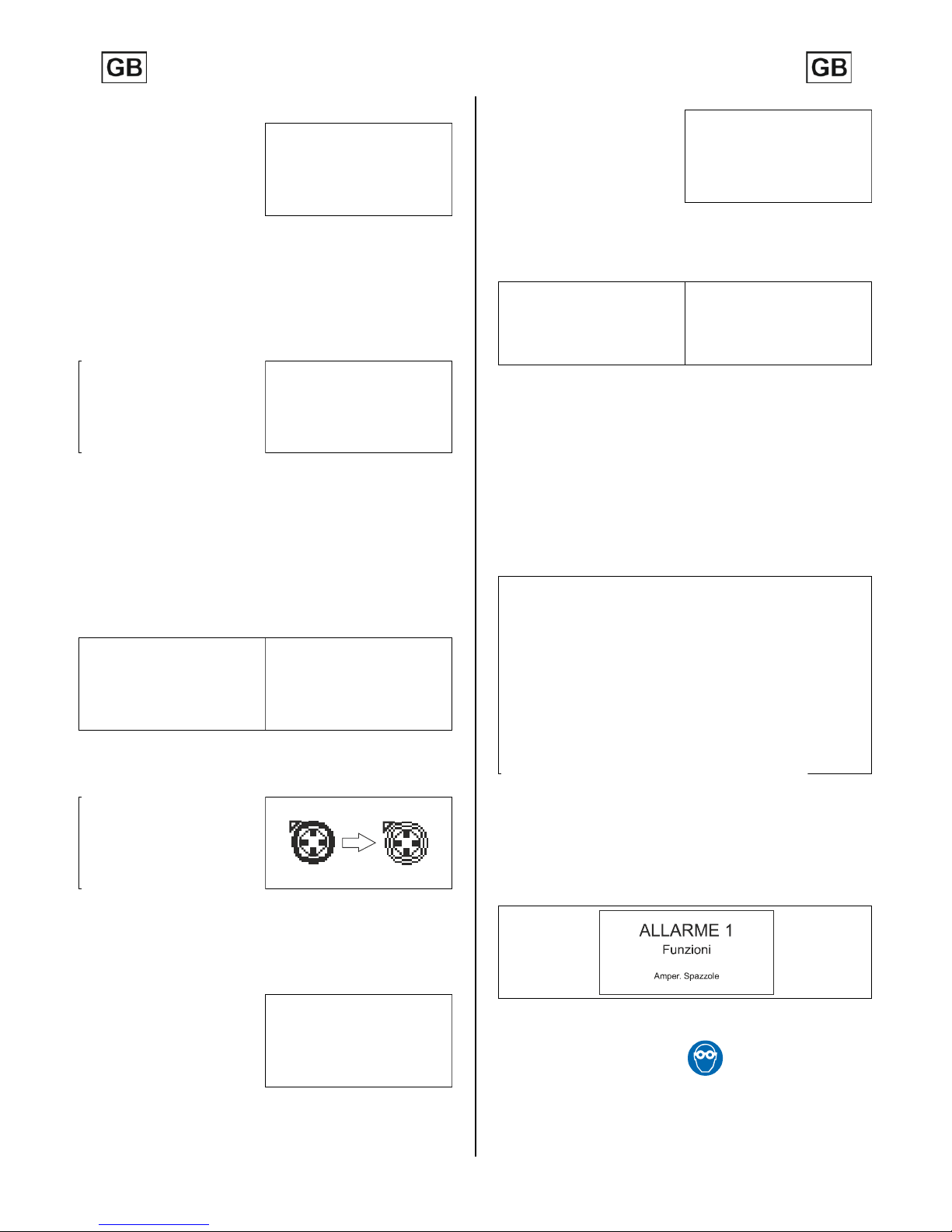

BRUSHES MOTOR OVERLOAD PROTECTION SYSTEM
The machine is equipped with a protection device of the brushes
motor. This device blocks the motor functioning in order to protect it
and indicates the overload on the display with the message
"ALLARME 1".
When this happens, try to reduce the brushes pressure (see under
"ADJUSTMENT OF THE BRUSHES PRESSURE").
If the problem persists, contact the authorized technical assistance..
OVERFLOW SYSTEM
In order to avoid serious damages to the suction motor, the machine
is equipped with a float that intervenes when the recovery tank is
full. When this happens, it is necessary to empty the recovery tank.
Hold the exhaust hose of the machine. Take off the plug and empty
the recovery tank into appropriate containers, according to the
standard norms.

15
STOP OF THE MACHINE AFTER CLEANING OPERATION
At the end of the work proceed as follows:
1. Press button (1) to lift up the brushes.
2. Lift up the squeegee using button (2).
3. Take the machine to the place assigned for the water drainage.
DAILY MAINTENANCE
DRAINING AND CLEANING THE RECOVERY TANK
1. Hold the exhaust hose (1) placed on the front part of the
machine after having taken it off from its fixing support.
2. Take off the plug (2) from the exhaust hose acting upon its lever
(3) and empty the recovery tank into appropriate containers, in
compliance with the respective rules what the liquid disposal
concerns.
1. Clean the inside of the tank using a water jet.
CLEANING THE SUCTION FILTER
1. Open the cover (1) and unscrew the knob (2) to release the filter
protection (3).
2. Rotate the filter protection clockwise to release it.
3.
Take off the filter and
its protection.
4.
Clean with a water jet
especially the bottom
part and the sides of
the filter.
5.
Do the cleaning
procedure precisely.
6.
Reassemble the filter.
Absolutely do not clean the inside of the recovery tank cover as it
may results in an irreversible damage of the suction motor.
DISASSEMBLING THE BRUSHES
With the brush base lifted up (see chapter “ASSEMBLING THE
BRUSHES”) rotate energically the brushes in order to unlock the
spring button to take them off and clean them with a water jet. In
the picture it shown how to unlock the brushes.
AUTOMATIC DISASSEMBLE OF THE BRUSHES
Put the lever in central position.

16
1. Turn on the machine
turning the key clockwise
(2).
2. Keep the button pressed
for a few seconds (3).
3. Turn off the machine.
CLEANING THE BRUSHES
Take off the brushes to clean them with a water jet (to read how to
do it see chapter “DISASSEMBLING THE BRUSHES”).
CLEANING THE SQUEEGEE
Keeping the squeegee clean guarantees always the best drying result.
For its cleaning it is necessary to:
1. Take off the squeegee hose (4) from the coupling.
2. Disassemble the squeegee from its support (1) by loosening the
knobs (2) counterclockwise and making slide the threaded parts
in the appropriate slots up to their release.
3. Clean with care the internal part of the squeegee inlet
eliminating eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts paying attention to put the washers (3) into
position, they are two for each knob, so that they are assembled
one under and the other on each of the two slots present on the
support.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER CHECK
Check the squeegee rubber wearing and eventually turn it or replace
it.
To replace the rubber it is necessary to:
1. Lift u the squeegee
2. Unlock the hooks (1).
3. Unscrew the wing nuts (2) to take off the outer rubber blades (3)
and then the central one (4).
4. Take off the rubber (5) to turn it or replace it.
To reassemble the squeegee do these operations backwards.
CLEANING THE SQUEEGEE HOSE
Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed
as follows:
1. Take off the hose (1) from the squeegee coupling.
2. Wash the inside of the hose with a water jet.
3. To reassemble the hose repeat inversely the above-mentioned
operations.
Do not clean the hose that goes from the suction motor to the
recovery tank.
CLEANING THE SOLUTION TANK
Take the machine to the place assigned for the detergent solution
draining.
1. Unscrew the solution tank cap.
2.
Open the detergent
solution valve (1)

17
3. Open the valve (2) for the
solution draining.
4.
Clean the tank with a
water jet..
5. Once the cleaning is terminated close the valve and the tank
cap.
CLEANING THE OUTER FILTER
1. Unscrew the filter cap (1)
and take off the filter.
2. Clean with a water jet the
filter parts.
3. Reassemble the parts.
TWO-MONTHLY MAINTENANCE
FRONT SQUEEGEE RUBBER CHECK
Check the wear of the squeegee rubber and eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee (see under paragraph “SQUEEGEE
CLEANING”).
2. Disassemble the rear part of the squeegee (see under paragraph
“REAR SQUEEGEE RUBBER CHECK”).
3. Unscrew the wing nuts (1) and take off the front rubber holder
blade (2).
4. Replace the front rubber (3).
To reassemble the squeegee repeat reverse the operations above
mentioned.
SIX-MONTHLY MAINTENANCE
SPLASH GUARD RUBBER CHECK
With the brushes assembled, the splash guards must slightly touch
the floor. If they are worn, they have to be replaced. Just release the
lever coupler placed in the rear part of the brushes base group from
the ring placed at the free extremity of the metal strip to take off the
rubbers and to reinsert the new ones (see under paragraph “SPLASH
GUARD ASSEMBLY”). This operation has to be carried out for both
splash guards”).
TROUBLESHOOTING GUIDE
The checking of all the other foreseen machine operations is left
to the authorized technical assistance.
Never leave the batteries completely discharged for a long time.
In case of alarm visualizations contact the technical assistance.
If with the key switch positioned clockwise to switch on the machine
the display and other functions are not activated, it is necessary to
check the batteries' connection to the machine (see under paragraph
“CONNECTION BATTERIES' CONNECTION AND SWITCHING ON OF THE
MACHINE”). If the problem persists, please contact the authorized
technical assistance.
THE SUCTION MOTOR DOES NOT WORK
1. Check that the emergency
system (1) is not activated.
2. Use the key switch to turn
off and then on the
machine (2).
3.
Check the battery charge
on the display.
4. Check on the display that
the starting signal of the
suction motor is on
5. Check the suction motor connections.

18
If the problem persists, please contact the authorized technical
assistance.
BRUSHES MOTOR DOES NOT WORK
1. Check that the
emergency system (1)
is not activated
2. Use the key switch to
turn off and then on
the machine (2).
3.
Check the battery
charge on the display.
4.
Check on the display
that the starting
signal of the brushes
motor is on
5. Press the pedal on the
footboard (3) to start
the machine.
If the problem persists, please contact the authorized technical
assistance.
.
TRACTION MOTOR DOES NOT WORK
1. Step on the footboard.
2. Check that the emergency
system (1) is not activated
3. Use the key switch to turn
off and then on the
machine (2).
4. Check the lever position (3)
If alarms are showed on the display it is necessary to turn off and the
on the machine to restore its functions.
5.
Check the battery charge
on the display
6.
Press the pedal on the
footboard (4
) to start the
machine.
If the problem persists, please contact the authorized technical
assistance.
WATER DOES NOT COME DOWN ONTO THE BRUSHES
The machine is equipped with a solenoid valve so to let the solution
go down onto the brushes it is necessary to make the brushes turn.
1.
Check on the display that
the solenoid valve is
activated.
2.
Check that the valve lever
is open (1)
3.
Check the detergent
solution level in the
solution tank.
4. check that the solution filter is clean (see under paragraph
“CLEANING THE OUTER SOLUTION FILTER”).
If the problem persists, please contact the authorized technical
assistance.
THE MACHINE DOES NOT CLEAN PROPERLY
1. The brushes do not have the suitable bristle dimension: contact
the authorized technical assistance.
2. The brushes have got worn bristles. Check the brushes wear
condition and eventually replace them (the brushes have to be
replaced when the bristles have reached a height of about
15mm).
3. To replace the brushes, see instructions under paragraph
“BRUSHES DISASSEMBLY” and “BRUSHES ASSEMBLY”.
4. The detergent solution is insufficient: open more the solution
valve (see under paragraph “FLOW ADJUSTMENT OF THE
DETERGENT SOLUTION”).
5. Check that the liquid detergent is in the recommended
percentage.
6. Increase the brushes base pressure (see under paragraph
"ADJUSTMENT OF THE BRUSHES PRESSURE").
Contact the authorized technical assistance for advice.
THE SQUEEGEE DOES NOT DRY PERFECTLY
1. Check that the squeegee rubbers are clean.
2. Check the adjustment of the height and the inclination of the
squeegee (see section “ADJUSTMENT OF THE SQUEEGEE” in
“BEFORE USE”).
3. Check that the suction hose is correctly inserted in the proper
seat on the recovery tank or that it is not obstructed.
4. Clean the suction filter.
5. Replace the rubbers if worn out.
6. Check on the display that
the starting signal of the
suction motor is on.

19
7. Put the motor in standard
mode if silenced.
8. Check that the suction motor cap is closed properly.
If the problem persists, please contact the authorized technical
assistance.
EXCESSIVE FOAM PRODUCTION
Check that low foam detergent has been used. Eventually add small
quantities of anti foam liquid into the recovery tank.
Please be aware that a bigger quantity of foam is produced when the floor is
not very dirty. In this case please dilute detergent solution.
