Samyung N500 User manual

User Guide
1
User Guide
2
SAFETY INSTRUCTIONS
This device’s electronic chat system(ECS) is developed for the
navigational aid only and chart itself does not obtain any approvals;
has not been certified from the government authorities. If operator
needs safe navigation then must use an official chart that has been approved by
government agencies also operator is fully responsible for using this device.
Please read through this manual before the first operation. If you have any
questions, please contact the customer service or your local dealer or distributor
Extensive exposure to heat may result in damage to the chart plotter.
Connection to the power source with reversed polarity will damage the chart
plotter severely. This damage is not covered by the warranty.
Do not disassemble. The chart plotter contains dangerous high voltage circuits
which only experienced technicians must handle
Exposure of the display to UV rays may shorten the life of the liquid crystals used
in you plotter. This limitation is due to the current technology of the LCD display.
Avoid overheating which may cause loss of contrast and, in extreme case, a
darkening of the screen. Problems which occur from over heating are reversible
when temperature decreases.
Screen Cleaning Precautions
Cleaning your chart plotter screen is a very important operation and must be done
carefully. The following is the cleaning procedure.
You use a tissue or lens tissue and a cleaning spray containing Isopropanol (a
normal spray cleaner sold for PC screens. Fold the tissue or lens tissue into a
triangular shape, moisten the tip and use the index finger behind a corner to
move the tissue across the surface, in overlapping side to side strokes. If the
tissue is too wet, a noticeable wet film will be left in its path and you will need to
repeat the process. If too dry, the tissue won’t glide easily, and may damage the
surface.
If you require technical advice or assistance, contact your nearest Samyung ENC
office or visit our website, www.samyungenc.com.

User Guide
3
User Guide
4

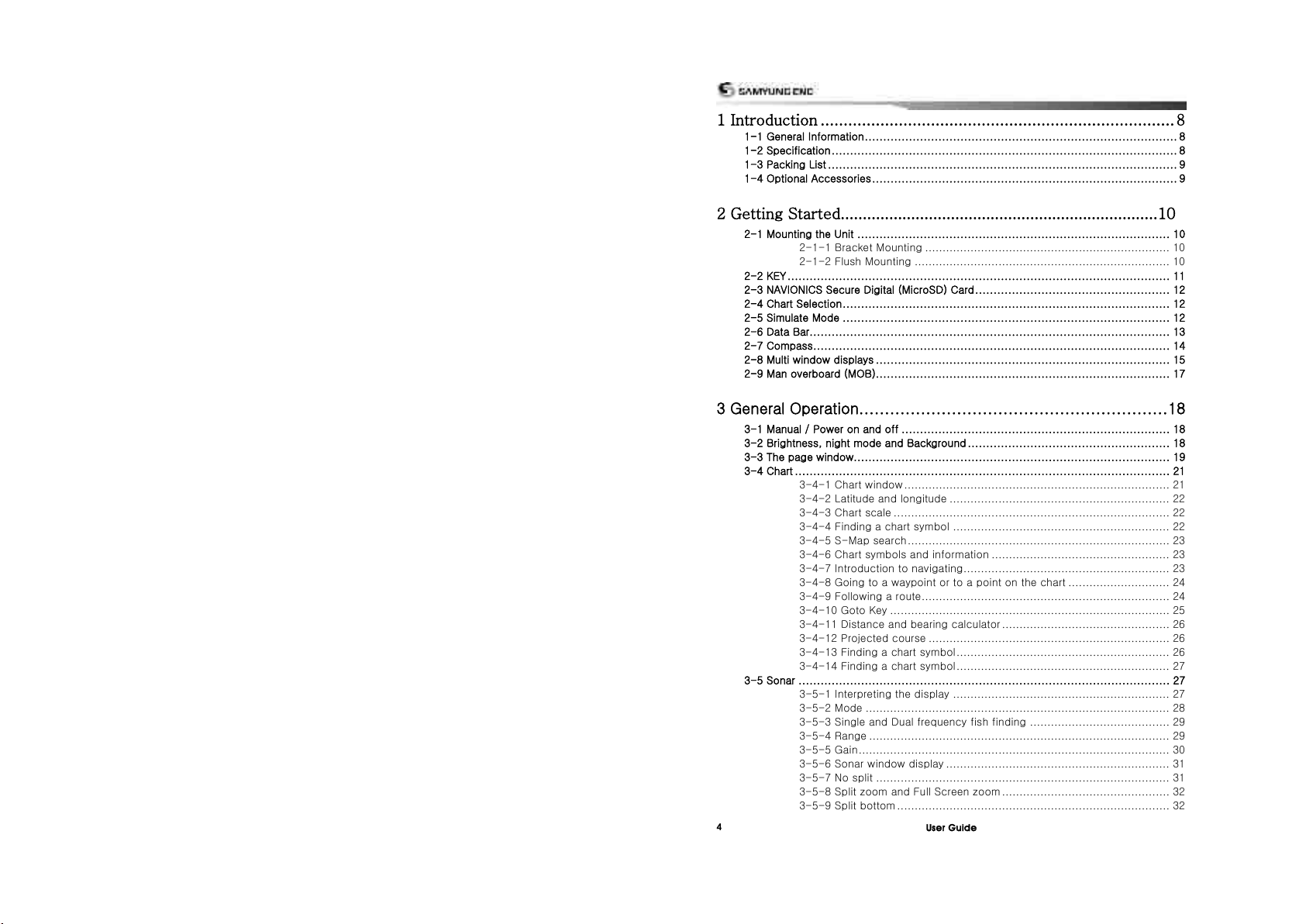

1 Introduction .............................................................................8

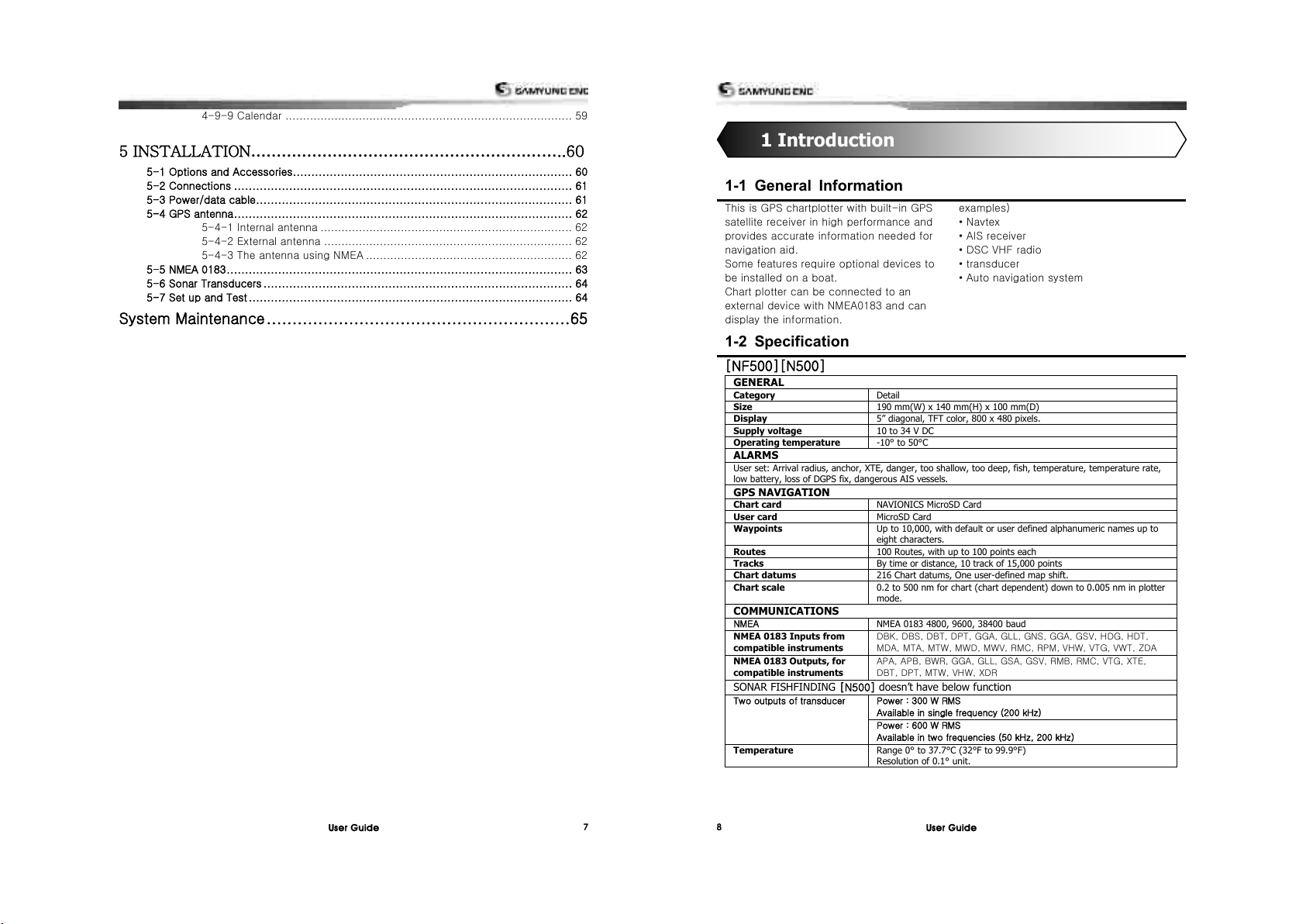

1-1 General Information..................................................................................... 8
1-2 Specification.............................................................................................. 8
1-3 Packing List ............................................................................................... 9
1-4 Optional Accessories................................................................................... 9
2 Getting Started........................................................................10
2-1 Mounting the Unit ..................................................................................... 10
2-1-1 Bracket Mounting ...................................................................... 10
2-1-2 Flush Mounting ......................................................................... 10
2-2 KEY........................................................................................................ 11
2-3 NAVIONICS Secure Digital (MicroSD) Card..................................................... 12
2-4 Chart Selection......................................................................................... 12
2-5 Simulate Mode ......................................................................................... 12

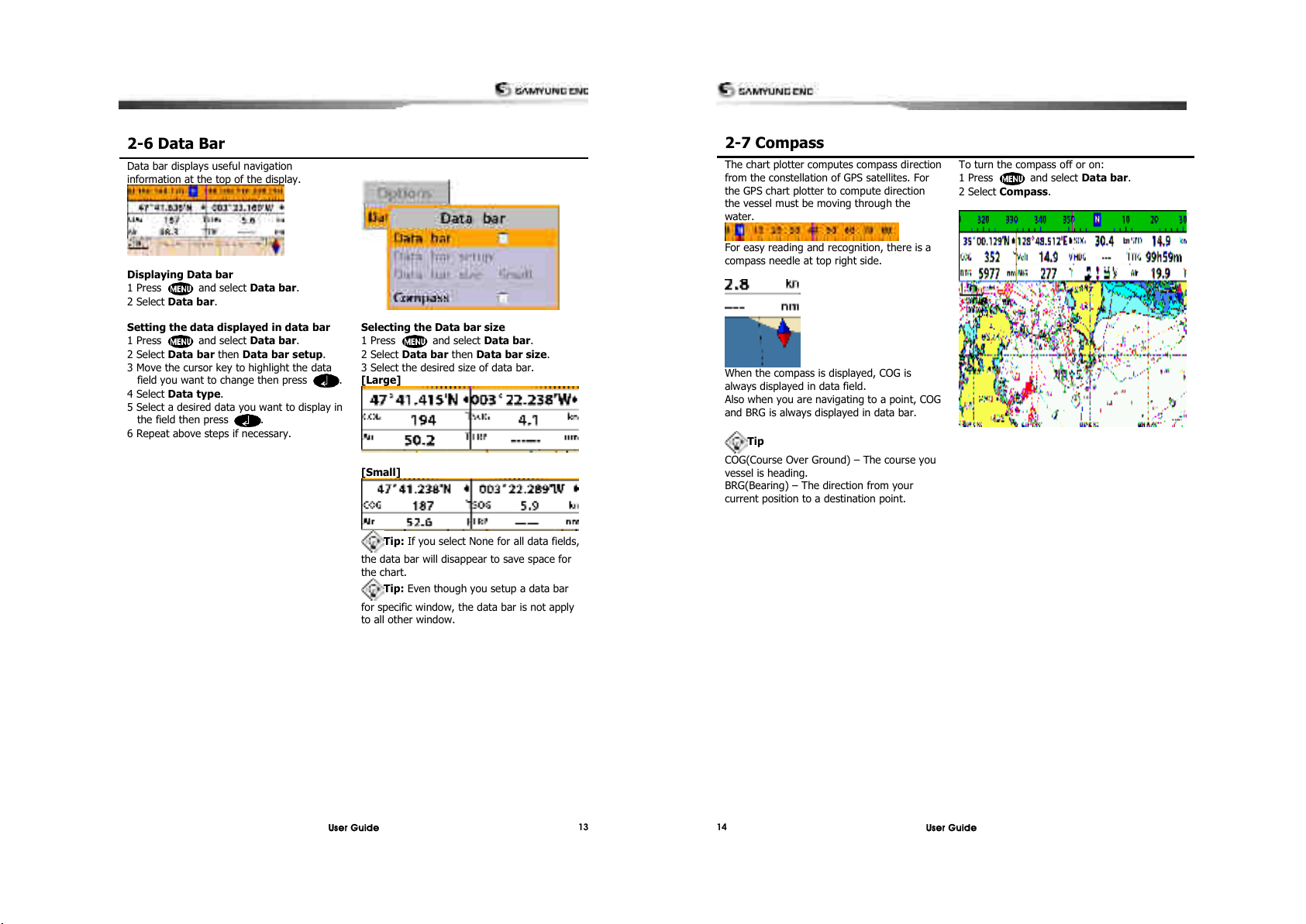

2-6 Data Bar.................................................................................................. 13
2-7 Compass................................................................................................. 14
2-8 Multi window displays ................................................................................ 15
2-9 Man overboard (MOB)................................................................................ 17
3 General Operation............................................................18
3-1 Manual / Power on and off ......................................................................... 18
3-2 Brightness, night mode and Background ....................................................... 18
3-3 The page window...................................................................................... 19

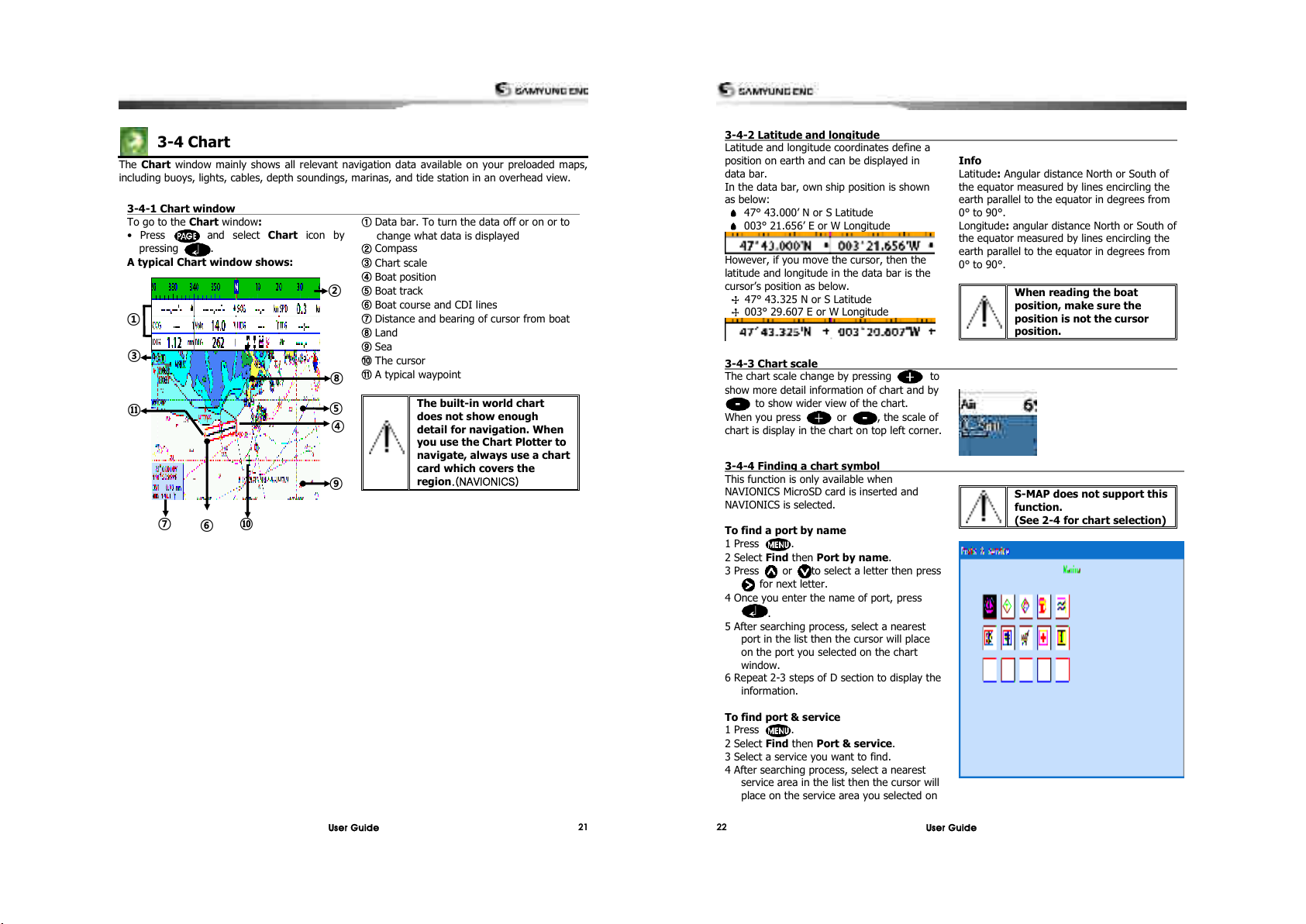

3-4 Chart ...................................................................................................... 21
3-4-1 Chart window............................................................................ 21
3-4-2 Latitude and longitude ............................................................... 22
3-4-3 Chart scale ............................................................................... 22
3-4-4 Finding a chart symbol .............................................................. 22

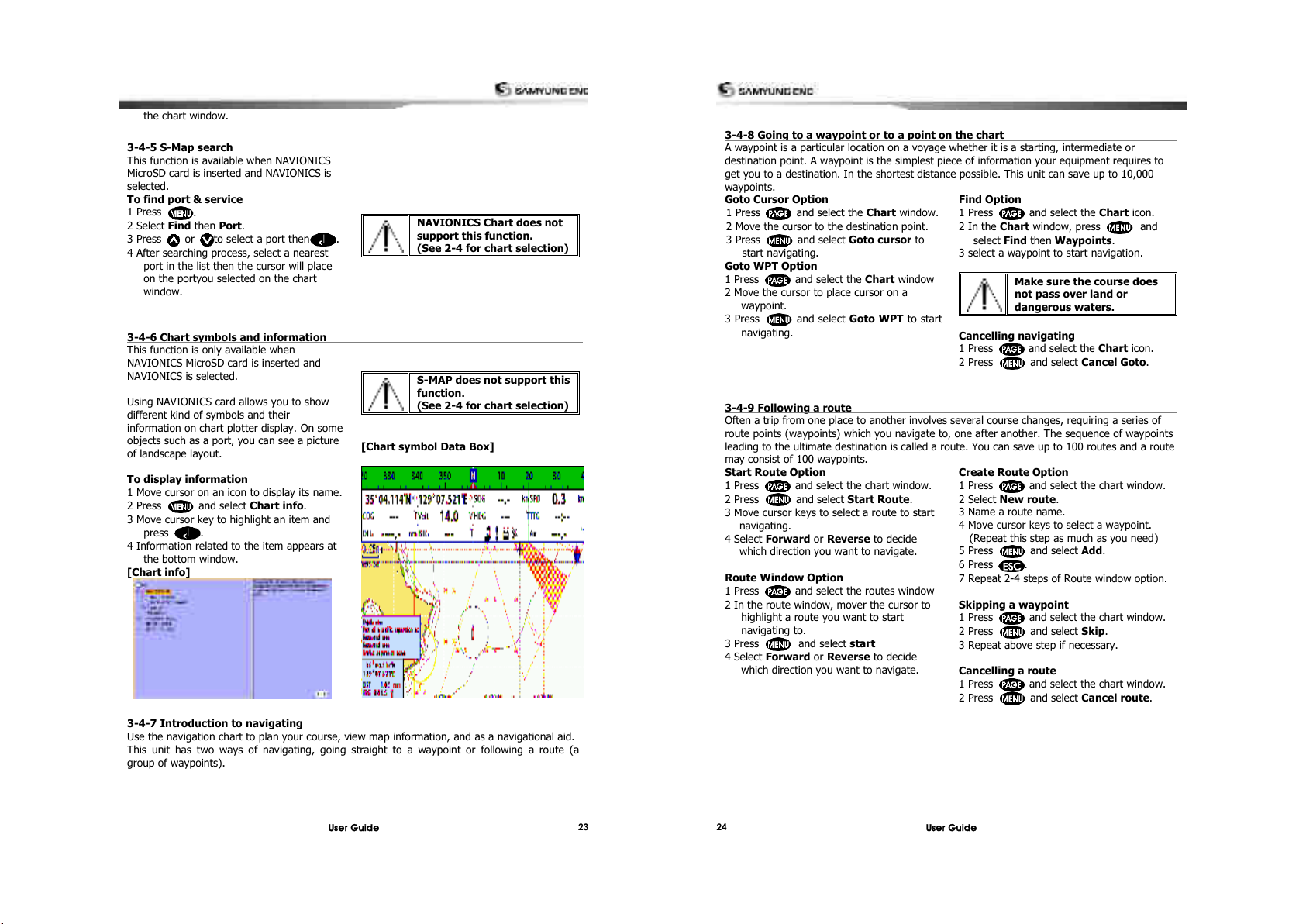

3-4-5 S-Map search........................................................................... 23
3-4-6 Chart symbols and information ................................................... 23
3-4-7 Introduction to navigating........................................................... 23
3-4-8 Going to a waypoint or to a point on the chart ............................. 24
3-4-9 Following a route....................................................................... 24

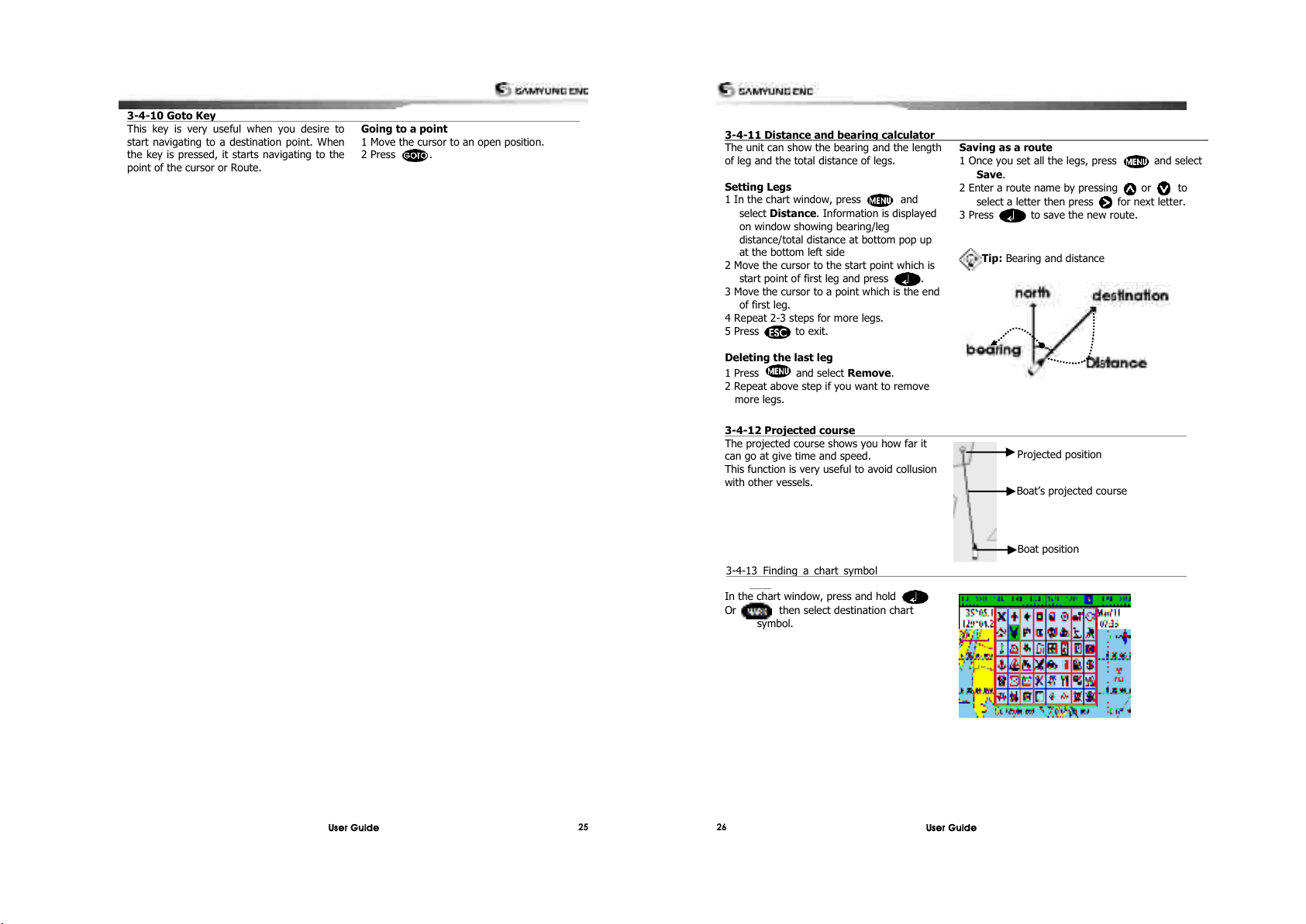

3-4-10 Goto Key ................................................................................ 25
3-4-11 Distance and bearing calculator ................................................ 26
3-4-12 Projected course ..................................................................... 26
3-4-13 Finding a chart symbol............................................................. 26
3-4-14 Finding a chart symbol............................................................. 27

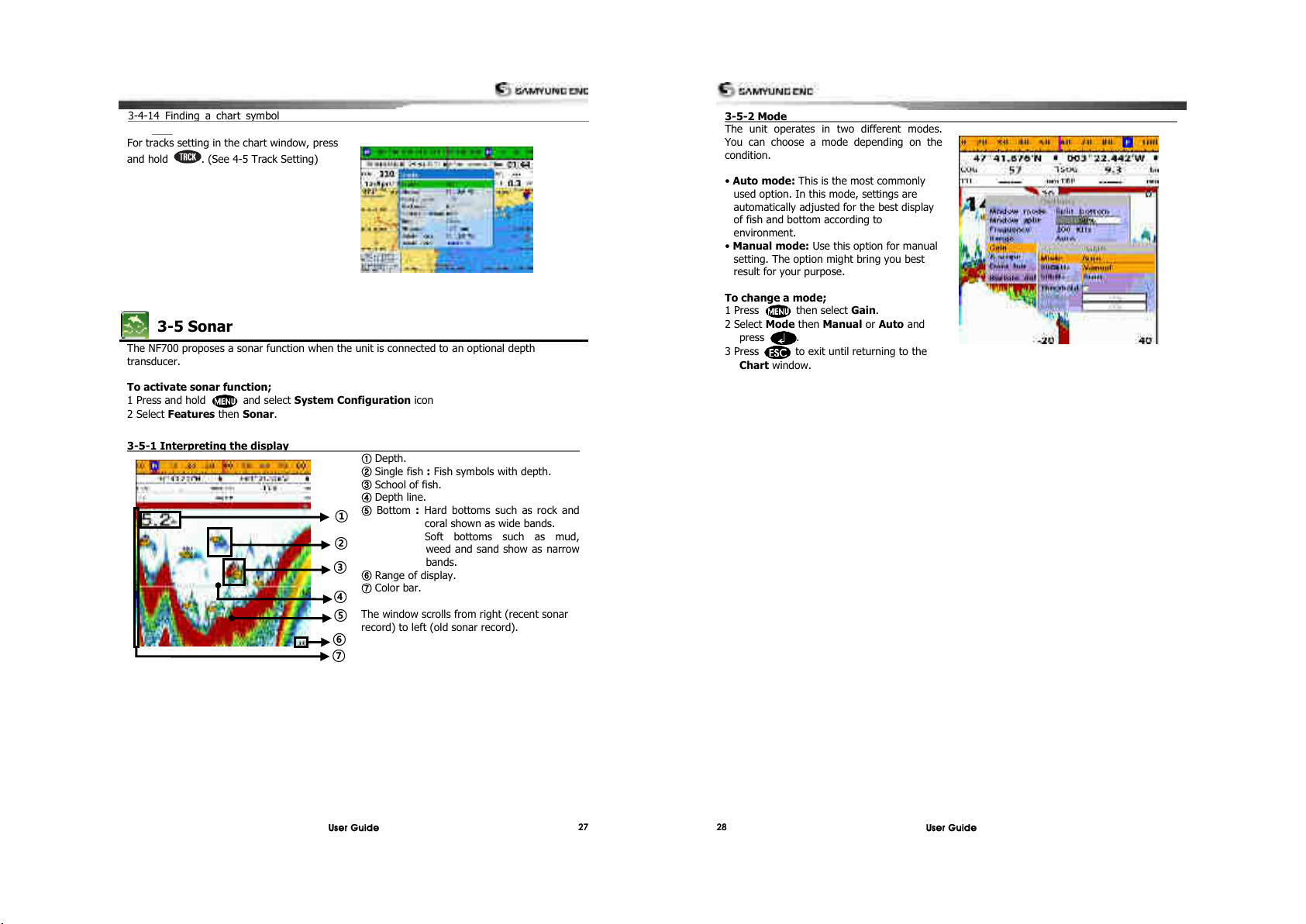

3-5 Sonar ..................................................................................................... 27
3-5-1 Interpreting the display .............................................................. 27
3-5-2 Mode ....................................................................................... 28
3-5-3 Single and Dual frequency fish finding ........................................ 29
3-5-4 Range ...................................................................................... 29
3-5-5 Gain......................................................................................... 30
3-5-6 Sonar window display ................................................................ 31
3-5-7 No split .................................................................................... 31
3-5-8 Split zoom and Full Screen zoom ................................................ 32
3-5-9 Split bottom .............................................................................. 32

User Guide
5
3-5-10 Split 50/200 ............................................................................ 33
3-5-11 Split A-Scope ......................................................................... 33
3-6 Highway.................................................................................................. 34
3-7 Gauges................................................................................................... 34

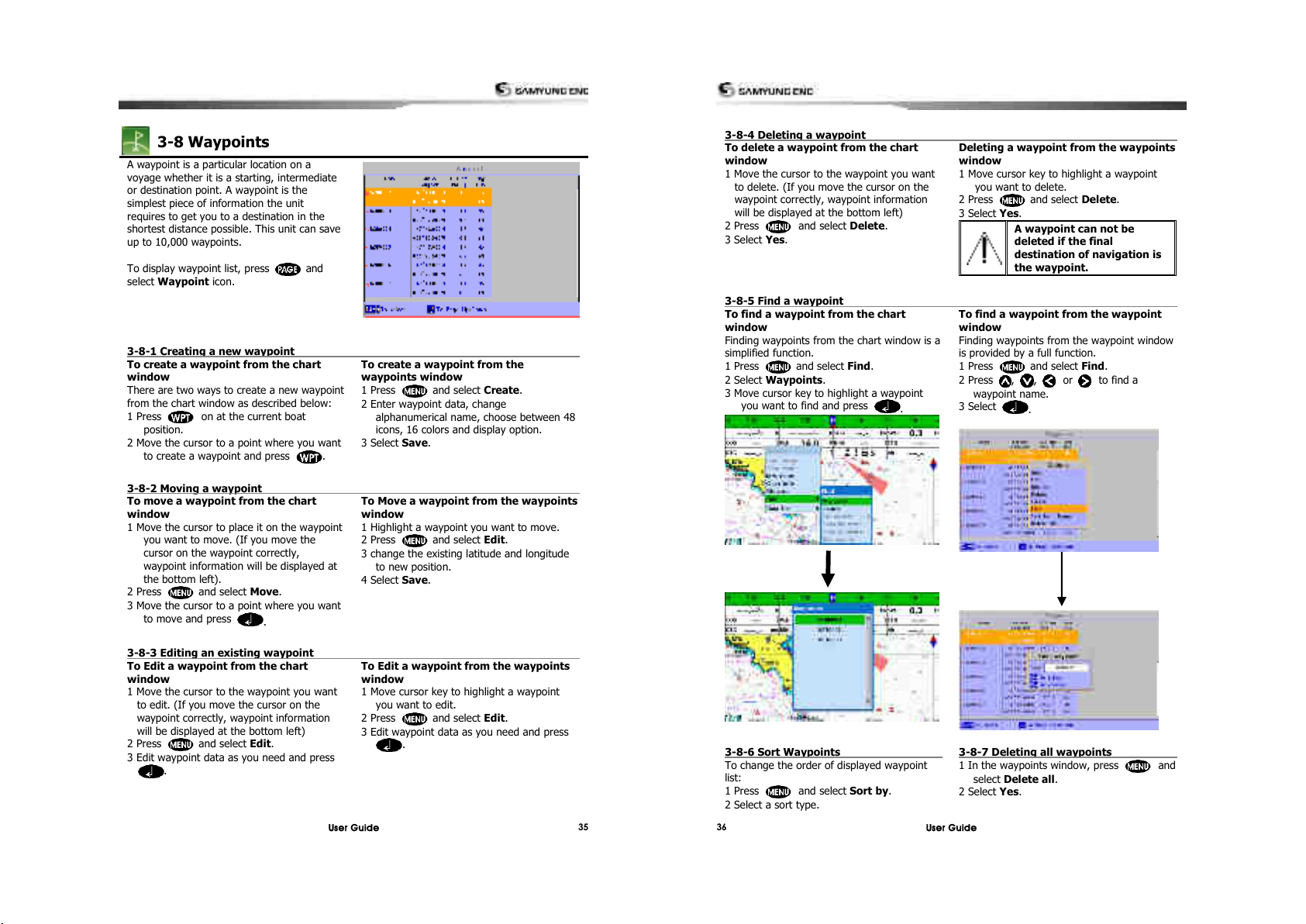

3-8 Waypoints ............................................................................................... 35
3-8-1 Creating a new waypoint ............................................................ 35
3-8-2 Moving a waypoint .................................................................... 35
3-8-3 Editing an existing waypoint ....................................................... 35
3-8-4 Deleting a waypoint ................................................................... 36
3-8-5 Find a waypoint......................................................................... 36
3-8-6 Sort Waypoints.......................................................................... 36
3-8-7 Deleting all waypoints ................................................................ 36
3-9 Routes.................................................................................................... 37
3-9-1 Managing a route from the chart window ..................................... 37
3-9-2 Managing a route from the route window ..................................... 38
3-10 Satellites................................................................................................ 39
3-10-1 Satellite information ................................................................. 39
3-11 Tides .................................................................................................... 40
3-12 AIS ....................................................................................................... 41
3-12-1 Viewing AIS Vessels ................................................................. 41
3-12-2 AIS Windows ........................................................................... 41
3-13 DSC...................................................................................................... 43
3-13-1 distress .................................................................................. 43
3-13-2 Poll ........................................................................................ 44
3-14 NAVTEX................................................................................................. 45
3-15 Engine Faults ......................................................................................... 45
4 Advanced Settings…………………………………………………..46
4-1 System Configuration Settings..................................................................... 46
4-1-1 Language ................................................................................. 46
4-1-2 Chart Selection ......................................................................... 46
4-1-3 Beep volume............................................................................. 46
4-1-4 Auto power ............................................................................... 46
4-1-5 Features ................................................................................... 46
4-1-6 Factory reset ............................................................................ 46
4-1-7 About ....................................................................................... 46
4-2 Chart Settings .......................................................................................... 47
4-2-1 Rotation ................................................................................... 48
4-2-2 Palette ..................................................................................... 48
4-2-3-1 General(NAVIONICS) .............................................................. 48
4-2-3-2 General(S-MAP) .................................................................... 49
4-2-4-1 Land & Sea (NAVIONICS) ....................................................... 48
4-2-4-2 Land & Sea (S-MAP) ............................................................. 49
4-2-5 Map datum ............................................................................... 49
4-2-6 NMEA datum offset ................................................................... 50
4-2-7 Map shift .................................................................................. 50
4-2-8 Restore default ......................................................................... 50
4-3 Sonar Settings.......................................................................................... 51
4-3-1 Frequency ................................................................................ 51
User Guide
6
4-3-2 Palette ..................................................................................... 51
4-3-3 Scroll speed ............................................................................. 51
4-3-4 Digit size .................................................................................. 51
4-3-5 Fish ......................................................................................... 51
4-3-6 Advance Settings ...................................................................... 51
4-3-7 Restore default ......................................................................... 51
4-4 GPS Settings............................................................................................ 52
4-4-1 GPS Source .............................................................................. 52
4-4-2 DGPS Source............................................................................ 52
4-4-3 Static Navigation ....................................................................... 52
4-4-4 Speed Filter and Course Filter .................................................... 52
4-4-5 La③/Lon d.ps ............................................................................ 52
4-4-6 Ship speed ............................................................................... 52
4-4-7 Magnetic Variation ..................................................................... 52
4-5 Track & Log Settings ................................................................................. 53
4-5-1 Track ....................................................................................... 53
4-5-2 Logs ........................................................................................ 53
4-6 Memory Settings....................................................................................... 54
4-6-1 Save ........................................................................................ 54
4-6-2 Load ........................................................................................ 54
4-6-3 Delete ...................................................................................... 54
4-6-4 Format ..................................................................................... 55
4-6-5 Screen snap shot ...................................................................... 55
4-7 AIS Settings ............................................................................................. 55
4-7-1 Display filter.............................................................................. 56
4-7-3 Display options ......................................................................... 56
4-7-2 Alarm option ............................................................................. 56
4-7-4 Restore default ......................................................................... 56
4-7-5 AIS Track................................................................................ 56
4-7-6 AIS-50B ................................................................................... 56
4-8 Alarms .................................................................................................... 57
4-8-1 Fish ......................................................................................... 58
4-8-2 Deep........................................................................................ 58
4-8-3 Shallow .................................................................................... 58
4-8-4 Temperature ............................................................................. 58
4-8-5 Temperature rate ....................................................................... 58
4-8-6 Low battery............................................................................... 58
4-8-7 Navigation alarms...................................................................... 58
4-8-8 AIS........................................................................................... 58
4-8-9 DGPS ....................................................................................... 58
4-8-10 Restore default........................................................................ 58
4-9 Others .................................................................................................... 58
4-9-1 Simulate ................................................................................... 59
4-9-2 Waypoint .................................................................................. 59
4-9-3 GPS ......................................................................................... 59
4-9-4 Units ........................................................................................ 59
4-9-5 Comms .................................................................................... 59
4-9-6 Calibrate................................................................................... 59
4-9-7 Time ........................................................................................ 59
4-9-8 Restore default ......................................................................... 59

User Guide
7
4-9-9 Calendar .................................................................................. 59
5 INSTALLATION……………………………………………………..60
5-1 Options and Accessories............................................................................ 60
5-2 Connections ............................................................................................ 61
5-3 Power/data cable...................................................................................... 61
5-4 GPS antenna............................................................................................ 62
5-4-1 Internal antenna ........................................................................ 62
5-4-2 External antenna ....................................................................... 62
5-4-3 The antenna using NMEA ........................................................... 62
5-5 NMEA 0183.............................................................................................. 63
5-6 Sonar Transducers .................................................................................... 64
5-7 Set up and Test ........................................................................................ 64
System Maintenance...........................................................65
User Guide
8
1-1 General Information
This is GPS chartplotter with built-in GPS
satellite receiver in high performance and
provides accurate information needed for
navigation aid.
Some features require optional devices to
be installed on a boat.
Chart plotter can be connected to an
external device with NMEA0183 and can
display the information.
examples)
•Navtex
• AIS receiver
• DSC VHF radio
•transducer
•Auto navigation system
1-2 Specification
[NF500][N500]
GENERAL
Category
Detail
Size
190 mm(W) x 140 mm(H) x 100 mm(D)
Display
5” diagonal, TFT color, 800 x 480 pixels.
Supply voltage
10 to 34 V DC
Operating temperature
-10° to 50°C
ALARMS
User set: Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate,
low battery, loss of DGPS fix, dangerous AIS vessels.
GPS NAVIGATION
Chart card
NAVIONICS MicroSD Card
User card
MicroSD Card
Waypoints
Up to 10,000, with default or user defined alphanumeric names up to
eight characters.
Routes
100 Routes, with up to 100 points each
Tracks
By time or distance, 10 track of 15,000 points
Chart datums
216 Chart datums, One user-defined map shift.
Chart scale
0.2 to 500 nm for chart (chart dependent) down to 0.005 nm in plotter
mode.
COMMUNICATIONS
NMEA
NMEA 0183 4800, 9600, 38400 baud
NMEA 0183 Inputs from
compatible instruments
DBK, DBS, DBT, DPT, GGA, GLL, GNS, GGA, GSV, HDG, HDT,
MDA, MTA, MTW, MWD, MWV, RMC, RPM, VHW, VTG, VWT, ZDA
NMEA 0183 Outputs, for
compatible instruments
APA, APB, BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE,
DBT, DPT, MTW, VHW, XDR
SONAR FISHFINDING [N500] doesn’t have below function
Two outputs of transducer
Power : 300 W RMS
Available in single frequency (200 kHz)
Power : 600 W RMS
Available in two frequencies (50 kHz, 200 kHz)
Temperature
Range 0° to 37.7°C (32°F to 99.9°F)
Resolution of 0.1° unit.
1 Introduction
소개

User Guide
9
1-3 Packing List
Item List
Part number
Model
N500, NF500
Display
N(F)500-E
ΟΟ
Bracket
NF560-DB
ΟΟ
Power Cable
Z8-2M-08
ΟΟ
Bracket mounting screw
NF560-BP
ΟΟ
GPS Antenna +
GPS Antenna Support
SAN-60-10M
ΟΟ
Protection Cover
N500-CB
ΟΟ
User’s Manual(Eng)
N(F)500-ME
ΟΟ
Transducer
NTB52-200-10L(300W)
P23 (250W)
P7 (250W)
B45 (600W)
SS502 (600W)
X Ο
1-4 Optional Accessories
Model
Part number
Item List
GPS Antenna +
GPS Antenna Support
SAN-60-20M
GPS antenna + BNC Plug
GPS antenna support
GPS antenna cable(20m)
GPS Antenna Stand type
Support
57745
GPS Antenna Stand type Support
User Guide
10
2-1 Mounting the Unit
The chart plotter is supplied with bracket and flush mounting kit. You can choose a method of
installation according to your preference.
2-1-1 Bracket Mounting
Before installing ensure the area the bracket is mounted to is strong enough to support the
weight of the GPS chart plotter. After the location is found, attach the mounting base to the
area using the supplied hardware.
Mounting the display Unit:
1 Hold the display unit and find a groove
joint between the display unit and bracket.
2 Gently push the display unit into the
groove of bracket and turn the knob to
clockwise to lock
Removing the display unit:
1 Turn the unit off
2 Turn the knob to counter clockwise
3 Pull the display unit out.
Note
The chart plotter with internal GPS antenna is
designed to be bracket mounting and flush mounting.
However, if you flush mount inside of your boat, GPS
performance can be reduced.
2-1-2 Flush Mounting
1 Find a location for flush mounting.
2 Drill a hole in the area of the cutout area
for the blade of jig saw.
3 insert and cut out the area on the panel
using the jig saw
4 Drill four holes for mounting studs.
5 Install the mounting studs on the chart
plotter and insert them into the mounting
hole.
6 Attach the chart plotter to the mounting
location by attaching the supplied
hardware to the mounting studs.
2 Getting Started
설치 및작동

User Guide
11
2-2 KEY
[NF500][N500]
4ways Button
Move Map and cursor in 4 wyas
Move Menu curson
ESC Button
Go back to Plotter from Menu,
cancel Input mode
Track
Display Track Line on/off
Enter Button
Select Menu, Input Data and confirm data
(Menu for selecting Mark will be displayed when push this button
long at the map screen)
Power Button
Tunrs Power On/Off
Zoom in Button
Zoom in a screen
Zoom out Button
Zoom out a screen
Display Button
Select a screen what users want
GOTO Button
Start Navigating to MOB
destination
WPT Button
Set a way point on the map
Menu Button
Show/Delete Menu
Go back to Prev. Menu
User Guide
12
2-3 NAVIONICS Secure Digital (MicroSD) Card
This section provides instructions for inserting
and removing NAVIONICS MicroSD card
procedure.
Inserting the MicroSD Card
1 Grab a card before inserting as
NAIONICS label heading down
2 Open the door, gently push the MicroSD
card into the slot; push the MicroSD card
in as far as you hear click sound, then
close door.
Removing the MicroSD Card
1 Turn off the unit.
2 Open the door and push in on the
MicroSD card until it is released.
3 Close the door.
Insert NAVIONICS MicroSD card
correctly(DO NOT FORCE)
Close MicroSD card door firmly
all the times.
Do not remove MicroSD card
during
Reading and writing.
2-4 Chart Selection
A user can select a map between NAVIONICS
and S-MAP.
Chart Selection
1 Press and hold .
2 Select the system setting icon.
3 Select Chart then a chart you prefer
S-MAP is a pre-installed
chart but optional
NAVIONICS can be used.
Please contact your nearest
Samyung ENC office for
purchasing the NAVIONICS.
2-5 Simulate Mode
Simulate Mode is great for practicing the
actual use of a product when the satellites
signals and internal alarms are not available.
In the simulate mode, the unit turns the GPS
receiver off and ignores data from all optional
devices.
Two simulate modes are available as below.
•Normal: Allows a user to practicing the
actual use of a product without satellites
connection.
•Demo: boat travel alone given route at
given speed and show different
function of the unit.
Do not try to navigate in a
simulate mode. While the
simulate mode is turned on,
the GPS receiver is not
active.

User Guide
13
2-6 Data Bar
Data bar displays useful navigation
information at the top of the display.
Displaying Data bar
1 Press and select Data bar.
2 Select Data bar.
Setting the data displayed in data bar
1 Press and select Data bar.
2 Select Data bar then Data bar setup.
3 Move the cursor key to highlight the data
field you want to change then press .
4 Select Data type.
5 Select a desired data you want to display in
the field then press .
6 Repeat above steps if necessary.
Selecting the Data bar size
1 Press and select Data bar.
2 Select Data bar then Data bar size.
3 Select the desired size of data bar.
[Large]
[Small]
Tip:If you select None for all data fields,
the data bar will disappear to save space for
the chart.
Tip: Even though you setup a data bar
for specific window, the data bar is not apply
to all other window.
User Guide
14
2-7 Compass
The chart plotter computes compass direction
from the constellation of GPS satellites. For
the GPS chart plotter to compute direction
the vessel must be moving through the
water.
For easy reading and recognition, there is a
compass needle at top right side.
When the compass is displayed, COG is
always displayed in data field.
Also when you are navigating to a point, COG
and BRG is always displayed in data bar.
Tip
COG(Course Over Ground) –The course you
vessel is heading.
BRG(Bearing) –The direction from your
current position to a destination point.
To turn the compass off or on:
1 Press and select Data bar.
2 Select Compass.

User Guide
15
2-8 Multi window displays
The Chart plotter can display up to four
windows at the same time.
Adding a window
1Press and select Add icon.
2 Select an icon you want to add.
3 Repeat above steps if necessary.
Changing window size
1 Press and select Split icon on
bottom.
2 Press or to change the height of
the windows if there is only two windows.
If the unit is displaying more that three
windows, press , , or to
change the height of the windows.
Deleting a window
1 Press and hold to select a window
you want to delete.
2 Press and select Remove icon to
remove.
Replacing two windows on the
display
1 Press and hold to active desired
window you want to replace.
2 Press , select Replace icon.
3 Select icon you want to display then press
.
User Guide
16
The active window
To distinguish an active window among windows, an orange border indicates the active
window. To change the active window to the next window, press and hold .
Favorite displays
The most commonly used windows are called favorite displays and up to six favorite windows
can be saved. Also each favorite display can have data bar and compass.
Displaying a favorite display
1 Press twice.
2 when above window pops up select a desire display you want.
Adding a favorite display
1 Organize a window as you want.
2 Press to show the main window.
3 Select Save icon at the bottom
4 Select an icon where you want to add your favorite display. If you add the new favorite
display on existing favorite display new display will overwrite the old display.

User Guide
17
2-9 Man overboard (MOB)
During navigation, the “MOB” feature
provides a one-touch method of storing a
location, such as point where a crew member
fell overboard. In this mode, the chart plotter
places a MOB point on the chart page and all
the navigation data shown is related to
navigating back to this point, allowing you to
retrace your path to the MOB point
efficiently.
MOB will not work if the
unit does not have a GPS
fix.
1 When you press , a MOB waypoint is
created.
2 When is pushed not in the Chart
window, the screen automatically is
changed to Chart window and MOB
waypoint is at the center of the chart.
3 If autopilot is connected, the unit sets the
MOB waypoint to be the destination and
start to navigate.
This might result in a
sudden and dangerous turn.
Tip:Even though navigation to MOB
waypoint is canceled, the MOB waypoint is
not be removed from the waypoint list. To
delete the MOB waypoint, you need to delete
it manually.
MOB is saved in Waypoint window of Main
screen. Please refer p37 for how to delete.
User Guide
18
3-1 Manual / Power on and off
Manual power on
Press and hold until the display shows
the start up page. When the Warning screen
appears, press to accept.
Manual power off
Press and hold for 5 seconds. A counter
timer appears on the screen, if you release
the button before the countdown timer
reaches zero, the chart plotter will remain On.
3-2 Brightness, night mode and Background
You can change the screen setting for the
display. To change settings, shortly press .
Brightness
To change the brightness, select
Brightness, and press to dim or to
brighten.
Press to return to the previous
screen.
Night mode
The chart plotter has preprogrammed
settings allowing you to customize the look of
the Chart window. The default is daytime
view. Select Night mood depending on what
mode the display is in at the time of
selection.
To change mode:
1 Highlight Night mode.
2 Press or .
Tip:The screen will be difficult to read if
the chart plotter is in night mood when the
sun is too bright
Background
You can Changes the background color if
necessary. This selection is a personal
preference. Select the option that gives you
the clearest viewing in your weather
conditions and viewing angle.
3 General Operation

User Guide
19
3-3 The page window
Press to show the page window and select a function icon you want to display.
Note
1 Some function icons require optional units and
connected sensors.
2 If you press one more time in the main
window, favorite window is displayed.
NF500 (N500 has no sonar function.)
User Guide
20
Routes
Data
Waypoints
AIS
Tides
DSC
Navtex
Engine Faults
Sonar
Highway
Chart
Satellites
