San-Ei K87310J-BW User manual

- 1 -
BW-OED
Tools
About This Manual
PLIERS CHANNEL LOCKSSAFETY GLASSES PIPE WRENCH
ADJUSTABLE WRENCH BASIN WRENCH PHILLIPS SCREWDRIVER FLASHLIGHT
CAUTION: Always turn water OFF before removing existing faucet or
INSTALLATION INSTRUCTIONS
SINGLE HANDLE
Kitchen Faucet
For safety and easy faucet replacement, San-Ei recommends the use of
the following helpful tools:
Keep Instructions for Future Reference
Thank you for purchasing San-Ei' s quality faucet.
With simple care and maintenance, it will provide you with many years of reliable
performance.
Please read instructions before installation.
TIPS FOR REMOVAL OF OLD FAUCET
disassembling the faucet.
Open the faucet handles to relieve water pressure and ensure that
complete water shut-off has been accomplished.
(Complies with ASME A112.18.1 and CSA B 125)
K87310J-BW

- 2 -
PARTS LIST
The structure shown is an illustration.
Please use this structure for better understanding.
Please ask the part of the selling agent or our company of purchase, in case
that the pottery part cracked.
The standard color is White (JW).
The others become the production that receives.
As for the order, please attach the color number
at the end of the article No.
Color Number Name
JW White
J I Ivory
JG Green
JD Black
JR Red
K87310J-BW
General Description
6
6
7
3
4
5
8
9
10
11
12
13
14
15
16
18
17
19
20
21
29
25
26
27
28
26
24
23
21
30
31
32
33
22
R104-14X-(Color)-BW
17
18
34
1. Cap
2. Lever
3. Coil Spring
4. Lever Support
5. Plate
6. Seat Packing
7. Cartridge Holder
8. Ceramic Cartridge
9. Makeup Plate
10. Body Cover
11. Valve Body
12. Seat Packing
13. Rubber Packing
14. Metal Washer
16. Flex Tube
15. Lock Nut
17. Fastener Clip
18. Lock Cover
19. Fastener Adapter
20. Rubber Packing
21. Outlet Neck
29. Filter Nipple
30. Filter Spacer
31. Packing
32. Aerator
33. Aerator Body
34.Fastener Adapter (male)
23. Outlet Neck Holder
22. Set Screw at Rod End
24. Outlet Nipple
25. Outlet Neck Spacer
26. Outlet Cover Cap
27. Outlet Pipe Cover
28. Outlet Pipe
R104-10X-(Color)-BW

- 3 -
OPERATION
PRIOR TO INSTALLATION
Prior to installing new faucet, install the items listed below:
* Kitchen sink
* Drain Line
Important !
* All plumbing is to be installed in accordance with applicable codes and
regulations.
* Flush all water lines prior to making connection.
Kitchen Faucet
K87310J-BW
K87310J-BW
Flow To hot water
Stop
To cold water
9-2/5"(240mm)
MAX 3-3/10"(85mm)
MAX 18-1/10"(460mm)
7-4/5"(199mm)
Water Bucket
(Not supplied)
NOTE : Maximum deck thickness for installation is 1-1/5"(30mm).
Hole size for installation is between 1-2/5"(36mm) to 1-1/2"(38mm).
1/2-14 NPSM

- 4 -

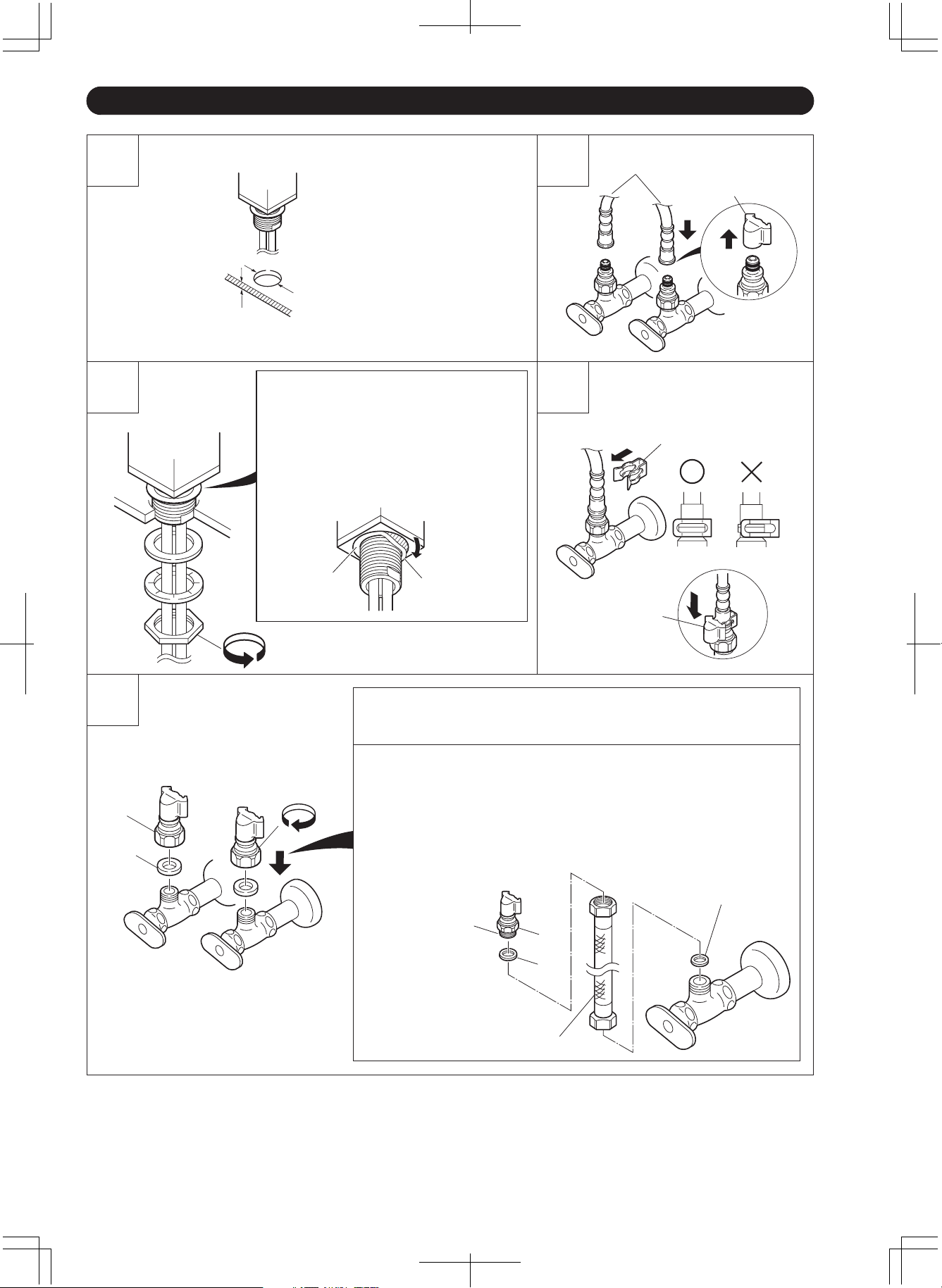

INSTALL FAUCET
1
2 5
4
3
11
12
13
14
15
MAX
1-1/5"(30mm)
20
19
18
16
17
Sink hole dia
Between 1-2/5"(36mm)
to 1-1/2"(38mm)
18
1. Measurement
Be sure that mounting space is clean and dry.
Please make sure the diameter of the mounting hole before installation.
(Please pay attention not to bend the hose tube excessively.)
Thread Size 1/2-14 NPSM
NOTE :
Flex Tube
Rubber Packing
34
20
Thread Size
1/2-14 NPSM
To extend both cold water and hot water supply
tubes.
In case the supply tubes from the faucet cannot
reach to the stop valves for connection, please
use the fastener adaptor (male thread type) to
extend the supply tube from the stop valves.
(Flex supply tube not supplied.)
Seat
Packing Protective
Tape
(Caution !)
Remove a protective tape
attached in the back of the
packing.
Then, install the faucet body
to be fixed.

- 5 -
4. Remove lock cover
Remove the lock cover(18) from the adapter(19).
5. Connection
Connect flexible tube(16) from the faucet with adapter(19). Then, please clip
them With fastener clip(17) until there make a "click sound". After making sure
the connection is done in perfect, please attach the lock cover(18) onto a
fastener clip(17).
6. Work testing
Please go to "Flushing instruction" section before starting to use faucet.
CAUTION!
Please pay attention to the following points when installing the faucet.
* Install the supply tube to the cold and the hot supply side properly. Don't tangle
the tube when installing because the connection will become loose when the
strong water pressure is added.
* Keep enough distance between the tubes. Without the distance, the tube will
rub each other and it will cause damage to the tube.
* When bending the tube, keep the radius more than 50mm. Excessive bending
will cause damage to the tube.
* When installing the faucet, do not excessively bend the ending part of the tube.
* "C" mark on the supply tube stands for cold water supply use.
* "H" mark on the supply tube stands for hot water supply use.
2. Install faucet
3. Install "quick fastener" adapter
Please install the adapters(19) onto the each stop valves(not supplied).
Please don't forget packing(20) between angle stop valve and adapter(19).
The front side of the spout should face you. Then, make tightening the lock
nut(15).
(counterclockwise) Please don't forget to put a seat packing(12), rubber
packing(13), and metal washer(14), between unit body(11) and lock nut(15).

- 6 -
CARTRIDGE REPLACEMENT
2
3
10
4
5
13
24
Caution!:
Always turn water OFF before removing the cartridge. Open the handle to relieve
water pressure and ensure that water shut-off has been accomplished.
1. The lever(2) is removed with pliers.
2. The cartridge cover is removed with a special tool.
3. Remove an old ceramic cartridge(8) with pliers and replace a new
ceramic cartridge(8).
4. To reassemble, reverse the previous steps.
8
10
8
6
6
7
The cartridge Holder is a feretory.
Ditch Special tool
A special tool is set in the ditch of
the cartridge Holder.
At assembly
Body
Concave Convex part
Ceramic cartridge
1
A special tool is placed with the
adjustable wrench etc,and spends.
Adjustable
wrench etc.
2
The convex part on the back of a
ceramic cartridge is matched to
the concave portion in the trunk.

- 7 -
FLUSHING INSTRUCTIONS
MAINTENANCE
TROUBLESHOOTING
Do not use abrasive or chemical cleaners (including chlorine bleach) to clean
faucets
as they may dull the luster and attack the chrome or special decorative
finishes.Use ONLY soap and water, then wipe dry with clean cloth or towel.
While cleaning the bathroom tile, the faucet should be protected from any
splattering
of cleaner. Acids and cleaning fluids will discolor or remove chrome
plating.
Care and Cleaning of Chrome and Special Finishes
IMPORTANT! : Pipe chips, sand, stones and other solid found in new and
renovated plumbing can damage the cealing of the cartridge and
cause leaks to avoid damage,
DO NOT TURN ON SUPPLY VALVES until instructed below.
1. After installing and connecting your new faucet, turn on in the full cold position
(handle pointing to the right) and turn on the cold supply for 15 seconds.
2. Without closing the handle, turn to the full hot position (handle pointing to the
left) and turn on the hot supply for 15 seconds.
3. Close the handle, then using a towel unscrew the aerator from the end of the
spout and clean the aerator.
4. Using a towel replace the aerator and check the system for leaks.
TO CORRECT REVERSED HOT AND COLD POSITIONS :
1. Shut off both stop valves. Then, open faucet handles to relieve water pressure
that complete water shut-off has been accomplished.
2. Remove a lock cover and fastener clip in order.Then,remove the flex supply
tubes.
Re-connect each flex supply tubes into different supply stop valves.
(An excessive bending will cause leaking and damage to the tubes.)
Then,attach the fastener clip and lock cover after connecting the supply tubes.
3. Re-installing and connecting, turn on both cold and hot supply.
4. Turn on in the full position, make sure that the each positions keeps correct
way & make sure any water leakage.

- 8 -
LIMITED WARRANTY
SAN-EI products have been manufactured under the highest standards of quality and workmanship,
and warrants to the original consumer purchaser that its products are free of defects in material and
workmanship.
1. Ceramic cartridges and PVD finishes carry a limited lifetime warranty to the Original
Consumer Purchaser for as long as that consumer purchaser owns his/her/their home. All other
parts are warranted for 2 years after the date of purchase.
2. SAN-EI warrants to the Commercial Purchaser that their products, purchased for commercial,
industrial or other business use, are free from defects of workmanship and materials for a period
of 1 year after the date of purchase.
All warranties are to the original purchaser and require presentation of original sales receipt.
Warranty is not transferable. During the warranty period, SAN-EI will, at its option, repair or
replace any part or parts which have been determined to be defective if returned at
purchaser's expense. This shall be the sole remedy available under this warranty. Defects
or damage caused by the use of other than genuine SAN-EI parts are not covered by this
warranty. Installation or any other labor charges associated with the repair or re-installation
of SAN-EI products is not covered by this warranty. Damage due to improper installation, misuse,
poor maintenance practices, accident, alcohol, or other organic solvents, or use in any manner
contrary to the written instructions provided, whether done by contractor, service company, or end
user, are excluded from this warranty. Some states, provinces and nations do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which
vary from state to state, province to province, nation to nation.
SAN-EI will advise you of the procedure to follow in making warranty claims. Simply write to explain
the defect and include product instruction manual, along with original proof of purchase receipt
showing the store name, address and date of purchase.
Be sure to include your name, address and telephone number.
Faucets made of leaded brass alloys may contribute small amounts of lead to water that is allowed
to stand in contact with the brass.
The amount of lead contributed by any faucet is highest when the faucet is new.
The following steps may reduce potential exposure to lead from faucets and other parts of the
plumbing system.
*Always run the water for a few seconds prior to use for drinking or cooking.
*Use only cold water for drinking or cooking.
*If you wish to flush the entire plumbing system of water that has been standing in the pipes or
other fittings.
Run the cold water until the temperature of the water drops, indicating water coming from the
outside main.
*If you are concerned about lead in your water, have your water tested by a certified laboratory in
your area.
USER INFORMATION
In the United States and Canada, please kindly call our office number
for answers to any product, installation, or warranty questions.
CONTACT
- Importer / Master Distributor -
Sanicor International Corp.
2116 South Grand Ave., Santa Ana, CA 92705
Tel : [phone] Fax : [phone]
