60 use and maintenance manual
all parts of this manual before using the product.
The espresso coffee machine that you have purchased has been designed and manufactured with innova-
tive methods and technology which ensure long lasting quality and reliability.
This booklet will guide you in discovering the advantages of purchasing this product. You will find notes
on how to get the best out of your machine, how to always keep it efficient and what to do if you should
have any problems.
Keep this booklet in a safe place. If you lose it you can ask the manufacturer for another copy.
ENJOY YOUR READING … AND YOUR COFFEE
The manufacturer has the right to make any improvements on the product. We also guarantee that this
booklet reflects the technical state of the product at the time it is marketed.
We take the opportunity to invite the customers to make any proposals for improvement of the product
or the manual.
• After removing the packaging, check the condition of the appliance. If in doubt, do not use it but
contact the retailer directly.
• The packaging material must not be left in the reach of children since it is a potential source of
danger. It is advisable to keep the packaging until after the guarantee has expired.
• Before using the machine, make sure that the mains voltage corresponds to the information on the
data plate of the machine.
• The installation must be done in accordance with the safety standards in force and by qualified and
prepared personnel. Incorrect installation may be harmful to people, property or animals.
• This appliance is completely safe only if it is connected to an effective earth system, executed as
required by current safety standards. It is important to have compliance with this requirement
checked. If in doubt, have the system carefully checked by qualified personnel. The manufacturer
cannot be considered responsible for any damage caused by an incorrect grounding device.
• Upon installation of the machine, qualified personnel will be required to install a main switch as required
by current safety regulations, with a distance of contact aperture greater than or equal to 3 mm.
1. GENERAL WARNINGS
1.1 READ CAREFULLY
1.2 HOW TO USE THIS MANUAL
1.3 GENERAL WARNINGS

61
use and maintenance manual
ENGLISH
• It is not advisable to use extensions or electrical adaptors with multiple outlets. If their use is indis-
pensable only use simple or multiple plug adaptors and extensions which are in accordance with the
safety standards in force. Never exceed the capacity value in kW indicated on the simple adaptor or
on the extensions and the maximum power value indicated on the adaptor.
• The espresso coffee machine is intended for the preparation of hot beverages such as coffee, tea or
warm milk. This appliance is to be used only for its intended purpose. Any other use is considered
improper and therefore dangerous. The manufacturer cannot be responsible for any damage caused
by incorrect and unreasonable use.
• When using the electrical appliance several safety standards must be observed :
- do not touch the appliance when hands or feet are wet or damp;
- do not use the appliance in bare feet;
- do not use extensions in rooms where there are showers or baths;
- do not pull on the power cord to disconnect the appliance from the power outlet;
- do not leave the appliance exposed to atmospheric agents (rain, sun, etc.)
- do not allow the appliance to be used by children or incapable people.
• Before any maintenance deactivate the appliance from the electrical network through the bi-polar
switch.
• For daily cleaning follow that which is indicated in this manual.
• In case of breakdowns or poor functioning turn off the appliance, and unplug it. Do not attempt any
repairs; call for specialised technical assistance.
• Any repairs must be done only by the manufacturer or an authorised assistance centre using exclusively
original spare parts. If this instruction is not observed the safety of the appliance is compromised and
cancels the guarantee.
• The power cord of the appliance must not be replaced by the user. If the cable is damaged turn the
machine off and contact only professionally qualified personnel.
• If you should decide not to use the appliance any longer, unplug it and have it drained of water by
qualified personnel.
• To guarantee that the machine is efficient and to keep it operating correctly, it is indispensable to
follow the manufacturer’ s instructions, having periodical maintenance and a check of all the safety
devices done by qualified personnel.
• Do not expose your hands or other body parts in the direction of the coffee delivery spouts or in
the direction of the steam and hot water delivery terminals. The steam and the water that exit the
nozzles can cause burns.

ENGLISH
62 use and maintenance manual
This espresso coffee machine is for strictly professional use. It is designed for the preparation of hot drinks
such as tea, cappuccinos and weak, strong and espresso coffee, etc.
Instructions for proper use of the machine are provided below.
WARNING
The user must have sufficient instructions to correctly operate the machine. It is recom-
mended not to carry out any operations on the machine which can tamper with or alter
its functionality.
WHEN THE MACHINE IS OPERATIVE THE BOILER CONTAINS STEAM AND HOT
WATER THAT ARE UNDER PRESSURE.
The guarantee is valid for 12 months on all components except electrical and electronic
components and expendable pieces.
• When functioning, the steam and water nozzles and the filter-holder cups are overheated and are
to be handled with care only in the indicated parts.
• Any unauthorised tampering with any parts of the machine renders any guarantee null and void.
1.4 GUARANTEE
2.1 PRESENTATION
2. APPLIANCE DESCRIPTION

63
use and maintenance manual
ENGLISH

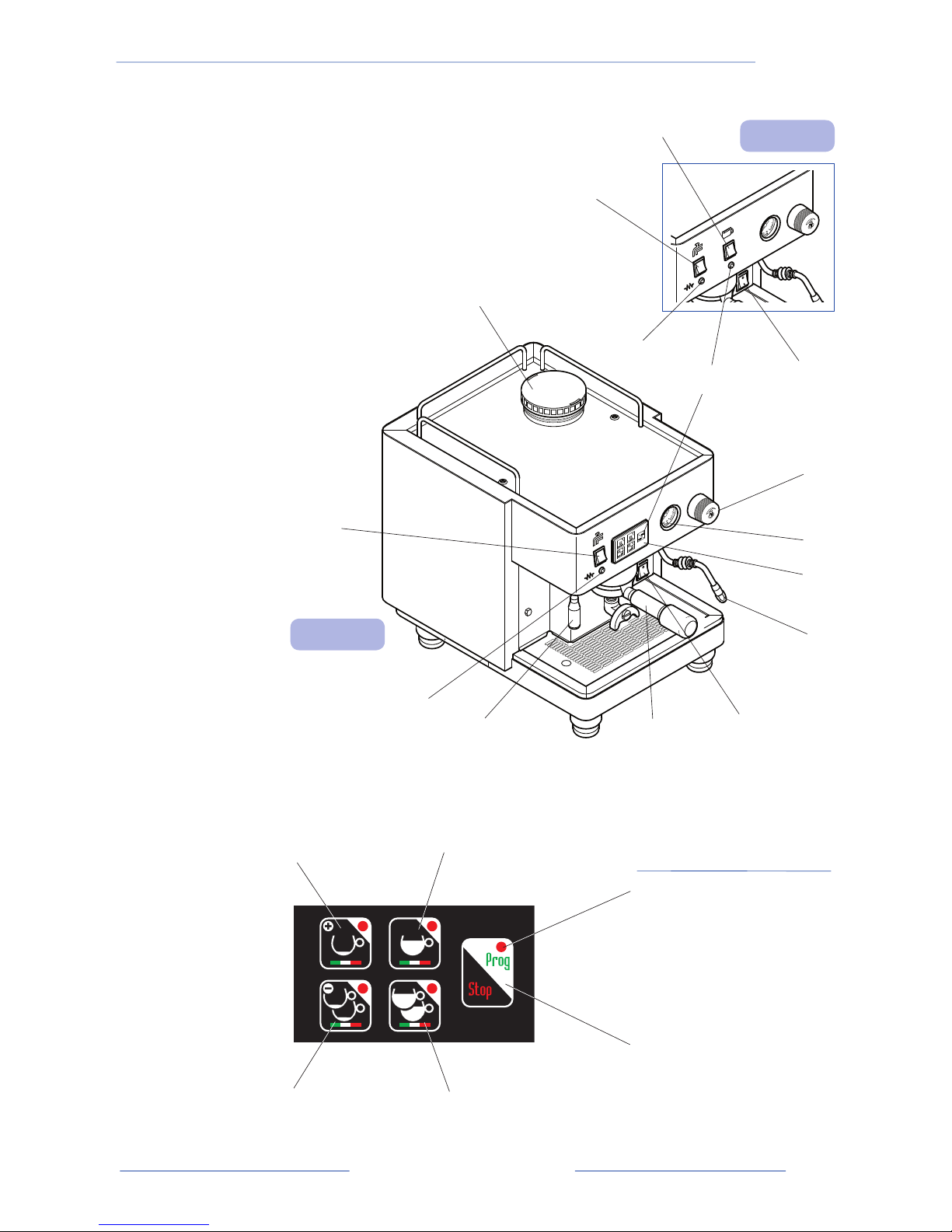

1 Indicator light for heating in progress
2 Indicator light for lack of water
3 Hot water dispensing key
4 Hot water tank (excluding model with internal motorised pump)
5 Coffee dispensing key (CKX version)
6 Electronic push button panel (CKXE version)
7 Machine main switch
8 Steam dispensing knob
9 Boiler pressure gauge
10 Steam dispensing nozzle
11 Filter holder
12 Hot water dispensing nozzle
2.2 GENERAL DESCRIPTION
2.3 ELECTRONIC PUSH BUTTON PANEL (CKXE version)
1 espresso
Increase key
2 espressos
Decrease key
1 long coffee
2 long coffees
Programming
Stop
Indicator light for lack of
water (version with water
from internal tank)
- with indicator light flashing -
11
4
9
8
10
7
12
1
5
2
2
CKXE
2
5
2
2
CKX
3
1
5
7
2
6
Programming indicator light
- with indicator light constantly on -

ENGLISH
64 use and maintenance manual
3.3 WATER SUPPLY
3.2 POSITIONING
Place the machine on a support base which is suitable for correct and convenient use of the coffee
machine.
3. PREPARATION OF THE MACHINE
3.1 UNPACKING
• Open the package, remove the internal protective
materials and extract the machine;
• After removing the packaging, check the condition of
the appliance. If in doubt, do not use it but contact
the retailer directly.
• connect the tube of the machine (1) to the water
mains and open the mains tap (2);
• connect the machine drain(3) to the sewer drain.
5
2
2
The preparation of the machine and its installa-
tion must be carried out by qualified personnel.
3
1
2
5
2
2
Supply from WATER MAINS
For plumbing connections follow these instructions :

65
use and maintenance manual
ENGLISH
Supply from INTERNAL TANK
For proper operation follow these instructions:
• extract the tank from its housing;
• carefully wash the tank with lukewarm water;
• fill the tank with potable water;
• place the tank correctly in place;
• Periodically check the level of water in the tank and
refill as required;
• for subsequent filling with water, it is not necessary to
remove the tank;
• it is advisable to extract the tank and to wash it carefully
from time to time.
• make sure that the information on the data plate of the
machine corresponds with the voltage of the electrical
mains;
• plug in the machine. Make sure that the voltage on the
data plate is the same as the voltage of the electrical
power supply.
WARNING
Fill the tank only with cold potable water. Do not use other liquids or other carbonated
beverages. Operating without water may damage the machine.
3.4 ELECTRICAL CONNECTION
WARNING
To modify the type of water supply, ask for assistance from qualified personnel.
5
2
2

ENGLISH
66 use and maintenance manual
4. MACHINE OPERATION
It is important to have a dosing-grinding device next to the machine with which
to grind the coffee to use daily. The grinding and the dosing of the coffee must
be done according to that indicated by the manufacturer of the dosing-grinding
device. The following points are also to be kept in mind:
• to obtain a good espresso it is recommended not to keep large stocks of
coffee grains. Observe the expiry date indicated by the producer.
• never grind large volumes of coffee, it is advisable would be to have the
quantity contained in the dosing device and use it if possible by the end of
the day.
• do not purchase previously ground coffee which does not have a very long
shelf life. If necessary, purchase it in small vacuum-packed containers.
Prepare coffee in the filter holder as follows:
• fill the filter with a dose of ground coffee (circa 6-7 gr.) and press it with
the press;
• Hook the filter-holder to the group without closing too tightly in order to
avoid excessive wear of the gasket.
• For the same reason it is recommended to clean the edge of the filter
before attaching the filter holder to the delivery group.
4.1 MACHINE START-UP
4.2 GRINDING AND DOSING COFFEE
D
B
A
C
5
2
2
ATTENTION
When turning on the machine for the first time, be sure to
follow these instructions.

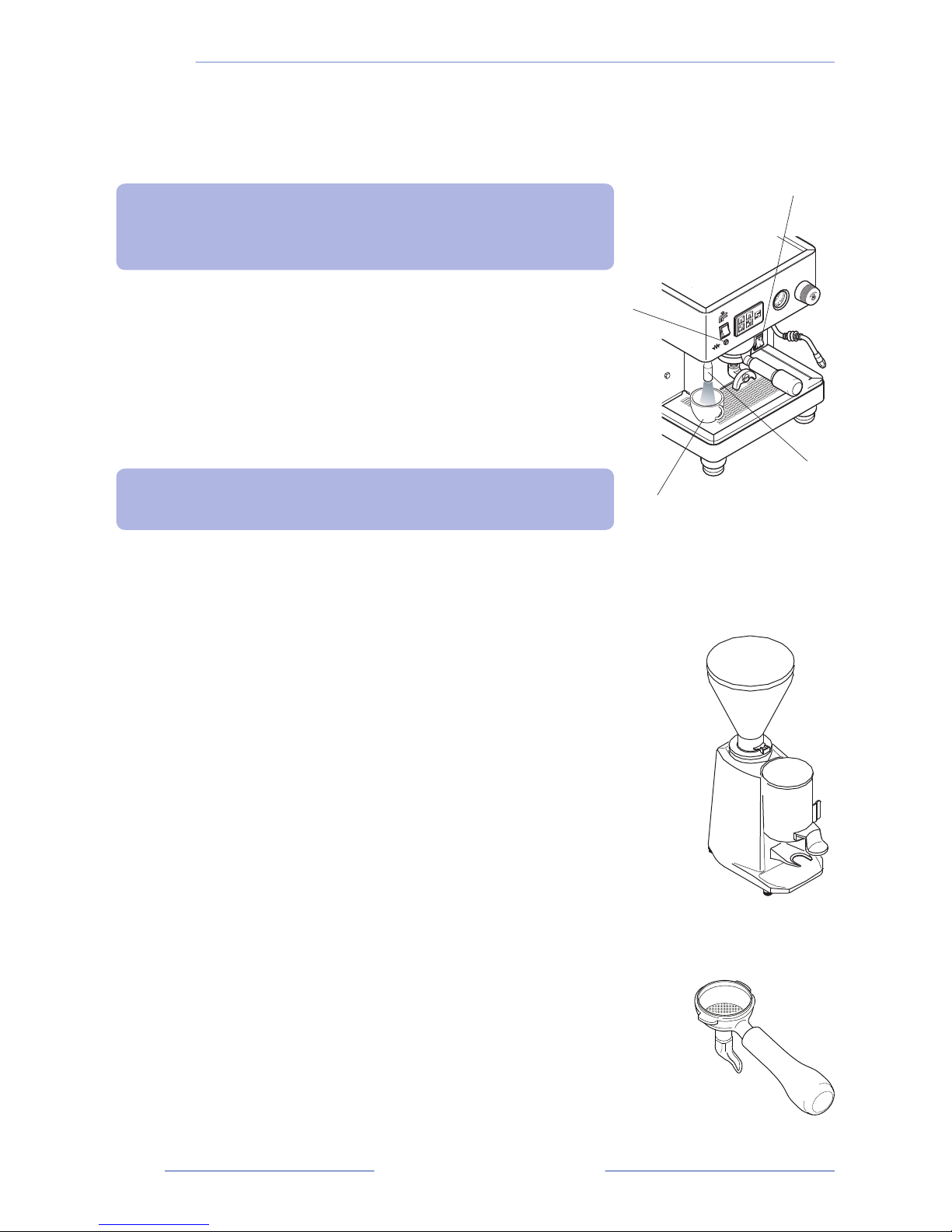

• place a cup (A) under the water dispensing spout;
• turn on the machine (B) : during heating, the machine will
dispense air and water from the water spout twice for about 5
seconds each time (C);
• when the red indicator light (D) located on the front panel
goes off, it means the heating cycle is complete. The machine
is now ready to use.
When the red indicator light (D) comes on, it shows
activation of machine heating

67
use and maintenance manual
ENGLISH
• Put the coffee cup under the dispensing spout;
• press the dispensing switch (1);
• upon reaching the desired amount of coffee in the cup, stop
dispensing by means of the switch (1).
Coffee dispensing:
• put the coffee cup under the dispensing spout.
• press the desired dose key (3): wait for coffee to be deliv-
ered;
• to stop delivery of coffee in advance, press the delivery key
again (3) or press the keyPROG/STOP (4).
Push button panel programming:
• put the coffee cup under the dispensing spout.
• press the PROG/STOP key (4) for at least 5 seconds until
the LED of the dose keys comes on;
• Press the desired dose key(3).
• When the desired dose has been attained, confirm by pressing
the PROG/STOP key (4);
• Repeat this operation for the other dose keys;
• To exit programming, press the key STOP/PROG (4).
Programming will be exited after 25 seconds of inactivity.
CK - CKX version (semiautomatic)
4.3 DISPENSING COFFEE
CKE - CKXE version (electronic dosing) 35
4
35
5
2
2
4
1
2
5
2
2
ATTENTION
If the LED is flashing (2) place water in the tank (if
included) or refer to the chapter on malfunctions and
troubleshooting
ATTENTION
During the programming phase, the LED (5) stays on. If the LED (5) flashes intermit-
tently, refer to the chapter on malfunctions and troubleshooting

ENGLISH
68 use and maintenance manual
4.4 DISPENSING HOT WATER
Programming (only CKXE version):
• put the coffee cup under the dispensing spout;
• press the STOP/PROG key (3) for at least 5 seconds until
the LED of the dose keys comes on;
• press the water dispensing key (2);
• upon reaching the desired serving confirm by again pressing
the key for water delivery (2);
• to exit programming press the STOP/PROG key (3).
• put the coffee cup under the dispensing spout
(1);
• press and release immediately the water dispensing
keya (2) ;
• wait for dispensing to occur;
• To interrupt dispensing ahead of time, press the
key (2).
• put the coffee cup under the dispensing spout
(1);
• hold down the water dispensing key (2) Dispensing
will start after about 3 seconds;
• upon reaching the desired amount of water in the
cup, release the water dispensing key (2) .
Continuous dispensing
Timed dispensing
1
2
5
2
2
ATTENTION
If the STOP/PROG LED is flashing on the push button panel (3), fill the tank with
potable water (4).
ATTENTION
You can modify programming of the dispensing of steam for the CKX version as well by
requesting assistance from qualified service personnel.
5
2
2
3
4
1
2
3

69
use and maintenance manual
ENGLISH
WARNING
Carefully move the steam nozzle with the anti-burn nozzle (7) and do not touch the hot
water nozzle: contact with the hot water and steam may be harmful to individuals, animals
or property.
4.5 DISPENSING STEAM
• immerge the steam dispensing tube(5) in the liquid to be heated;
• turn the steam knob counter-clockwise (6);
• to interrupt steam dispensing turn the steam knob counter-clockwise (6).
5
2
2
6
5
7

ENGLISH
70 use and maintenance manual
ATTENTION
It is advisable to set a boiler temperature inclusive between the following values:
minimum: 116°C (0,8 Bar) - maximum 122°C (1,2 Bar).
The boiler installed in the machine is set to a temperature of 120 °C which corresponds to a pressure
in the boiler of 1 Bar.
You can change the temperature (and the pressure) of the boiler as follows :
• turn on the machine by pressing the PROG/STOP key for at least 5 seconds;
• the set temperature value can be seen by observing the flashing modes of the push button
panel:
5. BOILER TEMPERATURE PROGRAMMING (only for CKXE version)
Hundreds Tens
Ones
Example :
• one flash of key LED
• two flashes of key LED
• one flash of key LED
100°C
20°C
1°C
Set temperature 121°C
• to confirm and exit programming, turn the machine off and then back on.
• to increase the temperature of the boiler, press the key To reduce the temperature press
the key (each press of a key modifies the temperature by 1°C);
ATTENTION
You can modify programming of the boiler temperature for the CKX version as well by
requesting assistance from qualified service personnel.

71
use and maintenance manual
ENGLISH
7. SUGGESTIONS FOR OBTAINING GOOD COFFEE
To obtain a high-quality coffee, it is important that water hardness of the water used does not exceed 4-5
°F (French degrees). In the water hardness exceeds these values, it is advisable use a water softener.
Avoid using a water softener if water hardness is less than 4 °F. If the taste of chlorine in the water is
especially strong, a special filter should be installed.
It is not advisable to keep large stores of coffee beans. Never grind large amounts of coffee. Use the
amount the doser holds and if possible use it by the end of the day. Never purchase ground coffee as it
expires quickly.
After the machine has not been used for a period of time (2-3 hours) make a few dry runs. Be sure to
carry out regular cleaning and maintenance.
6. VERSIONS WITH INTERNAL MOTORISED PUMP
For models with internal motorised pump, it is important remember that:
• there is no internal tank;
• water supply is provided by means of connection to the water mains;
• be sure to connect the tub of the machine to the drain;
• it is advisable to use a water softener.
WARNING
For further information, it is advisable to contact customer technical assistance.
8. CLEANING
For perfect cleaning and efficiency of the appliance, several simple cleaning operations are necessary on the
functional parts and accessories as well as the body panels. The indications given here are applicable for normal
use of the coffee machine. If the machine is heavily used then cleaning should be performed more frequently.
Filter and filter-holder
The filters and the relative filter-holders must be cleaned daily in
hot water. The best thing to do is to let them soak in hot water
overnight so that the fatty coffee deposits can dissolve. It is
advisable to add an envelope or tablet of special detergent to
the water, and then to rinse everything off with water.
Failure to clean the filters and filter holders daily will compromise
the quality of the coffee and will also cause problems such as
bad extraction and coffee grounds at the bottom of the cup.

ENGLISH
72 use and maintenance manual
Perforated disk and containment ring
Both the perforated disk (1) and its containment ring (2) should be
cleaned regularly in hot water. To do this, loosen the screw (3) and
remove the two elements from the dispensing unit.
Steam nozzle
The steam nozzles must be kept clean at all times. Check the ends of
the steam nozzles and clean them monthly, clearing out the exit holes
with a small needle.
Dispensing group
The cleaning of the internal parts of the delivery group is to be performed regularly in the following manner:
• replace the normal filter of the filter-holder with a solid one;
• pour a teaspoon of a suitable detergent powder on the solid filter, and attach the filter-holder to the
group;
• use the delivery switch to set the group in operation;
• repeat the above operations until the water comes out clean;
• turn off and remove the filter-holder from the group;
• rinse a final time, so as to remove any residual detergent.
Body
The body panels should be cleaned with a cloth soaked in warm water. Do not use abrasive detergents since the
panels could get scratched.
Grinder-doser
Every week clean the bell jar and the dosing device with a cloth soaked in lukewarm water, both inside and out .
WARNING
When cleaning, always use cloths that are completely clean and hygienic.
3
1
2

73
use and maintenance manual
ENGLISH
9. LIST OF HAZARDS
This chapter describes possible hazards for the user if the specific safety standards described in this booklet
are not adhered to.
The appliance must be connected to an efficient grounding system
If this is not done, the appliance can be a source of dangerous electrical discharges in that it is no longer able
to discharge electricity to earth.
Do not use running water to wash
The use of pressurized water directly on the machine can seriously damage electrical appliances. Never use
water jets to wash any part of the appliance.
Be careful with the steam nozzles and hot water
During use, the steam nozzles and hot water may overheat, thus becoming a source of danger. Handle such
parts carefully. Never direct steam or hot water jets directly on parts of the body.
Do not work on the machine when it is supplied with electrical power.
Before carrying out any intervention on the machine you must turn it off by means of the main network switch
or better yet, disconnecting the connection terminals in the network. Never remove any body panel when the
machine is supplied with electrical power.
Never work on the hydraulic system before having emptied it.
All work regarding the hydraulic system and the relative boiler are to be avoided when there is still water and
pressure in the system. You must therefore empty it beforehand, closing the mains cock and dry-running the
delivery group for a short time. Switch off the machine and open all the steam and water cocks and taps. With
the pressure zero, completely empty the boiler, unscrewing the special pipe fitting situated on the lower part
of it. If the above procedure is not correctly carried out, opening any part of the hydraulic system can cause
a sudden outlet of overheated water under pressure.
Use of the appliance
This espresso coffee machine is an appliance exclusively for professional use. Any other type of use is considered
wrong and therefore dangerous. Never allow children or incapable persons to use the machine.
Non-observance of the above-described standards can cause serious harm to people, property or animals.
Never work on the electronic apparatus when the machine is still supplied with electrical energy.
Shut down the machine completely by unplugging it from the mains before carrying out any operation.
WARNING
The manufacturer declines any responsibility for damage that can occur if the above
instructions are not followed.

ENGLISH
74 use and maintenance manual
10. MALFUNCTIONS and CORRESPONDING SOLUTIONS
Indication Cause Solution
NO POWER
TO MACHINE
1) The machine switch is in the “0” position
2) The mains power supply switch is in the
OFF position
1) Place the machine switch in the
“1” position
2) Place the mains switch in the ON
position
FROM THE NOZZLES
NO STEAM COMES OUT
1) The nozzle sprayer is clogged
2) The machine switch is in the “0” position
1) Clean the steam nozzle sprayer
2) Place the machine switch in the
“1” position
DELIVERY
ABSENT
1) The water mains tap is closed 1) Open the water mains tap
WATER LEAKAGE
FROM THE MACHINE
1) The tub does not drain
2) The drain tube is detached or broken or has
obstruction to water flow
1) Check the sewer drain
2) Check and restore the connection
of the drain tube to the tub
COFFEE
TOO COLD
DELIVERY
OF COFFEE
TOO FAST
The coffee is ground too coarsely Adjust the grinding suitably
DELIVERY
OF COFFEE
TOO SLOW
1) Coffee is ground too finely
COFFEE
TOO HOT Incorrect temperature setting of the boiler Contact technical service
1) Machine just started and not yet up to pressure
2 Malfunction of the electrical system or of the
hydraulic system
1) Wait for the machine to warm up
2) Contact technical service
1) Adjust the grinding suitably
2) Internal tank is empty 2) Fill the tank with water
2) Pump malfunction 2) Contact technical service

75
use and maintenance manual
ENGLISH
COFFEE GROUNDS
WET
1) Dispensing group dirty
2) The delivery group is too cold
3) Coffee is ground too finely
4) Valve group clogged
1) Wash the group with the solid filter
2) Wait for group to heat up
completely
3) Adjust the grinding suitably
4) Contact technical service
Indication Cause Solution
WARNING
If the problem cannot be resolved, turn the machine off and contact technical service. Do
not attempt any sort of repairs.
PRESENCE OF
GROUNDS IN
THE CUP
Malfunction of electrical system or
hydraulic system Contact technical service
THE GUAGE
INDICATES A
PRESSURE WHICH IS
NOT ACCEPTABLE
1) The filter holder is dirty
2) The filter holes are worn
3) The coffee is not ground evenly
1) Clean the filter holder
2) Replace the filter
3) Adjust the grinding suitably
INDICATOR LIGHT
FLASHING ON
FRONT PANEL OF
THE MACHINE
No water
- Check for proper position of
the water tank
- Fill the tank with potable water
- Contact technical service
CKX
version
STOP/PROG KEY
FLASHING ON
THE PUSH BUTTON
PANEL
CKXE
version
No water
1) Check for proper position of
the water tank
2) Fill the tank with potable water
3) Contact technical service
