Caffitaly System S05 User manual

MODELS05
INSTRUCTION MANUAL
  R  g 
   
 U  
 Z 
 g 
www.caffitalysystem.com.au CE

2
2
1
3
4
5
6
7
8
9
10
11
12
Table of contents
Introduction
Warning symbols ................................................................................... 3
taly System contact ............................................................. 3
Important Safeguards .......................................................................... 4
Description of machine components ................................................ 6
Installation
First use or after a long period of disuse .......................................... 7
Turning on the appliance ..................................................................... 8
General operating indications ............................................................ 9
Adjusting the cup/mug height .......................................................... 11
Dispensing the product
ee ................................................................................. 12
Correct use of the buttons .................................................................. 13
ee in a cup ................................. 14
Cleaning and Maintenance
Saving energy ....................................................................................... 15
Daily maintenance ............................................................................... 16
Descaling ............................................................................................... 17
Miscellaneous
Troubleshooting ................................................................................... 21
Technical data ....................................................................................... 22

3
Dear Customer,
Thank you for having chosen our product and for your
dence in our company. You can savour your favourite hot beverages
at any time of the day with our appliance by choosing one of the capsules
avoured
beverage or a tea will be ready in just a few seconds.

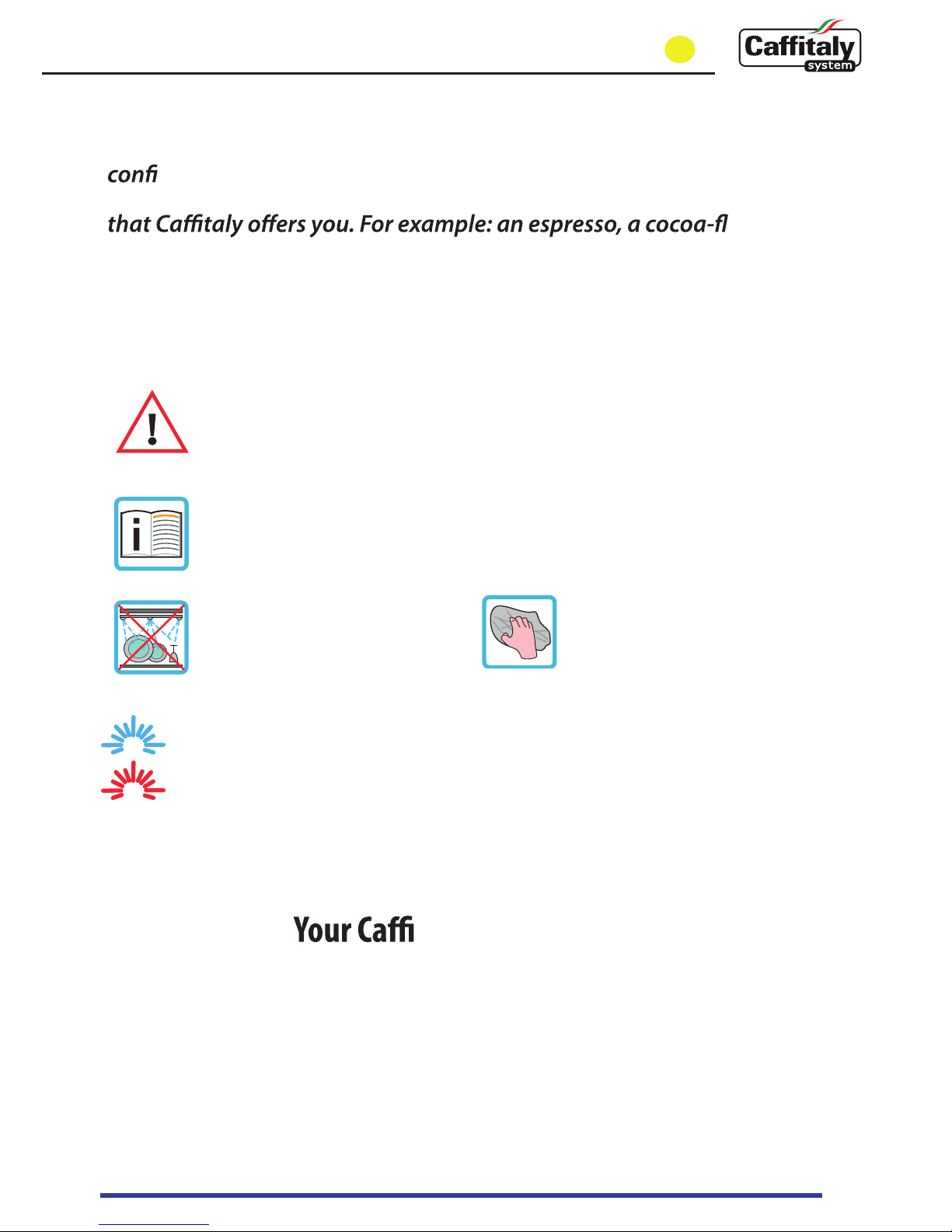

Warning symbols
CAUTION
fosksirelbissopotnoitnettaruoyllacotdesusitI.lobmysgninrawytefasehtsisihT
personal injury. Abide by the safety messages provided in order to avoid possible injury
or death.
NOTE
ehtfoesuesimitpolliwtahtsnoitcaemosthgilhgihotdesulobmysehtsisihT
appliance.
Not dishwasher safe Maintenance tips
gniknilbathgilhgihotdesusilobmyssihT WHITE light indication.
athgilhgihotdesusilobmyssihT YELLOW or RED light indication.
Introduction
taly System contact
Roasting Australia Pty Limited
11 Hoyle Avenue. Castle Hill. NSW 2154
Phone: AUS 02 9846 0307
NZ: 0800 450 894
email: [email protected]
caffitalysystem.com.au

4
Introduction
IMPORTANT SAFEGUARDS
When using ele
INTENDED USE
This appliance is designed for domestic use and similar purposes, for example: sta
kitchen areas in shops, oces and other workplaces; in hotels, farm lodges, motels,
Bed & Breakfasts and other residential environments.
ctrical appliances, basic safety precautions should always be followed to
1. Read all instructions and information in this instruction book and any other literature included
in the carton referring to this product before operating or using this appliance.
2. Do not touch hot surfaces (i.e. steam wand). Use handles or knobs.
in water or other liquid.
4. This appliance must be kept out of the reach of children.
5. Unplug from outlet when not in use and before cleaning.
7. The use of accessory attachments not recommended by the appliance manufacturer may result
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surface.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. The packaging elements (plastic bags, etc.) must not be left withinreach of children as they are
potential sources of danger.
12. Do not operate any appliance with a damaged cord or plug, if the aplliance malfunctions, or has
been damaged in any manner. Return appliance to an authorized service facility for
examination, repair, or adjustment.
SAVE THESE INSTRUCTIONS

5
Introduction
14.
... Continued
Always use cold water. Warn water or other liquids could casue damage to the appliance.
15. When plugging in the machine, always turn appliance“OFF”, attach power cord to the machine
plug from wall outlet.
16. Use extreme caution when using hot steam.
17. Do not use appliance for other than intended use.
18. This appliance is not intended for use by persons (including children) withreduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by apersonresponsible for
their safety.
Children should be supervised to ensure that they donot play with the appliance.

6
Power cord
Power on/o switch
"Long coee" button
"Espresso" button
"No Water"
indicator light
"Capsule drawer full"
indicator light
"Multifunction/Descaling"
indicator light
Drip tray
Dispensing
spout
(adjustable)
Lever for opening capsule
compartment
Capsule compartment
Used capsule drawer
Water tank
Water tank cover
Description of machine components
Introduction
"Filter coee" button

7
First use or after a long period of disuse 1
5
21
43
Fill the tank with fresh, still water. Plug in the appliance and turn it on.
Make sure the lever is closed. Together with the indicator light for the
dispensing buttons (espresso, long coee,
lter coee) the RED no water indicator light
also blinks alternately.
Place a large container (at least 250 ml) under
the coee dispensing spout. Press one of the buttons (espresso, long coee, lter coee).Wait for the machine to complete
the priming cycle and ll with water.The no
water indicatorl ight switches o.
6
NOTE:
If the buttons and the no water indicator light continue to blink after the lling
procedure has ended, repeat the steps in point 6.

8
Turning on the appliance
2Turning on the appliance
2
12
Fill the tank with fresh, still water. Turn
on the appliance. The buttons blink at the same time; the machine is warming up. When the buttons
turn on and remain steadily lit, the appliance is
ready for use.
78
9
The buttons (espresso, long coee, lter
coee) blink at the same time; the machine is
warming up.
When the buttons turn on and remain steadily
lit, rinse by pressing the lter coee button.
Press the button again to rinse a second time.
Wait for the machine to complete the rinse cycle.
At the end of this operation, empty out the
water from the used capsule drawer.

9

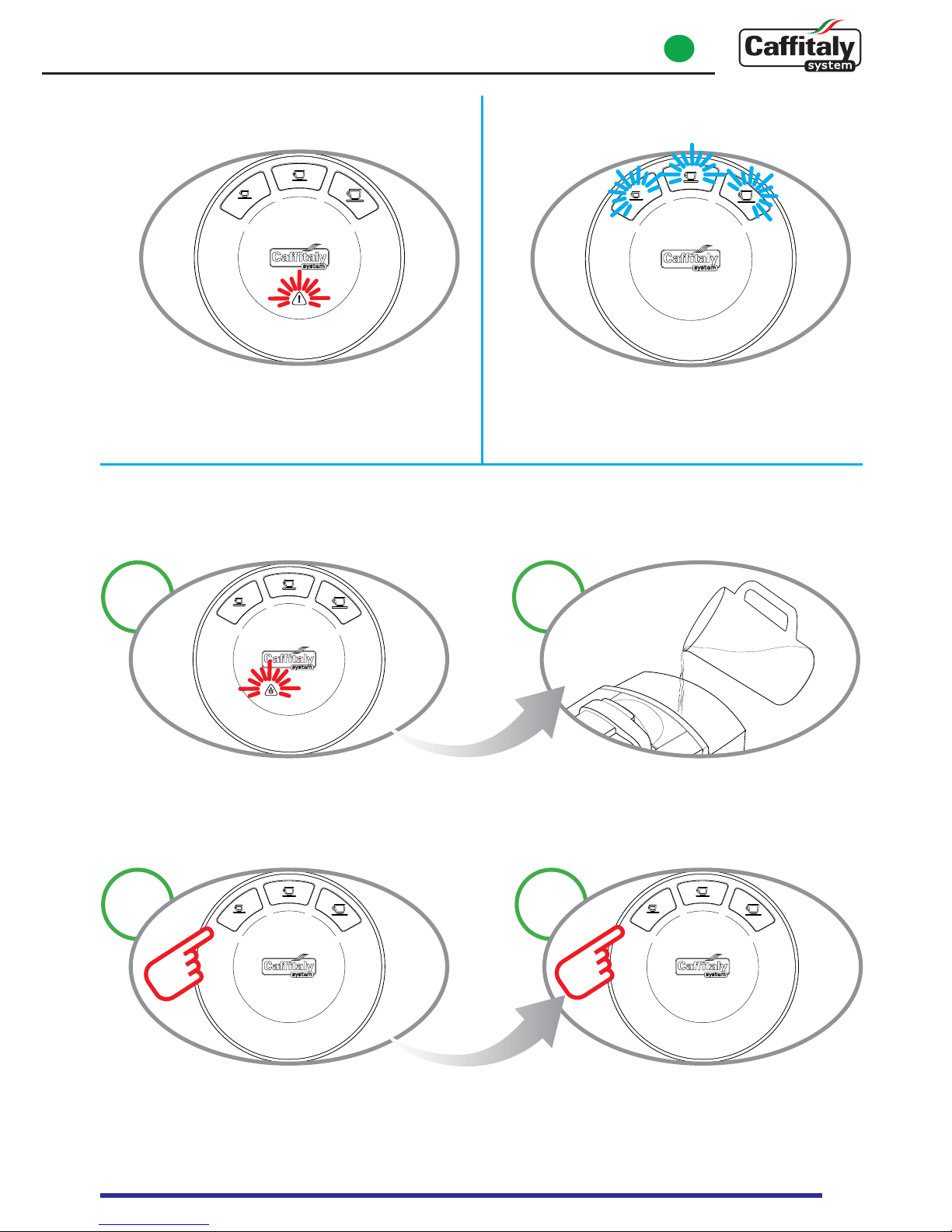

General operating indications 3
21
3 4
WHEN THE WATER RUNS OUT
DURING OPERATION
The water tank is empty when the no water
indicator light blinks RED and the appliance
emits 3 beeps.
Fill the tank with fresh, still water.
When the buttons turn on and remain steadily
lit, the appliance is ready for use.
Press one of the buttons (espresso, long
coee, lter coee).Wait for the machine
to complete the priming cycle and ll with
water.
DESCALING SIGNAL
When the descaling blinks YELLOW and
the machine emits 3 beeps, it is advisable to
perform the descaling cycle. (See Ch. 10)
HEATING
The buttons blink at the same time.

10
1

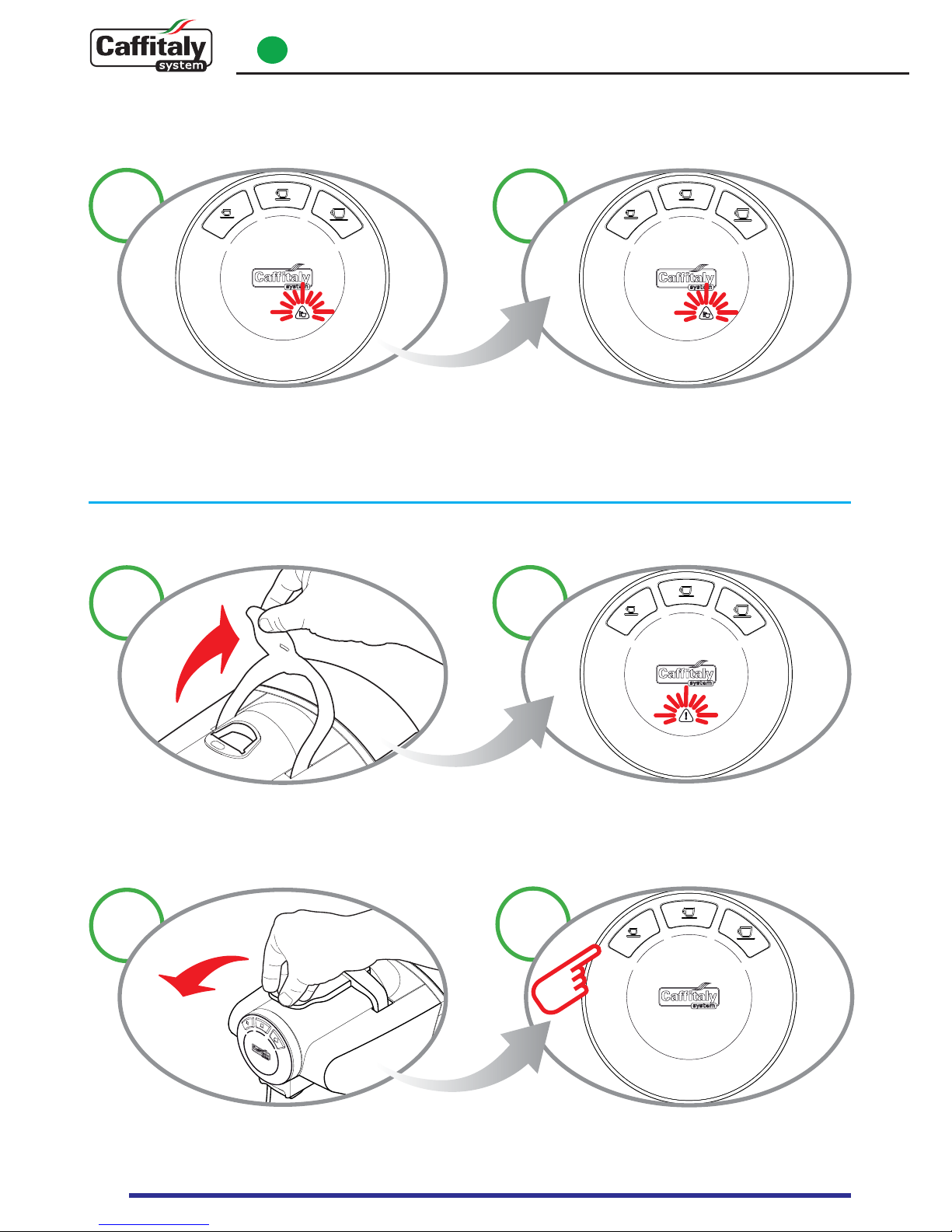

IF THE LEVER IS RAISED
If the lever is raised while a product is being
dispensed.
The multifunction blinks RED and a beep is
emitted.The appliance will immediately stop
dispensing.
General operating indications
3
2
4
3
Close the lever. Press a button to reset the alarm.
The appliance is ready for use.
1ST GROUNDS DRAWER SIGNAL 2ND GROUNDS DRAWER SIGNAL -
DISABLING
When the capsule drawer full blinks RED, it is
advisable to empty the used capsule drawer.
12
When the capsule drawer full turns RED and
remains steady, the machine stops running and
you MUST empty the used capsule drawer. This
process should take place while the machine is on.

11

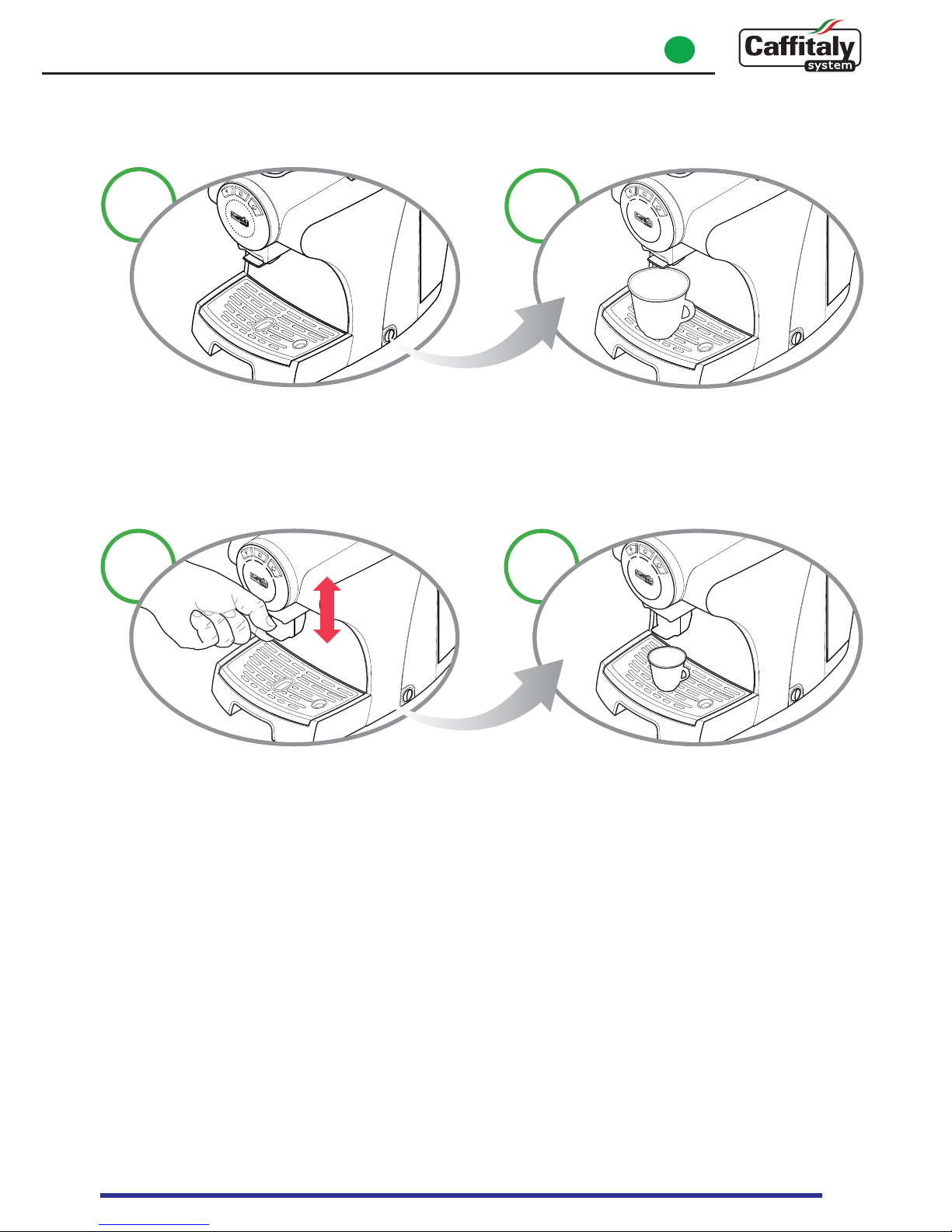

Adjusting the cup/mug height 4
1
34
2
The appliance can be adjusted for the use of
mugs or espresso cups. The appliance is initially set for the use of large
cups.
To use espresso cups, lower the end part of the
dispensing spout. In this way you can obtain the best results
when using small espresso cups.

12

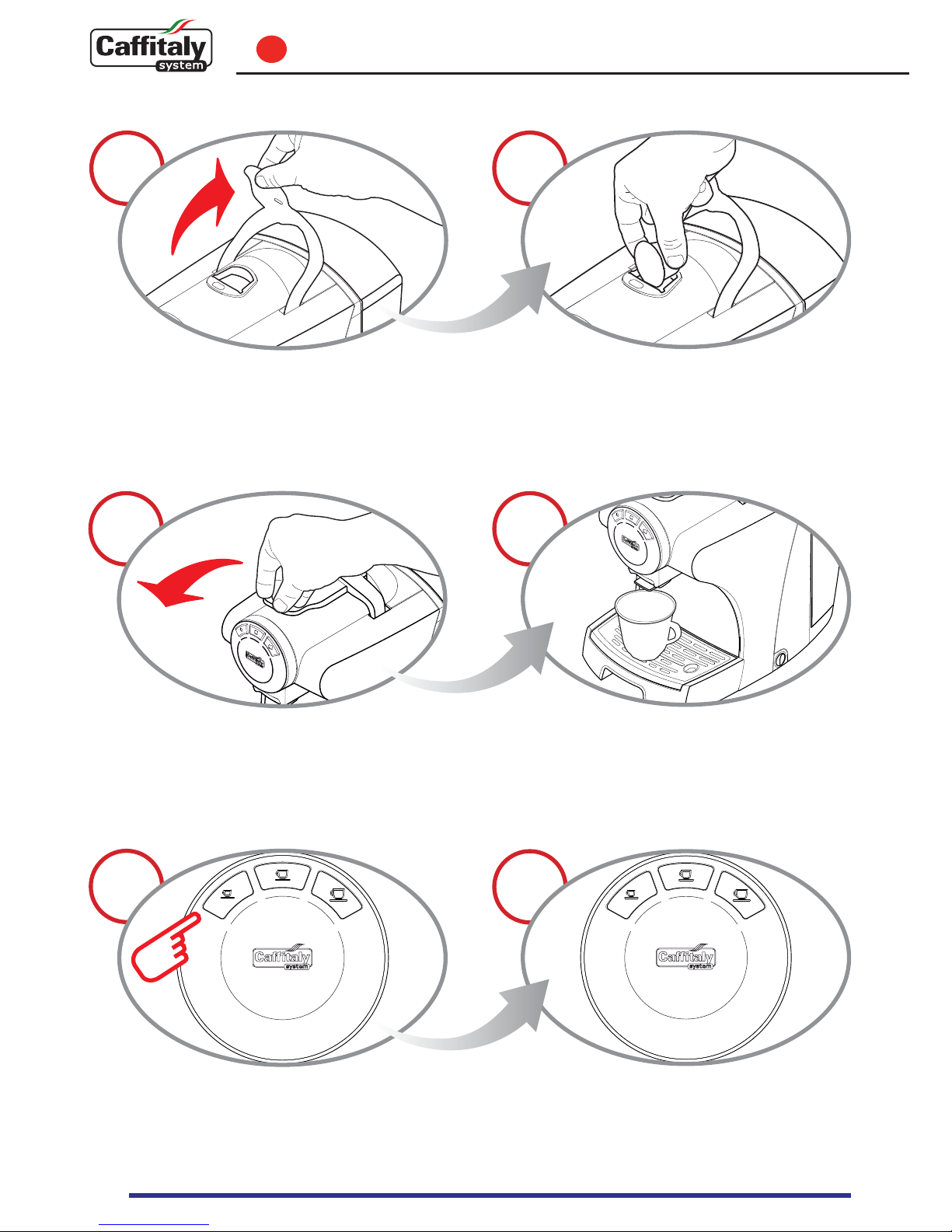

Dispensing coee
5
6
3 4
1 2
Raise the lever to open the capsule
compartment. Insert the capsule, pressing it gently into place.
Close the lever fully. Place a cup or mug under the coee dispensing
spout.
Press and release the button corresponding
to the type of coee you want. The selected coee button will blink.The
appliance will stop dispensing on reaching the
programmed quantity and
will emit a beep.
5

13
Correct use of the buttons
6Correct use of the buttons
To dispense Espresso or Caè crema, use the “Espresso” or “Long coee” buttons only
(1st and 2nd from the left respectively, lit up in WHITE).The same buttons, depending on the
amount required, should also be used to dispense barley capsules, cocoa and milk.
The “Filter coee” button (3rd from the left, lit in WHITE) should only be used for“Filter coee”
or“Americano”beverages (very light). This button can also be used in conjunction with tea and
chamomile capsules, and general infusions.
Do not use the “Filter coee” button for espresso or intensely-avoured coee: when operating
in this mode, the machine is actually set to a low pressure which reduces foam, weakens the
taste of the coee and could cause interruptions in ow as the product is dispensed."
NOTE:
Traces of the product just dispensed may remain in the circuit of the machine.
When switching from one product to another, in order to fully enjoy the avour of
the beverage we suggest rinsing the machine by pressing the coee button as if
to dispense a coee without inserting a capsule.
6
NOTE:
The quantities of coee dispensed can be programmed according to personal
taste and the size of the cups or mugs used.
Please refer to chapter 7 for programming instructions.
87
Raise the lever to eject the used capsule into
the drawer. Close the lever.

14
Programming the quantity of coee in a cup
7
6
3 4
1 2
Place a cup or mug under the coee dispensing
spout depending on the type of coee you
wish to program.
Press and hold the desired coee button. On reaching the desired amount of coee,
release the button. Now the button is
programmed. The quantity of coee
dispensed may be programmed, from a
minimum of 30 ml to a maximum of 250
ml.
Raise the lever to open the capsule
compartment.
Insert the capsule, pressing it gently into place.
Close the lever fully.
5

15
Saving energy 8
3
2
Press and hold the buttons (long coee and
lter coee) and turn on the machine by
pressing the power on/o switch.
The multifunction indicator light will blink three
times in RED and three beeps will be emitted
to conrm deactivation of the "Energy Saving"
function. When the function is reactivated, the
multifunction indicator light will blink twice
RED and two beeps will be emitted.
Turn o the machine, then turn it back on.
Make sure the lever is lowered.
Make sure the lever is lowered.
To deactivate (or reactivate) the function
saving energy, proceed as follows:
The machine will automatically reduce
consumption one hour after the last use. The
buttons (espresso, long coee, lter coee)
will slowly and sequentially blink with a
WHITE light.
To restore normal operating conditions, press
any button or raise the lever. The appliance will
start warming up. The buttons
will be steadily
lit WHITE when the appliance is ready for use.
1

16
1
3
2
4
Remove the drip tray and used capsule drawer.
Remove the grid. Empty the drip tray and rinse
it out with water.
Lift the capsule drawer; empty and rinse it.
Remove the water tank. Empty and rinse out
the tank. The water tank is NOT dishwasher
safe.
Daily maintenance
9
The capsule drawer full indicator light may turn on during normal operation. The
operation must be performed when the appliance is on.The count of the capsules
deposited in the drawer is not reset if the capsule drawer is emptied when the
appliance is o.This is why the indicator light might turn on even if the drawer is
almost empty.
Use a soft cloth and a neutral
detergent to clean the surfaces of the
appliance. Do not use jets of water to
clean the appliance.
The plastic parts of the appliance are
not dishwasher safe.

17
Descaling 10
1 2
Turn o the machine. Empty and rinse out the used capsule drawer
and drip tray.
DESCALING SIGNAL
When the descaling blinks YELLOW and
the machine emits 3 beeps, it is advisable to
perform the descaling cycle, as illustrated
below.
The machine features an
advanced program that monitors
how much water is used to
dispense beverages.This
measurement provides the user
with indications as to when the
machine needs to be descaled.
Specic indications are given in
chapter 3.
It is advisable to use the Cata System descaling agent. This has been studied to comply
with the technical characteristics of the appliance, in full observance of consumer safety.
The descaling agent must be disposed of in compliance with manufacturer instructions
and/or with current regulations in force in the country where the appliance is used.
CAREFULLY read the directions for use on the package of the descaling agent.
Avoid contact with eyes, skin and machine surfaces. Switch the appliance o during
descaling, and do not lift the lever.
A person must be present during the operation.
Do not use vinegar: it could damage your appliance!

18
Descaling
10
5
7
6
8
Place a container (at least 1 litre) under the
coee dispensing spout.
Press and hold the buttons (espresso and
long coee) and at the same time turn on the
machine by pressing the power on/o switch.
Make sure the lever is lowered and there are no
capsules inside the capsule compartment.
The long coee button is on, while the
descaling blinks alternately (YELLOW and
RED). Press the long coee button to start the
descaling cycle.
3 4
Remove and empty the water tank.
Mix the contents of one bottle of Cataly with
Mix the contents of one bottle of Cataly with
approximately 750 cc water (a total volume of
approximately 750 cc water (a total volume of
1 litre) and pour into the tank.
1 litre) and pour into the tank.

19
Descaling 10
10
The appliance dispenses the descaling solution
at intervals (5 doses with a 4 minute pause
between each one, for a total duration
of about 25 minutes). During this step,
when the buttons must not be pressed,
the descaling indicator light blinks alternately
(YELLOW and RED).
9
13
1211
Press the long coee button to start the rinse
cycle.
Empty and rinse out the used capsule drawer,
the drip tray and the 1 litre container used
previously and reposition them correctly.
When the rst step is complete, the long
coee button lights up and a beep is emitted
and repeated.The water tank is empty.
14
Carefully rinse out the water tank and ll it
with fresh drinking water.
Rinse water (about 500 ml) will be run through
the appliance. During this step the descaling
blinks alternately (YELLOW twice and RED
twice).

20
Descaling
10
16
Carefully rinse out the water tank and ll it
with fresh drinking water.
17
Empty and rinse out the used capsule drawer
and drip tray.
When the rinse cycle is complete,
When the rinse cycle is complete, the machine
emits a beep and the buttons (espresso, long
coee, lter coee) blink at the same time;
lthe machine is warming up.
When the buttons turn on and remain steadily
lit, the appliance is ready for use.
15
Use a soft cloth and a neutral detergent to
clean the surfaces of the appliance.
