San-tron Clarifi User manual

1 /16
TABLE OF CONTENTS
Table of Contents ……………………………………………………………………… 1
Vehicle Camera Record ……………………………………………………………… 2
SAFETY: Warning indicators and Safety Instructions ……………………………… 2
Contents in the Camera Box ………………………………………………………… 3
Camera Specifications ………………………………………………………………… 4
Camera Design ………………………………………………………………………… 4
Instructions for the buttons / interface / indicators ………………………………… 5
Installation
Installation instructions for the camera and camera mount ………………………… 6
Installation of Voltage Transformer cable ………………………………………… 7
Instructions for connecting the GPS Module and the Camera …………………… 8
Instructions for Adjusting for the View Angle of Unit of the Camera ……………… 8
Confirming the Installation was successful ……………………………………… 10
Instructions for charging and starting up …………………………………………… 10
Advanced Operations
Recording images with GPS ………………………………………………………… 11

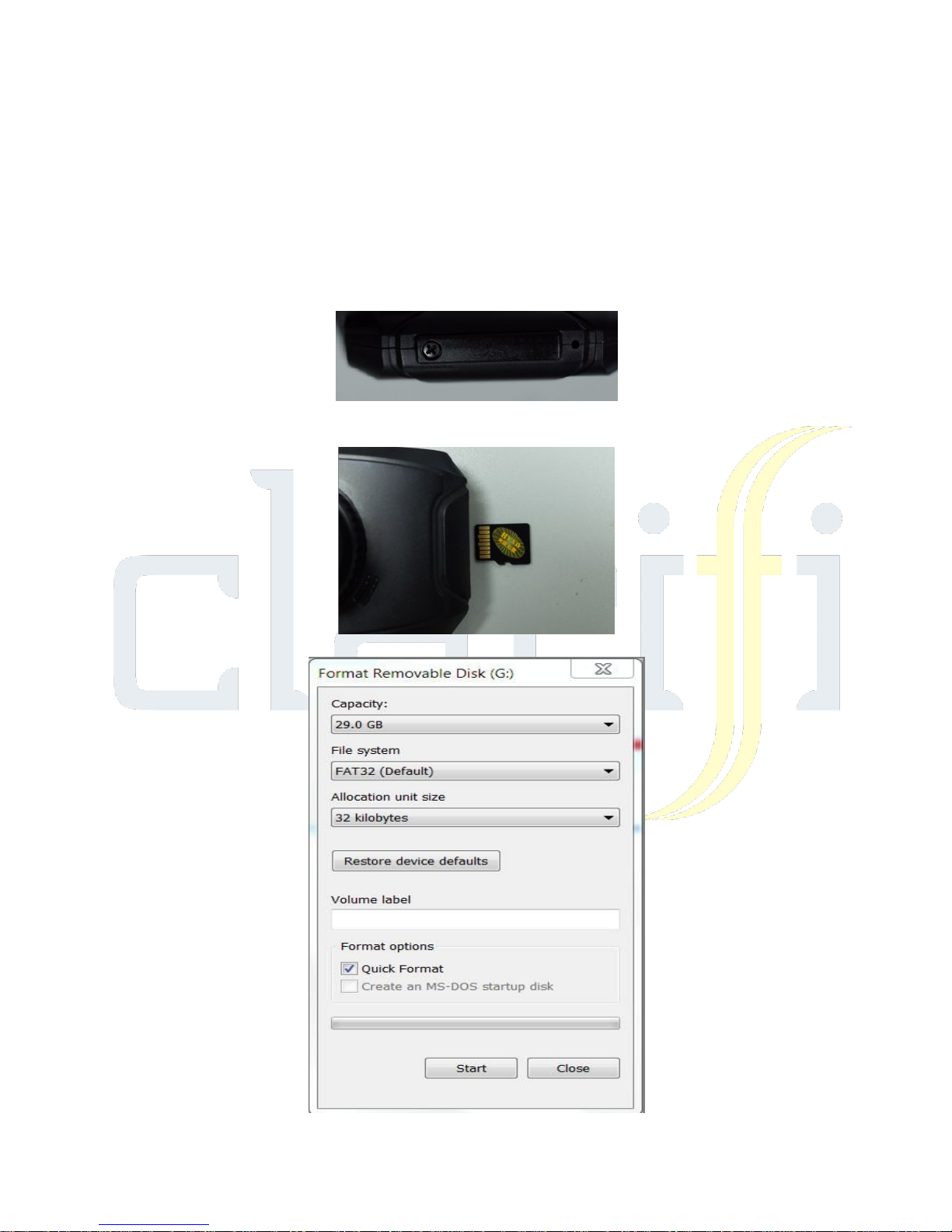

Formatting the TF card ……………………………………………………………… 12
Installing the software on a TF card ………………………………………………… 13

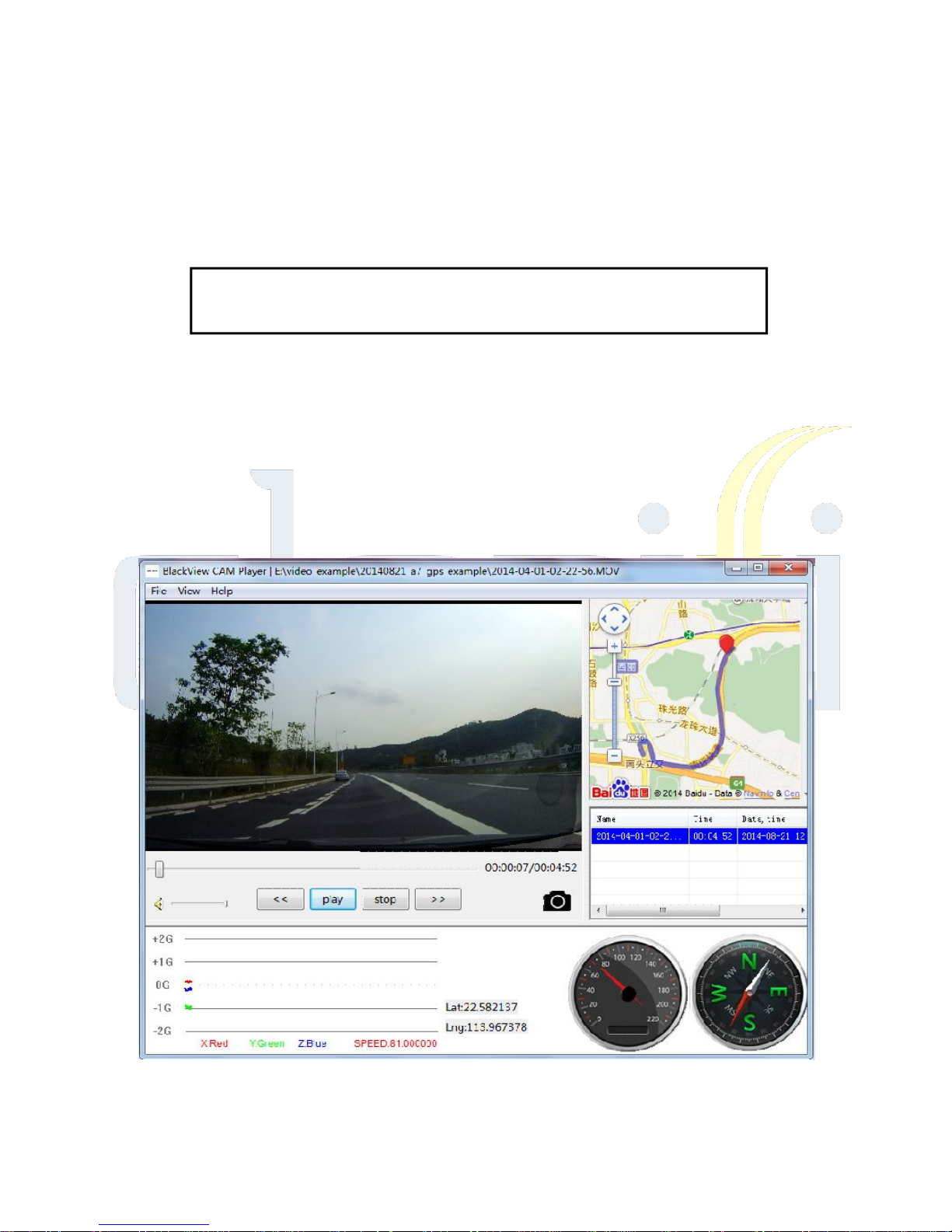

Playing video on a computer ………………………………………………………… 13
Saving videos and photos with a computer ……………………………………… 13
Potential Problems
Troubleshooting ……………………………………………………………………… 14
EN D - U S E R LI C E N S E AG R E E M E N T FO R MA P DA T A FO R V E HI C L E
UNIT PRODUCT (MODELS WITH GPS) ………………………………………… 15

2 /16
Important:
Before operating this new Clarifi Forward Facing Video Camera, read the manual
thoroughly, and retain it for future reference.
Vehicle Camera Record
The serial numbers are located on the back. Record the serial number in the space
provided below. Refer to these numbers whenever you call upon your dealer
regarding this product.
Serial No._______________________________
SAFETY: Warning indicators and Safety Instructions
This symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage” within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to person.
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
Safety Instructions
STOP!
To ensure proper operation, please carefully read the instructions in this User’s
Manual before the installation and operation of this camera. Failure to follow this
safety notice may cause exposure to electrical shock and will void the warranty.
Do not open the housing or repair the camera by yourself. If there is any
problem with the camera or accessories, please notify the appropriate
authorized personnel.

3 /16
Do not place the camera in any wet or damp environment. This camera is not
waterproof, so please avoid placing the device in any wet environment, or
being exposed to any wet weather conditions.
Do not use the camera in any extreme dust conditions to avoid having the lens
or any other parts being covered. The dust will have an impact on the video.
Do not open the housing or repair the camera by yourself. If there is any
problem with the device or accessories, please notify the appropriate
authorized personnel.
Do not use any chemical substance, cleaning solvent, or any other
commercial cleaners to clean this camera. Use only a moist soft cloth to clean
the device.
Please protect both the environment and yourself. Do not randomly discard the
camera or throw the device into a fire which can result in a high probability of an
explosion.
The Contents in the Camera Box:
(1) (2) (3)
(4) (5) (6) (7)
1) Voltage Transformer wire 2) GPS Module 3) Camera Mount
4) Displacement connector 5) HDMI Cable 6) USB cable
7) Kingston 32GB TF Card

4 /16
Camera specifications
Processor Ambarella A7LA30
Video Resolution FULL HD1920 x 1080p 30fps
Viewing Angle 140 degree view angle
Video Encode/Format H.264, Audio: AAC, MOV.
Recording Cycle recording
Camera on/off
when vehicle
powers on/off
Supporting automatic camera is on when the vehicle starts, and
turns off when vehicle shuts down.
GPS Support external GPS module
Date/Time Support
Memory Storage 32GB Class10 TF Card installed
Speaker Support
TV Output PAL
Power Interface 5V 1.5A/1+ 5-, Voltage Transformer Cable
Battery Built-in Li-ion battery 500MA/3.7V
Camera Design
1) GPS Interface 2) USB Interface 3) Screw Hole for Camera Mount
4) HDMI Interface 5) SOS Button 6) LED Indicator
7) TF Card Slot 8) Reset 9) Camera Lens
10) Speaker

5 /16
Instructions with the button /interface /indicators
Name Function Instruction
GPS Interface GPS Signal input
Connect the GPS module to the camera for GPS
signal
USB Interface
1.For camera power
source.
2.Used to adjust the
view angle of
camera.
1. Connect the voltage transformer cable to supply
power to turn on the camera.
2. Connect the voltage transformer cable to supply
power to charge the camera.
3. Connect the unit to the computer with USB cable
to adjust the view angle for of the unit before fixing
the camera.
HDMI Interface Full HD video output HDMI is for HD video output (default read-only）
SOS Button
Pressed button to
lock the files
Press SOS button under recording to lock the files
and protect them from cycle covering.
Indicators
1.Boot indication
2.Charging indication
3.Recording
indication
1. Blue indicator turns on means the battery is
charging, and when fully charged, the camera will
turn off.
2. Red indicator turns on when booting.
3. Red indicator flash when recording.
TF Card Slot Memory card slot
Insert the TF card to the card slot with the metallic
pins side towards the front of the camera. Then lock
the slot with the screw. Seal the screw with a “Clarifi”
fragile label to secure the TF card. (Authorized
personnel only）
RESET Reset function
When the red indicator stops flash during recording
and the unit crashes press the RESET button to
restart

6 /16
Installation instructions for the camera and camera mount
1. Fasten the screw of the mount into the screw hole on the top of the camera
(Refer to image 1 & 3). Then, screw down the black rotary knob (Refer to
image 2) and lock the camera in place.
Image 1 Image 2
Image 3
2. Clean the area where the 3M VHB tape base of the camera mount will be
positioned.
3. After the camera is installed on the camera mount, peel off the 3M labeled
protective plastic from the base to expose the 3M VHB tape. Place the base
of the camera mount in its predetermined position. See the pictures below for
reference.

7 /16
Installation Instructions for the Voltage Transformer Cable
1. Attach the black and red cables of the voltage transformer cable to the power
source by connecting the red cable to the positive pole and the black cable to
the negative pole.
2. Connect the end with USB joint to the USB interface on the camera
(See pictures below).

8 /16
Instructions for connecting the GPS Module to the Camera.
1. The external GPS module unit should be positioned in full view of the sky
2. Determine the best position to place the GPS unit attachment before installing.
Once the attachment is in place, connect the module cable to the GPS interface
located on the top side of the camera. (refer to the picture below)
3. After establishing the connection between the GPS module and the camera, a
vocal transmission will be heard through the camera's speaker “PS is
connected”. This confirms that the GPS module is connected. The GPS unit
should be successfully connected within 90 seconds after start-up.
Instructions for Adjusting the View Angle of the Camera
1. After the camera and the camera mount are attached to the windshield, press
the orange SOS button and connect the unit to the computer with a USB cable.
The camera will enter into the PC CAM mode automatically. The SOS button
then can be released
2. With the USB cable connected to the computer, the camera can then be turned
on. The view angle of the camera can be adjusted by the viewing of the images
on the computer screen.

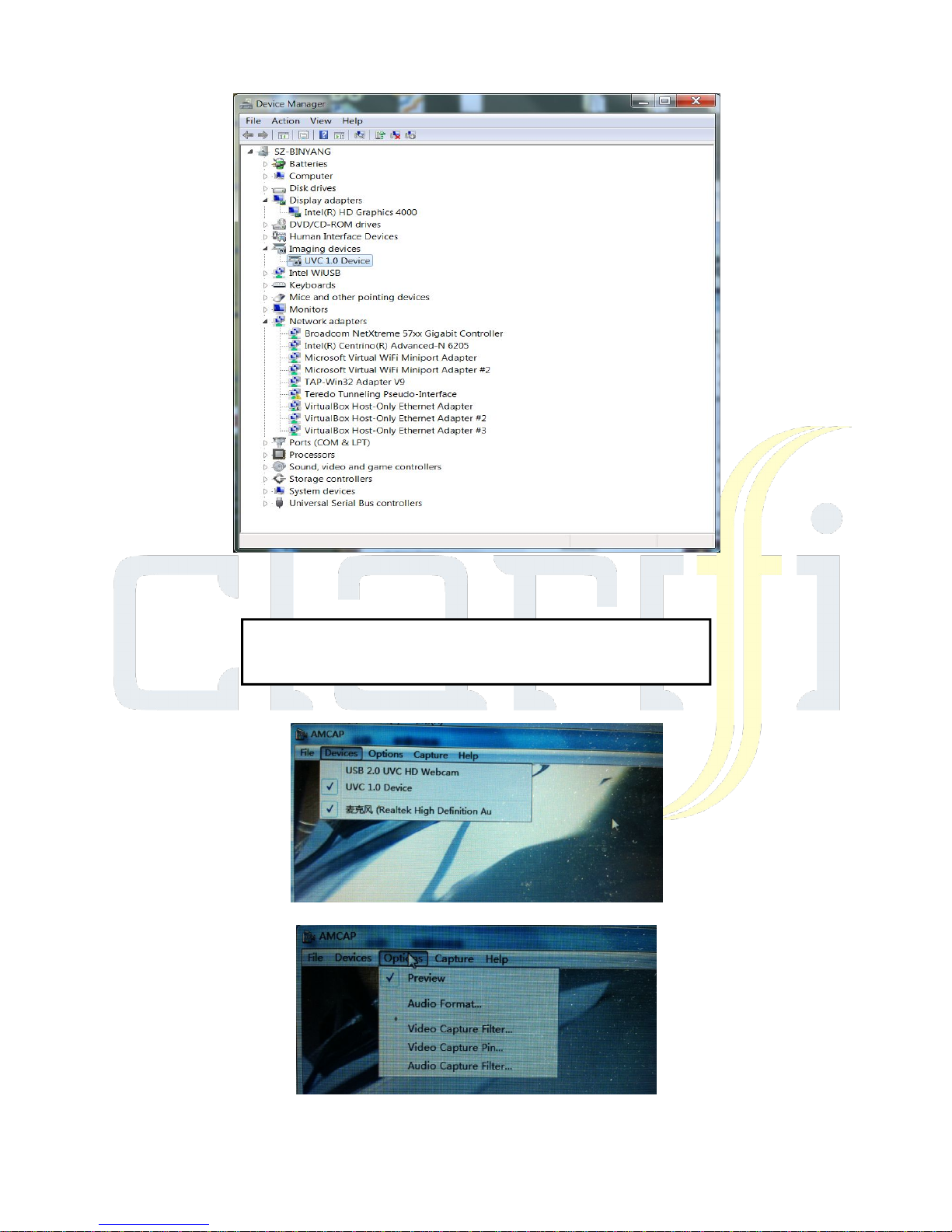

3. 3. To open the camera, search the device UVC 1.0 Unit (see Image 1 below).
Next, open the video tool on the unit (refer to the first icon shown
on Image 2 below). After the tool is opened, select the settings (see Image 3 &
4 below).

9 /16
Image 1
Image 2
Image 3
Image 4
AMCAP.EXE
--BlackView--Player--Installer-V1.101.exe
