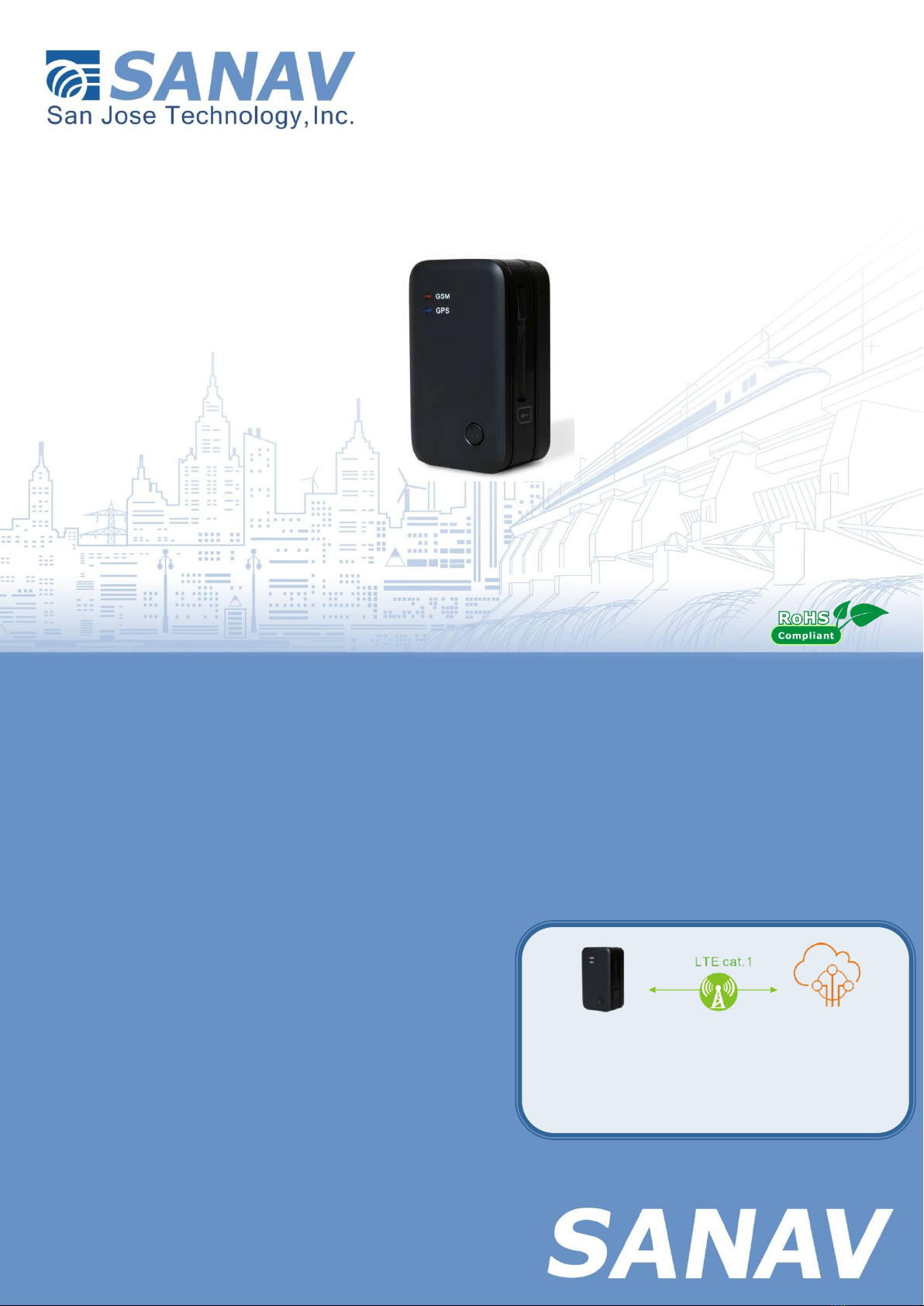

Sanav MU-201S3E User manual

1
Tracking Solutions
Embedded Antenna design
GPS&Wireless solutions Provider
AWS IoT Core
Messages are transmitted
and received using the MQTT
protocol which minimizes the
code footprint on the device
and reduces network
bandwidth requirements.
Devices publish & subscribe
Billions of devices can publish
and subscribe to messages.
MU-201S3E_AWS_IoT_GettingStarted
Product Name: GNSS/4G/2G Micro Tracker
Part Number: MU-201S3E
Doc Type: User Manual
Doc Id: WI-RD-E-046
Reversion: V1.2
AWS Service
AWS IoT Core
Application:
Fleet Management
Vehicle Security and Recovery
Asset Tracking
Covert Tracking

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
2
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
1. Download MU-201S3E Auto Certificate Tool from
https://www.sanav.com/uploadfiles/122/Catalog-pdf/autocert.zip
, and unzip AutoCert.zip to a custom location on your computer.
2. Connect MU-201S3E to PC via the Micro USB 8P data cable.
(The Micro USB 8P data cable (AP cable) is an optional accessory you
can purchase for your MU-201S3E tracker.
Please visit our website for more information
https://zh-tw.sanav.com/accessory.htm)

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
3
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
3. Make sure that Prolific USB-to-Serial COM Port (COM could vary on
different PC) shows in Device Manager. If the PC fails to detect the
tracker via a data cable, please download the driver at the link below
and install it.
http://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
4
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com

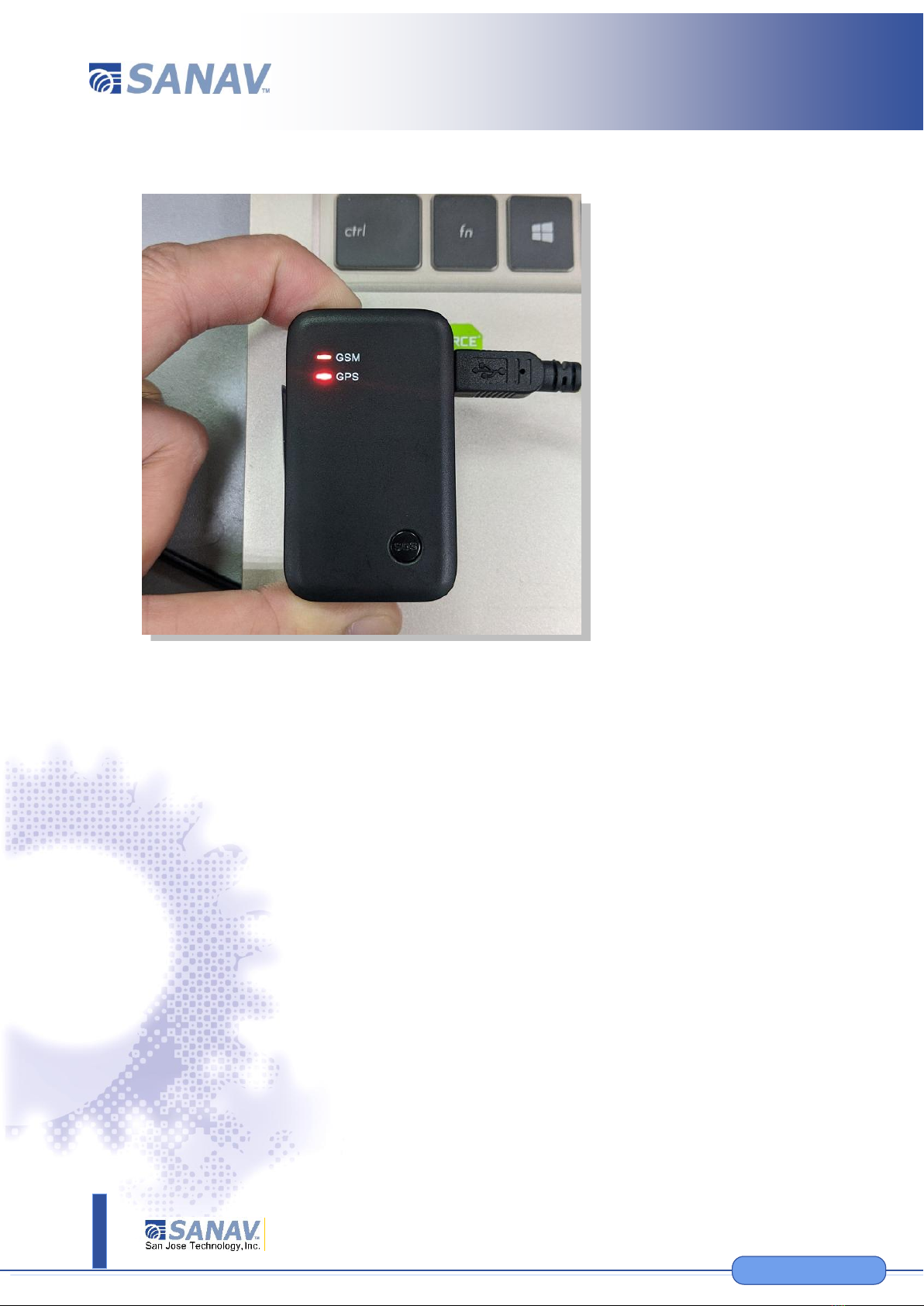

4. Press and hold the MU-201S3E power button for more than 3 seconds
to start the device.

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
5
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com

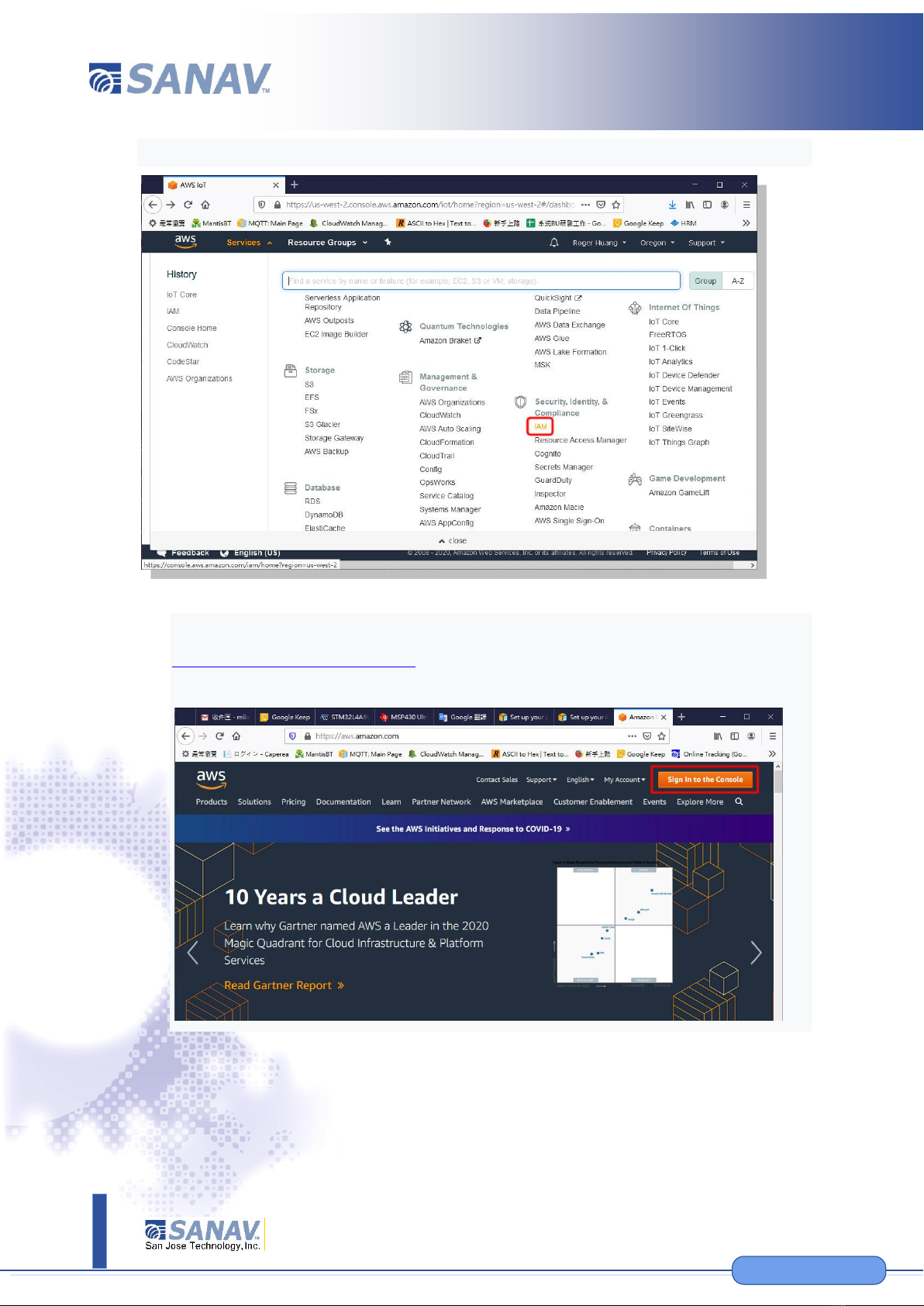

5. Log in to your Amazon AWS account and select "IAM" service:
If you haven’t register a AWS account, open:
https://aws.amazon.com/
and click “Sign In to the Console”button.

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
6
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
On the Sign in page, click “Create a new AWS account”button.
For more details, please refer to the instruction below：
https://docs.aws.amazon.com/iot/latest/developerguide/setting-up
.html#aws-registration

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
7
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com

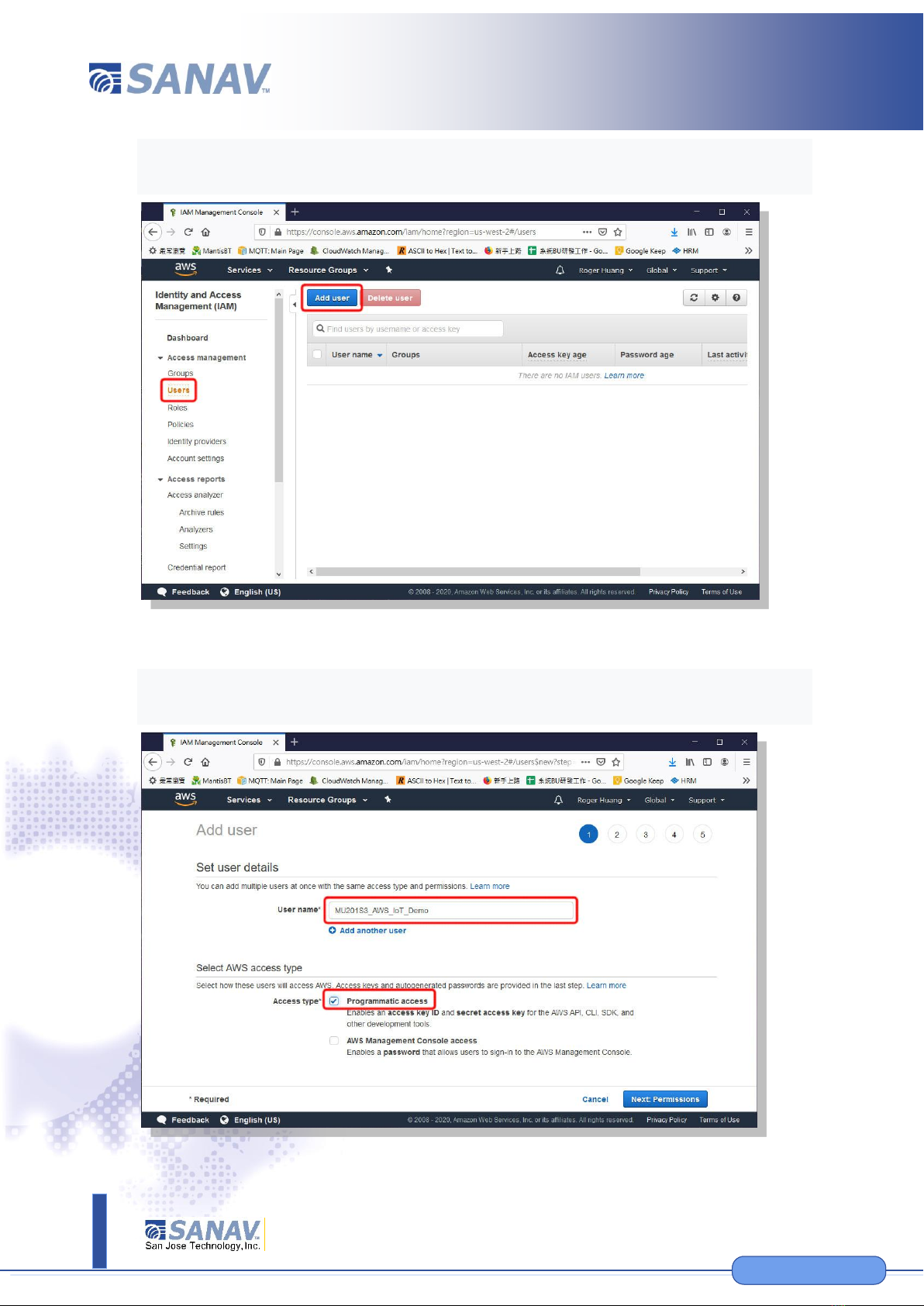

6. On the left margin of the IAM service page, select “Users” & click “Add
user”:
7. Enter a custom User name & select “Access type” as “Programmatic
access”:

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
8
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
8. To “Set permissions”- select “Attach existing policies directly” &
check AWSIoTFullAccess

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
9
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com

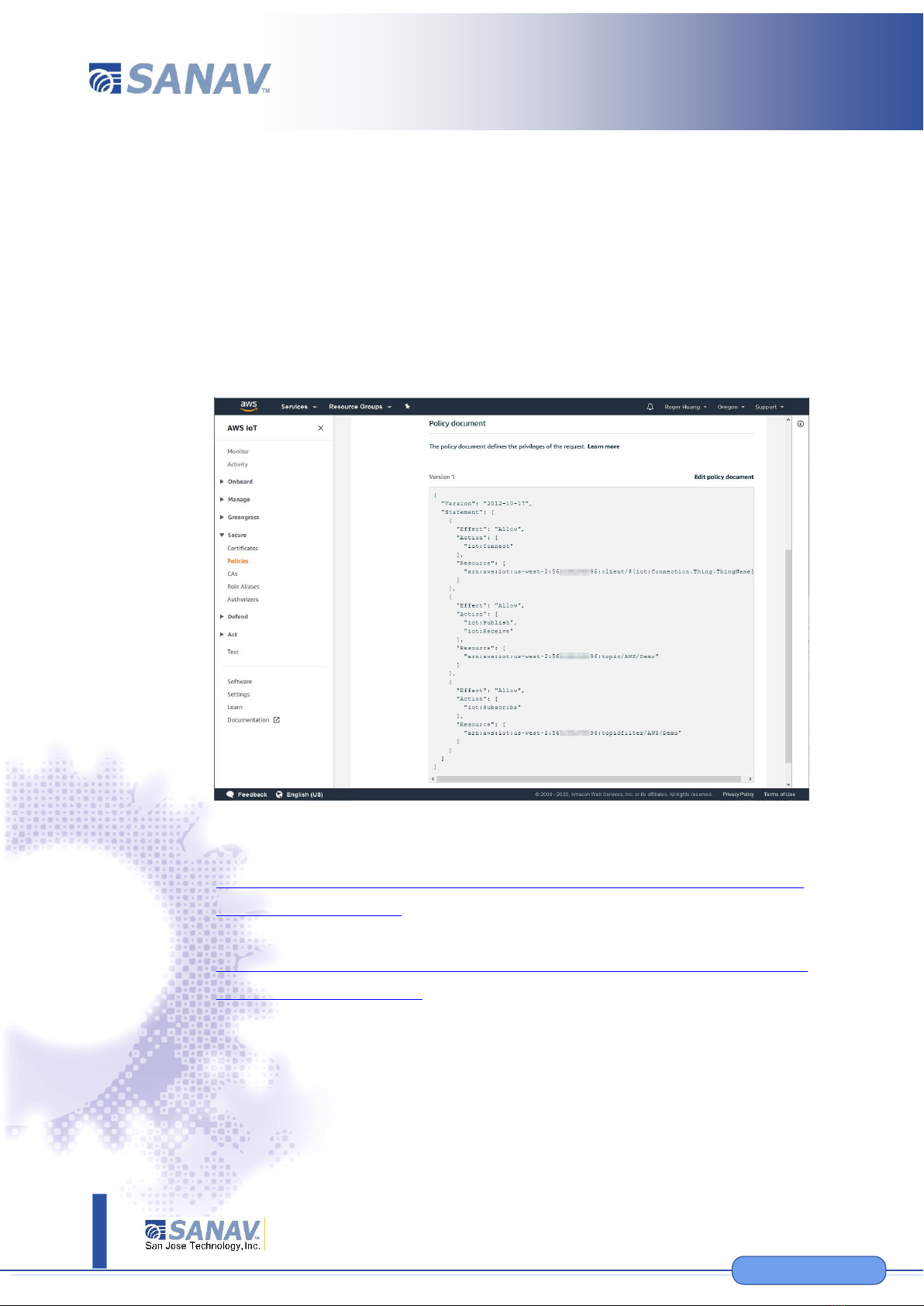

NOTE –For non-development environments, all devices in your fleet
must have credentials with privileges that authorize intended
actions only, which include (but not limited to) AWS IoT MQTT
actions such as publishing messages or subscribing to topics
with specific scope and context. The specific permission policies
can vary for your use cases. Identify the permission policies that
best meet your business and security requirements.
For sample policies:
For more details, please refer to
https://docs.aws.amazon.com/iot/latest/developerguide/exam
ple-iot-policies.html.
Also refer to
https://docs.aws.amazon.com/iot/latest/developerguide/securi
ty-best-practices.html

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
10
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
9. To skip the option to“Add tags”, select “Next: Review”
10.Confirm that the information entered on the “Review” page is correct
& click “Create user”:

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
11
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
11.A button to download the .csv file will appear after you successfully
“Create user”
12. Save the .csv file downloaded in the previous step to the AutoCert
folder. Execute the AutoCert.exe file：

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
12
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com

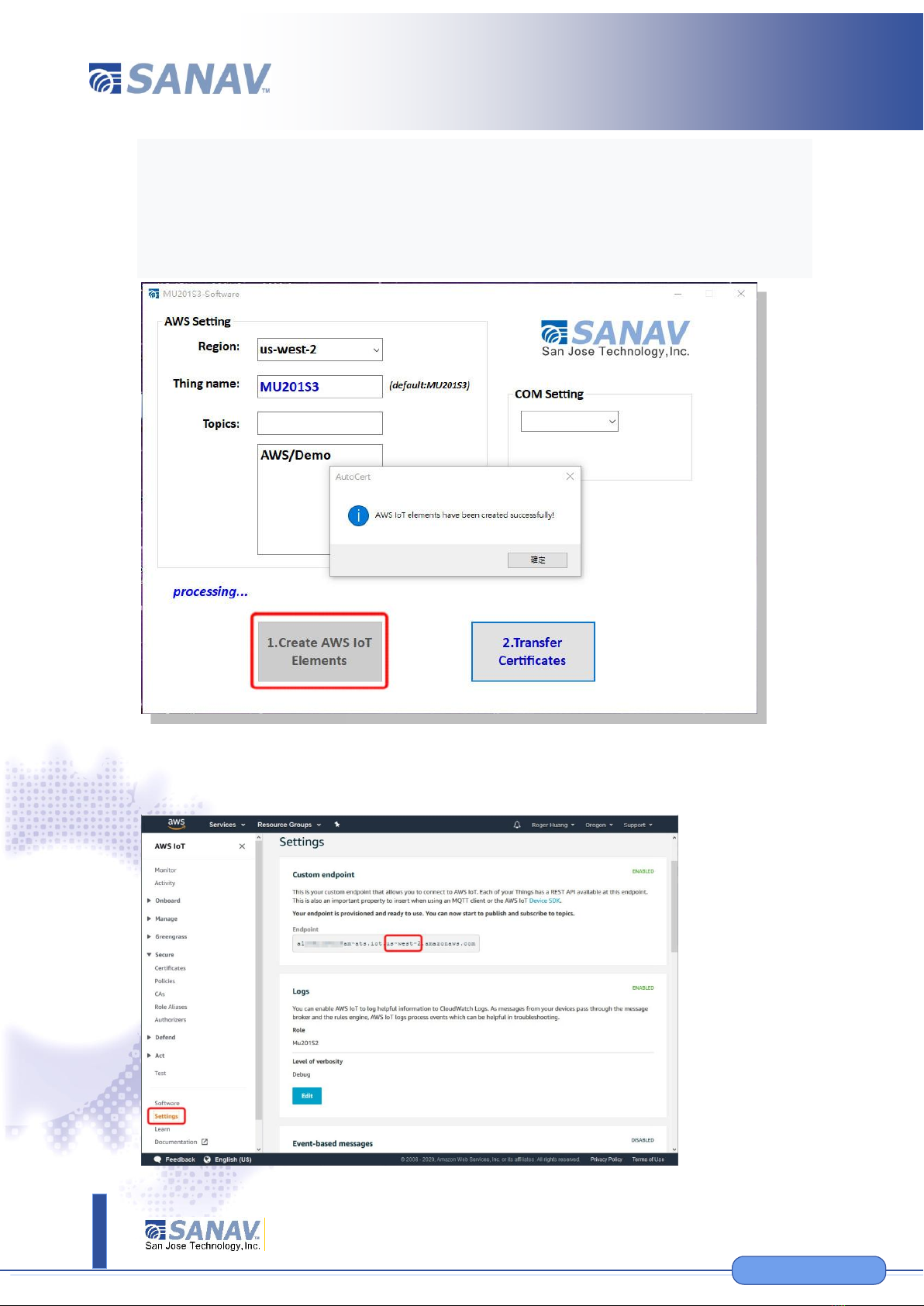

13.After executing AutoCert.exe, the following screen will appear. Select
the Region1where the AWS user is located, enter the Thing name
(cannot be repeated with other devices), Topics, and select “1.Create
AWS IoT Elements.” After that, you can create a corresponding
certificate and policy in the AWS IoT service for your device.
1After logging as an AWS user, you can get the region from the left
menu -> Settings -> Custom endpoint：

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
13
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
14. Select the port used by MU201S3 in “Com Setting” and select
“2.Transfer Certificates”：(If you are not sure which COM it is, please
see Step3 to get the COM number from Device Manger.)
15.After completing Steps 13 & 14, select “Manage -> Thing” to review
the device name you just created by AutoCert.exe in the menu on the
left margin under AWS IoT service

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
14
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
16. To confirm whether the MU201S3 data has been uploaded,
subscribe to the Topic entered in Step 13 by going to “Test”item in
the menu on the left margin under AWS IoT:

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
15
www.etek.com.tw
© San JoseTechnology,Inc. All specifications subject to change without notice.
www.sanav.com
www.sanav.com
17.After subscribing, you should be able to see the data uploaded by the
MU201S3 in the message bar below:
