Sandstrom S22FED12 User manual

Instruction Manual
22” / 24” Full HD LED TV with DVD player
S22FED12 / S24FED12
S22_24FED12_IB_120508_Annie.indd 1 12年5月8日 下午7:28

WE KNOWHOW™TO HELP
YOU WITH YOUR TV
We want you to be able to enjoy your new TV for many years. From getting it home and
setting it up, to helping you to get the most out of your new purchase. And in the unlikely
event your product lets you down, we can get it working again in no time.
Here are some of our TV services but if you want to know more look us up at
knowhow.com or call us on: 0844 561 1234
TV SET UP & DEMO
We’ll assemble the stand and connect your new TV to the existing equipment. We’ll tune your TV so it’s
ready to watch. We’ll also give you a demonstration of your new TV’s functions.
TV WALLMOUNT & DEMO
We’ll fix your TV to a suitable position on the wall and connect to your existing equipment, so it’s all
ready to go. We’ll use neat wire management so you don’t have to look at any untidy cabling and to
complete your fuss-free installation, we’ll test and demonstrate your TV’s functions.
FREESAT®SET UP & DEMO
We’ll set up the Freesat®receiver and connect it to your existing dish, TV and cabling. We’ll then tune in
all available channels.
AERIAL INSTALL & TUNE
We’ll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV.
Then we’ll scan and tune in all available digital channels.
HOME THEATRE SET UP & DEMO
We’ll un-box, connect and set up your new and existing equipment. We’ll then configure, calibrate and
optimise the equipment. To avoid ugly trailing cables, we’ll clip them to your skirting board, if you’d like
us to. Then we’ll give you a demonstration.
FAULT & FIX SERVICES
With our FAULT & FIX services, we can repair a wide range of products at our new state-of the-art
repair lab. This service is available for:
• Computer Desktops • Laptops
• Netbooks • TVs
• Games Consoles • Sky & Freeview Digi Boxes
knowhow IB A4size.pdf 1 3/15/11 10:38 AM
S22_24FED12_IB_120508_Annie.indd 2 12年5月8日 下午7:28

Contents
Preparation.........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front / Right Side View and Controls...........................................................................................................................................................................7
Rear View and Sockets......................................................................................................................................................................................................8
Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range................................................................................................................................................................................9

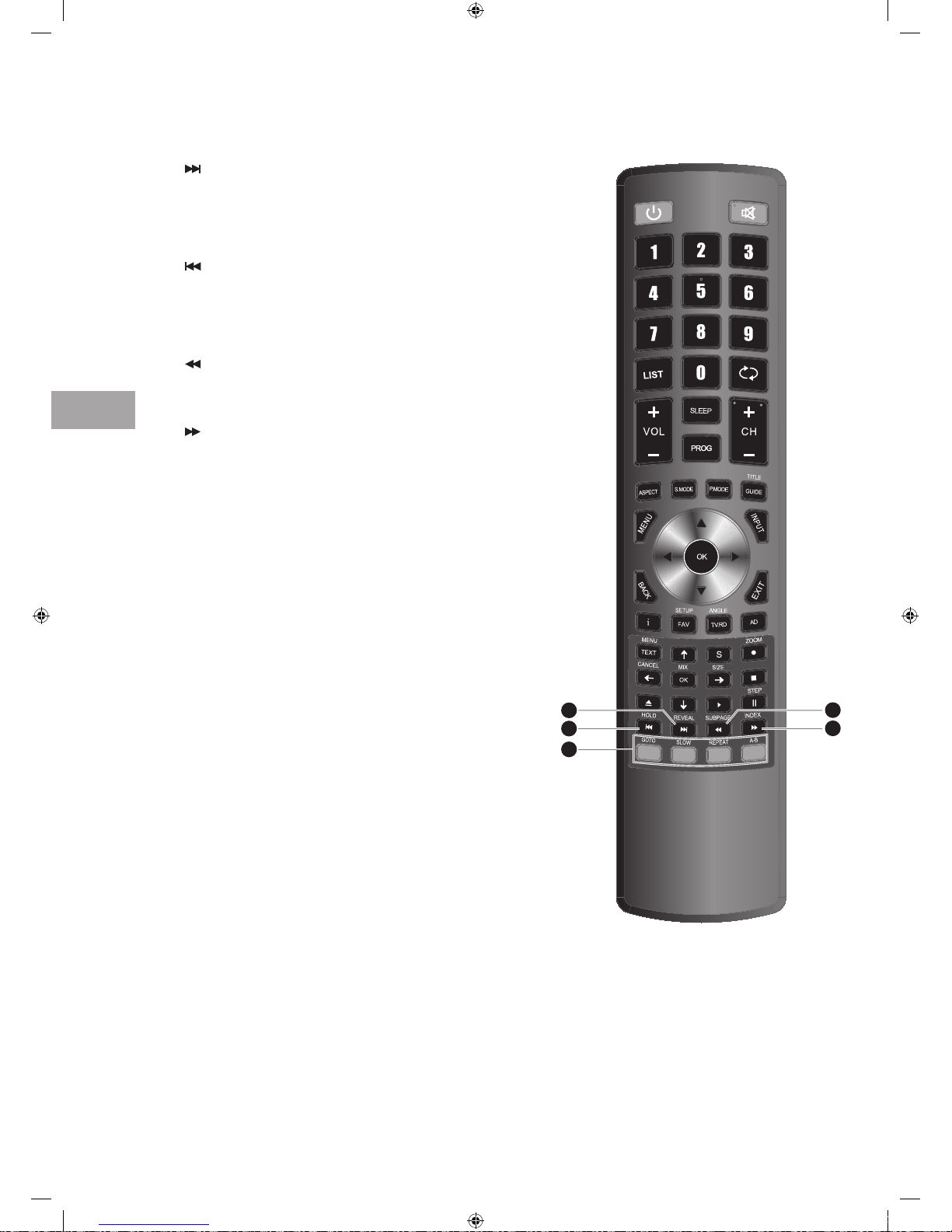

Remote Control .................................................................................................................................................................................................................10
Connections......................................................................................................................................................................................13
Making Video and Audio Connections.....................................................................................................................................................................13

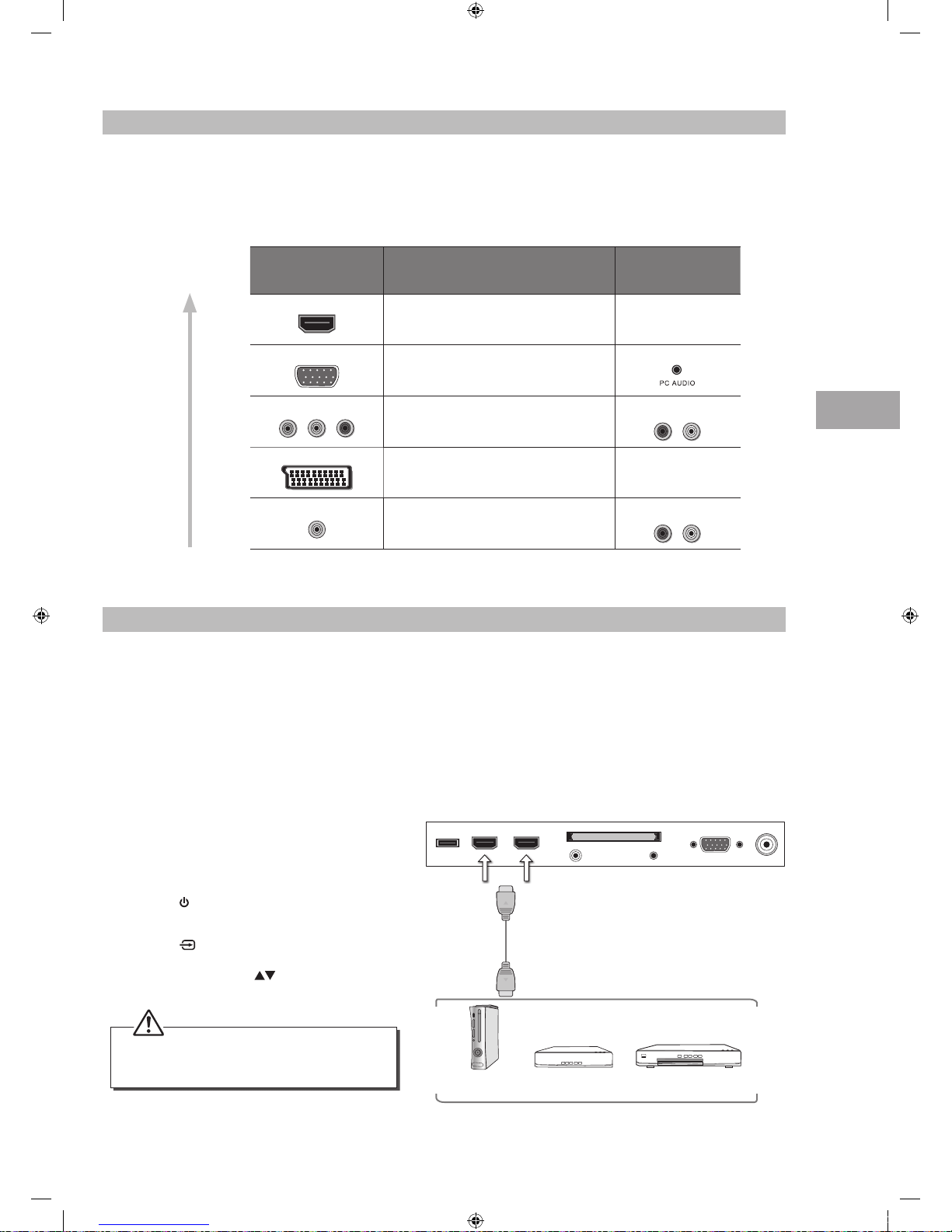

Connecting an AV Device Using an HDMI Cable...................................................................................................................................................13

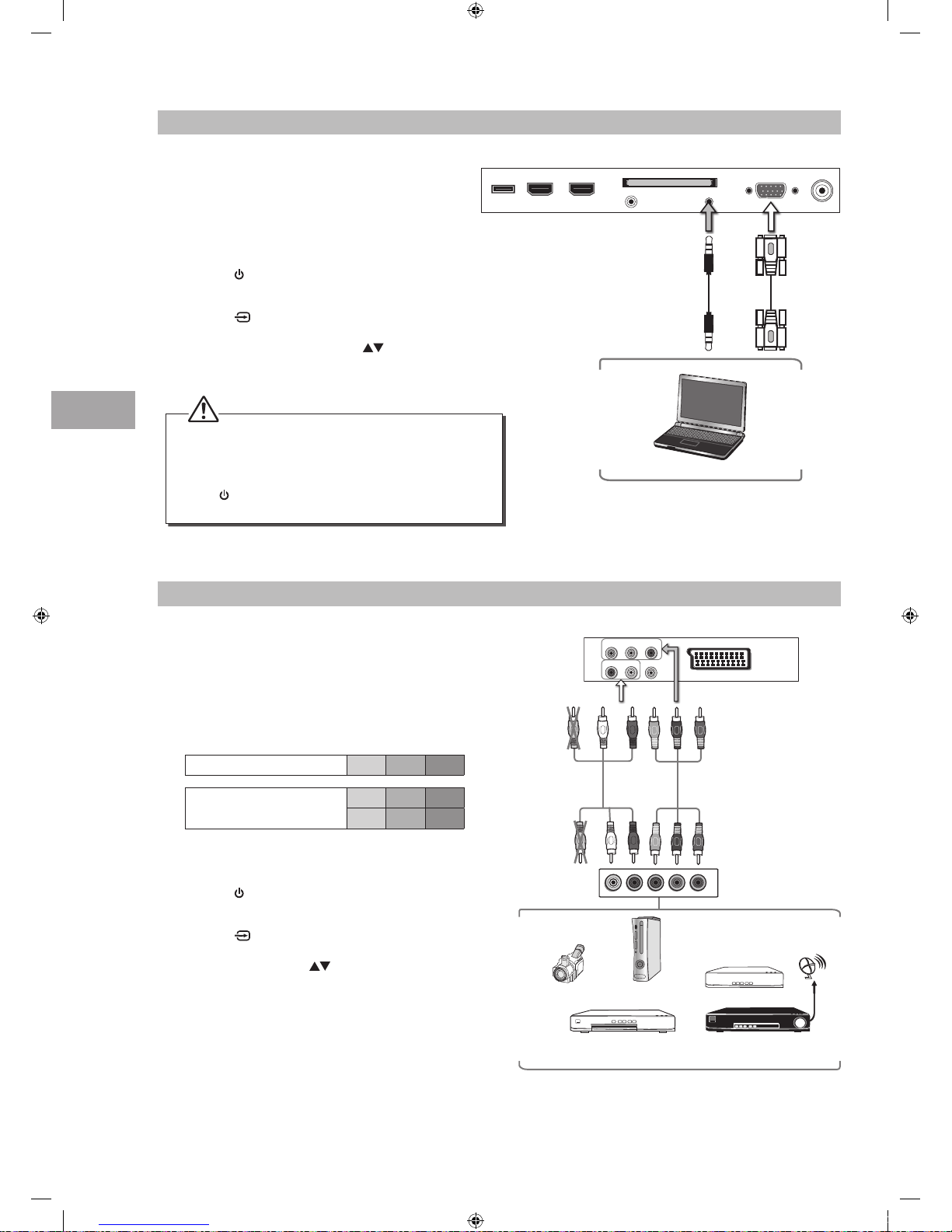

Connecting a Computer Using a VGA Cable ..........................................................................................................................................................14
Connecting an AV Device Using a Component (YPbPr) Cable ........................................................................................................................14

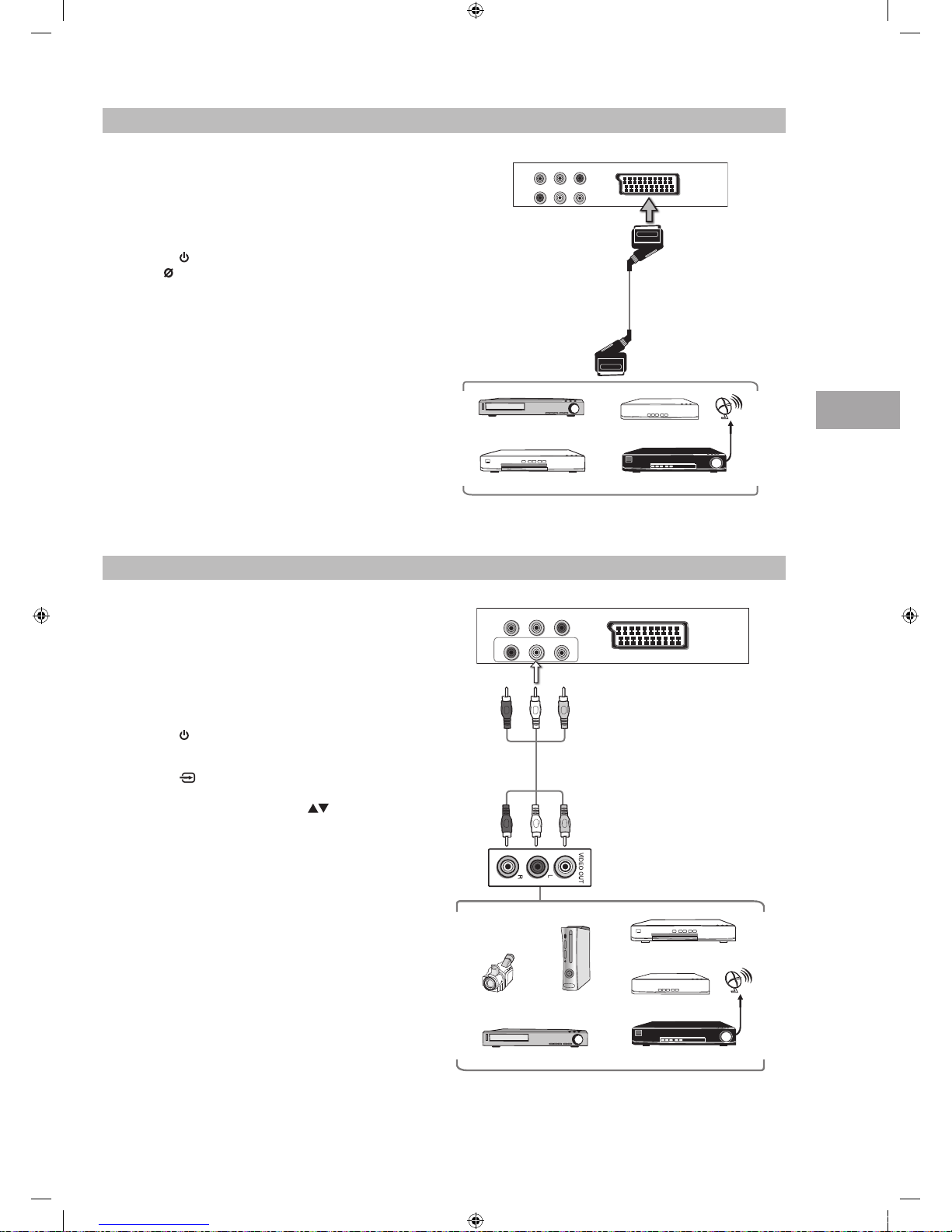

Connecting an AV Device Using a SCART Cable ...................................................................................................................................................15
Connecting an AV Device Using Composite Cable ..............................................................................................................................................15
Connecting Headphones...............................................................................................................................................................................................16
Initial Setup ......................................................................................................................................................................................17
Turning the TV On for the First Time .........................................................................................................................................................................17
− Target Region Descriptor...................................................................................................................................................................................18
− Selecting the Input Source................................................................................................................................................................................18
− Channel Selection ...............................................................................................................................................................................................19
− Display Channel Information ...........................................................................................................................................................................19
− Volume Adjustment.............................................................................................................................................................................................19
Customising TV Settings .................................................................................................................................................................20
Channel Setting (TV, DTV or Radio Mode).............................................................................................................................................................. 20
− Auto Tuning ........................................................................................................................................................................................................... 20
− DTV Manual Tuning..............................................................................................................................................................................................21
− ATV Manual Tuning..............................................................................................................................................................................................21
− Channel Edit (ATV / DTV Mode)...................................................................................................................................................................... 22
− Signal Information (DTV Mode)...................................................................................................................................................................... 23
− CI (Common Interface) (DTV Mode).............................................................................................................................................................. 24
− Software Update (Over Air Download)........................................................................................................................................................ 25
− Software Update (USB)...................................................................................................................................................................................... 25
Picture Setting .................................................................................................................................................................................................................. 26
Sound Setting ................................................................................................................................................................................................................... 28
− Stereo / Dual Sound Reception (ATV Mode).............................................................................................................................................. 29
Time Settings..................................................................................................................................................................................................................... 29
Option Setting ...................................................................................................................................................................................................................31
− OSD Language.......................................................................................................................................................................................................31
− Audio Language (DTV Mode)...........................................................................................................................................................................31
− Subtitle Language (DTV Mode)...................................................................................................................................................................... 32
− Hearing Impaired................................................................................................................................................................................................. 32
− Country.................................................................................................................................................................................................................... 33
− PVR File System (DTV Mode)............................................................................................................................................................................ 33
− CEC (Consumer Electronics Control) ............................................................................................................................................................ 34
− Restore Factory Default..................................................................................................................................................................................... 35
Lock Setting ....................................................................................................................................................................................................................... 35
− Lock System........................................................................................................................................................................................................... 35
− Set Password ......................................................................................................................................................................................................... 36
− Block Channel ....................................................................................................................................................................................................... 37
− Parental Guidance ............................................................................................................................................................................................... 38
WE KNOWHOW™TO HELP
YOU WITH YOUR TV
We want you to be able to enjoy your new TV for many years. From getting it home and
setting it up, to helping you to get the most out of your new purchase. And in the unlikely
event your product lets you down, we can get it working again in no time.
Here are some of our TV services but if you want to know more look us up at
knowhow.com or call us on: 0844 561 1234
TV SET UP & DEMO
We’ll assemble the stand and connect your new TV to the existing equipment. We’ll tune your TV so it’s
ready to watch. We’ll also give you a demonstration of your new TV’s functions.
TV WALLMOUNT & DEMO
We’ll fix your TV to a suitable position on the wall and connect to your existing equipment, so it’s all
ready to go. We’ll use neat wire management so you don’t have to look at any untidy cabling and to
complete your fuss-free installation, we’ll test and demonstrate your TV’s functions.
FREESAT®SET UP & DEMO
We’ll set up the Freesat®receiver and connect it to your existing dish, TV and cabling. We’ll then tune in
all available channels.
AERIAL INSTALL & TUNE
We’ll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV.
Then we’ll scan and tune in all available digital channels.
HOME THEATRE SET UP & DEMO
We’ll un-box, connect and set up your new and existing equipment. We’ll then configure, calibrate and
optimise the equipment. To avoid ugly trailing cables, we’ll clip them to your skirting board, if you’d like
us to. Then we’ll give you a demonstration.
FAULT & FIX SERVICES
With our FAULT & FIX services, we can repair a wide range of products at our new state-of the-art
repair lab. This service is available for:
• Computer Desktops • Laptops
• Netbooks • TVs
• Games Consoles • Sky & Freeview Digi Boxes
knowhow IB A4size.pdf 1 3/15/11 10:38 AM
S22_24FED12_IB_120508_Annie.indd 3 12年5月8日 下午7:28

Using the Features ...........................................................................................................................................................................40
EPG (Electronic Programme Guide) (DTV Mode) ................................................................................................................................................. 40
− Switch On / O EPG............................................................................................................................................................................................. 40
− Select a Programme ........................................................................................................................................................................................... 40
Teletext (ATV Mode).........................................................................................................................................................................................................41
− To Turn on Teletext Function............................................................................................................................................................................41
Digital Teletext (DTV Mode)......................................................................................................................................................................................... 42
− Teletext within Digital Service........................................................................................................................................................................ 42
Entertainment ..................................................................................................................................................................................43
Connecting a USB Storage Device............................................................................................................................................................................. 43
Viewing Photos................................................................................................................................................................................................................. 43
Listening to Music............................................................................................................................................................................................................ 44
Viewing Movies ................................................................................................................................................................................................................ 45
My Text................................................................................................................................................................................................................................. 46
PVR (Personal Video Recorder).......................................................................................................................................................47
Time Shift Function......................................................................................................................................................................................................... 47
Recording DTV Programme onto a USB Storage Device .................................................................................................................................. 48
Timer Programming ....................................................................................................................................................................................................... 49
Play Recorded Programme .......................................................................................................................................................................................... 50
Using the DVD Features...................................................................................................................................................................51
Using the Built-in DVD Player.......................................................................................................................................................................................51
Compatible Disc Types ...................................................................................................................................................................................................51
− Supported Formats..............................................................................................................................................................................................51
− Region Code ...........................................................................................................................................................................................................51
Basic DVD Playback Functions.................................................................................................................................................................................... 52
− Playing the DVD ................................................................................................................................................................................................... 52
− Menu Playback (for DVD).................................................................................................................................................................................. 52
− Stopping Playback............................................................................................................................................................................................... 52
− Previous / Next (for DVD / CD / Multimedia discs) .................................................................................................................................. 52
− Forward / Backward (for DVD / CD / Multimedia discs)......................................................................................................................... 52
− Pause (for DVD / CD / Multimedia discs) ..................................................................................................................................................... 52
− Repeat (for DVD / CD / Multimedia discs)................................................................................................................................................... 53
− Display (for DVD / Multimedia discs)............................................................................................................................................................ 53
− Goto (for DVD / CD / Multimedia discs)....................................................................................................................................................... 53
− Audio (for DVD / CD)........................................................................................................................................................................................... 53
− Repeat A-B (for DVD / CD)................................................................................................................................................................................. 53
Program (for DVD) ........................................................................................................................................................................................................... 53
Playing Multimedia Discs.............................................................................................................................................................................................. 54
Using the DVD Language Setup Page...................................................................................................................................................................... 56
Using the DVD Video Setup Page.............................................................................................................................................................................. 56
Using the DVD Rating Setup Page............................................................................................................................................................................. 57
Using the DVD Misc Setup Page................................................................................................................................................................................. 57
Maintenance.....................................................................................................................................................................................58
Hints and Tips...................................................................................................................................................................................59
Display Modes ..................................................................................................................................................................................61
YPbPr Mode ........................................................................................................................................................................................................................61
PC Mode ...............................................................................................................................................................................................................................61
HDMI Mode ........................................................................................................................................................................................................................61
Specifications ...................................................................................................................................................................................62
Safety Warnings ...............................................................................................................................................................................64
Safety Warnings................................................................................................................................................................................................................ 64
S22_24FED12_IB_120508_Annie.indd 4 12年5月8日 下午7:28

5
Preparation
GB
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
TV Base
(P.N.: 223C1951131)
TV Stand Support
(P.N.: 115C1951101)
Remote Control / AAA Batteries x 2
(P.N.: 504C1961101 & 32200007158)
TV
Screw A x 1
(P.N.: 209090415W1)
Metal Plate x 1
(P.N.: 202C2651001)
Screw B x 3
(P.N.: 209020412B1)
Instruction Manual
(P.N.: 4031C225108)
Quick Start Guide
(P.N.: 4033C225102)
Preparation
Digital TV Switchcover Addendum
(P.N.: 4031C241307)
Thank you for purchasing your new Sandstrøm 22” / 24” Full HD LED TV with DVD player.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual so that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
S22_24FED12_IB_120508_Annie.indd 5 12年5月8日 下午7:28

6
Preparation
GB
4. To install the base stand, align the screw hole and
metal plate, then secure with a screw driver (not
included) using the screw B provided.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or
thick piece of foam) is placed beneath the screen.
3. To install the TV stand, first attach the stand support
to the TV by using screw A. Align the screw hole then
use screw A to fix the stand support to the TV.
5. To remove the stand assembly, untighten the screw
holding the stand assembly to the rear of the TV. Slide
the stand assembly out.
6. Mounting on the wall. This TV is designed to be
wall-mounted with a standard 100 mm x 100 mm
mounting kit (sold separately) designed for flat-panel
TVs. Mount this TV according to the instructions
included in the mounting kit. Due to space restrictions,
we recommend that you make all connections (refer to
page 13-16 and page 43 for details) before mounting
on to the wall.
Installing / Removing the Base Stand
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE(CI) RF
100 mm
100 mm
Four mounting holes
(size M4x12 screw)
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE(CI) RF
Screw A x 1
(P.N.: 209090415W1)
unscrew
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE(CI) RF
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE(CI) RF
Screw A x 1
(P.N.: 209090415W1)
screw
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE(CI) RF
Screw B x 3
(P.N.: 209020412B1)
screw
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT
exert pressure on the front of the TV at any time because the screen could crack.
Remove the stand assembly before mounting the TV onto the wall.
Keep all the spare screws should you want to use
the stand assembly option.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is
open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
S22_24FED12_IB_120508_Annie.indd 6 12年5月8日 下午7:28

7
Preparation
GB
Front / Right Side View and Controls
Item Description
1POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will flash blue and red when the timer programming has started in
standby mode.
2IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 Disc Slot Insert the disc with the label side facing towards the rear of the TV. (12 cm discs only.
Don't insert 8 cm discs.)
4 Press to eject disc. (DVD mode)
5 Press to start playback or pause. (DVD mode)
6 INPUT
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.
Use the buttons on the remote control to select the input, and then press the OK
button to confirm.
7MENU Displays the OSD (on screen display) menu.
8 CH + / – Press to select a channel or select a sub-menu from the OSD menu.
9 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
10 Switches the TV on from standby mode.
Switches the TV back to standby mode.
3
1 2
6
4
5
7
9
10
8
S22_24FED12_IB_120508_Annie.indd 7 12年5月8日 下午7:28

8
Preparation
GB
Rear View and Sockets
Socket Description
1 Y, PB, PR / AUDIO (L/R) Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
2 VIDEO / AUDIO (L/R) Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
5 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
6 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 24 for details.)
7 HEADPHONE Connects to the headphones.
8 HDMI1 / HDMI2 Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
9 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE (CI) RF
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
4
5
6
7
9
8
1 2
Y PB PR
R L VIDEO
SCART
3
S22_24FED12_IB_120508_Annie.indd 8 12年5月8日 下午7:28

9
Preparation
GB
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure the (+) and ( - ) ends of
the batteries match the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
30° 30°
5M
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause fire,
personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same time
with new ones.
• Do not install new batteries with used ones and do
not mix different types of batteries.
• Do not dispose of used batteries as domestic waste.
Dispose of them in accordance with local regulations.
Handling the Remote Control
• Take care of your fingernails when you press and hold
the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight
or near sources of excessive heat.
• Remove the battery from the remote control when
not in use for a long period of time, as it could
cause corrosion or battery leakage and may result
in physical injury and/or property damage including
fire.
S22_24FED12_IB_120508_Annie.indd 9 12年5月8日 下午7:28

10
Preparation
GB
1.
Switch the TV between on and standby mode.
2. MUTE
Mute and restore your TV sound.
3. 0-9 Number Button
• Press to select a programme.
• Select numbered items in a menu. (DVD mode)
4. LIST
• Display the channel list. (ATV / DTV mode)
• Display the text page on the teletext screen. (ATV mode)
5. RECALL
• Return to the previous viewing channel. (ATV / DTV mode)
• Return to menu (DVD mode)
6. SLEEP
Set the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
7. VOL + / –
Adjust the volume.
8. CH + / –
Select a channel.
9. PROG
• Display the channel edit menu. (ATV / DTV mode)
• Programme the DVD. (DVD mode)
10. S.MODE
Select sound mode: Standard / Music / Movie / Sports / User.
11. ASPECT
Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom /
Subtitle / Smart Zoom / Full.
12. GUIDE
Displays the EPG Electronic Programme Guide. (DTV mode)
TITLE
Display the DVD title content. (DVD mode)
13. P.MODE
Select picture mode: Standard / Mild / User / Dynamic.
14. MENU
Display the OSD (On Screen Display) menu.
15. INPUT
Select among the dierent input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD /
USB.
16.
Allows you to navigate the OSD menus and adjust the system
settings to your preference.
OK
Conrm the selection in the OSD menus.
17. BACK
Return to the previous menu in the OSD menus.
18. Exit
Exit the OSD menu.
Remote Control
12
5
8
12
15
18
9
13
3
4
7
11
14
16
17
6
10
S22_24FED12_IB_120508_Annie.indd 10 12年5月8日 下午7:28

11
Preparation
GB
19. FAV
Display the favourite channel list. (ATV / DTV mode)
SETUP
Display and exit the DVD setup menu. (DVD mode)
20. i
Display the present screen information such as the current
channel on ATV / DTV mode and the input source except
ATV / DTV mode.
21. TV.RD
A short-cut to switch input source to TV / Digital radio
channels.
ANGLE
Select dierent angles for the video. (DVD mode)
22. AD (Audio Description)
• Turn on / o the Audio Description (AD) function (only
applicable when the TV programme has this feature).
(DTV mode)
• Select dierent Audio mode on DVD mode. (DVD mode)
• Select Stereo / Dual Sound Reception. (ATV mode)
23. TEXT
Turn on and o the teletext function. (ATV / DTV mode)
MENU
Display the DVD menu. (DVD mode)
24. S (Subtitle)
• Display subtitles which are broadcast with the
programme. (DTV mode)
• Display subtitles on the DVD. (DVD mode)
25. REC
Record the current programme. (DTV mode).
ZOOM
Zoom in on the displayed frame. (DVD mode)
26.
Navigate the DVD menu and adjust the system settings to
your preference. (DVD mode)
OK
Conrm the selection in the DVD menus. (DVD mode)
CANCEL
Exit the teletext mode. (ATV mode)
MIX
Select TELETEXT with a TV programme. (ATV mode)
SIZE
Enlarge the picture on the TV in teletext. (ATV mode)
27. Stop
Stop the playback or recording. (DVD / USB / DTV mode)
28.
Eject a disc. (DVD mode)
29. Pause
• Pause playback. (DVD / USB mode)
• Start the time-shift function (DTV mode)
STEP
Play the playback forward frame by frame. (DVD mode)
30. PL AY
Start playback. (DVD / USB mode)
25
27
29
30
23
24
26
28
22
20
2119
S22_24FED12_IB_120508_Annie.indd 11 12年5月8日 下午7:28

12
Preparation
GB
31.
Skip to the beginning of the next chapter / track / photo.
(DVD / USB mode)
REVEAL
Reveal hidden information such as the answer to a quiz
in teletext. (ATV mode)
32.
To skip to the beginning of the previous chapter / track /
photo. (DVD / USB mode)
HOLD
Freeze a multi-page passage on screen in teletext. (ATV
mode)
33.
Reverse playback rapidly. (DVD / USB mode)
SUBPAGE
Display the subpage on the teletext screen. (ATV mode)
34.
Advance playback rapidly. (DVD / USB mode)
INDEX
Select the page number of the index from teletext. (ATV
mode)
35. Coloured buttons
Access the TELETEXT items or channel edit when using
Digital / Freeview TV Channels. (ATV / DTV mode)
GOTO (RED)
Skip to a specic location on a DVD / CD. (DVD mode)
SLOW (GREEN)
Play video slowly. (DVD mode)
REPEAT (YELLOW)
Select between dierent repeat modes. (DVD mode)
A–B (BLUE)
Repeat a segment between A and B. (DVD mode)
34
33
32
35
31
S22_24FED12_IB_120508_Annie.indd 12 12年5月8日 下午7:28

Connections
13
GB
Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• This TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected and corresponds to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV or
on the remote control to turn on your TV.
4. Press the button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the buttons to select HDMI1
/ HDMI2 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type Separate Audio
Connection Required
HDMI1
HDMI
(480i/480p/576i/576p/720p/1080i/1080p) No
PC IN
PC
Yes
Y PB PR
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Yes
R L
SCART
SCART (RGB Input) No
VIDEO
Composite Video
Yes
R L
Best Video
Performance
Connections
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Rear Right Side View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
Although this TV is able to connect to an HDMI
device, it is possible that some devices may not
operate correctly.
S22_24FED12_IB_120508_Annie.indd 13 12年5月8日 下午7:28

Connections
14
GB
Connecting an AV Device Using a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV YPb Pr
Video output ports on DVD
player
YPb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the button on the right side panel of the TV or
on the remote control to turn on your TV.
5. Press the button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the buttons to select YPbPr
and then press the OK button to confirm.
Connecting a Computer Using a VGA Cable
1. Use a VGA cable to connect the TV’s PC IN input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or the INPUT button on the remote control
to display the Source List. Use the buttons
to select PC and then press the OK button to
confirm.
Rear Right Side View of TV
Computer
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
VGA Cable
(not included)
Audio Cable
(not included)
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
Y PB PR
R L VIDEO
SCART
Rear Right Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
• The best resolution is 1920 x 1080.
• If your computer is set to shut down after a few minutes
in the idle mode, the TV will also switch to standby due
to no signal being received, this is to save energy. Press
the button on the right side panel of the TV or on the
remote control to restart the TV.
S22_24FED12_IB_120508_Annie.indd 14 12年5月8日 下午7:28

Connections
15
GB
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV
or the button on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or the INPUT button on the remote control
to display the Source List. Use the buttons
to select AV and then press the OK button to
confirm.
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Y PB PR
R L VIDEO
SCART
Rear Right Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
Y PB PR
R L VIDEO
SCART
SCART Cable
(not included)
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
Rear Right Bottom View of TV
S22_24FED12_IB_120508_Annie.indd 15 12年5月8日 下午7:28

Connections
16
GB
Connecting Headphones
Connect your headphones to the TV’s HEADPHONE
socket.
Before putting on the headphones, turn the volume
down then put the headphones on and slowly
increase the volume until you reach a comfortable
listening level.
Rear Right Side View of TV
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Earphones Cable
(not included)
Long-term exposure to loud music may cause
hearing damage. It is best to avoid extreme
volume when using headphones, especially for
extended periods.
S22_24FED12_IB_120508_Annie.indd 16 12年5月8日 下午7:28

Initial Setup
17
GB
Initial Setup
6. Press the buttons to navigate the menu and change the
settings. Press the OK button to confirm.
OSD Language Select your desired language to be displayed on
the menu. The default on-screen menu language
is set as English.
Country Select the country where you will operate the TV.
The default country is set as UK.
Turning the TV On for the First Time
1. Connect one end of the RF coaxial cable to the
aerial socket on the wall and the other end of the
cable to the RF (75Ω) socket at the rear right side
of your TV.
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE (CI) RF
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE (CI) RF
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
RF coaxial cable
(not included)
OR
2. Connect the mains cable to the mains socket after
you have completed all the connections.
3. At this stage, the TV switches to standby mode. The
red LED indicator will illuminate on the front panel of
the TV.
4. In standby mode, press the button on the right side
panel of the TV or on the remote control to turn the
TV on. The red LED indicator will turn blue.
Y
R
Pb
L
Fr
VIDEO
SCART
VGA
PCAUDIOHEADPHONE
USB HDMI2 HDMI1
COMMONINTERFACE (CI) RF
To the mains
socket
5. The first time you turn the TV on, it will go straight into the First Time
Installation menu. Please ensure the aerial is plugged in and then press
the OK button. (If you have already installed the TV using the Quick Start
Guide, please go to the section “Selecting the Input Source” on the next
page.)
Dansk
Deutsch
Hrvatski
Italiano
OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E k
Espanol
~
Fran ais
Portugues
Pycck
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
France
Greece
UK
Australia
Austria
Czech
Denmark
Finland
Country
OK
Belgium
Bulgaria
Croatia
Hungary
Italy
Luxembourg
Germany
Do not connect the TV to the mains
supply until you have completed all the
connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the right side panel of the TV or on the remote control is only used for switching the TV into standby, it
does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains
plug from the mains socket.
S22_24FED12_IB_120508_Annie.indd 17 12年5月8日 下午7:28

Initial Setup
18
GB
7. Channel tuning will commence. This operation may take up to 6 minutes.
The display will show the progress of the tuning and the number of
channels found.
8. If you want to skip the ATV tuning, press the MENU button to interrupt
the tuning half way. A pop-up screen will be displayed, press the
button to select YES to confirm. You will then go straight to DTV tuning.
You may repeat the above step if you also want to skip the DTV tuning.
An installation reminder will appear the next time you turn on the TV.
9. After tuning is complete, the channels are arranged in a preset order. If
you wish to skip channels, modify the preset order or rename channels,
select Channel Edit under the Channel menu (refer to page 22-23 for
details).
Target Region Descriptor
During tuning your TV may have received signals from more than one
transmitter. If this has occurred the Target Region Descriptor screen will be
displayed. This will enable you to select the correct regional transmission for
the local news service that you require.
Press the buttons to adjust each option's setting and then press the OK
button to confirm.
Country Code This will be shown as GBR for the UK.
Primary Region This will show the regional country (e.g. England,
Wales, Scotland, NI).
Secondary Region This will allow you to set the region for your local
news service.
Tertiary Region
You may receive signals from more than one
transmitter within the Secondary Region, (e.g Beds
and Cambs may have Luton or Sandy Heath).
Selecting the Input Source
1. Press the button on the right side panel of the TV or the INPUT
button on the remote control to display the Input source list.
2. Press the buttons to select the input source that you want: DTV /
ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.
3. Press the OK button to confirm your selection.
Alternative
Press the TV.RD button to switch to TV / digital radio channels
directly.
Input Source
OK
DTV
ATV
SCART
YPbPr
PC
HDMI1
HDMI2
AV
DVD
USB
Channel Tuning
TV : 3 Channel(s)
DTV : 0 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz (TV)
Please press MENU to skip.
Target Region Setting
Country Code GBR
Primary Region England
Secondary Region
Tertiary Region
London
S22_24FED12_IB_120508_Annie.indd 18 12年5月8日 下午7:28

Initial Setup
19
GB
Channel Selection
• Press the CH + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel.
Alternative
Press the LIST button to enter the Channel List. Then use the buttons to highlight and select the channel.
Press the OK button to view the selected channel.
• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the
channel will then be unlocked (refer to page 37 for details on Block Channel).
• Press the FAV button to view the Favourite List. Then use the buttons to highlight and select the channel. Press the OK
button to view the selected channel (refer to page 22-23 for details on Channel Edit).
• Press the button to return to the previously viewed channel.
Display Channel Information
• Press the ibutton to view the current information.
Volume Adjustment
• Press the VOL + or –button on the side panel of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the MUTE button. Press the MUTE button again or the VOL + or –button to
resume audio listening.
S22_24FED12_IB_120508_Annie.indd 19 12年5月8日 下午7:28

Customising TV Settings
20
GB
4. Channel tuning will commence. This operation may take up to 6 minutes.
The display will show the progress of the tuning and the number of
channels found.
5. If you want to skip the ATV tuning, press the MENU button to interrupt
the tuning half way. A pop-up screen will be displayed, press the
button to select YES to confirm. You will then go straight to DTV tuning.
You may repeat the above step if you also want to skip the DTV tuning.
An installation reminder will appear the next time you turn on the TV.
6. After tuning is complete, the channels are arranged in a preset order. If
you wish to skip channels, modify the preset order or rename channels,
select Channel Edit under the channel menu (refer to page 22-23 for
details).
3. In the Tune Type menu, press the buttons to select ATV / DTV /
DTV + ATV. Press the button and then press the buttons to
select the country where you will operate the TV. Press the OK button to
confirm.
2. Press the buttons to select Auto Tuning and then press the OK
button.
Channel Setting (TV, DTV or Radio Mode)
Auto Tuning
Use this to automatically find and store all available channels. This is normally recommended if some channels have been added
or removed by the broadcaster or if you have moved house.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button.
Channel Tuning
TV : 3 Channel(s)
DTV : 0 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz (TV)
Please press MENU to skip.
CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(OAD)Off
Software Update(USB)
Channel Edit
Tune Type DTV+ATV
UK
Australia
Austria
Belgium
Bulgaria
Croatia
Czech
Denmark
Finland
MENU
Customising TV Settings
