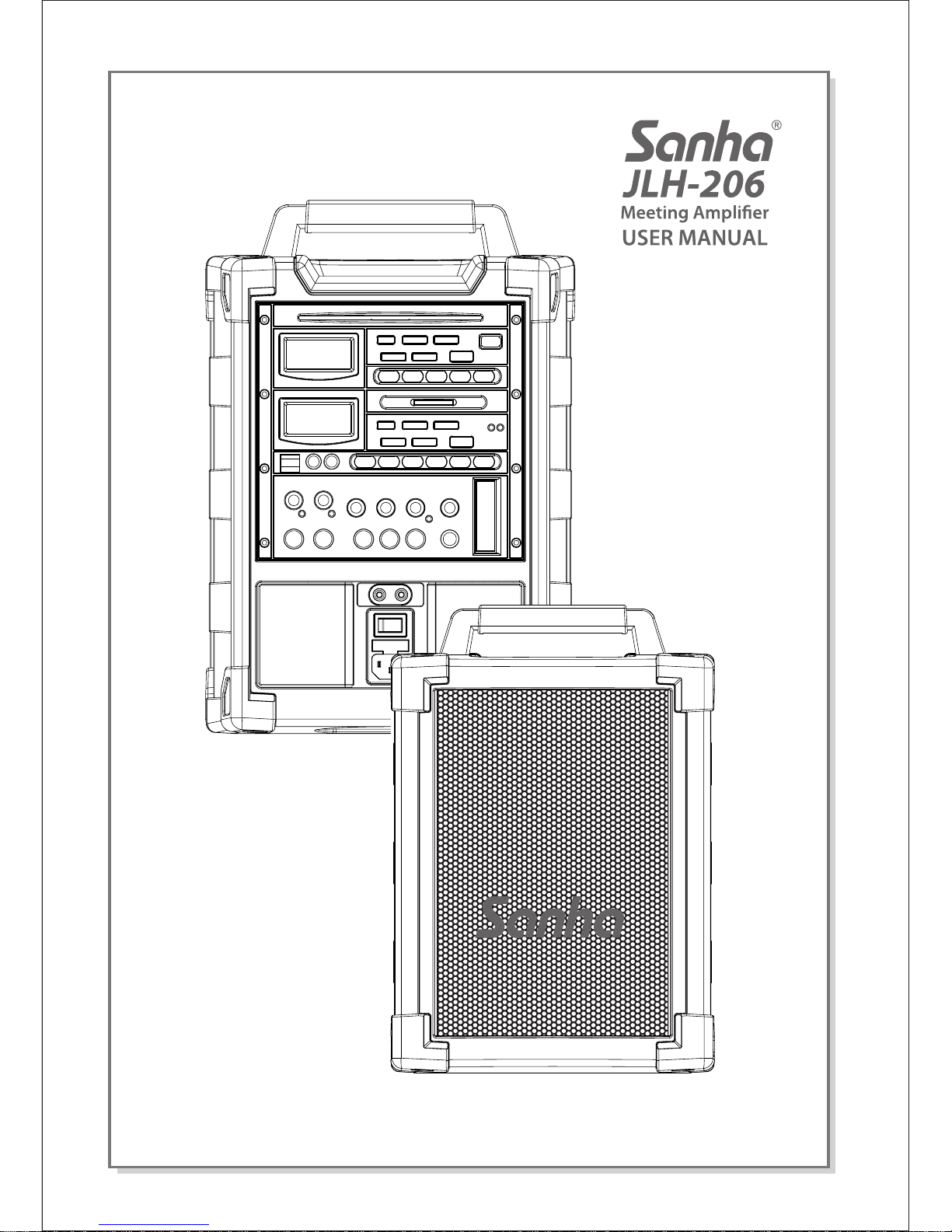

Sanha JLH-206 User manual

Table of Contents
System Overview Related Information
System Technology
Features & Functions
Standard Equipment
Quick Start
Rear View
Button Names
AMP Function Button
MP3 Function Button
AMP Function Button /Input Jack
Power Switch/External Speaker System/Fuse Function
Wireless Microphone
Features/Setting/Usage
Remote Control Button Functions
AMP/MP3 Function Button
Tripod Specifications
AMP Button
MP3 Button
AMP Button
Electrical Characteristics Specifications
Power
MP3
Wireless System
PA System
Speaker Specifications
Dimensions/Weight
Installation of Battery 15

System Overview
System Technology
Features & Functions
Standard Equipment
JLH-206 is a full-function high performance system that uses fully-
digital mainstream processing technology, combined with a multi-
system cutting-edge cloud drainage design. This system can improve
the design for diverse performance, allowing features and functions
comparable to a professional stage sound system level, and superior to
general large PA systems.
The appearance size of the JLH-206 is only the size of an A4 paper; its
unique features include a cutting-edge technology that can suppress
the wireless microphone's feedback, without the need to compress or
polish the attenuation frequency response curve, playing back the
original sound 100%. The speakers have special phase processing
technology, making the sounds clearer and with wider angles for
listeners at a distance.
—The strong and unique sound pressure makes it suitable for large
meetings or activity plazas indoors or outdoors.
—The clear, wide and vigorous timbre provides listeners with realistic
concert quality.
—The world's smallest speakers with top professional stage sound
system features and functions.
—Automatic voice prioritization during playback, select mute function
processing.
—Six simultaneous audio inputs, AUX output interface, independent
adjustment of VOL volume/EQ TONE sound quality, just like an
equalizer equipment system; the fully digital window value adjustment
operations are simple and accurate.
—9999 sets of built-in for WM-208/WM-209, can work with any of our
company's products; please set them manually for use.
—The WM-208/WM-209 will automatically search for a suitable location
at start up, then the internal receiver will automatically connect along
with the WM-208/WM-209; every time they are restarted, they will
automatically search the environment quality to be used on different
frequencies.
—The microphone head's radio is sensitive and delicate, which allows
100% original sound playback with no feedback; the volume sensitivity
can be adjusted while in use, in automatic or manual environment
search settings.
—The MP3 has built-in SD card/USB interface systems, automatic
recording and playback systems, able to read SD cards up to 16G and
16G of USB memory with functions.
—Random playback, Track order, view playback, total number of
tracks/time, three automatic repeat playback modes etc.
1. AC power cable 2. User manual 3. Lithium battery 2100MA 4.
Charger 5. Remote control. 6. Handheld microphone WM-208 (optional
accessory) 7. Lavalier microphone WM-209 (optional accessory)

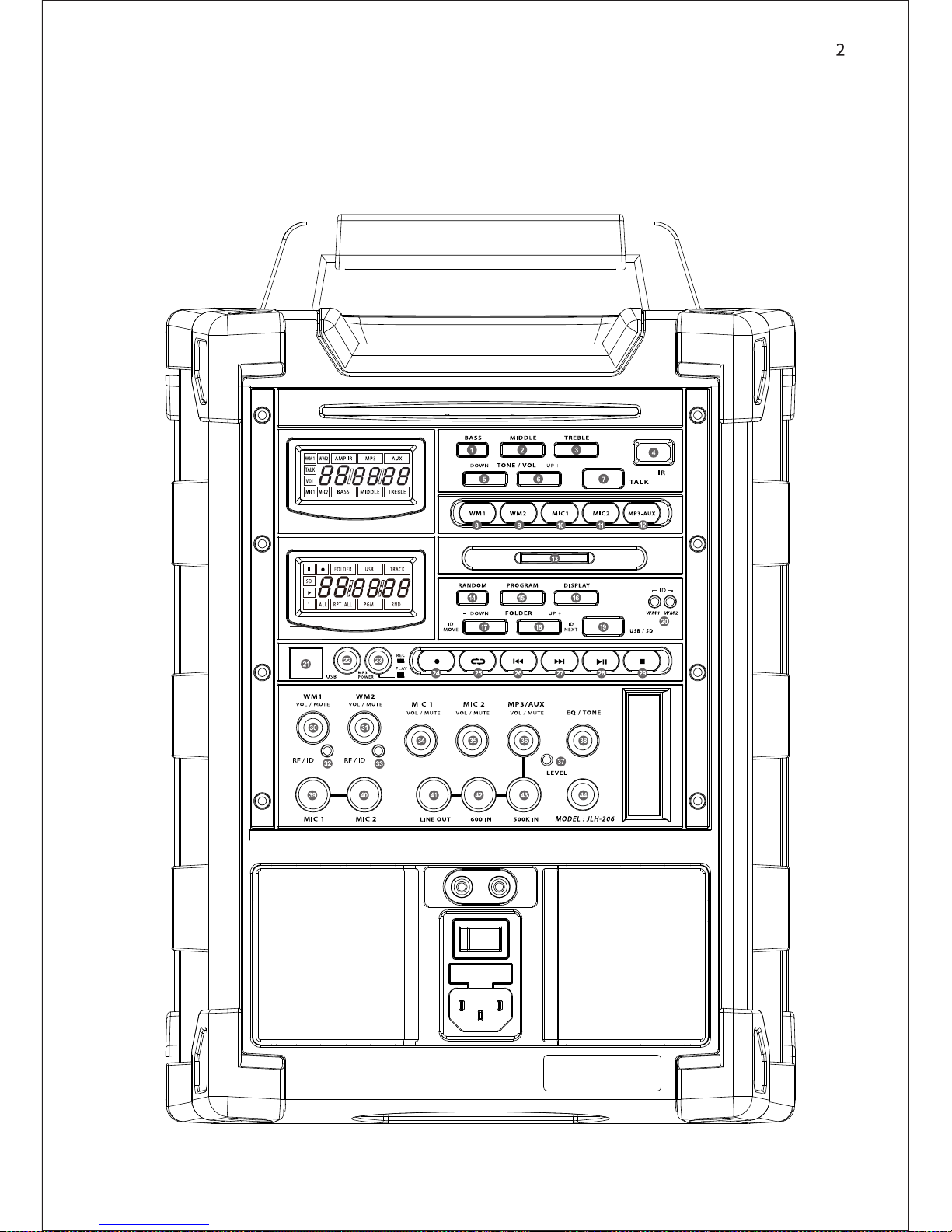

Quick Start
A simple introduction of the JLH-206 wireless amplifier system, allowing
you to have a better understanding of the locations of all the buttons and
hardware functions.

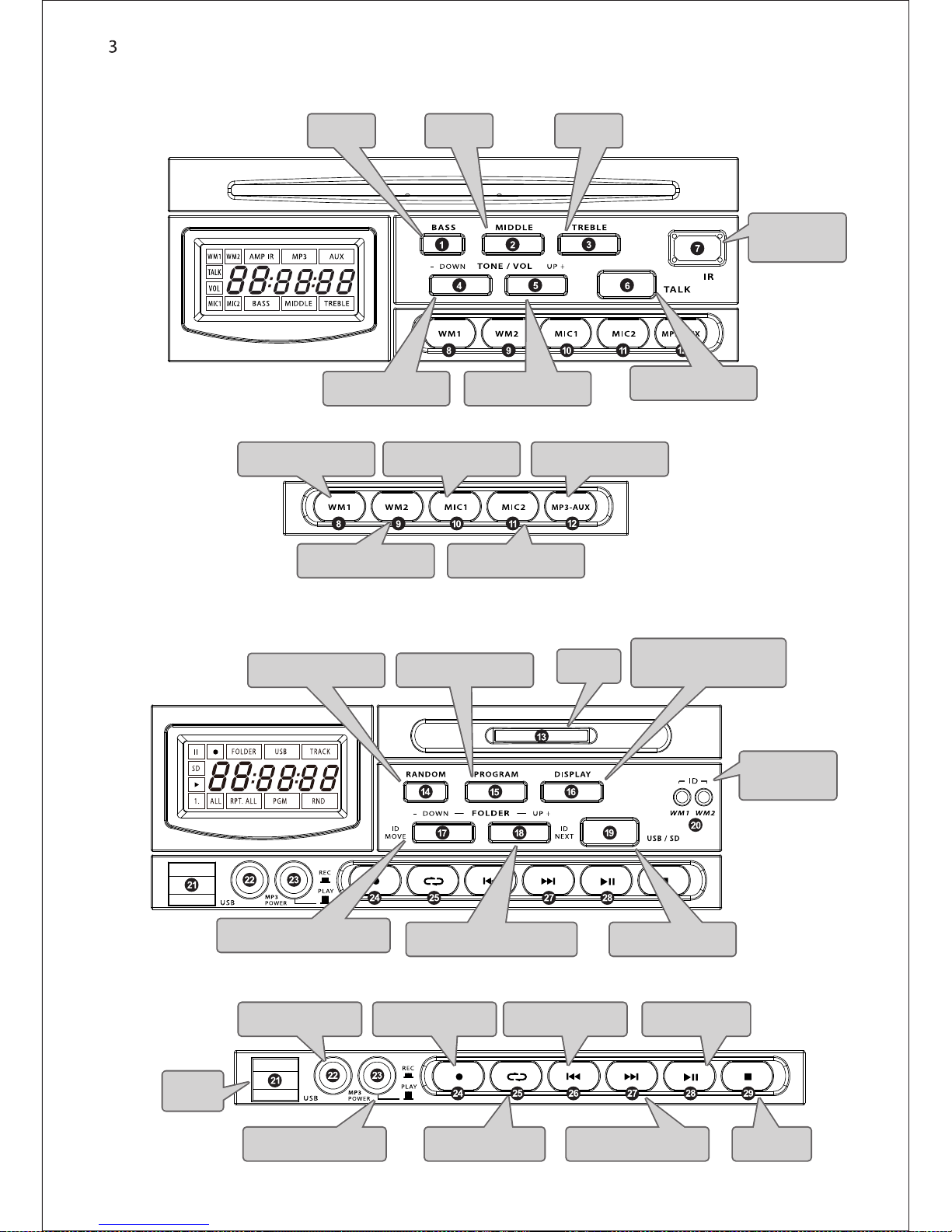

AMP Function Buttons
Mp3 Function Buttons
Bass Mediant Treble
Sound quality/volume
control button
Sound quality/volume
control button
Voice priority
button
IR infrared
window
WM1 wireless
microphone
MIC1 wired
microphone
MP3/AUX audio
switch
WM2 wireless
microphone
MIC2 wireless
microphone
Random playback Track order
Displays track time/total
number/folder
Wireless
receiver group
setting
SD card
(-)
setting MOVE
Folder/group (+)
setting NEXT
Folder/group USB/SD
select playback
Mp3 power switch Start recording
button
Previous track/
Fast rewind
Play/Pause
button
MP3 record/
playback button
Repeat setting
button
Next track/
Fast forward Stop button
USB

30 32
31 33
34 35 36 38
39 40 41 42 43
37
WM1 wireless
microphone control
button
WM2 wireless
microphone control
button
MIC1 wired
microphone control
button
MIC2 wired
microphone control
button
MP3/AUX
control
button
WM1
reception
indicator
WM2
reception
indicator
Sound quality
control button
Audio signal
strength
indicator
MIC1 wired
microphone
input jack
MIC2 wired
microphone
input jack
Audio
output jack
AUX audio
input jack
AUX audio
input jack
External
Speaker 2
UNSWITCHED
External
Speaker 1
SWITCHED
Lithium battery
charger
For use with WM-208
Power outlet
AC 96V-264V
50/60Hz
Power switch
POWER SW
Fuse holder
FUSE 2A

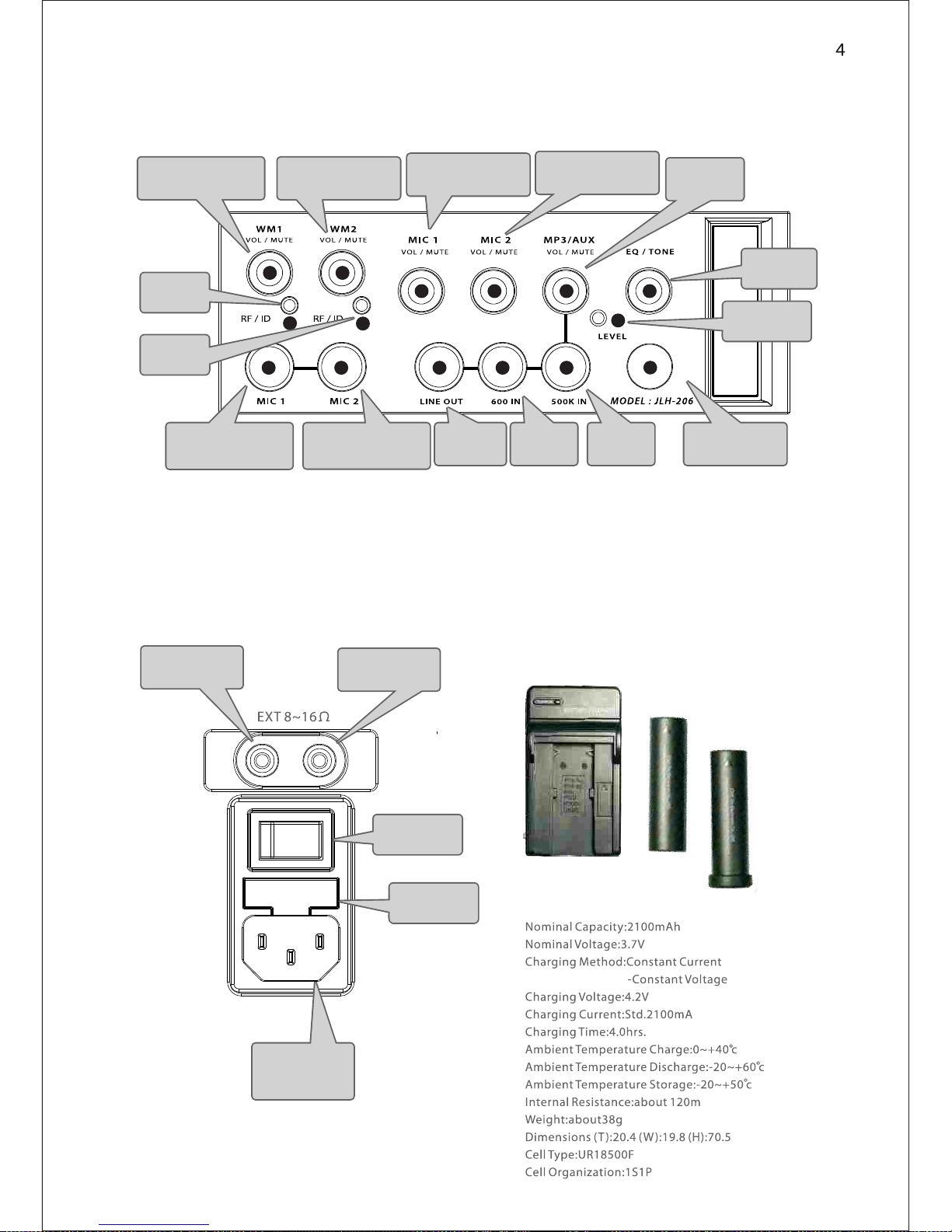

AMP Function Buttons/Input Jack
Power Switch/External Speaker System/Fuse Function
For use with WM-209
DC IN 42V-4A
input jack
44

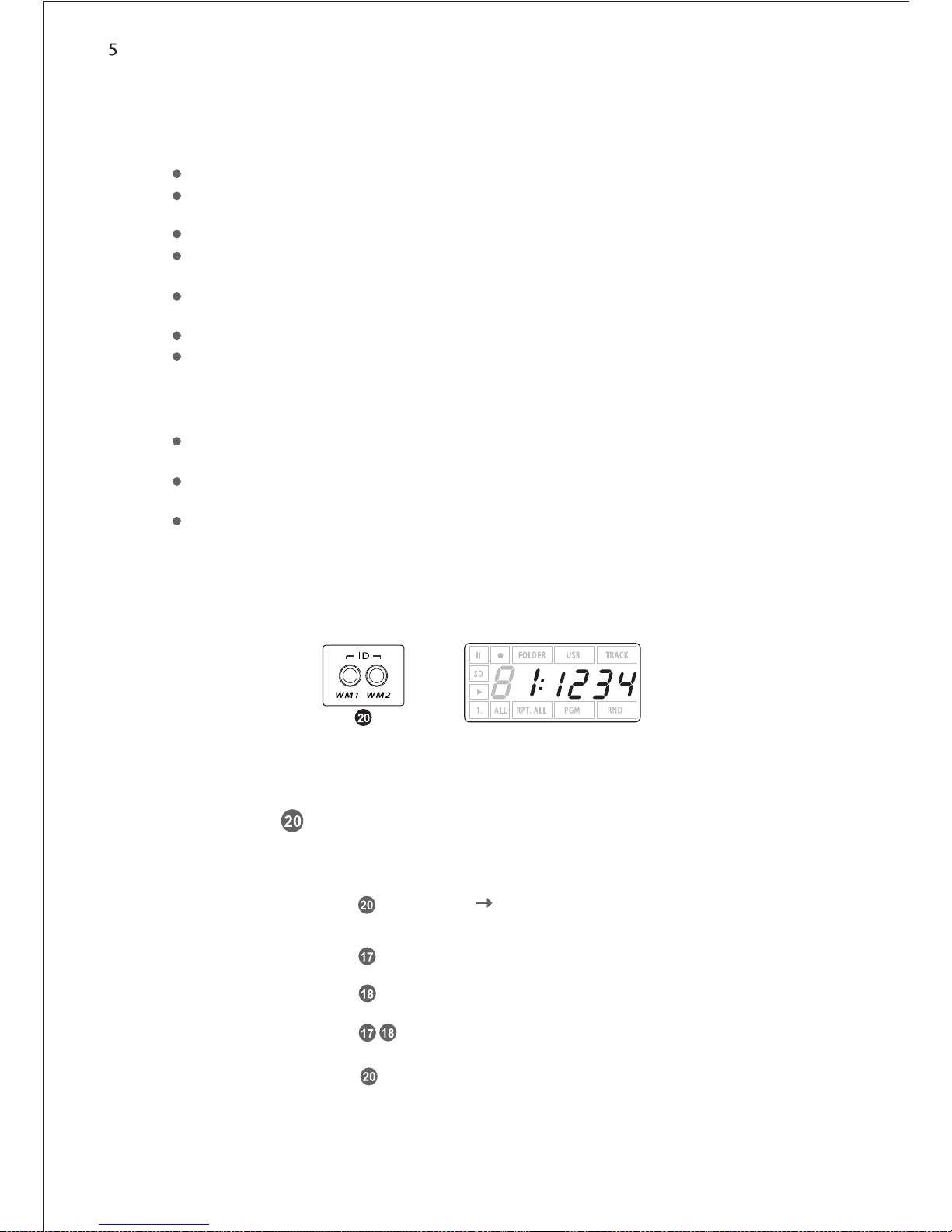

1. Button WM1/WM2 When the flashing numbers
1:234/2:1234 appears, you can make adjustments
5. Button confirm and save
2. Button Adjusts the first flashing figure
3. Button
figure)
Moves to the next figure for adjustment (the second
Wireless Microphone – Wireless Reception
Features
Setting/Usage
Supports 48KHz, 16 bit 2 channel uncompressed audio transmission
After powering on, it will automatically scan the surrounding environment and
select an uninterrupted channel for use
The volume is controlled by digital units, low power consumption
The receiver is equipped with two reception systems Diversity A and B, and
receives the wireless microphone's signal through individual antennas
Compares the signal strength on A and B, and selects the stronger signal for
output
Reception frequency response 20Hz-20kHz/+-0db, reception sensitivity -90db
9999 groups of frequency bands, no interference by external signals
Set the microphone and host to the same ID value before use (the microphone
and host ID must be the same)
Set the microphone and host's internal wireless reception (WM1/WM2) ID
value before using for the first time
When the host's wireless reception system has both WM1 and WM2, they can
not be set to have the same ID value simultaneously
Factory setting is 1234
Wireless reception host internal setting
WM1/WM2 wireless reception ID setting, set the internal
reception value
Steps: (softly touch the switches in the jacks)
4. Button
figure
to adjust the setting values for the third and fourth
* The setting ID must be the same as the microphone or microphone
value must be the same as the internal receiver's setting value.

4
3
2
1
o
o
VOL volume adjustment: VOL (-)/ VOL (+) (both in
VOL mode while using)
1. Simultaneously press and before
powering up
2. Then power up the displayer shows CH-ON (automatic search)
1. After starting up, press and hold for two seconds
2. LCD displays “1234” (factory setting value)
first figure flashes
press to adjust the value
then press to set the next figure (flashes)
and then press to adjust the value and so on
until finished adjusting all four figures
then press to return to the first figure and
setting is complete
3. 2 seconds after the setting is complete, it will
automatically restart, and the setting of the new ID
value is complete
Lithium battery
Battery cover
Setting: ID
WM-209 Features
Automatic Search Setting
Manual Setting
WM-208 Features
Uses a single directional, ultra-sensitive capacitive microphone head
Capacitive microphone head sensitivity: (0db=1v/pa 1khz)/frequency
response: 50HZ~16KHZ
Lavalier microphone head accessory, male /female collar clip can be freely
worn on either the left side or right side; guaranteed quality will never
fracture.
Gain size level: The sensitivity gain size level can be manually adjusted at
anytime while in use.
Appearance design, lightweight and novel, innovative design; unique
patented design of battery magnetic body.
1. Simultaneously press and before
powering up
2. Then power up the displayer shows CH-OF (manual setting)
3. For manual setting, press and hold for two seconds displayer
shows CH-01 value, then press and to adjust the value up or
down
UHF frequency band/fully digitalized CMOS technology processing
Uses Japan Sanyo 3.7v-2100mA rechargeable lithium battery
When activating the microphone and receiver for initial use, first set the grouping
LCD display code
Any product from our company can be interchangeably-grouped easily, and is
not limited to group use
9999 band group selection settings, no external signal interference
When turned on, the microphone (WM-208/WM-208K) will first automatically
scan for a suitable environmental position, and then the receiver will also follow
and use the suitable frequency band selected by the microphone for use
Uses single directional microphone head: Pattern: Hyper Cardioid
Microphone head sensitivity -49db (0db=1v/pa 1khz)/frequency response:
50HZ~14KHZ
Gain size level: The sensitivity gain size level can be manually adjusted at
anytime while in use
Microphone head and body used multiple noise anti-vibration processing
FWM-49

AMP function button
MP3 function button
AMP function button
Tripod Specifications
Professional standard tripod
bore diameter 35mm

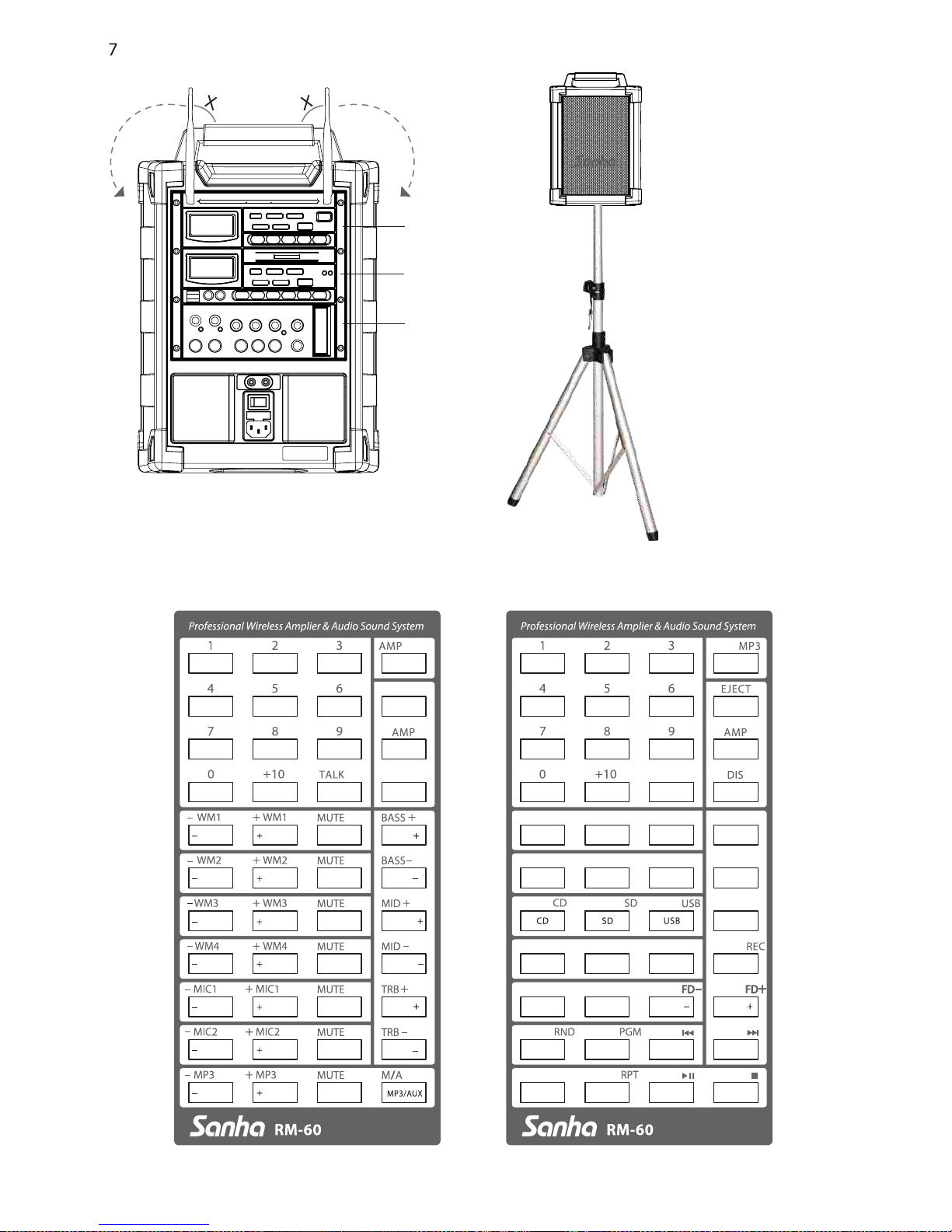

Please use with tripod
Please keep away from walls and
metallic objects
Please keep away from signal
interference
Remote Control Operations
AMP function buttons MP3 function buttons
switch
mode
AMP
mode
Voice
priority
volume volume
volume volume
volume volume
volume volume
volume volume
volume volume
volume volume mute
mute
mute
mute
mute
mute
mute Bass
Bass
Mediant
Mediant
Treble
Treble
switch
mode
eject
AMP
mode
display
record
folder
Next track
Previous
track
track
order
random
playback
Play/
Pause
repeat Stop
folder
Antenna rotating direction
Antenna rotating direction
Please do not rotating
antennas from outside in

1237
456
8 9 10 11 12
adjust after selecting TREBLE, are up and
down control buttons
adjust after selecting MIDDLE, are up and
down control buttons
adjust after selecting BASS are up and down
control buttons

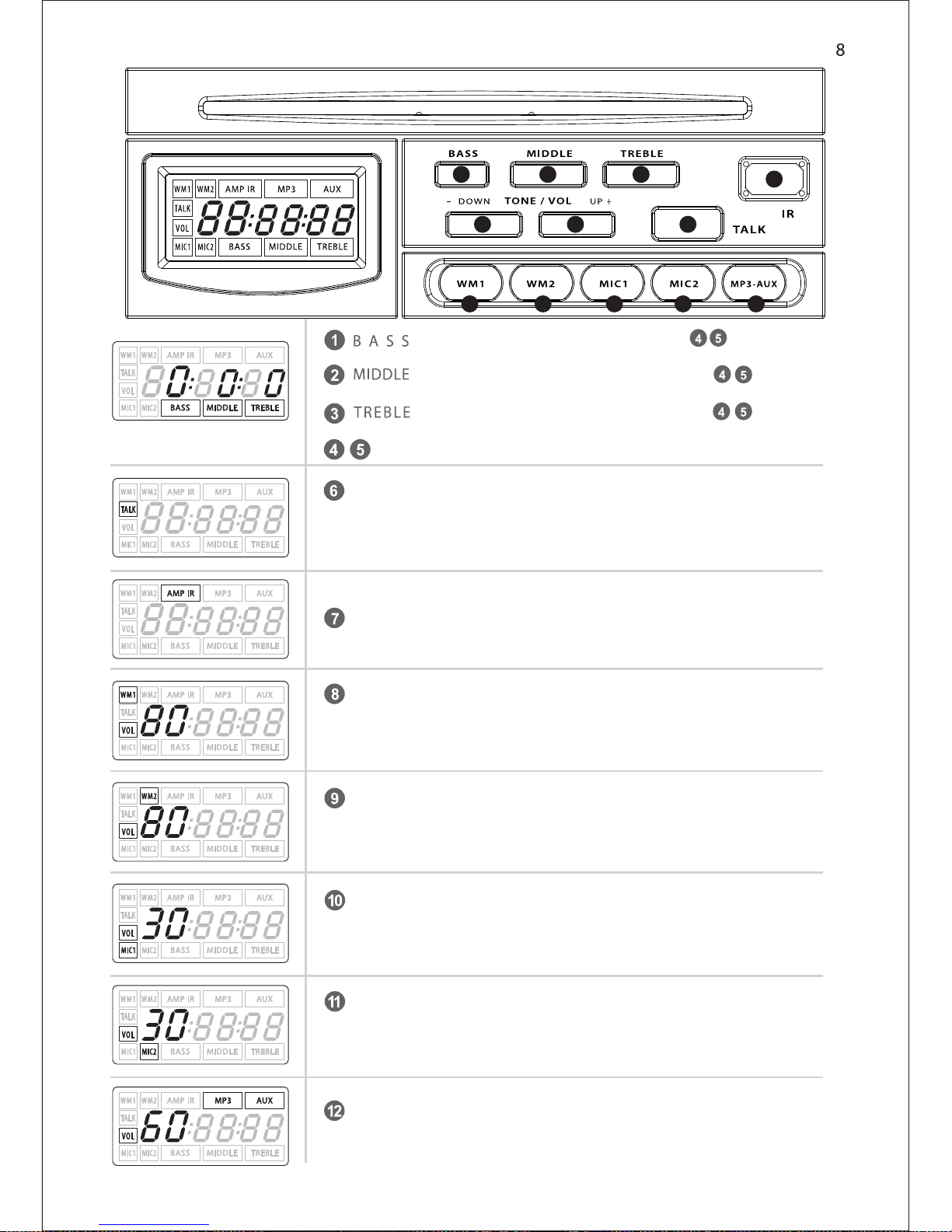

TONE/VOL sound quality/Volume control buttons
bass
mediant
treble
TALK voice priority button
During music playback, using this system will automatically mute
the music, if there are no voices heard after approximately 2
seconds (WM1/WM2/MIC1/MIC2), the music will resume playing
IR infrared window, please refer to the explanations on P20
Allows you to view the setting values of VOL volume/BASS
bass/MIDDLE mediant/TREBLE treble individually
Allows you to view the setting values of VOL volume/BASS
bass/MIDDLE mediant/TREBLE treble individually
Allows you to view the setting values of VOL volume/BASS
bass/MIDDLE mediant/TREBLE treble individually
Allows you to view the setting values of VOL volume/BASS
bass/MIDDLE mediant/TREBLE treble individually
This button can toggle between the internal MP3 (SD/USB)/
external audio AUX
WM1 wireless microphone button
WM2 wireless microphone button
MIC1 wired microphone button
MIC2 wired microphone button
MP3/AUX audio switch button
-Factory db9db~+9db( 0 ) setting

SD card slot
1. Press button PGM (flashes) P01(track)
2. Press buttons and (folder) or and (up and
down button) to select the track you want
3. Use the previous method to operate, you can edit a
maximum of tracks
4. Press button to start playback PGM stays lit
RANDOM random track playback button; automatically
plays tracks in random order
PROGRAM track order button
DISPLAY view button, allows you to view the total
number/time of tracks in the folder
(+UP) (-DOWN) folder, selects the MP3 playback folder
USB/SD select playback button, select to playback the
USB/SD
* When setting is completed for the first time, you must not
press button as this will cancel the setting.
Press button view folder/track number
Press button view the current playback time

WM1/WM2 wireless receiver ID setting, sets the internal
reception code
USB slot
MP3 POWER (USB/SD) power switch
MP3 (USB/SD) record/playback switch
Start recording button
REPEAT repeat button, three repeat modes
Skip track/search track buttons
Playback/pause button, starts playback/pauses
playback
Stop button, stops playback
1. Press button WM1/WM2 figure 1234 displays in which the
flashing figure can be adjusted
2. Press button to adjust the first flashing figure
3. Press button to move to the next figure to the right for
adjustment (the second figure)
4. Repeat and to adjust the setting values for the third and
fourth figure
5 Press button to confirm and save
* The setting value must be the same as the microphone or
microphone value must be the same as the internal receiver's
setting value
* Suggested to keep the switch on the ON position
(pressed down)
Record
Playback
Press
Press
Press
Press
Press
Press
Press
button to select the recording location,
USB or SD
button (REC) getting ready to record
RUH
button to start recording
button to stop recording
button (PLAY)
button to switch to MP3 playback
button to start playback
Repeat single track mode
Repeat all folders mode
Repeat single folder mode
Skip forward or backwards a track, holding down
the button will fast rewind/fast forward, making it
convenient to search for track positions
Factory setting 1234

1. Rotate this button left or right to adjust the volume
2. Press down for mute, flashes
1. Rotate this button left or right to adjust the volume
2. Press down for mute, flashes
1. Rotate this button left or right to adjust the volume
2. Press down for mute, flashes
WM1 VOL/MUTE wireless microphone volume/mute
control buttons
RF/ID WM1 wireless microphone reception indicator
WM2 VOL/MUTE wireless microphone volume/mute
control buttons
RF/ID WM2 wireless microphone reception indicator
MIC1 VOL/MUTE wired microphone volume/mute control
buttons
MIC2 VOL/MUTE wired microphone volume/mute control
buttons
Switch on the microphone power, then set the same four
figure ID code, if the green LED light is lit, this means that
it's receiving properly
Switch on the microphone power, then set the same four
figure ID code, if the green LED light is lit, this means that
it's receiving properly
1. Rotate this button left or right to adjust the volume
2. Press down for mute, flashes
44

MP3/AUX VOL/MUTE volume/mute control buttons
LEVEL audio signal strength indicator
EQ/TONE sound quality control buttons
MIC1 wired microphone input jack
MIC2 wired microphone input jack
LINE OUT audio output jack
1. Rotate this button left or right to adjust the volume
2. Press down for mute, flashes
Press to select one will start flashing
Rotate left or right to adjust the value size
1. Outputs to use on external systems
2. Provided for use with external recording equipments.
600 IN auxiliary audio input jack
500K IN auxiliary audio input jack
* When using external audio input, only one input jack can
be selected
44 DC IN -42V/4A input jack
+
-

Electrical Characteristics Specifications
Power
Wireless System
PA System
Power Supply: AC 96V~264V 50Hz/60Hz
Current consumption: 100W
Sample rate sample rate: 44KHz
Bite rate transfer speed: 320kbps
INPUT IMPEDANCE & SENSITIVITY:
(EQ FLAT, MAXIMUM LEVEL, REFERENCE 1KHz -1OdB LINE OUTPUT, LOAD=100K OHM)
AUX: 20K OHM / -14dBV(200mV )
MP3: 47K OHM / -10dBV(316mV)
MIC: 5K OHM / -50dBV(3.2mV UNBALANCE)
MIC/WIRELESS: 10K OHM / -14dBV(200mV)
FREQUENCY RESPONSE: (EQ FLAT, MAXIMUM LEVEL, LOAD=100K OHM, REFERENCE AT LINE OUTPUT )
AUX: 20 - 20K Hz +2/-3dB (INPUT=-14dBV)
MP3: 20 - 20K Hz +2/-3dB (INPUT=-14dBV )
MIC: 20 - 15K Hz +2/-3dB (INPUT=-50dBV )
MIC/WIRELESS: 20 - 20K Hz +2/-3dB (INPUT=-14dBV )
THD+N:
(EQ FLAT, MAXIMUM LEVEL, W/20kHz LPF, A-WEIGHTED, LOAD=100K OHM, REFERENCE AT LINE OUTPUT )
AUX: LESS THAN 0.05% (INPUT=1KHz -14dBV)
MP3: LESS THAN 0.05% (INPUT=1KHz -14dBV)
MIC: LESS THAN 0.08% (INPUT=1KHz -50dBV)
MIC/WIRELESS: LESS THAN 0.05% (INPUT=1KHz -14dBV)

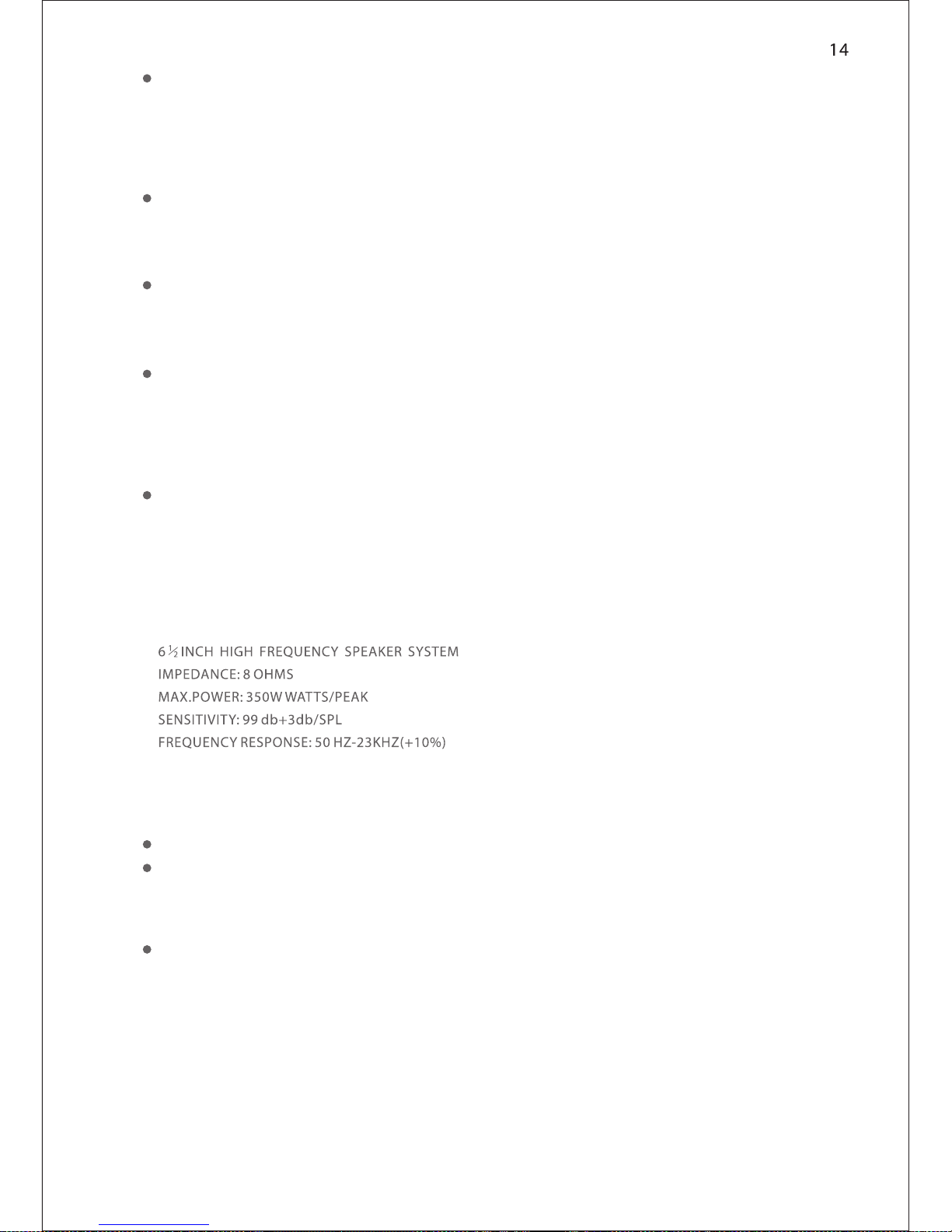

Speaker Specifications
Volume/Weight
For Technical Assistance
If you need assistance, please contact the dealer or supplier; you can also visit our
website http://sanha.com.tw for information on your local service centers.
185(D) x 245(W) x 315(H) mm / 7.2”(D) x 10”(W) x 12.8”(H)
6.5KG / 14.3lbs
MAXIMUM INPUT: (1KHz, THD=1%, EQ FLAT, LOAD=100K OHM, REFERENCE AT LINE OUTPUT)
AUX: MORE THAN +2dBV
MP3: MORE THAN +6dBV
MIC: MORE THAN -30dBV
MIC/WIRELESS: MORE THAN +5dBV
MAXIMUM POWER OUTPUT: (EQ FLAT, MAXIMUM LEVEL, AUX 1KHz -10dB)
SPEAKER OUT: MORE THAN 150W LOAD 6 OHM THD=1%
MINIMUM HUM: (EQ FLAT, MAXIMUM LEVEL, W/20KHz LPF)
SPEAKER OUT: LESS THAN 2mV
S/N RATIO: (EQ FLAT, MAXIMUM LEVEL, W/20KHz LPF, REFERENCE AT LINE OUTPUT)
AUX: MORE THAN 70dB (INPUT=1KHz -14dBV)
MP3: MORE THAN 70dB (INPUT=1KHz -14dBV )
MIC: MORE THAN 65dB (INPUT=1KHz -50dBV )
MIC/WIRELESS: MORE THAN 70dB (INPUT=1KHz -14dBV )
EQ: (MAXIMUM LEVEL, REFERENCE AT LINE OUTPUT)
LOW: ±12 +2/-2dB, AT 100Hz
MID: ±12 +2/-2dB, AT 1KHz
HIGH: ±12 +2/-2dB, AT 10KHz

15
2mm

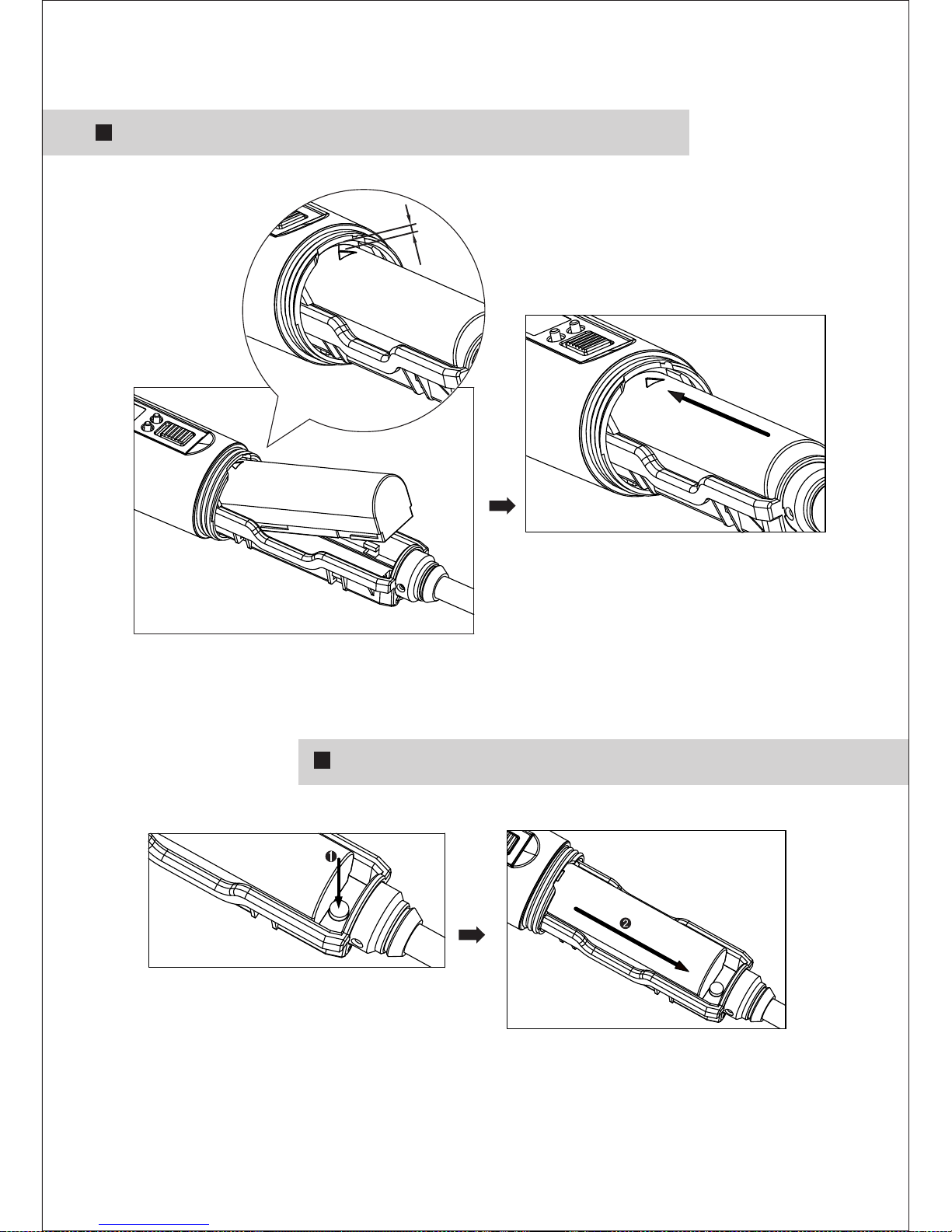

1 Inserting the battery with appoximately
45 deqree angle above 2mm of the top.
.
2.Pull up the battery smoothly.
1.Gertly Press down the bottom.
2. Slide to the bottom from top.
WM-208 WM-208C / / WM-207 / WM-207C
Wireless Microphone Battery Removal：
Wireless Microphone Battery Installation：

系統概述相關資訊
快速熟悉
按鍵名稱
遙控器按鍵介紹
無線麥克風
AMP按鍵介紹
MP3按鍵介紹
AMP按鍵介紹
電器特性規格
27
25
24
系統技術
特性功能
標準配備
後視圖
AMP功能鍵
MP3功能鍵
AMP功能鍵/輸入孔
電源開關/外接喇叭系統/保險絲功能
17
17
17
18
19
19
20
20
特性/設定/使用方法
23
21
AMP/MP3功能鍵
腳架規格
21
23
23
19
18
17
29
電源
MP3
無線系統
擴音系統
喇叭規格
體積/重量
29
29
29
29
30
30
目錄
電池裝取方法 31

系統概述
JLH-206 是款全功能 高效能系統 採用全數位主流處理技術
層雲排流設計' 該系統可改進設計多元化效能' 讓特性功能媲美專業舞台音響
的等級' 而非一般大型PA系統可以比擬
' 結合多系統尖端
系統技術
JLH-206 外型尺寸只有A4紙張大小
技術' 不需壓縮或修飾衰減頻率響應曲線' 百分之百原音重現
喇叭音箱特殊相位處理技術' 遠處聆聽者更加清晰而且聲音角度寬廣宏亮
' 獨特的特性 能抑制無線麥克風迴授的尖端
特性功能
強勁獨特的音壓更適用在室內外大型會議活動廣場
清晰、寬廣、渾厚的音色' 讓現場聆聽者有如置身大型演唱會的震撼
全世界最小型化頂尖專業級舞台音響的特性和功能
音樂播放進行中自動語音優先' 選擇靜音功能處理
6種音源同時(input)輸入 (AUX output)輔助輸出介面' VOL音量/EQ TONE音質
獨立調整' 如同一台等化器設備系統' 全數位視窗數值調整操作簡易準確
WM-208/WM-209 內建9999組' 本公司系統均可搭配 自行設定使用
WM-208/WM-209 開機前先自行搜尋適當位置' 之後主機內部接收系統在跟
隨WM-208/WM-209 自動連接' 每次重新開機之後都會先自動搜尋環境品質
在不同頻率位置上使用
音頭收音超強靈敏細緻 原音重現而且不會迴授' 使用時可調整音量感度大小
自動或手動環境搜尋設定
MP3內建SD卡/USB介面系統' 自動錄音播放系統' 可讀取SD卡16G' USB記憶體16G'
隨意播放'曲目編輯'檢視播放 總曲目數/時間 自動循環三種模式播放等功能
標準配件
1.AC 電源線 2.說明書
6.手握式麥克風 WM-208(選配附件) 7.腰掛式發射器 WM-209(選配附件)
8.領夾式麥克風 WM-209(選配附件) 9.領夾式麥克風海綿套x2
3.鋰電池 2100MA 4.充電座 5.遙控器
17
