Sans Digital ACCUNAS AN2L User manual

QUICK INSTALLATION GUIDE v1.0
AN2L
ACCUNAS

- 2 -
FOREWORD
Thank you for choosing SANS DIGITAL products. This user manual provides detailed
instructions on using AN2L. Please read carefully and enjoy the powerful functions of AN2L.
NOTE
•This manual provides the description of all functions of AN2L. The product you
purchased may not support certain functions dedicated to specific models.
•All features, functionality and other product specifications are subject to change without
prior notice or obligation.
•All brands and products names referred to are trademarks of their respective holders.
LIMITED WARRANTY
In no event shall the liability of Sans Digital (SANS DIGITAL) exceed the price paid for the
product from direct, indirect, special, incidental, or consequential software, or its
documentation. SANS DIGITAL makes no warranty or representation, expressed, implied, or
statutory, with respect to its products or the contents or use of this documentation and all
accompanying software, and specifically disclaims its quality, performance, merchantability, or
fitness for any particular purpose. SANS DIGITAL reserves the right to revise or update its
products, software, or documentation without obligation to notify any individual or entity.
CAUTION
1. Back up your system periodically to avoid any potential data loss. SANS DIGITAL
disclaims any responsibility of all sorts of data loss or recovery.
2. Should you return any components of AN2L package for refund or maintenance,
make sure they are carefully packed for shipping. Any form of damages due to
improper packaging will not be compensated.

- 3 -
Table of Contents
Table of Contents..................................................................................................................... 3
Safety Warning......................................................................................................................... 6
Chapter 1. Overview...................................................................................................... 7
1.1 Introduction................................................................................................................. 7
1.2 Package Contents ...................................................................................................... 9
1.3 Hardware Illustration ................................................................................................ 10
Chapter 2. Install AN2L ................................................................................................11
2.1 Install Hard Disk ........................................................................................................11
2.2 Hard Disk Recommendation List.............................................................................. 13
2.3 Set up AN2L ............................................................................................................. 16
2.4 Check System Status ............................................................................................... 18
2.5 Configure Software Settings..................................................................................... 20
2.5.1 Windows
®
Users ................................................................................................ 20
2.5.2 Mac Users .......................................................................................................... 30
Chapter 3. Enjoy the Powerful Services of AN2L..................................................... 32
3.1 Server Administration ............................................................................................... 37
3.2 Quick Configuration.................................................................................................. 38
3.3 System Settings........................................................................................................ 41
3.3.1 Server Name...................................................................................................... 41
3.3.2 Date & Time ....................................................................................................... 42
3.3.3 Filename Encoding Setting................................................................................ 43
3.3.4 Configure SMTP Server ..................................................................................... 43
3.3.5 View System Settings ........................................................................................ 44
3.4 Network Settings ...................................................................................................... 45
3.4.1 TCP/ IP Configuration ........................................................................................ 45
3.4.2 Microsoft Networking ......................................................................................... 48
3.4.3 Apple Network.................................................................................................... 50
3.4.4 NFS Service....................................................................................................... 50
3.4.5 Web File Manager.............................................................................................. 51
3.4.6 FTP Service ....................................................................................................... 52
3.4.7 Multimedia Station ............................................................................................. 54
3.4.8 iTunes Service ................................................................................................... 54
3.4.9 Download Station............................................................................................... 55

- 4 -
3.4.10 Web Server ........................................................................................................ 56
3.4.11 DDNS Service.................................................................................................... 57
3.4.12 MySQL Server ................................................................................................... 58
3.4.13 System Port Management ................................................................................. 61
3.4.14 View Network Settings ....................................................................................... 62
3.5 Device Configuration ................................................................................................ 63
3.5.1 SATA Disk.......................................................................................................... 64
3.5.2 USB Disk............................................................................................................ 66
3.5.3 USB Printer ........................................................................................................ 67
3.5.3.1 Windows Users........................................................................................... 67
3.5.3.2 Mac Users................................................................................................... 70
3.6 User Management .................................................................................................... 73
3.6.1 Users.................................................................................................................. 73
3.6.2 User Groups....................................................................................................... 75
3.6.3 Quota ................................................................................................................. 82
3.7 Network Share Management.................................................................................... 84
3.7.1 Create ................................................................................................................ 85
3.7.2 Property ............................................................................................................. 86
3.7.3 Access Control................................................................................................... 87
3.7.4 Delete................................................................................................................. 87
3.7.5 Restore .............................................................................................................. 88
3.7.6 NFS Access Control........................................................................................... 89
3.8 System Tools ............................................................................................................ 90
3.8.1 Alert Notification................................................................................................. 91
3.8.2 Restart/ Shutdown ............................................................................................. 91
3.8.3 Hardware Settings ............................................................................................. 92
3.8.4 UPS.................................................................................................................... 94
3.8.5 Hard Disk S.M.A.R.T.......................................................................................... 95
3.8.6 System Update .................................................................................................. 96
3.8.7 USB One Touch Copy Backup .......................................................................... 97
3.8.8 Change Logo ..................................................................................................... 98
3.8.9 Back up to an External Storage Device ............................................................. 99
3.8.10 Remote Replication (Disaster Recovery)......................................................... 100
3.8.11 Backup/ Restore/ Reset Settings..................................................................... 103
3.8.12 IP Filter............................................................................................................. 103
3.8.13 Network Recycle Bin........................................................................................ 104
3.8.14 Remote Login................................................................................................... 105
3.9 Event Logs.............................................................................................................. 106

- 5 -
3.9.1 System Event Logs .......................................................................................... 106
3.9.2 System Connection Logs................................................................................. 107
3.9.3 On-line Users ................................................................................................... 107
3.9.4 System Information .......................................................................................... 108
Chapter 4. Copy Data Directly by Front USB Port to AN2L................................... 109
Chapter 5. Multimedia Station...................................................................................110
5.1 Share Photos and Multimedia Files via Web Interface ...........................................110
5.2 Enable iTunes Service............................................................................................ 120
5.3 Use UPnP Media Server ........................................................................................ 122
Chapter 6. Download Station ................................................................................... 125
6.1 Use Download Software QGet ............................................................................... 135
Chapter 7. Web Server .............................................................................................. 137
Chapter 8. FTP Server............................................................................................... 141
Chapter 9. Web File Manager ................................................................................... 144
Chapter 10. NetBak Replicator................................................................................... 149
Chapter 11. Configuring AD Authentication ............................................................. 163
Chapter 12. Access AN2L via Linux OS .................................................................... 168
Chapter 13. AN2L Maintenance.................................................................................. 169
13.1 Restart/ Shut down Server ..................................................................................... 169
13.2 Reset Administrator Password and Network Settings............................................ 170
13.3 Disk Failure or Malfunction..................................................................................... 171
13.4 Power Outage or Abnormal Shutdown ................................................................... 171
13.5 System Software Abnormal Operation ................................................................... 172
13.6 System Temperature Protection ............................................................................. 172
Technical Support................................................................................................................ 173
GNU GENERAL PUBLIC LICENSE ..................................................................................... 174

- 6 -
Safety Warning
1. The AN2L operates normally in the temperature of 0ºC-35ºC and relative humidity of
0%-85%. Please make sure the environment is well-ventilated.
2. The power cord and devices connected to the AN2L must provide correct supply voltage
(60W, 90-264V).
3. Do not place the AN2L in direct sunlight or near chemicals. Make sure the temperature
and humidity of the environment are in optimized level.
4. Unplug the power cord and all connected cables before cleaning. Wipe the AN2L with a
wet towel. Do not use chemical or aerosol to clean the AN2L.
5. Do not place any objects on AN2L for the server’s normal operation and to avoid
overheat.
6. Use the flat head screws in the product package to lock the hard disks in the AN2L when
installing hard disks for proper operation.
7. Do not place the AN2L near any liquid.
8. Do not place the AN2L on any uneven surface to avoid falling off and damage.
9. Make sure the voltage is correct in your location when using the AN2L. If you are not
sure, please contact the distributor or the local power supply company.
10. Do not place any object on the power cord.
11. Do not attempt to repair your AN2L in any occasions. Improper disassembly of the
product may expose you to electric shock or other risks. For any enquiries, please
contact the distributor.

- 7 -
Chapter 1. Overview
1.1 Introduction
Thank you for choosing SANS DIGITAL AN2L Network Attached Storage. This product has
the following key features:
Powerful All-in-one AN2L Server (12-in-1)
File Server
-Sharing files across Windows, Mac, Linux, and Unix.
-Windows AD service support
FTP Server
-Access files from remote location via FTP server
-Encrypted FTP via SSL/ TLS (explicit) mode
-Passive FTP port range control
Backup Server
-Professional Backup Software-NetBak Replicator
-Automatic/ Instant/ Schedule Backup
Remote Replication
-Back up critical data on SANS DIGITAL AN2L to other SANS DIGITAL AN2L in remote
locations over the network.
-Encrypted remote replication
-Block-level backup
Printer Server
-Network printer sharing via USB
-Support Windows & Mac platforms (maximum 3 sets)
Web Server
-Support Joomla!, PHP and MySQL/ SQLite
-Create your own online shops, forums, and blogs over the Internet
MySQL Server
-MySQL and SQLite dual support
-Can be configured as a standalone database server
-Built-in MySQL management tool-phpMyAdmin

- 8 -
UPnP Media Server
-Built-in TwonkyMedia Server
-Media streaming to DLNA compliant DMA, PS3 or Xbox 360 game consoles
-Photos and videos playing on TV, and music and Internet radio playing on Hi-Fi
system
iTunes Server
-Music streaming from AN2L to the iTunes program on Mac or Windows PC
-Smart playlist
Multimedia Station
-Photo sharing via web-based photo album.
-Photo album access authority management
Download Station
-BitTorrent (with DHT), FTP and HTTP download
-Remote management of the download tasks by QGet software anytime, anywhere.
Supports RAID 0, RAID 1 and JBOD disk volume
Supports two latest SATA disks and hotswap function
Built-in Smart Fan function
Diagnostic and Monitoring System: HDD S.M.A.R.T. and HHS Technology to prevent
physical hard drive failure
Powerful System Management: Comprehensive event logs for multiple file sharing
protocols and file-level recordings

- 9 -
1.2 Package Contents
The AccuNAS AN2L package contains:
•AN2L Network Storage x 1
•Power Adaptor x 1
•CD-ROM / User Manual x 1
•Flat Head Screws x 8
•Ethernet Cable x 1

- 10 -
1.3 Hardware Illustration
K DC12V
RESET
LAN
USB
STATUS
HDD1
HDD2
LAN
POWER
USB 2.0 PORT
COOLING FAN
ETHERNET
POWER SUPPLY
USB 2.0 PORT
COPY BUTTON
POWER BUTTON
LED INDICATORS:
USB, STATUS, HDD1,
HDD2, NETWORK,
POWER

- 11 -
Chapter 2. Install AN2L
2.1 Install Hard Disk
Step 1
Unscrew the screws on the back panel, and open the unit by sliding
the larger side panel forward.
Step 2
Install the first hard drive by placing it in the hard drive cradle, and
sliding it forward to lock it into the connector.

- 12 -
Step 3
Install the second hard drive by placing it on top of the first hard
drive, and securing the screws on the sides of both hard drives.
Step 4
Connect the data cable and SATA power cable as shown in the
diagram below, and slide the case back in place and tighten the
screws on the back panel.
POWER CABLE
DATA CABLE

- 13 -
2.2 Hard Disk Recommendation List
The following HDD models are verified by SANS DIGITAL that are compatible with AN2L. It is
recommended to use the disk models listed here. Other HDD brands that are not tested by
SANS DIGITAL may or may not work properly with AN2L. For more updated compatible hard
disk information, please visit SANS DIGITAL http://www.sansdigital.com .
SANS DIGITAL disclaims any responsibility for product damage/ malfunction
or data loss/ recovery due to misuse or improper installation of hard disks in
any occasions for any reasons.
Brand Product Family Model Interface Drive
size (GB) RPM
Buffer
Size
(MB)
Hitachi Deskstar 7K1000 HDS721010KLA330 SATA II 1000 7200 32
Hitachi Deskstar 7K1000 HDS721075KLA330 SATA II 750 7200 32
Hitachi Deskstar T7K500 HDT725050VLA360 SATA II 500 7200 16
Hitachi Deskstar T7K500 HDT725050VLA380 SATA II 500 7200 8
Hitachi Deskstar T7K500 HDT725040VLA360 SATA II 400 7200 16
Hitachi Deskstar T7K500 HDT725040VLA380 SATA II 400 7200 8
Hitachi Deskstar T7K500 HDT725032VLA360 SATA II 320 7200 16
Hitachi Deskstar T7K500 HDT725032VLA380 SATA II 320 7200 8
Hitachi Deskstar T7K500 HDT725025VLA360 SATA II 250 7200 16
Hitachi Deskstar T7K500 HDT725025VLA380 SATA II 250 7200 8
Hitachi Deskstar T7K250 HDT722525DLA380 SATA II 250 7200 8
Hitachi Deskstar T7K250 HDT722516DLA380 SATA II 160 7200 8
Hitachi Deskstar P7K500 HDP725050GLA380 SATA II 500 7200 16
Hitachi Deskstar P7K500 HDP725050GLA360 SATA II 500 7200 8
Hitachi Deskstar P7K500 HDP725040GLA360 SATA II 400 7200 16
Hitachi Deskstar P7K500 HDP725040GLA380 SATA II 400 7200 8
Hitachi Deskstar P7K500 HDP725032GLA360 SATA II 320 7200 16
Hitachi Deskstar P7K500 HDP725032GLA380 SATA II 320 7200 8
Hitachi Deskstar P7K500 HDP725025GLA380 SATA II 250 7200 8
Seagate Barracuda ES ST3750640NS SATA II 750 7200 16
Seagate Barracuda ES ST3500630NS SATA II 500 7200 16
Seagate Barracuda ES ST3400620NS SATA II 400 7200 16
Seagate Barracuda ES ST3320620NS SATA II 320 7200 16

- 14 -
Seagate Barracuda ES ST3250620NS SATA II 250 7200 16
Seagate Barracuda ES ST3250820NS SATA II 250 7200 8
Seagate Barracuda 7200.11 ST31000340AS SATA II 1000 7200 32
Seagate Barracuda 7200.10 ST3750640AS SATA II 750 7200 16
Seagate Barracuda 7200.10 ST3750840AS SATA II 750 7200 8
Seagate Barracuda 7200.10 ST3500630AS SATA II 500 7200 16
Seagate Barracuda 7200.10 ST3500830AS SATA II 500 7200 8
Seagate Barracuda 7200.10 ST3400620AS SATA II 400 7200 16
Seagate Barracuda 7200.10 ST3400820AS SATA II 400 7200 8
Seagate Barracuda 7200.10 ST3320620AS SATA II 320 7200 16
Seagate Barracuda 7200.10 ST3320820AS SATA II 320 7200 8
Seagate Barracuda 7200.10 ST3300820AS SATA II 300 7200 8
Seagate Barracuda 7200.10 ST3250620AS SATA II 250 7200 16
Seagate Barracuda 7200.10 ST3250410AS SATA II 250 7200 16
Seagate Barracuda 7200.10 ST3250310AS SATA II 250 7200 8
Seagate Barracuda 7200.10 ST3250820AS SATA II 250 7200 8
Seagate Barracuda 7200.10 ST3200820AS SATA II 200 7200 8
Seagate Barracuda 7200.10 ST3160815AS SATA II 160 7200 8
Seagate Barracuda 7200.10 ST3160215AS SATA II 160 7200 2
Seagate Barracuda 7200.10 ST3120815AS SATA II 120 7200 8
Seagate Barracuda 7200.10 ST3120215AS SATA II 120 7200 2
Seagate Barracuda 7200.10 ST380815AS SATA II 80 7200 8
Seagate Barracuda 7200.10 ST380215AS SATA II 80 7200 2
Seagate Barracuda 7200.10 ST340815AS SATA II 40 7200 8
Seagate Barracuda 7200.10 ST340215AS SATA II 40 7200 2
WD WD Caviar GP WD10EACS SATA II 1000 7200 16
WD WD Caviar GP WD7500AACS SATA II 750 7200 16
WD WD Caviar GP WD5000AACS SATA II 500 7200 16
WD WD Caviar RE2 WD5000YS SATA II 500 7200 16
WD WD Caviar RE2 WD4000YS SATA II 400 7200 16
WD WD Caviar RE WD3200YS SATA II 320 7200 16
WD WD Caviar RE WD2500YS SATA II 250 7200 16
WD WD Caviar RE WD1600YS SATA II 160 7200 16
WD WD Caviar SE16 WD7500AAKS SATA II 750 7200 16
WD WD Caviar SE16 WD5000AAKS SATA II 500 7200 16
WD WD Caviar SE16 WD4000AAKS SATA II 400 7200 16
WD WD Caviar SE16 WD3200AAKS SATA II 320 7200 16

- 15 -
WD WD Caviar SE16 WD2500AAKS SATA II 250 7200 16
WD WD Caviar SE16 WD5000KS SATA II 500 7200 16
WD WD Caviar SE16 WD4000KS SATA II 400 7200 16
WD WD Caviar SE16 WD3200KS SATA II 320 7200 16
WD WD Caviar SE16 WD2500KS SATA II 250 7200 16
WD WD Caviar SE WD5000AAJS SATA II 500 7200 8
WD WD Caviar SE WD4000AAJS SATA II 400 7200 8
WD WD Caviar SE WD3200AAJS SATA II 320 7200 8
WD WD Caviar SE WD3200JS SATA II 320 7200 8
WD WD Caviar SE WD3000JS SATA II 300 7200 8
WD WD Caviar SE WD2500AAJS SATA II 250 7200 8
WD WD Caviar SE WD2500JS SATA II 250 7200 8
WD WD Caviar SE WD2000JS SATA II 200 7200 8
WD WD Caviar SE WD1600AAJS SATA II 160 7200 8
WD WD Caviar SE WD1600JS SATA II 160 7200 8
WD WD Caviar SE WD1200JS SATA II 120 7200 8
WD WD Caviar SE WD800AAJS SATA II 80 7200 8
WD WD Caviar SE WD800JD SATA II 80 7200 8
WD WD Caviar SE WD400JD SATA II 40 7200 8

- 16 -
2.3 Setting up the AN2L
Please check your network environment and select the appropriate installation method before installing
theAN2L.
MS1UT
Printer
Computer Rear Panel
PC / MAC
Giga LAN
Network Switch Rear Panel
K DC12V
RESET
LAN
USB

- 17 -
When you have veried your network environment, please follow the steps below to install the AN2L.
1) Connect AN2L to the hub/ switch/ router or PC according your network environment.
2) Connect USB printer to AN2L and enable USB printer service.
3) Connect the power.
4) Turn on AN2L.
*Note: Please connect a USB printer to the server after the software conguration is completed.
Printer
Network Switch Rear Panel
K DC12V
RESET
LAN
USB
1
3
2

- 18 -
2.4 Check System Status

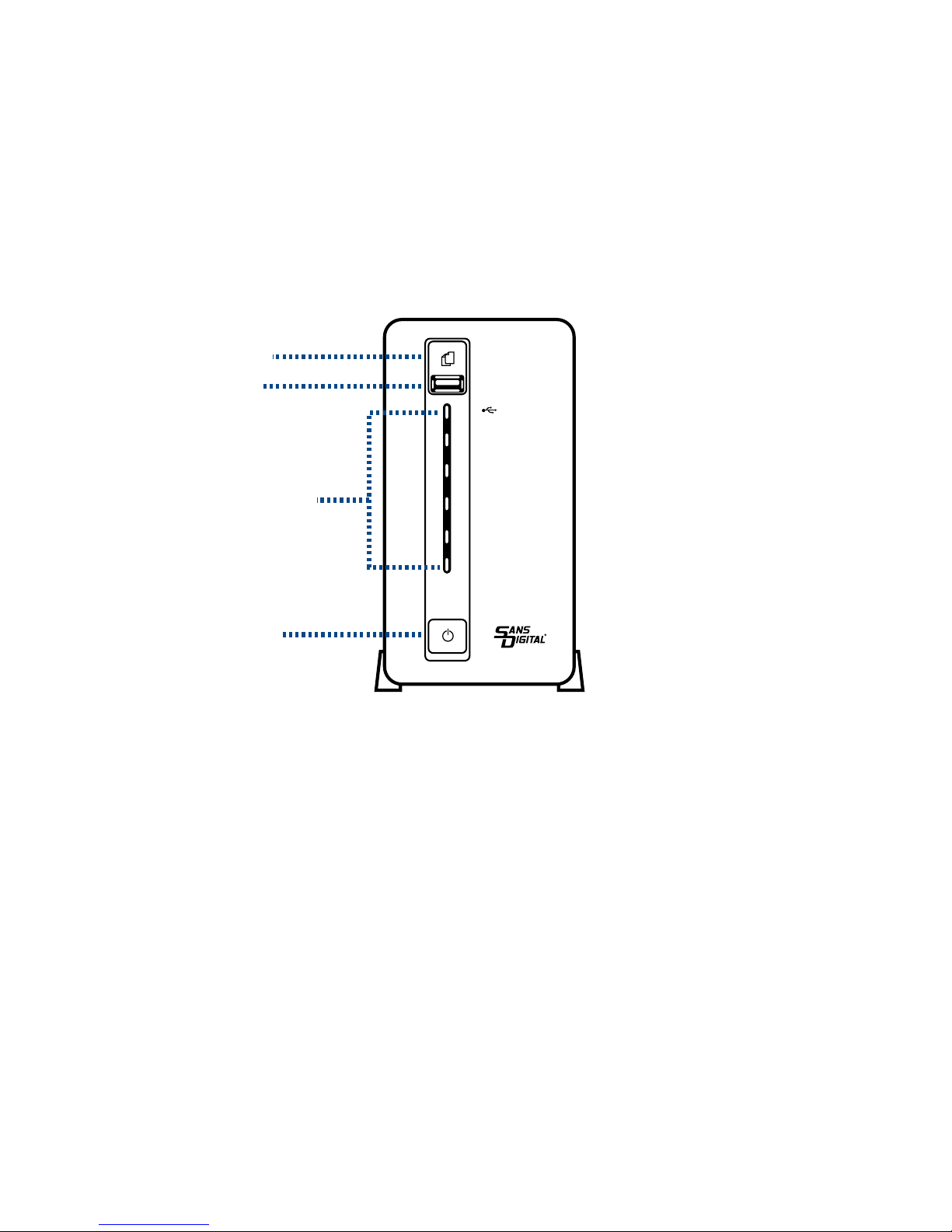

AN2L provides LED indicators for you to indicate the system status and information easily. When
AN2L is turned on, please check the following items to make sure the system status is normal.
Note that the following LED information is applicable only when you have properly installed
HDD1 and/or HDD2, and connected AN2L to the network and power.
STATUS
HDD1
HDD2
LAN
POWER
USB 2.0 PORT
COPY BUTTON
POWER BUTTON
LED INDICATORS: USB,
STATUS, HDD1, HDD2,
NETWORK, POWER

- 19 -
LED Display & System Status Overview
LED LED Display & System Status
Blue: You can press the copy button to copy data
Front USB Status Blink in blue: Accessing data
Green: System is normal
Blink in green: Hard disk not detected; Hard disk not initialized
Red: Warning on disk full status; Disk capacity is almost full
Blink in red: RAID 1 degraded mode
Blink in green and red alternatively: Update firmware; RAID 1
rebuilding/ synchronizing
Status
Off: HDD standby mode
HDD1/ HDD2 Blink in orange: Accessing data
Network Blink in orange: Accessing data
Blue: System has started
Power Blink in blue: Update firmware

- 20 -
2.5 Congure Software Settings
After checking the system status, please follow the steps below to congure the software
settings of AN2L. The conguration procedure of Windows and Mac users are dierent.
Please select the appropriate procedure according to your OS.
2.5.1 Windows
®
Users
Insert AN2L CD-ROM in your PC. Wait for a few seconds until the following screen shows up.
Then start to congure the software settings of AN2L.
1. The following menu will be shown. Select “Install SANS DIGITAL Finder” to continue.
Quick Installation Guide
Install AN2L Finder
Install NetBak Replicator
Install QGet
User Manual and Application Notes
Browse CD
Product Support and Registration Website
Back Exit
AN2L
