Santa Fe Compact2 Installation instructions

Rev 6/6/17
Installation & Operation Instructions
The Santa Fe Compact2 is designed for superior basement and crawl space
dehumidification. Tight spaces are no problem for the Santa Fe Compact2 dehumidifier.
Its compact size works perfect in low crawl spaces and small basements without
sacrificing power and performance. Designed to fit in a variety of small spaces, the
Compact2 provides multiple installation options for greater flexibility.
P/N: 4033600 Serial No.: Install Date:
Sold by:
www.Santa-Fe-Products.com 1.800.533.7533
YEAR
FULL WARRANTY
YEAR
FULL WARRANTY

4201 Lien Rd. Madison, WI 53704
1-800-533-7533
www.Thermastor.com | www.Santa-Fe-Products.com
© 2016 Therma-Stor LLC
Table of Contents
Safety Instructions .......................................................................... 3
Intended Applications ......................................................................... 3
Registrations....................................................................................... 3
Specifications.................................................................................. 4
Dehumidifier Set Up....................................................................... 5
Items Included In Box.......................................................................... 5
Important Precautions ......................................................................... 5
Location Considerations...................................................................... 5
Installing Leveling Feet........................................................................ 5
Ducting to Finished Areas (Optional)............................................. 6
Attaching Duct Collars ........................................................................ 6

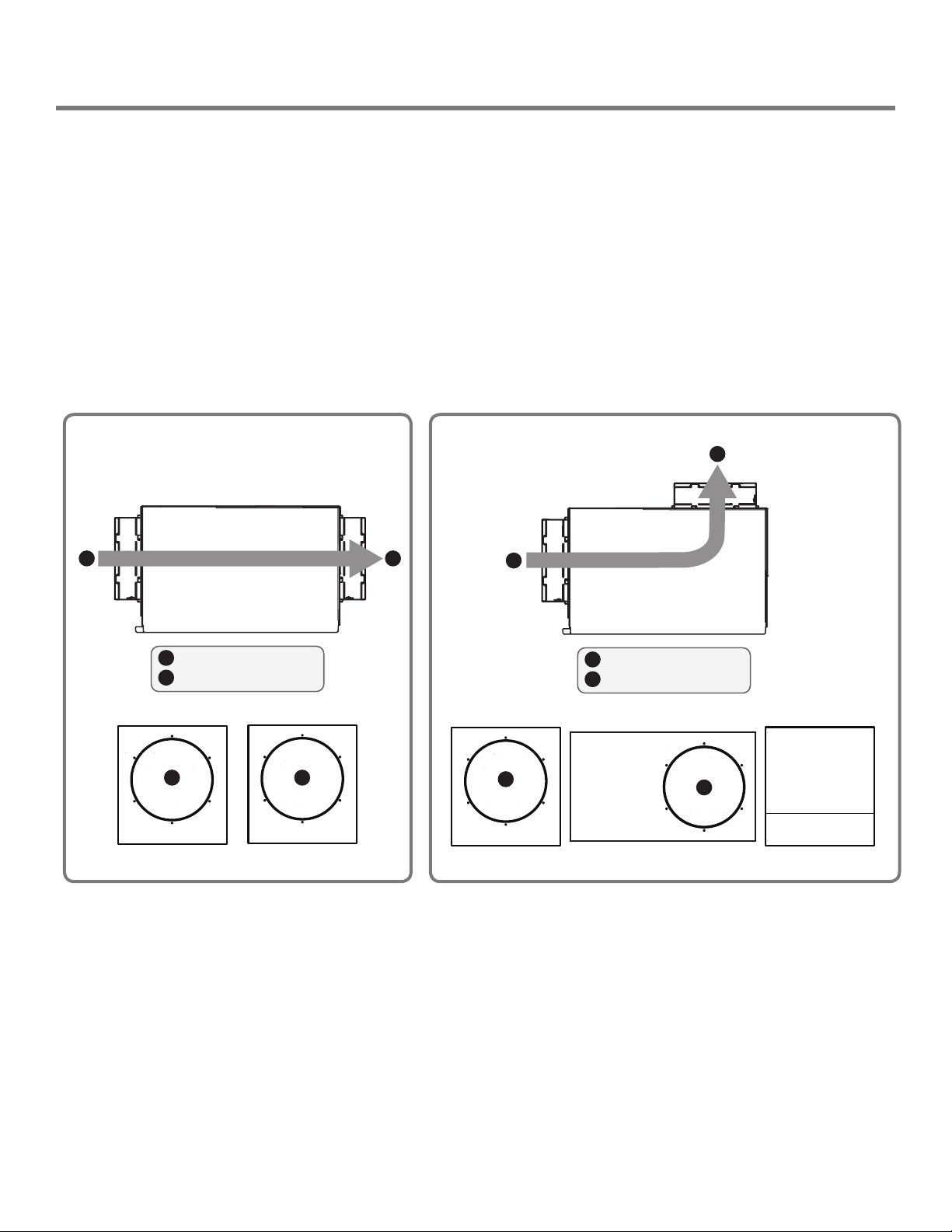

Recommended Installations................................................................. 7

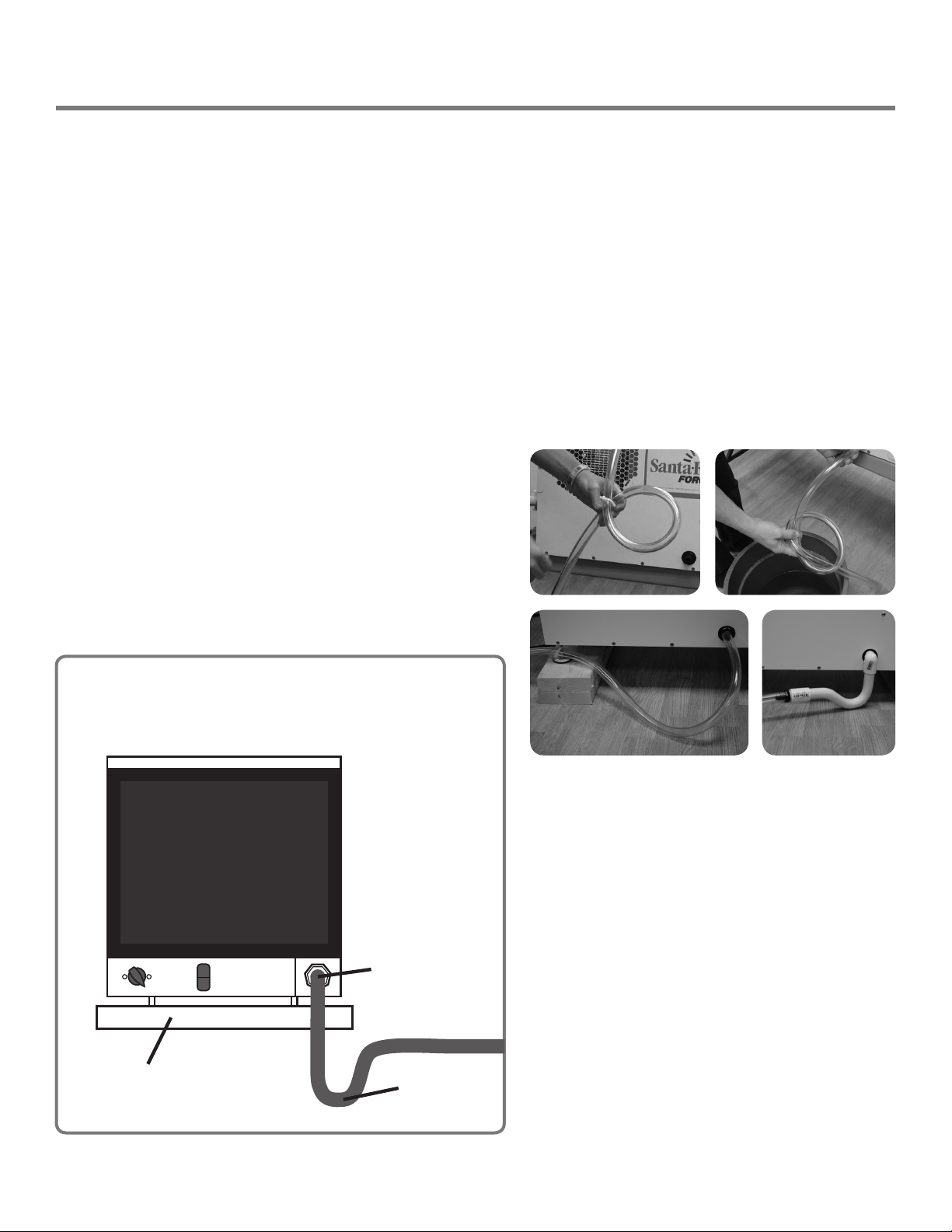

Drain Installation ........................................................................... 8
Operation ....................................................................................... 9
Humidity Control Adjustment............................................................... 9
Defrost Cycle...................................................................................... 9
Fan Operation ................................................................................... 9
Air Filtration ................................................................................. 10

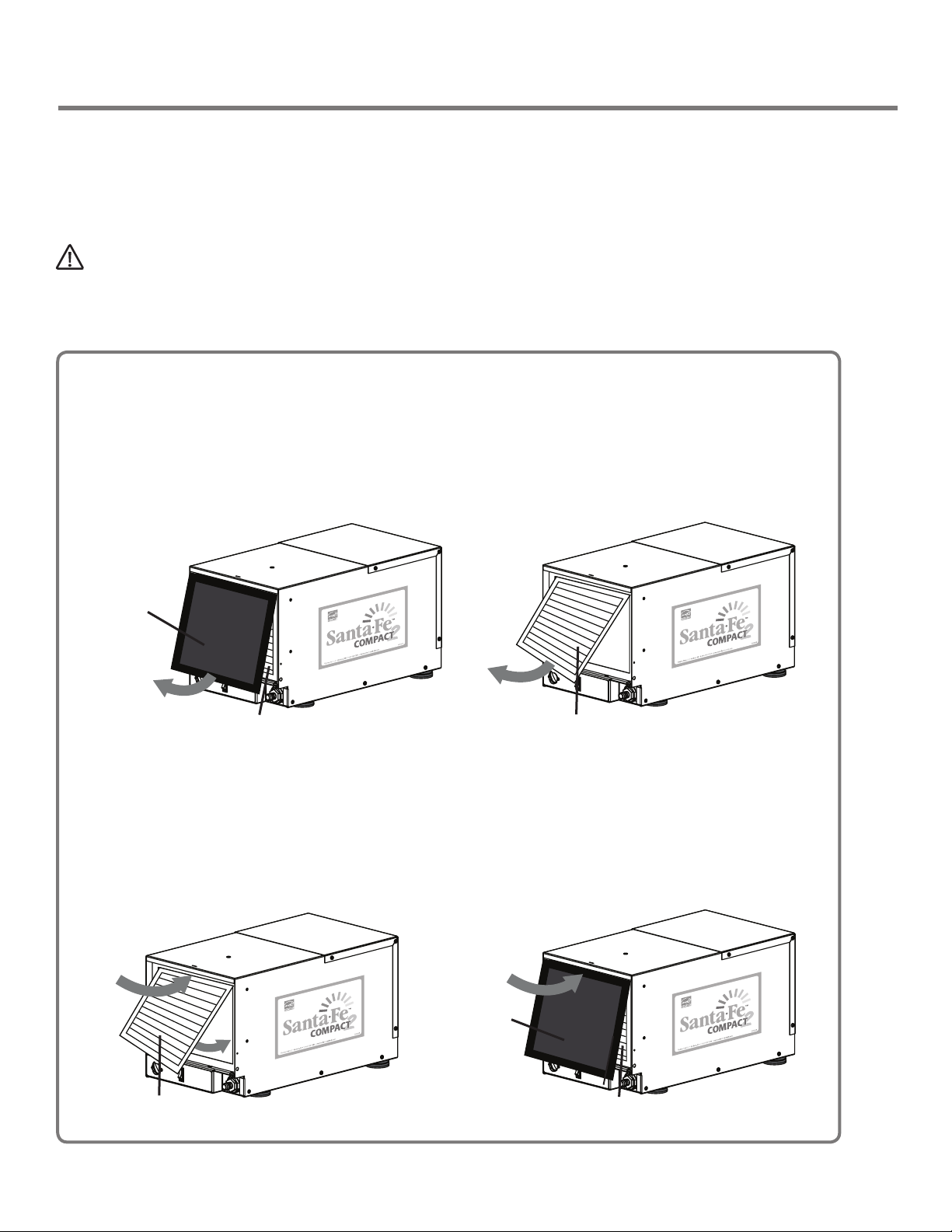

Changing The Filter .......................................................................... 10
MERV Rating Chart ........................................................................... 11
Electrical Requirements................................................................ 12
Service .......................................................................................... 13
Replacement Parts ............................................................................ 13
Refrigerant Charging ........................................................................ 13
Compressor / Capacitor Replacement ............................................... 13
Troubleshooting................................................................................ 13
Warranty....................................................................................... 15

3
1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Compact2 Installation & Operation Instructions
Safety Instructions
• Never operate a unit with a damaged power cord. If the power cord is damaged, it must be replaced by the manufacturer,
its service agent, or a similarly qualified person in order to avoid a hazard.
• Do not unplug the unit by pulling on the cord. Grasp the plug firmly and pull it out of the wall socket or power receptacle.
• When plugging in the unit, use a Ground Fault Interrupter outlet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
• Never operate electrical equipment near or in standing water.
• Do not stick your fingers or other objects through the safety grill.
• The unit must be used in the upright position.
• When changing filters, do not stick fingers or other objects in the unit.
• Do not restrict airflow in to or out of the unit. This may cause the unit to overheat.
• The unit should never be serviced or cleaned while it is plugged in.
• Do not sit or stand on the unit, or use as a shelf or table.
• Before leaving the unit unattended, ensure children do not have access to the equipment. Do not allow children to play with
or near the unit or in its air flow.
• The unit is designed to be installed indoors only.
• No user serviceable components. Contact installer or call 1-800-533-7533 for all repair or warranty needs.
Intended Application(s)
The Santa Fe Compact2 is intended for use in crawlspaces or basements: however, the unit can be placed in almost any
residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty.
The Santa Fe Compact2 is designed to operate in temperatures between 49° and 95°F. This unit works most effectively
between 56° and 95°.
In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must be free of water
intrusion or excessive fresh (outside) air infiltration. Before installing the Santa Fe Compact2, water intrusion and air
infiltration problems should be addressed.
Registrations
The Santa Fe Compact2 conforms to unified standard UL 60335-2-40 and CSA standard C22.2.60335-2-40.
READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE
INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR SANTA FE
DEHUMIDIFIER.
WARNING!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN
SERIOUS INJURY OR DEATH.
CAUTION!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN
INJURY OR MATERIAL PROPERTY DAMAGE.

4Santa Fe Compact2 Installation & Operation Instructions www.Santa-Fe-Products.com | 1-800-533-7533

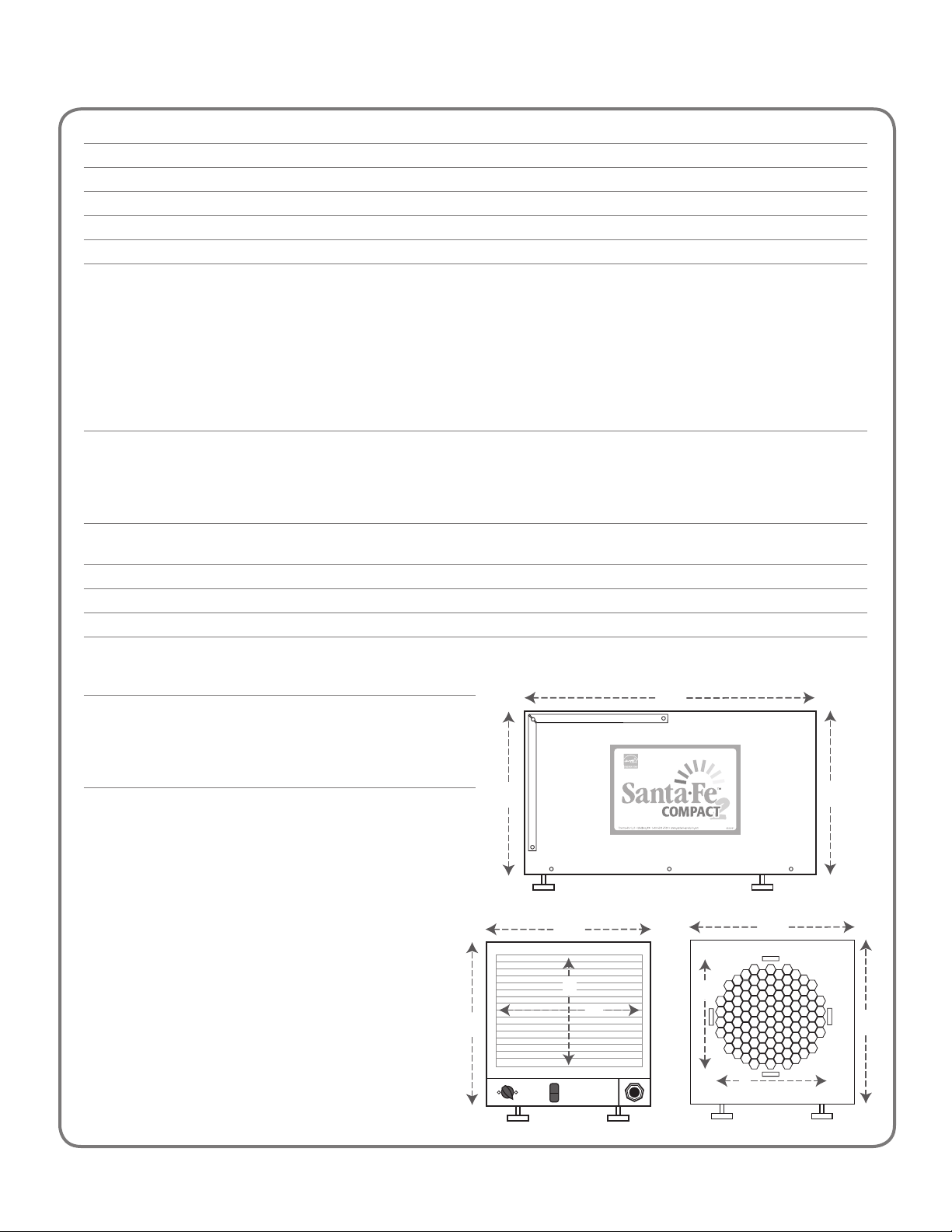

Specifications
Part Number: 4033600
Blower: 150 CFM @ 0.0" WG
Power: 580 watts @ 80°F and 60% RH
Supply Voltage: 115 volt – 1phase – 60 Hz
Current Draw: 5.1 amps
Operating Temp.: 49°F Min., 95°F Max.
Sized For: (Refer to website for more sizing considerations)
Crawl Space
Very Tightly Sealed Up to 3,000 Sq. Ft. (15,000 Cu. Ft.)
Moderately Sealed Up to 2,200 Sq. Ft. (11,000 Cu. Ft.)
Some Leaks & Imperfections Up to 1,800 Sq. Ft. (9,000 Cu. Ft.)
Basement
Very Tightly Sealed Up to 2,300 Sq. Ft. (23,000 Cu. Ft.)
Moderately Sealed Up to 2,000 Sq. Ft. (20,000 Cu. Ft.)
Some Leaks & Imperfections Up to 1,800 Sq. Ft. (18,000 Cu. Ft.)
Minimum Performance at:
80°F and 60%RH 70°F and 60%RH
Water Removal: 70 Pints/Day 47 Pints/Day
Efficiency: 5.0 Pints/kWh 3.9 Pints/kWh
Energy Factor: 2.4 L/kWh 1.9 L/kWh
Air Filter: MERV-8, Standard Pleat
Size: 9" x 11" x 1"
Power Cord: 9', 115 VAC, Ground
Drain Connection: 3/4" Threaded Female NPT
Drain Hose: 8' Direct Gravity Drain Hose (5/8" ID x 7/8" OD)
Refrigerant Type: R410A (Refer to manufacturers label for
more information)
Refrigerant Amount: 15 oz.
Dimensions: Unit Shipping
Width: 12" 18"
Height: 12" 18"
Length: 21" 27"
Weight: 55 lbs 64 lbs
Width: 12" 12" 15 5/8"
Height: 12" 12" 16"
Length: 28" 22" 31 5/8"
Weight: 55 lbs. 54 lbs. 65 lbs.
WITH COLLARS W/ OUT COLLARS
21”
12” 12”
FRONT
12”
12”
9”
11”
BACK
12”
12”
8”
8”
Width: 12" 12" 15 5/8"
Height: 12" 12" 16"
Length: 28" 22" 31 5/8"
Weight: 55 lbs. 54 lbs. 65 lbs.
WITH COLLARS W/ OUT COLLARS
21”
12” 12”
FRONT
12”
12”
9”
11”
BACK
12”
12”
8”
8”
Optional Accessories:
4027168 Pre-Filter
4028524 Pre-Filter 12-Pack
4029748 MERV-8 Filter (9”x11”x1”)
4038121 MERV-8 Filters 4-Pack + 1 Pre-Filter
4030422 MERV-8 Filters 12-Pack
4030671 MERV-11 Filter (9”x11”x1”)
4027418 MERV-11 Filters 4-Pack + 1 Pre-Filter
4030733 MERV-11 Filters 12-Pack
4030113 Pump Kit
4028616 Caster Kit
4036695 Hang Kit
4030203 Duct Kit, Supply Only
4030204 Duct Kit, Return Only
4027415 8” Flex Duct 25’
4020177 8” Flex Insulated Duct 25’
4020175 Remote Dehumidistat
Width: 12" 12" 15 5/8"
Height: 12" 12" 16"
Length: 28" 22" 31 5/8"
Weight: 55 lbs. 54 lbs. 65 lbs.
WITH COLLARS W/ OUT COLLARS
21”
12” 12”
FRONT
12”
12”
9”
11”
BACK
12”
12”
8”
8”

5
1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Compact2 Installation & Operation Instructions
Items Included in Box:
• Santa Fe Compact2 Dehumidifier
• Santa Fe Compact2 Installation & Operation Instructions
• Santa Fe Compact2 Leveling Feet
• 8' Drain Hose
• Drain Adapter
Important Precautions
• Do not install the Santa Fe Compact2 with the intake or exhaust of the unit within 1' of a wall or other obstruction. Avoid
directing the discharge air at people. The dehumidifier should be used in the upright position.
• Do not place the unit where curtains or debris can be drawn into the intake and restrict airflow.
• The device is designed to be installed indoors in a space that is protected from rain and flooding.
• Do not operate in standing water or place the unit near open water. If used near a water source; be certain there is no
chance the unit could fall into the water or get splashed and that it is plugged into a dedicated circuit and Ground Fault
Circuit Interrupter (GFCI) protected outlet.
• Install the unit with enough space to access all sides for maintenance and service. The entire shell needs to be removed in
order to do repairs.
• DO NOT use the dehumidifier as a bench or table.
• DO NOT place the dehumidifier directly on structural building members without vibration absorbers or unwanted noise may
result. Place the Santa Fe Compact2 on supports to raise the base of the unit.
Location Considerations
• Locate the dehumidifier near a suitable drain
(8' drain hose included). Allow for proper
drainage and routing of needed drain pipes.
• Locate the dehumidifier in an area where the
cord’s length (9') easily reaches a 115 VAC
electrical outlet with a minimum of a 15 Amp
circuit capacity.
• The unit is designed to operate while level. If
the unit is placed on an unlevel surface, refer
to section below (Installing Leveling Feet).
Failure to level the unit may result in leakage or
improper drainage.
• The unit should be suspended with a hang kit
from the floor joists if there is any possibility
of flooding. A flooded unit is not covered by
warranty. DO NOT install the feet if you are
using the hang kit. DO NOT hang the Santa
Fe Compact2 from its’ cabinet.
• Allow sufficient clearance to handle the unit’s
overall dimensions as well as any optional
return and supply ductwork to the unit.
• Allow sufficient clearance for filter removal
and to prevent airflow obstruction.
• Electrical service access will require the removal of the outside shell. Allow sufficient clearance around the unit.
Installing Leveling Feet
• Lay down a protective pad (pillow, blanket, etc.).
• Carefully turn unit onto side.
• Install leveling feet and adjust to the desired position to ensure unit is level for proper drainage.
• Carefully bring unit to upright position.
• Wait a minimum of 10 minutes before operating.
Dehumidifier Set Up
ELECTRICAL SERVICE
ACCESS THIS SIDE
9' POWER CORD
TOP VIEW
MINIMUM
CLEARANCE
FOR FILTER
REMOVAL
AND PROPER
AIR FLOW
11"
B
RETURN AIR
SUPPLY AIR
A
B
A
DRAIN
ACCESS
