Santa Fe D570988 Installation instructions

Rev 5/19/16
Installation & Operation Instructions
The Santa Fe Impact is the most energy efficient dehumidifier on the market.
It effectively dehumidifies up to *2,500 square feet and is the ideal unit for meeting
aggressive energy use targets. The Santa Fe Impact is engineered for extremely
quiet operation and is optimized for low heat load.
P/N: 4032230 Serial No.: Install Date:
Sold by:
www.Santa-Fe-Products.com 1.800.533.7533
Patent Pending Dual-Air Distribution
PATENTS:
D570,988
8,069,681
9,052,132

4201 Lien Rd. Madison, WI 53704
1-800-533-7533
www.Thermastor.com | www.Santa-Fe-Products.com
© 2016 Therma-Stor LLC
Table of Contents
Safety Instructions .......................................................................... 3
Intended Applications ......................................................................... 3
Registrations....................................................................................... 3
Specifications.................................................................................. 4
Dehumidifier Set Up....................................................................... 5
Items Included In Box.......................................................................... 5
Important Precautions ......................................................................... 5
Location Considerations...................................................................... 5
Installing Leveling Feet........................................................................ 5
Ducting to Finished Areas (Optional)............................................. 6
Attaching Duct Collars ........................................................................ 6
Recommended Installations................................................................. 7

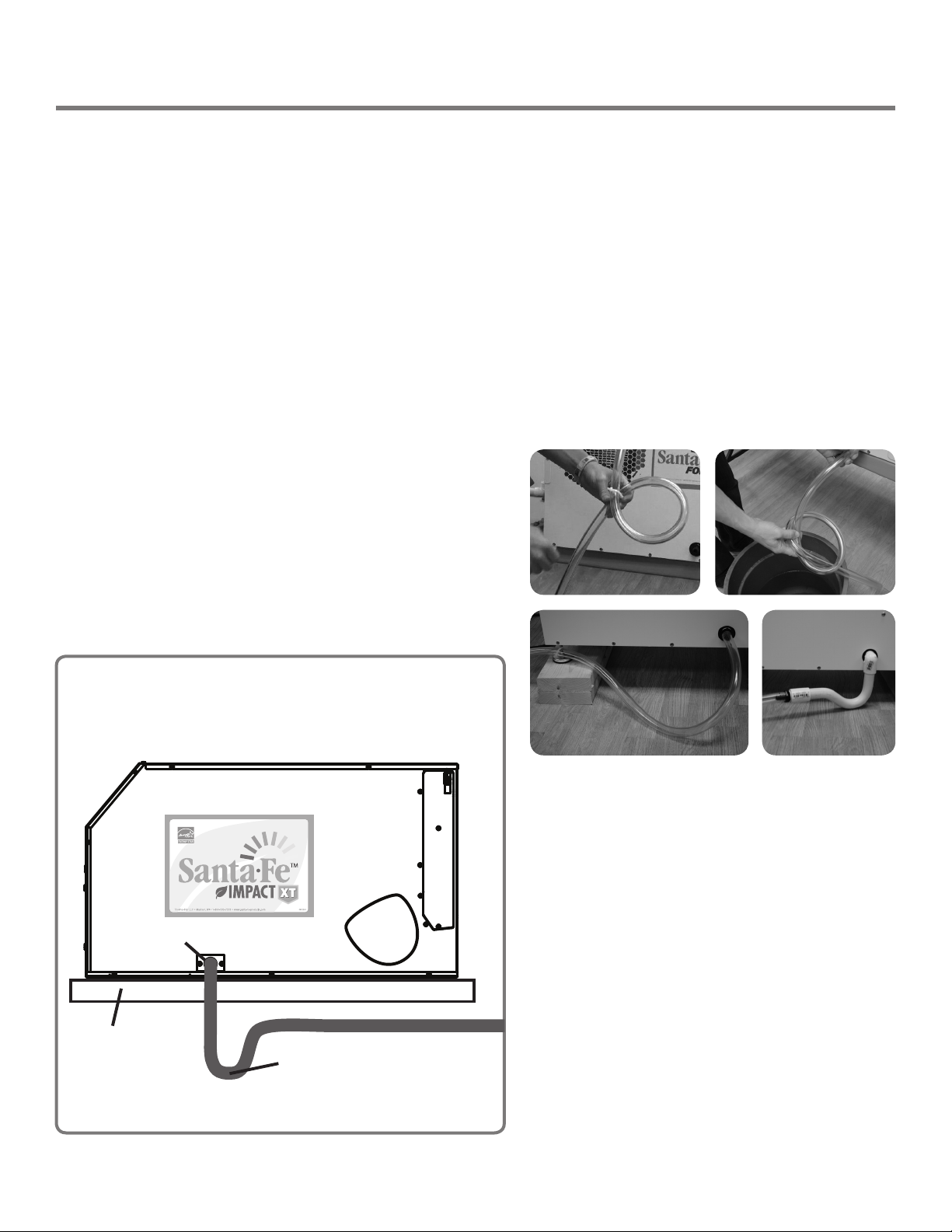

Drain Installation ........................................................................... 8
Operation ....................................................................................... 9

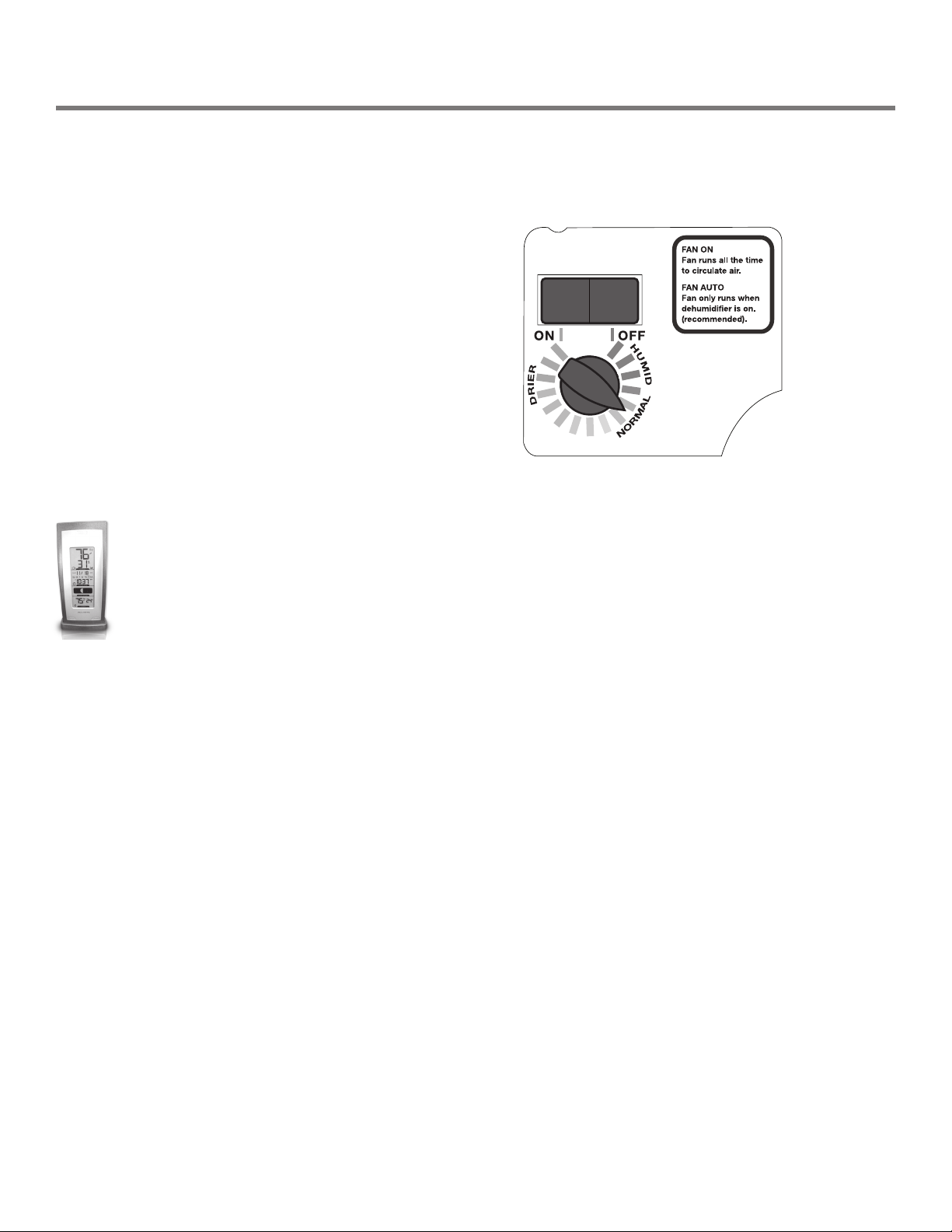

Humidity Control Adjustment............................................................... 9
Defrost Cycle...................................................................................... 9
Fan Operation ................................................................................... 9
Air Filtration ................................................................................. 10

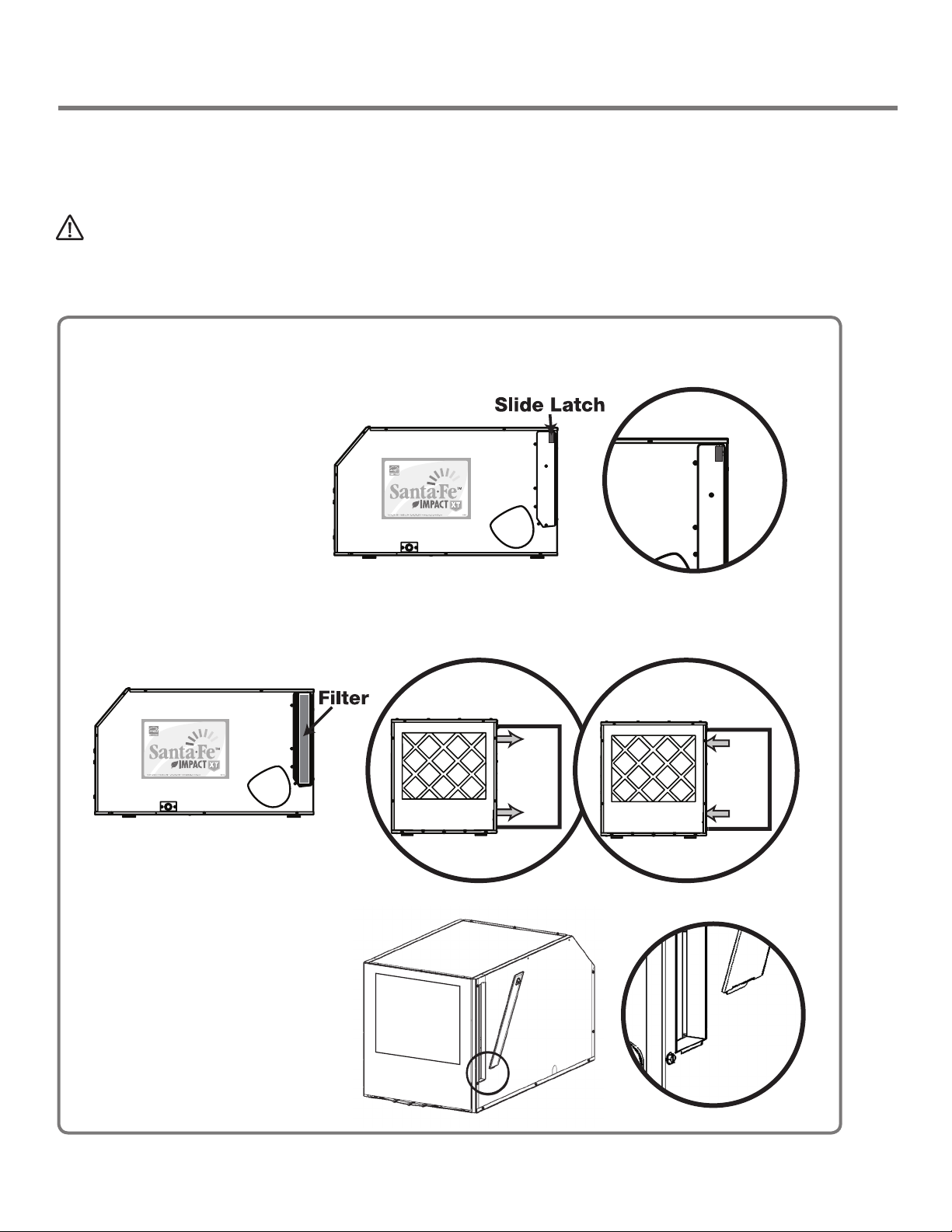

Changing The Filter .......................................................................... 10
MERV Rating Chart ........................................................................... 11
Electrical Requirements................................................................ 12
Service .......................................................................................... 13
Replacement Parts ............................................................................ 13
Refrigerant Charging ........................................................................ 13
Compressor / Capacitor Replacement ............................................... 13
Troubleshooting................................................................................ 13
Warranty....................................................................................... 15

3
1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Impact Installation & Operation Instructions
Safety Instructions
• Never operate a unit with a damaged power cord. If the power cord is damaged, it must be replaced by the manufacturer,
its service agent, or a similarly qualified person in order to avoid a hazard.
• Do not unplug the unit by pulling on the cord. Grasp the plug firmly and pull it out of the wall socket or power receptacle.
• When plugging in the unit, use a Ground Fault Interrupter outlet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
• Never operate electrical equipment near or in standing water.
• Do not stick your fingers or other objects through the safety grill.
• The unit must be used in the upright position.
• When changing filters, do not stick fingers or other objects in the unit.
• Do not restrict airflow in to or out of the unit. This may cause the unit to overheat.
• The unit should never be serviced or cleaned while it is plugged in.
• Do not sit or stand on the unit, or use as a shelf or table.
• Before leaving the unit unattended, ensure children do not have access to the equipment. Do not allow children to play with
or near the unit or in its air flow.
• The unit is designed to be installed indoors only.
• No user serviceable components. Contact installer or call 1-800-533-7533 for all repair or warranty needs.
Intended Application(s)
The Santa Fe Impact is intended for use in crawlspaces or basements: however, the unit can be placed in almost any
residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty.
The Santa Fe Impact is designed to operate in temperatures between 56° and 95°F.
In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must be free of water
intrusion or excessive fresh (outside) air infiltration. Before installing the Santa Fe Impact, water intrusion and air infiltration
problems should be addressed.
Registrations
The Santa Fe Impact conforms to unified standard UL 60335-2-40 and CSA standard C22.2.60335-2-40.
READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE
INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR SANTA FE
DEHUMIDIFIER.
WARNING!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN
SERIOUS INJURY OR DEATH.
CAUTION!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN
INJURY OR MATERIAL PROPERTY DAMAGE.

4Santa Fe Impact Installation & Operation Instructions www.Santa-Fe-Products.com | 1-800-533-7533
Specifications
Part Number: 4032230
Blower: 257 CFM @ 0.0" WG
Power: 530 watts @ 80°F and 60% RH
Supply Voltage: 115 volt – 1phase – 60 Hz
Current Draw: 4.9 amps
Operating Temp.: 56°F Min., 95°F Max.
Sized For: (Refer to website for more sizing considerations)
Crawl Space
Very Tightly Sealed Up to 3,700 Sq. Ft. (18,500 Cu. Ft.)
Moderately Sealed Up to 2,900 Sq. Ft. (14,500 Cu. Ft.)
Some Leaks & Imperfections Up to 2,500 Sq. Ft. (12,500 Cu. Ft.)
Basement
Very Tightly Sealed Up to 3,000 Sq. Ft. (30,000 Cu. Ft.)
Moderately Sealed Up to 2,700 Sq. Ft. (27,000 Cu. Ft.)
Some Leaks & Imperfections Up to 2,500 Sq. Ft. (25,000 Cu. Ft.)
Minimum Performance at:
80°F and 60%RH 70°F and 60%RH
Water Removal: 105 Pints/Day 85 Pints/Day
Efficiency: 8.8 Pints/kWh 7.8 Pints/kWh
Energy Factor: 4.2 L/kWh 3.7 L/kWh
Air Filter: MERV-11, Standard Pleat
Size: 16" x 20" x 2"
Power Cord: 9', 115 VAC, Ground
Drain Connection: 3/4" Threaded Female NPT
Drain Hose: 8' Direct Gravity Drain Hose (5/8" ID x 7/8" OD)
Refrigerant Type: R410A (Refer to manufacturers label for
more information)
Refrigerant Amount: 1 lb., 10 oz.
Dimensions: Unit Shipping
Width: 20.25" 25"
Height: 21.75" 28"
Length: 38" 42"
Weight: 140 lbs 156 lbs
Optional Accessories:
4021475 MERV-11 Filter (16” x 20” x 2”)
4027420 MERV-11 Filters 4-Pack
4027424 MERV-11 Filters 12-Pack
4028614 Pump Kit
4028616 Caster Kit
4036685 Hang Kit
4028607 Duct Kit, Supply Only
4028610 Duct Kit, Return Only
4026969 10” Flex Duct 25’
4022126 10” Flex Insulated Duct 25’
4024750 12” Flex Duct 25’
4028366 12” Flex Insulated Duct 25’
4020175 Remote Dehumidistat
21.75"
FRONT BACK
20.25" 20.25"
38"
21.75"
21.75"
21.75"
FRONT
BACK
20.25"
20.25"38"
21.75"
21.75"
21.75"
FRONT
BACK
20.25"
20.25"
38"
21.75"
21.75"

5
1-800-533-7533 | www.Santa-Fe-Products.com Santa Fe Impact Installation & Operation Instructions
Items Included in Box:
• Santa Fe Impact Dehumidifier
• Santa Fe Impact Installation & Operation Instructions
• Santa Fe Impact Leveling Feet
• 8' Drain Hose
Important Precautions
• Do not install the Santa Fe Impact with the intake or exhaust of the unit within 1' of a wall or other obstruction. Avoid directing
the discharge air at people. The dehumidifier should be used in the upright position.
• Do not place the unit where curtains or debris can be drawn into the intake and restrict airflow.
• The device is designed to be installed indoors in a space that is protected from rain and flooding.
• Do not operate in standing water or place the unit near open water. If used near a water source; be certain there is no
chance the unit could fall into the water or get splashed and that it is plugged into a dedicated circuit and Ground Fault
Circuit Interrupter (GFCI) protected outlet.
• Install the unit with enough space to access all sides for maintenance and service. The rear panel where the power cord is
located needs to be removed in order to do repairs.
• DO NOT use the dehumidifier as a bench or table.
• DO NOT place the dehumidifier directly on structural building members without vibration absorbers or unwanted noise may
result. Place the Santa Fe Impact on supports to raise the base of the unit.
Location Considerations
• Locate the dehumidifier near a suitable drain (8' drain
hose included). Allow for proper drainage and routing
of needed drain pipes.
• Locate the dehumidifier in an area where the cord’s
length (9') easily reaches a 115 VAC electrical outlet
with a minimum of a 15 Amp circuit capacity.
• The unit is designed to operate while level. If the unit
is placed on an unlevel surface, refer to section below
(Installing Leveling Feet). Failure to level the unit may
result in leakage or improper drainage.
• The unit should be suspended with a hang kit from
the floor joists if there is any possibility of flooding.
A flooded unit is not covered by warranty. DO NOT
install the feet if you are using the hang kit. DO NOT
hang the Santa Fe Impact from its’ cabinet.
• Allow sufficient clearance to handle the unit’s
overall dimensions as well as any optional return
and supply ductwork to the unit.
• Allow sufficient clearance for filter removal and to
prevent airflow obstruction.
• Electrical service access will require the removal of the rear panel where the power cord is located. Allow sufficient clearance
around the unit.
Installing Leveling Feet
• Lay down a protective pad (pillow, blanket, etc.).
• Carefully turn unit onto side.
• Install leveling feet and adjust to the desired position to ensure unit is level for proper drainage.
• Carefully bring unit to upright position.
• Wait a minimum of 10 minutes before operating.
Dehumidifier Set Up
MINIMUM
CLEARANCE
FOR FILTER
(EITHER SIDE)
20"
RETURN AIR
SUPPLY AIR
A
B
TOP VIEW
A
B
MINIMUM CLEARANCE
FOR PROPER AIR FLOW
OF EXHAUST AIR
12"
MINIMUM
CLEARANCE
FOR PROPER
AIR FLOW OF
INTAKE AIR
12"
9' POWER CORD
DRAIN
ACCESS
B
CAUTION! REMOVE COMPRESSOR SHIPPING TIE FROM THE UNIT. FAILURE TO
REMOVE SHIPPING TIE WILL CAUSE EXCESS VIBRATION TO BE TRANSMITTED TO THE FRAME.
The Santa Fe Impact uses a compressor to power the refrigeration system. To protect the compressor and
refrigeration system during shipping a plastic tie wrap secures it to the units frame. Remove the tie wrap
by cutting the tie wrap and pulling from the unit as shown. After removing tie wrap, insert plastic plugs
provided into the holes.
