Sanyipace S610ASMKTCP User manual

Touch Screen Sewer Camera System
User Manual
Model No：S610ASMKTCP
NOTE: All accessories are under the keyboard!
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
Amazon After-sale: [e-mail]
Website After-sale: [e-mail]

● Scan this QR code to get the electronic version of the
instruction in English.
● Scannen Sie diesen QR -Code, um die elektronische
Version der Anweisung auf Deutsch abzurufen.
● Scannez ce code QR pour obtenir la version électronique
de l'instruction en Français.
● Escanee este código QR para obtener la versión
electrónica de la instrucción en Español.
● Scansiona questo codice QR per ottenere la versione
elettronica delle istruzioni in Italiano.

Catalog
1. Notice ................................................................................................1
2. Scope of Product Use .......................................................................1
3. Product Specification ........................................................................ 1
4. IPS Monitor Operation ...................................................................... 2
5. Control Box ....................................................................................... 6
6. Camera with Self-leveling Function & 512Hz Transmitter ................7
7. Cable Coil ......................................................................................... 9
8. Battery & Adapter ..............................................................................9
9. Device Installation ...........................................................................10
10. Wireless Keyboard ........................................................................11
11. Disassemble Box .......................................................................... 12
12. Structure & Accessories ................................................................13
13. Trouble & Troubleshooting ............................................................15
14. Warranty ........................................................................................15
Attention: The illustrations and screenshots of this manual are to explain
the product's operation, which may be a little different from actual
products due to the products' version upgrades and different production
batches. If the content in this manual does not match your machine,
please refer to the machine!

1
1. Notice
a. Please read the manual carefully before using the product.
b. Handle the device with care when operating, do not drop or push hard.
c. Do not dismantle the machine without permission.
d. Please turn off the monitor and disconnect the device after use.
e. Before inserting the TF card into the device, please back up the
information on the TF card to avoid loss of information.
f. Do not cut off the power suddenly during recording and playback,
otherwise, the product and video files may be damaged.
2. Scope of Product Use
a. Household pipeline blockage inspection
b. Pipe inspection camera, pipeline tools
c. Underground water pipes, HVAC systems, oil and gas pipelines
d. Rescue operations in narrow spaces
e. For underground exploration
f. Scientific research on underwater riverbeds
g. Sewer system inspection
h. Any other hard-to-reach locations/areas
3. Product Specification
---Camera and Cable---
Resolution: AHD 1080P
Camera diameter: 0.9in/23mm (built-in 512Hz transmitter, self-leveling)
Camera light source: 12pcs 1W high white LED (adjustable)
Camera angle: 120 degrees
Camera material: stainless steel, IP68 waterproof
Camera protective cover size: 1.14in*1.58in/29mm*40mm
Camera pipe pulley: 1.5in*3.55in/38mm*90mm
Cable diameter and material: 164ft/50M of 0.28in/7mm hardest high elastic
cable

2
---Monitor Screen---
Size: 10.1-inch
Camera/monitor picture: IPS color
Function: Video recording, audio recording, headphone port, capture
photos, 5X digital zoom, battery level display, distance counter, 512Hz
transmitter, self-leveling, keyboard input (support English), etc.
Monitor input voltage: DC 12V
SD card: package includes 16GB card, support max 128GB
Display resolution: 1080P
Menu Language: Chinese/English/Russian/German optional
Screen port: power input/video
Screen operation: Touch screen
Video format: AVI
Photo format: JPG
Working temperature: -4~140℉/-20~60℃
Storage temperature: -22~176℉/-30~80℃
---Battery---
Charger: 100VAC-240VAC/DC 12.6V 1000MA
Battery: lithium battery 4500mAh
Battery continuous working time: about 6-8 hours

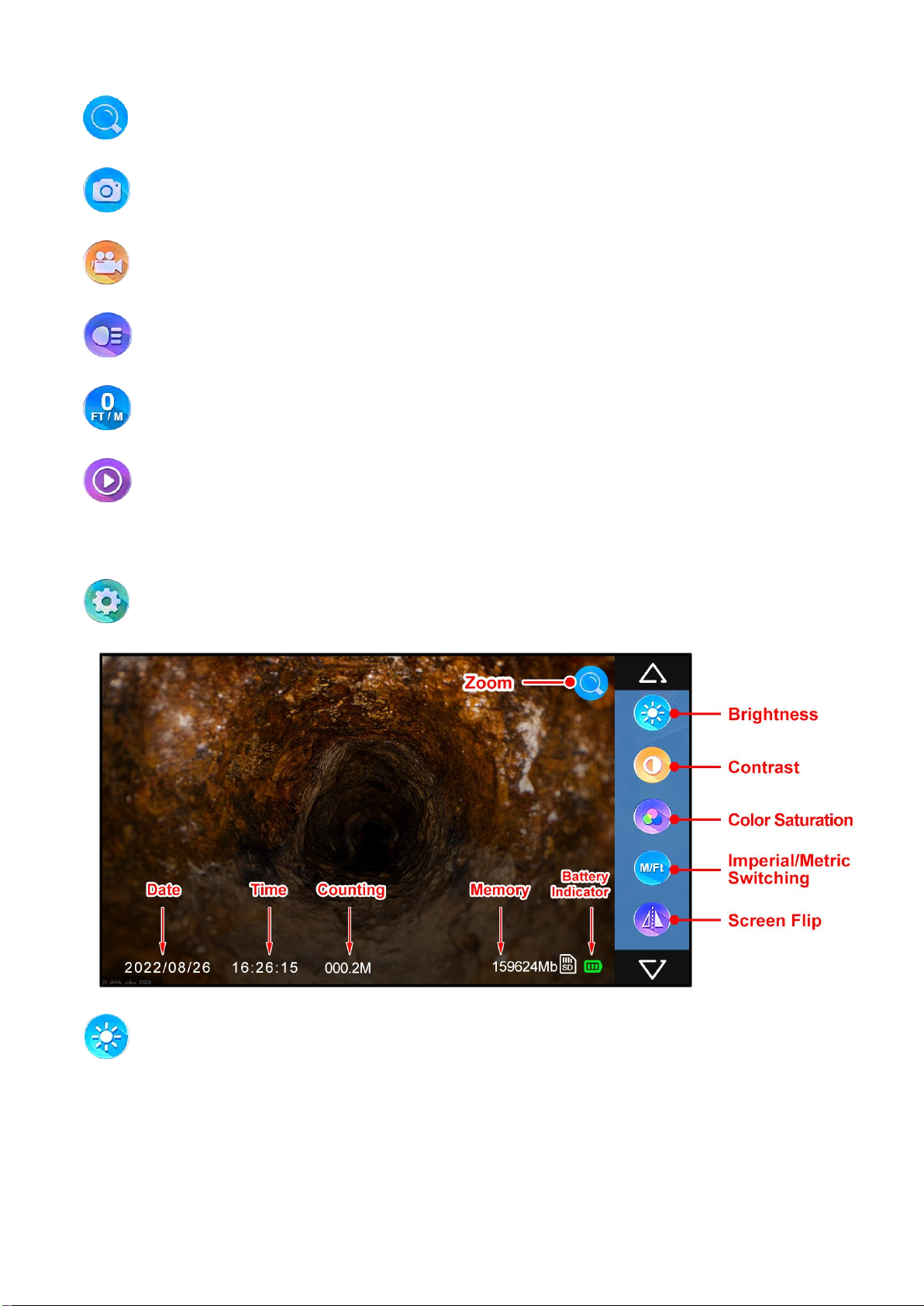

4. IPS Monitor Operation

3
Tap to zoom in 0-5 times, tap the 6th time to return to normal (0).
Tap to capture a photo, tap one at a time.
Tap to start recording (video with audio), tap again to stop recording.
Tap to adjust 5 levels of LED lights.
Tap to clear distance calculation back to 0.
Tap once to enter video playback, tap twice to enter image browsing, tap
"<" ">" to select, and tap the screen at will to exit.
Tap to enter screen custom settings.
Tap the 10 gears to adjust the screen brightness, and tap the screen at
will to exit.

4
Tap the 10 gears to adjust the screen contrast, and tap the screen at will
to exit.
Tap the 10 gears to adjust the screen color saturation, and tap the screen
at will to exit.
Tap to imperial/metric switching.
Tap to Invert the image.
01 Mode: Horizontal direction;
02 Mode: Horizontal 180-degree flip 01 mode;
03 Mode: Vertical 180-degree flip 02 mode;
04 Mode: Horizontal 180-degree flip 03 mode.
Tap to date time setting.
Tap to format all data on the memory card.

5
Tap to restore factory settings.
The version of the current system.
Tap to language switching, currently supports Chinese, English, German,
Russian switching.
Adjusting the circumference according to the coil length and diameter
makes calculating the distance more accurate. 165ft/50m 7mm diameter coil
circumference defaults to 1.0, please do not adjust it.

6
5. Control Box
Note: The earphone port is compatible with any brand of 3.5mm audio
earphones, and you can play videos with sounds after plugging in the
earphone.

7
6. Camera with Self-leveling Function & 512Hz
Transmitter
Camera probe size details:
The camera probe has a built-in 512Hz transmitter, which transmits a 512Hz
frequency signal through a built-in chip, compatible with any 512Hz pipe
locator.

8
Transmit Frequency: 512Hz
Output Waveform: sine wave
Transmit Distance: about 16.4ft/5m
Self-leveling can be defined as the ability of any instrument to level itself
regardless of the angle of inclination.
The camera probe is equipped with a self-levelling gravity bearing inside
which automatically level the direction of the lens no matter how the camera
probe rotates, providing users with upright pictures all the time.

9

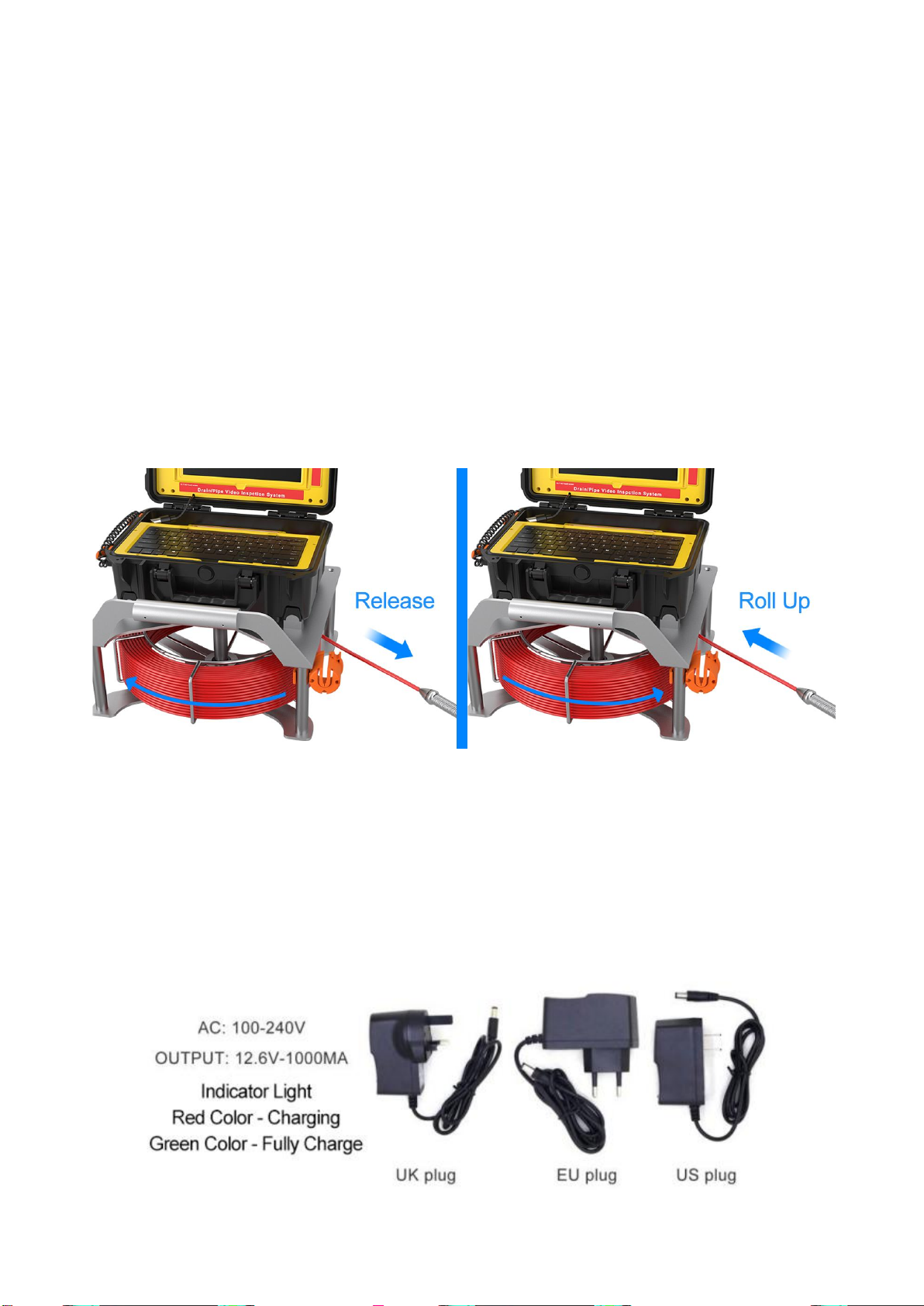

7. Cable Coil
New stable and strong coil structure with steel bearing inside, can easily
release or coil the cable with less time and force.
How to release the cable:
Take out the cable from the holder, then rotate the cable coil clockwise to
release.
How to coil the cable:
Hold and rotate the coil with one hand, wind the cable counterclockwise
with the other hand, and finally lock the cable in the holder.
8. Battery & Adapter
The control panel has a built-in battery with a capacity of 4500mAh, and the
screen displays the battery power status. When the screen shows that
the battery level is less than one bar, please charge the battery.

10
The steps of charging are as follows:
a. Take out the DC adapter from the storage box under the keyboard.
b. Connect the DC adapter port to the charging port (on the control panel).
c. Plug the DC adapter into a 100-240V AC power source, the indicator light
is in red during charging.
d. When the battery is fully charged, the indicator turns green, the full
charge time is about 5-6 hours.
Note: Please charge it in time to ensure a longer battery life.
Otherwise, the battery may be damaged and cannot be recharged.
9. Device Installation
1. Please install the parts in off-status
2. Connect the camera head to the coil
3. Connect the screen to the control box
4. Connect the cable coil to the control box
5. Turn on the power and start using
6. Please dry the camera head with a cloth after use to avoid being rusty

11
10. Wireless Keyboard
For the indicator light on the keyboard:
doesn't light up -- the keyboard is off or connected
flashing quickly -- during pairing
flashing slowly -- pairing failed
How to make the wireless keyboard work?
1.Push down the 2 yellow buckles to release the lock of the keyboard, and
then lift the keyboard from the center depression.

12
2.Install the battery from the accessory at the keyboard.
3.Turn on the switch and press the "CONNECT" button to pair, wait for
some seconds and it works
4. If the pairing fails, please unplug and re-plug the Bluetooth receiver
beside the on/off button, and repeat the above steps to pair it again.
11. Disassemble Box
Disassembly steps:
a. Loosen the screws under the control box
b. Push out the control box horizontally to unlock it from the buckle (as
shown in the figure)
c. Take out the control box.

13

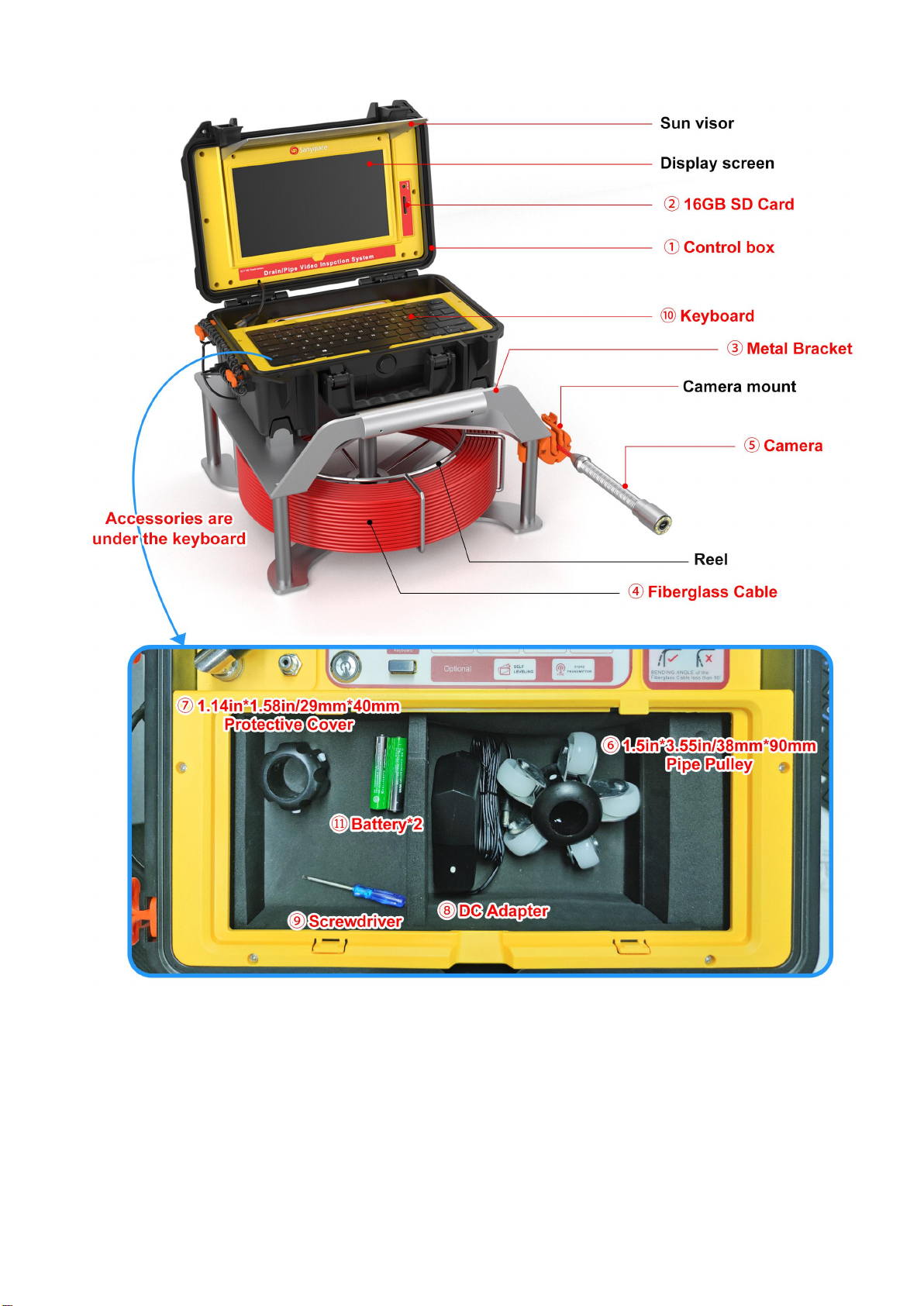

12. Structure & Accessories
Where are the accessories?
Note: All accessories are placed in the storage box under the keyboard, please
open the keyboard and take it out.

14
①Control box*1 ②16GB SD Card*1 ③Metal Bracket*1
④Fiberglass Cable*1 ⑤Camera*1 ⑥1.5in*3.55in/38mm*90mm Pipe
Pulley*1 ⑦1.14in*1.58in/29mm*40mm Protective Cover*1
⑧DC Adapter*1 ⑨Screwdriver*1 ⑩Keyboard*1 ⑪Battery*2
⑫Instruction*1

15
13. Trouble & Troubleshooting
14. Warranty
We provide a one-year product quality warranty from the date of purchase
and provide free lifetime product technical support. For normal faults or
quality problems within the warranty period, we provide free replacement or
repair services. For damage caused by manual operation, we will charge
Trouble
Troubleshooting
No power
a. Check whether each interface is connected
correctly;
b. Check whether the battery is out of power, check
the power display.
Can’t be charged
a. Is the DC adapter plug-in correctly;
b. Check if the indicator light of the DC adapter is on.
Can't record videos
a. Whether the SD card is inserted correctly;
b. Insufficient SD card memory;
c. Check whether the power is off during the
recording process.
Recording videos in
black and white color
Adjust the LED light button to the appropriate
brightness, observe the screen display, and select a
brightness that is clearer and more colorful.
Screen flashes
Please fully charge the device and confirm it again,
the device doesn't have enough power to support its
work.
Turn on the device but
the screen freezes
Please take out the SD card and confirm it again, if
you take it out and the device can work, please
format the SD card on PC or use another SD card to
work with the device.

16
the cost of product parts for repair. Our technical support team is at your
service 24 hours a day. If you encounter any problems during use, please
feel free to contact us.
