Sanyo CE29FFV2-F User manual

Indice
1. Safety instructions.................................................................................................................................. 1
2. WARNING.............................................................................................................................................. 1
3. Precaution against X-Rays...................................................................................................................... 1
4. Recommendations to protect our environment........................................................................................ 1
5. TECHNICAL CHARATERISTICS. .......................................................................................................... 2
6. Safety..................................................................................................................................................... 2
7. EMC (Electromagnetic Compatibility)..................................................................................................... 2
8. Factory special mode ............................................................................................................................. 2
9. Automatic channel search reactivating ................................................................................................... 3
10. Service Menu......................................................................................................................................... 3
11. CONNECTED DOCUMENTS................................................................................................................. 3
12. MOUNTED CIRCUITS CODES.............................................................................................................. 3
13. CABINET PARTS LIST .......................................................................................................................... 4
13.1. CABINET PARTS LIST OF CHASSIS CE29FFV2-F........................................................................4
13.2. CABINET PARTS LIST OF CE29FFV2-F........................................................................................ 5
14. PARTS LIST........................................................................................................................................... 6
CE29FFV2-F
Service Manual
Model:
CRT 29” Philips A68ERF012X013
CRT 29” Samsung A68QCP993X001
CHASSIS 2114
EB5-C 21"/25"/28"/29"
Colour Television True Flat
Give complete “SERVICE PART No” for parts order or
servicing, it is shown on the rating sheet on the cabinet
back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission system and
power source differ from the design specifications. Refer
to the specifications for the design specifications.
Ref. Nº MS CE29FFV2-F
30-09-2003

Service Manual SM CE29FFV2-F
1
1. Safety instructions
Read this page before doing any operation of adjustment, maintenance or repair the TV set described.
Only skilled personnel of Sanyo Technical Service should do the adjustment, maintenance or repair of TV set.
2. WARNING
For the correct and safe use of the TV set, it is essential that the service personnel follow the process of safety
generally accepted and the safety precautions specified in this manual.
An isolation transformer should be connected in the power line between the receiver and the AC line when a
service is performed on the primary side of the converter transformer of the set.
The deflection heat sink is connected to -12V.
3. Precaution against X-Rays
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. If high voltage
exceeds specified limits, take necessary corrective action. Follow the instructions carefully for +B1 volt power
supply adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
COMPLIANCE TO STANDARDS
All of those marked with
 or must be
Replaced with original parts
WARNING! This TV set contains components which
are particularly sensitive to static electricity (ESD).
It is recommended that all due precaution be taken
handling integrated circuits and semiconductors.
4. Recommendations to protect our environment
Stand-by mode: In order to save energy and to maintain an optimum picture quality, it is advisable to switch off
the TV using the ON/OFF button located at the front of TV set.
Used batteries: The batteries in the remote control of these models do not contain mercury. However, SANYO
recommends that you do not dispose of used batteries in domestic refuse. Please, contact your dealer or your
local authorities for information regarding the disposal of used batteries or your nearest collection point.
Recommendation about the end-of-life: These SANYO TV sets have been designed and manufactured using high
quality materials which can be recycled and reused. In the future, when the life cycle of these sets come to an end,
specialised companies can disassemble it and reuse certain materials. This reduces the impact of waste in our
environment. Please, contact with your local authorities for information regarding the disposal of your set when the
time arrives. Help us to conserve the environment we live in!

Service Manual SM CE29FFV2-F
2

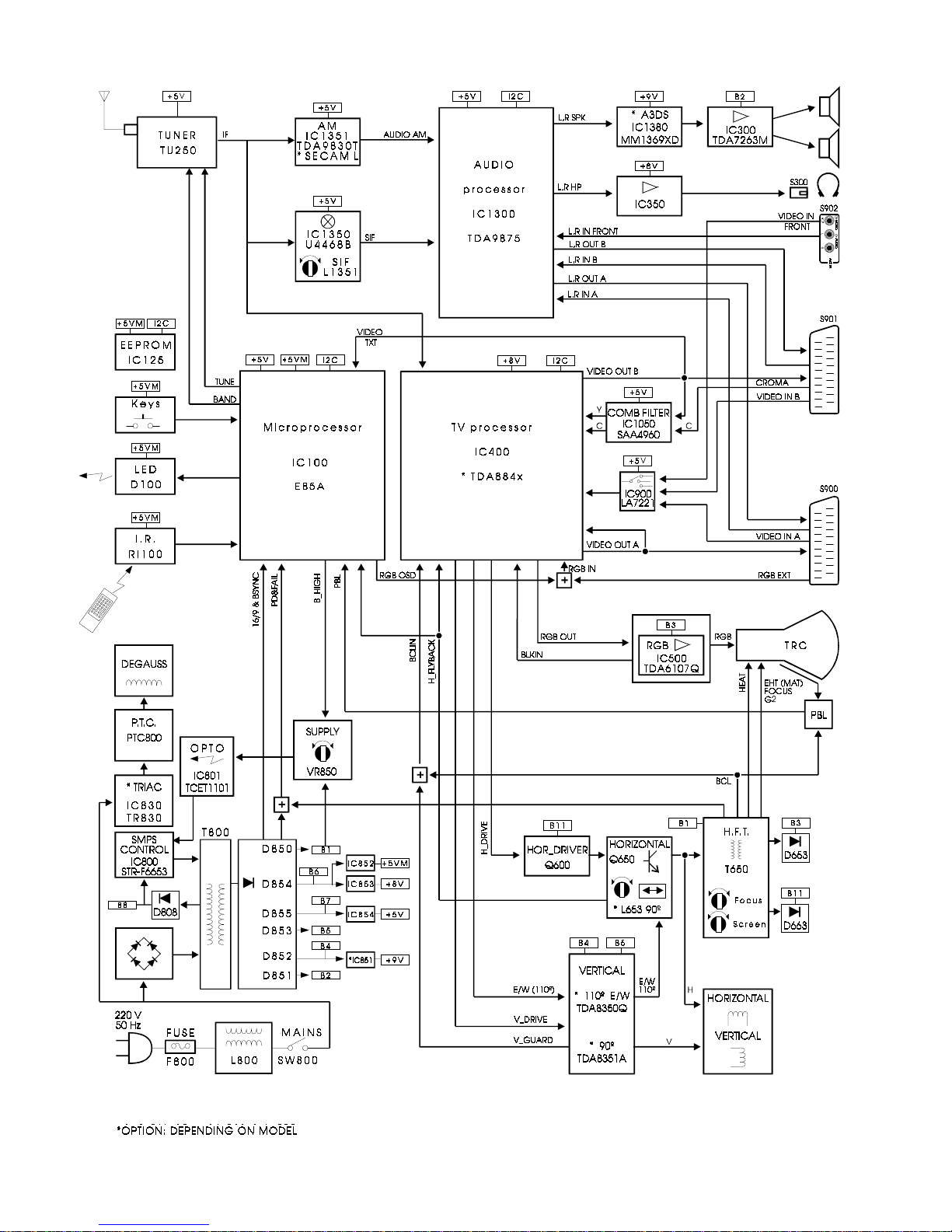

5. TECHNICAL CHARATERISTICS.
Cathode-ray tubes In-Line, gun Type. Black Matrix. 29” (68 cm) True Flat, Invar Plus mask.
Tuning-system Voltage synthesis, 100 programs in non-volatile memory, AFT, automatic,
semiautomatic and manual channel-search.
Reception channels Band I, channels 2-4 (VHF)=E2-E4
Cable channels S1-S10
Hyperband channels S21-S41
Band III, channels 5-12 (VHF)=E5-E12
Band IV-V, channels 21-69 (UHF)=E21-E69
Reception system B/G, D/K, I, L, L' system
Colour system PAL, SECAM, (NTSC 4.43, NTSC 3,58) ONLY AV
Program selection Sequential selection from the controls on the set. Direct selection to any program
from the remote-control device.
Audio Power-rating 2x8,9 W rms. (10% distortion)
Speakers 2 of 8
Ω .
Aerial External aerial sockets 75 Ωs. IEC
Jack for headphones Stereo jack 3,5mm. (with independent control)
Clock and alarm Function
Timer Function Switch on and off of CTV programmable in real time.
AV connectors 1 Scart connector 21 pin CENELEC standard AV, RGB and S_Video.
1 Scart connector 21 pin CENELEC standard AV, RGB
1 RCA Video input (frontal)
2 RCA Audio input (frontal)
Power supply 220 – 240 VAC 50Hz
Consumption 83 W (IEC 107-1)
2,9 W (Stand-by )
Stereo/Dual Systems NICAM and Stereo/Dual (A2)
Sound Effects Pseudo Stereo. Bass boost. Actv. 3D sorround, BBE, spatial stereo
Auto volume
Clock function
Alarm function Programmable over 24 hours
Timer function Switch on and off are programmable aver 24 hours.
TXT 1,5 Flot and list. 10 Teletext pages memory
Hotel Mode It can be programmed in Hotel Mode and Rental Hotel Mode
Remore ON/OFF Tis TV can be switched ON/OFF Through the blue scart connector.
Options by means of Technical Service:
NTSC-M
6. Safety
It fulfils the safety requirements established in the regulation:
EN 60065:98
7. EMC (Electromagnetic Compatibility)
It fulfils the EMC requirements established in the regulation:
EN 55013:2001
EN 55020:1994/A11:1996/A13:1999/A14:1999
EN 61000-3-2:1995+A1:19998+A2:98/A14:2000
EN 61000-3-3:1995
8. Factory special mode
The factory mode is a special TV working mode intended to help in the manufacturing process and it is identified
on the screen with the message “FAC”. This mode is never suited for customer use.
The main differences respect to normal mode are:
1- The standby mode is always disabled.
2- The Blue-back (no sync. signal present) is disabled.
3- The customer adjustments ( volume, contrast …) work faster.
4- The timer off works but it does not change to Stand-by mode.
5- Change of programs and TV/AV swithing faster. Cancelled mute.
In case of finding the TV set in Factory mode, it must be taken out of this state. To do so, enter the clock setting
menu on the customer OSD and then exit.

Service Manual SM CE29FFV2-F
3
9. Automatic channel search reactivating
In order to reset the initial automatic channel search function, start a channel search in AUTO mode from the user
tuning menu and switch-off the TV set before any station is found. The next time the TV set is switched on, it will
start an automatic channel-search.
10.Service Menu
The service menu allows to acces to de relationel parameters with the TV setting.
The service menu is accessed by holding down the front key (vol-) and simultaneously pressing the teletext green
key from the remote control. An very detaill explication is in the Service Manual of chassis 2114 (EB5-C).
11.CONNECTED DOCUMENTS.
This Service Manual provides the particular information of the model CE29FFV2-F and it is complemented with:
1. Service Manual of the CHASIS 2114 (EB5-C).
2. Service Electrical scheme of the model CE29FFV1-F.
3. Instruction manual.
12.MOUNTED CIRCUITS CODES.
CE29FFV2-F
A68ERF012X013
Assy 6110391908 Main + Socket TRC +Audio + Mandos
Subassy 7040004207 Socket TRC PCB
Subassy 7140002135 Audio PCB
Subassy 7200002512 PCB Mandos
CE29FFV2-F
A68QCP993X001
Assy 6110391940 Main + Socket TRC +Audio + Mandos
Subassy 7040005949 Socket TRC PCB
Subassy 7140002135 Audio PCB
Subassy 7200003049 PCB Mandos
Note : The following abbreviations indicate:
PHI Exclusive parts for CTR PHILIPS
SAM Exclusive parts for CRT SAMSUNG

Service Manual SM CE29FFV2-F
4
13.CABINET PARTS LIST
13.1. CABINET PARTS LIST OF CHASSIS CE29FFV2-F
Ref. No. Part No. Description
YG4 0080113111 COMP. Side IF Shield EB5-C
YG5 0080113202 Copper Side IF Shield EB5-C
YG1800 0200826402 LED Holder
Assy PA (Audio)
IC300 0360517304 TDA 8946 J N1
YR300 0200226108 Heatsink AUDIO EB5-C 25-28-29
YR301 0970200804 Silicon Grease YG6260
YR302 0010106300 Spring CLIP 56379
Assy PD (Defletion)
IC701 0360517007 LA7846N
Q650 0360306708 S 2055 N
Q750 0360309009 BD242BFP
YR650 0200226009 Heatsink Deflection EB5-C
YR651 0970200804 Silicon Grease YG6260
YR652 0010106300 Spring CLIP 56379
YR653 0010106300 Spring CLIP 56379
YR654 0010110401 Spring CLIP 56363
YR655 0970200804 Silicon Grease YG6260
YR656 0970200804 Silicon Grease YG6260
Assy PB
D851 0360378905 Schottky FMB-G19L 90V 4ATO220
YR851 0200224905 Heatsink TO-220-F
Localiz. Código Descripción
Assy PF(Power supply)
Q800 0360311302 MOS 2SK2545 600V/6A
YR800 0200225811 Heatsink Power Supply EB5-C
YR801 0010110401 Spring CLIP 56363
Assy PT
S901 0330162702 Scart Connector 21 PIN BLUE
YR901 0200420602 MOUNTING-BRKT F2WV
YR902 0890115603 Selftapping Screws DIN 7981F 2,9X8
Assy PS
S900 0330162603 Scart Connector 21 PIN BLACK
YR900 0200420602 MOUNTING-BRKT F2WV
YR903 0890115603 Selftapping Screws DIN 7981F 2,9X8
Assy PC (Zocket CRT)
IC500 0360514228 TDA 6107JF/N3
YR500 0200224806 Heatsink RGB EB5-A
YR501 0970200804 Silicon Grease YG6260
YR502 0050709104 Washer
YR503 0890121106 Screw M3X6 FE/ZN DIN 7985

Service Manual SM CE29FFV2-F
5

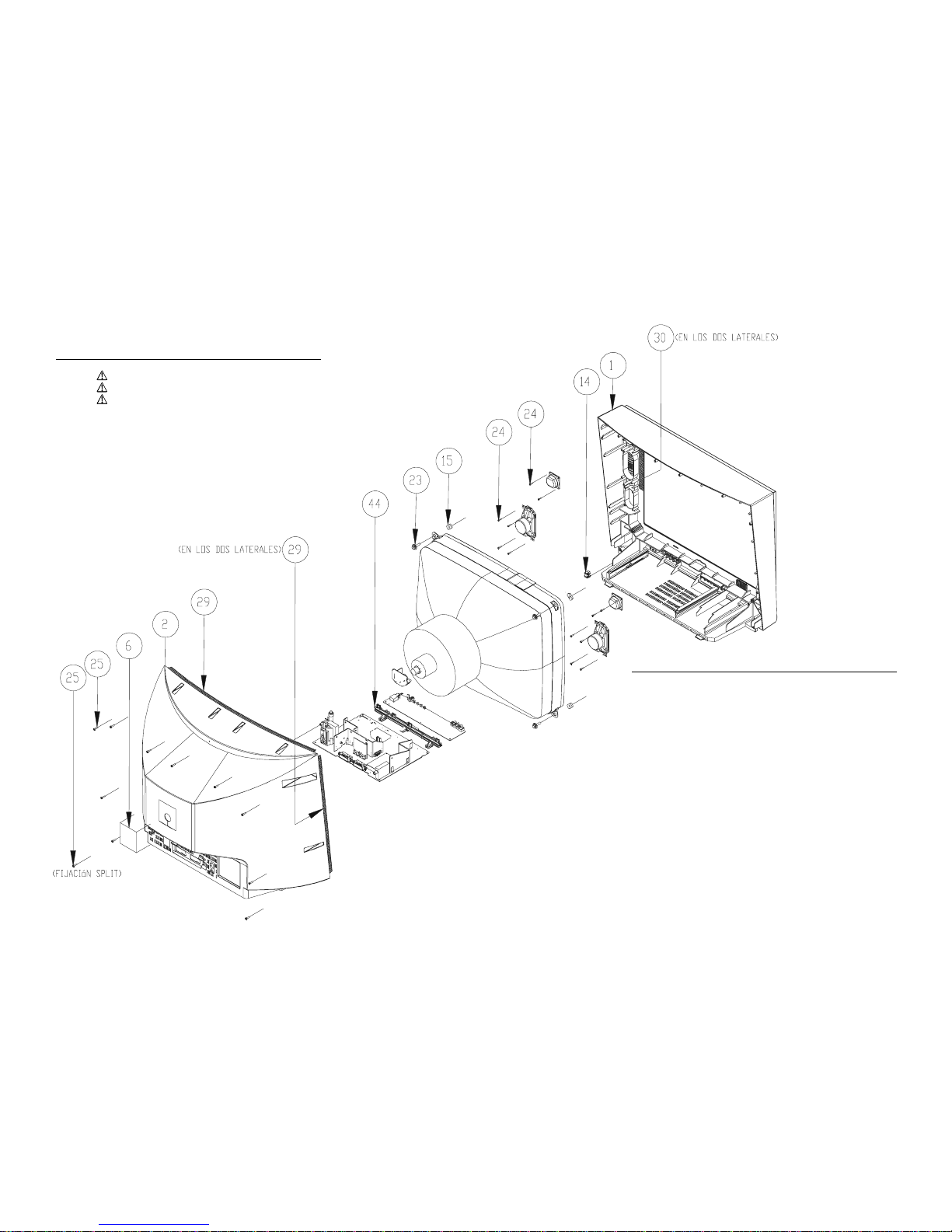

13.2. CABINET PARTS LIST OF CE29FFV2-F
Ref. No. Part. No. Description
(2700054014)
YP 4 0020125225 SANYO Badge 46,2X13,5/SILVER
YP 5 0340208404 Trans.DEC.BOARD 29" FLAT
YP 6 0970304010 Rubber Band 600X2800 MM
YP12 0010111003 Key Spring 21" C2GA
YP13 2130010800 Button Power Assy 29" FLAT
YP13-1 0130216500 Button UNITED BASE 29" FLAT
YP13-2 0130216609 Button Power 29" FLAT
YP14 2130010701 Button Base Assy 29"FLAT
YP14-1 0130216401 Button Unit 29" FLAT
YP14-2 0130216302 Button United BASE 29" FLAT
YP16 0200628410 RAIL Lateral PCB 29" FLAT
YP19 0590275103 Door 29" FLAT
Ref. No. Part. No. Description
YF 1 2700054014 Front Cabinet Assy 29" FLAT ATS
YF 2 0590274809 Back Cover 29" FLAT
YF 6 0390258804 Rating Place CE29FFV2-F
YF14 0200819910 AC Cord Holder
YF15 0050202316 TRC Cushion 5 mm. (HARDENESS 64)
YF23 0890161508 Screw CL 6,1X27
YF24 0890191315 Screw AR 4X15
YF25 0890190903 Screw 4X13
YF29 0970141305 Adhesive TAPE 19 mm. BLACK
YF30 0970136008 Adhesive TAPE PS
YF44
0200628204
Front RAIL 29
"
FLAT

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
6
14.PARTS LIST
PCB SOCKET TRC
CONNECTORS
CON_FD 0160220729 Polarized Band 4P 520+6+6
CON_FH 0160230819 Polarized Band Gray 5P. 450+6+6
CAPACITORS
C500 0270341324 Polyester 100 nF. 10%250V.
C501 0250322815 Electrolytic 10 µF. 250V.
C503 0240590901 Ceramic 2200 pF +80-20%2KV.
DIODES
D500 0360007215 BAV21 DIODE
D501 0360007215 BAV21 DIODE
D502 0360007215 BAV21 DIODE
E500 0640705117 Eyelet 2,5-3
FD1 0330144205 Ribbon Wire Holder 4 P.
FH1 0330144304 Ribbon Wire Holder 5 P.
FK 0640300604 Earth Wire 340 mm.
INTEGRATED CIRCUITS
IC500 0360514228 TDA 6107JF/N3
J117 0470040007 Jumper Lead 0,6 mm.
L502 0090304924 Choke R.F. 470 µH. 10%
L506 PHI 0090208307 Coil 75 µH. 10% 1,5 A. R-7,5
L506 SAM 0090209305 Coil 59 µH. 10% 1,5 A.
PCB04 0750153520 Socket PCB 5-C
RESISTORS
R500 0790741409 Solid 1,5 KΩ10% 1/2W.
R501 0790741409 Solid 1,5 KΩ10% 1/2W.
R502 0790741409 Solid 1,5 KΩ10% 1/2W.
R503 0790741409 Solid 1,5 KΩ10% 1/2W.
R504 0790741409 Solid 1,5 KΩ10% 1/2W.
R505 0790239008 R.M.G. SMD 1 KΩT<=5%
R506 0790535702 Fuse 10 Ω5% 0,33W.
R507 0790227003 R.M.G. SMD 100 ΩT<=5%
R508 0790227003 R.M.G. SMD 100 ΩT<=5%
R509 0790227003 R.M.G. SMD 100 ΩT<=5%
R510 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W.
R511 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W.
R512 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W.
ZOCALO 0330162108 Socket TRC Diameter 22,5 mm.
MAIN PCB
CN_G2 0640706503 BLUE G2 Wire WITH TWO TerminalS
CN_KV 0330272204 2P. Connector Shield CABLE 400MM
CN_NA 0330193608 4P. Connector
CN_NB 0330198706 10 P. Connector
CN_NC 0330196601 7P. Connector
RESISTORS
C100 0230600702 Ceramic SMD 100 nF. 10% 25V.
C102 0230600702 Ceramic SMD 100 nF. 10% 25V.
C103 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C104 0250321072 Electrolytic 10 µF. 63V.
C105 0230480808 Ceramic SMD 10 nF. 10% 50V.
C106 0270101322 Polyester 1000 pF. 5%400V.
C107 0230480808 Ceramic SMD 10 nF. 10% 50V.
C108 0230180309 Ceramic SMD 33 pF. 1% 50V.
C109 0230180309 Ceramic SMD 33 pF. 1% 50V.
C112 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C113 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C114 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C115 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C116 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C118 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C120 0230480808 Ceramic SMD 10 nF. 10% 50V.
C190 0230600702 Ceramic SMD 100 nF. 10% 25V.
C191 0230640401 Ceramic SMD 220 nF. 10% 16V.
C200 0250321072 Electrolytic 10 µF. 63V.
C201 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C202 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C203 0230600702 Ceramic SMD 100 nF. 10% 25V.
C204 0230600702 Ceramic SMD 100 nF. 10% 25V.
C207 0250321072 Electrolytic 10 µF. 63V.
C209 0230480808 Ceramic SMD 10 nF. 10% 50V.
C210 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C250 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C251 0250461217 Electrolytic 100 µF. 25V.
C252 0270341480 Polyester 100 nF. 10% 63V.
C256 0230480808 Ceramic SMD 10 nF. 10% 50V.
C257 0270341480 Polyester 100 nF. 10% 63V.
C258 0230480808 Ceramic SMD 10 nF. 10% 50V.
C259 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C260 0250410859 Electrolytic 47 µF. 25V.
C261 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C300 0250572310 Electrolytic 1000 µF. 25V.
C301 0230600702 Ceramic SMD 100 nF. 10% 25V.
C302 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C303 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C304 0230640401 Ceramic SMD 220 nF. 10% 16V.
C305 0230640401 Ceramic SMD 220 nF. 10% 16V.
C306 0230640401 Ceramic SMD 220 nF. 10% 16V.
C307 0230640401 Ceramic SMD 220 nF. 10% 16V.
C308 0250321072 Electrolytic 10 µF. 63V.
C309 0250321072 Electrolytic 10 µF. 63V.
C310 0240551309 Ceramic 1000 pF. 10% 50V.
C311 0270341324 Polyester 100 nF. 10%250V.
C312 0270341324 Polyester 100 nF. 10%250V.
C352 0250410859 Electrolytic 47 µF. 25V.
C353 0250410859 Electrolytic 47 µF. 25V.
C354 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C355 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C356 0250500618 Electrolytic 220 µF. 16V.
C357 0250461217 Electrolytic 100 µF. 25V.
C359 0230480808 Ceramic SMD 10 nF. 10% 50V.
C361 0250461217 Electrolytic 100 µF. 25V.
C362 0230160400 Ceramic SMD 22 pF. 1% 50V.
C363 0230160400 Ceramic SMD 22 pF. 1% 50V.
C364 0230240400 Ceramic SMD 100 pF. 5% 50V.
C365 0230240400 Ceramic SMD 100 pF. 5% 50V.
C400 0250461217 Electrolytic 100 µF. 25V.
C401 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C402 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C403 0230520504 Ceramic SMD 22 nF. 10% 50V.
C404 0230640401 Ceramic SMD 220 nF. 10% 16V.
C405 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C406 0230600702 Ceramic SMD 100 nF. 10% 25V.
C407 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C408 0230600702 Ceramic SMD 100 nF. 10% 25V.
C409 0230600702 Ceramic SMD 100 nF. 10% 25V.
C410 0230600702 Ceramic SMD 100 nF. 10% 25V.
C411 0230180309 Ceramic SMD 33 pF. 1% 50V.
C412 0230180309 Ceramic SMD 33 pF. 1% 50V.
C413 0230740003 Ceramic SMD 2,2 µF. 10V. +80-20%
C414 0230520504 Ceramic SMD 22 nF. 10% 50V.
C415 0250461217 Electrolytic 100 µF. 25V.
C416 0230520504 Ceramic SMD 22 nF. 10% 50V.
C417 0230400202 Ceramic SMD 2200 pF. 10% 50V.
C418 0230240400 Ceramic SMD 100 pF. 5%50V.
C419 0230200503 Ceramic SMD 47 pF. 5% 50V.
C420 0230680308 Ceramic SMD 470 nF. 10% 16V.
C421 0230440406 Ceramic SMD 4700 pF. 10% 50V.
C422 0230240400 Ceramic SMD 100 pF. 5% 50V.
C423 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C424 0230600702 Ceramic SMD 100 nF. 10% 25V.
C425 0260340906 Polypropylene 100 nF. 5% 100V.
C426 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C427 0230600702 Ceramic SMD 100 nF. 10% 25V.

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
7
C428 0230240400 Ceramic SMD 100 pF. 5%50V.
C429 0230240400 Ceramic SMD 100 pF. 5% 50V.
C430 0230240400 Ceramic SMD 100 pF. 5% 50V.
C431 0230240400 Ceramic SMD 100 pF. 5% 50V.
C432 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C433 0230240400 Ceramic SMD 100 pF. 5% 50V.
C434 0230680308 Ceramic SMD 470 nF. 10% 16V.
C435 0250280856 Electrolytic 4,7 µF. 100V.
C436 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C437 0230360604 Ceramic SMD 1000 pF. 10%50V.
C438 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C439 0230480808 Ceramic SMD 10 nF. 10%50V.
C442 0250321072 Electrolytic 10 µF. 63V.
C443 0230440406 Ceramic SMD 4700 pF. 10% 50V.
C450 0230240400 Ceramic SMD 100 pF. 5%50V.
C451 0230240400 Ceramic SMD 100 pF. 5%50V.
C452 0230240400 Ceramic SMD 100 pF. 5%50V.
C453 0230520504 Ceramic SMD 22 nF. 10% 50V.
C454 0230520504 Ceramic SMD 22 nF. 10% 50V.
C455 0230520504 Ceramic SMD 22 nF. 10% 50V.
C600A 0270341324 Polyester 100 nF. 10% 250V.
C601 0270140122 Polyester 2200 pF. 10%400V.
C603 0230520504 Ceramic SMD 22 nF. 10% 50V.
C604 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C650B 0260260500 Polypropylene 22 nF. 3,5% 630V
C651 0260223003 Polypropylene 15 nF. 3,5% 1600V.
C652A PHI 0260400908 Polypropylene 330 nF. 5%250V.
C652B SAM 0260393004 Polypropylene 300 nF. 5% 250V.
C653 0260433065 Polypropylene 820nF. 5% 250V
C654A PHI 0260140504 Polypropylene 2200 pF. 3,5% 1,6 KV.
C654B SAM 0260123500 Polypropylene 1500 pF. 3,5% 1600V
C655A PHI 0270290802 Polyester 39 nF. 5% 400V.
C655A SAM 0270281231 Polyester 33 nF. 10% 400V.
C656 0250115318 Electrolytic 2,2 µF. 160V. 6,3X11
C657 0240132035 Ceramic 470 pF. 10%1KV.
C658 0230260705 Ceramic SMD 150 pF. 10% 630V. 1206
C659A 0250504107 Electrolytic 220 µF. 200V. 18x35,5
C660 0230340408 Ceramic SMD 680 pF. 10% 630V. 1206
C661 0250283835 Electrolytic 4,7 µF. 250V.
C663 0230600702 Ceramic SMD 100 nF. 10% 25V.
C668 0250283835 Electrolytic 4,7 µF. 250V.
C669 0230340408 Ceramic SMD 680 pF. 10% 630V. 1206
C670 0270341324 Polyester 100 nF. 10%250V.
C674 0230520504 Ceramic SMD 22 nF. 10% 50V.
C675 0230600702 Ceramic SMD 100 nF. 10% 25V.
C680 0250220472 Electrolytic 1 µF. 100V.
C700 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C701 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C703 0270370588 Polyester 180 nF. 10%63V.
C704 0250463718 Electrolytic 100 µF. 50V. 8X11,5
C710 0270341480 Polyester 100 nF. 10%63V.
C711 0230360604 Ceramic SMD 1000 pF. 10%50V.
C712 0270220726 Polyester 10 nF. 10%250V.
C750 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C751 0230480808 Ceramic SMD 10 nF. 10%50V.
C753 0250284023 Electrolytic 4,7 µF. 160V.
C802 0240134767 Ceramic 1000 pF. +-20% 1KV.
C803 0240134767 Ceramic 1000 pF. +-20% 1KV.
C806 0230240400 Ceramic SMD 100 pF. 5% 50V.
C807 0230200503 Ceramic SMD 47 pF. 5% 50V.
C809 0230300709 Ceramic SMD 330 pF. 5% 50V.
C810 0250503661 Electrolytic. 220 µF. 385V. 30X35
C811 0250412970 Electrolytic 47 µF. 50V.
C812 0240136135 Ceramic Capacitor 1000 pF. 20% 4KV.
C813 0230360505 Ceramic SMD 1000 pF 5% 100V.0805
C814 0230260309 Ceramic SMD 150 pF. 10% 1KV. 1206
C816 0240136135 Ceramic Capacitor 1000 pF. 20% 4KV.
C817 0230300303 Ceramic SMD 330 pF. 10% 630V. 1206
C818 0230300303 Ceramic SMD 330 pF. 10% 630V. 1206
C850 0230280505 Ceramic SMD 220 pF. 10% 1KV. 1206
C851 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C852 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C855 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C856 0250465218 Electrolytic 100 µF. 200V.
C857 0250601515 Electrolytic 2200 µF. 25V. R-7,5
C858 0250531910 Electrolytic 470µF. 25V. 10X12,5
C859 0250531910 Electrolytic 470µF. 25V. 10X12,5
C860 0250572419 Electrolytic 1000 µF. 16V.
C861 0250572419 Electrolytic 1000 µF. 16V.
C862 0230640401 Ceramic SMD 220 nF. 10% 16V.
C863 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C866 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C868 0250321072 Electrolytic 10 µF. 63V.
C870 0250321072 Electrolytic 10 µF. 63V.
C871 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C874 0250461217 Electrolytic 100 µF. 25V.
C875 0230400202 Ceramic SMD 2200 pF. 10% 50V.
C876 0230360604 Ceramic SMD 1000 pF. 10% 50V.
C900 0230320608 Ceramic SMD 470 pF. 5% 50V.
C901 0230320608 Ceramic SMD 470 pF. 5% 50V.
C902 0230320608 Ceramic SMD 470 pF. 5% 50V.
C903 0230320608 Ceramic SMD 470 pF. 5% 50V.
C904 0230320608 Ceramic SMD 470 pF. 5% 50V.
C905 0230320608 Ceramic SMD 470 pF. 5% 50V.
C906 0230320608 Ceramic SMD 470 pF. 5% 50V.
C907 0250321072 Electrolytic 10 µF. 63V.
C913 0230240400 Ceramic SMD 100 pF. 5% 50V.
C914 0230240400 Ceramic SMD 100 pF. 5% 50V.
C917 0230240400 Ceramic SMD 100 pF. 5% 50V.
C918 0230600801 Ceramic SMD 100 nF. +80-20% 25V.
C920 0250321072 Electrolytic 10 µF. 63V.
C921 0250321072 Electrolytic 10 µF. 63V.
C923 0250321072 Electrolytic 10 µF. 63V.
C925 0230320608 Ceramic SMD 470 pF. 5% 50V.
C926 0250410859 Electrolytic 47 µF. 25V.
C928 0250410859 Electrolytic 47 µF. 25V.
C930 0250410859 Electrolytic 47 µF. 25V.
C931 0250410859 Electrolytic 47 µF. 25V.
C934 0250410859 Electrolytic 47 µF. 25V.
C935 0250410859 Electrolytic 47 µF. 25V.
C936 0250410859 Electrolytic 47 µF. 25V.
C938 0250321072 Electrolytic 10 µF. 63V.
C939 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C940 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
DIODE
D102 0360601512 SMD LS4148
D105 0360130819 1N 4148
D106 0360601512 SMD LS4148
D107 0360130819 1N 4148
D108 0360102602 Zener BZX79C3V3
D190 0360130819 1N 4148
D200 0360601512 SMD LS4148
D201 0360601512 SMD LS4148
D250 0360706014 HZT33-02 RE
D251 0360601512 SMD LS4148
D300 0360103204 Zener BZX79C5V1
D301 0360103204 Zener BZX79C5V1
D350 0360601512 SMD LS4148
D351 0360601512 SMD LS4148
D401 0360602411 Zener SMD BZT55C6V2
D402 0360601512 SMD LS4148
D600 0360605604 SMD BAV103 200V 0,25A
D650 0360118608 ERD07-15L
D651 0360007215 BAV21 DIODE
D652A 0360380109 RU3AM
D653 0360377006 ERB44-04
D654 0360601512 SMD LS4148
D655 0360603914 Zener SMD BZT55C33
D658 0360601512 SMD LS4148
D659 0360130819 1N 4148
D660 0360601512 SMD LS4148
D661 0360603914 Zener SMD BZT55C33
D663 0360377006 ERB44-04
D672 0360601512 SMD LS4148
D674 0360603310 Zener SMD BZT55C15
D675 0360601512 SMD LS4148
D683 0360601512 SMD LS4148
D700 0360601512 SMD LS4148
D701 0360130629 1N 4007 RL
D702 0360130819 1N 4148
D703 0360603914 Zener SMD BZT55C33

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
8
D704 0360130819 1N 4148
D705 0360135107 Zener BZX79C8V2
D750 0360601512 SMD LS4148
D751 0360105100 Zener BZX79C11
D752 0360130819 1N 4148
D753 0360130819 1N 4148
D754 0360607006 Zener SMD MMSZ56T1
D800 PHI 0360372411 ERC05-10B V1
D800 SAM 0360379705 1R5NH41 1000V 1.5A
D801 PHI 0360372411 ERC05-10B V1
D801 SAM 0360379705 1R5NH41 1000V 1.5A
D802 PHI 0360372411 ERC05-10B V1
D802 SAM 0360379705 1R5NH41 1000V 1.5A
D803 PHI 0360372411 ERC05-10B V1
D803 SAM 0360379705 1R5NH41 1000V 1.5A
D804 0360602411 Zener SMD BZT55C6V2
D806 0360376909 ERB44-02
D850 0360374409 RU4B LF-T3
D851 0360378905 Schottky FMB-G19L 90V 4ATO220
D852A 0360379606 1R5GH45 400V 1.5A
D853A 0360379606 1R5GH45 400V 1.5A
D854 0360376909 ERB44-02
D855A 0360376701 Schottky RK 19 V1 90V 1,5A
D857 0360606115 Zener SMD BZT55C4V3
D859 0360606115 Zener SMD BZT55C4V3
D860 0360602213 Zener SMD BZT55C5V1
D861 0360603914 Zener SMD BZT55C33
D862 0360130819 1N 4148
D863 0360104202 Zener BZX79C6V2
D866 0360601512 SMD LS4148
D867 0360130819 1N 4148
D870 0360130819 1N 4148
D871 0360130819 1N 4148
D900 0360602213 Zener SMD BZT55C5V1
D901 0360602213 Zener SMD BZT55C5V1
D902 0360602213 Zener SMD BZT55C5V1
D903 0360602213 Zener SMD BZT55C5V1
D904 0360602213 Zener SMD BZT55C5V1
D905 0360602213 Zener SMD BZT55C5V1
D906 0360602213 Zener SMD BZT55C5V1
D908 0360602213 Zener SMD BZT55C5V1
D909 0360602213 Zener SMD BZT55C5V1
D910 0360602213 Zener SMD BZT55C5V1
D911 0360602213 Zener SMD BZT55C5V1
D912 0360602213 Zener SMD BZT55C5V1
D914 0360602213 Zener SMD BZT55C5V1
D917 0360602213 Zener SMD BZT55C5V1
D918 0360601512 SMD LS4148
D919 0360601512 SMD LS4148
D920 0360601512 SMD LS4148
D921 0360130819 1N 4148
CONNECTORS
FA 0330271305 2P. Socket W/ CLIP
FB1 0330191701 2P. Socket
FB2 0330270109 2 P. Socket
FD 0330144205 Ribbon Wire Holder 4 P.
FF1 0330190000 2P. Connector
FF2 0330270109 2 P. Socket
FH 0330144304 Ribbon Wire Holder 5 P.
INTEGRATED CIRCUITS
IC100 0360519003 SAA 5564PS
IC125 0360712012 SMD M24C08-WMN6T
IC300 0360517304 TDA 8946 J N1
IC350 0360472609 KA2209B
IC400 0360516900 TDA 8874PS N1
IC701 0360517007 LA7846N
IC800 0360517205 MC44603ADW SMD
IC801 0360491203 OPTO TCET1101G
IC850 0360378764 KA431LZTA TO-92
IC852 0360473409 LD1117V33C TO220
IC853 0360472708 KA78R08TU
IC854 0360472807 KA78R05-STU
IC900 0360708804 LA 7221
JUMPERS
JO104 0790701106 R.M.G. SMD 0 Ω1/10W.
JO1050 0790701106 R.M.G. SMD 0 Ω1/10W.
JO1051 0790701106 R.M.G. SMD 0 Ω1/10W.
JO1052 0790701106 R.M.G. SMD 0 Ω1/10W.
JO202 0790701106 R.M.G. SMD 0 Ω1/10W.
JO252 0790701106 R.M.G. SMD 0 Ω1/10W.
JO253 0790701106 R.M.G. SMD 0 Ω1/10W.
JO701 0790701106 R.M.G. SMD 0 Ω1/10W.
JO702 0790701106 R.M.G. SMD 0 Ω1/10W.
J129 0790701106 R.M.G. SMD 0 Ω1/10W.
J159 0790126700 Carbon 100 Ω5% 1/6W.
J198 0790701106 R.M.G. SMD 0 Ω1/10W.
J235 0790701106 R.M.G. SMD 0 Ω1/10W.
J236 0790701106 R.M.G. SMD 0 Ω1/10W.
J237 0790701106 R.M.G. SMD 0 Ω1/10W.
J242 0790701106 R.M.G. SMD 0 Ω1/10W.
J248 0790701106 R.M.G. SMD 0 Ω1/10W.
J250 0790701106 R.M.G. SMD 0 Ω1/10W.
J251 0790701106 R.M.G. SMD 0 Ω1/10W.
J255 0790701106 R.M.G. SMD 0 Ω1/10W.
J256 0790701106 R.M.G. SMD 0 Ω1/10W.
J264 0790701106 R.M.G. SMD 0 Ω1/10W.
J267 0790701106 R.M.G. SMD 0 Ω1/10W.
KVBM 0330191701 2P. Socket
K300 0330330002 8P. Connector
K301 0330330002 8P. Connector
K302 0330490301 Connector Assy 10P W/WireS 260 MM
COILS
L100 0090305327 Peaking Coil 10 µH. 10%
L101 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L102 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L104 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L250 0090305665 Peaking Coil 4,7 µH 10% I MAX=930MA
L251 0090317157 Peaking Coil 0,39 µH. 10%RADIAL
L252 0090319229 Peaking Coil 4,7 µH. 10%
L300 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L301 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L302 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L303 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L304 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L305 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L350 0470040007 Jumper Lead 0,6 mm.
L351 0470040007 Jumper Lead 0,6 mm.
L400 0090319229 Peaking Coil 4,7 µH. 10%
L401 0470040007 Jumper Lead 0,6 mm.
L404 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L405 0090319229 Peaking Coil 4,7 µH. 10%
L410 0470040007 Jumper Lead 0,6 mm.
L600 0090817206 Axial Inductor 3,3 µH. 10% 2,6A.
L651A 0090804105 Coil 1,3 MH. +-10% 2A. CU20
L652 0090209115 Fixed Lineality Coil
L654 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L656 0090207200 Coil 3,3 MH. 10%0,175 A.
L661 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L668 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L700 0090305327 Peaking Coil 10 µH. 10%
L703 0090305327 Peaking Coil 10 µH. 10%
L750A 0090502907 E/W Correction Coil 5,5MH. 14X15
L802 0620005702 Ferrite Bead 3, 180 Ω/100MHz
L803 0790109300 Carbon 3,3 Ω5% 1/4W.
L850 0620005116 Pipe Core 3,5X4,5
L851 0620005116 Pipe Core 3,5X4,5
L852 0620005116 Pipe Core 3,5X4,5
L853 0620005116 Pipe Core 3,5X4,5
L854 0620005116 Pipe Core 3,5X4,5
L855 0620005116 Pipe Core 3,5X4,5
L856 0620005702 Ferrite Bead 3, 180 Ω/100MHz
L857 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L858 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L859 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L860 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L861 0620005702 Ferrite Bead 3, 180 Ω/100MHz

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
9
L862 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L863 0620005900 Ferrite SMD 1206 600 Ω/100MH 1,5A
L864 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L865 0090817305 Axial Inductor 12 µH. 10% 1,8A.
L866 0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L900 0470040007 Jumper Lead 0,6 mm.
L901 0470040007 Jumper Lead 0,6 mm.
L902 0470040007 Jumper Lead 0,6 mm.
L903 0090319229 Peaking Coil 4,7 µH. 10%
L905 0620011502 Ferrite SMD 0603 600 Ω/100MHz
PCB11 0750153629 MAIN PCB EB5-C
TRANSISTORS
Q100 0360320501 BRT SMD PDTA124ET
Q101 0360320501 BRT SMD PDTA124ET
Q102 0360320303 SMD BC 847 B
Q104 0360320303 SMD BC 847 B
Q105 0360320303 SMD BC 847 B
Q106 0360320600 BRT SMD PDTC124ET
Q107 0360321301 SMD BC 857 B
Q190 0360320303 SMD BC 847 B
Q200 0360320303 SMD BC 847 B
Q201 0360320600 BRT SMD PDTC124ET
Q202 0360321301 SMD BC 857 B
Q203 0360320303 SMD BC 847 B
Q204 0360320303 SMD BC 847 B
Q207 0360320600 BRT SMD PDTC124ET
Q250 0360320303 SMD BC 847 B
Q251 0360308803 SMD PMBT2369
Q252 0360320501 BRT SMD PDTA124ET
Q253 0360320501 BRT SMD PDTA124ET
Q254 0360320501 BRT SMD PDTA124ET
Q255 0360320410 SMD BF 570
Q257 0360320600 BRT SMD PDTC124ET
Q300 0360320600 BRT SMD PDTC124ET
Q301 0360320600 BRT SMD PDTC124ET
Q350 0360320600 BRT SMD PDTC124ET
Q351 0360320600 BRT SMD PDTC124ET
Q352 0360320600 BRT SMD PDTC124ET
Q400 0360320303 SMD BC 847 B
Q401 0360320303 SMD BC 847 B
Q600 0360309108 2SC2271D-CTV-AE
Q604 0360321301 SMD BC 857 B
Q650 0360306708 S 2055 N
Q651 0360320303 SMD BC 847 B
Q652 0360320303 SMD BC 847 B
Q653 0360308605 KSP 92 TO-92
Q672 0360308506 KSP 42 TO-92
Q673 0360320303 SMD BC 847 B
Q674 0360321301 SMD BC 857 B
Q750 0360309009 BD242BFP
Q751 0360320600 BRT SMD PDTC124ET
Q752 0360308605 KSP 92 TO-92
Q753 0360308605 KSP 92 TO-92
Q754 0360308506 KSP 42 TO-92
Q800 0360311302 MOS 2SK2545 600V/6A
Q850 0360311203 MOS 2SK2964 30V/2A SMD
Q851 0360320600 BRT SMD PDTC124ET
Q852 0360311203 MOS 2SK2964 30V/2A SMD
Q853 0360320303 SMD BC 847 B
Q854 0360320303 SMD BC 847 B
Q855 0360320303 SMD BC 847 B
Q856 0360320303 SMD BC 847 B
Q857 0360320600 BRT SMD PDTC124ET
Q858 0360320501 BRT SMD PDTA124ET
Q859 0360320303 SMD BC 847 B
Q861 0360320600 BRT SMD PDTC124ET
Q862 0360308605 KSP 92 TO-92
Q863 0360308506 KSP 42 TO-92
Q900 0360320303 SMD BC 847 B
Q901 0360320303 SMD BC 847 B
Q904 0360308803 SMD PMBT2369
Q905 0360308803 SMD PMBT2369
Q906 0360308803 SMD PMBT2369
Q907 0360321301 SMD BC 857 B
Q908 0360320303 SMD BC 847 B
RESISTORS
R100 0790239008 R.M.G. SMD 1 KΩT<=5%
R101 0790239008 R.M.G. SMD 1 KΩT<=5%
R102 0790239008 R.M.G. SMD 1 KΩT<=5%
R103 0790239008 R.M.G. SMD 1 KΩT<=5%
R105 0790580203 Metal Film 22 KΩ1% 0,4W.
R106 0790138804 Carbon 1 KΩ5% 1/6W.
R107 0790138804 Carbon 1 KΩ5% 1/6W.
R108 0790239008 R.M.G. SMD 1 KΩT<=5%
R109 0790239008 R.M.G. SMD 1 KΩT<=5%
R110 0790138804 Carbon 1 KΩ5% 1/6W.
R112 0790141600 Carbon 1,5 KΩ5% 1/6W.
R113 0790146401 Carbon 3,9 KΩ5% 1/6W.
R114 0790756001 R.M.G. SMD 24 KΩ1% 1/8W.
R118 0790239008 R.M.G. SMD 1 KΩT<=5%
R119 0790239008 R.M.G. SMD 1 KΩT<=5%
R120 0470040007 Jumper Lead 0,6 mm.
R121 0470040007 Jumper Lead 0,6 mm.
R122 0790237002 R.M.G. SMD 680 ΩT<=5%
R123 0790239008 R.M.G. SMD 1 KΩT<=5%
R125 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R126 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R127 0790723506 R.M.G. SMD 47 Ω1% 1/10W.
R128 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R129 0790155600 Carbon 22 KΩ5% 1/6W.
R130 0790741805 R.M.G. SMD 1,5 KΩT<=5%
R131 0790755706 R.M.G. SMD 23,7 KΩ1% 1/8W.
R132 0790758304 R.M.G. SMD 39 KΩ1% 1/8W.
R133 0790255004 R.M.G. SMD 22 KΩT<=5%
R134 0790255004 R.M.G. SMD 22 KΩT<=5%
R135 0790239008 R.M.G. SMD 1 KΩT<=5%
R136 0790138804 Carbon 1 KΩ5% 1/6W.
R137 0790138804 Carbon 1 KΩ5% 1/6W.
R138 0790138804 Carbon 1 KΩ5% 1/6W.
R140 0790239008 R.M.G. SMD 1 KΩT<=5%
R141 0790126700 Carbon 100 Ω5% 1/6W.
R142 0790126700 Carbon 100 Ω5% 1/6W.
R143 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R144 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R145 0790138804 Carbon 1 KΩ5% 1/6W.
R146 0790138804 Carbon 1 KΩ5% 1/6W.
R148 0790251003 R.M.G. SMD 10 KΩT<=5%
R149 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R150 0790130504 Carbon 180 Ω5% 1/6W
R152 0790749808 R.M.G. SMD 7,5 KΩT<=5%
R153 0790749808 R.M.G. SMD 7,5 KΩT<=5%
R156 0790138804 Carbon 1 KΩ5% 1/6W.
R157 0790143606 Carbon 2,2 KΩ5% 1/6W.
R158 0790243000 R.M.G. SMD 2,2 KΩT<=5%
R160 0790263008 R.M.G. SMD 100 KΩT<=5%
R162 0790255004 R.M.G. SMD 22 KΩT<=5%
R163 0790255004 R.M.G. SMD 22 KΩT<=5%
R165 0790239008 R.M.G. SMD 1 KΩT<=5%
R167 0790239008 R.M.G. SMD 1 KΩT<=5%
R168 0790251003 R.M.G. SMD 10 KΩT<=5%
R169 0790251003 R.M.G. SMD 10 KΩT<=5%
R170 0790251003 R.M.G. SMD 10 KΩT<=5%
R174 0790126700 Carbon 100 Ω5% 1/6W.
R179 0470040007 Jumper Lead 0,6 mm.
R182 0790126700 Carbon 100 Ω5% 1/6W.
R190 0790251003 R.M.G. SMD 10 KΩT<=5%
R191 0790263008 R.M.G. SMD 100 KΩT<=5%
R192 0790235006 R.M.G. SMD 470 ΩT<=5%
R193 0790239008 R.M.G. SMD 1 KΩT<=5%
R194 0790328603 Metal Film 75 Ω1% 0,6W.
R195 0790239008 R.M.G. SMD 1 KΩT<=5%
R196 0790328603 Metal Film 75 Ω1% 0,6W.
R197 0790239008 R.M.G. SMD 1 KΩT<=5%
R198 0790328603 Metal Film 75 Ω1% 0,6W.
R200 0790239008 R.M.G. SMD 1 KΩT<=5%
R201 0790131106 Carbon 220 Ω5% 1/4W.
R202 0790239008 R.M.G. SMD 1 KΩT<=5%

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
10
R203 0470040007 Jumper Lead 0,6 mm.
R204 0790864102 R.M.G. SMD 1,2 KΩT<=5%
R205 0790239008 R.M.G. SMD 1 KΩT<=5%
R207 0790223002 R.M.G. SMD 47 ΩT<=5%
R208 0790223002 R.M.G. SMD 47 ΩT<=5%
R209 0790239008 R.M.G. SMD 1 KΩT<=5%
R210 0790239008 R.M.G. SMD 1 KΩT<=5%
R211 0790239008 R.M.G. SMD 1 KΩT<=5%
R212 0790234009 R.M.G. SMD 390 ΩT<=5%
R213 0790235006 R.M.G. SMD 470 ΩT<=5%
R214 0790234009 R.M.G. SMD 390 ΩT<=5%
R215 0790846109 R.M.G. SMD 220 ΩT<=5%
R216 0790239008 R.M.G. SMD 1 KΩT<=5%
R217 0790235006 R.M.G. SMD 470 ΩT<=5%
R218 0790133607 Carbon 330 Ω5% 1/6W.
R219 0790133607 Carbon 330 Ω5% 1/6W.
R220 0790131908 Carbon 220 Ω5% 1/6W.
R250 0790579437 Metal Film 18 KΩ5% 2W.
R251 0790138804 Carbon 1 KΩ5% 1/6W.
R252 0790235006 R.M.G. SMD 470 ΩT<=5%
R253 0790263008 R.M.G. SMD 100 KΩT<=5%
R254 0790126700 Carbon 100 Ω5% 1/6W.
R255 0790153605 Carbon 15 KΩ5% 1/6W
R256 0790753909 R.M.G. SMD 15 KΩT<=5%
R258 0790259006 R.M.G. SMD 47 KΩT<=5%
R259 0790874101 R.M.G. SMD 2,7 KΩT<=5%
R260 0790239008 R.M.G. SMD 1 KΩT<=5%
R261 0790251003 R.M.G. SMD 10 KΩT<=5%
R262 0790251003 R.M.G. SMD 10 KΩT<=5%
R263 0790246003 R.M.G. SMD 3,9 KΩT<=5%
R264 0790753909 R.M.G. SMD 15 KΩT<=5%
R265 0790701106 R.M.G. SMD 0 Ω1/10W.
R266 0790242002 R.M.G. SMD 1,8 KΩ5% 1/10W.
R267 0790874101 R.M.G. SMD 2,7 KΩT<=5%
R268 0790223002 R.M.G. SMD 47 ΩT<=5%
R269 0790229009 R.M.G. SMD 150 ΩT<=5%
R300 0790750004 Carbon 7,5 KΩ5% 1/6W.
R301 0790245005 R.M.G. SMD 3,3 KΩT<=5%
R302 0790750004 Carbon 7,5 KΩ5% 1/6W.
R303 0790245005 R.M.G. SMD 3,3 KΩT<=5%
R304 0790251003 R.M.G. SMD 10 KΩT<=5%
R305 0790251003 R.M.G. SMD 10 KΩT<=5%
R309 0790239008 R.M.G. SMD 1 KΩT<=5%
R310 0790200000 Fuse 0,1 Ω10% 0,5W
R311 0790111207 Carbon 4,7 Ω5% 1/4W.
R312 0790111207 Carbon 4,7 Ω5% 1/4W.
R350 0790123103 Carbon 47 Ω5% 1/4W.
R351 0790123103 Carbon 47 Ω5% 1/4W.
R352 0790711204 R.M.G. SMD 4,7 ΩT<=5%
R353 0790711204 R.M.G. SMD 4,7 ΩT<=5%
R354 0790318000 R.M.G. SMD 10 ΩT<=5%
R355 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R356 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R357 0790255004 R.M.G. SMD 22 KΩT<=5%
R359 0790741805 R.M.G. SMD 1,5 KΩT<=5%
R360 0790159503 Carbon 47 KΩ5% 1/6W
R361 0790741805 R.M.G. SMD 1,5 KΩT<=5%
R362 0790259006 R.M.G. SMD 47 KΩT<=5%
R363 0790239008 R.M.G. SMD 1 KΩT<=5%
R364 0790239008 R.M.G. SMD 1 KΩT<=5%
R400 0790126700 Carbon 100 Ω5% 1/6W.
R401 0790126700 Carbon 100 Ω5% 1/6W.
R402 0790151500 Carbon 10 KΩ5% 1/6W.
R403 0790227003 R.M.G. SMD 100 ΩT<=5%
R404 0790227003 R.M.G. SMD 100 ΩT<=5%
R405 0790227003 R.M.G. SMD 100 ΩT<=5%
R408 0790126700 Carbon 100 Ω5% 1/6W.
R409 0790126700 Carbon 100 Ω5% 1/6W.
R410 0790126700 Carbon 100 Ω5% 1/6W.
R411 0790126700 Carbon 100 Ω5% 1/6W.
R412 0790243000 R.M.G. SMD 2,2 KΩT<=5%
R413 0790227003 R.M.G. SMD 100 ΩT<=5%
R414 0790756308 Carbon 27 KΩ5% 1/6W.
R415 0790239008 R.M.G. SMD 1 KΩT<=5%
R416 0790288005 R.M.G. SMD 10 MΩ5% 1/10W.
R417 0790288005 R.M.G. SMD 10 MΩ5% 1/10W.
R418 0790753909 R.M.G. SMD 15 KΩT<=5%
R419 0790753909 R.M.G. SMD 15 KΩT<=5%
R420 0790251003 R.M.G. SMD 10 KΩT<=5%
R423 0790263008 R.M.G. SMD 100 KΩT<=5%
R424 0790757603 R.M.G. SMD 33 KΩT<=5%
R425 PHI 0790181408 R.M.G. SMD 2,7 MΩT<=5%
R425 SAM 0790779102 R.M.G. SMD 1,8 MOHM 5%1/10W.
R426 0790758304 R.M.G. SMD 39 KΩ1% 1/8W.
R427 0790137707 Carbon 680 Ω5% 1/6W
R428 0790123400 Carbon 47 Ω5% 1/6W.
R429 0790227003 R.M.G. SMD 100 ΩT<=5%
R431 0790126700 Carbon 100 Ω5% 1/6W.
R432 0790126700 Carbon 100 Ω5% 1/6W.
R433 0790126700 Carbon 100 Ω5% 1/6W.
R440 0790184402 Carbon 4,7 MΩ5% 1/4W.
R442 0790239008 R.M.G. SMD 1 KΩT<=5%
R443 0790239008 R.M.G. SMD 1 KΩT<=5%
R444 0790227003 R.M.G. SMD 100 ΩT<=5%
R450 0790126700 Carbon 100 Ω5% 1/6W.
R451 0790126700 Carbon 100 Ω5% 1/6W.
R452 0790126700 Carbon 100 Ω5% 1/6W.
R453 0790126700 Carbon 100 Ω5% 1/6W.
R454 0790126700 Carbon 100 Ω5% 1/6W.
R455 0790126700 Carbon 100 Ω5% 1/6W.
R456 0790126700 Carbon 100 Ω5% 1/6W.
R457 0790227003 R.M.G. SMD 100 ΩT<=5%
R458 0790126700 Carbon 100 Ω5% 1/6W.
R459 0790126700 Carbon 100 Ω5% 1/6W.
R601A 0790147300 Carbon 4,7 KΩ5% 1/2W.
R602 0790248009 R.M.G. SMD 5,6 KΩT<=5%
R603 0790344030 Metal Film 1,2 KΩ5% 2W.
R604 0790239008 R.M.G. SMD 1 KΩT<=5%
R605 0790243000 R.M.G. SMD 2,2 KΩT<=5%
R606 0470040007 Jumper Lead 0,6 mm.
R607 0790223002 R.M.G. SMD 47 ΩT<=5%
R608 0790578132 Metal Film 15 KΩ5% 2W.
R612 0790518807 Metal Film 0,56 Ω5% 1,2W.
R651 0790331201 Metal Film 120 Ω5% 2W.
R652 0790559223 Metal Film 820 Ω5% 1W.
R653 0470040007 Jumper Lead 0,6 mm.
R654 0790701106 R.M.G. SMD 0 Ω1/10W.
R655 PHI 0790300008 Metal Film 0,68 Ω5% 1,2W
R655 SAM 0790526818 Metal Film Res. 1,5 OHM 5% 2W.
R656 0790260004 R.M.G. SMD 56 KΩT<=5%
R657 0790259006 R.M.G. SMD 47 KΩT<=5%
R658 0790259006 R.M.G. SMD 47 KΩT<=5%
R660 0790251003 R.M.G. SMD 10 KΩT<=5%
R661 0790251003 R.M.G. SMD 10 KΩT<=5%
R662 0790131908 Carbon 220 Ω5% 1/6W.
R663 0790151500 Carbon 10 KΩ5% 1/6W.
R666A 0790512313 Metal Film 0,33 Ω5% 1W.
R667 0790239008 R.M.G. SMD 1 KΩT<=5%
R668 0790163000 Carbon 100 KΩ5% 1/6W
R669 0790255004 R.M.G. SMD 22 KΩT<=5%
R670 0790701106 R.M.G. SMD 0 Ω1/10W.
R675 0470040007 Jumper Lead 0,6 mm.
R676 0790263008 R.M.G. SMD 100 KΩT<=5%
R677 0790159503 Carbon 47 KΩ5% 1/6W
R678 0790888101 R.M.G. SMD 9,1 KΩT<=5%
R679 0790156103 Carbon 27 KΩ5% 1/4W.
R680 0790263008 R.M.G. SMD 100 KΩT<=5%
R681 0790255103 R.M.G. SMD 22 KΩ1% 1/10W.
R682 0790259006 R.M.G. SMD 47 KΩT<=5%
R683 0790259006 R.M.G. SMD 47 KΩT<=5%
R684 0790143606 Carbon 2,2 KΩ5% 1/6W.
R685 0790260004 R.M.G. SMD 56 KΩT<=5%
R688 0790767503 R.M.G. SMD 220 KΩT<=5%
R689 0790151500 Carbon 10 KΩ5% 1/6W.
R690 0790255004 R.M.G. SMD 22 KΩT<=5%
R691 0790127104 Carbon 100 Ω5% 1/4W.
R694 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R696 0790261002 R.M.G. SMD 68 KΩT<=5%

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
11
R698 0790145106 Carbon 3,3 KΩ5% 1/6W
R700 0790151500 Carbon 10 KΩ5% 1/6W.
R702 0790524003 Metal Film 1 Ω2% 0,6W.
R703 0790526701 Metal Film 1,5 Ω1% 0,6W.
R705A PHI 0790139307 Carbon 1 KΩ5% 1/2W.
R705B SAM 0790552418 Metal Film Res. 220 OHM 5% 2W.
R706 0790251003 R.M.G. SMD 10 KΩT<=5%
R708 0790251003 R.M.G. SMD 10 KΩT<=5%
R711 0790349203 Metal Film 1,82 KΩ1% 0,4W.
R712 0790349203 Metal Film 1,82 KΩ1% 0,4W.
R750A 0790539662 Metal Film 22 Ω5% 2W.
R751 0790251003 R.M.G. SMD 10 KΩT<=5%
R752 0790248009 R.M.G. SMD 5,6 KΩT<=5%
R753 0790163000 Carbon 100 KΩ5% 1/6W
R754 0790586309 Metal Film 68 KΩ1% 0,6W
R755 0790239008 R.M.G. SMD 1 KΩT<=5%
R756 0790127104 Carbon 100 Ω5% 1/4W.
R757 0790255004 R.M.G. SMD 22 KΩT<=5%
R758 0790255004 R.M.G. SMD 22 KΩT<=5%
R759 0790155600 Carbon 22 KΩ5% 1/6W.
R760A 0790536437 Metal Film 10 Ω5% 2W.
R761 0790138804 Carbon 1 KΩ5% 1/6W.
R762 0790251003 R.M.G. SMD 10 KΩT<=5%
R763 0790126700 Carbon 100 Ω5% 1/6W.
R803 0790255004 R.M.G. SMD 22 KΩT<=5%
R804 PHI 0790741805 R.M.G. SMD 1,5 KΩT<=5%
R804 SAM 0790243000 R.M.G. SMD 2,2 KOHM T<=5%
R805 0790590111 Metal Film 150 KΩ5% 2W.
R806 0790255004 R.M.G. SMD 22 KΩT<=5%
R808 0790243000 R.M.G. SMD 2,2 KΩT<=5%
R810 0790513014 Fuse 0,33 Ω5% 0,5W.
R811 0790609002 Metal GLAZE 8,2 MΩ5% 1W.
R812 0470040007 Jumper Lead 0,6 mm.
R813 PHI 0790765408 R.M.G. SMD 150 KΩT<=5%
R813 SAM 0790764005 R.M.G. SMD 120 KOHM T<=5%
R814 PHI 0790888101 R.M.G. SMD 9,1 KΩT<=5%
R814 SAM 0790151203 R.M.G. SMD 11 KOHM 5% 1/10W
R815 0790153605 Carbon 15 KΩ5% 1/6W
R816 0790138002 Carbon 750 Ω5% 1/4W.
R817 0790121206 Carbon 33 Ω5% 1/4W.
R818 0790135206 Carbon 470 Ω5% 1/4W.
R819 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R820 0790206502 Metal Film 0,36 Ω5% 1,2W.
R821 0790206502 Metal Film 0,36 Ω5% 1,2W.
R851 0790239008 R.M.G. SMD 1 KΩT<=5%
R852 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R853 0790237002 R.M.G. SMD 680 ΩT<=5%
R854 0790239008 R.M.G. SMD 1 KΩT<=5%
R855 0790593909 Metal Film 267 KΩ1% 0,6W
R856 0790353007 R.M.G. SMD 4,87 KΩ1% 1/8W
R857 0790592307 Metal Film 220 KΩ1% 0,6W.
R858 0790239008 R.M.G. SMD 1 KΩT<=5%
R859 0790256002 R.M.G. SMD 27 KΩT<=5%
R860 0790363105 R.M.G. SMD 18 KΩT<=5%
R861 0790255004 R.M.G. SMD 22 KΩT<=5%
R862 0790255004 R.M.G. SMD 22 KΩT<=5%
R863 0790251003 R.M.G. SMD 10 KΩT<=5%
R864 0790251003 R.M.G. SMD 10 KΩT<=5%
R865 0790251003 R.M.G. SMD 10 KΩT<=5%
R866 0790239008 R.M.G. SMD 1 KΩT<=5%
R867 0790741805 R.M.G. SMD 1,5 KΩT<=5%
R868 0790583603 Metal Film 62 KΩ5% 2W.
R869 0790363105 R.M.G. SMD 18 KΩT<=5%
R870 0790127104 Carbon 100 Ω5% 1/4W.
R871 0790767008 Carbon 220 KΩ5% 1/6W.
R872 0790178602 Carbon 1,6 MΩ5% 1/6W.
R873 0790251003 R.M.G. SMD 10 KΩT<=5%
R874 0790255004 R.M.G. SMD 22 KΩT<=5%
R876 0790259006 R.M.G. SMD 47 KΩT<=5%
R877 0790239008 R.M.G. SMD 1 KΩT<=5%
R878 0790000103 SMD 0,33 Ω5% 0,25W.
R879 0790000103 SMD 0,33 Ω5% 0,25W.
R880 0790597108 Metal Film 470 KΩ5% 0,6W
R881 0790155600 Carbon 22 KΩ5% 1/6W.
R885 0790239008 R.M.G. SMD 1 KΩT<=5%
R886 0790255004 R.M.G. SMD 22 KΩT<=5%
R900 0790026207 Carbon 560 Ω5% 1/4W.
R901 0790126700 Carbon 100 Ω5% 1/6W.
R902 0790036305 Carbon 2,2 KΩ5% 1/4W.
R903 0790026207 Carbon 560 Ω5% 1/4W.
R904 0790126700 Carbon 100 Ω5% 1/6W.
R905 0790036305 Carbon 2,2 KΩ5% 1/4W.
R906 0790155105 Carbon 22 KΩ5% 1/4W.
R907 0790749402 R.M.G. SMD 6,8 KΩT<=5%
R908 0790225502 R.M.G. SMD 75 ΩT<=5%
R909 0790725907 SMD 75 Ω5% 0,25W.
R910 0790155105 Carbon 22 KΩ5% 1/4W.
R911 0790749402 R.M.G. SMD 6,8 KΩT<=5%
R912 0790026207 Carbon 560 Ω5% 1/4W.
R913 0790227003 R.M.G. SMD 100 ΩT<=5%
R914 0790026207 Carbon 560 Ω5% 1/4W.
R915 0790227003 R.M.G. SMD 100 ΩT<=5%
R916 0790036305 Carbon 2,2 KΩ5% 1/4W.
R917 0790036305 Carbon 2,2 KΩ5% 1/4W.
R918 0790141600 Carbon 1,5 KΩ5% 1/6W.
R919 0790141600 Carbon 1,5 KΩ5% 1/6W.
R920 0790141600 Carbon 1,5 KΩ5% 1/6W.
R921 0790134001 Carbon 390 Ω5% 1/6W
R922 0790225502 R.M.G. SMD 75 ΩT<=5%
R923 0790225502 R.M.G. SMD 75 ΩT<=5%
R924 0790225502 R.M.G. SMD 75 ΩT<=5%
R925 0790225502 R.M.G. SMD 75 ΩT<=5%
R926 0790125900 Carbon 75 Ω5% 1/6W.
R927 0790725907 SMD 75 Ω5% 0,25W. 1206
R928 0790146401 Carbon 3,9 KΩ5% 1/6W.
R929 0790246003 R.M.G. SMD 3,9 KΩT<=5%
R930 0790246003 R.M.G. SMD 3,9 KΩT<=5%
R931 0790227003 R.M.G. SMD 100 ΩT<=5%
R932 0790227003 R.M.G. SMD 100 ΩT<=5%
R933 0790227003 R.M.G. SMD 100 ΩT<=5%
R934 0790135701 Carbon 470 Ω5% 1/6W.
R935 0790550701 Metal Film 150 Ω1% 0,6W.
R936 0790135701 Carbon 470 Ω5% 1/6W.
R938 0470040007 Jumper Lead 0,6 mm.
R939 0470040007 Jumper Lead 0,6 mm.
R940 0790225502 R.M.G. SMD 75 ΩT<=5%
R941 0790328603 Metal Film 75 Ω1% 0,6W.
R942 0790239008 R.M.G. SMD 1 KΩT<=5%
R943 0790239008 R.M.G. SMD 1 KΩT<=5%
R945 0790225502 R.M.G. SMD 75 ΩT<=5%
R946 0790225502 R.M.G. SMD 75 ΩT<=5%
R947 0790225502 R.M.G. SMD 75 ΩT<=5%
R948 0790251003 R.M.G. SMD 10 KΩT<=5%
R949 0790239008 R.M.G. SMD 1 KΩT<=5%
R950 0790255004 R.M.G. SMD 22 KΩT<=5%
SF200 0090413204 SAW Filter K3953M
SF201 0090414806 SAW Filter K9456M
SF250 0090413600 Ceramic Filter MKT40.4MA110P
S900 0330162603 Scart Connector 21 PIN BLACK
S901 0330162702 Scart Connector 21 PIN BLUE
TUNER
TU250 0850102617 Tuner UV1315/AI-2
TRANSFORMERS
T600 0940200801 Driver Transformer 800T/20T
T650C 0940109903 FBT 29" MBO EB5-C HFT2307
T650CF 0330160508 FOCUS Wire FBT SANYO
T800 0930108600 Switch MODE Transformer EB5-C 29"
VR850 0770512408 VR 470 Ω
X100 0090122706 Quartz Crystal 12 MHz 20pF
X400 0090122706 Quartz Crystal 12 MHz 20pF

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
12
AUDIO PCB
CAPACITORS
C1301 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1302 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1303 0230600702 Ceramic SMD 100 nF. 10% 25V.
C1304 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1305 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1306 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1307 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1308 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1309 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1310 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1311 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1312 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1313 0230240400 Ceramic SMD 100 pF. 5%50V.
C1314 0230240400 Ceramic SMD 100 pF. 5%50V.
C1319 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1320 0250410859 Electrolytic 47 µF. 25V.
C1323 0250410859 Electrolytic 47 µF. 25V.
C1324 0230320707 Ceramic SMD 470 pF. 10% 50V.
C1326 0230320707 Ceramic SMD 470 pF. 10% 50V.
C1328 0230320707 Ceramic SMD 470 pF. 10% 50V.
C1330 0230320707 Ceramic SMD 470 pF. 10% 50V.
C1332 0250410859 Electrolytic 47 µF. 25V.
C1333 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1334 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1335 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1336 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1338 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1339 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1340 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1341 0250321072 Electrolytic 10 µF. 63V.
C1342 0230480808 Ceramic SMD 10 nF. 10% 50V.
C1343 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1344 0230720203 Ceramic SMD 1 µF. 16V. +80-20%
C1380 0230600702 Ceramic SMD 100 nF. 10% 25V.
C1381 0250410859 Electrolytic 47 µF. 25V.
C1382 0250280856 Electrolytic 4,7 µF. 100V.
C1383 0250220472 Electrolytic 1 µF. 100V.
C1384 0270241136 Polyester 15 nF. 5%63V.
C1385 0230320608 Ceramic SMD 470 pF. 5% 50V.
C1386 0250280856 Electrolytic 4,7 µF. 100V.
C1387 0250280856 Electrolytic 4,7 µF. 100V.
C1388 0270222037 Polyester 10 nF. 5%63V.
C1389 0270311137 Polyester 56 nF. 5%63V.
C1390 0250410859 Electrolytic 47 µF. 25V.
C1391 0270311137 Polyester 56 nF. 5%63V.
C1392 0270222037 Polyester 10 nF. 5%63V.
C1393 0250280856 Electrolytic 4,7 µF. 100V.
C1394 0250280856 Electrolytic 4,7 µF. 100V.
C1395 0230320608 Ceramic SMD 470 pF. 5% 50V.
C1396 0270241136 Polyester 15 nF. 5%63V.
C1397 0250220472 Electrolytic 1 µF. 100V.
C1398 0250280856 Electrolytic 4,7 µF. 100V.
C1399 0230600702 Ceramic SMD 100 nF. 10% 25V.
DIODES
D1301 0360602213 Zener SMD BZT55C5V1
D1302 0360602213 Zener SMD BZT55C5V1
D1303 0360602213 Zener SMD BZT55C5V1
D1304 0360602213 Zener SMD BZT55C5V1
CIRCUITOS INTEGRADOS
IC1300 0360517700 TDA 9875AH V2
IC1380 0360517403 BA3880AFS
K1300 0330330101 8P. Connector
K1301 0330330101 8P. Connector
K1302 0330198706 10 P. Connector
COILS
L1300 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1301 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1302 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1303 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1304 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1305 0090316506 Peaking Coil 2,2 µH.10%RADIAL
L1306 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1307 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
L1308 0090316506 Peaking Coil 2,2 µH.10%RADIAL
L1309 0620011502 Ferrite SMD 0603 600 Ω/100MHz
L1310 0620005801 Ferrite SMD 0805 1K/100MHz 0,2A
PCB14 0750153926 AUDIO PCB EB5-C
TRANSISTORS
Q1300 0360320600 BRT SMD PDTC124ET
Q1301 0360320600 BRT SMD PDTC124ET
RESISTORS
R1300 0790227003 R.M.G. SMD 100 ΩT<=5%
R1301 0790227003 R.M.G. SMD 100 ΩT<=5%
R1302 0790251003 R.M.G. SMD 10 KΩT<=5%
R1303 0790255004 R.M.G. SMD 22 KΩT<=5%
R1304 0790701106 R.M.G. SMD 0 Ω1/10W.
R1305 0790701106 R.M.G. SMD 0 Ω1/10W.
R1306 0790247001 R.M.G. SMD 4,7 KΩT<=5%
R1309 0790239008 R.M.G. SMD 1 KΩT<=5%
R1310 0790752208 R.M.G. SMD 12 KΩT<=5%
R1311 0790752208 R.M.G. SMD 12 KΩT<=5%
R1312 0790752208 R.M.G. SMD 12 KΩT<=5%
R1313 0790752208 R.M.G. SMD 12 KΩT<=5%
R1314 0790752208 R.M.G. SMD 12 KΩT<=5%
R1315 0790752208 R.M.G. SMD 12 KΩT<=5%
R1316 0790232003 R.M.G. SMD 270 ΩT<=5%
R1321 0790247001 R.M.G. SMD 4,7 KΩT<=5%
X1300 0090121906 Quartz Crystal 24.576 MHz
PWB ASSY FRONT
CN_FAF 0330272303 Connector Assy W/LEAD 110+5+5
CN_NAF 0330430000 Connector Assy 4P W/WireS 90 mm.
CN_NBF 0330490103 Connector Assy 10P W/WireS 90 mm.
CN_NCF 0330460007 Connector Assy 7P W/WireS 90 mm.
CAPACITORS
C1800 0260380324 Polypropylene 220 nF 10% 275V.
C1801 0260341003 Polypropylene 100 nF. 20% 275V
C1810 0250321072 Electrolytic 10 µF. 63V.
C1830 0240143222 Ceramic 10 nF. +80-20% 100V.
C1831 0240143222 Ceramic 10 nF. +80-20% 100V.
C1832 0270341480 Polyester 100 nF. 10% 63V.
C1840 0240131524 Ceramic 470 pF. 2% 100V.
C1841 0240131524 Ceramic 470 pF. 2% 100V.
C1843 0240131524 Ceramic 470 pF. 2% 100V.
C1844 0240131524 Ceramic 470 pF. 2% 100V.
C1847 0250321072 Electrolytic 10 µF. 63V.
C1849 0240131524 Ceramic 470 pF. 2% 100V.
DIODE
D1800 0360126205 Red/Green 3 mm.
D1801 0360130819 1N 4148
D1840 0360103204 Zener BZX79C5V1
D1841 0360103204 Zener BZX79C5V1
FAF 0330271305 2P. Socket W/ CLIP
FCF 0330270307 2P. Socket
FEF 0330271305 2P. Socket W/ CLIP
F1800 0330110503 Fuse T 2 A./250V. TIME-LAG
KVAF 0330191701 2P. Socket
COILS
L1800 0090412206 Mains Filter 2X27 MH 250VAC 1A
L1801 SAM 0090413808 PFC Coil 65 MH 1,05A 47X44X39
L1830 0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L1831 0090319765 Peaking Coil 22 µH. 10% I MAX=130MA
L1840 0090315029 Peaking Coil 10 µH. 10%

Service Manual SM CE29FFV2-F
Ref. No. Part No. Description Ref. No. Part No. Description
13
L1841 0090315029 Peaking Coil 10 µH. 10%
L1842 0090315029 Peaking Coil 10 µH. 10%
PCB20 0750154023 PWB Front EB5-C
PF1800 0760100701 Fuse Terminal Taped
PL1802 0130209414 Push Switch L-3,85MM
PL1803 0130209414 Push Switch L-3,85MM
PL1804 0130209414 Push Switch L-3,85MM
PL1805 0130209414 Push Switch L-3,85MM
PT1801 0810101907 P.T.C. 18 Ω
RE1800 0090117003 Degaussing RELE 250V/5A 5V/100_Ω
RI1800 0600123509 Infrared Receiver SPS-443-1-E
RESISTORS
R1800 0790180111 Carbon 2,2 MΩ5% 1/2W.
R1801 0790184113 Carbon 4,7 MΩ5% 1/2W.
R1802 0790135206 Carbon 470 Ω5% 1/4W.
R1805 PHI 0780142006 Wirewound 1,5 Ω10% 5W.
R1812 0790357024 Metal Film 7,50 KΩ1% 0,4W.
R1813 0790360705 Metal Film 12,0 KΩ1% 0,4W.
R1814 0790581201 Thin Film RES. 33,2 KΩ1% 0,6W
R1815 0790583306 Metal Film 51,1 KΩ1% 0,4W.
R1840 0790036305 Carbon 2,2 KΩ5% 1/4W.
R1841 0790036305 Carbon 2,2 KΩ5% 1/4W.
R1842 0790125702 Carbon 75 Ω5% 1/4W.
SW1800 0140204306 Main AC Switch Without Wiper
S1800 0330729807 Phone Jack Stereo W/Disconnection
S1801 0330159708 3 RCA'S Assembly
ELECTRICAL ASSY
AM1 0010203909 Insulating RING HV CABLE
BRDEFL 0010203503 Wire Band 98/2.5 Natural
BRDGA 0010204105 DC Holder-S4LF-C
BRDGB 0010204105 DC Holder-S4LF-C
BRDGC 0010204105 DC Holder-S4LF-C
BRDGI 0010203313 Holder DC GBR-HBZ
BRDGS 0010203313 Holder DC GBR-HBZ
BRDG1 0010204006 Wire Band 370/3,6 Natural
BRDG2 0010203503 Wire Band 98/2.5 Natural
BRFH 0200099406 Wire HOLDING HOOK G
BRSPK1 0010203503 Wire Band 98/2.5 Natural
BRSPK2 0010203503 Wire Band 98/2.5 Natural
CN_FB1 0330271701 2P Connector W/LEADS 630+33 MM
CN_FB2 0330270901 2P Connector W/LEADS 770+33 MM
CN_FE 0330162918 Power Cord Assy L=2500 MM
CN_FF1 0330272402 Connector Assy W/LEAD 500mm.
CN_FF2 0330272501 Connector Assy W/LEAD 500mm.
CN_FT1 0160202404 Wire Red + Black 210/4/33
CN_FT2 0160202503 Wire Yellow + Black 210/4/33
CSPK3 0250248333 Electrolytic N.P. 2,2µF 50V
CSPK4 0250248333 Electrolytic N.P. 2,2µF 50V
LDG 0090257908 Degausing Coil 28"
SC001 0170200406 Shield Mesh 2 mm.
SC1001 0010110708 GroundING Spring
SPK1 0030118418 Speaker 8 Ω12W. 120X60
SPK2 0030118418 Speaker 8 Ω12W. 120X60
SPK3 0030118608 Speaker Dome Tweeter 8 Ω10W
SPK4 0030118608 Speaker Dome Tweeter 8 Ω10W
TRC
PHI 1000110104 C.R.T. 29" A68ERF012X013 PHILIPS
TRC
SAM 1000110807 C.R.T. 29" A68QCP993X001 SAMSUNG
PACKING
BAT 0660100611 2 Dry Battery PACK 1,5V. SUM-3F/2S
EM 1 0190206417 Packing Cartoon 29" FLAT
EM 2 0190162008 Upper Cushion Assy 29" FLAT
EM 3 0190162107 Bottom Cushion Assy 29" FLAT
EM 7 0420247504 Inst. Manual CE29FFV2-F 29"(GB/F/D)
EM 7-1 0420247603 Inst. Manual CE29FFV2-F 29" (GR/NL/I)
EM 7-2 0420247702 Inst. Manual CE29FFV2-F 29"(SF/S/DK)
EM10 0600123707 Remote Control EB5-C
Note: All the information of this manual is correct in the beginning of the
series; SANYO España, S.A. reserves the right to modify components
and procedures to maintain its policy of continuous improvement.

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
4
11 Block diagram

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
5
12 Power supply
First, let’s define some TV states or working modes to clarify later explanations:
State Description
SMPS_B_LOW The power supply is in low consumption (low voltage). The deflection is stopped.
SMPS_B_HIGH The power supply works at nominal voltage. The deflection can be on or off.
STANDBY The micro stops “B_HIGH” port oscillation and the power supply is on “SMPS_B_LOW”.
ON The power supply is on “SMPS_B_HIGH” and deflections are on.
ERROR_N Protect situation. The power supply is on SMPS_B_LOW and the micro shows the error by the
led indicator. The TV is not allowed to switch-on (except ERROR_5).
The power supply works in switched mode with “flyback” self oscillating topology and with control in current
mode. The outputs of the source are shown in the block diagram. Also there are:
•B8: feeds the power supply controller. The initial source in switch-on situation is extracted through
R803+R816.
•B9: feeds the optocoupler primary part.
The power supply sends two signals to the micro processor:
•-PD&FAIL: Switch-off immediately (mains off).
•16/9&BSYNC: Mains pulses synchronism and 16/9 control. The micro analyses this line in order to switch
correctly from SMPS_B_LOW to SMPS_B_HIGH.
In STAND-BY mode all the voltage outputs are reduced except the microprocessor supply (it remains at 5 volts).
The triac TR830 disconnects the PTC800 supply.
13 Microprocessor and Teletext
The microprocessor (IC100) main tasks are the following:
•video processor control
•audio processor control
•NVM access
•IR decoding
•Teletext processing and display
•OSD generation
•tuning and AFT
•failure checking
•…
14 Video processor/Comb filter
The video processor (IC400) has the following functional blocks: video Intermediate frequency, mono sound (not
used), vertical and horizontal synchronism, geometry processor, video switching and filtering, colour decoder
and RGB processing. All the adjustments are performed by the microprocessor via the I2C bus.
14.1 Video Intermediate Frequency Section
•I.F Amplifier: The input signal comes from the tuner (TU250) through the S.A.W. filter SF200 (band pass filter
of the video information and the picture carrier.
•PLL Demodulator and VCO: The VCO does not need any adjust neither external coil. The frequency
adjustment is performed through the I2C bus. The components associated with the PLL are connected to the
pin 5 (PLLLF).
•Video buffer: The demodulated video signal is present at pin 6 (IFVO) with a typical level of 2Vpp.
•AGC: It controls the IF amplifier gain in order to maintain its amplitude constant. The capacitor connected to
the pin 53 (DECAGC) determines the AGC time constant.
•Tuner AGC: It reduces the gain when a high level aerial signal is received. The level at which this reduction is
performed is I2C bus adjusted (AGC in the service menu).
•AFC: The AFC information is accessible via I2C bus.
•Video identification: The video identification information is accessible via I2C bus.
14.2 Horizontal and vertical synchronisation
•Horizontal sync separator
•Horizontal oscillator: it is internal and only needs the crystal oscillator X400 as a reference frequency.
•PHI-1 detector: It is a PLL that synchronises the horizontal oscillator with the video signal. The components
associated with the PHI-1 are connected to the pin 43 (PH1LF). The PHI-1 time constant and the noise
detector are controlled via I2C bus.

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
6
•PHI-2 detector and Sandcastle generator: The PHI-2 detector performs a stable picture. It synchronises the
horizontal oscillator with the horizontal flyback signal (pin 41, FBISO) to generate the horizontal output (pin
40, HOUT). . The components associated with the PHI-2 are connected to the pin 42 (PH2LF). The picture
phase is adjusted via I2C (HOR SHIFT in the service menu). The flyback input pin 41 (FBISO) is combined
with the sandcastle output and provides a three level sandcastle signal. The levels are: 2V "vertical retrace;
3V"horizontal retrace; 5.3V "Burstkey.
•Horizontal output (pin 40, HOUT): It is a open collector type and the duty cycle in normal condition is 45%
high and 55% low. A built in slow start/stop circuit ensures a smooth start/stop behaviour of the line
deflection. Also during switching off via stand by the RGB drive is set to maximum to discharge the EHT
CRT capacitance.
•Coincidence detector
•Vertical sync separator
•Vertical divider
14.3 Geometry
•Vertical sawtooth generator: it delivers the reference signals for vertical and horizontal geometry processor.
An accurate reference current is used to charge the external capacitor during vertical scan. The resistor R426
in pin 52 (IREF) determines this reference current. It is a Metal Film resistor with 1% tolerance in order to
provide a temperature stabilisation and lower dispersion. The ramp capacitor (C425) is connected to pin 51
(VCS). It is a polycarbon one in order to provide temperature stabilisation.
•Vertical geometry processor: it performs the sawtooth signal and it has a differential current output in pins 47
(VDRA) and 46 (VDRB) for a DC coupled vertical output stage (drive). Control functions accessible via I2C
are VERT SLOPE, VERT AMPL, S-CORREC, VERT SHIFT (see service menu).
•Horizontal geometry processor (E/W drive): it has a single-ended current output for E-W drive (pin 45 EWD).
This current is amplified and applied to the diode modulator of the horizontal deflection. The adjustments are
accessible via I2C (EW AMPLIT, PARABOLA, CORNER PAR, TRAPEZIUM in the service menu).
•EHT tracking (pin 50, EHTO): this tracking makes the picture size independent of EHT variations due to the
beam current.
14.4 Filters and video switches
•Video signal selection: the input selector has CVBS_INT(pin 13), CVBS_EXT (pin 17), CVBS/Y (pin11) and
CHROMA (pin 10) as inputs which can be selected via I2C bus. The selected video signal is present at pin 38
(CVBSO).
•Filter calibration: it is an auto-tuning loop which calibrates every field retrace. The filters are the chrominance
bandpass and the chrominance trap.
•Chrominance signal processing: this circuit keeps constant the colour saturation level.
•Luminance signal processing: the selected video signal is supplied to the chrominance trap. The output signal
is supplied to the peaking and coring stages. Both are controlled via I2C bus. The output (pin 28 LUMOUT) is
fed through a band pass filter (L409, R439 and C440) as internal luminance signal (pin 27 LUMIN).
14.5 Colour decoder
•PLL/VCXO: The PLL operates during the burstkey period. In the lock condition the VCXO reference signal
(X400 in pin 35) and the burstkey become synchronous. An optimum transient response can be chosen with
the loop filter connected to pin 36 (DET). The reference output (4,43MHz in pin 33) can be used for comb
filter applications.
•PAL/NTSC Demodulation: The reference signals from the VCXO are supplied to the HUE phase rotator; its
outputs are supplied to the (R-Y) and (B-Y) demodulators. The (B-Y)/(R-Y) baseband signals are filtered and
supplied via the PAL/SECAM switch to the internal baseband delay line. The signals from the delay line are
RYO (pin 30) and BYO (pin 29).
•SECAM Demodulation: It is realised with a PLL type demodulator. The SECAM reference voltage is
generated at pin 16 (SECPLL). The demodulated signal is distributed to the (R-Y) and (B-Y) amplifiers and
via de PAL/SECAM switch to the baseband delay line.
•Automatic system manager: it can identify PAL/SECAM/NTSC colour standards. The different possibilities
are controlled by the I2C bus.
14.6 RGB Processing
•(R-Y)/(B-Y) processing/matrixing: The amplitude of this signals (pins 32 (RYI) and 31 (BYI)) is controlled via
the I2C bus (colour saturation) and also this signals are supplied to dynamic skin control. After the R-Y and
B-Y matrixing, the output signals are added with the luminance signal in order to generate the internal RGB
signals.
•RGB selector: it is controlled by the FB signal in signal 26 (RGBIN). The external RGB signals are present in
pins 23 (RI), 24 (GI) and 25 (BI). The RGB selector output is fed to then RGB control.

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
7
14.7 RGB Control
•Contrast and brightness control: There are I2C bus controlled. These adjustments can be reduced by the
beam current limiter stage. Furthermore, contrast is affected by the Peak Beam Limiter (Q670 and Q671
circuitry). This circuit’s output is the PBL signal to microprocessor’s pin 11 and must be 5V with a black
pattern on the screen.
•Beam current limiter/vertical guard: The BCLIN (pin 22) input circuit functions as an average beam current
limiter as well as a peak white limiter. The vertical deflection works correctly when there is a pulse level above
3.7V during the vertical retrace. The vertical guard function can be I2C controlled. The contrast and
brightness reduction begins when BCLIN level is below 3.0V and 2.0V respectively.
•Continuous cathode calibration (AKB): it is divided into two loops: a black level stabilisation and a cathode
drive stabilisation. Each gun of the CRT is stabilised sequentially and independently and a feedback current
flows to the black current input (pin 18 BLKIN) supplied by the RGB amplifier (IC500). In order to change the
cathode levels at the picture tube three I2C bits are available.
•White point adjust and blue stretcher.
14.8 Supply and bandgap decoupling
The IC400 has two supply pins 12 and 37. Both pins must be supplied simultaneously. The nominal supply
voltage is 8V. The pins 14 and 44 must be connected to ground.
The bandgap circuit provides a very stable and temperature independent reference voltage that ensures optimal
performance of the video processor. Short decoupling (pin 9 DECBG) to pin 14 of the external capacitor is
important for stable horizontal drive.
The comb-filter (IC1050) is only performed with a PAL signal. To enhance the image quality its main features
are: cross colour reduction (only at vertical frequencies), cross luminance reduction and improved video
bandwidth.
The input signal is composite video. It comes from the IC400 (pin 38 CVBSO) to the pin 17 (YEXT/CVBS). It is
processed internally and the resultant signals are Luminance (pin 14 Y0) and chrominance (pin 12 C0). These
signals return to the colour decoder in the video processor. The comb-filter is switched on through the I2C bus by
writing a bit in the video processor. This one outputs a 4,43MHz signal on the REF0 port superposed to a high
level one.
With SECAM, NTSC or S-VHS signals the comb-filter is disabled. It bypasses the luminance (pin 17 -
YEXT/CVBS- to pin 14 -YO-) and chrominance (pin 10 -CEXT- to pin 12 -CO-) signals. The video processor
outputs a low level on pin 33.
In the models without the comb-filter, the jumpers JO1050 and JO1051 bypass the signals.
15 Audio processor/A3D Surround/Output amplifiers/Sound IF
The audio processor (IC1300) is controlled via I2C bus. It has 3 main sections: analog, digital and DSP (digital
signal processing).
•The analog part takes: audio input and output switching, A/D and D/A conversion of input/output sound
signals.
•The digital part: demodulates FM (multistandard) and decodes the two carrier signals, controls the sound IF
AGC, demodulates DQPSK (multistandard) and decodes NICAM.
•The DSP section takes: sound controls, sound effects for loudspeakers, mute for loudspeakers and
headphones, beeper (alarm function) and digital audio switching matrix.
The IC1380 produces the Active 3D Surround (A3DS) effect. The models without A3DS effect use the jumpers
JO1381 and JO1382 to bypass the audio signals to the audio amplifier for loudspeakers.
IC300 is the stereo audio amplifier for loudspeakers, it has a variable gain through the resistive dividers
R303/R304 and R305/R306 (for channels L and R respectively). The power driven is approximately 8W rms. at
10% of distortion (each channel). The input pins (1 and 5) are connected to the audio processor (IC1300) or to
the Active 3D Surround in models that have this feature. Pins 10 and 8 are the loudspeakers power outputs
(channels L and R respectively). The microprocessor can mute the audio by setting high the MUTE signal. This
pin is used only at TV set switch-on and off and in case of bad aerial reception. In all other situations the mute
function is performed by the IC1300.
A fixed gain stereo amplifier is used for headphones (IC350). The input pins (7 and 6 for channels L and R)
come from the audio processor headphones outputs. The headphones connector outputs are the pins 1 and 3.
The microprocessor detects the headphones presence via the HP_SW signal. The MUTE signal also affects the
headphones audio.
The FM or NICAM-modulated sound IF signal, which inputs the audio processor, is produced by the sound IF
circuit, IC1350. This IC takes the signal from the tuner and converts it to the intercarrier frequency. The internal
VCO frequency is adjusted by means of L1351.

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
8
16 Service menu
The service menu is accessed by holding down the front key “VOL-“ and simultaneously pressing the teletext
green key from the remote control. The service menu is a two level structure as shown in the diagram below.
The active keys (local or remote) in service mode are: VOL-, VOL+, P-, P+, MENU and the digits. The navigation
through this menu works the same than in the user menu.
* The P+ and P- keys allow to navigate through the options in the active menu.
* The VOL+ key opens the second level menu if available. If there is a highlighted adjustment, the VOL- and
VOL+ keys allow to change it.
* The MENU key goes back one level menu. If the active menu is the main one, it exits the service mode.
* The digit keys allow direct entry for adjustments.
* The SERVICE mode is exited by pressing any other key.
HOR SHIFT
EWAMPLIT
PARABOLA
CORNER PAR
TRAPEZIUM
VERTSLOPE
VERTAMPL
S-CORREC
VERTSHIFT
CONTR TXT
GEOMET
PLL
PLL L'
AGC
FFI
VIF
GREEN
BLUE
WHITE
BRI
ADJ
AKB
K-DRV
G2
Y/C PAL
Y/C SECAM
Y/C NTSC
Y/C AV
PBL SPEED
CONTR OSD
CENTR TXT
SEMIMUTE
INI NVM
MORE
RCJAP
SCS
CMB
TXEAST
PAN
OSO
OEM
16:9
CONFIG
PAL BG
PAL DK
PAL I
SECAM BG
SECAMDK
SECAM L
NTSC BG
NTSC M
STANDARD V-STAT S-STAT I2C BUS
SERVICE

S
erv
i
ce
M
anua
l
MS
CE25FV2
-
E
9
Adjustment Meaning Range Initial
value Suggested value
HOR SHIFT Horizontal phase 0 to 63 37 -
EW AMPLIT Horizontal width 0 to 63 57 -
Irrelevant in 90º deflection models
PARABOLA E/W correction 0 to 63 38 -
Irrelevant in 90º deflection models
CORNER PAR E/W corner correction 0 to 63 30 -
Irrelevant in 90º deflection models
TRAPEZIUM Trapezium correction 0 to 63 21 -
Irrelevant in 90º deflection models
VERT SLOPE Ramp generator amplitude 0 to 63 36 -
VERT AMPL Vertical amplitude 0 to 63 40 -
S-CORREC Vertical S-correction 0 to 63 18 -
VERT SHIFT Vertical centre 0 to 63 36 -
PLL PLL of video IF 0 to 127 80 80 (imperative)
PLL L’ PLL of video IF in L’ system 0 to 127 80 80 (imperative)
AGC Automatic gain control 0 to 63 16 -
GREEN White point, green gain 0 to 63 40 -
BLUE White point, blue gain 0 to 63 36 -
BRI G2 adjust brightness level 0 to 63 32 0 if cut-off = 160V
5 if cut-off = 150V
32 if cut-off = 130V
ADJ Service Line Adjust - - -
AKB Enable/Disable AKB servo ON/OFF ON ON
K-DRV RGB Drive 0 to 7 5 5 in Ph110º
4 in 90º
Y/C PAL PAL Phase luma-croma 0 to 15 03 03 in models PAL B/G 110º
Irrelevant in 90º models
Y/C SECAM SECAM Phase luma-croma 0 to 15 00 00
Irrelevant in 90º models
Y/C NTSC NTSC Phase luma-croma 0 to 15 03 03
Irrelevant in 90º models
Y/C AV AV inputs Phase luma-croma 0 to 15 10 10
Irrelevant in 90º models
PBL SPEED Contrast reduction speed when PBL acts 0 to 63 9 9 in 100º models
18 in 90º models
CONTR OSD OSD Contrast 0 to 63 25 25
CONTR TXT TXT Contrast 0 to 63 18 18
CENTR TXT OSD and TXT Centre 0 to 3 1 0
SEMI MUTE Attenuation (dB) by pushing Mute once 0 to 63 15 15
INI NVM Non volatile memory initialisation - - -
FFI PLL constant time of IF ON/OFF OFF OFF
SCS SCART connectors interchange ON/OFF OFF Equals the OSD with the back cover label
CMB Enable/Disable the Comb Filter ON/OFF OFF ON in models with Comb-Filter
OFF in models without Comb-Filter
TXEAST Eastern characters set ON/OFF ON ON
DSA Skin tone correction angle ON/OFF OFF OFF
OSO HV discharge mode ON/OFF OFF ON
OEM TV set trade-mark ON/OFF OFF OFF in SANYO models
ON in others models
16:9 16:9 picture configuration ON/OFF OFF OFF
PAL B/G PAL B/G Configuration ON/OFF ON ON
PAL D/K PAL D/K Configuration ON/OFF ON ON
PAL I PAL I Configuration ON/OFF OFF OFF
SECAM B/G SECAM B/G Configuration ON/OFF OFF OFF in PAL models
ON in SECAM models
SECAM D/K SECAM D/K Configuration ON/OFF OFF OFF
SECAM L SECAM L Configuration ON/OFF OFF OFF
NTSC BG NTSC 4.43MHz Configuration ON/OFF ON ON
NTSC M NTSC 3,58MHz Configuration ON/OFF OFF OFF (imperative)
V-STAT Video processor status - - -
S-STAT Sound processor status - - -
I2C BUS I2C Bus stop - - -
RCJAP Remote control ON/OFF ON ON
PAN Panoramic ON/OFF ON ON
