Sanyo VCC-HD2500P User manual

FILE NO.
REFERENCE No.SM5310791
L5DB2/XE, XE-C1F, XE-C8F, US-Z, US-C1F, US-C8F (R)
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3. N.S.P. : Not available as service parts.
Design and specifications are subject to change without notice.
SERVICE MANUAL
The components designated by a symbol ( ! ) in this schematic diagram designates components whose value are of
special significance to product safety. Should any component designated by a symbol need to be replaced, use only the
part designated in the Parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
PRODUCT SAFETY NOTICE
RoHS
This product does not contain any hazardous substances prohibited by the RoHS Directive.
WARNING
You are requested to use RoHS compliant parts for maintenance or repair.
You are requested to use lead-free solder.
(This product has been manufactured using lead-free solder. Be sure to follow the warning given on page 2 when carrying
out repair work.)
VCC-HD2500P
(Product Code : 117 407 00)
(Product Code : 117 457 00)
(Product Code : 117 457 10)
(Europe, U.K., Southeast Asia)
CONTENTS
SPECIFICATIONS .............................................3
1. DISASSEMBLY ..............................................5
2. ADJUSTMENT ...............................................8
3. PARTS LIST ................................................12
CIRCUIT DIAGRAMS &
PRINTED WIRING BOARDS ...........................C1
VCC-HD2500
(Product Code : 117 407 01)
(Product Code : 117 457 01)
(Product Code : 117 457 11)
(U.S.A., Canada, Taiwan, Brazil)
Megapixel Camera

-2 -

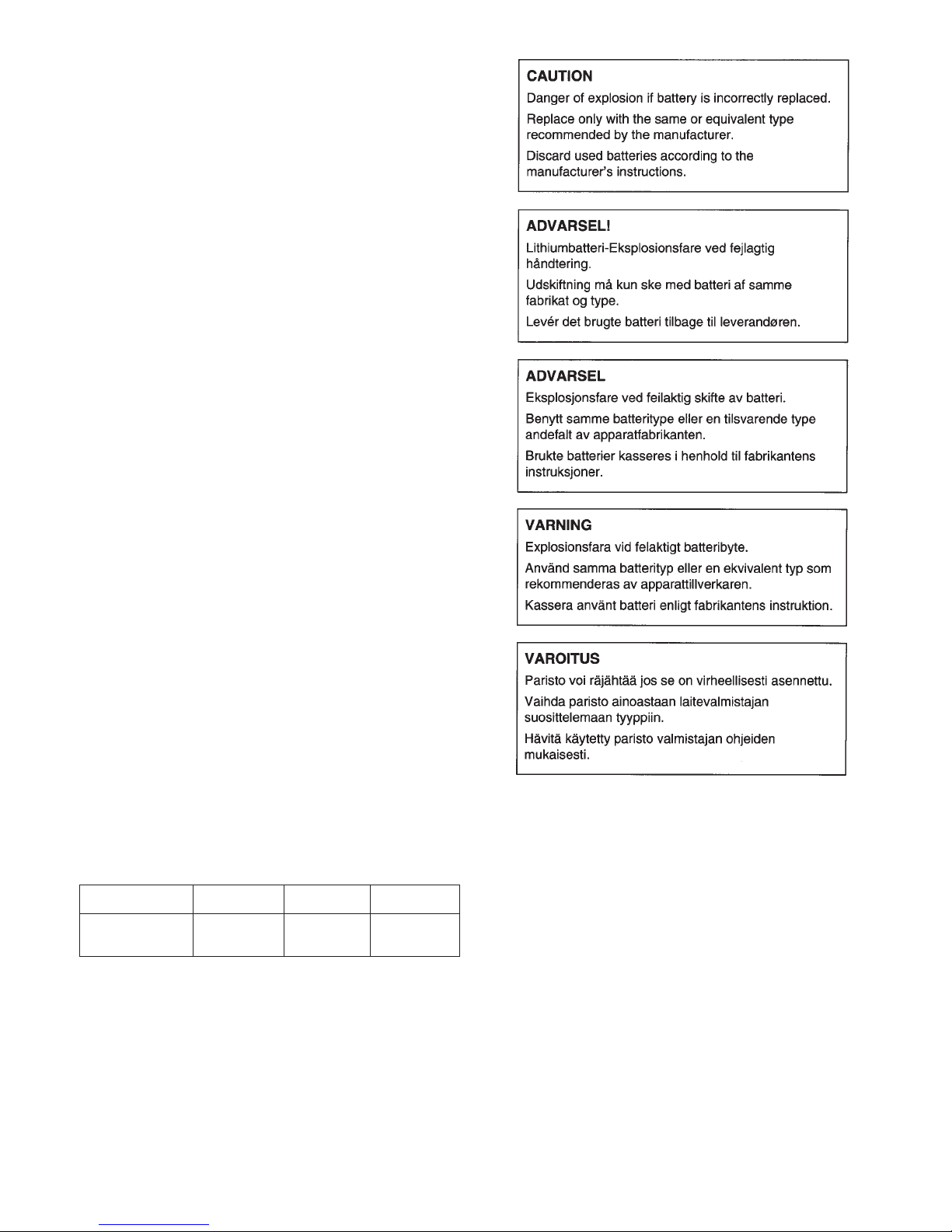

WARNING
Do not use solder containing lead.
This product has been manufactured using lead-free
solder in order to help preserve the environment.
Because of this, be sure to use lead-free solder when
carrying out repair work, and never use solder
containing lead.
Lead-free solder has a melting point that is 30 - 40°C (86 -
104°F) higher than solder containing lead, and moreover it
does not contain lead which attaches easily to other metals.
As a result, it does not melt as easily as solder containing
lead, and soldering will be more difficult even if the
temperature of the soldering iron is increased.
The extra difficulty in soldering means that soldering time
will increase and damage to the components or the circuit
board may easily occur.
Because of this, you should use a soldering iron and
solder that satisfy the following conditions when carrying out
repair work.
Soldering iron
Use a soldering iron which is 70 W or equivalent, and
which lets you adjust the tip temperature up to 450°C
(842°F). It should also have as good temperature recovery
characteristics as possible.
Set the temperature to 350°C (662°F) or less for chip
components, to 380°C (716°F) for lead wires and similar,
and to 420°C (788°F) when installing and removing shield
plates.
The tip of the soldering iron should have a C-cut shape or
a driver shape so that it can contact the circuit board as flat
or in a line as much as possible.
Solder
Use solder with the metal content and composition ratio by
weight given in the table below. Do not use solders which
do not meet these conditions.
Lead-free solder is available for purchase as a service tool.
Use the following part number when ordering:
Part name: Lead-free solder with resin (0.5 mm dia., 500 g)
Part number: VJ8-0270
Note:
If replacing existing solder containing lead with lead-free
solder in the soldered parts of products that have been
manufactured up until now, remove all of the existing solder
at those parts before applying the lead-free solder.
Metal content Tin (Sn) Silver (Ag) Copper (Cu)
Composition
ratio by weight 96.5% 3.0% 0.5%

-3 -
Camera
Image pickup device : 1/3-inch CMOS sensor
Effective pixels : 16:9 1920 (H) x 1080 (V), 4:3 2288 (H) x 1712 (V)
Lowest image illumination : 50IRE: 1.0 lx (at F1.2, color mode, high gain)
Lowest image illumination : 50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)
Video S/N ratio : 50 dB (when AGC is “OFF”)
Lens mount : CS mount
Flange back adjustment : 12.5 ± 0.5 mm, electrical flange back adjustment (Focus assist function)
Day/Night function : Auto, color, black-and-white, alarm input switching
White balance : Auto (ATW), one push (AWC), manual (R/B gain adjustable),indoor, outdoor, fluorescent
Backlight compensation : Multi-spot evaluative metering, center-weighted evaluative metering, masking, face detection
Electronic sensitivity boosting : Auto (32 x max) or Off
Electronic shutter : 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-HD2500P)
Electronic shutter : 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-HD2500)
Electronic shutter : Long exposure shutter (1x, 2x, 4x, 8x, 16x, 32x)
Electronic iris : ON/OFF (Set [SHUTTER] to “EI”.)
Iris control : DC iris lens supported
Electronic zoom : Max. 16x
Digital PTZ : Enables electronic pan, tilt, and zoom operations on clipped subject areas in VGA size.
Camera settings : Selectable between 2 camera setting patterns
AGC gain : Normal/ Middle/ High (Manual gain setting possible at Off)
Gamma correction : 0.45, 1, Mode 1, Mode 2
Aperture compensation : On/Off (Correction level adjustable)
VIVID COLOR EFFECT : ON/OFF
DNR : ON/OFF
Mirror : H/V/HV/OFF
Privacy mask : On/Off, max. 8 mask patterns
Motion sensor : On (Motion masking/ motion detection area setting, or video analytics)/ Off, face detection function supported
Language selection : English, French, German, Spanish, Japanese
I/O
Video output : Composite output
LAN : 10BASE-T/ 100BASE-TX (RJ-45 connector)
Card slot : 1 (SDHC compliant, max.32GB supported)
Card slot : There are recommended SD memory cards.
Alarm input : 2 (NO/NC), also serving as Day/Night switching terminal
Alarm output : 2 (NO/NC, 16V, 150 mA, open collector)
Audio input/ output : Micrphone input (3.5-mm mini jack)
Audio input/ output : Line output (3.5-mm mini jack)
SD Recording [SD Memory Card]
Recording mode : Alarm recording, backup recording in event of a network failure
SPECIFICATIONS

-4 -
Network
Image/ video compression : H.264/ JPEG
Video size (H.264) : (16:9) 1920x1080, 1280x720, 640x360, 320x180
Video size (H.264) : (4:3) 1600x1200, 1280x960, 1024x768, 640x480, 320x240
Video size (JPEG) : (16:9) 1920x1080, 1280x720, 1024x576, 640x360
Video size (JPEG) : (4:3) 2288x1712,1600x1200, 1280x960, 1024x768, 800x600, 640x480, 320x240
Picture quality : QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE
Picture quality : BITRATE mode: User-specified bit rate
Interface : 10BASE-T/ 100BASE-TX
Protocol : TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Audio : G.711 (Bidirectional)
Simultaneous access : 20
Security : BASIC authentication (ID/password), SSL, IP filtering
Others
Operating ambient temperature/humidity : Temperature: -10 °C - + 50 °C (14°F - 122°F)
Operating ambient temperature/humidity : Humidity: less than 90 % RH (no condensation)
Power source : 24 V AC ± 10 %, 50/60 Hz/ 12 V -15 V DC/ PoE
Power consumption (approx.) : 6.8 W
Weight (approx.) : 250 g (9 oz.)

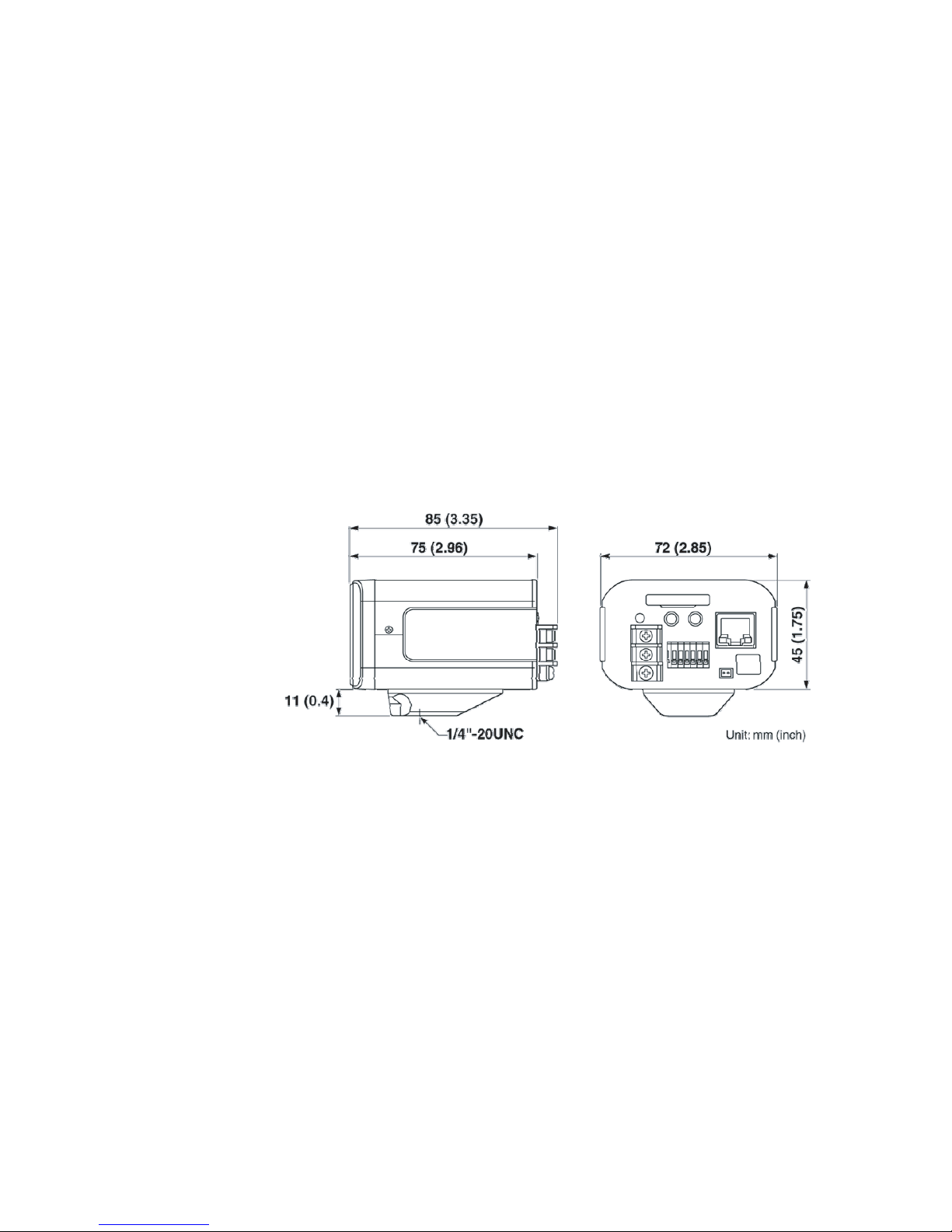

Dimensions [mm/(inch)] :

-5 -
1
7
6
2
3
5
4
8
9
10
11
12
13
13
14
18
15
16
17

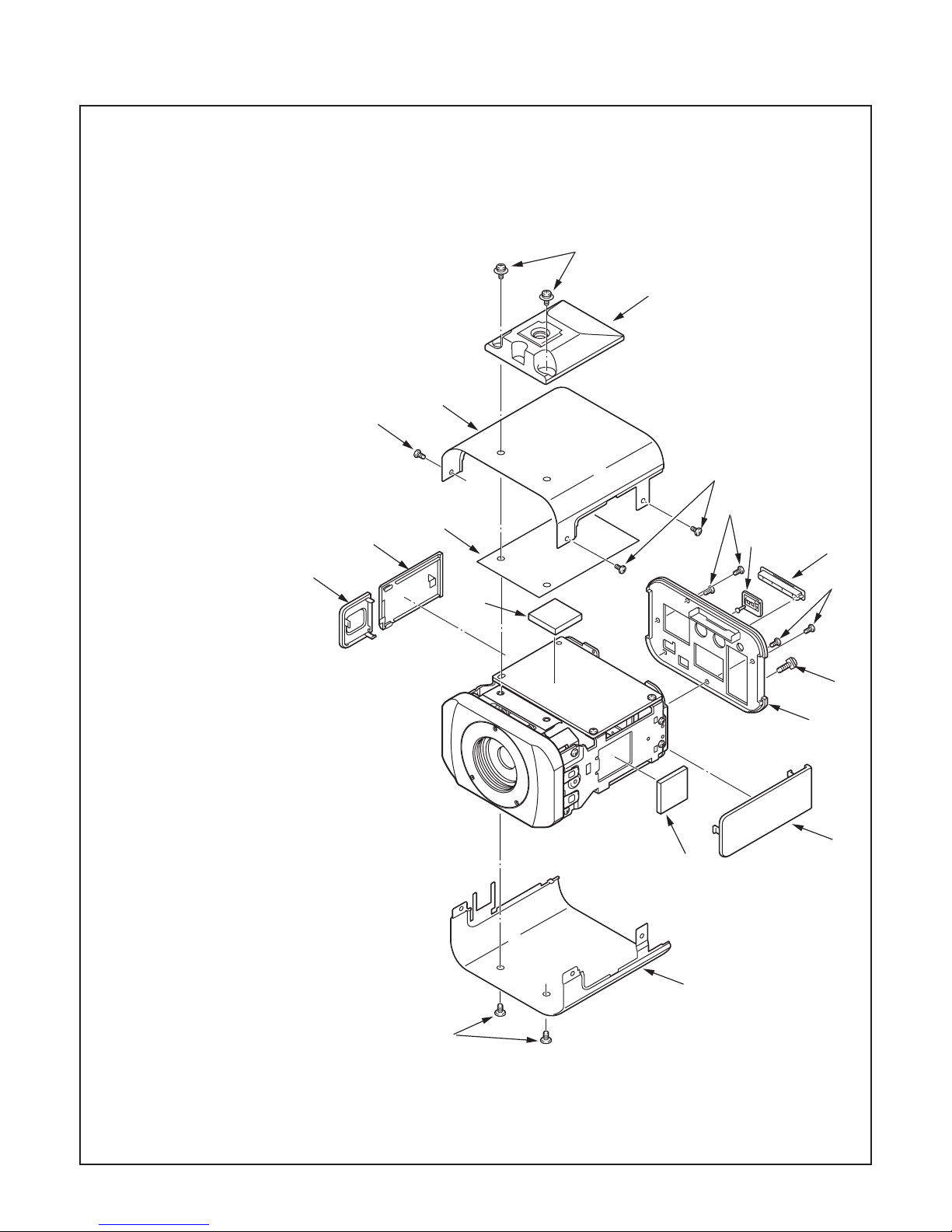

1. DISASSEMBLY
1-1. REMOVAL OF COVER AND CABINET
1. Cover, SD
2. Cover, USB
3. Screw 3 x 12
4. Two screws 3 x 6
5. Mounting + Cover mounting
6. Two screws 3 x 4
7. Cover left
8. Cover iris
9. Cover right
10. Heat sink rub CA4
11. Two screws 2 x 4
12. Screw 2 x 4
13. Four screws 1.7 x 3
14. Cabinet, back
15. Cover top
16. Spacer cover top
17. Heat sink rub CA5
18. Cover bottom

-6 -
1-2. REMOVAL OF CABINET FRONT AND ASSY UNIT
1-3. REMOVAL OF CA-8 BOARD, CA-2 BOARD AND CA-9 BOARD
1. Heat sink rub CA2
2. Spacer CA1
3. Cabinet, front
4. FPC (CN303)
5. Connector (CN104)
6. FPC (CN301)
7. Two screws 1.7 x 4
8. Two screws 1.7 x 4
9. Two screws 2 x 4
10. Two screws 2 x 4
11. Assy, unit
1
8
7
9
10
4
2
6
5
11
3
1. Screw 1.7 x 4
2. Two screws 1.7 x 3
3. Chassis left
4. Connector
5. CA-8 board
6. Screw 1.7 x 4
7. Two screws 1.7 x 4
8. Connector
9. Connector
10. CA-2 board
11. Connector
12. Connector
13. CA-9 board
1
2
3
5
4
6
7
8
9
10
11
12
13

-7 -
2
1
B
A
3
4
5
6
78
9
10
13
14
11
12

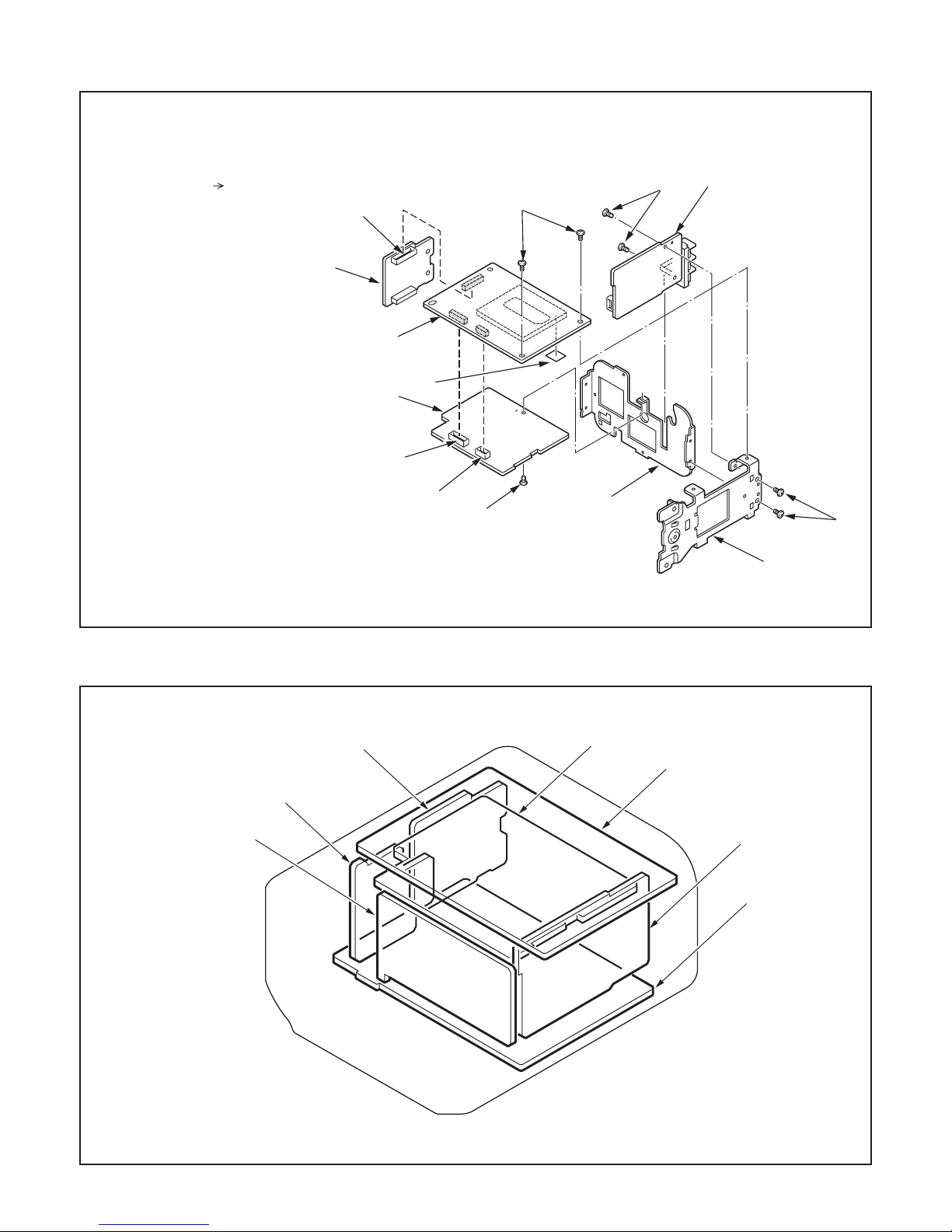

1-4. REMOVAL OF CA-3 BOARD, CA-6 BOARD, CA-5 BOARD AND CA-4 BOARD
1-5. BOARD LOCATION
1. Screw 1.4 x 2.5
2. Two screws 1.7 x 4
When assembling, tighten the
screws order. A B
3. Connector
4. CA-3 board
5. Connector
6. Connector
7. CA-6 board
8. Spacer SD
9. CA-5 board
10. Two screws 1.7 x 4
11. Two screws 1.7 x 3
12. Chassis right
13. Chassis back
14. CA-4 board
CA-4 Board
CA-6 Board
CA-5 Board
CA-2 Board
CA-9 Board
CA-3 Board
CA-8 Board

-8 -
2. ADJUSTMENT
2-1. Table for Servicing Tools
1. Calibration software
Download the calibration software and the firmware from the
following URL.
http://www.overseas.sanyo.com/dcamera_service/
Place the DscCalDi.exe file, camapi32.dll file and
QrCodeInfo.dll file together into a folder of your choice.
2. Pattern box
Turn on the switch and wait for 30 minutes for aging to take
place before using Color Pure. It is used after adjusting the
chroma meter (VJ8-0192) adjust color temperature to 3100
± 20 K and luminosity to 900 ± 20 cd/m2. Be careful of han-
dling the lump and its circumference are high temperature
during use and after power off for a while.
2-2. Setup
1. System requirements
Windows 2000 or XP or Vista
IBM® -compatible PC with pentium processor
USB port
2. Video monitor
Connect the video output to a video monitor with an input
impedance of 75 ohms.
2-3. Adjustment Items and Order
1. Timer Quartz Adjustment
2. AWB Adjustment
3. CMOS White Point Defect Detect Adjustment
4. CMOS Black Point And White Point Defect Detect Adjust-
ment In Lighted
5. Focus Assistance Drive Adjustment
6. CS Mount Optical Axis Adjustment
Note: If the lens, CMOS and board and changing the part, it
is necessary to adjust again. Item 1-6 adjustments should be
carried out in sequence.

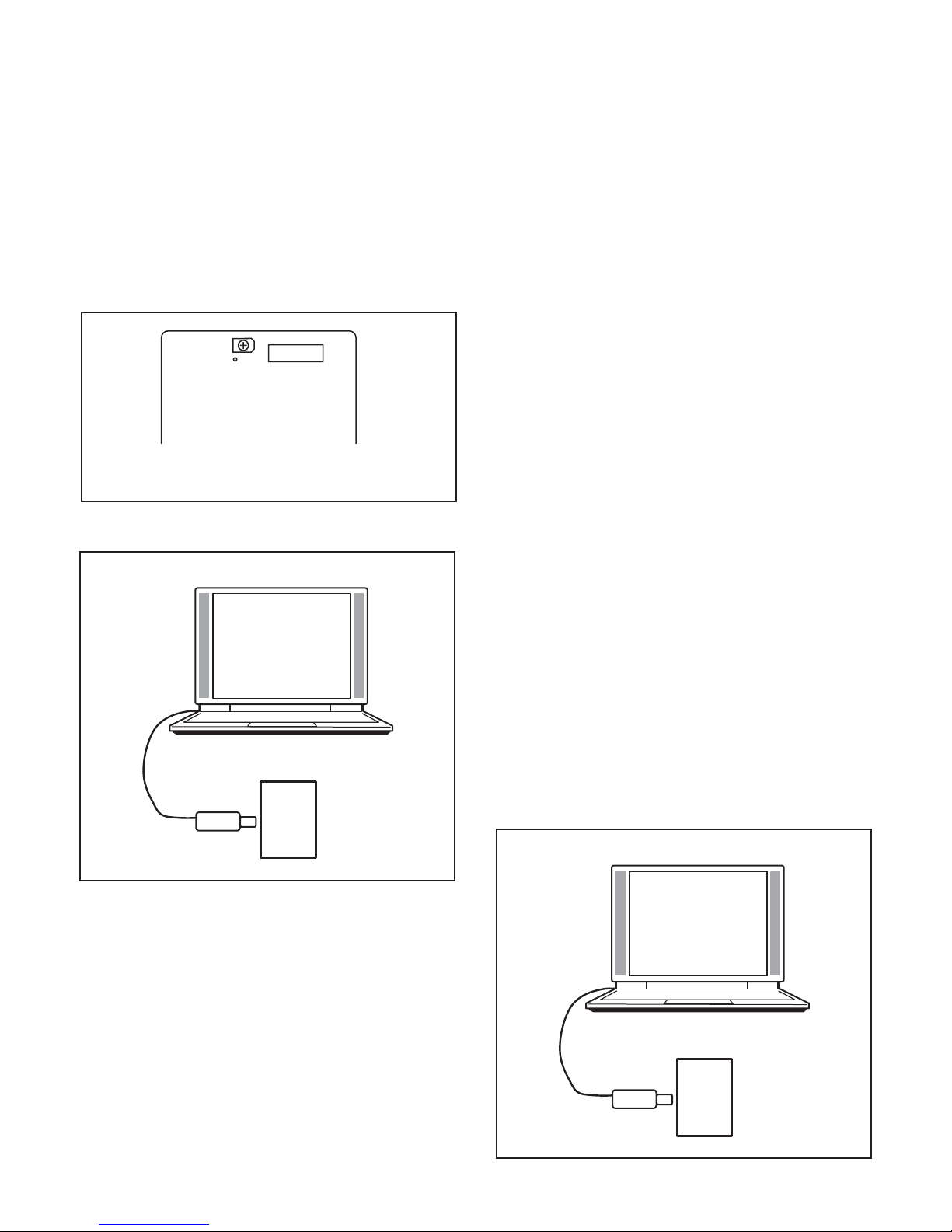

2-4. Connecting the camera to the computer
1. Connect the camera’s USB terminal to the computer’
USB connector.
2. It turns on power while pushing the FAR button and the
SET button of the operation panel.
3. Double-click on the DscCalDi.exe.
4. L5DB2 is selected with Model Code.
5. PAL (VCC-HD2500P) or NTSC (VCC-HD2500) is
selected with Video Mode.

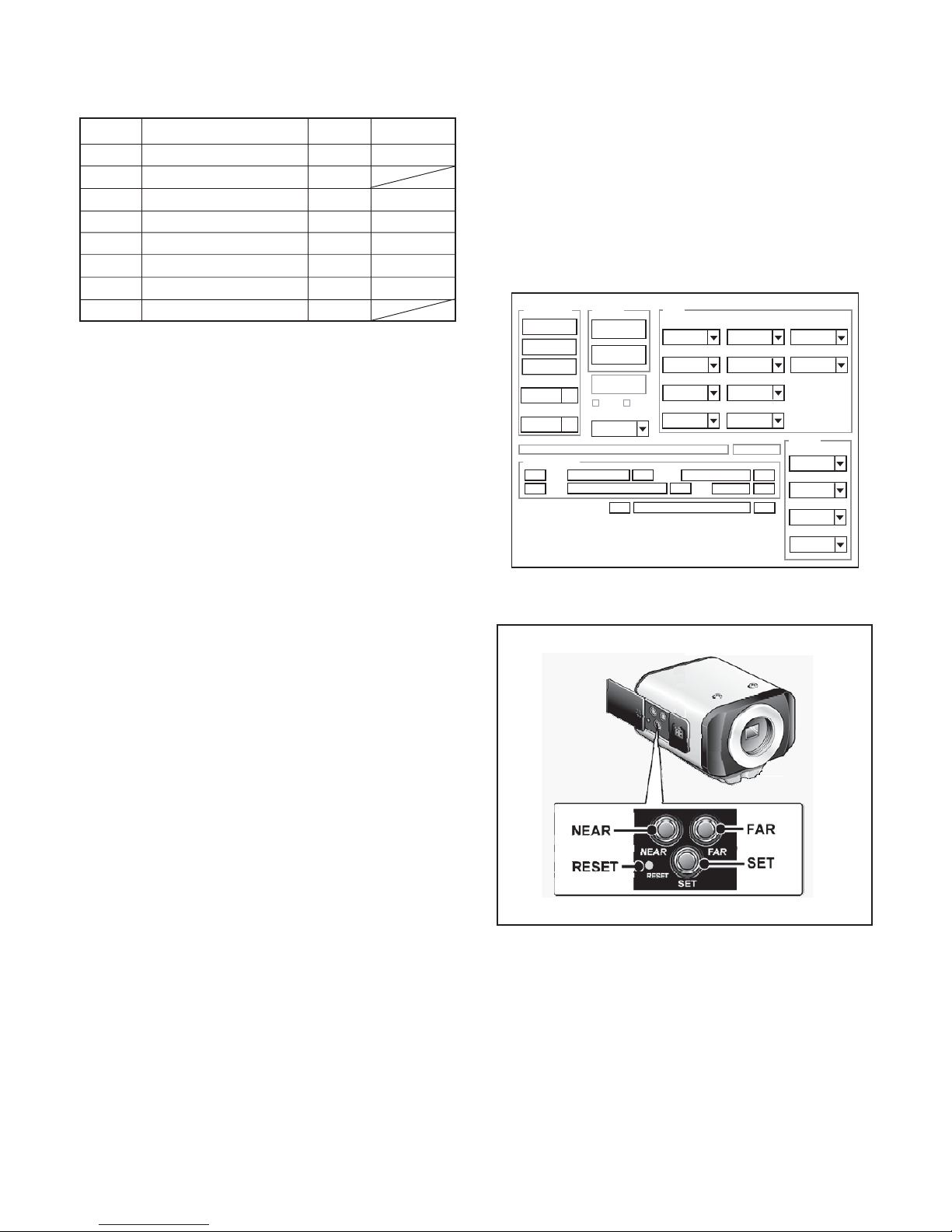

2-4-1. Computer screen during adjustment
2-4-2. Operation buttons
Ref. No. Name Part code
J-1
J-2
J-3
J-4
J-5
J-6
J-7
J-8
VJ8-0190
VJ8-0192
VJ8-0191
VHJ-0196
VHJ-0197
VHJ-0198
Pattern box
Calibration software
Chroma meter
Spare lump (pattern box)
Standard lens
Standard lens
C-CS adapter
Siemens star chart
Number
1
1
1
1
1
1
1
1
Firmware
QrCode
AWB
Focus
UV Matrix
R Bright
RGB Offset
Tint
B Bright
Gain
Phase
LCD
Calibration Upload
Initialize
LCD Type H AFC Test
VCOMDC
VCOMPP
Cal Data
Cal Mode
OK
OK
EVF
USB storage
Get
Set
VID Set
PID Set
Serial Set
Rev. Set
Setting
Language
Video Mode
VCO
Factory Code
Backrush pulse :
Set
Get
Model_Code

-9 -

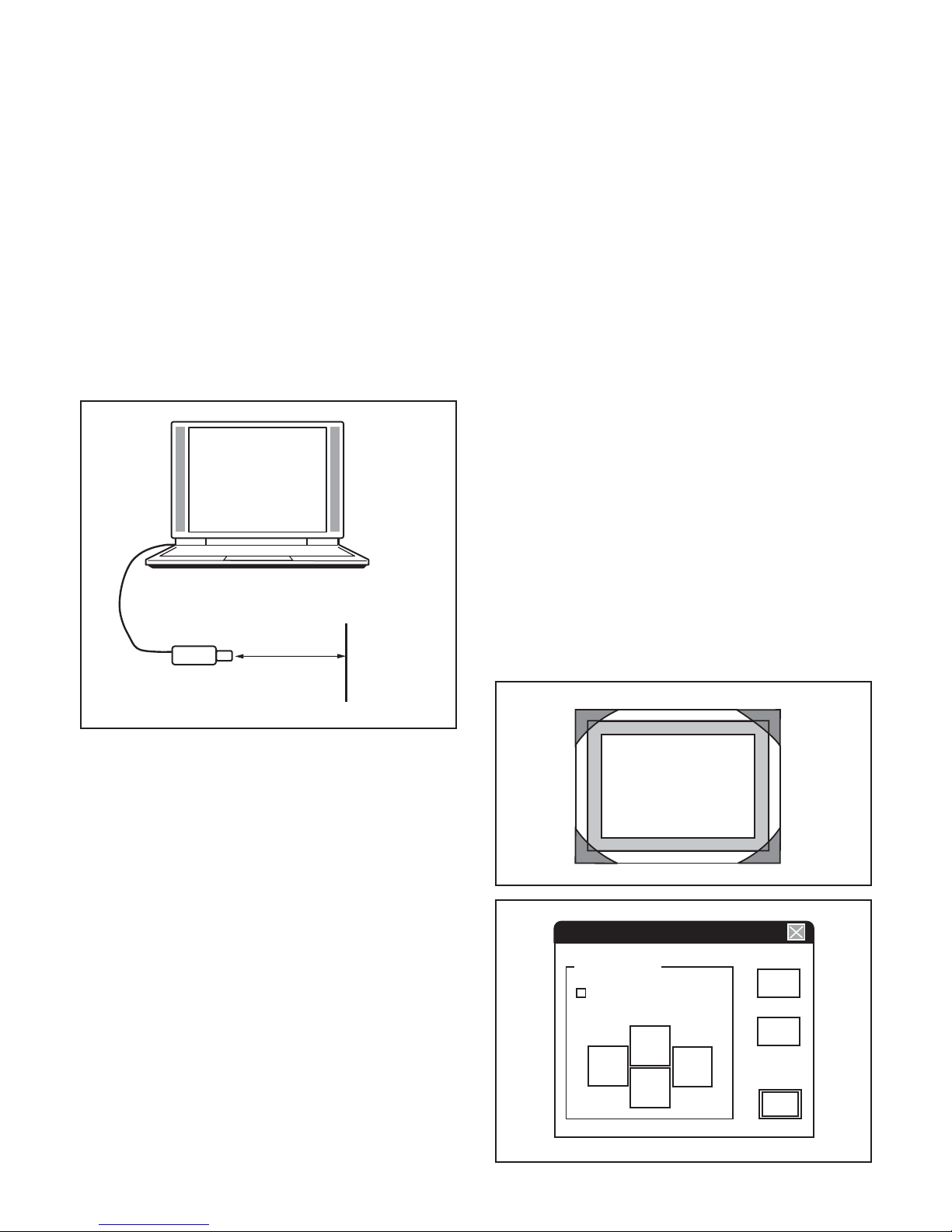

2-5. Adjustment
1. Timer Quartz Adjustment
Adjustment location: CT351 (CA-5)
Measuring location: TP351 (CA-5)
Measuring equipment: Frequency counter
Subject: No designation
Preparation:
Turn on the switch and wait for 1 minute.
Temperature: 25 ± 5°C
Adjusting method:
1. It turns on power while pushing the FAR button and the
SET button of the operation panel.
2. Adjust with CT351 to 32768.950 Hz - 32769.081 Hz.
2. AWB Adjustment
Adjustment location: AWB of computer screen
Measuring location: Computer screen
Measuring equipment:
Subject: Lens of VHJ-0196
Preparation:
Lens is set on TELE edge/NEAR edge.
Adjusting method:
1. Set a distance of 0.5-1.0 cm between camera lens and
the pattern box. (Do not enter any light.)
2. Connect the camera’s USB terminal to the computer’
USB connector.
3. It turns on power while pushing the FAR button and the
SET button of the operation panel.
4. Double-click on the DscCalDi.exe.
5. Click the AWB, and click the Yes.
6. AWB adjustment value will appear on the screen.
7. Click the OK.
Adjustment value determination is effectuated using the
“CHECK”.
CHECK= wc0, wc1, wc2
The adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
wc0=128 ± 2, wc1=128 ± 2, wc2=130 ± 40
3. CMOS White Point Defect Detect Adjustment
Adjustment location: CCD Defect of computer screen
Measuring location: Computer screen
Measuring equipment:
Subject:
Note:
If readjusting after it has already been adjusted, wait for 15
minutes or more for the unit to cool down first.
Adjustment method:
1. Connect the camera’s USB terminal to the computer’
USB connector.
2. It turns on power while pushing the FAR button and the
SET button of the operation panel.
3. Double-click on the DscCalDi.exe.
4. Shield light with a lens cap to provide dark condition.
5. Select “CCD Defect” on the LCD “Test”, and click the “Yes”.
6. After the adjustment is completed, OK will display.
7. Click the OK.
4. CMOS Black Point And White Point Defect Detect
Adjustment In Lighted
Camera
Pattern box
CN605
TP351
CT351
CA-5 BOARD SIDE A
Camera
Pattern box

-10 -
Adjustment location: CCD Black of computer screen
Measuring location: Computer screen
Measuring equipment:
Subject: Lens of VHJ-0196
Adjusting method:
1. Set a distance of 0.5 - 1.0 cm between the pattern box and
the camera.
2. Connect the camera’s USB terminal to the computer’
USB connector.
3. It turns on power while pushing the FAR button and the
SET button of the operation panel.
4. Double-click on the DscCalDi.exe.
5. Select “CCD Black” on the LCD “Test”, and click the “Yes”.
6. After the adjustment is completed, the number of defect
will appear.
7. Click the OK.
5. Focus Assistance Drive Adjustment
Adjustment location: Focus of computer screen
Measuring location: Computer screen
Measuring equipment:
Subject: Lens of VHJ-0197 and VHJ-0198,
Siemens star chart
Note:
Do not vibrate during the adjustment.
Lens is set 2m and F1.8.
Adjustment method:
1. Set the siemens star chart 200 cm from lens surface
so that it becomes center of the screen (Illumination
above the subject should be 600 lux or more.).
2. Connect the camera’s USB terminal to the computer’
USB connector.
3. It turns on power while pushing the FAR button and the
SET button of the operation panel.
4. Double-click on the DscCalDi.exe.
5. Click the “Focus”, and Click the “Yes”.
6. Lens adjustment value will appear on the screen.
7. Click the OK.
Camera 200 cm
Siemens
star chart
Adjustment value determination is effectuated using below val-
ues.
The adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
AF_I_WIDE = 0 ± 2500, AF_I_MID1 = Reference value,
AF_I_MID2 = 0, AF_I_MID3 = 0, AF_I_MID4 = 0,
AF_I_MID5 = 0, AF_I_MID6 = 0, AF_I_TELE = 0,
QR_Z_WIDE = 0, QR_F_I_WIDE = 0, QR_F_I_TELE = 0,
QR_Z_AORI = 0, QR_F_I_AORI = 0, IRIS_GAIN = 0,
IRIS_OFFSET = 0
6. CS Mount Optical Axis Adjustment
Adjustment location: Privacy Mode of computer screen
Measuring location: Computer screen
Measuring equipment:
Subject: Lens of VHJ-0196
Preparation:
Lens is set on TELE edge/NEAR edge.
Adjusting method:
1. Connect the camera’s USB terminal to the computer’
USB connector.
2. It turns on power while pushing the FAR button and the
SET button of the operation panel.
3. Double-click on the DscCalDi.exe.
4. Select “Privacy Mode” on the LCD “Test”, and click.
5. Area display is made on (Check is put in Privacy Mode).
6. Four corners of mechanical vignetting with the lens are
adjusted to enter between double frames by "Up",
"Down", "Left" and "Right".
7. "WIDE" is clicked and the adjusted value is preserved.
8. Click the OK.
Down
Up
Right
Left
Privacy Mode
Privacy mask
Tele
Wide
OK
Privacy mask calibration

-11 -
2-6. Overwriting firmware from the calibration
software
Preparation:
PC with overwriting firmware copied to the preferred folder in
the HD.
Data: s32xxxxx.BIN (xxxxx: version)
Overwriting method:
1. Connect the camera’s USB terminal to the computer’
USB connector.
2. It turns on power while pushing the FAR button and the
SET button of the operation panel.
3. Double-click on the DscCalDi.exe.
4. Click the Firmware.
5. Choose the fimware file to use for overwriting, and click
the Yes.
6. Update is starting. The message will appear, and choose
OK.
7. After the update is complete, disconnect the USB cable
and turn the camera’s power off.
Note:
Do not turn off the camera’s power while the firmware is be-
ing updated.

12
3. PARTS LIST (R)
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ACCESSORIES & PACKING MATERIALS
9110 613 222 0422 INST MANUAL,SUMMARY A6,English,French,
Spanish,German,Chinese (Simplified),Japanese
9130 613 220 5931 CAUTION SHEET,COMPLIAN A6
9200 645 070 9760 FIXER CLAMP
9210 613 217 8488 ASSY,WIRE,VIDEO CABLE
9220 645 094 6691 CORE,CLAMP,VCC-HD2500P ONLY
9801 645 101 2333 DISC,CD-ROM L5DB2 PC SOFT WARE ,
INSTRUCTION MANUAL (N.S.P)
7001 613 220 6402 CARTON CASE INNER
7002 613 184 1659 CUSHION BAG
7004 613 203 8522 LABEL RECYCLE,VCC-HD2500P ONLY
CABINET & CHASSIS PARTS
5008 613 203 9635 MOUNTING
5009 613 221 0539 COVER MOUNTING-L5DB2
5012 613 220 5276 COVER TOP-L5DB2
5014 613 220 5269 COVER BOTTOM-L5DB2
5016 613 220 5320 CABINET,BACK-L5DB2
5018 613 220 5344 CABINET,FRONT-L5DB2
5020 613 220 5351 COVER IRIS-L5DB2
5022 613 220 5368 COVER LEFT-L5DB2
5024 613 220 5375 COVER RIGHT-L5DB2
5026 613 220 5597 COVER USB-L5DB2
5028 613 220 5603 COVER SD-L5DB2
5030 613 220 9885 SPACER COVER TOP-L5DB2
5031 613 221 3141 HEAT SINK RUB CA2-L5DB2
5032 613 221 3158 HEAT SINK RUB CA4-L5DB2
5033 613 221 3172 HEAT SINK RUB CA5-L5DB2
6002 613 220 5283 CHASSIS BACK-L5DB2
6004 613 220 5290 CHASSIS LEFT-L5DB2
6006 613 220 5306 CHASSIS RIGHT-L5DB2
6032 613 220 9878 SPACER CA1-L5DB2
6033 613 221 3103 SPACER SD-L5DB2
8000 613 221 7774 ASSY,UNIT,L5DB
CA2 613 221 1758 COMPL PWB,CA-2 F/W
CA3 613 221 1918 COMPL PWB,CA-3
CA4 613 220 2695 COMPL PWB,CA-4
CA5 613 221 1772 COMPL PWB,CA-5 F/W MAC
CA6 613 220 2701 COMPL PWB,CA-6
CA8 613 220 2718 COMPL PWB,CA-8
CA9 613 220 2886 COMPL PWB,CA-9
NJ510 312 051 6000 SPECIAL SCREW-3X4
NJ512 411 126 4702 SCR PAN+SW+W 3X6
NJ516 411 098 1006 SCR S-TPG BIN 3X6
NJ518 411 170 6509 SCR PAN PCS 2X4
NJ522 411 188 8007 SCR PAN PCS 1.7X3
NJ532 312 060 4103 SPECIAL SCREW-3X12
NJ610 411 178 6204 SCR PAN PCS 1.7X4
NJ612 411 178 6204 SCR PAN PCS 1.7X4
NJ614 411 178 6204 SCR PAN PCS 1.7X4
NJ616 411 178 6204 SCR PAN PCS 1.7X4
NJ618 411 170 6509 SCR PAN PCS 2X4
NJ622 411 178 6204 SCR PAN PCS 1.7X4
NJ626 411 184 6601 SCR PAN PCS 1.4X2.5
NJ628 411 188 8007 SCR PAN PCS 1.7X3

13
L5DB2/XE_CAB
A
A
B
B
8000
5018
5014
5031
CA2
5024
5032
6006
5016
CA4
6002
NJ616
NJ518
NJ518
NJ516
5008
NJ512
5009
5012
5030
5033
CA9
CA8
NJ510
NJ612
NJ612
NJ618
NJ622
NJ614
NJ628
5022
5020
NJ626
NJ610
NJ610
CA5
CA3
CA6
6033
6032 NJ618
NJ628
NJ532
NJ522
NJ522 5026
5028
6004

14
ELECTRICAL PARTS
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor
MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
POS-SOLID Polymerized Organic Semiconductor Capacitor
2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.
F ............1% G ............2% J ............5% K ............10%
M ..........20% N ..........30% Z ..........+80% ~ -20%
3. Capacitors
U : µF P : pF
4. Inductors
UH : µH MH : mH
5. N.S.P. : Not available as service parts.
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
COMPL PWB,CA-2 F/W
613 221 1758
(VARISTORS)
VA101 308 050 1504 VARISTOR AVR-M1608C220KT
VA102 308 050 1504 VARISTOR AVR-M1608C220KT
VA103 308 050 1504 VARISTOR AVR-M1608C220KT
VA104 308 050 1504 VARISTOR AVR-M1608C220KT
VA112 308 050 2006 VARISTOR AVR-M1608C270MT
(SEMICONDUCTORS)
Q1002 405 218 3902 TR UP0431300
OR 305 167 0406 TR EMD12
OR 305 216 2108 TR RN4984FE
Q1003 305 131 0203 TR DTC144EUA
Q1004 405 218 2707 TR UPA650TT-A
Q1005 305 092 4104 TR 2SC4081-R
Q1081 305 137 2003 TR 2SA1576A-R
OR 305 102 5503 TR 2SB1218A-R
Q1082 305 131 4508 TR 2SD1767Q
Q1083 305 131 4508 TR 2SD1767Q
Q3004 305 186 7301 TR UP04213 00
OR 305 181 1205 TR NSBC144EDXV6T5
OR 305 173 4009 TR PEMH2
OR 305 166 9509 TR EMH2
Q3006 405 220 8308 TR MCH6428-E
Q5201 305 184 6009 TR UP03396
(INTEGRATED CIRCUITS)
IC101 409 696 4802 IC EV3HB,BGA (N.S.P)
IC102 410 671 3802 IC K4X51323PG-8GC8,BGA (N.S.P)
IC103 410 671 3802 IC K4X51323PG-8GC8,BGA (N.S.P)
IC104 309 526 1400 IC NC7SB3157P6
IC106 410 695 7008 IC M95128-WMN6P
IC107 409 694 3005 IC AK8128
IC108 409 700 5702 IC FSUSB42MX
IC110 309 526 1400 IC NC7SB3157P6
IC111 409 690 8707 IC ADV7393BCPZ
IC112 309 638 7604 IC BH76806FVM
IC121 409 695 1604 IC S29PL064J60BFI120# ,BGA (N.S.P)
IC301 410 619 9804 IC LC87F2832AUFL68TBM-E,BGA (N.S.P)
IC303 409 684 6801 IC XC61GN2502H-
IC304 309 577 8304 IC LB1906CL-E
IC305 309 577 8304 IC LB1906CL-E
IC521 409 689 2709 IC XC9235A18CE
IC522 409 686 6205 IC SC4624MLT
IC523 409 689 2709 IC XC9235A18CE
IC524 409 689 2709 IC XC9235A18CE
IC525 409 695 6906 IC NJM2877F3-27
IC526 309 531 8500 IC MC78L12ABD
(DIODE)
D3003 307 201 7600 LED SML-310MT
(OSCILLATORS)
X1102 645 094 0170 OSC,CRYSTAL 48.00000MHZ
X3001 945 046 1416 OSC,CERAMIC 4.00MHZ
(INDUCTORS)
L1001 945 053 5476 IMPEDANCE,240 OHM P
L1002 945 048 5757 IMPEDANCE,120 OHM P
L1003 945 066 4718 IMPEDANCE,60 OHM P
L1004 945 066 4718 IMPEDANCE,60 OHM P
L1005 945 061 7417 INDUCTOR,47U M
L1006 945 053 5476 IMPEDANCE,240 OHM P
L1081 945 020 1906 INDUCTOR,120 OHM
L1082 945 020 1906 INDUCTOR,120 OHM
L1083 945 020 1906 INDUCTOR,120 OHM
L1084 945 020 1906 INDUCTOR,120 OHM
L1101 945 020 1906 INDUCTOR,120 OHM
L5201 645 098 4594 INDUCTOR,4.7U N
OR 645 084 1231 INDUCTOR,4.7U N
L5202 645 098 4822 INDUCTOR,2.0U M
L5203 645 098 4594 INDUCTOR,4.7U N
OR 645 084 1231 INDUCTOR,4.7U N
L5204 645 098 4594 INDUCTOR,4.7U N
OR 645 084 1231 INDUCTOR,4.7U N
(CAPACITORS)
C1001 303 384 6409 CERAMIC 4.7U K 6.3V
C1002 303 384 6409 CERAMIC 4.7U K 6.3V
C1004 303 276 1307 CERAMIC 1000P K 50V
C1005 303 384 6409 CERAMIC 4.7U K 6.3V
C1006 303 338 0309 CERAMIC 0.1U K 10V
C1007 303 338 0309 CERAMIC 0.1U K 10V
C1008 303 338 0309 CERAMIC 0.1U K 10V
C1010 303 338 0309 CERAMIC 0.1U K 10V
C1012 303 381 8109 CERAMIC 1U K 6.3V
C1013 303 381 8109 CERAMIC 1U K 6.3V
C1014 303 338 0309 CERAMIC 0.1U K 10V
C1016 303 338 0309 CERAMIC 0.1U K 10V
C1020 303 338 0309 CERAMIC 0.1U K 10V
C1021 303 384 6409 CERAMIC 4.7U K 6.3V
C1022 303 338 0309 CERAMIC 0.1U K 10V
C1023 303 338 0309 CERAMIC 0.1U K 10V
C1025 303 338 0309 CERAMIC 0.1U K 10V
C1026 303 381 8109 CERAMIC 1U K 6.3V
C1027 303 381 8109 CERAMIC 1U K 6.3V
C1028 303 338 0309 CERAMIC 0.1U K 10V
C1029 303 338 0309 CERAMIC 0.1U K 10V
C1030 303 338 0309 CERAMIC 0.1U K 10V
C1033 303 384 6409 CERAMIC 4.7U K 6.3V
C1036 303 381 8109 CERAMIC 1U K 6.3V
C1038 303 338 0309 CERAMIC 0.1U K 10V
C1039 303 409 3406 CERAMIC 0.1U K 16V
C1040 303 338 0309 CERAMIC 0.1U K 10V
C1041 303 338 0309 CERAMIC 0.1U K 10V
C1042 303 384 6409 CERAMIC 4.7U K 6.3V
C1043 303 384 6409 CERAMIC 4.7U K 6.3V
C1044 303 338 0309 CERAMIC 0.1U K 10V
C1048 303 338 0309 CERAMIC 0.1U K 10V
C1049 303 381 8109 CERAMIC 1U K 6.3V
C1051 303 338 0309 CERAMIC 0.1U K 10V

15
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
RB109 645 093 1550 R-NETWORK 10KX4 0.031W
RB110 645 078 4224 R-NETWORK 0X2 0.063W
RB111 645 078 4224 R-NETWORK 0X2 0.063W
RB113 645 078 4224 R-NETWORK 0X2 0.063W
RB114 645 088 6959 R-NETWORK 39X2 1/16W
(RESISTORS)
R1001 301 224 9009 MT-GLAZE 10K JA 1/16W
R1002 301 224 9009 MT-GLAZE 10K JA 1/16W
R1003 301 224 9009 MT-GLAZE 10K JA 1/16W
R1004 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1005 301 258 6609 MT-GLAZE 10K DC 1/16W
R1007 301 241 5404 MT-GLAZE 12K DC 1/16W
R1008 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1010 301 225 1309 MT-GLAZE 470 JA 1/16W
R1011 301 224 9009 MT-GLAZE 10K JA 1/16W
R1012 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1013 301 224 8903 MT-GLAZE 100K JA 1/16W
R1014 301 224 9702 MT-GLAZE 22 JA 1/16W
R1016 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R1017 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1018 301 225 0302 MT-GLAZE 33 JA 1/16W
R1019 301 262 1706 MT-GLAZE 2.7K DC 1/16W
R1020 301 225 0302 MT-GLAZE 33 JA 1/16W
R1021 301 225 0302 MT-GLAZE 33 JA 1/16W
R1022 301 225 0302 MT-GLAZE 33 JA 1/16W
R1023 301 224 8804 MT-GLAZE 100 JA 1/16W
R1024 301 225 0302 MT-GLAZE 33 JA 1/16W
R1025 301 225 0302 MT-GLAZE 33 JA 1/16W
R1026 301 225 0302 MT-GLAZE 33 JA 1/16W
R1027 301 225 0302 MT-GLAZE 33 JA 1/16W
R1028 301 225 0302 MT-GLAZE 33 JA 1/16W
R1029 301 225 0302 MT-GLAZE 33 JA 1/16W
R1030 301 225 0302 MT-GLAZE 33 JA 1/16W
R1031 301 225 0302 MT-GLAZE 33 JA 1/16W
R1032 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1033 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1034 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1035 301 225 0302 MT-GLAZE 33 JA 1/16W
R1036 301 225 0302 MT-GLAZE 33 JA 1/16W
R1037 301 225 0302 MT-GLAZE 33 JA 1/16W
R1038 301 225 0302 MT-GLAZE 33 JA 1/16W
R1039 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1040 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1041 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1042 301 224 9306 MT-GLAZE 1K JA 1/16W
R1043 301 225 0500 MT-GLAZE 33K JA 1/16W
R1044 301 224 9900 MT-GLAZE 22K JA 1/16W
R1045 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1046 301 225 1309 MT-GLAZE 470 JA 1/16W
R1049 301 225 8100 MT-GLAZE 10 JA 1/16W
R1050 301 225 8100 MT-GLAZE 10 JA 1/16W
R1051 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1056 301 224 9108 MT-GLAZE 150 JA 1/16W
R1057 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1058 301 269 3901 MT-GLAZE 4.7K DC 1/16W
R1059 301 290 2706 MT-GLAZE 3K DC 1/16W
R1060 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R1061 301 288 6303 MT-GLAZE 1.1K DC 1/16W
R1066 301 262 2604 MT-GLAZE 120 DC 1/16W
R1067 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1068 301 224 9306 MT-GLAZE 1K JA 1/16W
R1069 301 224 9306 MT-GLAZE 1K JA 1/16W
R1070 301 262 1607 MT-GLAZE 2.2K DC 1/16W
R1071 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1072 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1073 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1074 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1075 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1076 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1081 301 037 5403 MT-GLAZE 1K JA 1/10W
R1082 301 037 5403 MT-GLAZE 1K JA 1/10W
R1083 301 224 9009 MT-GLAZE 10K JA 1/16W
R1084 301 224 9009 MT-GLAZE 10K JA 1/16W
R1085 301 224 9306 MT-GLAZE 1K JA 1/16W
R1086 301 262 1706 MT-GLAZE 2.7K DC 1/16W
R1087 301 262 1706 MT-GLAZE 2.7K DC 1/16W
R1091 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R1092 301 225 1408 MT-GLAZE 47K JA 1/16W
C1052 303 338 0309 CERAMIC 0.1U K 10V
C1053 303 338 0309 CERAMIC 0.1U K 10V
C1054 303 338 0309 CERAMIC 0.1U K 10V
C1055 303 381 8109 CERAMIC 1U K 6.3V
C1056 303 380 6601 CERAMIC 0.22U K 6.3V
C1057 303 338 0309 CERAMIC 0.1U K 10V
C1058 303 338 0309 CERAMIC 0.1U K 10V
C1059 303 380 6601 CERAMIC 0.22U K 6.3V
C1062 303 419 8903 CERAMIC 10U M 6.3V
C1063 303 338 0309 CERAMIC 0.1U K 10V
C1064 303 338 0309 CERAMIC 0.1U K 10V
C1065 303 338 0309 CERAMIC 0.1U K 10V
C1066 303 338 0309 CERAMIC 0.1U K 10V
C1067 303 338 0309 CERAMIC 0.1U K 10V
C1068 303 338 0309 CERAMIC 0.1U K 10V
C1081 303 276 1307 CERAMIC 1000P K 50V
C1082 303 276 1307 CERAMIC 1000P K 50V
C1083 303 276 1307 CERAMIC 1000P K 50V
C1084 303 276 1307 CERAMIC 1000P K 50V
C1085 303 113 3808 CERAMIC 1000P K 50V
C1091 303 384 6409 CERAMIC 4.7U K 6.3V
C1101 303 384 6409 CERAMIC 4.7U K 6.3V
C1102 303 384 6409 CERAMIC 4.7U K 6.3V
C1103 303 338 0309 CERAMIC 0.1U K 10V
C1104 303 338 0309 CERAMIC 0.1U K 10V
C1105 303 320 0607 CERAMIC 220P J 25V
C1106 303 338 0309 CERAMIC 0.1U K 10V
C1107 403 467 2905 CERAMIC 0.012U G 50V
C1108 303 338 0309 CERAMIC 0.1U K 10V
C1109 303 384 6409 CERAMIC 4.7U K 6.3V
C1110 403 467 2400 CERAMIC 0.15U J 10V
C1111 303 384 6409 CERAMIC 4.7U K 6.3V
C1112 303 381 8109 CERAMIC 1U K 6.3V
C1113 303 384 6409 CERAMIC 4.7U K 6.3V
C1114 303 433 1102 CERAMIC 1U K 10V
C1115 303 381 8109 CERAMIC 1U K 6.3V
C1121 303 317 1402 CERAMIC 9P D 50V
C1122 303 311 7806 CERAMIC 8P D 50V
C1201 303 338 0309 CERAMIC 0.1U K 10V
C1202 303 338 0309 CERAMIC 0.1U K 10V
C1203 303 294 6100 CERAMIC 100P J 50V
C3001 303 358 8309 CERAMIC 1U K 10V
C3002 303 358 8309 CERAMIC 1U K 10V
C3012 303 376 9401 CERAMIC 1U K 6.3V
C3015 303 276 1307 CERAMIC 1000P K 50V
C3017 303 376 9401 CERAMIC 1U K 6.3V
C3018 303 276 1307 CERAMIC 1000P K 50V
C3020 303 276 1307 CERAMIC 1000P K 50V
C3021 303 276 1307 CERAMIC 1000P K 50V
C3022 303 376 9401 CERAMIC 1U K 6.3V
C3023 303 376 9401 CERAMIC 1U K 6.3V
C3024 303 276 1307 CERAMIC 1000P K 50V
C5201 303 384 6409 CERAMIC 4.7U K 6.3V
C5202 303 338 0309 CERAMIC 0.1U K 10V
C5203 303 338 0309 CERAMIC 0.1U K 10V
C5204 303 346 9806 CERAMIC 0.047U K 10V
C5205 303 384 6508 CERAMIC 10U K 6.3V
C5207 303 381 8109 CERAMIC 1U K 6.3V
C5208 303 393 2607 CERAMIC 22U M 6.3V
C5209 303 384 6409 CERAMIC 4.7U K 6.3V
C5210 303 276 2106 CERAMIC 3P C 50V
C5211 303 393 2607 CERAMIC 22U M 6.3V
C5212 303 308 3408 CERAMIC 390P K 50V
C5213 303 320 0706 CERAMIC 270P J 25V
C5214 303 384 6508 CERAMIC 10U K 6.3V
C5215 303 384 6409 CERAMIC 4.7U K 6.3V
C5216 303 376 9401 CERAMIC 1U K 6.3V
C5217 303 384 6508 CERAMIC 10U K 6.3V
C5218 303 215 2204 CERAMIC 0.01U K 50V
C5219 303 376 9401 CERAMIC 1U K 6.3V
C5231 303 420 0606 CERAMIC 10U K 25V
C5232 303 420 0606 CERAMIC 10U K 25V
C5233 303 420 0606 CERAMIC 10U K 25V
C5251 303 420 0606 CERAMIC 10U K 25V
C5252 303 323 6309 CERAMIC 0.1U K 16V
C5253 303 408 5500 CERAMIC 2.2U K 16V
(RESISTOR PACKS)
RB106 945 037 0817 R-NETWORK 0X4 1/16W

16
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
R1093 301 224 8903 MT-GLAZE 100K JA 1/16W
R1101 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1102 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1103 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1104 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1105 301 283 7107 MT-GLAZE 100 DC 1/16W
R1106 301 258 0706 MT-GLAZE 3.9K DC 1/16W
R1107 301 290 1402 MT-GLAZE 300 DC 1/16W
R1108 301 261 6207 MT-FILM 160 DU 1/16W
R1109 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1110 301 290 1402 MT-GLAZE 300 DC 1/16W
R1111 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1112 301 224 8804 MT-GLAZE 100 JA 1/16W
R1113 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1114 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1115 301 275 5906 MT-GLAZE 10 DD 1/16W
R1116 301 290 1402 MT-GLAZE 300 DC 1/16W
R1117 301 224 9009 MT-GLAZE 10K JA 1/16W
R1118 301 224 9009 MT-GLAZE 10K JA 1/16W
R1119 301 224 9009 MT-GLAZE 10K JA 1/16W
R1120 301 259 2105 MT-GLAZE 1 JA 1/16W
R1121 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R1122 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R1123 301 275 6101 MT-GLAZE 18 DD 1/16W
R1124 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1125 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1126 301 328 1305 MT-GLAZE 75 JA 1/10W
R1133 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1134 301 275 1908 MT-GLAZE 2K DC 1/16W
R1136 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1139 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1203 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3001 301 224 9009 MT-GLAZE 10K JA 1/16W
R3002 301 224 9306 MT-GLAZE 1K JA 1/16W
R3003 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3004 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3005 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3006 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3007 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3008 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3009 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3010 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3011 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3012 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3015 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3017 301 225 1408 MT-GLAZE 47K JA 1/16W
R3018 301 225 1408 MT-GLAZE 47K JA 1/16W
R3019 301 225 1408 MT-GLAZE 47K JA 1/16W
R3020 301 225 1408 MT-GLAZE 47K JA 1/16W
R3021 301 225 1408 MT-GLAZE 47K JA 1/16W
R3022 301 225 1408 MT-GLAZE 47K JA 1/16W
R3025 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3027 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3028 301 224 9306 MT-GLAZE 1K JA 1/16W
R3029 301 224 8903 MT-GLAZE 100K JA 1/16W
R3030 301 224 9009 MT-GLAZE 10K JA 1/16W
R3031 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3032 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3034 301 035 4101 MT-GLAZE 0.000 ZA 1/8W
R3035 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3037 301 226 2404 MT-GLAZE 560 JA 1/16W
R3038 301 225 1408 MT-GLAZE 47K JA 1/16W
R3039 301 262 0600 MT-GLAZE 22K DC 1/16W
R3040 301 234 4902 MT-GLAZE 150K JA 1/16W
R3042 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3043 301 225 1408 MT-GLAZE 47K JA 1/16W
R3045 301 224 9306 MT-GLAZE 1K JA 1/16W
R3047 301 224 9306 MT-GLAZE 1K JA 1/16W
R3048 301 224 9009 MT-GLAZE 10K JA 1/16W
R3049 301 225 7905 MT-GLAZE 220 JA 1/16W
R3053 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3054 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3056 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3057 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3058 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3059 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3062 301 225 1408 MT-GLAZE 47K JA 1/16W
R3067 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R3069 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R3071 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R3073 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3074 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R3081 301 225 1408 MT-GLAZE 47K JA 1/16W
R3089 301 224 8903 MT-GLAZE 100K JA 1/16W
R3091 301 224 9108 MT-GLAZE 150 JA 1/16W
R3092 301 224 9108 MT-GLAZE 150 JA 1/16W
R3093 301 224 9108 MT-GLAZE 150 JA 1/16W
R3094 301 224 9108 MT-GLAZE 150 JA 1/16W
R3095 301 224 8903 MT-GLAZE 100K JA 1/16W
R5201 301 105 0705 MT-GLAZE 100K JA 1/16W
R5202 301 224 9009 MT-GLAZE 10K JA 1/16W
R5203 301 262 8804 MT-GLAZE 51K DC 1/16W
R5204 301 274 9707 MT-GLAZE 24K DC 1/16W
R5205 301 275 5906 MT-GLAZE 10 DD 1/16W
R5206 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R5207 301 105 0705 MT-GLAZE 100K JA 1/16W
R5208 301 224 9009 MT-GLAZE 10K JA 1/16W
R5209 301 258 6906 MT-GLAZE 20K DC 1/16W
R5210 301 275 2004 MT-GLAZE 30K DC 1/16W
R5211 301 258 6906 MT-GLAZE 20K DC 1/16W
R5212 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R5213 301 262 1300 MT-GLAZE 2.4K DC 1/16W
R5214 301 225 1408 MT-GLAZE 47K JA 1/16W
R5215 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R5216 301 224 8903 MT-GLAZE 100K JA 1/16W
R5217 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R5218 301 224 9306 MT-GLAZE 1K JA 1/16W
R5219 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R5220 301 224 9009 MT-GLAZE 10K JA 1/16W
R5221 301 224 9009 MT-GLAZE 10K JA 1/16W
(THERMISTOR)
TH301 308 054 7700 TH NCP15WF104F03-RC
(SWITCH)
S3008 945 024 3852 SWITCH,PUSH
(FUSE)
F5201 323 031 1700 FUSE 32V 2A
(CONNECTORS)
CN101 645 075 2247 SOCKET,PWB-PWB 50(N.S.P)
CN102 645 072 3674 SOCKET,USB 5P (N.S.P)
CN103 945 076 4098 SOCKET,PWB-PWB 20(N.S.P)
CN104 645 092 7836 PLUG,PWB-PWB 44P (N.S.P)
CN106 645 094 1269 TERMINAL 6P (N.S.P)
CN111 645 074 0039 PLUG,2P (N.S.P)
CN301 645 093 2120 SOCKET,FPC 6P (N.S.P)
CN302 645 075 5033 PLUG,6P (N.S.P)
CN303 645 093 2120 SOCKET,FPC 6P (N.S.P)
CN521 945 076 4098 SOCKET,PWB-PWB 20(N.S.P)
COMPL PWB,CA-3
613 221 1918
(DIODE)
D9501 307 236 0904 DIODE DSH015-TLE
(CAPACITOR)
C9501 303 276 1307 CERAMIC 1000P K 50V
(RESISTOR PACK)
RB951 645 078 4224 R-NETWORK 0X2 0.063W
(RESISTOR)
R9501 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
(SWITCHES)
S9501 945 024 3852 SWITCH,PUSH
S9502 645 101 2227 SWITCH,PUSH 1P-1T
S9503 645 101 2227 SWITCH,PUSH 1P-1T
S9504 645 101 2227 SWITCH,PUSH 1P-1T
(CONNECTORS)
CN952 645 076 3946 PLUG,PWB-PWB 50P (N.S.P)
CN954 645 076 3946 PLUG,PWB-PWB 50P (N.S.P)
CN955 645 062 5671 TERMINAL,EARTH (N.S.P)

17
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
COMPL PWB,CA-4
613 220 2695
(SEMICONDUCTORS)
Q4101 305 216 6502 TR 2SK3979-TL
Q4102 305 014 4403 TR 2SC2412K-Q
Q4103 305 092 4104 TR 2SC4081-R
Q4141 305 092 4104 TR 2SC4081-R
Q4142 305 199 2102 TR 2SJ632
(INTEGRATED CIRCUITS)
IC401 309 614 8601 IC XC61CN1502N
IC411 309 614 8601 IC XC61CN1502N
IC412 409 695 2502 IC LM5073MHX/NOPB
IC413 309 506 8900 IC FA7700V
(DIODES)
D4001 407 264 2700 DIODE SJPB-L6
D4002 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D4003 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D4004 407 264 2700 DIODE SJPB-L6
D4081 307 206 6301 ZENER DIODE UDZS5.1B-TE17
D4082 307 206 5403 ZENER DIODE UDZS8.2B
D4083 307 238 3705 PHOTO COUPLE PS2701-AL
D4110 407 264 9907 ZENER DIODE RKZ36BKG
D4111 407 264 9907 ZENER DIODE RKZ36BKG
D4113 407 265 0002 ZENER DIODE RKZ15B2KG
D4115 307 206 5403 ZENER DIODE UDZS8.2B
D4116 307 210 1903 DIODE 1SS400
D4120 307 238 3705 PHOTO COUPLE PS2701-AL
D4401 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D4402 307 246 3605 DIODE RB055LA-40
D4403 407 264 4209 DIODE SJPB-H9
(INDUCTORS)
L4001 645 030 5917 INDUCTOR,1000 OHM
L4002 645 030 5917 INDUCTOR,1000 OHM
(TRANSFORMER)
T4001 645 100 9289 TRANS,POWER,PULSE
(CAPACITORS)
C4001 303 357 3305 CERAMIC 0.01U K 630V
C4002 303 357 3305 CERAMIC 0.01U K 630V
C4003 303 357 3305 CERAMIC 0.01U K 630V
C4004 303 379 0405 CERAMIC 4700P K 630V
C4005 303 445 5402 ELECT 470U M 50V
C4006 303 452 7901 CERAMIC 2.2U K 100V
C4081 303 338 0309 CERAMIC 0.1U K 10V
C4101 303 409 3406 CERAMIC 0.1U K 16V
C4103 303 376 9302 CERAMIC 0.047U K 250V
C4104 303 409 3406 CERAMIC 0.1U K 16V
C4105 303 409 3406 CERAMIC 0.1U K 16V
C4106 303 346 9806 CERAMIC 0.047U K 10V
C4107 303 452 7901 CERAMIC 2.2U K 100V
C4108 303 452 7901 CERAMIC 2.2U K 100V
C4109 303 342 3303 CERAMIC 0.1U K 25V
C4111 303 372 7500 CERAMIC 2.2U K 6.3V
C4116 303 409 3406 CERAMIC 0.1U K 16V
C4119 303 397 7608 CERAMIC 1U K 25V
C4120 303 378 6309 CERAMIC 470P J 100V
C4121 303 376 9302 CERAMIC 0.047U K 250V
C4401 303 215 1009 CERAMIC 470P J 50V
C4404 303 420 0606 CERAMIC 10U K 25V
C4405 304 093 0108 POS-SOLID 100U M 6.3V
C4407 403 454 6800 CERAMIC 47U M 10V
C4408 403 454 6800 CERAMIC 47U M 10V
(RESISTORS)
R4009 301 037 5403 MT-GLAZE 1K JA 1/10W
R4010 301 037 5403 MT-GLAZE 1K JA 1/10W
R4011 301 037 5403 MT-GLAZE 1K JA 1/10W
R4012 301 037 5403 MT-GLAZE 1K JA 1/10W
R4013 301 037 5403 MT-GLAZE 1K JA 1/10W
R4081 301 262 5209 MT-GLAZE 1.5K DC 1/16W
R4082 301 262 0709 MT-GLAZE 39K DC 1/16W
R4083 301 258 6609 MT-GLAZE 10K DC 1/16W
R4084 301 225 0708 MT-GLAZE 56K JA 1/16W
R4085 301 225 0708 MT-GLAZE 56K JA 1/16W
R4086 301 225 0708 MT-GLAZE 56K JA 1/16W
R4101 301 257 4101 MT-GLAZE 100K DC 1/16W
R4102 301 262 0808 MT-GLAZE 18K DC 1/16W
R4103 301 262 1003 MT-GLAZE 33K DC 1/16W
R4106 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R4107 301 225 1705 MT-GLAZE 39K JA 1/16W
R4108 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R4109 301 262 0709 MT-GLAZE 39K DC 1/16W
R4110 301 234 4902 MT-GLAZE 150K JA 1/16W
R4111 301 274 9707 MT-GLAZE 24K DC 1/16W
R4112 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R4113 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R4114 301 038 6409 MT-GLAZE 4.7K JA 1/10W
R4115 301 224 9207 MT-GLAZE 15K JA 1/16W
R4116 301 224 8804 MT-GLAZE 100 JA 1/16W
R4117 301 038 6409 MT-GLAZE 4.7K JA 1/10W
R4120 301 225 8100 MT-GLAZE 10 JA 1/16W
R4121 301 037 5106 MT-GLAZE 10 JA 1/10W
R4127 301 224 9801 MT-GLAZE 220K JA 1/16W
R4128 301 224 9009 MT-GLAZE 10K JA 1/16W
R4129 301 224 8903 MT-GLAZE 100K JA 1/16W
R4130 301 224 9207 MT-GLAZE 15K JA 1/16W
R4131 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R4141 301 237 2400 MT-GLAZE 270K JA 1/16W
R4142 301 225 1705 MT-GLAZE 39K JA 1/16W
R4143 301 224 8903 MT-GLAZE 100K JA 1/16W
R4144 301 224 9801 MT-GLAZE 220K JA 1/16W
R4401 301 225 8100 MT-GLAZE 10 JA 1/16W
R4420 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
(FUSE)
F4001 423 034 0103 FUSE 125V 3.5A
(CONNECTORS)
CN401 645 101 1473 TERMINAL,PWB 2P (N.S.P)
CN441 645 075 6573 PLUG,PWB-PWB 20P (N.S.P)
COMPL PWB,CA-5 F/W MAC
613 221 1772
(BATTERY)
Z3501 645 098 0015 BATTERY,RECHARGE
(SEMICONDUCTORS)
Q3501 305 137 2003 TR 2SA1576A-R
OR 305 102 5503 TR 2SB1218A-R
Q6001 405 218 5104 TR SSM6J50TU
Q6002 305 092 4104 TR 2SC4081-R
Q601 405 218 5104 TR SSM6J50TU
Q6201 305 083 5202 TR DTC343TK
Q6202 305 133 8900 TR DTC114EUA
OR 305 078 7303 TR 2SC4398
(INTEGRATED CIRCUITS)
IC351 309 585 7504 IC BD5226G-TR
IC352 310 588 6203 IC UPD78F0512GA(T)-8EU-A (N.S.P)
IC602 309 588 5002 IC NC7WZ16P6X
IC603 409 700 3500 IC MG3500A3-376B,BGA (N.S.P)
IC604 410 649 0703 IC AT24C128B-TH-T
OR 410 670 4602 IC CAT24C128YI-GT3
IC605 410 691 4803 IC MT47H32M16HR-25E,BGA (N.S.P)
IC606 410 691 4803 IC MT47H32M16HR-25E,BGA (N.S.P)
IC607 410 698 1201 IC TC58NVG0S3CTA00 (N.S.P)
IC621 309 674 2908 IC AK4633VN-L (N.S.P)
IC752 409 684 6801 IC XC61GN2502H-
(DIODES)
D3501 307 232 6009 DIODE SB05-05C-E
D3518 408 064 9807 DIODE XBS104S13-R
D3519 408 064 9807 DIODE XBS104S13-R
D3520 408 064 9807 DIODE XBS104S13-R
D6001 307 232 6009 DIODE SB05-05C-E
D6201 307 210 5406 DIODE RB551V-30
(OSCILLATORS)
X3501 913 109 0973 OSC,CRYSTAL 32KHZ
X3502 645 053 8483 OSC,CERAMIC 10.000MHZ
X6021 645 092 2763 OSC,CRYSTAL 27MHZ
X6022 645 090 3007 OSC,CRYSTAL 12MHZ
(TRIMMER)
CT351 645 069 5070 TRIMMER,10PF
(INDUCTORS)
L3501 945 048 5757 IMPEDANCE,120 OHM P

18
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
L6001 945 048 5757 IMPEDANCE,120 OHM P
L6002 945 053 5476 IMPEDANCE,240 OHM P
L6007 945 048 5757 IMPEDANCE,120 OHM P
L6008 945 048 5757 IMPEDANCE,120 OHM P
L6009 945 048 5757 IMPEDANCE,120 OHM P
L6010 945 048 5757 IMPEDANCE,120 OHM P
L6011 945 048 5757 IMPEDANCE,120 OHM P
L6012 945 048 5757 IMPEDANCE,120 OHM P
L6013 945 048 5757 IMPEDANCE,120 OHM P
L6014 645 094 0521 IMPEDANCE,33 OHM P
L6015 945 048 5757 IMPEDANCE,120 OHM P
L6016 945 048 5757 IMPEDANCE,120 OHM P
L6017 945 048 5757 IMPEDANCE,120 OHM P
L6018 945 048 5757 IMPEDANCE,120 OHM P
L6019 945 048 5757 IMPEDANCE,120 OHM P
L6020 945 048 5757 IMPEDANCE,120 OHM P
L6021 945 048 5757 IMPEDANCE,120 OHM P
L6022 945 048 5757 IMPEDANCE,120 OHM P
L6023 945 053 5476 IMPEDANCE,240 OHM P
L6024 945 053 5476 IMPEDANCE,240 OHM P
L6101 945 053 5476 IMPEDANCE,240 OHM P
L6201 645 039 1842 INDUCTOR,2500 OHM
L6202 645 039 1842 INDUCTOR,2500 OHM
L6203 945 048 5757 IMPEDANCE,120 OHM P
L6204 945 048 5757 IMPEDANCE,120 OHM P
L6205 945 048 5757 IMPEDANCE,120 OHM P
(CAPACITORS)
C3501 303 338 0309 CERAMIC 0.1U K 10V
C3502 303 276 1307 CERAMIC 1000P K 50V
C3503 303 276 1307 CERAMIC 1000P K 50V
C3504 303 139 7101 CERAMIC 12P J 50V
C3506 303 229 4102 CERAMIC 8P C 50V
C3508 303 276 1307 CERAMIC 1000P K 50V
C3509 303 113 3808 CERAMIC 1000P K 50V
C3511 303 433 1102 CERAMIC 1U K 10V
C3512 303 338 0309 CERAMIC 0.1U K 10V
C3513 303 391 0506 CERAMIC 10U K 6.3V
C3514 303 391 0506 CERAMIC 10U K 6.3V
C3515 303 338 0309 CERAMIC 0.1U K 10V
C3517 303 419 8903 CERAMIC 10U M 6.3V
C3518 303 276 1307 CERAMIC 1000P K 50V
C3519 303 391 0506 CERAMIC 10U K 6.3V
C3520 303 338 0309 CERAMIC 0.1U K 10V
C3521 303 338 0309 CERAMIC 0.1U K 10V
C3522 303 391 0506 CERAMIC 10U K 6.3V
C3523 303 323 6309 CERAMIC 0.1U K 16V
C3524 303 393 2607 CERAMIC 22U M 6.3V
C3525 303 393 2607 CERAMIC 22U M 6.3V
C6001 303 323 6309 CERAMIC 0.1U K 16V
C6002 303 276 2106 CERAMIC 3P C 50V
C6003 303 276 2106 CERAMIC 3P C 50V
C6004 303 338 0309 CERAMIC 0.1U K 10V
C6005 303 338 0309 CERAMIC 0.1U K 10V
C6006 303 338 0309 CERAMIC 0.1U K 10V
C6007 303 338 0309 CERAMIC 0.1U K 10V
C6008 303 381 8109 CERAMIC 1U K 6.3V
C6021 303 338 0309 CERAMIC 0.1U K 10V
C6022 303 391 0506 CERAMIC 10U K 6.3V
C6023 303 391 0506 CERAMIC 10U K 6.3V
C6024 303 338 0309 CERAMIC 0.1U K 10V
C6025 303 276 1307 CERAMIC 1000P K 50V
C6026 303 409 3406 CERAMIC 0.1U K 16V
C6027 303 409 3406 CERAMIC 0.1U K 16V
C6028 303 419 8903 CERAMIC 10U M 6.3V
C6029 303 409 3406 CERAMIC 0.1U K 16V
C6030 303 409 3406 CERAMIC 0.1U K 16V
C6031 303 381 8109 CERAMIC 1U K 6.3V
C6032 303 409 3406 CERAMIC 0.1U K 16V
C6033 303 381 8109 CERAMIC 1U K 6.3V
C6034 303 409 3406 CERAMIC 0.1U K 16V
C6035 303 419 8903 CERAMIC 10U M 6.3V
C6036 303 419 8903 CERAMIC 10U M 6.3V
C6037 303 419 8903 CERAMIC 10U M 6.3V
C6038 303 409 3406 CERAMIC 0.1U K 16V
C6039 303 409 3406 CERAMIC 0.1U K 16V
C6040 303 409 3406 CERAMIC 0.1U K 16V
C6041 303 409 3406 CERAMIC 0.1U K 16V
C6042 303 409 3406 CERAMIC 0.1U K 16V
C6043 303 419 8903 CERAMIC 10U M 6.3V
C6044 303 409 3406 CERAMIC 0.1U K 16V
C6045 303 409 3406 CERAMIC 0.1U K 16V
C6046 303 409 3406 CERAMIC 0.1U K 16V
C6047 303 286 1403 CERAMIC 10P D 50V
C6048 303 419 8903 CERAMIC 10U M 6.3V
C6049 303 419 8903 CERAMIC 10U M 6.3V
C6050 303 409 3406 CERAMIC 0.1U K 16V
C6051 303 409 3406 CERAMIC 0.1U K 16V
C6052 303 409 3406 CERAMIC 0.1U K 16V
C6053 303 409 3406 CERAMIC 0.1U K 16V
C6054 303 409 3406 CERAMIC 0.1U K 16V
C6055 303 419 8903 CERAMIC 10U M 6.3V
C6056 303 419 8903 CERAMIC 10U M 6.3V
C6057 303 409 3406 CERAMIC 0.1U K 16V
C6058 303 409 3406 CERAMIC 0.1U K 16V
C6059 303 409 3406 CERAMIC 0.1U K 16V
C6060 303 409 3406 CERAMIC 0.1U K 16V
C6061 303 409 3406 CERAMIC 0.1U K 16V
C6062 303 433 1102 CERAMIC 1U K 10V
C6063 303 338 0309 CERAMIC 0.1U K 10V
C6064 303 338 0309 CERAMIC 0.1U K 10V
C6065 303 338 0309 CERAMIC 0.1U K 10V
C6066 303 338 0309 CERAMIC 0.1U K 10V
C6067 303 338 0309 CERAMIC 0.1U K 10V
C6068 303 381 8109 CERAMIC 1U K 6.3V
C6069 303 381 8109 CERAMIC 1U K 6.3V
C6070 303 381 8109 CERAMIC 1U K 6.3V
C6071 303 381 8109 CERAMIC 1U K 6.3V
C6072 303 381 8109 CERAMIC 1U K 6.3V
C6073 303 381 8109 CERAMIC 1U K 6.3V
C6074 303 419 8903 CERAMIC 10U M 6.3V
C6075 303 381 8109 CERAMIC 1U K 6.3V
C6076 303 381 8109 CERAMIC 1U K 6.3V
C6077 303 381 8109 CERAMIC 1U K 6.3V
C6078 303 381 8109 CERAMIC 1U K 6.3V
C6079 303 381 8109 CERAMIC 1U K 6.3V
C6080 303 381 8109 CERAMIC 1U K 6.3V
C6081 303 419 8903 CERAMIC 10U M 6.3V
C6082 303 338 0309 CERAMIC 0.1U K 10V
C6083 303 338 0309 CERAMIC 0.1U K 10V
C6084 303 419 8903 CERAMIC 10U M 6.3V
C6085 303 338 0309 CERAMIC 0.1U K 10V
C6086 303 419 8903 CERAMIC 10U M 6.3V
C6087 303 338 0309 CERAMIC 0.1U K 10V
C6201 303 276 1000 CERAMIC 0.01U K 16V
C6202 303 433 1102 CERAMIC 1U K 10V
C6203 303 433 1102 CERAMIC 1U K 10V
C6204 303 391 0506 CERAMIC 10U K 6.3V
C6205 303 338 0309 CERAMIC 0.1U K 10V
C6207 303 391 0506 CERAMIC 10U K 6.3V
C6208 303 391 0506 CERAMIC 10U K 6.3V
C6209 303 338 0309 CERAMIC 0.1U K 10V
C6210 303 338 0309 CERAMIC 0.1U K 10V
C6211 303 155 2302 CERAMIC 4700P K 50V
C6212 303 338 0309 CERAMIC 0.1U K 10V
C6213 303 276 1307 CERAMIC 1000P K 50V
C6214 303 391 0506 CERAMIC 10U K 6.3V
C7516 303 376 9401 CERAMIC 1U K 6.3V
(RESISTOR PACK)
RB601 945 037 0817 R-NETWORK 0X4 1/16W
(RESISTORS)
R3502 301 105 0705 MT-GLAZE 100K JA 1/16W
R3503 301 105 0408 MT-GLAZE 100 JA 1/16W
R3504 301 224 9009 MT-GLAZE 10K JA 1/16W
R3505 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3507 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3508 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R3509 301 105 0606 MT-GLAZE 10K JA 1/16W
R3510 301 105 0606 MT-GLAZE 10K JA 1/16W
R3511 301 224 9009 MT-GLAZE 10K JA 1/16W
R3512 301 105 0507 MT-GLAZE 1K JA 1/16W
R3513 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3514 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3515 301 224 9009 MT-GLAZE 10K JA 1/16W
R3516 301 224 9009 MT-GLAZE 10K JA 1/16W
R3517 301 224 9009 MT-GLAZE 10K JA 1/16W
R3518 301 224 9009 MT-GLAZE 10K JA 1/16W

19
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
R3519 301 224 9009 MT-GLAZE 10K JA 1/16W
R3520 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3525 301 224 9306 MT-GLAZE 1K JA 1/16W
R3526 301 275 2608 MT-GLAZE 560 DC 1/16W
R3527 301 224 9009 MT-GLAZE 10K JA 1/16W
R3528 301 224 9009 MT-GLAZE 10K JA 1/16W
R3529 301 224 9009 MT-GLAZE 10K JA 1/16W
R3530 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3531 301 105 6509 MT-GLAZE 680 JA 1/16W
R3532 301 224 9009 MT-GLAZE 10K JA 1/16W
R3535 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R3536 301 224 9009 MT-GLAZE 10K JA 1/16W
R3537 301 275 2608 MT-GLAZE 560 DC 1/16W
R3538 301 105 1009 MT-GLAZE 1.2K JA 1/16W
R3539 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R3542 301 224 9306 MT-GLAZE 1K JA 1/16W
R3543 301 105 0606 MT-GLAZE 10K JA 1/16W
R3544 301 258 6609 MT-GLAZE 10K DC 1/16W
R3545 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R6001 301 225 1408 MT-GLAZE 47K JA 1/16W
R6002 301 105 0705 MT-GLAZE 100K JA 1/16W
R6003 301 225 1408 MT-GLAZE 47K JA 1/16W
R6004 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R6005 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6006 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R6007 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6008 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R6010 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6011 301 263 1903 MT-GLAZE 3.3K DC 1/16W
R6012 301 283 7107 MT-GLAZE 100 DC 1/16W
R6013 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6014 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6016 301 225 1408 MT-GLAZE 47K JA 1/16W
R6018 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6019 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6021 301 229 3903 MT-GLAZE 180 JA 1/16W
R6022 301 229 3903 MT-GLAZE 180 JA 1/16W
R6023 301 229 3903 MT-GLAZE 180 JA 1/16W
R6024 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6025 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6026 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6039 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6040 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6041 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6042 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6043 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6044 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6045 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6046 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6047 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6050 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6051 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6052 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6053 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6054 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6055 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6056 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6057 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6060 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6061 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6062 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6063 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6064 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6065 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6066 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6067 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6070 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6071 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6078 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6079 301 224 9009 MT-GLAZE 10K JA 1/16W
R6080 301 224 9009 MT-GLAZE 10K JA 1/16W
R6081 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6082 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6083 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6084 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6085 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6086 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6087 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6088 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6089 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6090 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6091 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6092 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6093 301 224 9009 MT-GLAZE 10K JA 1/16W
R6094 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6097 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6098 301 224 9702 MT-GLAZE 22 JA 1/16W
R6099 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6100 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6101 301 225 0302 MT-GLAZE 33 JA 1/16W
R6102 301 225 0302 MT-GLAZE 33 JA 1/16W
R6103 301 225 0302 MT-GLAZE 33 JA 1/16W
R6104 301 225 0302 MT-GLAZE 33 JA 1/16W
R6105 301 225 0302 MT-GLAZE 33 JA 1/16W
R6106 301 225 0302 MT-GLAZE 33 JA 1/16W
R6107 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6108 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6111 301 225 0302 MT-GLAZE 33 JA 1/16W
R6112 301 225 0302 MT-GLAZE 33 JA 1/16W
R6113 301 225 0302 MT-GLAZE 33 JA 1/16W
R6114 301 225 0302 MT-GLAZE 33 JA 1/16W
R6115 301 225 0302 MT-GLAZE 33 JA 1/16W
R6116 301 225 0302 MT-GLAZE 33 JA 1/16W
R6117 301 225 0302 MT-GLAZE 33 JA 1/16W
R6118 301 225 0302 MT-GLAZE 33 JA 1/16W
R6119 301 225 0302 MT-GLAZE 33 JA 1/16W
R6121 301 225 0302 MT-GLAZE 33 JA 1/16W
R6122 301 225 0302 MT-GLAZE 33 JA 1/16W
R6123 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6124 301 262 5209 MT-GLAZE 1.5K DC 1/16W
R6125 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6126 301 262 2307 MT-GLAZE 1.0K DC 1/16W
R6133 301 224 9009 MT-GLAZE 10K JA 1/16W
R6134 301 224 9009 MT-GLAZE 10K JA 1/16W
R6135 301 224 9009 MT-GLAZE 10K JA 1/16W
R6136 301 224 8804 MT-GLAZE 100 JA 1/16W
R6137 301 224 8804 MT-GLAZE 100 JA 1/16W
R6138 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6139 301 224 8804 MT-GLAZE 100 JA 1/16W
R6140 301 224 8804 MT-GLAZE 100 JA 1/16W
R6141 301 224 8804 MT-GLAZE 100 JA 1/16W
R6142 301 224 8804 MT-GLAZE 100 JA 1/16W
R6143 301 224 8804 MT-GLAZE 100 JA 1/16W
R6144 301 224 9009 MT-GLAZE 10K JA 1/16W
R6145 301 224 9009 MT-GLAZE 10K JA 1/16W
R6146 301 224 9009 MT-GLAZE 10K JA 1/16W
R6147 301 224 9009 MT-GLAZE 10K JA 1/16W
R6148 301 224 9009 MT-GLAZE 10K JA 1/16W
R6149 301 224 9009 MT-GLAZE 10K JA 1/16W
R6150 301 224 9009 MT-GLAZE 10K JA 1/16W
R6151 301 224 9009 MT-GLAZE 10K JA 1/16W
R6153 301 224 9009 MT-GLAZE 10K JA 1/16W
R6154 301 224 9009 MT-GLAZE 10K JA 1/16W
R6156 301 224 9009 MT-GLAZE 10K JA 1/16W
R6157 301 224 9009 MT-GLAZE 10K JA 1/16W
R6158 301 224 9306 MT-GLAZE 1K JA 1/16W
R6201 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6202 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6203 301 226 2404 MT-GLAZE 560 JA 1/16W
R6204 301 224 9900 MT-GLAZE 22K JA 1/16W
R6205 301 226 2404 MT-GLAZE 560 JA 1/16W
R6207 301 224 9009 MT-GLAZE 10K JA 1/16W
R6208 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6209 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6210 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6211 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R6212 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
(CONNECTORS)
CN351 645 075 5040 PLUG,8P (N.S.P)
CN601 645 075 2247 SOCKET,PWB-PWB 50 (N.S.P)
CN603 645 076 4110 SOCKET,PWB-PWB 40 (N.S.P)
CN604 645 092 8185 SOCKET,CARD(SD)12 (N.S.P)
CN605 645 069 5193 SOCKET,FPC 20P (N.S.P)
CN606 945 076 4098 SOCKET,PWB-PWB 20 (N.S.P)

20
COMPL PWB,CA-6
613 220 2701
(SEMICONDUCTORS)
Q5301 305 184 6009 TR UP03396
Q5331 405 218 5104 TR SSM6J50TU
Q5332 305 092 4104 TR 2SC4081-R
Q6851 305 133 8900 TR DTC114EUA
OR 305 078 7303 TR 2SC4398
Q6852 305 133 8900 TR DTC114EUA
OR 305 078 7303 TR 2SC4398
(INTEGRATED CIRCUITS)
IC201 309 584 2609 IC LA6458M-TE-L-E
IC531 409 686 6205 IC SC4624MLT
IC532 409 689 2709 IC XC9235A18CE
IC685 409 700 3609 IC KSZ8041TL
(DIODES)
D2001 307 210 1101 ZENER DIODE UDZS7.5B
D2002 307 210 1101 ZENER DIODE UDZS7.5B
D2003 307 210 1101 ZENER DIODE UDZS7.5B
D2004 307 210 1101 ZENER DIODE UDZS7.5B
D5331 307 229 6807 DIODE RSX101M-30
D6803 407 266 0704 ZENER DIODE RSBC6.8CS
D6804 407 266 0704 ZENER DIODE RSBC6.8CS
D6805 307 017 2905 LED SEL2110R,
D6821 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6822 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6823 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6824 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6825 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6826 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6827 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6828 307 239 5005 DIODE RF071M2S PMDU
OR 407 256 1001 DIODE DG1N15A
D6851 307 210 5406 DIODE RB551V-30
(OSCILLATOR)
X6851 645 092 2770 OSC,CRYSTAL 25MHZ
(INDUCTORS)
L2001 645 039 1842 INDUCTOR,2500 OHM
L2002 645 039 1842 INDUCTOR,2500 OHM
L2003 945 048 5757 IMPEDANCE,120 OHM P
L5301 645 098 4822 INDUCTOR,2.0U M
L5331 945 048 5757 IMPEDANCE,120 OHM P
L5332 645 098 4594 INDUCTOR,4.7U N
OR 645 084 1231 INDUCTOR,4.7U N
L6801 645 059 7596 IMPEDANCE,90 OHM P
L6802 645 059 7596 IMPEDANCE,90 OHM P
L6851 945 048 5757 IMPEDANCE,120 OHM P
L6852 945 048 5757 IMPEDANCE,120 OHM P
L6853 945 048 5757 IMPEDANCE,120 OHM P
L6854 945 048 5757 IMPEDANCE,120 OHM P
(TRANSFORMER)
T6801 645 095 9332 UNIT,CONNECTOR WITH TRANS
(CAPACITORS)
C2001 303 276 1307 CERAMIC 1000P K 50V
C2002 303 276 1307 CERAMIC 1000P K 50V
C2004 303 433 1102 CERAMIC 1U K 10V
C2005 303 433 1102 CERAMIC 1U K 10V
C2006 303 294 6100 CERAMIC 100P J 50V
C2007 303 333 0601 CERAMIC 2700P K 50V
C2008 303 338 0309 CERAMIC 0.1U K 10V
C2009 303 391 0506 CERAMIC 10U K 6.3V
C2010 303 433 1102 CERAMIC 1U K 10V
C5301 303 338 0309 CERAMIC 0.1U K 10V
C5302 303 346 9806 CERAMIC 0.047U K 10V
C5303 303 338 0309 CERAMIC 0.1U K 10V
C5304 303 381 8109 CERAMIC 1U K 6.3V
C5305 303 393 2607 CERAMIC 22U M 6.3V
C5307 303 276 2106 CERAMIC 3P C 50V
C5308 303 393 2607 CERAMIC 22U M 6.3V
C5309 303 308 3408 CERAMIC 390P K 50V
C5310 303 320 0706 CERAMIC 270P J 25V
C5331 303 384 6409 CERAMIC 4.7U K 6.3V
C5332 303 298 9602 CERAMIC 0.1U K 16V
C5333 303 384 6409 CERAMIC 4.7U K 6.3V
C5334 303 298 9602 CERAMIC 0.1U K 16V
C5335 303 384 6409 CERAMIC 4.7U K 6.3V
C5336 303 384 6508 CERAMIC 10U K 6.3V
C6801 303 338 0309 CERAMIC 0.1U K 10V
C6802 303 338 0309 CERAMIC 0.1U K 10V
C6803 303 215 2907 CERAMIC 0.022U K 25V
C6804 303 419 8903 CERAMIC 10U M 6.3V
C6851 303 393 2607 CERAMIC 22U M 6.3V
C6852 303 338 0309 CERAMIC 0.1U K 10V
C6853 303 338 0309 CERAMIC 0.1U K 10V
C6854 303 294 6100 CERAMIC 100P J 50V
C6855 303 155 4207 CERAMIC 15P J 50V
C6856 303 419 8903 CERAMIC 10U M 6.3V
C6857 303 155 4207 CERAMIC 15P J 50V
C6858 303 338 0309 CERAMIC 0.1U K 10V
C6859 303 338 0309 CERAMIC 0.1U K 10V
C6860 303 338 0309 CERAMIC 0.1U K 10V
(RESISTORS)
R2002 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R2004 301 224 9009 MT-GLAZE 10K JA 1/16W
R2005 301 224 9306 MT-GLAZE 1K JA 1/16W
R2006 301 225 0203 MT-GLAZE 3.3K JA 1/16W
R2007 301 224 8903 MT-GLAZE 100K JA 1/16W
R2008 301 224 9009 MT-GLAZE 10K JA 1/16W
R2009 301 224 9009 MT-GLAZE 10K JA 1/16W
R2010 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R5302 301 262 8804 MT-GLAZE 51K DC 1/16W
R5303 301 274 9707 MT-GLAZE 24K DC 1/16W
R5304 301 275 5906 MT-GLAZE 10 DD 1/16W
R5305 301 258 6906 MT-GLAZE 20K DC 1/16W
R5306 301 262 0600 MT-GLAZE 22K DC 1/16W
R5307 301 258 6906 MT-GLAZE 20K DC 1/16W
R5308 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R5309 301 262 1300 MT-GLAZE 2.4K DC 1/16W
R5310 301 225 1408 MT-GLAZE 47K JA 1/16W
R5311 301 224 9306 MT-GLAZE 1K JA 1/16W
R5312 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R5331 301 105 0705 MT-GLAZE 100K JA 1/16W
R5332 301 105 5403 MT-GLAZE 47K JA 1/16W
R5333 301 105 5403 MT-GLAZE 47K JA 1/16W
R5334 301 224 9009 MT-GLAZE 10K JA 1/16W
R5335 301 224 9504 MT-GLAZE 2.2K JA 1/16W
R6801 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6802 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6803 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6804 301 341 0606 MT-GLAZE 49.9 FA 1/16W
R6806 301 277 0701 MT-GLAZE 10 DC 1/10W
R6807 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6808 301 105 0507 MT-GLAZE 1K JA 1/16W
R6852 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6853 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R6854 301 224 9306 MT-GLAZE 1K JA 1/16W
R6855 301 225 1200 MT-GLAZE 4.7K JA 1/16W
R6856 301 267 1008 MT-GLAZE 6.2K DC 1/16W
R6857 301 285 1509 MT-GLAZE 270 DC 1/16W
R6858 301 329 5302 MT-GLAZE 20 DD 1/16W
R6860 301 105 3201 MT-GLAZE 270 JA 1/16W
R6861 301 224 9009 MT-GLAZE 10K JA 1/16W
R6862 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R6863 301 225 1606 MT-GLAZE 390 JA 1/16W
R6864 301 105 3201 MT-GLAZE 270 JA 1/16W
R6865 301 105 5908 MT-GLAZE 560 JA 1/16W
(FUSE)
F5301 323 031 1700 FUSE 32V 2A
(JACKS)
JK201 645 033 1428 JACK,PHONE D3.6
JK202 645 033 1428 JACK,PHONE D3.6
(MISCELLANEOUS)
Y6801 636 032 8907 SPACER
(CONNECTORS)
CN201 645 045 9092 PLUG,PWB-PWB 40P (N.S.P)
CN531 645 075 6573 PLUG,PWB-PWB 20P (N.S.P)
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
