Sanyo DP42841 User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
132 W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 36 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . 10.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1017mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 235mm
REFERENCE No. SM780194
DP42841, Z5VJ, PRODUCT CODE 113026406
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP42841 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P42841-10
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 8
COMPONENT AND TEST POINT LOCATIONS . . . . . . 30
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 34
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 36
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 43
MAIN IC(SIGNAL PROCESSOR) & PERIPHERICALS . . 46
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 48
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 49

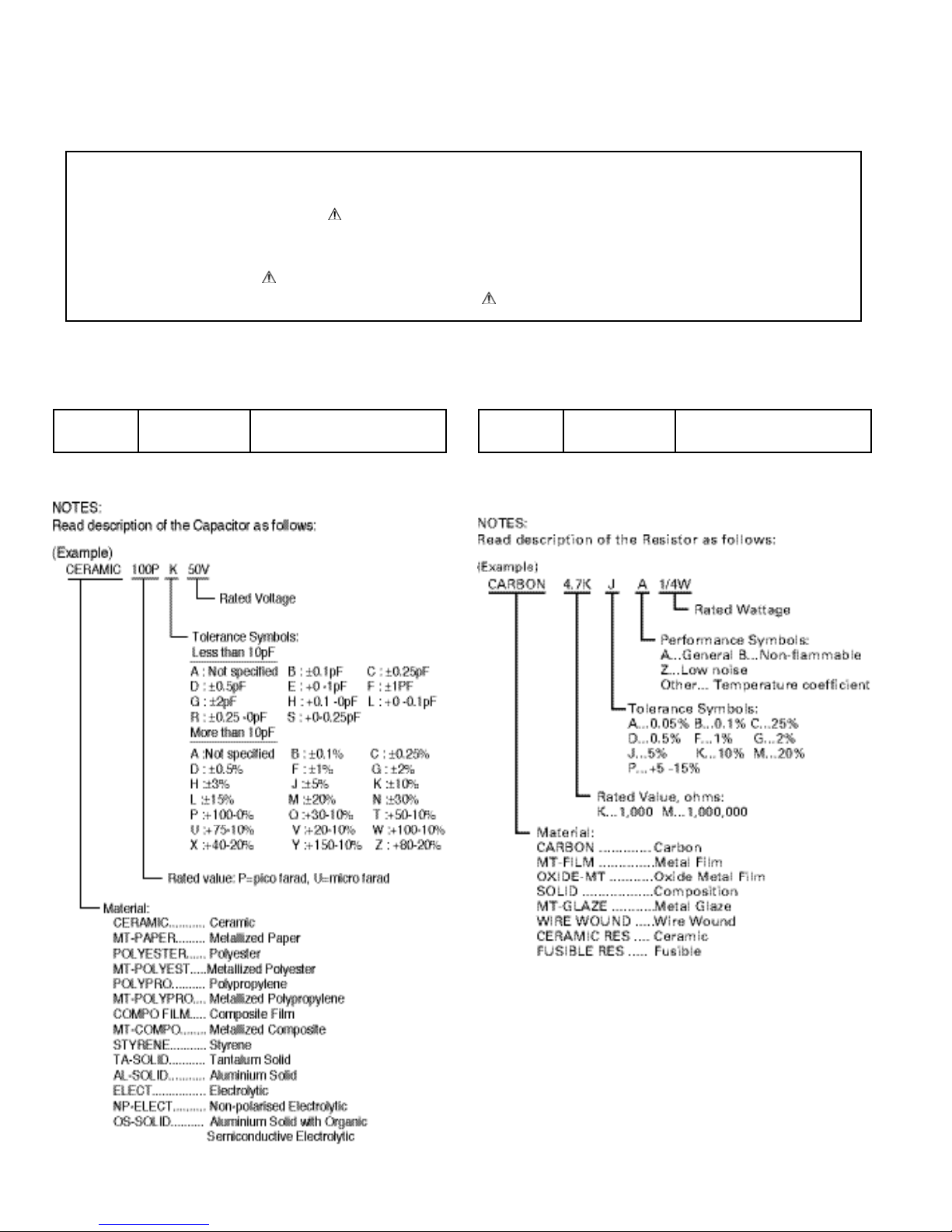

CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 50
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 51
© Sanyo Manufacturing Corporation 2011

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis
or circuit assembly.
7. Incidental body movements, such as, lifting a foot from
a carpeted floor or the rubbing of fabric together can
generate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the
service adjustments.

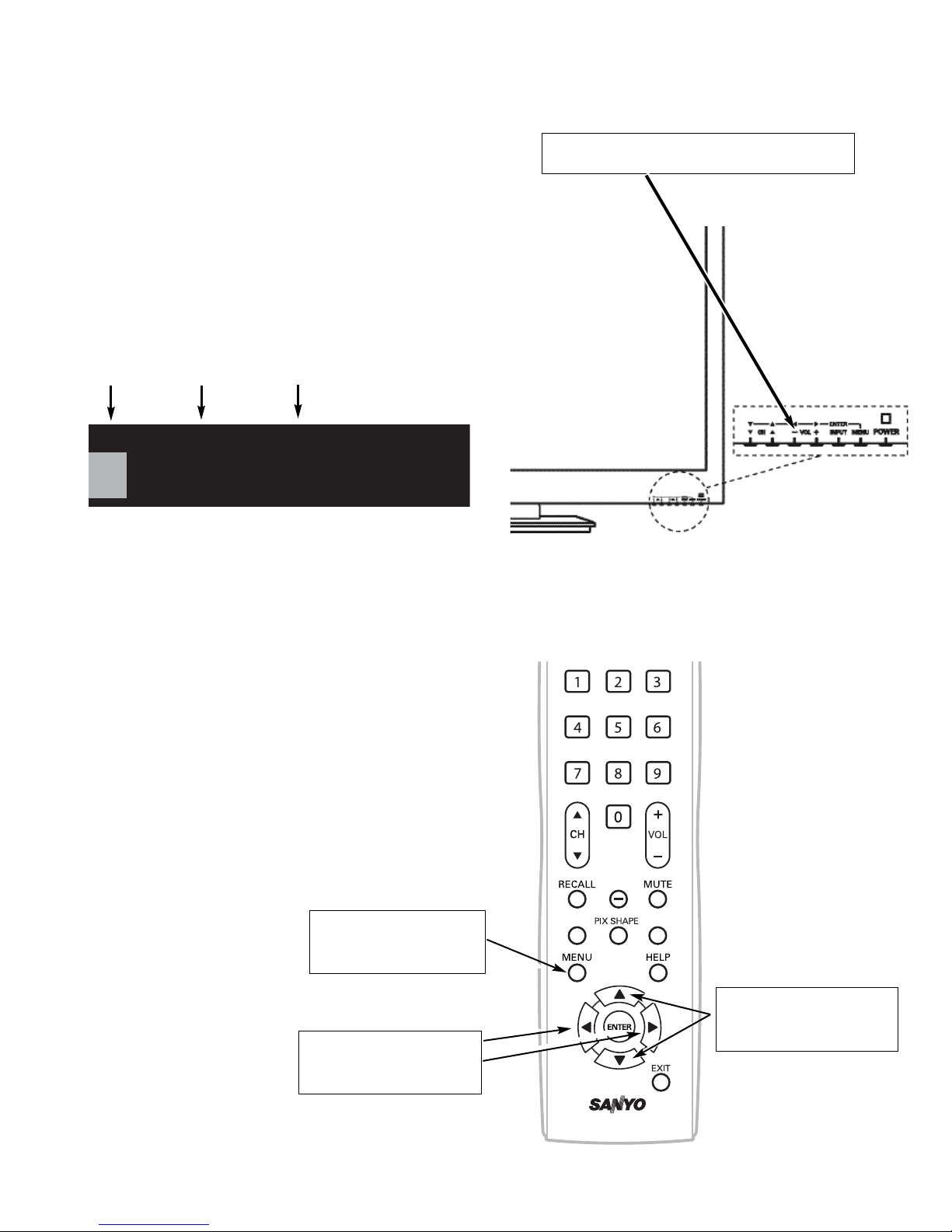

ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (––) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor  and key to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor or key to adjust the data.
The or key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
Index ParameterName
FACTORY_VOL 0x21 48 0 255
Value Def. MIN MAX
1
ITEM NO. TITLE
SUB CH
INFO DYN VOL
Menu:
Exit Service Menu
Cursor :
Select Item
Cursor :
Adjust the data
Volume – :Enter Service Menu

– 4 –
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC7600 (Flash Memory) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 02 OP1) should be hexadecimal 00.
See 02 above. If this program code is wrong the TV will not operate properly.
Note 2. Option Data 2 (NO. 03 OP2) should be hexadecimal 03.
See 03 above. If this program code is wrong the TV will not operate properly.
NOTES: Option 2 Data (Display Panel)
Option 1 and Option 2 data is initial and can be set according to adjusment information.
Index ParameterName Value Min Max
02 OP1 00h 0 255
03 OP2 03h 0 255

– 5 –
POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
sub_CPU it is necessary to disconnect the AC cord
for a short time.
Internal sub_CPU on main IC 5500 is programmed so the
set will go to standby mode when there is circuit failure as
described below. (Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the sub_CPU which checks for an abnormal
condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the fol-
lowing that results in a low voltage supply, the sub_CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC5500 pin 305)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the sub_CPU will
shut off the power within three seconds.
305
79
IC5500
Power Fail
Power On1
Power Board
Main
D1668
K8B
D6761
D1613
Audio_Pow
12V
5V
5V
D1641
9V

– 6 –
STAND REMOVAL
Position TV face down on a padded or cushioned surface
to protect the screen and finish.
Remove 4 screws (B: 6x12) to take the stand off.
MECHANICAL DISASSEMBLY
C
D
C C
B
C
E
Screws for
mounting stand
CAUTION:
This LCD TV uses several different kinds of screws. Using the correct screw is necessary to prevent damage. Lead wires must
be redressed to their previous locations after servicing. The Earth sheet and gasket are provided to prevent interference to
other radio and television receivers. The Earth sheet and gasket should be returned to its previous position after servicing.
ANALOG BOARD AND
MAIN (DIGITAL) BOARD REMOVAL
Remove 9 screws (C: 3X10) to take the Analog Board and
the Main (Digital) Board off.
POWER UNIT REMOVAL
Remove 6 screws (C: 3X10) to take the Power Unit off.
BACK CABINET REMOVAL
Remove 18 screws to take the Back Cabinet off.
(C:3x10, 12 pcs; D:4x8, 4 pcs; E:3x6, 2pcs.)
C
C
C
C
C
C
C
C C
CC
C
C
C
C
C
C
C
KEY SW Unit Analog Board RC LCD Board
Main(Digital) Board
Power Unit
KEY SW BOARD REMOVAL
Remove 2 screws (C:3x10) to take the KEY SW board off.
RC LED BOARD REMOVAL
Remove 1 screw (C: 3x10) to take the RC LED board off.

– 7 –
CHASSIS BASE REMOVAL
Remove 4 screws (D: 4x8) to take off the chassis base.
SPEAKER REMOVAL
Lift up each speaker from the front cabinet.
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.
LCD PANEL REMOVAL
Lift up the LCD panel from front cabinet.
DD
DD
Speaker
Speaker
Chasis Base

– 8 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS

– 9 –
Schematic
Location Part No. Description
ASSY,PWB,DIGITAL
CAPACITORS
C001 F1G1C104A077 CERAMIC 0.1U K 16V
C002 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C003 F1G1C104A077 CERAMIC 0.1U K 16V
C004 F1H1E105A100 CERAMIC 1U K 25V
C005 F1G1C104A077 CERAMIC 0.1U K 16V
C006 F1G1C104A077 CERAMIC 0.1U K 16V
C007 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C008 F1H1H104A913 CERAMIC 0.1U K 50V
C009 F1H1H104A913 CERAMIC 0.1U K 50V
C010 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C011 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C012 F1H1E474A100 CERAMIC 0.47U K 25V
C013 F1H1E474A100 CERAMIC 0.47U K 25V
C015 F1H1H104A913 CERAMIC 0.1U K 50V
C017 F1H1H104A913 CERAMIC 0.1U K 50V
C018 F1H1E474A100 CERAMIC 0.47U K 25V
C019 F1H1E474A100 CERAMIC 0.47U K 25V
C020 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C021 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C023 F1G1C104A077 CERAMIC 0.1U K 16V
C025 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C027 F1H1E105A100 CERAMIC 1U K 25V
C028 F1G1H1020008 CERAMIC 1000P K 50V
C029 F1G1H1020008 CERAMIC 1000P K 50V
C030 F1G1H1020008 CERAMIC 1000P K 50V
C031 F1G1H1020008 CERAMIC 1000P K 50V
C850 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C851 F1G1C104A077 CERAMIC 0.1U K 16V
C852 F1G1A105A047 CERAMIC 1U K 10V
C853 F1G1A105A047 CERAMIC 1U K 10V
C5500 F1G1C104A077 CERAMIC 0.1U K 16V
C5501 F1G1A105A047 CERAMIC 1U K 10V
C5502 F1G1A105A047 CERAMIC 1U K 10V
C5503 F1G1C104A077 CERAMIC 0.1U K 16V
C5504 F1G1A105A047 CERAMIC 1U K 10V
C5505 F1G1C104A077 CERAMIC 0.1U K 16V
C5506 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5507 F1G1C104A077 CERAMIC 0.1U K 16V
C5508 F1G1A105A047 CERAMIC 1U K 10V
C5509 F1G1A105A047 CERAMIC 1U K 10V
C5510 F1G1C104A077 CERAMIC 0.1U K 16V
C5511 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5512 F1H1H3910006 CERAMIC 390P J 50V
C5513 F1G1C104A077 CERAMIC 0.1U K 16V
C5514 F1G1H1020008 CERAMIC 1000P K 50V
C5515 F1G1A105A047 CERAMIC 1U K 10V
C5516 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5517 F1G1C104A077 CERAMIC 0.1U K 16V
C5518 F1H1H123A219 CERAMIC 0.012U K 50V
C5519 F1G1C104A077 CERAMIC 0.1U K 16V
C5520 F1G1C104A077 CERAMIC 0.1U K 16V
C5521 F1G1A105A047 CERAMIC 1U K 10V
C5522 F1G1C104A077 CERAMIC 0.1U K 16V
C5523 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5524 F1G1C104A077 CERAMIC 0.1U K 16V
C5525 F1G1A105A047 CERAMIC 1U K 10V
C5526 F1G1A105A047 CERAMIC 1U K 10V
C5527 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5528 F1G1A105A047 CERAMIC 1U K 10V
C5529 F1G1H1020008 CERAMIC 1000P K 50V
C5530 F1G1C104A077 CERAMIC 0.1U K 16V
C5531 F1G1H1020008 CERAMIC 1000P K 50V
C5532 F1G1C104A077 CERAMIC 0.1U K 16V
C5533 F1G1C104A077 CERAMIC 0.1U K 16V
C5534 F1G1A105A047 CERAMIC 1U K 10V
C5535 F1G1C104A077 CERAMIC 0.1U K 16V
C5536 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5537 F1G1A105A047 CERAMIC 1U K 10V
C5538 F1G1A105A047 CERAMIC 1U K 10V
C5539 F1G1A105A047 CERAMIC 1U K 10V
C5540 F1G1C104A077 CERAMIC 0.1U K 16V
C5541 F1G1H1020008 CERAMIC 1000P K 50V
C5542 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5543 F1G1A105A047 CERAMIC 1U K 10V
C5544 F1G1A105A047 CERAMIC 1U K 10V
C5545 F1G1A105A047 CERAMIC 1U K 10V
C5546 F1G1C104A077 CERAMIC 0.1U K 16V
C5547 F1G1H1020008 CERAMIC 1000P K 50V
C5548 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5549 F1G1H101A541 CERAMIC 100P J 50V
C5551 F1G1C104A077 CERAMIC 0.1U K 16V
C5552 F1G1H1020008 CERAMIC 1000P K 50V
C5553 F1G1A105A047 CERAMIC 1U K 10V
C5554 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5555 F1G1C104A077 CERAMIC 0.1U K 16V
C5556 F1G1C104A077 CERAMIC 0.1U K 16V
C5557 F1G1A105A047 CERAMIC 1U K 10V
C5558 F1G1C104A077 CERAMIC 0.1U K 16V
C5559 F1G1A105A047 CERAMIC 1U K 10V
C5560 F1G1A105A047 CERAMIC 1U K 10V
C5561 F1G1C104A077 CERAMIC 0.1U K 16V
C5562 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5563 F1G1C104A077 CERAMIC 0.1U K 16V
C5564 F1G1A105A047 CERAMIC 1U K 10V
C5565 F1G1C104A077 CERAMIC 0.1U K 16V
C5566 F1G1A105A047 CERAMIC 1U K 10V
Schematic
Location Part No. Description

– 10 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5567 F1G1C104A077 CERAMIC 0.1U K 16V
C5568 F1G1A105A047 CERAMIC 1U K 10V
C5569 F1G1H101A541 CERAMIC 100P J 50V
C5570 F1G1H3320004 CERAMIC 3300P K 50V
C5571 F1G1C104A077 CERAMIC 0.1U K 16V
C5572 F1G1H221A541 CERAMIC 220P J 50V
C5573 F1G1H221A541 CERAMIC 220P J 50V
C5574 F1G1C104A077 CERAMIC 0.1U K 16V
C5575 F1G1H1020008 CERAMIC 1000P K 50V
C5576 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5577 F1G1C104A077 CERAMIC 0.1U K 16V
C5578 F1G1A105A047 CERAMIC 1U K 10V
C5579 F1G1C104A077 CERAMIC 0.1U K 16V
C5580 F1G1C104A077 CERAMIC 0.1U K 16V
C5581 F1G1H1020008 CERAMIC 1000P K 50V
C5582 F1G1A105A047 CERAMIC 1U K 10V
C5583 F1G1C104A077 CERAMIC 0.1U K 16V
C5584 F1G1H150A541 CERAMIC 15P J 50V
C5585 F1G1H150A541 CERAMIC 15P J 50V
C5586 F1G1H472A571 CERAMIC 4700P K 50V
C5587 F1G1H472A571 CERAMIC 4700P K 50V
C5588 F1G1H472A571 CERAMIC 4700P K 50V
C5589 F1G1H220A541 CERAMIC 22P J 50V
C5590 F1G1H220A541 CERAMIC 22P J 50V
C5591 F1G1E473A091 CERAMIC 0.047U K 25V
C5592 F1G1E473A091 CERAMIC 0.047U K 25V
C5593 F1G1E473A091 CERAMIC 0.047U K 25V
C5594 F1G1H220A541 CERAMIC 22P J 50V
C5595 F1G1H220A541 CERAMIC 22P J 50V
C5596 F1G1E473A091 CERAMIC 0.047U K 25V
C5597 F1G1E473A091 CERAMIC 0.047U K 25V
C5598 F1G1E473A091 CERAMIC 0.047U K 25V
C5599 F1G1E473A091 CERAMIC 0.047U K 25V
C5600 F1G1H220A541 CERAMIC 22P J 50V
C5601 F1G1H220A541 CERAMIC 22P J 50V
C5602 F1G1E473A091 CERAMIC 0.047U K 25V
C5603 F1G1E473A091 CERAMIC 0.047U K 25V
C5604 F1G1A105A047 CERAMIC 1U K 10V
C5605 F1G1A105A047 CERAMIC 1U K 10V
C5606 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5607 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5608 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5609 F1G1C104A077 CERAMIC 0.1U K 16V
C5610 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5612 F1G1C104A077 CERAMIC 0.1U K 16V
C5614 F1G1C104A077 CERAMIC 0.1U K 16V
C5615 F1G1C104A077 CERAMIC 0.1U K 16V
C5616 F1G1C104A077 CERAMIC 0.1U K 16V
C5617 F1G1C104A077 CERAMIC 0.1U K 16V
C5618 F1G1H390A541 CERAMIC 39P J 50V
C5620 F1G1C104A077 CERAMIC 0.1U K 16V
C5621 F1G1H220A541 CERAMIC 22P J 50V
C5622 F1G1E473A091 CERAMIC 0.047U K 25V
C5623 F1G1C104A077 CERAMIC 0.1U K 16V
C5624 F1G1C104A077 CERAMIC 0.1U K 16V
C5625 F1G1C104A077 CERAMIC 0.1U K 16V
C5626 F1G1C104A077 CERAMIC 0.1U K 16V
C5627 F1G1C104A077 CERAMIC 0.1U K 16V
C5628 F1G1C104A077 CERAMIC 0.1U K 16V
C5631 F1G1A105A047 CERAMIC 1U K 10V
C5632 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5633 F1G1A105A047 CERAMIC 1U K 10V
C5634 F1G1A105A047 CERAMIC 1U K 10V
C5635 F1G1A105A047 CERAMIC 1U K 10V
C5636 F1G1A105A047 CERAMIC 1U K 10V
C5637 F1G1A105A047 CERAMIC 1U K 10V
C5638 F1G1A105A047 CERAMIC 1U K 10V
C5639 F1G1A105A047 CERAMIC 1U K 10V
C5640 F1G1A105A047 CERAMIC 1U K 10V
C5641 F1G1H1020008 CERAMIC 1000P K 50V
C5642 F1G1H1020008 CERAMIC 1000P K 50V
C5643 F1G1C104A077 CERAMIC 0.1U K 16V
C5644 F1G1A105A047 CERAMIC 1U K 10V
C5646 F1G1C104A077 CERAMIC 0.1U K 16V
C5647 F1G1A2240008 CERAMIC 0.22U K 10V
C5650 F1G1H1020008 CERAMIC 1000P K 50V
C5654 F1G1C104A077 CERAMIC 0.1U K 16V
C5655 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5656 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5657 F1G1C104A077 CERAMIC 0.1U K 16V
C5658 F1G1C104A077 CERAMIC 0.1U K 16V
C5659 F1G1A2240008 CERAMIC 0.22U K 10V
C5660 F1G1C104A077 CERAMIC 0.1U K 16V
C5661 F1G1A474A052 CERAMIC 0.47U K 10V
C5662 F1G1A2240008 CERAMIC 0.22U K 10V
C5663 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5664 F1G1C104A077 CERAMIC 0.1U K 16V
C5665 F1G1C104A077 CERAMIC 0.1U K 16V
C5667 F1G1H100A541 CERAMIC 10P J 50V
C5668 F1G1H100A541 CERAMIC 10P J 50V
C5669 F1G1H100A541 CERAMIC 10P J 50V
C5677 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5678 F2G1C471A066 ELECT 470U M 16V
C5700 F1G1C104A077 CERAMIC 0.1U K 16V
C5701 F1G1H1020008 CERAMIC 1000P K 50V
C5702 F1G1A105A047 CERAMIC 1U K 10V
C5703 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5704 F1G1C104A077 CERAMIC 0.1U K 16V
C5705 F1G1C104A077 CERAMIC 0.1U K 16V
C5706 F1G1C104A077 CERAMIC 0.1U K 16V
C5707 F1G1C104A077 CERAMIC 0.1U K 16V
C5708 F1G1C104A077 CERAMIC 0.1U K 16V
C5709 F1G1C104A077 CERAMIC 0.1U K 16V

– 11 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5710 F1G1C104A077 CERAMIC 0.1U K 16V
C5711 F1G1C104A077 CERAMIC 0.1U K 16V
C5712 F1G1C104A077 CERAMIC 0.1U K 16V
C5713 F1G1C104A077 CERAMIC 0.1U K 16V
C5714 F1G1C104A077 CERAMIC 0.1U K 16V
C5715 F1G1C104A077 CERAMIC 0.1U K 16V
C5716 F1G1C104A077 CERAMIC 0.1U K 16V
C5717 F1G1C104A077 CERAMIC 0.1U K 16V
C5718 F1G1H1020008 CERAMIC 1000P K 50V
C5719 F1G1A105A047 CERAMIC 1U K 10V
C5720 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5721 F1G1C104A077 CERAMIC 0.1U K 16V
C5722 F1G1C104A077 CERAMIC 0.1U K 16V
C5723 F1G1C104A077 CERAMIC 0.1U K 16V
C5724 F1G1C104A077 CERAMIC 0.1U K 16V
C5725 F1G1C104A077 CERAMIC 0.1U K 16V
C5726 F1G1C104A077 CERAMIC 0.1U K 16V
C5727 F1G1C104A077 CERAMIC 0.1U K 16V
C5728 F1G1C104A077 CERAMIC 0.1U K 16V
C5729 F1G1C104A077 CERAMIC 0.1U K 16V
C5730 F1G1C104A077 CERAMIC 0.1U K 16V
C5731 F1G1C104A077 CERAMIC 0.1U K 16V
C5732 F1G1C104A077 CERAMIC 0.1U K 16V
C5733 F1G1C104A077 CERAMIC 0.1U K 16V
C5740 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5742 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5743 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5744 F1G1A105A047 CERAMIC 1U K 10V
C5745 F1G1C104A077 CERAMIC 0.1U K 16V
C5747 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5749 F1G1A105A047 CERAMIC 1U K 10V
C5750 F1G1C104A077 CERAMIC 0.1U K 16V
C5751 F1G1C104A077 CERAMIC 0.1U K 16V
C5752 F1G1C104A077 CERAMIC 0.1U K 16V
C5753 F1G1C104A077 CERAMIC 0.1U K 16V
C5754 F1G1C104A077 CERAMIC 0.1U K 16V
C5755 F1G1C104A077 CERAMIC 0.1U K 16V
C5756 F1G1C104A077 CERAMIC 0.1U K 16V
C5757 F1G1C104A077 CERAMIC 0.1U K 16V
C5758 F1G1A105A047 CERAMIC 1U K 10V
C5759 F1G1A105A047 CERAMIC 1U K 10V
C5760 F1G1A105A047 CERAMIC 1U K 10V
C5761 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5762 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5901 F1G1H100A541 CERAMIC 10P J 50V
C5902 F1G1H100A541 CERAMIC 10P J 50V
C6200 F1G1A105A047 CERAMIC 1U K 10V
C6201 F1G1H1020008 CERAMIC 1000P K 50V
C6202 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6203 F2G1C101A066 ELECT 100U M 16V
C6204 F1H1H5600007 CERAMIC 56P J 50V
C6206 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6207 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6208 F1H1H5600007 CERAMIC 56P J 50V
C6209 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6210 F1G1H1020008 CERAMIC 1000P K 50V
C6211 F1G1A105A047 CERAMIC 1U K 10V
C6212 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
C6213 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
C6301 F1G1C104A077 CERAMIC 0.1U K 16V
C6303 F2G1C471A066 ELECT 470U M 16V
C6500 F1G1C104A077 CERAMIC 0.1U K 16V
C6515 F1G1C104A077 CERAMIC 0.1U K 16V
C6530 F1G1C104A077 CERAMIC 0.1U K 16V
C6560 F1G1C104A077 CERAMIC 0.1U K 16V
C6561 F1G1C104A077 CERAMIC 0.1U K 16V
C6562 F1G1C104A077 CERAMIC 0.1U K 16V
C6563 F1G1C104A077 CERAMIC 0.1U K 16V
C6564 F1G1C104A077 CERAMIC 0.1U K 16V
C6565 F1G1C104A077 CERAMIC 0.1U K 16V
C6566 F1G1C104A077 CERAMIC 0.1U K 16V
C6567 F1G1C104A077 CERAMIC 0.1U K 16V
C6568 F1G1C104A077 CERAMIC 0.1U K 16V
C6569 F1G1C104A077 CERAMIC 0.1U K 16V
C6570 F1G1C104A077 CERAMIC 0.1U K 16V
C6571 F1G1C104A077 CERAMIC 0.1U K 16V
C6572 F1G1C104A077 CERAMIC 0.1U K 16V
C6573 F1G1C104A077 CERAMIC 0.1U K 16V
C6574 F1G1C104A077 CERAMIC 0.1U K 16V
C6575 F1G1C104A077 CERAMIC 0.1U K 16V
C6576 F1G1C104A077 CERAMIC 0.1U K 16V
C6577 F1G1C104A077 CERAMIC 0.1U K 16V
C6578 F1G1C104A077 CERAMIC 0.1U K 16V
C6579 F1G1C104A077 CERAMIC 0.1U K 16V
C6600 F1G1C104A077 CERAMIC 0.1U K 16V
C6601 F1G1C104A077 CERAMIC 0.1U K 16V
C6602 F1G1A105A047 CERAMIC 1U K 10V
C6603 F1G1C104A077 CERAMIC 0.1U K 16V
C6604 F1G1C104A077 CERAMIC 0.1U K 16V
C6606 F1G1H120A789 CERAMIC 12P J 50V
C6607 F1G1A105A047 CERAMIC 1U K 10V
C6608 F1G1C104A077 CERAMIC 0.1U K 16V
C6609 F1G1C104A077 CERAMIC 0.1U K 16V
C6610 F1G1C104A077 CERAMIC 0.1U K 16V
C6611 F1G1C104A077 CERAMIC 0.1U K 16V
C6612 F1G1A105A047 CERAMIC 1U K 10V
C6613 F1G1C104A077 CERAMIC 0.1U K 16V
C6615 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6619 F1G1H120A789 CERAMIC 12P J 50V
C6620 F1G1H1020008 CERAMIC 1000P K 50V
C6621 F1G1A105A047 CERAMIC 1U K 10V
C6623 F2G1C221A066 ELECT 220U M 16V
C6624 F1G1C104A077 CERAMIC 0.1U K 16V

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C6640 F1G1H1020008 CERAMIC 1000P K 50V
C6641 F1G1A105A047 CERAMIC 1U K 10V
C6643 F2G1C221A066 ELECT 220U M 16V
C6644 F1G1C104A077 CERAMIC 0.1U K 16V
C6700 F2G1C471A066 ELECT 470U M 16V
C6701 F1G1C104A077 CERAMIC 0.1U K 16V
C6702 F1G1C104A077 CERAMIC 0.1U K 16V
C6703 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6705 F1G1H222A571 CERAMIC 2200P K 50V
C6707 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6708 F2G0J1020029 ELECT 1000U M 6.3V
C6711 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6712 F1G1A105A047 CERAMIC 1U K 10V
C6713 F1G1C104A077 CERAMIC 0.1U K 16V
C6714 F1G1H1020008 CERAMIC 1000P K 50V
C6715 F2G1C471A066 ELECT 470U M 16V
C6716 F1G1A474A052 CERAMIC 0.47U K 10V
C6717 F1G1C104A077 CERAMIC 0.1U K 16V
C6718 F1K1C1060001 CERAMIC 10U K 16V
C6719 F1H1H5610007 CERAMIC 560P J 50V
C6721 F1G1A105A047 CERAMIC 1U K 10V
C6722 F1G1A105A047 CERAMIC 1U K 10V
C6723 F1G1A105A047 CERAMIC 1U K 10V
C6724 F1G1A105A047 CERAMIC 1U K 10V
C6726 F2G1C101A066 ELECT 100U M 16V
C6727 F1G1H222A571 CERAMIC 2200P K 50V
C6729 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6730 F2G0J1020029 ELECT 1000U M 6.3V
C6732 F1G1A105A047 CERAMIC 1U K 10V
C6733 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6734 F1G1A105A047 CERAMIC 1U K 10V
C6736 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6737 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6738 F1G1A105A047 CERAMIC 1U K 10V
C6739 F1G1C104A077 CERAMIC 0.1U K 16V
C6740 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6742 F1G1C104A077 CERAMIC 0.1U K 16V
C6743 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6744 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6745 F1G1C104A077 CERAMIC 0.1U K 16V
C6746 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6748 F1K1C1060001 CERAMIC 10U K 16V
C6749 F1G1C104A077 CERAMIC 0.1U K 16V
C6751 F1G1C104A077 CERAMIC 0.1U K 16V
C6752 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6753 F1G1C104A077 CERAMIC 0.1U K 16V
C6754 F2G1C101A066 ELECT 100U M 16V
C6755 F1G1A105A047 CERAMIC 1U K 10V
C6756 F1G1A105A047 CERAMIC 1U K 10V
C6758 F1G1C104A077 CERAMIC 0.1U K 16V
C6759 F2G1C471A066 ELECT 470U M 16V
C6760 F1G1A2240008 CERAMIC 0.22U K 10V
C6761 F1G1C104A077 CERAMIC 0.1U K 16V
C6763 F1G1H222A571 CERAMIC 2200P K 50V
C6765 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6766 F2G0J1020029 ELECT 1000U M 6.3V
C6768 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6769 F1G1C104A077 CERAMIC 0.1U K 16V
C6771 F1G1A105A047 CERAMIC 1U K 10V
C6772 F1G1C104A077 CERAMIC 0.1U K 16V
C6773 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6774 F1G1A105A047 CERAMIC 1U K 10V
C6776 F2G1C101A066 ELECT 100U M 16V
C6781 F1G1A105A047 CERAMIC 1U K 10V
C6782 F1G1C104A077 CERAMIC 0.1U K 16V
C6783 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6784 F1G1A105A047 CERAMIC 1U K 10V
C6786 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6787 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6790 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6792 F1G1C104A077 CERAMIC 0.1U K 16V
C6793 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6794 F1G1A105A047 CERAMIC 1U K 10V
C6795 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6796 F1G1A105A047 CERAMIC 1U K 10V
C6798 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6799 F1G1C104A077 CERAMIC 0.1U K 16V
C6800 F1G1A105A047 CERAMIC 1U K 10V
C6801 F1G1A2240008 CERAMIC 0.22U K 10V
C7600 F1G1C104A077 CERAMIC 0.1U K 16V
C7601 F1G1C104A077 CERAMIC 0.1U K 16V
DIODES
D5500 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
B0ACDJ000017 DIODE 1SS352(TH3 F T)
DDDA2J10100LG DIODE DA2J10100L
D6591 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
D6592 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D6593 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D6632 B0ZBZ0000174 DIODE DF2S6.8UFS
D6633 B0ZBZ0000174 DIODE DF2S6.8UFS
D6642 B0ZBZ0000174 DIODE DF2S6.8UFS
D6643 B0ZBZ0000174 DIODE DF2S6.8UFS
D6700 B0JCND000033 DIODE CRS20I30A
B0JCND000034 DIODE CRS20I30A
D6710 B0JCND000033 DIODE CRS20I30A
B0JCND000034 DIODE CRS20I30A
D6760 B0JCND000033 DIODE CRS20I30A
B0JCND000034 DIODE CRS20I30A
D6761 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
B0ACDJ000017 DIODE 1SS352(TH3 F T)
DDDA2J10100LG DIODE DA2J10100L
INTEGRATED CIRCUITS
IC001 C1AB00003725 IC LV4906V-TLM-H
IC850 C0EBY0000980 IC XC6108N28AMR
C0EBY0001079 IC XC6118N28AMR-G
IC5500 C1AB00003765 IC ZR39790HGCG
IC5501 C0EBY0000980 IC XC6108N28AMR
C0EBY0001079 IC XC6118N28AMR-G
IC5502 C0EBY0000980 IC XC6108N28AMR
C0EBY0001079 IC XC6118N28AMR-G
IC5503 C0EBY0000980 IC XC6108N28AMR
C0EBY0001079 IC XC6118N28AMR-G
IC5700 C3ABTY000043 IC H5TQ1G63DFR-H9C
IC5701 C3ABTY000043 IC H5TQ1G63DFR-H9C
IC5740 C1ZBZ0004196 IC RT9026GSP
IC6200 C0ABBB000350 IC BA4558RF-E2
C0ABBB000450 IC NJM4558M-TE2
IC6560 C1AB00003621 IC TDA9996
IC6600 QXXAVD261—-P IC USB2512B-AEZG-TR
IC6620 C0DBZYY00458 IC RT9711CGB
IC6640 C0DBZYY00458 IC RT9711CGB
IC6700 QLV58074MX-HP IC LV58074MX-TLM-H
IC6710 QLV58074MX-HP IC LV58074MX-TLM-H
IC6720 C0DBEYY00016 IC PQ070XNA1ZPH
IC6730 C0CBAYG00009 IC LM1117S-ADJ
IC6740 C0DBGYY02242 IC AP2128K-ADJTRG1
IC6750 C0CBAYG00009 IC LM1117S-ADJ
IC6751 C0CBAYG00009 IC LM1117S-ADJ
IC6760 QLV58074MX-HP IC LV58074MX-TLM-H
IC6770 C0DBEYY00016 IC PQ070XNA1ZPH
IC6780 C0DBEYY00016 IC PQ070XNA1ZPH
IC6790 C0DBGYY02242 IC AP2128K-ADJTRG1
IC6791 C0DBGYY02242 IC AP2128K-ADJTRG1
IC7600 QXXAAJQ1418— IC TC58NVG0SETA00B3H Z5VK
IC7600A QXXAVD314—-M IC TC58NVG0SETA00B3H
IC7600C 1AA6P4P2323— LABEL-TC58NVG0SETA00B3H
Z5VK
COILS
L001 J0JBC0000134 “INDUCTOR 1000OHM, P”
L002 G1C220MA0445 “INDUCTOR ,22UH”
L003 G1C220MA0445 “INDUCTOR ,22UH”
L004 G1C220MA0445 “INDUCTOR ,22UH”
L005 G1C220MA0445 “INDUCTOR ,22UH”
L006 J0JYC0000381 “INDUCTOR , 220 OHM”
L007 J0JYC0000381 “INDUCTOR , 220 OHM”
L008 J0JYC0000381 “INDUCTOR , 220 OHM”
L009 J0JYC0000381 “INDUCTOR , 220 OHM”
L010 J0JYC0000381 “INDUCTOR , 220 OHM”
L011 J0JYC0000381 “INDUCTOR , 220 OHM”
L5500 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5501 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5502 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5503 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5504 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5505 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5506 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5507 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5508 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5509 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5510 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5511 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5512 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5513 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5515 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5516 G1CR22JA0135 “INDUCTOR ,0.22UH”
L5519 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5520 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5522 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5524 J0JYC0000381 “INDUCTOR , 220 OHM”
L5525 J0JYC0000381 “INDUCTOR , 220 OHM”
L5528 J0JYC0000381 “INDUCTOR , 220 OHM”
L5529 J0JYC0000381 “INDUCTOR , 220 OHM”
L5530 J0JYC0000381 “INDUCTOR , 220 OHM”
L5533 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5534 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5535 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5536 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5539 RGGR000ZTCANL MT-GLAZE 0.000 ZA 1/16W
L5740 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5741 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5742 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L5743 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
L6200 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6301 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6302 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6303 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6304 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6305 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6306 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6307 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6308 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6500 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6501 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6502 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6503 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6504 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6505 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6506 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6507 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6508 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6509 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6550 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6551 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6552 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6560 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6600 J0JYC0000381 “INDUCTOR , 220 OHM”
L6620 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6640 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6701 G1C100MA0445 INDUCTOR 10U M
G1C100MA0456 “INDUCTOR,10U M”
L6711 G1C100MA0445 INDUCTOR 10U M
G1C100MA0456 “INDUCTOR,10U M”
L6721 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6750 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6751 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6752 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6753 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6761 G1C100MA0445 INDUCTOR 10U M
G1C100MA0456 “INDUCTOR,10U M”
L6771 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6781 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
L6791 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q5650 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q5660 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6200 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6201 B1ADCE000028 TR MMBTSA1235F
B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
Q6202 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6300 B1CHPD000006 TR CPH3338-T-TL-E
Q6301 T2SC2859-Y—P TR 2SC2859-Y TE85L
Q6302 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6303 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6590 B1CFGD000025 TR 3LN01C-TB-E
Q6701 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6711 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6724 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6736 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6737 B1CFRC000023 TR MCH6437-P-TL-E
Q6750 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6751 B1CHPD000006 TR CPH3338-T-TL-E
Q6752 B1ABCE000028 TR MMBTSC3928R

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6753 B1CHPD000006 TR CPH3338-T-TL-E
Q6761 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6770 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
Q6780 B1ABCE000028 TR MMBTSC3928R
B1ABDF000024 TR 2SC3928A1S
T2SC3928A1R-P TR 2SC3928A1R
RESISTORS
R004 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R005 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R006 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R007 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R008 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R010 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R012 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R850 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R851 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R1851 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1852 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R1853 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1854 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1855 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1856 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1857 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1858 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1859 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1860 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1861 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1862 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R1864 D0GB223JA041 MT-GLAZE 22K JA 1/10W
D0GB223JA070 MT-GLAZE 22K JA 1/10W
R1865 D0GB223JA041 MT-GLAZE 22K JA 1/10W
D0GB223JA070 MT-GLAZE 22K JA 1/10W
R5500 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5501 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5502 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5503 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5504 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5505 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5506 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5508 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5510 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5511 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5512 D0GB151ZA037 MT-GLAZE 150 FA 1/10W
D1BB1500A055 MT-GLAZE 150 FA 1/10W
R5513 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5514 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5515 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5516 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5517 D0GB391ZA037 MT-GLAZE 390 FA 1/10W
D1BB3900A055 MT-GLAZE 390 FA 1/10W
R5518 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5519 RGF3600FTCANL MT-GLAZE 360 FA 1/10W
D0GB152ZA038 MT-GLAZE 1.5K FA 1/10W
R5520 D1BB1501A055 MT-GLAZE 1.5K FA 1/10W
D0GB683JA041 MT-GLAZE 68K JA 1/10W
R5521 D0GB683JA070 MT-GLAZE 68K JA 1/10W
D0GA101JA015 MT-GLAZE 100 JA 1/16W
R5522 D0GA101JA045 MT-GLAZE 100 JA 1/16W
D0GA101JA015 MT-GLAZE 100 JA 1/16W
R5523 D0GA101JA045 MT-GLAZE 100 JA 1/16W
D0GA103JA015 MT-GLAZE 10K JA 1/16W
R5524 D0GA103JA047 MT-GLAZE 10K JA 1/16W
D0GA101JA015 MT-GLAZE 100 JA 1/16W
R5527 D0GA101JA045 MT-GLAZE 100 JA 1/16W
D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
R5530 D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
R5532 D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5533 D0GB1R0JA071 MT-GLAZE 1 JA 1/10W
R5535 D0GB1R0JA071 MT-GLAZE 1 JA 1/10W
R5536 D0GA103JA015 MT-GLAZE 10K JA 1/16W

– 16 –
Schematic
Location Part No. Description Schematic Location Part No. Description
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R5581 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5582 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5583 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5584 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5585 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5586 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5587 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5588 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5589 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5590 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5592 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5593 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5594 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5595 D0GB510ZA040 MT-GLAZE 51 FA 1/10W
R5596 D0GA102JA046 MT-GLAZE 1K JA 1/16W
R5597 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5598 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5599 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5600 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5601 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5602 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5603 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5604 D0GA333JA047 MT-GLAZE 33K JA 1/16W
R5605 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5606 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5607 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5608 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5609 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5610 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5611 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5612 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5614 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5615 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5616 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5617 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5620 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5623 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5624 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5625 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5537 D0GB220JA041 MT-GLAZE 22 JA 1/10W
D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5538 D0GB220JA041 MT-GLAZE 22 JA 1/10W
D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5547 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5548 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5549 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5550 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5551 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5552 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5553 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5554 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5555 D0GB105JA041 MT-GLAZE 1M JA 1/10W
D0GB105JA071 MT-GLAZE 1M JA 1/10W
R5556 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5557 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
R5558 D0GA273JA047 MT-GLAZE 27K JA 1/16W
R5560 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5561 D0GB152ZA038 MT-GLAZE 1.5K FA 1/10W
D1BB1501A055 MT-GLAZE 1.5K FA 1/10W
R5562 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5563 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5564 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5565 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5566 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5567 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5568 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5569 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5570 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5571 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5572 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5574 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R5576 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R5579 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5580 D0GA101JA015 MT-GLAZE 100 JA 1/16W

– 17 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5626 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5627 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5628 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5629 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5630 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5631 RGG75R0DTHANL MT-GLAZE 75 DA 1/16W
R5632 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5633 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5634 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5635 D0GB222JA041 MT-GLAZE 2.2K JA 1/10W
D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R5636 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5637 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5638 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5639 D0GB1R0JA071 MT-GLAZE 1 JA 1/10W
R5640 D0GB1R0JA071 MT-GLAZE 1 JA 1/10W
R5642 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5643 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5650 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5651 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5652 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5653 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5661 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5663 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5664 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5667 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5668 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5669 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5670 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5671 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5700 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5701 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5702 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R5703 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5704 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5705 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5706 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5707 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5708 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5709 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5710 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5711 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5712 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5713 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5714 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5715 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5716 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5717 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5718 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5719 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5720 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5721 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5722 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5723 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5724 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5725 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5726 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5727 D0GA560ZA038 MT-GLAZE 56 FA 1/16W
R5728 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5729 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R5730 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5731 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R5860 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5861 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5862 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5863 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5864 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5900 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5902 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5903 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5904 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W

– 18 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5905 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5906 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5908 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5909 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5910 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5911 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5912 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5913 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R5954 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5955 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5956 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5957 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5980 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5981 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R5982 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R5983 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6200 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6201 D0GB471JA041 MT-GLAZE 470 JA 1/10W
D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6203 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6204 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
R6205 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6206 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6207 D0GB563JA041 MT-GLAZE 56K JA 1/10W
D0GB563JA072 MT-GLAZE 56K JA 1/10W
R6208 D0GB563JA041 MT-GLAZE 56K JA 1/10W
D0GB563JA072 MT-GLAZE 56K JA 1/10W
R6209 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
R6211 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6212 D0GA101JA015 MT-GLAZE 100 JA 1/16W
D0GA101JA045 MT-GLAZE 100 JA 1/16W
R6213 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6215 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6216 D0GB471JA041 MT-GLAZE 470 JA 1/10W
D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6217 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6315 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6317 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6323 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6324 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6325 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6326 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6328 D0GB155JA040 MT-GLAZE 1.5M JA 1/10W
D0GB155JA072 MT-GLAZE 1.5M JA 1/10W
R6329 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6330 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6331 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6332 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6335 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6336 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6337 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6338 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6500 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6501 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6502 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6503 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6504 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6505 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6506 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6507 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6508 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6509 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6510 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6511 D0GA470JA015 MT-GLAZE 47 JA 1/16W

– 19 –
Schematic
Location Part No. Description Schematic Location Part No. Description
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6515 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6516 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6517 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6518 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6519 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6520 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6521 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6522 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6523 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6524 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6526 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6527 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6530 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6531 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6532 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6533 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6534 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6535 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6536 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6537 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6538 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6539 D0GA4R7JA014 MT-GLAZE 4.7 JA 1/16W
D0GA4R7JA047 MT-GLAZE 4.7 JA 1/16W
R6540 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6541 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6560 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6561 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6563 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
D1BB1202A055 MT-GLAZE 12K FA 1/10W
R6564 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6590 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6592 D0GB222JA041 MT-GLAZE 2.2K JA 1/10W
D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R6593 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6604 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
D1BB1202A055 MT-GLAZE 12K FA 1/10W
R6605 D0GB105JA041 MT-GLAZE 1M JA 1/10W
D0GB105JA071 MT-GLAZE 1M JA 1/10W
R6606 D0GB471JA041 MT-GLAZE 470 JA 1/10W
D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6607 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6611 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6614 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6615 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6621 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6624 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6625 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6626 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6627 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6628 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6641 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6644 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6645 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6646 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6649 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6650 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6701 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6702 D0GA150JA047 MT-GLAZE 15 JA 1/16W
R6703 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6704 D0GB562JA041 MT-GLAZE 5.6K JA 1/10W
D0GB562JA072 MT-GLAZE 5.6K JA 1/10W
R6705 D0GB272ZA038 MT-GLAZE 2.7K FA 1/10W
D1BB2701A055 MT-GLAZE 2.7K FA 1/10W
R6707 D0GB391ZA037 MT-GLAZE 390 FA 1/10W
D1BB3900A055 MT-GLAZE 390 FA 1/10W

– 20 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R6710 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6712 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6715 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6716 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6723 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
D1BB1001A055 MT-GLAZE 1K FA 1/10W
R6724 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R6725 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
D1BB1001A055 MT-GLAZE 1K FA 1/10W
R6733 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6736 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6741 D0GB223JA041 MT-GLAZE 22K JA 1/10W
D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6742 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6748 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6750 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R6751 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6752 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R6755 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6756 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6758 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6759 D0GA150JA047 MT-GLAZE 15 JA 1/16W
R6760 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
D1BB1002A055 MT-GLAZE 10K FA 1/10W
R6761 D0GB562JA041 MT-GLAZE 5.6K JA 1/10W
D0GB562JA072 MT-GLAZE 5.6K JA 1/10W
R6762 D0GB473JA041 MT-GLAZE 47K JA 1/10W
D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6765 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6767 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6768 D0GB223JA041 MT-GLAZE 22K JA 1/10W
D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6769 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6771 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6772 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6773 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R6774 D0GB151ZA037 MT-GLAZE 150 FA 1/10W
D1BB1500A055 MT-GLAZE 150 FA 1/10W
R6775 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
D1BB1001A055 MT-GLAZE 1K FA 1/10W
R6778 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6779 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6780 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6781 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6783 D0GA472JA015 MT-GLAZE 4.7K JA 1/16W
D0GA472JA047 MT-GLAZE 4.7K JA 1/16W
R6784 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6785 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R6786 D0GB151ZA037 MT-GLAZE 150 FA 1/10W
D1BB1500A055 MT-GLAZE 150 FA 1/10W
R6787 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
D1BB1001A055 MT-GLAZE 1K FA 1/10W
R6790 D0GA470JA015 MT-GLAZE 47 JA 1/16W
D0GA470JA047 MT-GLAZE 47 JA 1/16W
R6791 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6792 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R6794 D0GB223JA041 MT-GLAZE 22K JA 1/10W
D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6795 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R6796 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
D1BB1200A055 MT-GLAZE 120 FA 1/10W
R6799 D0GA103JA015 MT-GLAZE 10K JA 1/16W
D0GA103JA047 MT-GLAZE 10K JA 1/16W
R6803 D0GAR00JA046 MT-GLAZE 0.000 ZA 1/16W
D0GAR00Z0001 MT-GLAZE 0.000 ZA 1/16W
R6805 D0GB122ZA038 MT-GLAZE 1.2K FA 1/10W
D1BB1201A055 MT-GLAZE 1.2K FA 1/10W
R6806 D0GA150JA047 MT-GLAZE 15 JA 1/16W
R6807 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
D1BB1002A055 MT-GLAZE 10K FA 1/10W
R6808 D0GB562JA041 MT-GLAZE 5.6K JA 1/10W
D0GB562JA072 MT-GLAZE 5.6K JA 1/10W
R6809 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
D1BB1002A055 MT-GLAZE 10K FA 1/10W
R6810 D0GB151ZA037 MT-GLAZE 150 FA 1/10W
D1BB1500A055 MT-GLAZE 150 FA 1/10W
R6811 D0GB151ZA037 MT-GLAZE 150 FA 1/10W
D1BB1500A055 MT-GLAZE 150 FA 1/10W
R6813 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
D1BB1002A055 MT-GLAZE 10K FA 1/10W
R6814 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
