Sanyo LCD-32S10 User manual

Model No. LCD-42S10-HD
LCD-32S10
LCD-42S10
Service Ref.No.LCD-42S10-HD-00
LCD-32S10-00
LCD-42S10-00
SERVICE MANUAL LCD Television
Safety Notice ................................................2
Specications ...............................................3
Chassis Block Diagrams ..............................4
CPU Block Diagrams ..................................5
On-screen Service Menu System ................6
Service Adjustments .................................7-8
Mechanical Disassembly ........................8-10
Chassis Electrical Parts List .................11-33
Schematic Diagram ..............................34-35
Product Code: 42S10-HD:1-130-132-17
32S10:1-130-131-16
42S10:1-130-132-16
Original Version
Chassis Series:UH3-B
N5ZW/N5ZV/N5YV
Contents
FILE NO.
Give complete "SERVICE REF. NO." for parts
order or servicing.It is shown on the rating lable
at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source
differ from the design specications. Refer
to the specication table.
LCD-CA10
07.12.21
丁
渊源
摇控器

2
Safety Notice
Safety Precautions
The following precautions must be observed.
1:Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the
cabinet or on the chassis.
2:When replacing a chassis in the cabinet, always be certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or shields, barriers, etc..
DO NOT OPERATE THIS TELEVISION WITHOUT THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED
3:Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or
tools have been left inside.
Before returning any televison to the customer, the service personnel must be sure that it is completely safe
to
operate without danger of electrical shock.
Product Safety Notice
Product safety should be considered when a component replacement is made in any area of a
receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in
which
safety can be of special signicance. It is particularly recommended that only parts designated on the parts
list
In this manual be used for component replacement designated by mark . No deviations from
resistance
Wattage or voltage ratings may be made for replacement items designated by mark .

3
Specications
Model LCD-32S10/LCD-42S10/LCD-42S10-HD
Maximum Visible Range LCD-32S10: 80cm ; LCD-42S10/-HD: 107cm (Screen Diagonal Size)
Picture Resolution 1366(H) x 768(V)
Viewable Angle(L。/3) L/R:+/- 89D, U/D:+/- 89D
Brightness 500cd/m²
Contrast LCD-32S10/LCD-42S10: 1200:1 LCD-42S10-HD: 1500:1
Definition RF Analog Signals: Horizontal≥350; Vertical≥400
Degree of Colour Coverage ≥30%
Mobile Trailer Time LCD-32S10/LCD-42S10: 8ms LCD-42S10-HD: 6.5ms
Voltage AC110-242V 50/60Hz
Power Consumption LCD-32S10: 144W ; LCD-42S10: 187W ; LCD-42S10-HD: 250W
Power Management VESA DPMS
Colour System PAL/NTSC/NTSC4.43/SECAM
Sound System D/K, I, M, B/G
Channel Coverage - VHF: E2-E12, R1-R12, K1-K9, J1-J12, A2-A13
- UHF: 21-69, A14-A69, J13-J62
- CATV: S1-S41, X, Y, Z, Z+1, Z+2
Aerial input impedance 75Ω
Speaker Size Mains: 4.5cm x 13cm x 2pcs Woofer: 8cm x 8cm x 1pcs
Sound speciality Maximum Output Power is 10W+10W+10W
Total Harmonic Distortion(THD)≤10%
Input terminals VGA Terminal : RGB X 1 HDMI terminal: x2
Audio: Mini stereo jack x 1 (Audio input of VGA)
Video: Composite video terminals x1 (1Vp-p, 75Ω)
S-VIDEO input: x 1 (DIN 4-pin, Y/C separate signal input)
DVD input: Component video input Y, CB/PB, CR/PRinput x 1
Audio input: (R/L) x 4 (400mVrms)
USB input (Just for LCD-42S10-HD): Different value input D+, D-
MINI USB input (Just for LCD-42S10-HD): Different value input D+, D-
Output terminals Video Monitor Output: x1 (1Vp-p, 75Ω)
Audio Monitor Output: R/L x 1（400mVrms, ≤1KΩ)
Headphone Jack : Mini stereo jack x1
Dimensions
(Width x Height x Depth) LCD-32S10: 760mm x 579mm x270mm
LCD-42S10/-HD: 1012mm x 699mm x270mm
Net Weight
LCD-32S10: < 14.1 KG ; LCD-42S10/-HD: < 24.6 KG
Operating Environment
Operating Temperature 0ºC~40ºC（32ºF~104ºF）
Operating Humidity 20~80%
Storage Temperature -10ºC~50ºC（14ºF~122ºF）
Storage Humidity 20~80%

4
Chassis Block Diagrams

5

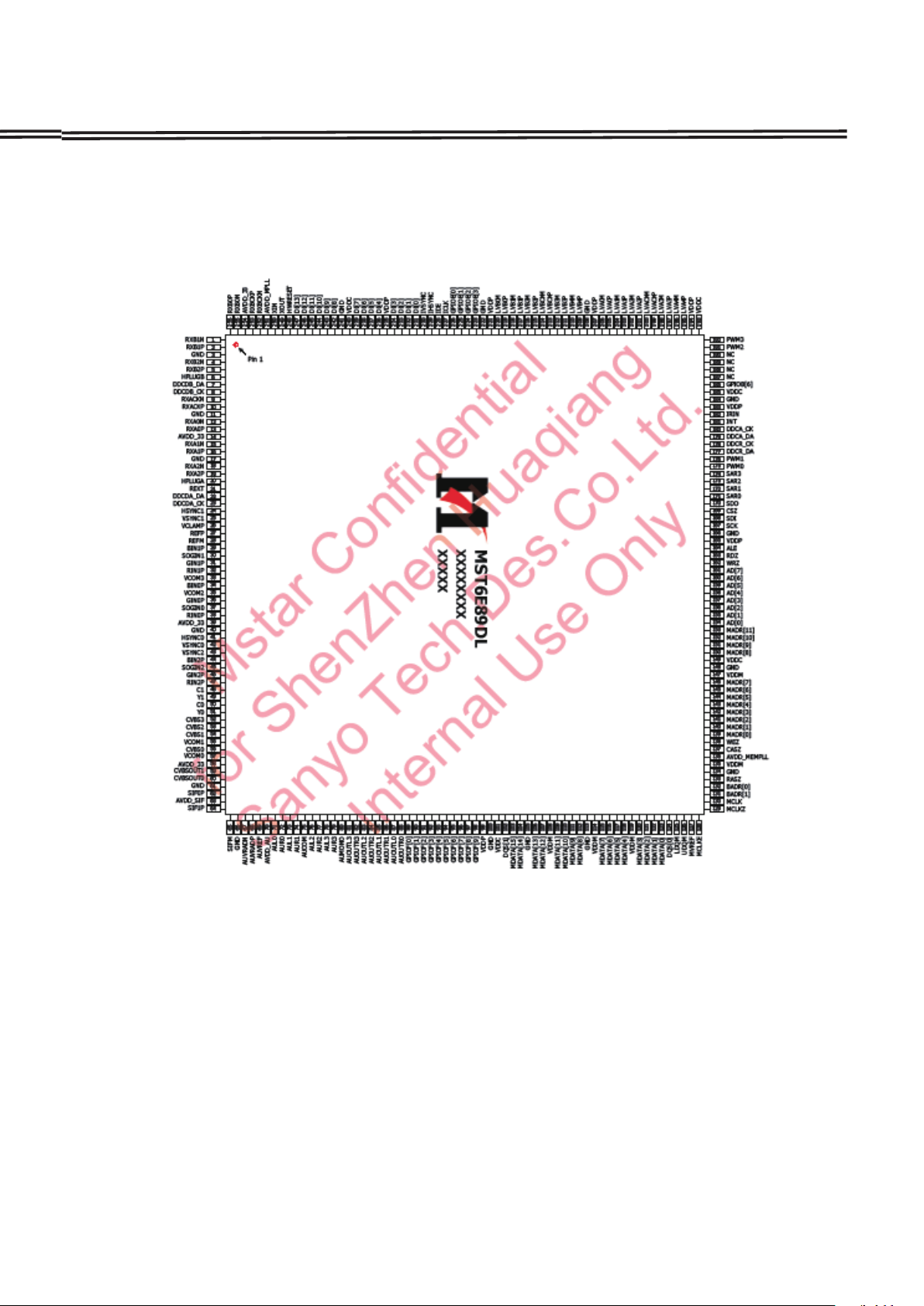

MST6E89DL
CPU Block Diagrams

6
LCD-CA10
07.12.21
丁
渊源
摇控器

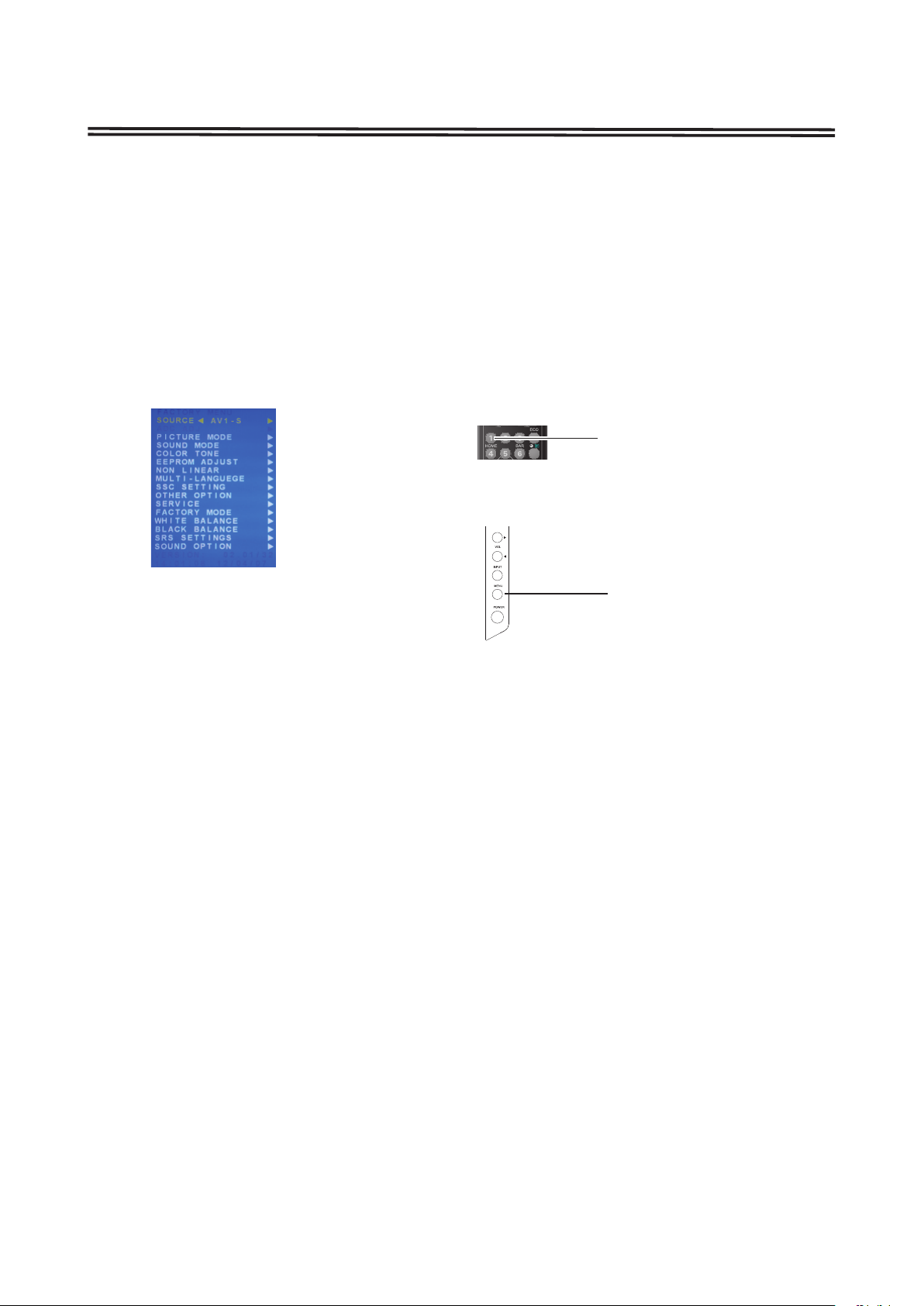

On-screen Service Menu System
On-screen Service Menu System
1) How to enter the Service Menu
1. Press MENU button on SIDE controls, MENU will display.
2. Press and hold MENU button on SIDE controls and press “1” button on remote controls. SERVICE
MENU will display.
General
This set has an On-screen Menu system included in the CPU that allows remote operation for most of the
service adjustments.
"1" button
Remote controls
Menu button
SIDE Controls
2) How to select the service section and service item and change data value:
To select service section: Press the Cursor ▲ or ▼ button on the remote control hand set, and press the
Cursor ◄ or ► button to enter the SUB menu.
To change data value: Select service item by pressing the Cursor ▲or ▼ button , and change data value by
pressing the Cursor ◄ or ► button.
3) Exit from the service menu
Press the MENU button repeatedly or turn off the TV set by pressing the POWER ON/OFF button.

7

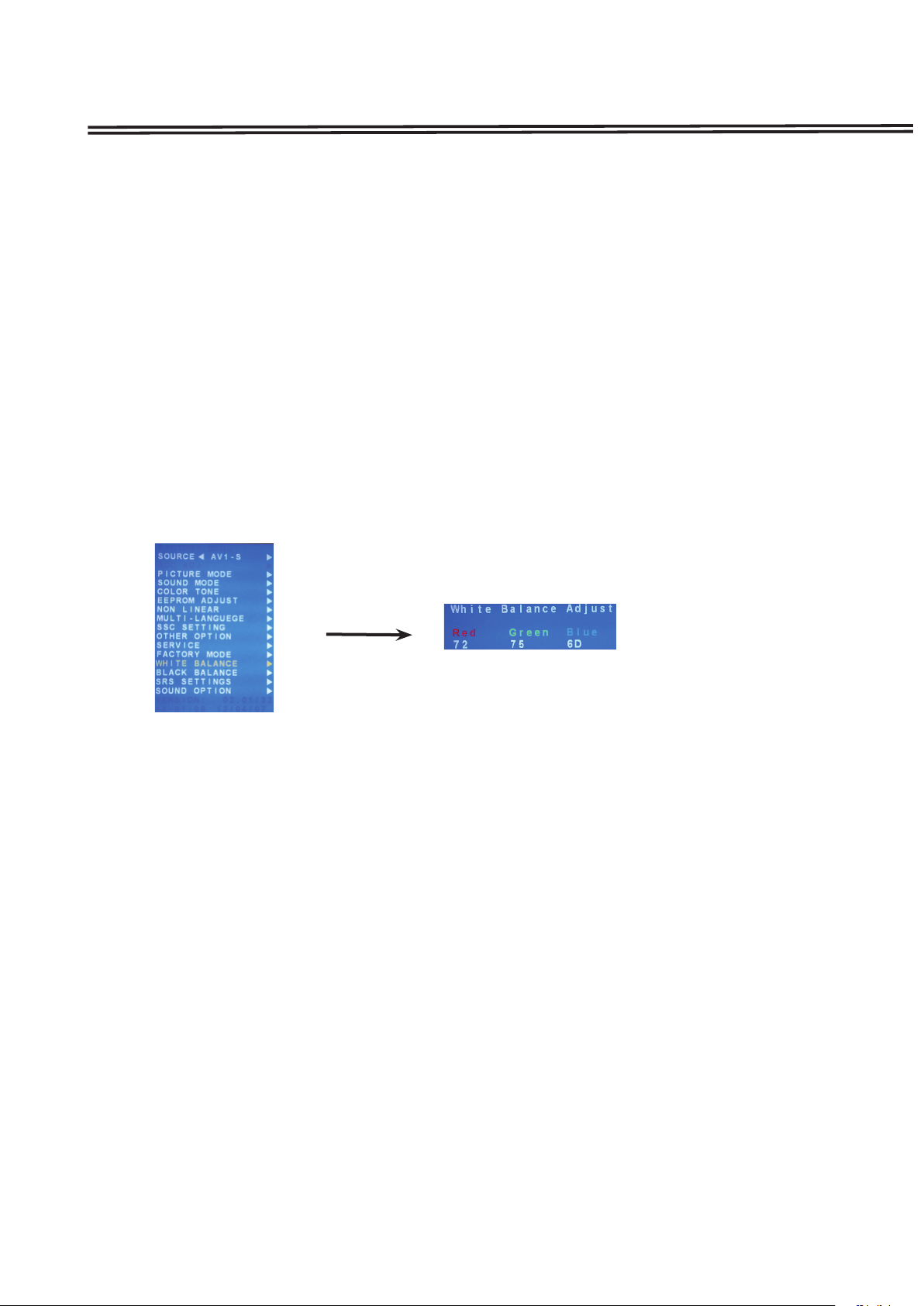

How to adjust White Balance Adjustment
1. Input a white pattern(80%) to the composite input terminal.
2. Set the television to following conditions:
Picture mode: standard
Colour temperature: normal
Pre-heading time: more than 10 minutes
3. Enter the service mode, and select WHITE BALANCE with ▲ or ▼ key.
Press ◄► to adjust the value of RGB until the white balance R, G,B is all 85h.
3. After adjustment, conrm white balance again by normal picture.
Service Adjustments
Important Notice:
Do not attempt to adjust service adjustments not listed below otherwise it may cause loss of performance
and for correct operation.
White Balance Adjustment

8
Mechanical Disassembly
(一) Cabinet Back Removal
1. Remove screws A，B, C, D, J.
2. Take the Cabinet Back off.
A
A
A
B
AAA
AA
A
B
J
D
C

9
Mechanical Disassembly
(
(
USB
PCB2
PCB1
(
PCB3
)
)
*
（二）Chassis and Terminal Board Removal
1. Remove screws E (6 pcs), take PCB1 board off.
2. Remove Screw E (3 pcs)，take USB board off.
3. Remove screws F (4 pcs), take WOOFER off.
4. Remove Screw G (3 pcs)，take PCB3 board off.

10
Mechanical Disassembly
HH
H H
HHHH
II
II
(一)Front Cabinet Removal
1.Remove screws H (4 pcs)，remove Speaker.
2.Remove screws H (8 pcs)，remove the Holder.
３.Remove screws I (8 pcs)，remove the Panel Holder.
HH
HHHH
II
II
HH

11
Chassis Electrical Parts List
Note: Parts order must contain Service Ref. No., Part No., and descriptions.

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C012 CKXLB1H104YAG
CERAMIC 0
.
1U K
C012 CK1H104KGQBNG
CERAMIC 0
.
1U K
C013 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C014 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C015 CK1E224KLZBNG
CERAMIC 0
.
22U K
C016 CEXLB1H471VEN
ELECT 470U M
C017 CEXLB1V471VEN
ELECT 470U M
C018 CEXLB1V471VEN
ELECT 470U M
C019 CK1C105ZGAFNG
CERAMIC 1U Z
C020 CK1C105ZGAFNG
CERAMIC 1U Z
C021 CK1C105ZGAFNG
CERAMIC 1U Z
C022 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C024 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C024 CKXLB1H104YAG
CERAMIC 0
.
1U K
C024 CK1H104KGQBNG
CERAMIC 0
.
1U K
C025 CEXLB1H100VCG
ELECT 10U M
C025 CE1H100M1WANG
ELECT 10U M
C026 CK1E224KLZBNG
CERAMIC 0
.
22U K
C027 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C028 CEXLB1V102TAN
ELECT 1000U M
C028 CEXLB1V102VDN
ELECT 1000U M
C029 CKXLB1H103YDG
CERAMIC 0
.
01U Z
C030 CKXAV1C224EAG
CERAMIC 0
.
22U K
C030 CK1C224KGQBNG
CERAMIC 0
.
22U K
C031 CK1C105ZGAFNG
CERAMIC 1U Z
C032 CE1C470M1WANG
ELECT 47U M
C033 CE1E101M1WANG
ELECT 100U M
C034 CE1E101M1WANG
ELECT 100U M
C035 CK1C105ZGAFNG
CERAMIC 1U Z
C037 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C037 CKXLB1H104YAG
CERAMIC 0
.
1U K
C037 CK1H104KGQBNG
CERAMIC 0
.
1U K
C038 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C055 CE1V101M1VANG
ELECT 100U M
C056 CKXAV1C104EAG
CERAMIC 0
.
1U K
C056 CKXLB1C104YAG
CERAMIC 0
.
1U K
C056 CK1C104KGQBNG
CERAMIC 0
.
1U K
C057 CE1V101M1VANG
ELECT 100U M
C058 CKXAV1C104EAG
CERAMIC 0
.
1U K
C058 CKXLB1C104YAG
CERAMIC 0
.
1U K
C058 CK1C104KGQBNG
CERAMIC 0
.
1U K
C1002 CE1C221M1WANG
ELECT 220U M
C1005 CEXLB1C100VAG
ELECT 10U M
C1005 CE1C100M1WANG
ELECT 10U M
C1008 CEXLB1C100VAG
ELECT 10U M
C1008 CE1C100M1WANG
ELECT 10U M
C1009 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C101 CKXAV1C104EAG
CERAMIC 0
.
1U K
C101 CKXLB1C104YAG
CERAMIC 0
.
1U K
C101 CK1C104KGQBNG
CERAMIC 0
.
1U K
C1010 CEXLB1C100VAG
ELECT 10U M
C1010 CE1C100M1WANG
ELECT 10U M
C1011 CKXAV1C104EAG
CERAMIC 0
.
1U K
C1011 CKXLB1C104YAG
CERAMIC 0
.
1U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

12
Chassis Electrical Parts List

C1011 CK1C104KGQBNG
CERAMIC 0
.
1U K
C1012 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C1013 CEXLB1C100VAG
ELECT 10U M
C1013 CE1C100M1WANG
ELECT 10U M
C1014 CKXAV1C104EAG
CERAMIC 0
.
1U K
C1014 CKXLB1C104YAG
CERAMIC 0
.
1U K
C1014 CK1C104KGQBNG
CERAMIC 0
.
1U K
C102 CE1C101M1WANG
ELECT 100U M
C1021 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1021 CCXLB1H100ZBG
CERAMIC 10P J
C1024 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1024 CCXLB1H100ZBG
CERAMIC 10P J
C1027 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
C103 CCXAV1H680ABG CERAMIC68PJ 50
.
0V
C103 CCXLB1H680ZBG
CERAMIC 68P J
C103 CC1H680JGQCNG
CERAMIC 68P J
C1033 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
C104 CCXAV1H680ABG CERAMIC68PJ 50
.
0V
C104 CCXLB1H680ZBG
CERAMIC 68P J
C104 CC1H680JGQCNG
CERAMIC 68P J
C105 CP1C220MDJANG
NP
-
ELECT 22U M
C105 CP1C220MDKANG
NP
-
ELECT 22U M
C111 CEXLB1C100VAG
ELECT 10U M
C111 CE1C100M1WANG
ELECT 10U M
C112 CKXAV1C104EAG
CERAMIC 0
.
1U K
C112 CKXLB1C104YAG
CERAMIC 0
.
1U K
C112 CK1C104KGQBNG
CERAMIC 0
.
1U K
C120 CE1C101M1WANG
ELECT 100U M
C121 CKXAV1C104EAG
CERAMIC 0
.
1U K
C121 CKXLB1C104YAG
CERAMIC 0
.
1U K
C121 CK1C104KGQBNG
CERAMIC 0
.
1U K
C122 CE1C101M1WANG
ELECT 100U M
C123 CKXAV1C104EAG
CERAMIC 0
.
1U K
C123 CKXLB1C104YAG
CERAMIC 0
.
1U K
C123 CK1C104KGQBNG
CERAMIC 0
.
1U K
C124 CKXAV1C104EAG
CERAMIC 0
.
1U K
C124 CKXLB1C104YAG
CERAMIC 0
.
1U K
C124 CK1C104KGQBNG
CERAMIC 0
.
1U K
C1500 CKXAV1C104EAG
CERAMIC 0
.
1U K
C1500 CKXLB1C104YAG
CERAMIC 0
.
1U K
C1500 CK1C104KGQBNG
CERAMIC 0
.
1U K
C1501 CCXAV1H101ABG
CERAMIC0
.
0001U J
C1501 CCXLB1H101ZBG
CERAMIC 100P J
C1502 CCXAV1H101ABG
CERAMIC0
.
0001U J
C1502 CCXLB1H101ZBG
CERAMIC 100P J
C1520TM CEXLB1C101VEN
ELECT 100U M
C1725 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1725 CCXLB1H100ZBG
CERAMIC 10P J
C1727 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1727 CCXLB1H100ZBG
CERAMIC 10P J
C1729 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1729 CCXLB1H100ZBG
CERAMIC 10P J
C1731 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1731 CCXLB1H100ZBG
CERAMIC 10P J

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C1732 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C1732 CCXLB1H100ZBG
CERAMIC 10P J
C3000 CKXAV1C474EAG
CERAMIC 0
.
47U K
C3000 CKXLB1C474YAG
CERAMIC 0
.
47 K
C3000 CK1C474KGQBNG
CERAMIC 0
.
47U K
C3001 CKXAV1C474EAG
CERAMIC 0
.
47U K
C3001 CKXLB1C474YAG
CERAMIC 0
.
47 K
C3001 CK1C474KGQBNG
CERAMIC 0
.
47U K
C3002 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3002 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3002 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3003 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3003 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3003 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3004 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3004 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3004 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3005 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3005 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3005 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3006 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3006 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3006 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3007 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3007 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3007 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3008 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3008 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3008 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3009 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3009 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3009 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3010 CEXLB1C100VAG
ELECT 10U M
C3010 CE1C100M1WANG
ELECT 10U M
C3011 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3011 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3011 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3012 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3012 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3012 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3013 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3013 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3013 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3014 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3014 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3014 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3015 CEXLB1C100VAG
ELECT 10U M
C3015 CE1C100M1WANG
ELECT 10U M
C3016 CEXLB1C100VAG
ELECT 10U M
C3016 CE1C100M1WANG
ELECT 10U M
C3017 CKXAV1H153EAG CERAMIC0
.
015U K 50V
C3017 CKXLB1H153YAG
CERAMIC 0
.
015U K
C3017 CK1H153KGQBNG
CERAMIC 0
.
015U K
C3018 CKXAV1H183EAG CERAMIC0
.
018U K 50V

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

13
Chassis Electrical Parts List

C3018 CKXLB1H183YAG
CERAMIC 0
.
018U K
C3018 CK1H183KGQBNG
CERAMIC 0
.
018U K
C3019 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3019 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3019 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3020 CKXAV1H183EAG CERAMIC0
.
018U K 50V
C3020 CKXLB1H183YAG
CERAMIC 0
.
018U K
C3020 CK1H183KGQBNG
CERAMIC 0
.
018U K
C3021 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3021 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3021 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3022 CKXAV1H153EAG CERAMIC0
.
015U K 50V
C3022 CKXLB1H153YAG
CERAMIC 0
.
015U K
C3022 CK1H153KGQBNG
CERAMIC 0
.
015U K
C3023 CEXLB1C100VAG
ELECT 10U M
C3023 CE1C100M1WANG
ELECT 10U M
C3024 CKXAV1C474EAG
CERAMIC 0
.
47U K
C3024 CKXLB1C474YAG
CERAMIC 0
.
47 K
C3024 CK1C474KGQBNG
CERAMIC 0
.
47U K
C3025 CKXAV1C474EAG
CERAMIC 0
.
47U K
C3025 CKXLB1C474YAG
CERAMIC 0
.
47 K
C3025 CK1C474KGQBNG
CERAMIC 0
.
47U K
C3026 CEXLB1C100VAG
ELECT 10U M
C3026 CE1C100M1WANG
ELECT 10U M
C3027 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C3027 CKXLB1H104YAG
CERAMIC 0
.
1U K
C3027 CK1H104KGQBNG
CERAMIC 0
.
1U K
C3028 CEXLB1C100VAG
ELECT 10U M
C3028 CE1C100M1WANG
ELECT 10U M
C3029 CEXLB1C100VAG
ELECT 10U M
C3029 CE1C100M1WANG
ELECT 10U M
C3030 CEXLB1C100VAG
ELECT 10U M
C3030 CE1C100M1WANG
ELECT 10U M
C3031 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3031 CKXLB1H222YAG
CERAMIC 2200P K
C3031 CK1H222KGQBNG
CERAMIC 2200P K
C3032 CKXAV1H103EAG
CERAMIC 0
.
01U K
C3032 CKXLB1H103YAG
CERAMIC 0
.
01U K
C3032 CK1H103KGQBNG
CERAMIC 0
.
01U K
C3033 CEXLB1C100VAG
ELECT 10U M
C3033 CE1C100M1WANG
ELECT 10U M
C3034 CEXLB1C100VAG
ELECT 10U M
C3034 CE1C100M1WANG
ELECT 10U M
C3035 CKXAV1C474EAG
CERAMIC 0
.
47U K
C3035 CK1C474KGQBNG
CERAMIC 0
.
47U K
C3036 CKXAV1H332EAG
CERAMIC0
.
0033U K
C3036 CKXLB1H332YAG
CERAMIC 3300P K
C3036 CK1H332KGQBNG
CERAMIC 3300P K
C3037 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3037 CKXLB1H222YAG
CERAMIC 2200P K
C3037 CK1H222KGQBNG
CERAMIC 2200P K
C3038 CKXAV1C224EAG
CERAMIC 0
.
22U K
C3038 CK1C224KGQBNG
CERAMIC 0
.
22U K
C3039 CKXAV1C334EAG
CERAMIC 0
.
33U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C3039 CK1C334KGQBNG
CERAMIC 0
.
33U K
C3041 CEXLB1C100VAG
ELECT 10U M
C3041 CE1C100M1WANG
ELECT 10U M
C3042 CEXLB1C100VAG
ELECT 10U M
C3042 CE1C100M1WANG
ELECT 10U M
C3100 CCXAV1H101ABG
CERAMIC0
.
0001U J
C3100 CCXLB1H101ZBG
CERAMIC 100P J
C3101 CKXAV1H102EAG
CERAMIC 1000P K
C3101 CKXLB1H102YAG
CERAMIC 1000P K
C3102 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C3103 CKXAV1H102EAG
CERAMIC 1000P K
C3103 CKXLB1H102YAG
CERAMIC 1000P K
C3104 CCXAV1H101ABG
CERAMIC0
.
0001U J
C3104 CCXLB1H101ZBG
CERAMIC 100P J
C3105 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C3106 CE1C101M1WANG
ELECT 100U M
C3107 CKXAV1C104EAG
CERAMIC 0
.
1U K
C3107 CKXLB1C104YAG
CERAMIC 0
.
1U K
C3107 CK1C104KGQBNG
CERAMIC 0
.
1U K
C3108 CE1C101M1WANG
ELECT 100U M
C3109 CCXAV1H101ABG
CERAMIC0
.
0001U J
C3109 CCXLB1H101ZBG
CERAMIC 100P J
C3110 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C3111 CKXAV1H102EAG
CERAMIC 1000P K
C3111 CKXLB1H102YAG
CERAMIC 1000P K
C3112 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3112 CKXLB1H222YAG
CERAMIC 2200P K
C3112 CK1H222KGQBNG
CERAMIC 2200P K
C3113 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3113 CKXLB1H222YAG
CERAMIC 2200P K
C3113 CK1H222KGQBNG
CERAMIC 2200P K
C3114 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3114 CKXLB1H222YAG
CERAMIC 2200P K
C3114 CK1H222KGQBNG
CERAMIC 2200P K
C3115 CK1C105ZGAFNG
CERAMIC 1U Z
C3116 CKXAV1H222EAG
CERAMIC0
.
0022U K
C3116 CKXLB1H222YAG
CERAMIC 2200P K
C3116 CK1H222KGQBNG
CERAMIC 2200P K
C400 CE1C101M1WANG
ELECT 100U M
C402 CKXAV1C104EAG
CERAMIC 0
.
1U K
C402 CKXLB1C104YAG
CERAMIC 0
.
1U K
C402 CK1C104KGQBNG
CERAMIC 0
.
1U K
C403 CE1C101M1WANG
ELECT 100U M
C405 CKXAV1C104EAG
CERAMIC 0
.
1U K
C405 CKXLB1C104YAG
CERAMIC 0
.
1U K
C405 CK1C104KGQBNG
CERAMIC 0
.
1U K
C700 CEXLB1C100VAG
ELECT 10U M
C700 CE1C100M1WANG
ELECT 10U M
C701 CKXAV1C104EAG
CERAMIC 0
.
1U K
C701 CKXLB1C104YAG
CERAMIC 0
.
1U K
C701 CK1C104KGQBNG
CERAMIC 0
.
1U K
C705 CKXAV1C104EAG
CERAMIC 0
.
1U K
C705 CKXLB1C104YAG
CERAMIC 0
.
1U K
C705 CK1C104KGQBNG
CERAMIC 0
.
1U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

14
Chassis Electrical Parts List

C7200 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7200 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7200 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7201 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7201 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7201 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7202 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7202 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7202 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7204 CCXAV1H102ABG
CERAMIC0
.
001U J
C7204 CCXLB1H102ZBG
CERAMIC 1000P J
C7204 CC1H102JGQCNG
CERAMIC 1000P J
C7205 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7205 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7206 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7206 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7207 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7207 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7208 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7208 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7208 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7209 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7209 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7209 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7210 CCXAV1H102ABG
CERAMIC0
.
001U J
C7210 CCXLB1H102ZBG
CERAMIC 1000P J
C7210 CC1H102JGQCNG
CERAMIC 1000P J
C7211 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7211 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7211 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7212 CCXAV1H102ABG
CERAMIC0
.
001U J
C7212 CCXLB1H102ZBG
CERAMIC 1000P J
C7212 CC1H102JGQCNG
CERAMIC 1000P J
C7213 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7213 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7213 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7214 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7214 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7214 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7215 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7215 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7216 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7216 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7217 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7217 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7218 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7218 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7219 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7219 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7220 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7220 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7221 CKXAV1H473EAG CERAMIC0
.
047U K 50V
C7221 CKXLB1H473YAG
CERAMIC 0
.
047U K
C7222 CKXAV1C104EAG
CERAMIC 0
.
1U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C7222 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7222 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7223 CEXLB1C100VAG
ELECT 10U M
C7223 CE1C100M1WANG
ELECT 10U M
C7224 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7224 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7224 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7225 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7225 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7225 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7226 CEXLB1C100VAG
ELECT 10U M
C7226 CE1C100M1VANG
ELECT 10U M
C7227 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7227 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7227 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7228 CE1V4R7M1WANG
ELECT 4
.
7U M
C7229 CKXLB1A105YDG
CERAMIC 1U Z
C7232 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7232 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7232 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7233 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7233 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7233 CK1C104KGQBNG
CERAMIC 0
.
1U K
C725 CKXAV1C104EAG
CERAMIC 0
.
1U K
C725 CKXLB1C104YAG
CERAMIC 0
.
1U K
C725 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7255 CKXAV1H104EAG CERAMIC0
.
1U K 50V
C7255 CKXLB1H104YAG
CERAMIC 0
.
1U K
C7255 CK1H104KGQBNG
CERAMIC 0
.
1U K
C7330 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7331 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7332 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7333 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7334 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7334 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7334 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7335 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7336 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7337 CKXLB1H222YDG
CERAMIC 2200P Z
C7338 CKXLB1H222YDG
CERAMIC 2200P Z
C7339 CKXLB1H222YDG
CERAMIC 2200P Z
C7340 CKXLB1H222YDG
CERAMIC 2200P Z
C7341 CCXAV1H101ABG
CERAMIC0
.
0001U J
C7341 CCXLB1H101ZBG
CERAMIC 100P J
C7342 CCXAV1H101ABG
CERAMIC0
.
0001U J
C7342 CCXLB1H101ZBG
CERAMIC 100P J
C7343 CCXAV1H101ABG
CERAMIC0
.
0001U J
C7343 CCXLB1H101ZBG
CERAMIC 100P J
C7344 CKXAV1C474EAG
CERAMIC 0
.
47U K
C7344 CKXLB1C474YAG
CERAMIC 0
.
47 K
C7344 CK1C474KGQBNG
CERAMIC 0
.
47U K
C7345 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V
C7345 CCXLB1H100ZBG
CERAMIC 10P J
C7346 CCXAV1H100ABG CERAMIC 10PJ 50
.
0V

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

15
Chassis Electrical Parts List

C7346 CCXLB1H100ZBG
CERAMIC 10P J
C7347 CCXAV1H102ABG
CERAMIC0
.
001U J
C7347 CCXLB1H102ZBG
CERAMIC 1000P J
C7347 CC1H102JGQCNG
CERAMIC 1000P J
C7348 CE1C470M1WANG
ELECT 47U M
C7349 CEXLB1C100VAG
ELECT 10U M
C7349 CE1C100M1WANG
ELECT 10U M
C7351 CKXAV1H222EAG
CERAMIC0
.
0022U K
C7351 CKXLB1H222YAG
CERAMIC 2200P K
C7352 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C7353 CK1C225ZGAFNG
CERAMIC 2
.
2U Z
C741 CKXAV1C104EAG
CERAMIC 0
.
1U K
C741 CKXLB1C104YAG
CERAMIC 0
.
1U K
C741 CK1C104KGQBNG
CERAMIC 0
.
1U K
C742 CKXAV1C104EAG
CERAMIC 0
.
1U K
C742 CKXLB1C104YAG
CERAMIC 0
.
1U K
C742 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7500 CE1C101M1WANG
ELECT 100U M
C7501 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7501 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7501 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7502 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7502 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7502 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7503 CE1C101M1WANG
ELECT 100U M
C7504 CE1C471MKNANG
ELECT 470U M
C7504 CE1C471M1WANG
ELECT 470U M
C7505 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7505 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7505 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7506 CE1C101M1WANG
ELECT 100U M
C7507 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7507 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7507 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7508 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7508 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7508 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7509 CE1C470M1WANG
ELECT 47U M
C7510 CE1C101M1WANG
ELECT 100U M
C7511 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7511 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7511 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7514 CE1A221M1WANG
ELECT 220U M
C7515 CK1C475ZGNFNG
CERAMIC 4
.
7U Z
C7516 CE0J220M1WANG
ELECT 22U M
C7517 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7517 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7517 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7518 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7518 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7518 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7519 CE1C470M1WANG
ELECT 47U M
C752 CEXLB1C100VAG
ELECT 10U M
C752 CE1C100M1WANG
ELECT 10U M

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C7520 CEXLB1C100VAG
ELECT 10U M
C7520 CE1C100M1WANG
ELECT 10U M
C7521 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7521 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7521 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7522 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7522 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7522 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7524 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7524 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7524 CK1C104KGQBNG
CERAMIC 0
.
1U K
C753 CKXAV1C104EAG
CERAMIC 0
.
1U K
C753 CKXLB1C104YAG
CERAMIC 0
.
1U K
C753 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7533 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7533 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7533 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7534 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7534 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7534 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7535 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7535 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7535 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7536 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7536 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7536 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7537 CKXAV1H103EAG
CERAMIC 0
.
01U K
C7537 CKXLB1H103YAG
CERAMIC 0
.
01U K
C7537 CK1H103KGQBNG
CERAMIC 0
.
01U K
C7538 CKXAV1H103EAG
CERAMIC 0
.
01U K
C7538 CKXLB1H103YAG
CERAMIC 0
.
01U K
C7538 CK1H103KGQBNG
CERAMIC 0
.
01U K
C7539 CKXAV1H103EAG
CERAMIC 0
.
01U K
C7539 CKXLB1H103YAG
CERAMIC 0
.
01U K
C7539 CK1H103KGQBNG
CERAMIC 0
.
01U K
C7540 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7540 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7540 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7541 CCXAV1H102ABG
CERAMIC0
.
001U J
C7541 CCXLB1H102ZBG
CERAMIC 1000P J
C7541 CC1H102JGQCNG
CERAMIC 1000P J
C7542 CCXAV1H102ABG
CERAMIC0
.
001U J
C7542 CCXLB1H102ZBG
CERAMIC 1000P J
C7542 CC1H102JGQCNG
CERAMIC 1000P J
C7543 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7543 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7543 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7544 CEXLB1C100VAG
ELECT 10U M
C7544 CE1C100M1WANG
ELECT 10U M
C7545 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7545 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7545 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7546 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7546 CKXLB1C104YAG
CERAMIC 0
.
1U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

16
Chassis Electrical Parts List

C7546 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7547 CEXLB1C100VAG
ELECT 10U M
C7547 CE1C100M1WANG
ELECT 10U M
C7548 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7548 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7548 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7549 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7549 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7549 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7550 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7550 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7550 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7551 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7551 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7551 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7552 CEXLB1C100VAG
ELECT 10U M
C7552 CE1C100M1WANG
ELECT 10U M
C7553 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7553 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7553 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7554 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7554 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7555 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7555 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7556 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7556 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7557 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7557 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7558 CEXLB1C100VAG
ELECT 10U M
C7558 CE1C100M1WANG
ELECT 10U M
C7559 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7559 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7560 CEXLB1C100VAG
ELECT 10U M
C7560 CE1C100M1WANG
ELECT 10U M
C7561 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7561 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7561 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7562 CEXLB1C100VAG
ELECT 10U M
C7562 CE1C100M1WANG
ELECT 10U M
C7563 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7563 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7563 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7564 CEXLB1C100VAG
ELECT 10U M
C7564 CE1C100M1WANG
ELECT 10U M
C7565 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7565 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7565 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7566 CKXAV1H103EAG
CERAMIC 0
.
01U K
C7566 CKXLB1H103YAG
CERAMIC 0
.
01U K
C7566 CK1H103KGQBNG
CERAMIC 0
.
01U K
C7567 CEXLB1C100VAG
ELECT 10U M
C7567 CE1C100M1WANG
ELECT 10U M
C7568 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7568 CKXLB1C104YAG
CERAMIC 0
.
1U K

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

C7568 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7569 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7569 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7569 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7570 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7570 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7570 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7571 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7571 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7571 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7572 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7572 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7572 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7573 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7573 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7573 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7574 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7574 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7574 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7575 CEXLB1C100VAG
ELECT 10U M
C7575 CE1C100M1WANG
ELECT 10U M
C7576 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7576 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7576 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7577 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7577 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7577 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7578 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7578 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7578 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7579 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7579 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7579 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7580 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7580 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7580 CK1C104KGQBNG
CERAMIC 0
.
1U K
C7802 CEXLB1C100VAG
ELECT 10U M
C7802 CE1C100M1WANG
ELECT 10U M
C7803 CKXAV1C104EAG
CERAMIC 0
.
1U K
C7803 CKXLB1C104YAG
CERAMIC 0
.
1U K
C7803 CK1C104KGQBNG
CERAMIC 0
.
1U K
C8000 CKXAV1C104EAG
CERAMIC 0
.
1U K
C8000 CKXLB1C104YAG
CERAMIC 0
.
1U K
C8000 CK1C104KGQBNG
CERAMIC 0
.
1U K
C8001 CEXLB1C100VAG
ELECT 10U M
C8001 CE1C100M1WANG
ELECT 10U M
C8002 CKXAV1C104EAG
CERAMIC 0
.
1U K
C8002 CKXLB1C104YAG
CERAMIC 0
.
1U K
C8002 CK1C104KGQBNG
CERAMIC 0
.
1U K
C8003 CKXAV1C104EAG
CERAMIC 0
.
1U K
C8003 CKXLB1C104YAG
CERAMIC 0
.
1U K
C8003 CK1C104KGQBNG
CERAMIC 0
.
1U K
C8004 CEXLB1C100VAG
ELECT 10U M
C8004 CE1C100M1WANG
ELECT 10U M

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

17
Chassis Electrical Parts List

C8005 CCXAV1H101ABG
CERAMIC0
.
0001U J
C8005 CCXLB1H101ZBG
CERAMIC 100P J
C8005 CC1H101JGQCNG
CERAMIC 100P J
C8006 CCXAV1H101ABG
CERAMIC0
.
0001U J
C8006 CCXLB1H101ZBG
CERAMIC 100P J
C8006 CC1H101JGQCNG
CERAMIC 100P J
C8007 CCXAV1H101ABG
CERAMIC0
.
0001U J
C8007 CCXLB1H101ZBG
CERAMIC 100P J
C8007 CC1H101JGQCNG
CERAMIC 100P J
C8008 CEXLB1C100VAG
ELECT 10U M
C8008 CE1C100M1WANG
ELECT 10U M
D008 DZUDZS20B
---
G
ZENER DIODE UDZS20B
-
D008 DZXLBXB20B
--
G
ZENER DIODE MM3Z
D009 DDXLBB053
---
G DIODE 1SS35
D009 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D010 DDXLBB053
---
G DIODE 1SS35
D010 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D1500 DDXLBB053
---
G DIODE 1SS35
D1500 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D1501 DDXLBB053
---
G DIODE 1SS35
D1501 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D1502 DZUDZS5
.
6B
--
G ZD UDZS
-
TE
-
175
.
6B
D1502 DZXLBXB5
.
6B
-
G
ZENER DIODE
D1503 DZUDZS5
.
6B
--
G ZD UDZS
-
TE
-
175
.
6B
D1503 DZXLBXB5
.
6B
-
G
ZENER DIODE
D3000 DDXLBB053
---
G DIODE 1SS35
D3000 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D3001 DDXLBB053
---
G DIODE 1SS35
D3001 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D3100 DDXLBB053
---
G DIODE 1SS35
D3100 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D3101 DDXLBB053
---
G DIODE 1SS35
D3101 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D400 DDXLBB053
---
G DIODE 1SS35
D400 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D401 DDXLBB053
---
G DIODE 1SS35
D401 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D700 DDXLBB053
---
G DIODE 1SS35
D700 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D701 DDXLBB053
---
G DIODE 1SS35
D701 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D702 DDXLBB053
---
G DIODE 1SS35
D702 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D703 DDXLBB053
---
G DIODE 1SS35
D703 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D704 DDXLBB053
---
G DIODE 1SS35
D704 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D7200 DDXLBB053
---
G DIODE 1SS35
D7200 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
D7201 DDXLBB053
---
G DIODE 1SS35
D7201 DD1SS355
----
G DIODE 1SS355
-
TE
-
17
IC001 QTPA3123D2
--
P IC TPA3123D2PWPR
IC002 QTPA3123D2
--
P IC TPA3123D2PWPR
IC003 QTPA6110A2
--
P IC TPA6110A2DGNR

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

IC1501 Q24LC21A/SN
-
P IC 24LC21AT/SN
IC3000 QAP8302
-----
M IC AP8302
IC3100 QNJM4558M
---
P IC NJM4558M
-
TE2
IC3101 QNJM4558M
---
P IC NJM4558M
-
TE2
IC700 QCM2021
-
02TRP IC CM2021
-
02TR
IC701 Q24C02CT/SN
-
P IC 24C02CT
-
I/SNG
IC702 QCM2021
-
02TRP IC CM2021
-
02TR
IC703 Q24C02CT/SN
-
P IC 24C02CT
-
I/SNG
IC7200 QXXAVD008
---
M IC MST6E89DL
-
LF
IC7400 QXXAVC961
---
M
IC HY5DU281622FTP
-
4
-
IC7501 QAMS1117
-
3
.
3P IC AMS1117
-
3
.
3
IC7501 QLM1117S
-
3
.
3P IC LM1117S
-
3
.
3
IC7503 QAMS1117
-
3
.
3P IC AMS1117
-
3
.
3
IC7503 QLM1117S
-
3
.
3P IC LM1117S
-
3
.
3
IC7504 QAMS1085CM
--
P IC AMS1085CM
IC7504 QLM1085R
-
ADJP IC LM1085R
-
ADJ
IC7505 QAMS1117
-
2
.
5P IC AMS1117
-
2
.
5
IC8000 QXXAAJQ0883
--
IC W25X80VSSIG
-
N5ZW
IC8000A QXXAVC909
---
P IC W25X80VSSIG
IC8000B 1AA6P4P1722
--
LABEL
-
W25X80VSSIG
-
IC8001 QXXAVC951
---
P
IC 24LC64T
-
I/SNG
-
KSP9C 1AV4J10AU065N PLUG
,
6P
KSP9C 1LB4J10XA060N PLUG
,
6P
KSP9L 1AV4J10AU035N PLUG
,
3P
KSP9L 1LB4J10XA030N PLUG
,
3P
KSP9R 1AV4J10AU025N PLUG
,
2P
KSP9R 1LB4J10XA020N PLUG
,
2P
K001 1AV4J10AU055N PLUG
,
5P
K001 1LB4J10XA050N PLUG
,
5P
K1000 1LB4J12B06002 JACK
,
RCA
-
6
K1001 1LB4J11B0140N SOCKET
,
DIN 4P
K1002 1AV4J12B07600 JACK
,
PHONE D3
.
6
K1002 1LB4J12B08000 JACK
,
PHONE D3
.
6
K1002 1LB4J12B09200 JACK
,
PHONE D3
.
6
K1003 1LB4J12B06602 JACK
,
RCA
-
5(6
-
1)
K1006 1AV4J11B6930M SOCKET
,
IF(HDMI) 19P
K1006 1AV4J11B8030M SOCKET
,
IF(HDMI) 19P
K1007 1AV4J11B6930M SOCKET
,
IF(HDMI) 19P
K1007 1AV4J11B8030M SOCKET
,
IF(HDMI) 19P
K101 1AV4J10EA023N PLUG
,
2P
K101 1LB4J10XC020N PLUG
,
2P
K1501 1AV4J12B06800 JACK
,
PHONE D3
.
5
K1501 1LB4J12B11900 JACK
,
PHONE D3
.
6
K1502 1AV4J11B2731N SOCKET
,
D
-
SUB 15P
K1502 1LB4J11B0320N SOCKET
,
D
-
SUB 15P
K1503 1AV4J10AU145N PLUG
,
14P
K1503 1LB4J10XA140N PLUG
,
14P
K1521 1AV4J10AU045N PLUG
,
4P
K1521 1LB4J10XA040N PLUG
,
4P
K1701 1AV4J10EA033N PLUG
,
3P
K1701 1LB4J10XC030N PLUG
,
3P
K1702 1AV4J10AU095N PLUG
,
9P
K1702 1LB4J10XA090N PLUG
,
9P
K7300 1LB4J10B0130G PLUG
,
HOUSING 50P

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

18
Chassis Electrical Parts List

K8000 1AV4J10AU045N PLUG
,
4P
K8000 1LB4J10XA040N PLUG
,
4P
K8001 1AV4J10AU045N PLUG
,
4P
K8001 1LB4J10XA040N PLUG
,
4P
K8002 1AV4J10AU075N PLUG
,
7P
K8002 1LB4J10XA070N PLUG
,
7P
L001 1AV4L2WK470MN INDUCTOR
,
47U M
L002 1AV4L2WK470MN INDUCTOR
,
47U M
L003 1AV4L2WK470MN INDUCTOR
,
47U M
L004 1AV4L2GM3R3MG INDUCTOR
,
3
.
3U M
L1000 1AV4L26B2770G INDUCTOR
,
220 OHM
L1000 1LB4L26B0740G INDUCTOR
,
220 OHM
L1001 1AV4L26B2770G INDUCTOR
,
220 OHM
L1001 1LB4L26B0740G INDUCTOR
,
220 OHM
L102 1AV4L2GM3R3MG INDUCTOR
,
3
.
3U M
L103 1AV4L2GM3R3MG INDUCTOR
,
3
.
3U M
L1500 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L1501 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L3001 1AV4L2GM3R3MG INDUCTOR
,
3
.
3U M
L3002 1AV4L2GM3R3MG INDUCTOR
,
3
.
3U M
L7500 1AV4L26B2770G INDUCTOR
,
220 OHM
L7500 1LB4L26B0740G INDUCTOR
,
220 OHM
L7501 1AV4L26B2770G INDUCTOR
,
220 OHM
L7501 1LB4L26B0740G INDUCTOR
,
220 OHM
L7502 1AV4L26B2770G INDUCTOR
,
220 OHM
L7502 1LB4L26B0740G INDUCTOR
,
220 OHM
L7503 1AV4L26B2770G INDUCTOR
,
220 OHM
L7503 1LB4L26B0740G INDUCTOR
,
220 OHM
L7504 1AV4L26B2770G INDUCTOR
,
220 OHM
L7504 1LB4L26B0740G INDUCTOR
,
220 OHM
L7505 1AV4L26B2770G INDUCTOR
,
220 OHM
L7505 1LB4L26B0740G INDUCTOR
,
220 OHM
L7506 1AV4L26B2770G INDUCTOR
,
220 OHM
L7506 1LB4L26B0740G INDUCTOR
,
220 OHM
L7507 1AV4L26B2770G INDUCTOR
,
220 OHM
L7507 1LB4L26B0740G INDUCTOR
,
220 OHM
L7508 1AV4L26B2770G INDUCTOR
,
220 OHM
L7508 1LB4L26B0740G INDUCTOR
,
220 OHM
L7509 1AV4L26B2770G INDUCTOR
,
220 OHM
L7509 1LB4L26B0740G INDUCTOR
,
220 OHM
L7510 1AV4L26B2770G INDUCTOR
,
220 OHM
L7510 1LB4L26B0740G INDUCTOR
,
220 OHM
L7511 1AV4L26B2770G INDUCTOR
,
220 OHM
L7511 1LB4L26B0740G INDUCTOR
,
220 OHM
L8000 1AV4L26B2770G INDUCTOR
,
220 OHM
L8000 1LB4L26B0740G INDUCTOR
,
220 OHM
L8001 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L8002 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L8003 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L8004 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L8005 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
L8006 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
PB7200 1LG4B10Z15200 PWB
,
MAIN
+
LED
PB7200 1LG4B10Z1520A PWB
,
MAIN

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

Q001 TXXLBB006
---
P TR MMBTSC3928R
Q001 7T200220 TR 2SC2412K(P)
-
6
Q002 TXXLBB006
---
P TR MMBTSC3928R
Q002 7T200220 TR 2SC2412K(P)
-
6
Q003 TXXLBB006
---
P TR MMBTSC3928R
Q003 7T200220 TR 2SC2412K(P)
-
6
Q013 TXXLBB006
---
P TR MMBTSC3928R
Q013 7T200220 TR 2SC2412K(P)
-
6
Q014 TXXLBB006
---
P TR MMBTSC3928R
Q014 7T200220 TR 2SC2412K(P)
-
6
Q1000 TXXLBB006
---
P TR MMBTSC3928R
Q1000 7T200220 TR 2SC2412K(P)
-
6
Q1001 TXXLBB006
---
P TR MMBTSC3928R
Q1001 7T200220 TR 2SC2412K(P)
-
6
Q101 TXXLBB005
---
P TR MMBTSA1235F
Q101 7T210221 TR 2SA1037K(P)
-
6
Q3000 T2SK536
-----
P TR 2SK536
-
TB
Q3001 T2SK536
-----
P TR 2SK536
-
TB
Q3014 TXXLBB006
---
P TR MMBTSC3928R
Q3014 7T200220 TR 2SC2412K(P)
-
6
Q700 TXXLBB006
---
P TR MMBTSC3928R
Q700 7T200220 TR 2SC2412K(P)
-
6
Q701 TXXLBB006
---
P TR MMBTSC3928R
Q701 7T200220 TR 2SC2412K(P)
-
6
Q7200 TXXLBB006
---
P TR MMBTSC3928R
Q7200 7T200220 TR 2SC2412K(P)
-
6
Q7201 TXXLBB005
---
P TR MMBTSA1235F
Q7201 7T210221 TR 2SA1037K(P)
-
6
Q7202 TXXLBB006
---
P TR MMBTSC3928R
Q7202 7T200220 TR 2SC2412K(P)
-
6
Q7204 TXXLBB005
---
P TR MMBTSA1235F
Q7204 7T210221 TR 2SA1037K(P)
-
6
Q7206 TXXLBB006
---
P TR MMBTSC3928R
Q7206 7T200220 TR 2SC2412K(P)
-
6
Q7207 TXXLBB005
---
P TR MMBTSA1235F
Q7207 7T210221 TR 2SA1037K(P)
-
6
Q7208 TXXLBB006
---
P TR MMBTSC3928R
Q7208 7T200220 TR 2SC2412K(P)
-
6
Q7500 TXXLBB006
---
P TR MMBTSC3928R
Q7500 7T200220 TR 2SC2412K(P)
-
6
Q7501 TXXLBB006
---
P TR MMBTSC3928R
Q7501 7T200220 TR 2SC2412K(P)
-
6
Q7502 TTPC8109
----
P TR TPC8109
Q8000 TXXLBB006
---
P TR MMBTSC3928R
Q8000 7T200220 TR 2SC2412K(P)
-
6
Q8001 TXXLBB006
---
P TR MMBTSC3928R
Q8001 7T200220 TR 2SC2412K(P)
-
6
Q8002 TXXLBB006
---
P TR MMBTSC3928R
Q8002 7T200220 TR 2SC2412K(P)
-
6
RB7200 1AV4R1A41014G
R
-
NETWORK 100X4
RB7200 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7200 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7201 1AV4R1A41014G
R
-
NETWORK 100X4
RB7201 1LB4R1YA101JG
R
-
NETWORK 100X4

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

19
Chassis Electrical Parts List

RB7201 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7202 1AV4R1A41014G
R
-
NETWORK 100X4
RB7202 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7202 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7203 1AV4R1A41014G
R
-
NETWORK 100X4
RB7203 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7203 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7204 1AV4R1A41014G
R
-
NETWORK 100X4
RB7204 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7204 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7205 1AV4R1A41014G
R
-
NETWORK 100X4
RB7205 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7205 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7206 1AV4R1A43304G
R
-
NETWORK 33X4
RB7206 1LB4R1YA330JG
R
-
NETWORK 33X4
RB7206 1LB4R1ZA330JG
R
-
NETWORK 33X4
RB7207 1AV4R1A41014G
R
-
NETWORK 100X4
RB7207 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7207 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7208 1AV4R1A41014G
R
-
NETWORK 100X4
RB7208 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7208 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7209 1AV4R1A41014G
R
-
NETWORK 100X4
RB7209 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7209 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7210 1AV4R1A41014G
R
-
NETWORK 100X4
RB7210 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7210 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7211 1AV4R1A41014G
R
-
NETWORK 100X4
RB7211 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7211 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7212 1AV4R1A44724G
R
-
NETWORK 4
.
7KX4
RB7212 1LB4R1YA472JG
R
-
NETWORK 4
.
7KX4
RB7212 1LB4R1ZA472JG
R
-
NETWORK 4
.
7KX4
RB7213 1AV4R1A44724G
R
-
NETWORK 4
.
7KX4
RB7213 1LB4R1YA472JG
R
-
NETWORK 4
.
7KX4
RB7213 1LB4R1ZA472JG
R
-
NETWORK 4
.
7KX4
RB7214 1AV4R1A41014G
R
-
NETWORK 100X4
RB7214 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7214 1LB4R1ZA101JG
R
-
NETWORK 100X4
RB7215 1AV4R1A41014G
R
-
NETWORK 100X4
RB7215 1LB4R1YA101JG
R
-
NETWORK 100X4
RB7215 1LB4R1ZA101JG
R
-
NETWORK 100X4
R003 RGF4702JTCANL
MT
-
GLAZE 47K JA
R004 RGF1002JTCANL
MT
-
GLAZE 10K JA
R005 RGF1000JTCANL
MT
-
GLAZE 100 JA
R007 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R008 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R009 RGF1002JTCANL
MT
-
GLAZE 10K JA
R010 RGF1002JTCANL
MT
-
GLAZE 10K JA
R011 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R012 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R014 RGF1000JTCANL
MT
-
GLAZE 100 JA
R015 RGF1002JTCANL
MT
-
GLAZE 10K JA

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

R017 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R018 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R019 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R020 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R021 RGF1002JTCANL
MT
-
GLAZE 10K JA
R025 RGF1002JTCANL
MT
-
GLAZE 10K JA
R026 RGF4702JTCANL
MT
-
GLAZE 47K JA
R027 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R028 RGF1002JTCANL
MT
-
GLAZE 10K JA
R029 RGF5601JTCANL
MT
-
GLAZE 5
.
6K JA
R030 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R031 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R032 RGF1001JTCANL
MT
-
GLAZE 1K JA
R033 RGF1001JTCANL
MT
-
GLAZE 1K JA
R034 RGF1002JTCANL
MT
-
GLAZE 10K JA
R035 RGF5601JTCANL
MT
-
GLAZE 5
.
6K JA
R036 RGF1002JTCANL
MT
-
GLAZE 10K JA
R037 RGF1000JTCANL
MT
-
GLAZE 100 JA
R039 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R041 RGF1201JTCANL
MT
-
GLAZE 1
.
2K JA
R042 RGF1201JTCANL
MT
-
GLAZE 1
.
2K JA
R043 RGF1002JTCANL
MT
-
GLAZE 10K JA
R045 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R046 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R048 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R049 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R050 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R051 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R057 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R058 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R059 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1000 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1001 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1002 RGF1003JTCANL
MT
-
GLAZE 100K JA
R1003 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1004 RGF1202JTCANL
MT
-
GLAZE 12K JA
R1005 RGF1003JTCANL
MT
-
GLAZE 100K JA
R1006 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1007 RGF1202JTCANL
MT
-
GLAZE 12K JA
R1008 RGF1003JTCANL
MT
-
GLAZE 100K JA
R1009 RGF1002JTCANL
MT
-
GLAZE 10K JA
R101 RGF1000JTCANL
MT
-
GLAZE 100 JA
R1010 RGF4702JTCANL
MT
-
GLAZE 47K JA
R1011 RGF8201JTCANL
MT
-
GLAZE 8
.
2K JA
R1012 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1013 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1014 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1015 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1016 RGF4702JTCANL
MT
-
GLAZE 47K JA
R1017 RGF8201JTCANL
MT
-
GLAZE 8
.
2K JA
R1018 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1019 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R102 RGF1000JTCANL
MT
-
GLAZE 100 JA
R1020 RGF47R0JTCANL
MT
-
GLAZE 47 JA

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

20
Chassis Electrical Parts List

R1021 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1022 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1023 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1024 RGF4703JTCANL
MT
-
GLAZE 470K JA
R1025 RGF4703JTCANL
MT
-
GLAZE 470K JA
R1026 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1027 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1028 RGF4700JTCANL
MT
-
GLAZE 470 JA
R1029 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R103 RGF6801JTCANL
MT
-
GLAZE 6
.
8K JA
R1030 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1031 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1032 RGF1202JTCANL
MT
-
GLAZE 12K JA
R1034 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1035 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1036 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1037 RGF1202JTCANL
MT
-
GLAZE 12K JA
R104 RGF1502JTCANL
MT
-
GLAZE 15K JA
R105 RGF2202JTCANL
MT
-
GLAZE 22K JA
R106 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R107 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R108 RGF1002JTCANL
MT
-
GLAZE 10K JA
R109 RGF1002JTCANL
MT
-
GLAZE 10K JA
R110 RGF4700JTCANL
MT
-
GLAZE 470 JA
R111 RGF68R0JTCANL
MT
-
GLAZE 68 JA
R118 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R119 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R120 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R122 RGF4702JTCANL
MT
-
GLAZE 47K JA
R125 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1500 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1502 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1503 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1506 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1507 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1508 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1509 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R1510 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1511 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1512 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1513 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1514 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1515 RGF47R0JTCANL
MT
-
GLAZE 47 JA
R1516 RGF1000JTCANL
MT
-
GLAZE 100 JA
R1517 RGF1000JTCANL
MT
-
GLAZE 100 JA
R1518 RGF4700JTCANL
MT
-
GLAZE 470 JA
R1519 RGF1202JTCANL
MT
-
GLAZE 12K JA
R1520 RGF1202JTCANL
MT
-
GLAZE 12K JA
R1521 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1522 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1524 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1526 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1528 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R1772 RGF75R0JTCANL
MT
-
GLAZE 75 JA

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V

R1773 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1774 RGF75R0JTCANL
MT
-
GLAZE 75 JA
R1775 RGF1002JTCANL
MT
-
GLAZE 10K JA
R1777 RGF1002JTCANL
MT
-
GLAZE 10K JA
R3000 RGF1202FTCANL
MT
-
GLAZE 12K FA
R3001 RGF1202FTCANL
MT
-
GLAZE 12K FA
R3002 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R3003 RGKR000ZTFANL
MT
-
GLAZE 0
.
000 ZA
R3004 RGF1003JTCANL
MT
-
GLAZE 100K JA
R3006 RGF2003JTCANL
MT
-
GLAZE 200K JA
R3007 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3010 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3011 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3012 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R3013 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R3014 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3015 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3016 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3022 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3023 RGF1000JTCANL
MT
-
GLAZE 100 JA
R3025 RGF1803JTCANL
MT
-
GLAZE 180K JA
R3026 RGF1803JTCANL
MT
-
GLAZE 180K JA
R3100 RGF3902JTCANL
MT
-
GLAZE 39K JA
R3101 RGF5600JTCANL
MT
-
GLAZE 560 JA
R3102 RGF4702JTCANL
MT
-
GLAZE 47K JA
R3103 RGF1002JTCANL
MT
-
GLAZE 10K JA
R3104 RGF1002JTCANL
MT
-
GLAZE 10K JA
R3105 RGF3902JTCANL
MT
-
GLAZE 39K JA
R3106 RGF5600JTCANL
MT
-
GLAZE 560 JA
R3107 RGF4702JTCANL
MT
-
GLAZE 47K JA
R3108 RGF3302JTCANL
MT
-
GLAZE 33K JA
R3109 RGF3302JTCANL
MT
-
GLAZE 33K JA
R3110 RGF1000JTCANL
MT
-
GLAZE 100 JA
R3114 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3115 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R3123 RGF3902JTCANL
MT
-
GLAZE 39K JA
R3124 RGF2202JTCANL
MT
-
GLAZE 22K JA
R3125 RGF4702JTCANL
MT
-
GLAZE 47K JA
R3127 RGF1002JTCANL
MT
-
GLAZE 10K JA
R3128 RGFR000ZTCANL
MT
-
GLAZE 0
.
000 ZA
R405 RGF8201JTCANL
MT
-
GLAZE 8
.
2K JA
R700 RGF1004JTCANL
MT
-
GLAZE 1M JA
R701 RGF1001JTCANL
MT
-
GLAZE 1K JA
R702 RGF1001JTCANL
MT
-
GLAZE 1K JA
R703 RGF1002JTCANL
MT
-
GLAZE 10K JA
R704 RGF1000JTCANL
MT
-
GLAZE 100 JA
R705 RGF1000JTCANL
MT
-
GLAZE 100 JA
R706 RGF4701JTCANL
MT
-
GLAZE 4
.
7K JA
R707 RGF10R0JTCANL
MT
-
GLAZE 10 JA
R708 RGF10R0JTCANL
MT
-
GLAZE 10 JA
R709 RGF10R0JTCANL
MT
-
GLAZE 10 JA
R710 RGF10R0JTCANL
MT
-
GLAZE 10 JA
R711 RGF10R0JTCANL
MT
-
GLAZE 10 JA
R712 RGF10R0JTCANL
MT
-
GLAZE 10 JA

LOCATION C_PARTS_CODE DESCRIPTION
A013 013N5ZW
ELECTRICAL PARTS
EL901 1AV4T40B97800 LCD(T420HW01 V2)
SP901 1LB4A10B10600 SPEAKER
,
8
SP902 1LB4A10B10600 SPEAKER
,
8
SP903 1LB4A10B10500 SPEAKER
,
8
WCN1
-
660 1LB9W0ECM005D
NONSTANDARD WIRE
1LB4J11YA040N SOCKET
,
HOUSING 4P
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA140N SOCKET
,
HOUSING 14P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLO046 CUTTING WIRE
8DLR046 CUTTING WIRE
8DLW058 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WCN2
-
661 1LB9W0CCM003
-
NONSTANDARD WIRE
1LB4J11YA100N SOCKET
,
HOUSING 10P
1LB4J11YA120N SOCKET
,
HOUSING 12P
1LB4J30B0010N TERMINAL
,
SOCKET
8DLR036 CUTTING WIRE
8DLW036 CUTTING WIRE
8214KG3R0 CUTTING TAPE
WSP9C 1LB9W06CM001A
NONSTANDARD WIRE
1LB4J11YA060N SOCKET
,
HOUSING 6P
1LB4J30B0010N TERMINAL
,
SOCKET
8DEW090XM CUTTING WIRE
WSP9L 1LB9W03CM001J
NONSTANDARD WIRE
WSP9R 1LB9W02CM001G
NONSTANDARD WIRE
W1701
-
70 1AA93CN07140X STANDARD WIRE
W1702
-
70 1AA99CM07100X STANDARD WIRE
W662
-
001 1AA95CM01160X STANDARD WIRE
W670
-
101 1AA92CN07160X STANDARD WIRE
W680
-
150 1AA9ECM07260X STANDARD WIRE
W681
-
704 1AA94CN07280X STANDARD WIRE
W7300 1LB4W30B13400 CORD 51PIN (LVDS)
W8001
-
19 1AA94CM07740X STANDARD WIRE
W8002
-
19 1AA97CM07480X STANDARD WIRE
W901 1AV4W10B19100
CORD
,
POWER
-
2
.
23MK
-
A1000 1AA0B10S264B0
ASSY
,
PWB
,
MAIN
+
RC
,
A101 1AA0B10S264BA ASSY
,
PWB
,
MAIN
,
N5ZW
A102 1LB4F1FCX0040 TUNERU/V
C001 CEXLB1V471VEN
ELECT 470U M
C002 CEXLB1V471VEN
ELECT 470U M
C003 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C004 CK1C105ZGAFNG
CERAMIC 1U Z
C005 CK1C105ZGAFNG
CERAMIC 1U Z
C006 CK1C105ZGAFNG
CERAMIC 1U Z
C007 CK1H474ZGBFNG
CERAMIC 0
.
47U Z
C008 CK1C105ZGAFNG
CERAMIC 1U Z
C009 CEXLB1H471VEN
ELECT 470U M
C010 CK1E224KLZBNG
CERAMIC 0
.
22U K
C011 CEXLB1H100VCG
ELECT 10U M
C011 CE1H100M1WANG
ELECT 10U M
C012 CKXAV1H104EAG CERAMIC0
.
1U K 50V
