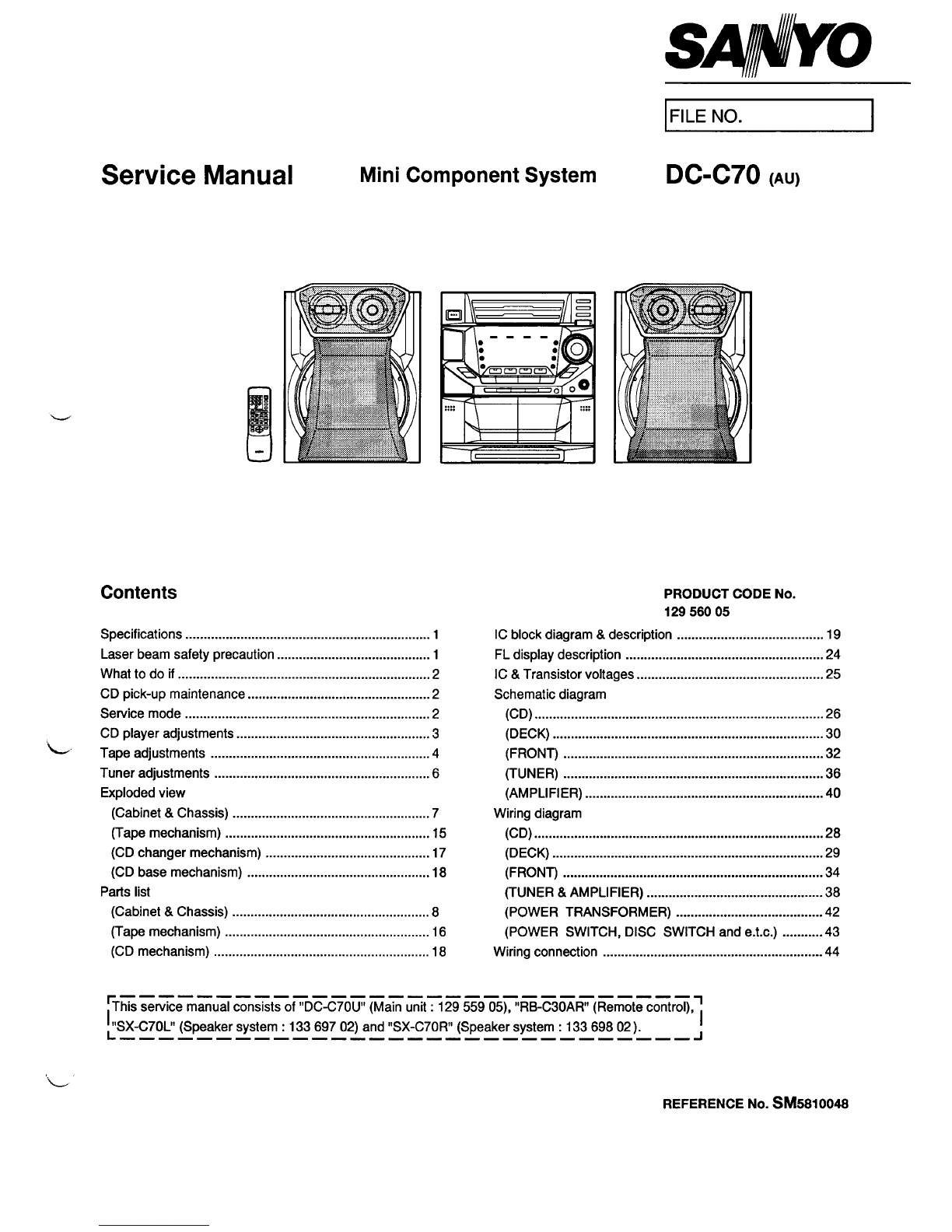

Sanyo DC-C70 User manual
IFILE NO. I
Service Manual Mini Component System DC-C70 (AU)
Contents
Specifications ................................................................... 1
Laser beam safety precaution .......................................... 1
What to do if .....................................................................2
CD pick-up maintenance ..................................................2
Service mode ...................................................................2
CD player adjustments .....................................................3
Tape adjustments ............................................................4
Tuner adjustments ...........................................................6
Exploded view
(Cabinet &Chassis) ......................................................7
(Tape mechanism) ........................................................ 15
(CD changer mechanism) ............................................. 17
(CD base mechanism) .................................................. 18
Parts list
(Cabinet &Chassis) ...................................................... 8
(Tape mechanism) ........................................................ 16
(CD mechanism) ........................................................... 18
t‘? 1LI
1
.—— — ——— ——— ——— ——— ——— —.
PRODUCT CODE No.
12956005
IC block diagram &description ........................................ 19
FL display description ...................................................... 24
IC &Transistor voltages ...................................................25
Schematic diagram
(CD) ...............................................................................26
(DECK) ..........................................................................30
(FRONT) .......................................................................32
(TUNER) .......................................................................36
(AMPLIFIER) .................................................................40
Wiring diagram
(CD) ...............................................................................28
(DECK) ..........................................................................29
(FRONT) .......................................................................34
(TUNER &LIFIER) ................................................ 38
(POWER TRANSFORMER) ........................................ 42
(POWER SWITCH, DISC SWITCH and e.t.c.) ...........43
Wiring connection ............................................................ 44
.—— — ——— ——— —-
This service manual consists of “DC-C70U” (Main unit :129559 05), “RB-C30AR” (Remote control),
“SX-C70L” (Speaker system: 133697 02) and “SX-C70R” (Speaker system: 133 69802).
“L
REFERENCE No. SM5810048
SPECIFICATIONS
Tuner section
Reception frequency .............. FM :87.5 MHz -108.0 MHz
AM :522 kHz-1710 kHz (9kHz step)
520kHz-1710 kHz(lOkHz srep)
Cassette deck section
Track system ......................... 4-track, 2-channel stereo
Frequency response .............. 120 Hz -14 kHz (Normal tape)
Signal to noise ratio ...............48 dB
Wow and Flutter ..................... 0.12 Yo (WRMS)
Fast forward /Rewind time .... Approx. 110 sec. (C-60)
CD changer section
Type ....................................... Changer, 3-cfisc
Channels ................................ 2-channel stereo
Sampling frequency ...............44.1 kHz
Pick-up ................................... Optical 3-beam
semiconductor laser
Wow and Flutter ..................... Below measurable limits
General
Output power ......................... 100Wx2(at6ohms,10%distortion)
Inputs
VIDEO /DVD IN .................550 mV 150k ohms
outputs
SPEAKERS ......................... 6ohms
PHONES .............................. 8-32 ohms
Power requirements ............... AC 230-240 V, 50 Hz
Power consumption ...............120 W
Dimensions (W xHxD) ........ Approx. 270x 300x 321 mm
Weight .................................... Approx. 6.8 kg
SX-C70 Speaker systems
Type ....................................... 3way bass reflex
Unit used ................................ Woofer: 16cm cone type
Mid range :6cm cone type
Tweeter: 5cm cone type
Maximum
Power-handling capacity .....180 W(peak)
Nominal impedance ...............6 ohms
Dimensions (W xHxD) ........ Approx. 240x 315x 282 mm
Weight .................................... Approx. 3.9 kg (per speaker)
Specifications subject to change without notice.
LASER BEAM SAFETY PRECAUTION
●Pick-up that emits alaser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT ..........0.6 mW Max. (CW)
WAVELENGTH .............790 nm
=
CAUTION -INVISIBLE IASER RADIATION WHEN OPEN ANO
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
AOVARSEL -USYNLIG USER STRALING VED ABNING R
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGA UOS HTELSE
VARNING -OSYNLIG LASER ST LNING NAR DENNA DEL AR OPPNAD
CCH SP~RR AR URKOPPLAD. STRALEN AR FARLIG.
VORSICHT -UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
OECKEL GE6FFNET UND WENN SICHERHEITSVERRIEGELUNG
U6ER6RUCKT IST. NIcHT, DEM STRAHL AUS.WZEN.
VARO -AVATTAESSA JA SWALUKITUS OHITETTAESSA OLET ALTTIINA
NAKYMhOMLLE LASERSATEILYLLE, ALA KATSO SATEE5EEN.
\
D❑
II ........
00
0-
A
—-----F
-1-

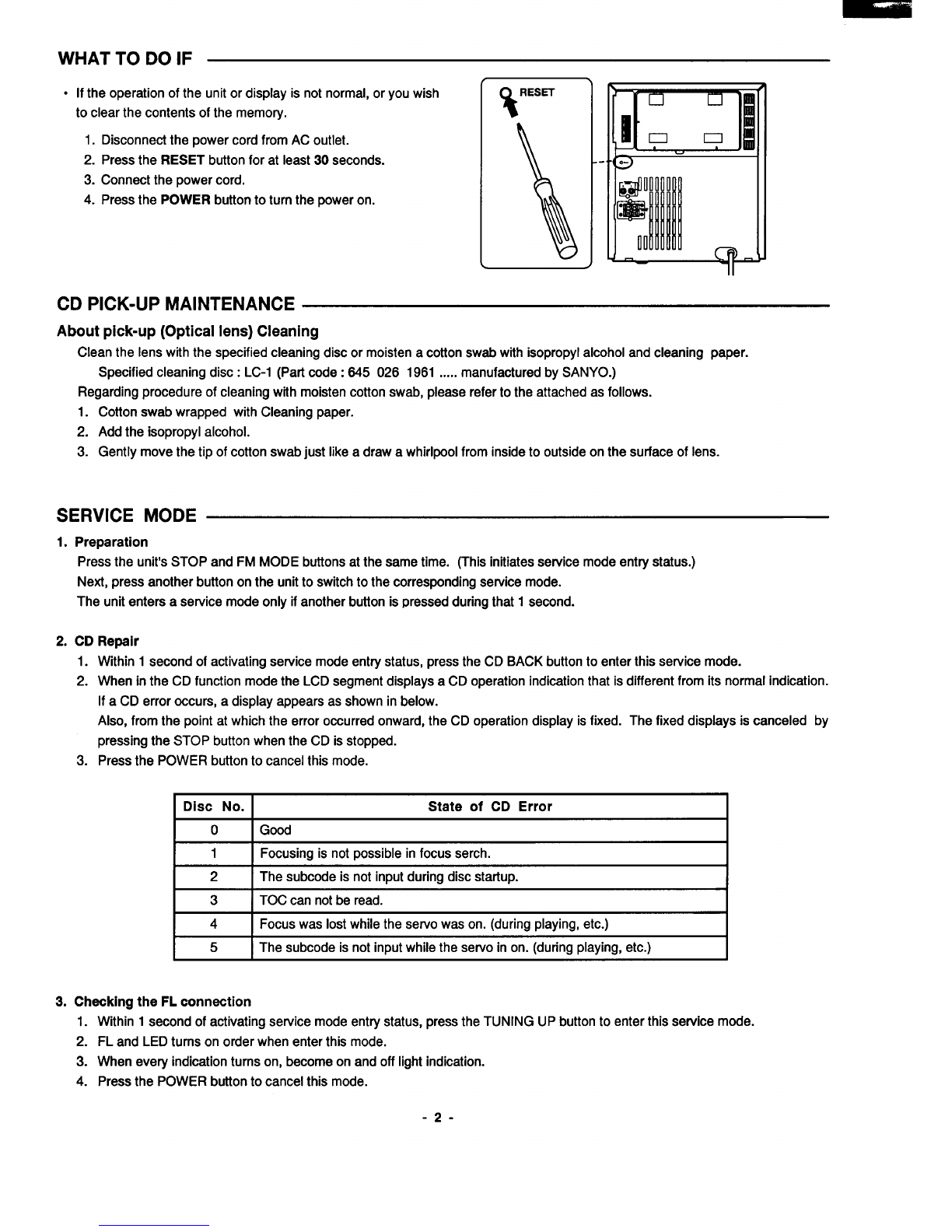

WHAT TO DO IF
●If the operation of the unit or display is not normal, or you wish
to clear the contents of the memory.
1. Disconnect the power cord from AC outlet.
2. Press the RESET button for at least 30 seconds.
3. Connect the power cord.
4. Press the POWER button to turn the power on.
Iw
CD PICK-UP MAINTENANCE
About pick-up (Opticai iens) Cieaning
Clean the lens with the specified cleaning disc or moisten acotton swab with isopropyl alcohol and cleaning paper.
Specified cleaning disc: LC-1 (Part code: 645026 1961 ..... manufactured by SANYO.)
Regarding procedure of cleaning with moisten cotton swab, please refer to the attached as follows.
1. Cotton swab wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like adraw awhirlpool from inside to outside on the surface of lens.
SERVICE MODE
1. Preparation
Press the unit’s STOP and FM MODE buttons at the same time. (This initiates service mode entry status.)
Next, press another button on the unit to switch to the corresponding service mode.
The unit enters asewice mode only if another button is pressed during that 1second.
2. CD Repair
1.
2.
3.
Within 1second of activating service mode entry status, press the CD BACK button to enter this sewice mode.
When in the CD function mode the LCD segment displays aCD operation indication that is different from its normal indication.
If aCD error occurs, adisplay appears as shown in below.
Also, from the point at which the error occurred onward, the CD operation display is fixed. The fixed displays is canceled by
pressing the STOP button when the CD is stopped.
Press the POWER button to cancel this mode.
Disc No. State of CD Error
oGood
1Focusing is not possible in focus serch.
2The subcode is not input during disc startup.
3TOC can not be read.
4Focus was lost while the servo was on. (during playing, etc.)
5The subcode is not input while the servo in on. (during playing, etc.)
3. Checking the FL connection
1.
2.
3.
4.
Within 1second of activating service mode entry status, press the TUNING UP button to enter this service mode.
FL and LED turns on order when enter this mode.
When every indication turns on, become on and off light indication.
Press the POWER button to cancel this mode.
-2-

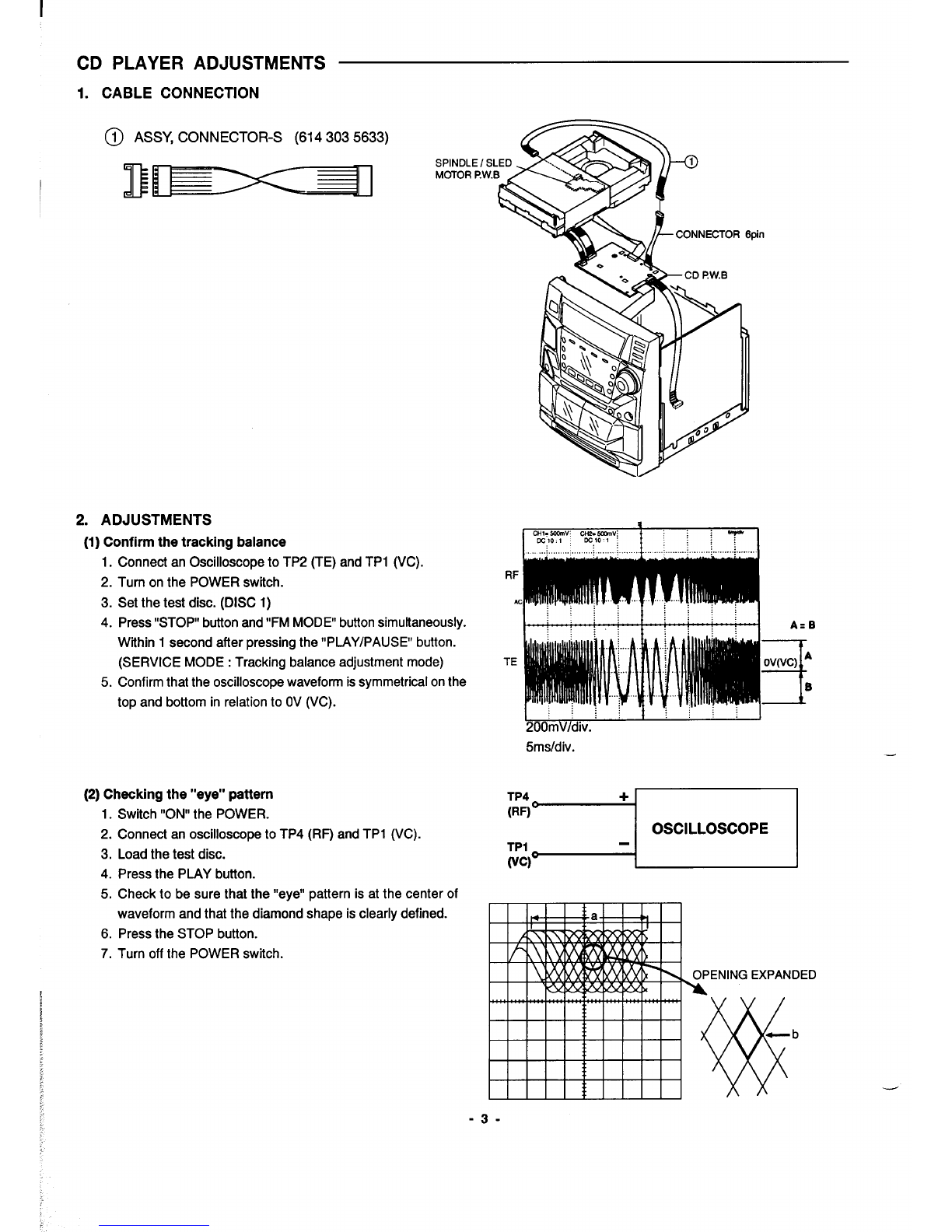

CD PLAYER ADJUSTMENTS
1. CABLE CONNECTION
@ASSY, CONNECTOR-S (6143035633)
M=
SPINDLE/S
MOTOR P.W.
pin
2. ADJUSTMENTS
(1) Confirm the tracking balance
1. Connect an Oscilloscope to TP2 (TE) and TP1 (VC).
2. Turn on the POWER switch.
3. Set the test disc. (DISC 1)
4. Press “STOP” button and “FM MODE’ button simultaneously.
Wtihin 1second after pressing the “PLAY/PAUSE button.
(SERVICE MODE: Tracking balance adjustment mode)
5. Confirm that the oscilloscope waveform is symmetrical on the
top and bottom in relation to OV(VC).
(2) Checking the “eye” pattern
1. Switch “ON” the POWER.
2. Connect an oscilloscope to TP4 (RF) and TP1 (VC).
3. Load the test disc.
4. Press the PLAY button.
5. Check to be sure that the “eye” pattern is at the center of
waveform and that the diamond shape is clearly defined.
6. Press the STOP button.
7. Turn off the POWER switch.
m
AC
1- 1,:: ,
:: +-
.,. . . . 4A=B
TE
3
Ov(vc) A
B
I200’mVidiv.’ ‘
I t
5ms/div.
DED
b
-3-
-
TAPE ADJUSTMENTS
Adjustment Item ITest Tape IMeasuring
Instrument
(a) HEAD AZIMUTH VT1738 etc. AC+oltmeter
DECK “A” (1OKHZ)
(b) HEAD AZIMUTH Ivl1738 etc. IAC-voltmeter
DECK “B” (l OKHz)
(c) MOTOR SPEED IMlT-l 11 FREQUENCY
(NORMAL) (3,000Hz) COUNTER
1. HEAD REPLACEMENT AND AZIMUTH ADJUSTMENT
(1) Head replacement
1.After replacement, demagnetize the heads by using a
degausser.
2. Be sure to clean the heads before attempting to make any
adjustments.
3. Be sure both channels (1 and 2) are the same level.
L
L
(Using adual-channels oscilloscope).
4. All wiring should be returned to the original position after
work is completed.
(2) Head azimuth
.DECK IIW
1. Remove the left side of CASSETTE LID.
2. Load a test tape (VTT-738,etc.: 10kHz) for azimuth
adjustment.
3. Press the PLAY button.
4. Use aflat-tip (-) screwdriver to turn the screw for normal
azimuth adjustment so that the left and right outputs are
maximized at the same phase during normal playback.
5. Press the STOP button.
●DECK “B”
1. Remove the right side of CASSEITE LID.
2. Load a test for azimuth adjustment.
3. Press the PLAY button.
4. Azimuth screw adjustment.
5. Press the STOP button.
Output connection Adjust Adjust
location value
SPEAKER TERMINAL HEAD AZIMUTH IMax.
SCREW
SPEAKER TERMINAL HEAD AZIMUTH IMax.
SCREW
SPEAKER TERMINAL VR311 3,000Hz
‘5 TAPE“B”
IUP HEAD
SRED
YELLOW WHITE
EARTH
.After making the adjustment, secure the azimuth
adjustment screw by applying screw lock (TB-1401 B).
-4-
I
TAPE ADJUSTMENTS
2. MOTOR REPLACEMENT AND SPEED ADJUSTMENT
(1) Motor replacement
(2) Motor speed
1. lnsertthe testtape (MTT-ll loretc.3,000 Hz)into DECKA.
2. Press the PLAY button.
3. AdjustVR311 so that the frequency counter show areading
of 3,020 &10 Hz.
4. Press the STOP button.
o•1
TAPE SPEED
ADJUSIW;
3. CHECKING THE MECHANISM TORQUES
oClean the head, capstan and pinch roller before making any measurement.
DECK “A & B“
Measurement Takwp torque Back tension Tape tension
Cassette for PLAY :TV-2111A PIAY :TW-2111A Drive-power cassette
measurement F.FWDIREW :TW-2231 TW-2412
PIAY 25-63 gr.cm 2.0- 6.0 gr.cm 70 gr or more
F.FWDIREW 60-120 gr.un
-5-
TUNER ADJUSTMENTS
●Use aplastic screw driver for adjustments.
●MODE :STEREO
●Speaker impedance: 60hm
●TUNING
FM :87.5- 108.0 MHz
AM :522-1710 kHz (9 kHz step)
TP12
J2102
(H)— —L2102
FM
‘y::;;A (E) “- TP11
(E) “–
AM I$?151-A ‘2107
AkT?N\A (H) “—
-
SG RF Level: 75Q open Voltage dE
Antenna :75fi unbalanced, Mc
1.FM Dev. :*22.5kHz(MONO) d
Step Adjusting Connection SG
Circuit Input output Frequency
1Cover --- Connect DigitalDCvoltmeter to 87.5 MHZ
voltage --- TP1 l(H), TP12(E). 108.0 MHZ
2Tracking ConnectFM SGto FMAntenna connect to VTVM 90.0 MHZ
(SG=8dBPV) TP25(L) or TP26(R),TP27(E) 106.0MHZ
TP25
c
(L CH)
R2325 TP27
&(E)
R2326 TP26
(R CH)
julation :1 kHz
22.5kHz(STEREO) *6.75kHz(PlLOT)
set Adjustment Remark
Position
Low El@ mcrathan 0.9V
High L21@ lessthan 8.0V
Low L2101 Max.
High I--- I
SG Modulation :1 kHz, 30?40
9AM Antenna, IRE LooP, Distance: 60 cm
. .. .... I
Step Adjusting Connection ISG
Circuit Input Ioutput Frequency
1Cover --- Connect Digital DC voltmeter to 522 kHZ
v-e --- TP1 l(H), TP12(E). 1710 kHZ
2Tracking Connect AM SG to Connect to VTVM 603 kHZ
Test loop Ant.(SG=80dB pV) TP25(L) or TP26(R), TP27(E). 1404 kHZ
High I--- Iless than 8.OV
Low II-2151-A IMax.
High --- I
-6-

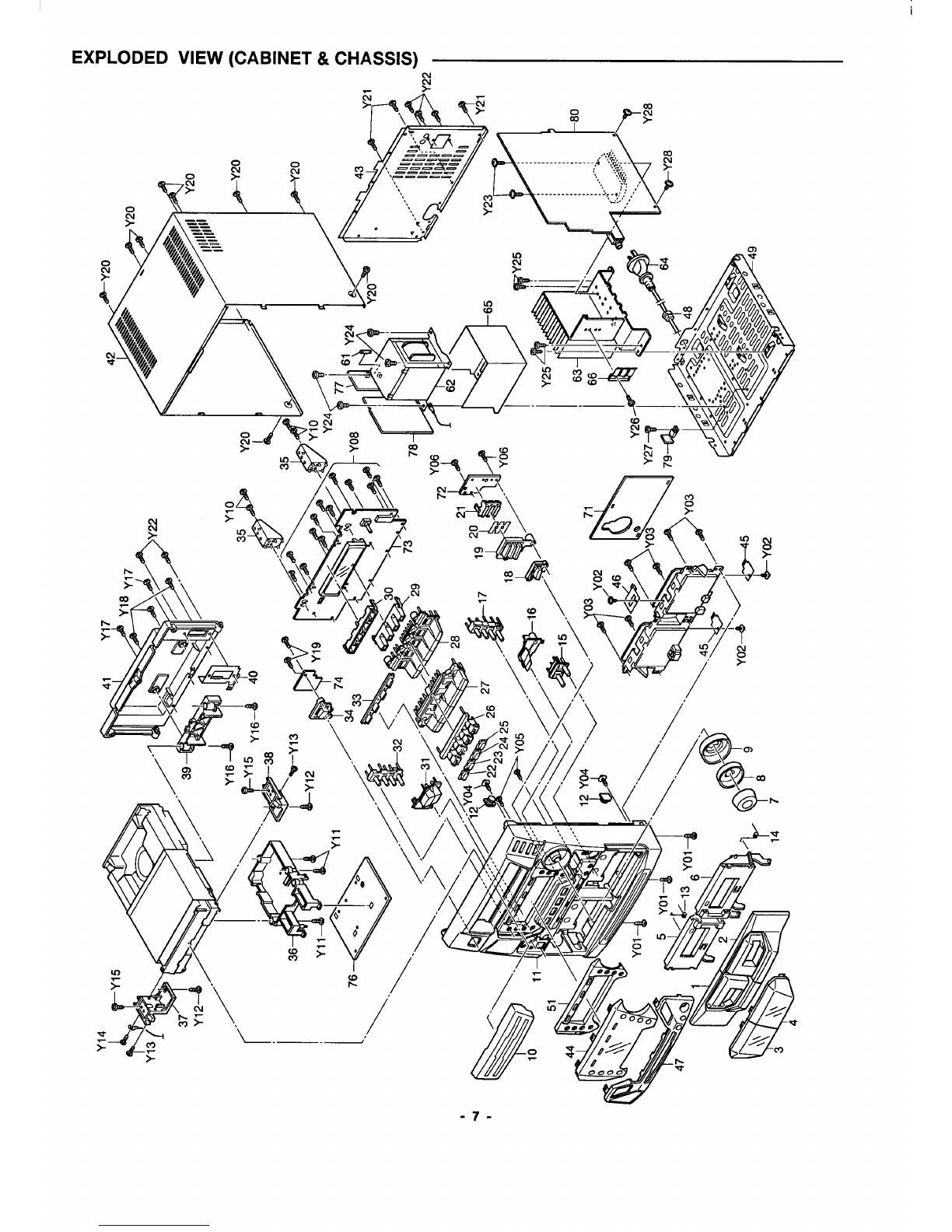

EXPLODED VIEW (CABINET &CHASSIS) @J
.x
o
mp-$
-7-
I
PARTS LIST
L
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL AIN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN BE OF
SPECIAL SIGNIFICANCE. WHEN REPIACING ACOMPONENT IDENTIFIED BY A ,USE ONLY THE REPLACEMENT PARTS DESIGNATED,
OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN THE PARTS LIST
IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 Wcarbon type and Oohm chip resistors.
Regular type capacitors are less than 50 Vand less than 1000 I.LFtype of Ceramic type and Electrical type.
PACKING &ACCESSORY
REF.NO. PART NO.
6143036760
6143039341
6143039358
6450243745
6143036944
6450326554
6450358098
6450051227
6142450055
CABINET &CHASSIS
REF. NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
‘L ;;
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
L 38
PART NO.
6143040989
6143016373
6143016403
6143016410
6142657898
6142657904
6143016502
6143016359
6143016496
6143016427
6143077305
6142708316
6143021896
6143024422
6143016335
6143016298
6143016274
6143016250
6143016243
6143021810
6143016564
6143027461
6143027478
6143027485
6143027492
6143016281
6143016311
6143023456
6143016571
6143003274
6143016304
6143016267
6143016434
6143016236
6143016533
6143003113
6143016526
6143016519
DESCRIPTION
CARTON CASE
CUSHION,TOP
CUSHION,BOTTOM
POLY SHEET,1300X550,SET
INSTRUCTION MANUAL
REMOTE CONTROL,RB-C30AR
BAITERY COVER,REMOTE CONTROL
ASSY,ANTENNA,LOOP
ANTENNA
DESCRIPTION
COVER,CASSETTE,LEFT
COVER,CASSETTE,RIGHT
DEC,WINDOW,LEFT
DEC,WINDOW,RIGHT
ASSY,LID,CASSETTE,DECK L
ASSY,LID,CASSETTE,DECK R
KNOB,ROTARY
CAP,VOL
DEC,WINDOW,VOL
DEC,CD,TRAY
ASSY,CABINET,FRONT
ASSY,GEAR
SPRING,WIRE,LID CASSETTE L
SPRING,WIRE,LID CASSEITE R
BUITON,REC
BUITON,TUNING
BUITON,SOUND
BUITON,CD,OPEN
BUITON,DISC,SELECT
DEC,SHEET,DISC,DLSCSELECT
REFLECTOR,DISC,SELECT
DEC,WINDOW,FUNC,CD
DEC,WINDOW,FUNC,TAPE
DEC,WINDOW,FUNC,TUNER
DEC,WINDOW,FUNC,VIDEO
BUITON,FUNCTION
BUITON,CD
BUITON,TAPE
REFLECTOR,FUNCTION
REFLECTOR SOUND,SOUND
BUITON,PRESET
BUITON,CLOCK
DEC,WINDOW,SOUND
BUTTON,POWER
MOUNTING,FRONT/CD MECHA
COVER PICK,CD PICK COVER
REF. NO. PART NO.
39 6143021834
40 6143021902
41 6143021858
42 6143056643
43 6143023746
44 6143016397
45 6142891117
46 6142891100
47 6143037897
48 6141291901
or 6142641884
49 6142904954
51 6143016380
FIXING PARTS
REF. NO. PART NO.
Yol 4110213503
Y02 4110243708
Y03 4110213503
Y04 4110209902
Y05 4111653803
Y06 4110213503
Y08 4110213503
Ylo 4110213503
Y11 4110213503
Y12 4110213503
Y13 4110211806
Y14 4110273101
Y15 4110213503
Y16 4110213503
Y17 4110213701
Y18 4110213701
Y19 4110213503
Y20 4110213701
Y21 4110213701
Y22 4110213701
MOUNTING, RIGHT, FRONT/CD MECHA y23 4110209506
MOUNTING, LEFT, FRONT/CD MECHA
-8-
DESCRIPTION
MOUNTING,PANEL REAWCD MECHA
TERMINAL,ANT,PANEL REAIWANT
PANEL,REAR,CD MECHA
ASSY,CABINET,BENDING
PANEL,REAR
DEC,WINDOW,FL
MOUNTING,BRACKET,
DECK MECHA BOITOM
MOUNTING,BRACKET,
DECK MECHA TOP
PANEL,OPERATION
FIXER,AC CORD
FIXER,AC CORD
ASSY,CABINET,BOTTOM
COVER,FL,BASE
DESCRIPTION
SCR S-TPG BIN 3X10,BOTTOM/FRONT
SCR S-TPG PAN+FLG 2X6,
DECK MECHA/MOUNTING PWB
SCR S-TPG BIN 3X1 O,DECK MECHA
SCR S-TPG BRZ+FLG 3X8,
GEAR CASSEITE
SCR S-TPG BIN 2.3X1O,
FRONT/PANEL OPERATION
SCR S-TPG BIN 3X1 O,DISC PWB
SCR S-TPG BIN 3X1 O,FRONT PWB
SCR S-TPG BIN 3X1 O,
MOUNTING CD FRONT
SCR S-TPG BIN 3XI0,
CD MECHNCOVER PICK
SCR S-TPG BIN 3X1O,
MOUNING FRONT/MOUNTING L,R
SCR S-TPG BIN 2.6X1O,
CD MECHA/MOUNTING LR
SCR S-TPG BIN 3X8,CD PWB GRAND
SCR S-TPG BIN 3X1O,
CD MECHA/MOUNTING LR
SCR S-TPG BIN 3X1 O,
CD MECHA/MOUNTING REAR
SCR S-TPG BIN 3X1 O,
CD MECHAIREAR
SCR S-TPG BIN 3X1 O,
BOITOM/PANEL REAR
SCR S-TPG BIN 3X1 O,POWER PWB
SCR S-TPG BIN 3X1 O,CABINET TOP
SCR S-TPG BIN 3X1 O,
BOITOM/PANEL REAR
SCR S-TPG BIN 3X1 O,
REAWELECT PARTS
SCR S-TPG BRZ+FLG 3X16,
POWER AMP
PARTS
REF. NO.
Y24
Y25
Y26
Y27
Y28
LIST
PART NO.
4110013905
4110213503
4110213503
4110216405
4110209902
ELECTRICAL PARTS
REF. NO. PART NO.
61 A4230167809
62 A6450338540
63 A6143039471
64 A6142565308
or A6450321887
65 6142916629
66 6142916568
CN381 6143047896
or 6143080206
CN382 6143036388
or 6143080190
CN383 6450359460
CN384 6450285509
CN681 6450337413
CN682 6143022107
or 6143048596
CN691 6450127687
DESCRIPTION
SCRS-TPG BIN4X6,TRANS
SCR S-TPG BIN 3X1O,
HEATSINKJBOTTOM
SCRS-TPGBIN3X1O,TR HOLDER
SCRS-TPG BIN3X8,POWER IC
SCRS-TPGBRZ+FLG 3X8,
AMPPWB/BOTTOM
DESCRIPTION
FUSE 250V 2A
TRANS,POWER,
ASSY,HEATSINK
POWER CORD
CORD, POWER-2.0MK
SHIELD,PT SHIELD
MOUNTING, PWB,TR HOLDER
ASSY,WIRE,DECK A
ASSY,WIRE,DECK A
ASSY,WIRE,DECK B
ASSY,WIRE,DECK B
FLEXIBLE FLAT CABLE,AMP-DECK
FLEXIBLE FLAT CABLE, FRONT-DECK
FLEXIBLE FLAT CABLE,CD
ASSY,WIRE,CD
ASSY,WIRE,CD-BASE MECHA
FLEXIBLE FLAT CABLE, FRONT-CD
DECK P.W.BOARD ASSY
REF. NO.
71
C3606
C3607
CN301
:N302
or
CN311
or
CN312
or
CN313
or
CN321
:N323
or
CN371
or
CN372
or
CN373
or
CN374
D3101
D3102
D3601
D3621
D3622
D3623
D3624
HS301
HS302
IC361
IC362
PART NO.
6143006053
4030617306
4030619607
6450125089
6450054181
6450125096
6450054204
6140354959
6450127823
6140206562
6142239223
6450122729
6450127830
6143036647
6143060336
6143036654
6143080343
6450057373
6450070068
6450056127
6450070099
6450056226
6450096433
6143056317
A4071486701
A4071486701
4070995105
4070124406
4070124406
4070124406
4070124406
6142159347
6142159347
4093462301
4090508200
DESCRIPTION
ASSY,PWB,DECK (Only Initial)
POLYESTER 4700P J50V
POLYESTER 0.047U J50V
SOCKET,FPC 10P
SOCKET,1OP
SOCKET,FPC 12P
SOCKET,12P
SOCKET, DIP 6P
SOCKET, DIP 6P
SOCKET,4P
SOCKET
SOCKET, DIP 7P
SOCKET, DIP 7P
CORD,6P CONNECTOR, A_MECHA
CORD,6P CONNECTOR, A_MECHA
CORD,7P CONNECTOR, B_MECHA
CORD,7P CONNECTOR, B_MECHA
PLUG,3P
PLUG,3P
PLUG,6P
PLUG,6P
PLUG,3P
PLUG,3P
CORD,l PCONNECTOR
DIODE 1A3-I
DIODE 1A3-I
ZENER DIODE MTZJ4.7B
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
HEAT SINK
HEAT SINK
IC BU2090F
ICTC4011 BF
REF. NO.
IC363
IC371
L3601
L3701
L3801
Q3122
or
or
or
or
Q3124
or
or
or
or
Q3125
or
or
or
or
Q3601
or
or
or
or
Q3602
or
or
or
or
Q3603
or
or
or
Q3605
or
or
or
:3611
or
:3621
or
Q3622
or
:3701
or
Q3702
or
or
or
or
Q3703
or
or
or
or
Q3704
or
or
Q3801
or
Q3802
or
or
PART NO. DESCRIPTION
409189344 IC BA7755A
4092511000 IC TA8189N
6450325823 TRANS,0SC,85KHZ
6450040580 INDUCTOR,l MJ
6450040560 INDUCTOR,l MJ
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB696-G
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051436706 TR KTC3199-GR
4050118609 TR2SC1740S-S
4050118500 TR2SC1740S-R
4050179600 TR 2SC3330-T
4050179709 TR 2SC3330-U
4051413307 TR KTC3196-GR
4051413208 TR KTC3198-Y
4050193804 TR 2SC536-G-NP
4050192708 TR 2SC536-F-NP
4051514905 TR KTC3200-GR
4051515001 TR KTC3200-BL
4050111907 TR 2SC1627-Y
4050126103 TR 2SC2003-L
4051376404 TR 2SC2003-K
4051099204 TR KRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1L4M
4051099402 TRKRC11 lM
4050003400 TR DTC114TS
4051099204 TR KRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1L4M
4051099402 TR KRC111 M
4050003400 TR DTC1 14TS
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859106 TR2SJ105-GR
4050953408 TR2SJ105-BL
4050952706 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859106 TR2SJ105-GR
4050953406 TR2SJ105-BL
4051099204 TR KRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1L4M
4051099402 TR KRC111 M
4050003400 TR DTC114TS
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
-9-
I
PARTS LIST
REF.NO,
or
or
Q3803
or
or
or
or
Q3804
or
or
R3608
VR311
PART NO. DESCRIPTION
4050859106 TR2SJ105-GR
4050953408 TR2SJ105-BL
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859106 TR 2SJ105-GR
4050953408 TR 2SJ105-BL
4051099204 TRKRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1L4M
4010114900 CARBON 82 JA l/2W
6450035685 VR,SEMI,2.2K N
DISC SWITCH P.W. BOARD ASSY
REF. NO.
72
CN661
or
D6621
D6622
D6623
D6624
D6625
D6626
R6609
R661O
R6611
R6624
R6625
R6626
S6608
or
or
S6609
or
or
S661 o
or
or
PART NO.
6143015505
6140354959
6450127823
4080374204
4080374204
4080374204
4080374204
4080374204
4080374204
4010382101
4010386406
4010390403
4010387502
4010387502
4010387502
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
DESCRIPTION
ASSY,PWB,DISC SW (Only Initial)
SOCKET, DIP 6P
SOCKET, DIP 6P
LED SLP-3118B-51 HAB-T1 ,DISC
LED SLP-31 18B-51 HAB-T1 ,DISC
LED SLP-31 18B-51 HAB-T1 ,DISC
LED SLP-31 18B-51 HAB-T1 ,DISC
LED SLP-31 18B-51 HAB-T1 ,DISC
LED SLP-31 18B-51 HAB-T1 ,DISC
MT-GLAZE 2.7K JA l/10W
MT-GIAZE 4.7K JA 1/1OW
MT-GLAZE 8.2K JA 1/1OW
MT-GLAZE 56 JA 1I1OW
MT-GLAZE 56 JA l/10W
MT-GLAZE 56 JA II1OW
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
FRONT P.W.BOARD ASSY
REF. NO.
73
BR601
C6095
CN601
CN602
or
CN603
or
CN604
or
CN608
or
CN612
or
D6001
D6002
D6003
D6004
D6201
D6202
D6203
D6204
PART NO.
6143047858
6143021407
4032915608
6450325809
6140354935
6450127809
6450125249
6450054280
6450125096
6450054204
6140354959
6450127823
6143036623
6143080329
4070124406
4070124406
4070124406
4070124406
4070994603
4080348700
4080348700
4080348700
4080348700
DESCRIPTION
ASSY,PWB,FRONT (Only Initial)
HOLDER,FL MOUNT
ELECT 1000U M6.3V
PLUG,22P,FRONT-PRE
SOCKET, DIP 4P
SOCKET, DIP 4P
SOCKET,FPC 20P
SOCKET,20P
SOCKET,FPC 12P
SOCKET,12P
SOCKET, DIP 6P
SOCKET, DIP 6P
CORD,4P CONNECTOR, FRONT-PT2
CORD,4P CONNECTOR, FRONT-PT2
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
ZENER DIODE MTZJ3.9B
LED SLZ-981 C-13 H-AB-T2,FUNC
LED SLZ-981 C-13 H-AB-T2,FUNC
LED SLZ-981 C-13 H-AB-T2,FUNC
LED SLZ-981 C-13 H-AB-T2,FUNC
REF. NO.
D6205
D6206
D6207
D6208
D6231
D6232
D6233
D6234
D6235
D6236
D6237
DS601
FL601
IC601
IC602
or
IC604
IC605
L6000
:6001
or
or
or
&oo2
or
Q6003
or
or
Q6005
or
or
or
&201
Q6202
Q6203
Q6204
Q6205
Q6206
06207
Q6208
Q6211
Q6212
Q6213
Q6214
Q6215
Q6216
Q6217
Q6218
S6001
S6100
or
or
S6101
or
or
S6102
or
or
S6103
PART NO.
4080406806
4080406806
4080406806
4080406806
4080384104
4080384104
4080384104
4080384104
4080384104
4080384104
4080384104
4080384104
4072039203
6450333194
4103535308
4094261903
4090397804
4093462301
4093462301
6450014550
6450317835
4051438706
4050118500
4050118609
4050179600
4050179709
4050020308
4050055508
4051413703
4050082405
4050082504
4051438706
4050118500
4050118609
4050179600
4050179709
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
4051465306
6450333460
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
DESCRIPTION
LED SLZ-981 fX6H-ABT2,
SOUND.PRESET
LED SIZ-981 C-06 H-AB-T2,
SOUND_PRESET
LED SLZ-981C-06H-ABT2,
SOUND_PRESET
LED S12-981 C-06 H-AB-T2,
SOUND.PRESET
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
LED SLP-3130C-81 H-AB-T1 ,ENCODER
PHOTO DIODE SPS-442-1-E,IR
FLOURESCENT TUBE,FL
IC LC866548A-5M86
IC KIA4558F
IC NJM4558M
IC BU2090F
IC BU2090F
INDUCTOR, IOU K
INDUCTOR,l OU K
TR KTC3199-GR
TR 2SC1740S-R
TR 2SC1740S-S
TR 2SC3330-T
TR 2SC3330-U
TR 2SA1037K-R
TR 2SA812-M6
TR KTA1271-Y
TR 2SB698-F
TR 2SB698-G
TR KTC3199-GR
TR 2SC1740S-R
TR2SC1740S-S
TR 2SC3330-T
TR 2SC3330-U
TR KRA102S
TR KRA102S
TR KRA102S
TRKRA102S
TRKRA102S
TRKRA102S
TR KRAI 02S
TRKRA102S
TRKRA102S
TR KRA102S
TR KRA102S
TRKRA102S
TRKRA102S
TRKRA102S
TRKRA102S
TRKRA102S
SWITCH, ROTARY(ENCODER),VOL
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-IT
SWITCH,TACT
SWITCH,TACT
-1o-
REF. NO.
or
or
S6104
or
or
S6105
or
or
S6106
or
or
S6107
or
or
S6115
or
or
S6116
or
or
S6117
or
or
S6118
or
or
S6119
or
or
S6120
or
or
S6121
or
or
S6122
or
or
S6123
or
or
S6124
or
or
S6125
or
or
S6126
or
or
S6130
or
or
S6131
or
or
S6132
or
or
S6133
or
or
S6134
or
or
S6135
or
PART NO. DESCRIPTION
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
8142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-IT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
REF. NO.
or
S6136
or
or
S8137
or
or
TA601
X6001
X6002
PART NO. DESCRIPTION —
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6141121444 DOUBLE FACE, LCD
6142527627 RESONATOR,XTAL
6450186103 0SC,CERAMIC,6MHZ
POWER SWITCH P.W.BOARD ASSY
REF. NO. PART NO.
74 6143015512
S6740 6142401002
or 6450065958
or 6142205471
CD P.W.BOARD ASSY
REF. NO.
76
CN101
CN111
CN113
CN114
or
CN115
or
CN122
CN123
CN124
or
CN125
or
D1211
D1221
D1480
or
D1601
D1602
D1603
D1604
D1981
Iclol
IC102
IC103
IC131
IC132
L1451
LG101
Q1301
or
or
Q1401
or
or
R1211
or
R1221
or
TIOO1
X1451
-11-
PART NO.
6143045625
6450058110
6450335525
6450058127
6140206562
6142239223
6140206609
6142239261
6450125539
6450060946
6143022084
6143048572
6143022091
6143048589
4070639108
4070995303
4070124406
4070125809
A4071486701
A4071486701
A4071486701
A4071486701
4070995204
4093788104
4094352106
A4093729602
A4094414507
A4094414507
6450317835
6141299082
4050087202
4050087301
4050086809
A4051413604
A4050095207
A4050019302
A4020720207
A4020820709
A4020720207
A4020820709
A4072120505
6142312667
DESCRIPTION
ASSY,PWB,POWER SW (Only Initial)
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
DESCRIPTION
ASSY,PWB,CD (Only Initial)
PLUG,4P,TP1-4
SOCKET,FFC 16P,CD_PlCKUP
PLUG,6P,BASEMECHA
SOCKET,4P
SOCKET
SOCKET,8P
SOCKET
SOCKET,FPC 20P
PLUG,7P
AssY,wlRE,cD-cDMEcHA_4P
ASSY,WIRE,CD-MECHA,4P
AssY,wlRE,cD-cDMEcHA_8P
ASSY,WIRE,CD-M ECHA,8P
ZENER DIODE MTZJ6.8B
ZENER DIODE MTZJ5.6B
DIODE 1SS133
DIODE 1SS176
DIODE 1A3-I
DIODE 1A3-I
DIODE 1A3-I
DIODE 1A3-I
ZENER DIODE MTZJ5.1 B
IC LA9240ML
lC LC78622NE
IC LA6541
IC TA7291 S(M)
IC TA7291 S(M)
INDUCTOR,1OU K
LUG, CD-MECHA
TR 2S681 O-E
TR 2S681 O-F
TR 2SB808-F-SPA
TR KTA1273-Y
TR 2S6927-S
TR 2SA1 020-Y
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
THERMISTOR RXE065
RESONATOR
PARTS LIST
POWER TRANSFORMER, PRIMARY REGULATOR P.W.BOARD ASSY
REF. NO.
77
FCL41
or
FCL42
or
L4999
WR498
WR499
P.W.BOARD ASSY REF. NO. PART NO. DESCRIPTION
PART NO. DESCRIPTION 79 6143052388 ASSY,PWB,REG (Only initial)
6143035022 ASSY,PWB,PTl [Onlvlnitial) CN425 6140354928 SOCKET. DIP3P
6450317903 HOLD’ER,FUSE -
6450064760 HOLDER,FUSE
6450317903 HOLDER,FUSE
6450064760 HOLDER,FUSE
A6142342800 INDUCTOR, FERITE
6140178203 TERMINAL BOARD
6140178203 TERMINAL BOARD
or 6142379769 SOCKET’
IC425 A4093968704 IC KIA7805PI
or A4091452809 IC NJM7805FA
or 4094636701 IC KIA7805API
AMPLIFIER &TUNER P.W.BOARD ASSY
REF. NO.
78
C4936
C4937
C4938
C4955
LCN493
or
CN495
CN497
or
D4470
D4471
D4472
D4930
D4931
D4932
D4933
D4934
D4935
D4950
D4951
D4952
D4953
D4970
LUG49
PR493
PR495
Q4470
‘u or
or
or
or
:4471
or
or
or
or
:4950
or
or
or
or
or
R4954
R4955
R4970
R4971
L
TRANSFORMER, SECONDARY
PART NO.
6143034933
4033296201
4033296201
4030626506
4033296102
6450060915
6450096440
6450234378
6140354928
6142379769
4070995204
4070124406
4070996102
A4071965800
A4071965800
A4071965800
A4071965800
A4071486701
A4071486701
4070124406
4070124406
4070999509
4070996003
4070124406
6140519808
A6450255137
A6450255137
4051413406
4051413505
4050052002
4050051906
4050044502
4050045004
4051413406
4051413505
4050052002
4050051906
4050044502
4050045004
4051413406
4051413505
4050052002
4050051906
4050044502
4050045004
A4020810106
A402081 1004
A. 4020822802
A4020810809
P.W.BOARD
DESCRIPTION
REF.NO.
80
C2457
or
ASSY,PWB,PT2 (Only Initial)
ELECT2200UM35V
ELECT2200UM35V
POLYESTER 0.056UJ50V
ELECT IOOOUM35V
PLUG,4P
PLUG,4P
SOCKET,7P
SOCKET, DIP 3P
SOCKET
ZENER DIODE MTZJ5.lB
DIODE 1SS133
ZENER DIODE MTZJ1OB
DIODE 1N5402BD82
DIODE 1N5402BD82
DIODE 1N5402BD82
DIODE 1N5402BD82
DIODE 1A3-I
DIODE IA3-I
DIODE 1SS133
DIODE 1SS133
ZENER DIODE MTZJ30B
ZENER DIODE MTZJ9.1 B
DIODE 1SS133
LUG
PROTECTOR,7A 125V
PROTECTOR,7A 125V
TR KTA1266-GR
TR KTA1266-Y
TR 2SA733-P
TR 2SA733-K
TR 2SA608-F-NP
TR 2SA608-G-NP
TR KTA1266-GR
TR KTA1266-Y
TR 2SA733-P
TR 2SA733-K
TR 2SA608-F-NP
TR 2SA608-G-NP
TR KTA1266-GR
TR KTA1266-Y
TR 2SA733-P
TR 2SA733-K
TR 2SA608-F-NP
TR 2SA606-G-NP
FUSIBLE RES 2.2 JA l/4W
FUSIBLE RES 10 JA l/4W
RESISTOR 10 J- lW
RESISTOR 680 J- lW
ASSY C4705
C4706
C4750
C4751
C4805
C4806
C4850
C4851
C4902
C4903
CN201
or
CN412
or
CN422
CN452
CN454
or
CN455
CN460
tN470
CN492
D2101
D2102
D2103
or
or
or
D2104
or
or
or
D2151
or
or
or
D2451
or
or
or
D2452
D2462
or
or
or
D411O
D4111
D4112
D4114
D441 O
D4414
D4416
D4501
-12-
PART NO.
6143034926
4031061603
4032590508
4030572407
4030572407
4031850108
4031849805
4030572407
4030572407
4031850108
4031849805
4040794301
4040794301
6450050695
6450317910
6450122729
6142496770
6450090042
6142498613
6450125089
6450054181
6450325816
6143026396
6143080312
6450333071
6450234378
4071578109
4071578109
4070124406
4070125809
4071536109
4070079904
4070124406
4070125809
4071536109
4070079904
4070124406
4070125809
4071536109
4070079904
4070124406
4070125809
4071536109
4070079904
4071537502
4070124406
4070125809
4071536109
4070079904
4070124406
4070124406
4070124406
4070124406
4070124406
4070124406
A4071486701
4070998102
DESCRIPTION
ASSY,PWB,AMP-TU (Only Initial)
NP-ELECT 1UQ50V
NP-ELECT 1UM50V
POLYESTER 0.1 UJ50V
POLYESTER 0.1 UJ50V
MT-POLYEST 0.47U J50V
MT-POLYEST 0.22U J50V
POLYESTER 0.1 UJ50V
POLYESTER 0.1 UJ50V
MT-POLYEST 0.47U J50V
MT-POLYEST 0.22U J50V
ELECT 2200U M63V
ELECT 2200U M63V
TERMINAL,ANT
TERMINAL
SOCKET, DIP 7P
SOCKET
JACK, PHONE D6.43
SOCKET,VIDEO
SOCKET,FPC 10P
SOCKET,1OP
SOCKET,22P
CORD,7P CONNECTOR
CORD,7P CONNECTOR,AMP-CD
TERMINAL, SPEAKER
SOCKET,7P
SVC211-B
SVC211-B
DIODE 1SS133
DIODE 1SS176
DIODE 1SS1 19-041
DIODE GMAO1
DIODE 1SS133
DIODE 1SS176
DIODE 1SS1 19-041
DIODE GMAO1
DIODE 1SS133
DIODE 1SS176
DIODE 1SS1 19-041
DIODE GMAO1
DIODE 1SS133
DIODE 1SS176
DIODE 1SS1 19-041
DIODE GMAO1
ZENER DIODE GZS3.OB
DIODE 1SS133
DIODE 1SS176
DIODE 1SS1 19-041
DIODE GMAO1
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1A3-I
ZENER DIODE MTZJ1OB
I
PARTS LIST
REF. NO,
D4700
D4701
D4900
D4901
D4902
D4903
D4920
D4921
D4940
D4960
IC211
IC231
IC245
IC411
IC458
IC459
IC470
L2101
I2102
L2103
or
L2151
L2451
or
IJ?901
L4700
or
L4800
or
Q2451
or
or
Q411O
or
or
or
or
Q4401
or
or
or
or
Q441 O
or
or
or
or
Q4411
or
or
or
or
Q4431
or
or
or
or
or
Q4432
or
or
or
or
Q4433
or
or
or
PART NO. DESCRIPTION
4070639108 ZENER DIODE MTZJ6.8B
4070639108 ZENER DIODE MTZJ6.8B
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
4070996805 ZENER DIODEMTZJ13B
4070994603 ZENER DIODE MTZJ3.9B
4070996805 ZENER DIODEMTZJ13B
4070996805 ZENER DIODEMTZJ13B
4092925807 IC TA8176SN
4093792705 IC LA1832ML
4094394502 ICLC72121 M-D
4094261804 IC KIA4558S
4094312506 IC LC75365NE-R
4094261804 IC KIA4558S
A4094378007 ICSTK411-200E
6450180163 COIL, AIR
6450180224 COIL, AIR
6450021534 INDUCTOR,8.2U K
6450317859 INDUCTOR,8.2U K
6450230127 TUNER
6450014581 INDUCTOR,l 00U K
6450317642 INDUCTOR,l 00U K
6450040511 INDUCTOR,270U J
6142021712 V.H.F COIL
6141969763 V.H.F COIL
6142021712 V.H.F COIL
6141969763 V.H.F COIL
4051515209 TR KRA107M
4050782404 TR BN1A4P
4050000904 TR DTA114YS
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TRKTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
REF. NO.
or
Q4434
or
or
or
or
Q4435
or
or
or
or
Q4436
or
or
or
or
Q4438
or
or
or
or
Q4439
or
or
or
or
Q4500
or
Q4595
or
or
or
or
Q4600
or
Q4695
or
or
or
or
Q4700
or
Q4701
or
or
or
or
Q4702
or
or
or
or
or
Q4800
or
Q4920
or
or
or
or
or
Q4921
or
or
or
or
or
PART NO. DESCRIPTION
4050122002 TR 2SC1815-GR
4051413307 TR KTC3196-GR
4051413208 TR KTC3196-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TRKTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC181SGR
4051514400 TR KTD1303
4050210600 TR2SD101 2-G-SPA
4051413307 TRKTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051514400 TR KTD1303
4050210600 TR 2SD1012-G-SPA
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051514400 TR KTD1303
4050210600 TR 2SD1 012-G-SPA
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051514400 TR KTD1303
4050210600 TR 2SD1 012-G-SPA
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
-13-

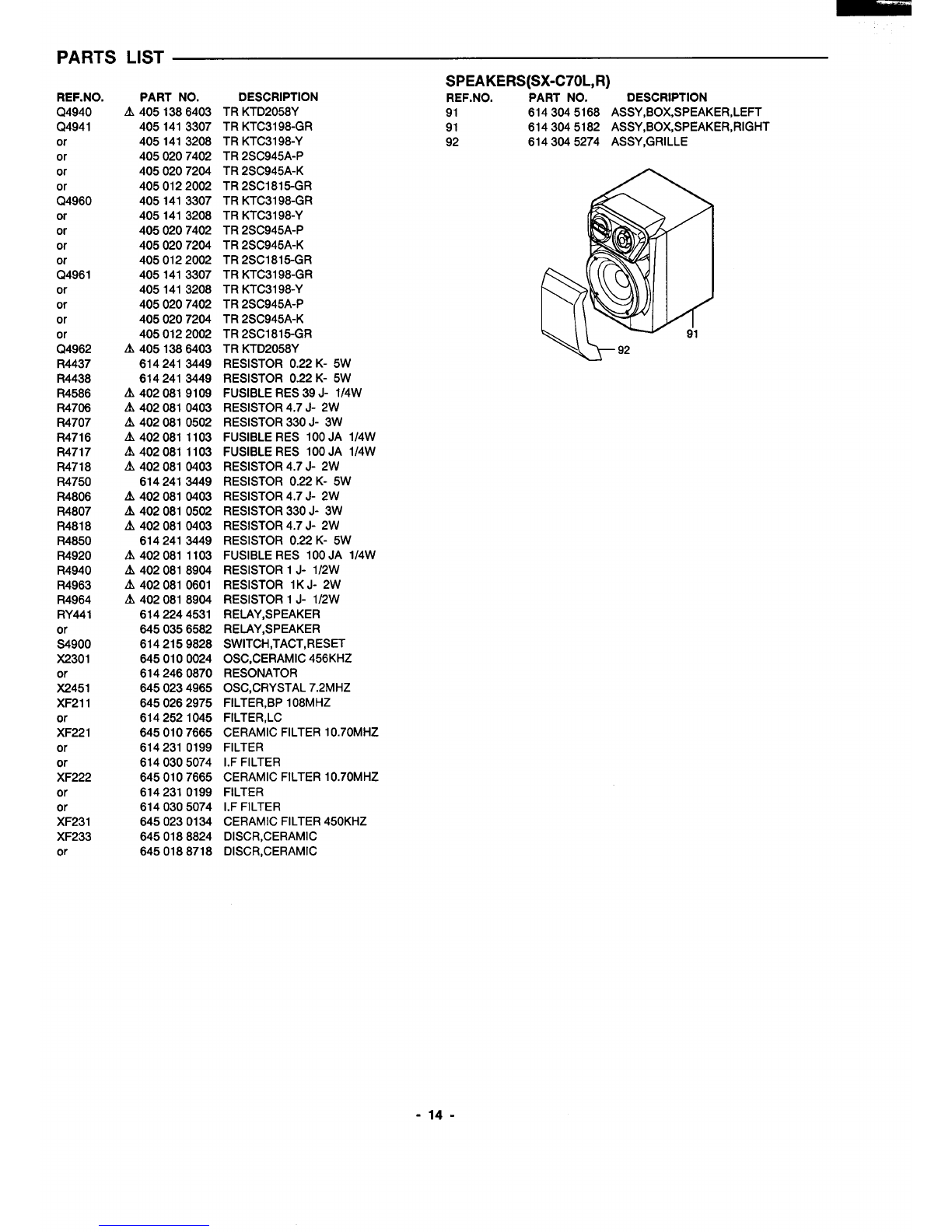

PARTS LIST
SPEAKERS(SX-C70L, R)
REF. NO.
Q4940
Q4941
or
or
or
or
Q4960
or
or
or
or
Q4961
or
or
or
or
Q4962
R4437
R4438
R4586
R4706
R4707
R4716
R4717
R4718
R4750
R4806
R4807
R4818
R4850
R4920
R4940
R4963
R4964
RY441
or
S4900
X2301
or
X2451
XF211
or
XF221
or
or
XF222
or
or
XF231
XF233
Or
PART NO.
A4051386403
4051413307
4051413208
4050207402
4050207204
4050122002
4051413307
4051413208
4050207402
4050207204
4050122002
4051413307
4051413208
4050207402
4050207204
4050122002
A4051386403
6142413449
6142413449
A4020819109
A4020810403
A4020810502
A402081 1103
A4020811103
A4020810403
6142413449
A4020810403
A4020810502
A4020810403
6142413449
A402O8111O3
A4020818904
A4020810601
A4020818904
6142244531
6450356582
6142159828
6450100024
6142460870
6450234965
6450262975
6142521045
6450107665
6142310199
6140305074
6450107665
6142310199
6140305074
6450230134
6450188824
6450188718
DESCRIPTION REF.NO. PART NO.
TRKTD2058Y 91 6143045168
TRKTC3198-GR 91 6143045182
TRKTC3198-Y 92 6143045274
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTC3198-GR
TRKTC3198-Y
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTC3198-GR
TRKTC3198-Y
TR2SC945A-P
TR2SC945A-K
TR2SC1815-GR
TRKTD2058Y
RESISTOR 0.22K- 5W
RESISTOR 0.22K- 5W
FUSIBLERES39J- l/4w
RESISTOR4.7J- 2W
RESISTOR330J- 3W
FUSIBLERES 100JA l/4W
FUSIBLERES 100JA l/4W
RESISTOR 4.7 J- 2W
RESISTOR 0.22 K- 5W
RESISTOR 4.7 J- 2W
RESISTOR 330 J- 3W
RESISTOR 4.7 J- 2W
RESISTOR 0.22 K- 5W
FUSIBLE RES 100 JA l/4W
RESISTOR 1J- l/2W
RESISTOR 1KJ- 2W
RESISTOR 1J- l/2W
RELAY, SPEAKER
RELAY, SPEAKER
SWITCH,TACT,RESET
OSC,CERAMIC 456 KHZ
RESONATOR
OSC,CRYSTAL 7.2MHZ
FILTER,BP 108MHZ
FILTER,LC
CERAMIC FILTER 10.70MHZ
FILTER
I.F FILTER
CERAMIC FILTER 10.70MHZ
FILTER
I.F FILTER
CERAMIC FILTER 450 KHZ
DISCR,CERAMIC
DISCR,CERAMIC
DESCRIPTION
ASSY,BOX,SPEAKER, LEFT
ASSY,BOX,SPEAKER, RIGHT
ASSY,GRILLE
w“
-14-
I
EXPLODED VIEW (TAPE MECHANISM)
P-A-r
ii~%i(EiJ?ii-TM”58
f—+ iIf#TMo93
FTM083
—TM043
*
TMo95—
TM085
3
TM042
~;Mo40
TM041
TM038
I
*4
‘#—TM037
‘-b. &
..~–TM087
&
—TM015
‘M102*!M096$ TM014
TM&TM:i9j’j~~q &J
,-,
,-0
,1 ,
<
,—TM101
)
em.
,! II~y]
$4
TM033–- 2KM y— -~ -~;;~9”TM06?M093_T3 ~“,
TMo92p’p ~W;Jy_R
.
TM032 I , ‘I
TMO12— R‘TM014
4
TMO09
“H %,. .
TM055LI I
+
TM020
TM019
TM115 ,>’ TMO1o
LTM114 TM079 TM020 TM108
L&
\TM113
4
*+
TM088
Y
~—TM019 TM044<4 ~~
—TM100 ‘TMo20—
P
TM019
—TM028 +
ATM100 TM033
‘M076L-w
I
-15-
—

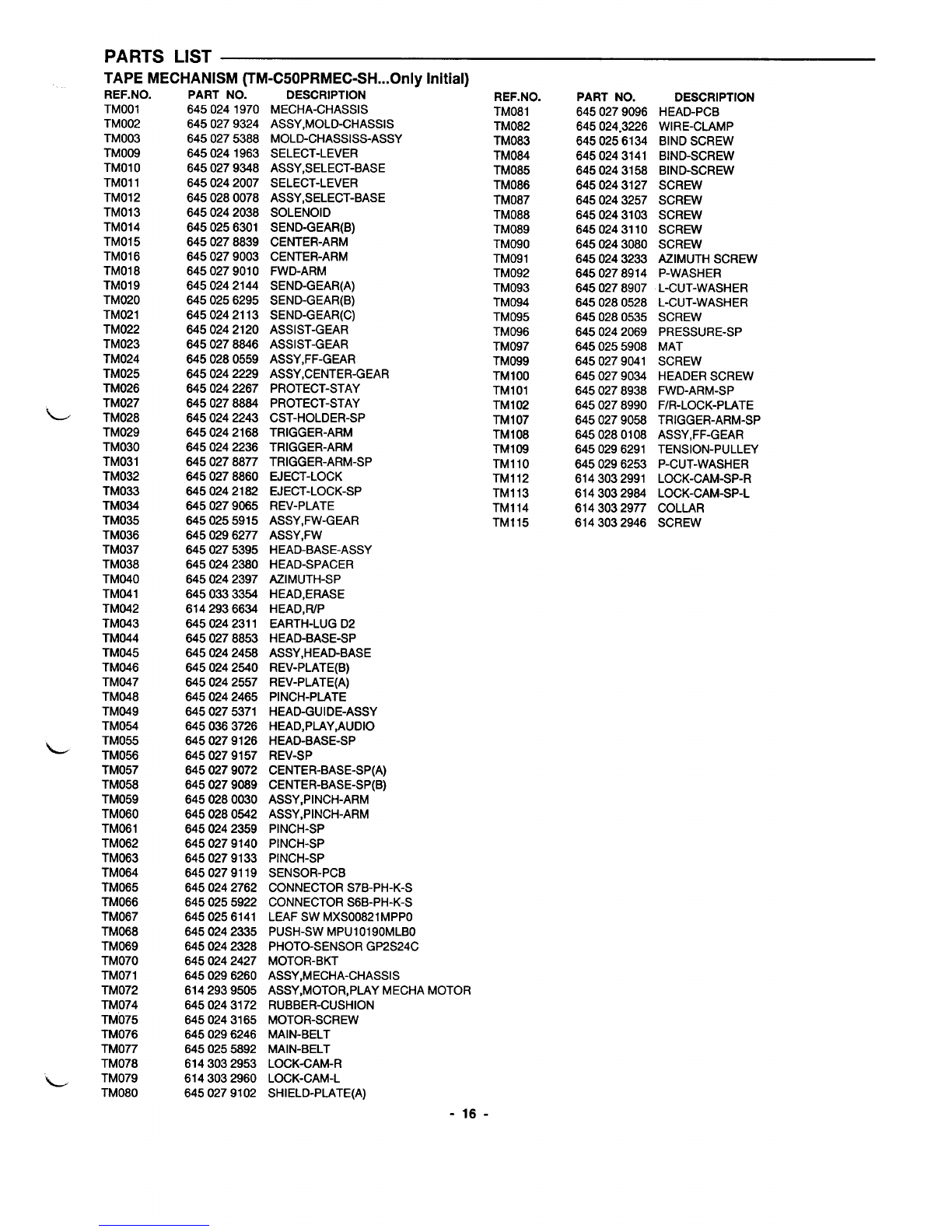

PARTS LIST
TAPE MECHANISM (TM-C50PRMEC-SH... Only Initiai)
REF. NO.
TMOO1
TMO02
TMO03
TMO09
TMO1O
TMO11
TM012
TM013
TM014
TM015
TM016
TMO18
TM019
TM020
TM021
TM022
TM023
TM024
TM025
TM026
TM027
TM028
TM029
TM030
TM031
TM032
TM033
TM034
TM035
TM036
TM037
TM038
TM040
TM041
TM042
TM043
TM044
TM045
TM046
TM047
TM048
TM049
TM054
TM055
TM056
TM057
TM058
TM059
TM060
TM061
TM062
TM063
TM064
TM065
TM066
TM067
TM068
TM069
TM070
TM071
TM072
TM074
TM075
TM076
TM077
TM078
LTM079
TM080
PART NO. DESCRIPTION
6450241970 MECHA-CHASSIS
6450279324 ASSY,MOLD-CHASSIS
6450275388 MOLD-CHASSISS-ASSY
6450241963 SELECT-LEVER
6450279348 ASSY,SELECT-BASE
6450242007 SELECT-LEVER
6450280078 ASSY,SELECT-BASE
6450242038 SOLENOID
6450256301 SEND-GEAR(B)
6450278839 CENTER-ARM
6450279003 CENTER-ARM
6450279010 FWD-ARM
6450242144 SEND-GEAR(A)
6450256295 SEND-GEAR(B)
6450242113 SEND-GEAR(C)
6450242120 ASSIST-GEAR
6450278846 ASSIST-GEAR
6450280559 ASSY,FF-GEAR
6450242229 ASSY,CENTER-GEAR
6450242267 PROTECT-STAY
6450278884 PROTECT-STAY
6450242243 CST-HOLDER-SP
8450242168 TRIGGER-ARM
6450242236 TRIGGER-ARM
6450278877 TRIGGER-ARM-SP
6450278860 EJECT-LOCK
6450242182 EJECT-LOCK-SP
6450279085 REV-PLATE
6450255915 ASSY,FW-GEAR
6450296277 ASSY,FW
6450275395 HEAD-BASE-ASSY
6450242380 HEAD-SPACER
6450242397 AZIMUTH-SP
6450333354 HEAD, ERASE
6142936634 HEAD,FUP
6450242311 EARTH-LUG D2
6450278853 HEAD-BASE-SP
6450242458 ASSY,HEAD-BASE
6450242540 REV-PLATE(B)
6450242557 REV-PLATE(A)
6450242465 PINCH-PLATE
6450275371 HEAD-GUI DE-ASSY
6450383726 HEAD, PLAY,AUDIO
6450279126 HEAD-BASE-SP
6450279157 REV-SP
6450279072 CENTER-BASE-SP(A)
8450279089 CENTER-BASE-SP(B)
6450280030 ASSY,PINCH-ARM
6450280542 ASSY,PINCH-ARM
6450242359 PINCH-SP
6450279140 PINCH-SP
6450279133 PINCH-SP
6450279119 SENSOR-PCB
6450242762 CONNECTOR S7B-PH-K-S
6450255922 CONNECTOR S6B-PH-K-S
6450256141 LEAF SW MXSO0821 MPPO
6450242335 PUSH-SW MPU101 90MLB0
6450242328 PHOTO-SENSOR GP2S24C
6450242427 MOTOR-BKT
6450296260 ASSY,MECHA-CHASSIS
6142939505 ASSY,MOTOR,PLAY MECHA
6450243172 RUBBER-CUSHION
6450243165 MOTOR-SCREW
6450296246 MAIN-BELT
6450255892 MAIN-BELT
6143032953 LOCK-CAM-R
6143032960 LOCK-CAM-L
6450279102 SHIELD-PLATE(A)
REF. NO.
TM081
TM082
TM083
TM084
TM085
TM086
TM087
TM088
TM089
TM090
TM091
TM092
TM093
TM094
TM095
TM096
TM097
TM099
TM100
TM101
TM102
TM107
TM108
TM109
TM11O
TM112
TM113
TM114
TM115
PART NO. DESCRIPTION
6450279096 HEAD-PCB
645024.3226 WIRE-CLAMP
6450256134 BIND SCREW
6450243141 BIND-SCREW
6450243158 BIND-SCREW
6450243127 SCREW
6450243257 SCREW
6450243103 SCREW
6450243110 SCREW
6450243080 SCREW
6450243233 AZIMUTH SCREW
6450278914 P-WASHER
6450278907 L-CUT-WASHER
6450280528 L-CUT-WASHER
6450280535 SCREW
6450242069 PRESSURE-SP
6450255908 MAT
6450279041 SCREW
6450279034 HEADER SCREW
6450278938 FWD-ARM-SP
6450278990 F/R-LOCK-PLATE
6450279058 TRIGGER-ARM-SP
6450280108 ASSY,FF-GEAR
6450296291 TENSION-PULLEY
6450296253 P-CUT-WASHER
6143032991 LOCK-CAM-SP-R
6143032984 LOCK-CAM-SP-L
6143032977 COLLAR
6143032946 SCREW
MOTOR
-16-
EXPL.ODED VIEW (CD CHANGER MECHANISM)
c“”-~ A
‘“11
CM14+
-17-
PARTS LIST
CD CHANGER MECHANISM (PM-CDC1OTP-SH ... Only Initial)
ntpmu,
CMO1
CM02
CM03
CM04
CM05
CM06
CM07
CM08
CM09
CM1 O
CM1l
CM12
CM13
CM14
CM15
CM16
CM17
CM18
CM19
CM23
LCM24
CM25
CM26
CM27
CM28
CM29
CM30
CM31
CM32
CM33
CM34
CM35
CM36
CM37
CM38
PAH INU.
6450336072
6450337512
6450335976
6450336898
6450336041
6450336065
6450336058
6450335945
6450335952
6450336713
6450336027
6450336904
6450336911
6450336928
6450335877
6450335884
6450335907
6450336324
6450335990
6450336089
6450336539
6450336461
6450336201
6450336232
6450336270
6450336102
6450336287
6450336225
6450336034
6450336140
6450336157
6450336430
6450335969
6450336980
6450336416
DESCRIPTION
ASSY,CHASSIS
DRAWER 2
ASSY,HOLDER L,DRAWER
ASSY,HOLDER R3B,DRAWER
ASSY,PCBOARD A
ASSY,PCBOARD B
ASSY,PCBOARD C
LEADWIRE
LEADWIRE
SPACERSW
ASSY,GEAR DRIVE,SINCHRO
ASSY,CRG 1OO,CARRIAGE NO.1
ASSY,CRG200
ASSY,CRG300
INSULATER
INSULATER
CUSHION
BEVELGEAR4
ASSY,GEAR STAR,CARRIAGE LIFT
COVER 2
SHAFT
SLIDER 4
GEARSPLINE
BEVELGEAR1
GEARIDLER1
PLATESPRING
BEVELGEAR3
PULLEY C
ASSY,CLAMPER
ARMSLIDERR
ARMSLIDERL
SLIDER 1
ASSY,SLIDER 2,FWDIRVS
ARMSTOPPERA2
ARMSTOPPERB
REF.NO.
CM39
CM40
CM41
CM43
CM44
CM45
CM46
CM47
CM48
CM49
CM50
CM51
CM52
CM60
CM61
CM62
CM63
CM64
CM65
CM66
CM67
PART NO.
6450336263
6450336218
6450336447
6450336454
6450335778
6450335785
6450337048
6450336393
6450336003
6450336010
6450335723
6143037545
6450335747
6450335648
6450335594
6450337031
6450335563
6450335631
6450335570
6450335600
6450335617
DESCRIPTION
GEAR IDLER A2
GEAR IDLER C
LEVER
LIFfER,CARRIGE Ll~ UP
BELT
BELT
SPRING
PULLEY A
ASSY,MOTOR CARRIGE
ASSY,MOTOR DRAWER
SPRING
SPRING
SPRING
WASHER
SCREW
SCREW
SCREW
WASHER
SCREW
SCREW
SCREW
CD BASE MECHANISM (CD213CCM-SNSH . . . Only Initial)
REF. NO.
PMO1
PMO1-1
PM02
PM03
PM04
PM05
PM06
PM08
PM09
PART NO.
6450336751
6450336812
6450336744
6450336805
6450336799
6450336829
6450336775
6450336782
6450336768
6143035626
DESCRIPTION
ASSY,MOTOR CHASSIS,BASE
GEAR BRP,SLED GEAR
ASSY,MOTOR GEAR,SLED
SLED SHAFT,PICK RAIL
GEAR AS,PICK DRIVE GEAR
SCREW+ P2*3,SLED MOTOR FIX
LEAF SWITCH, LIMIT SWITCH
MOTOR 6P SPWB
CONNECTOR PIN 6P
PICK UP
EXPLODED VIEW [CD BASE MECHANISM)
L
PM02 A
-18-

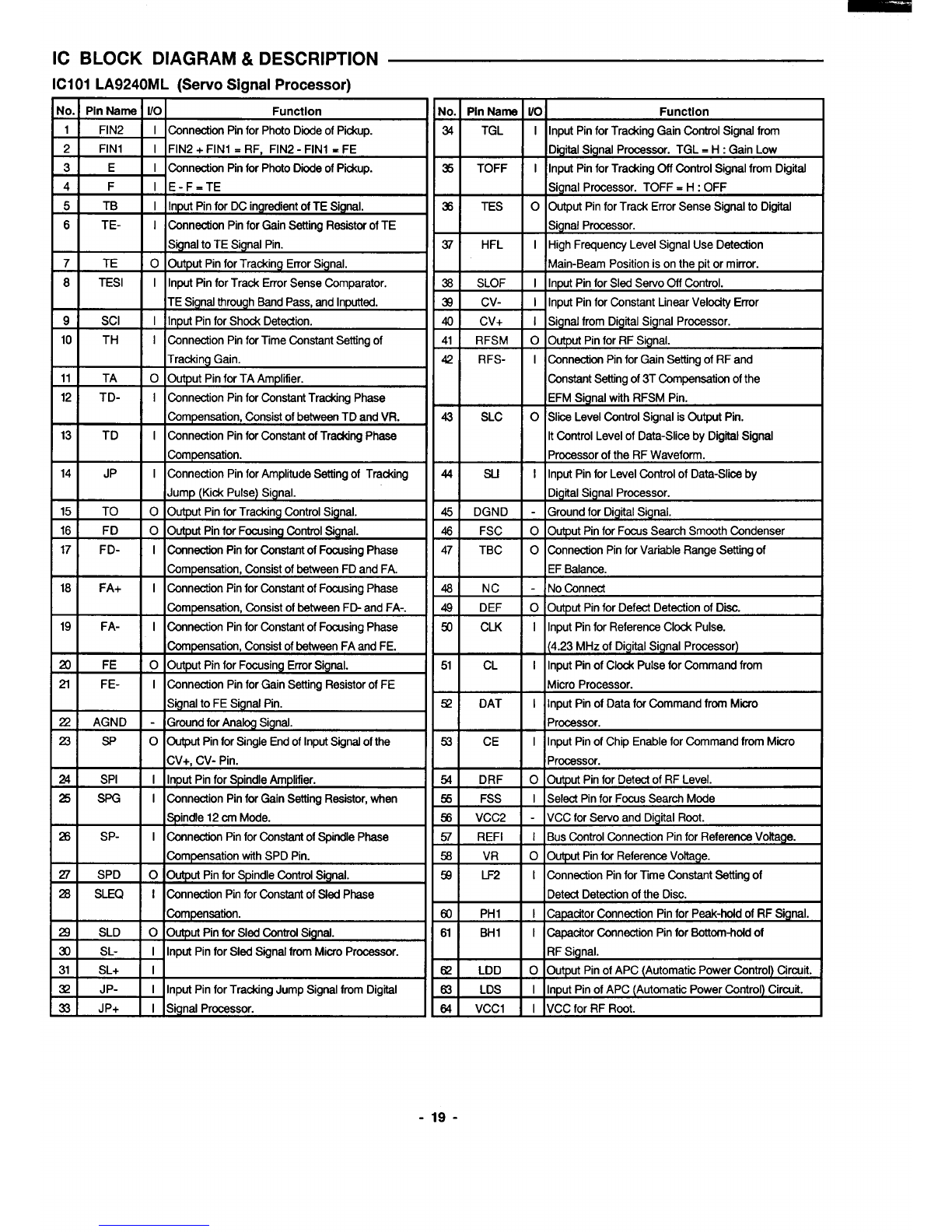

IC BLOCK DIAGRAM& DESCRIPTION
ICI 01 LA9240ML (Servo Signal Processor)
~o. Pin Name I/o Function No. Pin Name Uo Function
1FIN2 IConnection Pin for Photo Diode of Pickup. 34 TGL IInput Pin for Tracking Gain Control Signal from
2FIN1 IFIN2 +FIN1 =RF, FIN2 -FIN1 =FE Dgital Signal Prcxessor. TGL. H:Gain Low
3EIConnection Pin for Photo Dtie of P&up. sTOFF IInput Pin for Tracking Off Control Signal from Digital
4FIE- F=TE Signal Processor. TOFF. H: OFF
5TB 1Input Pin for DC ingredient of TE Signal. 38 TES oOutput Pin for Track Error Sense Signal to Digital
6TE- 1Camction Pin for Gain Setting Resistw of TE Signal Prccessor.
Sgnal to TE Signal Pin. 37 HFL IHigh Frequency Level Signal Use Detection
7TE oOutput Pin for Tracking Error Signal. Main-Beam Position is on the pit or mirror.
8TESI IInput Pin for Track Error Sense Comparator. 28 SLOF 1Input Pin for Sled Servo Off Control.
TE Signal through Band Pass, and Inputted. 3cv- 1Input Pin for Constant Linear Velocity Error
9Scl 1Input Pin for Shock Detection. 40 Cv+ ISignal from Digital Signal Processor.
10 TH IConnection Pin for Time Constant Setting of 41 RFSM oOutput Pin for RF SignaL
Tracking Gain. 42 RFS- 1Connection Pin for Gain Setting of RF and
11 TA oOutput Pin for TA Amplifier. Constant Setting of 3T Compensation of the
12 TD- 1Connection Pin for Constant Tracking Phase EFM Signal with RFSM Pin.
Compensation, Consist of between TD and VR. 43 SLC oSlice Level Control Signal is Output Pin.
13 TD IConnection Pin for Constant of Tracking Phase It Control Level of Data-Slice by Digtil Signal
Compensation. Prccessor of the RF Waveform.
14 JP IConnection Pin for Amplitude Setting of Tracking 44 SLl IInput Pin for Level Control of Data-Slice by
Jump (Kick Pulse) Signal. Digital Signal Processor.
15 TO oOutput Pin for Tracking Control Signal. 45 DGND -Ground for Digital .SJgnal.
16 FD oOutput Pin for Focusing @ntrol signal. 46 FSC oOutput Pin for Focus Search Smooth Condenser
17 FD- 1Connection Pin for Constant of Focusing Phase 47 TBC oConnection Pin for Variable Range Setting of
Compensation, Consist of between FD and FA. EF Balance.
18 FA+ IConnection Pin for Constant of Fccusing Phase 46 NC -No Connect
Compensation, Consist of between FD- and FA-. 49 DEF oOutput Pin for Defect Detection of Disc.
19 FA- 1Connection Pin for Constant of Focusing Phase 50 CLK IInput Pin for Referemx Clock Pulse.
Compensation, Consist of between FA and FE. (4.23 MHz of Digital Signal Processor)
aFE oOutput Pin for Focusing Error Signal. 51 CL IInput Pin of Clock Pulse for C=ommandfrom
2t FE- 1Connection Pin for Gain Setting Resistor of FE Micro Processor.
Sgnal to FE Signal Pin. QDAT IInput Pin of Data for Command from Micro
Z? AGND -Ground for Analog Signal. Processor.
23 SP oOaf@ Pin for Single End of Input Signal of the 53 CE IInput Pin of Chip Enable for Command from Micro
CV+, CV- Pin. Processor.
24 SPI IInput Pin for Spindle Ampliier. 54 DRF oOutpuf Pin for Detect of RF Level.
25 SPG IConnection Pin for Gain Setting Resistor, when E6 FSS ISelect Pin for Focus Search Mwfe
Spindle 12 CM Mode. 58 VCC2 -VCC for Servo and Digital Root.
26 sP- 1Connection Pin for Constant of Spindle Phase 57 REFI IBus Control Connection Pin for Reference Voltage.
Compensation with SPD Pin. 56 VR oOutput Pin for Reference Vottage.
27 SPD oOutpul Pin for Spindle Control SignaL 54 LF2 IConnection Pin for Time Constant Setting of
28 SLEQ IConnection Pin for Constant of Ski Phaae Detect Detection of the Disc.
Compensation. 60 PH1 ICapacitor Connection Pin for Peak-hold of RF Signal.
29 SLD oOutput Pin for Sled Control Signal. 61 BH1 ICapacitor Connection Pin for Bottofn-hofd of
mSL- 1Input Pin for Sled Sgnal from Micro Processor. RF Signal.
31 SL+ I&? LDD oOutput Pin of APC (Automatic Power Control) Circuit.
32 JP- 1Input Pin for Tracking Jump Signal from Digital mLDS IInput Pin of APC (Automatic Power Control) Circuit.
33 JP+ ISignal Processor. wVccl IVCC for RF Root.
-19-
Table of contents
Other Sanyo Stereo Receiver manuals
