Sanyo DP32648 - 31.5" LCD TV User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
160W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 32 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . . 3.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIEr. . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 797.6mm
HEIGHT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 558.8mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . 210.8mm
REFERENCE No. SM780151
DP32648, N6DE, PRODUCT CODE 113014004
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5

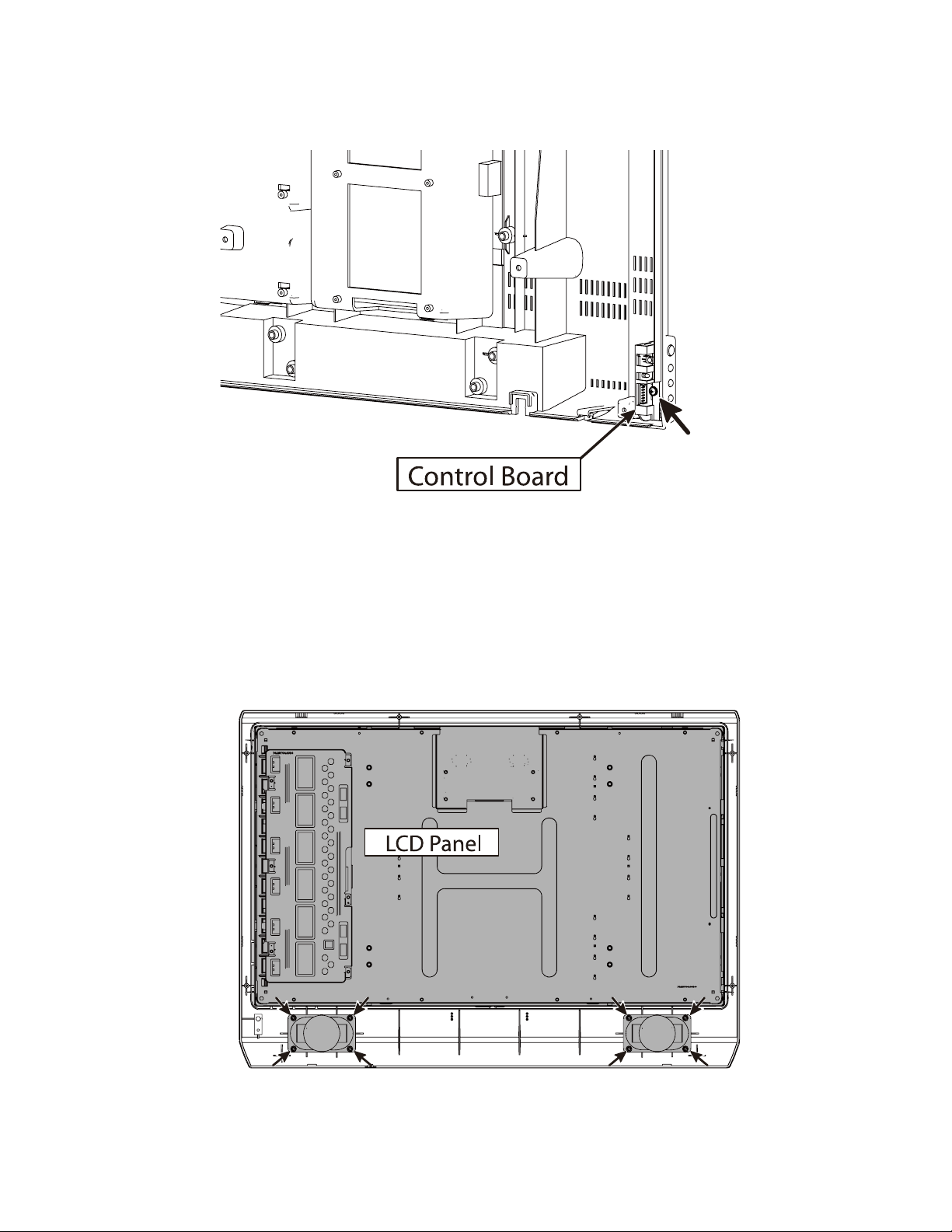

MECHANICAL DISASSEMBLY. . . . . . . . . . . . . . . . . . . 6-8
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . 9-22
CABINET PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . 23
COMPONENT AND TESTPOINT LOCATIONS . . . . 24-26
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 27
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 28
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . 29-36
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . 37-39
CONTROL PORT FUNCTIONS . . . . . . . . . . . . . . . . . 40-41
SIGNAL FLOW CHARTS . . . . . . . . . . . . . . . . . . . . . . 42-50
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 52
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 53
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 54
SCHEMATIC DIAGRAMS . . . . . . . . . . . . . . . . . . . . . 55-56
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP32648 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P32648-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to
the Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
© Sanyo Manufacturing Corporation 2008

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provided
inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSATIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or
circuit assembly.
7. Incidental body movements, such as, lifting a foot from a
carpeted floor or the rubbing of fabric together can gener-
ate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
0.15 μF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.
SAFETY INSTRUCTIONS

— 3 —
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the ser-
vice adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (–) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor Lor Mkey to select the desired se
vice menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor < or >key to adjust the data.
The <or >key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
0 8 6 V O L 3 0
ITEM NO. TITLE
Volume – :Enter Service Menu
Menu:
Exit Service Menu
Cursor LM:
Select Item
Cursor < >:
Adjust the data

— 4 —
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC801 (EEPROM) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprossesor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadeci-
mal 40. See 087 above. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadeci-
mal 0C. See 088 above. If this program code is wrong the
TV will not operate properly.
No. Title Initial Data Note
1A0 MUTE A0h Audio mute at Power ON
086 VOL 30h Volume setup inspection
087 OP1 40h Option 1 Data (HDMI)
088 OP2 0Ch Option 2 Data (Display Panel)
101 1R00 00h ROM Correction Data
102 1R01 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
• All data except in gray box area is fixed. Do not change for correct operating.
• Data in gray box is initial and can be set according to adjusment information.

— 5 —
POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
CPU it is necessary to disconnect the AC cord for a
short time.
CPU (IC800) is programmed so the set will go to standby
mode when there is circuit failure as described below.
(Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC800 pin 32 and pin 23.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within three seconds.
32
18
IC800 (CPU)
D1621 5
8
6
5
D1653
D1620
23
Power Fail
Power On
Power Fail
2
1
(LVDS)
Power Board
Inverter
Main
D1671
D1683
K8B
D1662
D1679
IC1671
9V
IC1661
5V
IC001
10V
Q1610
3.3V
IC1651
6.5V
IC1680
5V
LVDS
9
6
Q810/Q811
D6053 6
D6052 IC6050
3.3V

— 6 —
MECHANICAL DISASSEMBLY
BACK LID REMOVAL
Remove 5 screws to take the back Lid off.
(A:3X14, 2pcs; B:3X8, 3pc;)
STAND REMOVAL
Position TV face down on a padded or cushioned surface to protect the screen and finish.
Remove 4 screws (6X16) and remove stand.
ATTENTION
IThis LCDTV uses several different kinds of screws. Using the correct screw is required
to prevent damage.
IThe gaskets are provided to prevent interference to other radio and television
receivers.The gaskets must be returned to their previous positions after servicing.
ILead wires must be redressed to previous positions after servicing.

— 7 —
POWER AND MAIN BOARD REMOVAL
LCD panel removal Removal
1. Disconnect the lead wires from LCD panel, speakers, and control board.
2. Once you have taken off the Lid back, stand base, power unit and main board remove 9
screws (C:3X14) and 4 screws (D:4X8) to take the back cabinet off.
3. Lift the LCD panel from the front cabinet.
1: Main Board Removal
Remove 5 screws (3X14) to take the main board off.
2: Power Unit Removal
Remove 6 screws (3X14) to take the power unit off

— 8 —
Control Board Removal
Remove 1 screws (3X14) to take the control board off.
Speakers Removal
Remove 4 screws (3X14) to remove each speaker

— 9 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A .
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Tolerance Symbols:
A...0.05% B...0.1% C...25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%
Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON .............
MT-FILM ..............
OXIDE-MT ...........
SOLID ..................
MT-GLAZE ...........
WIRE WOUND .....
CERAMIC RES ....
FUSIBLE RES .....
Performance Symbols:
A...General B...Non-flammable
Z...Low noise
Other... Temperature coefficient
Rated Wattage
CARBON 4.7K J A 1/4W
Read description of the Resistor as follows:
NOTES:
(Example)
Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire Wound
Ceramic
Fusible
RESISTORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A :Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H :±3% J :±5% K :±10%
L :±15% M :±20% N :±30%
P :+100-0% Q :+30-10% T :+50-10%
U :+75-10% V :+20-10% W :+100-10%
X :+40-20% Y :+150-10% Z : +80-20%
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite Film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic
Semiconductive Electrolytic
CAPACITORS

— 10 —
Schematic
Location Part No. Description
CAPACITORS
C001 CPXLB1C100YAN NP-ELECT 10U M 16V
CPXLB1C100ZAN NP-ELECT 10U M 16V
C002 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C006 CEXLB1H4R7VDN ELECT 4.7U M 5V
C007 CEXLB1C101VDN ELECT 100U M 16V
C008 CK1H102KLZBNG CERAMIC 1000P K 50V
C009 CK1H102KLZBNG CERAMIC 1000P K 50V
C013 CPXLB1C100YAN NP-ELECT 10U M 16V
CPXLB1C100ZAN NP-ELECT 10U M 16V
C015 CEXLB1C222VDN ELECT 2200U M 16V
C016 CEXLB1H100VDN ELECT 10U M 50V
C017 CEXLB1H100VDN ELECT 10U M 50V
C801 CK1A105KLZBNG CERAMIC 1U K 10V
C802 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C803 CEXLB1V470VDN ELECT 47U M 35V
C804 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C805 CK1H103KLZBNG CERAMIC 0.01U K 50V
C807 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C808 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C809 CC1H220JLZCNG CERAMIC 22P J 50V
C810 CC1H220JLZCNG CERAMIC 22P J 50V
C811 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C812 CC1H470JLZCNG CERAMIC 47P J 50V
C813 CC1H470JLZCNG CERAMIC 47P J 50V
C814 CK1H103KLZBNG CERAMIC 0.01U K 50V
C816 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C818 CK1H222KLZBNG CERAMIC 2200P K 50V
C819 CEXLB0J221VDN ELECT 220U M 6.3V
C821 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C822 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C823 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C824 CK1H103KLZBNG CERAMIC 0.01U K 50V
C825 CC1H470JLZCNG CERAMIC 47P J 50V
C1002 CEXLB1V470VDN ELECT 47U M 35V
C1003 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1004 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1011 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1012 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1013 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1014 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1015 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1016 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1017 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1201 CEXLB1V470VDN ELECT 47U M 35V
C1202 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1223 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1224 CEXLB1H4R7VDN ELECT 4.7U M 5V
C1233 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1234 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1241 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1242 CEXLB1V470VDN ELECT 47U M 35V
C1243 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1244 CEXLB1V470VDN ELECT 47U M 35V
C1245 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1246 CEXLB1V470VDN ELECT 47U M 35V
C1247 CEXLB1V470VDN ELECT 47U M 35V
C1248 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1249 CEXLB1V470VDN ELECT 47U M 35V
C1250 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1251 CEXLB1V470VDN ELECT 47U M 35V
C1252 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1253 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1254 CEXLB1C101VDN ELECT 100U M 16V
C1265 CEXLB1H100VDN ELECT 10U M 50V
C1603 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1609 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1610 CEXLB1E102VDN ELECT 1K U M 25V
C1611 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1612 CK1H102KLZBNG CERAMIC 1000P K 50V
C1613 CK1H102KLZBNG CERAMIC 1000P K 50V
C1614 CK1H102KLZBNG CERAMIC 1000P K 50V
C1615 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1616 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1617 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1618 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1619 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1620 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1621 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1622 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1623 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1624 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1625 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1626 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1627 CEXLB0J102VDN ELECT 1000U M 6.3V
C1628 CEXLB0J102VDN ELECT 1000U M 6.3V
C1629 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1630 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1651 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1652 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1653 CEXLB1V471VDN ELECT 470U M 35V
C1654 CK1H222KLZBNG CERAMIC 2200P K 50V
C1655 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1656 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1657 CK1A105KLZBNG CERAMIC 1U K 10V
C1658 CEXLB1V470VDN ELECT 47U M 35V
C1659 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1661 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1662 CK1A105KLZBNG CERAMIC 1U K 10V
C1666 CK1A105KLZBNG CERAMIC 1U K 10V
C1667 CEXLB1C101VDN ELECT 100U M 16V
C1671 CEXLB1C101VDN ELECT 100U M 16V
C1672 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1674 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1675 CEXLB1C101VDN ELECT 100U M 16V
C1678 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1679 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1681 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1682 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1683 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1684 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1685 CEXLB1V471VDN ELECT 470U M 35V
Schematic
Location Part No. Description

— 11 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C1686 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1687 CEXLB1E102VDN ELECT 1K U M 25V
C1689 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1693 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1694 CEXLB1V471VDN ELECT 470U M 35V
C1901 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1904 CK0J106KGMBNG CERAMIC 10U K 6.3V
C1907 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1909 CC1H470JLZCNG CERAMIC 47P J 50V
C2400 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2401 CEXLB1H100VDN ELECT 10U M 50V
C3200 CK1A105KLZBNG CERAMIC 1U K 10V
C3201 CK1A105KLZBNG CERAMIC 1U K 10V
C3202 CK1A105KLZBNG CERAMIC 1U K 10V
C3203 CK1A105KLZBNG CERAMIC 1U K 10V
C3204 CK1H223KLZBNG CERAMIC 0.022U K 50V
C3205 CK1H222KLZBNG CERAMIC 2200P K 50V
C3206 CK1H104KLZBNG CERAMIC 0.1U K 50V
C3208 CK1A105KLZBNG CERAMIC 1U K 10V
C3209 CK1A105KLZBNG CERAMIC 1U K 10V
C3210 CK1A105KLZBNG CERAMIC 1U K 10V
C3211 CK1A105KLZBNG CERAMIC 1U K 10V
C3212 CK1A105KLZBNG CERAMIC 1U K 10V
C3213 CK1A105KLZBNG CERAMIC 1U K 10V
C3214 CK1A105KLZBNG CERAMIC 1U K 10V
C3215 CK1H222KLZBNG CERAMIC 2200P K 50V
C3216 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3217 CK1A105KLZBNG CERAMIC 1U K 10V
C3218 CK1A474KLZBNG CERAMIC 0.47U K 10V
C3219 CK1A105KLZBNG CERAMIC 1U K 10V
C3220 CK1A105KLZBNG CERAMIC 1U K 10V
C3221 CK1A105KLZBNG CERAMIC 1U K 10V
C3222 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3223 CEXLB1C222VDN ELECT 2200U M 16V
C5500 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5504 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5505 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5506 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5507 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5508 CK1A105KLZBNG CERAMIC 1U K 10V
C5509 CK1A105KLZBNG CERAMIC 1U K 10V
C5510 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5511 CK1A105KLZBNG CERAMIC 1U K 10V
C5512 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5513 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5514 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5515 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5516 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5517 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5518 CK1A105KLZBNG CERAMIC 1U K 10V
C5519 CK1A105KLZBNG CERAMIC 1U K 10V
C5520 CK1A105KLZBNG CERAMIC 1U K 10V
C5521 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5522 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5523 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5524 CEXLB0J221VDN ELECT 220U M 6.3V
C5525 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5526 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5527 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5528 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5529 CK1A105KLZBNG CERAMIC 1U K 10V
C5530 CEXLB0J221VDN ELECT 220U M 6.3V
C5531 CEXLB0J221VDN ELECT 220U M 6.3V
C5532 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5533 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5534 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5535 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5536 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5537 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5538 CK1A105KLZBNG CERAMIC 1U K 10V
C5539 CK1A105KLZBNG CERAMIC 1U K 10V
C5540 CK1A105KLZBNG CERAMIC 1U K 10V
C5541 CK1A105KLZBNG CERAMIC 1U K 10V
C5542 CK1A105KLZBNG CERAMIC 1U K 10V
C5543 CC1H180JLZCNG CERAMIC 18P J 50V
C5544 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5545 CK1A105KLZBNG CERAMIC 1U K 10V
C5546 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5547 CC1H180JLZCNG CERAMIC 18P J 50V
C5548 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5549 CK1A105KLZBNG CERAMIC 1U K 10V
C5550 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5551 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5552 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5553 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5554 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5555 CK1A105KLZBNG CERAMIC 1U K 10V
C5556 CK1A105KLZBNG CERAMIC 1U K 10V
C5557 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5558 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5559 CK1A105KLZBNG CERAMIC 1U K 10V
C5561 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5562 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5563 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5564 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5565 CK1A105KLZBNG CERAMIC 1U K 10V
C5566 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5567 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5568 CK1A105KLZBNG CERAMIC 1U K 10V
C5569 CK1A105KLZBNG CERAMIC 1U K 10V
C5570 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5571 CK1A105KLZBNG CERAMIC 1U K 10V
C5572 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5573 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5574 CK1A105KLZBNG CERAMIC 1U K 10V
C5575 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5576 CK1A105KLZBNG CERAMIC 1U K 10V
C5577 CK1A105KLZBNG CERAMIC 1U K 10V
C5579 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5580 CK1A105KLZBNG CERAMIC 1U K 10V
C5581 CK1H104ZLZFNG CERAMIC 0.1U Z 50V

— 12 —
Schematic
Location Part No. Description
C5582 CK1A105KLZBNG CERAMIC 1U K 10V
C5583 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5584 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5585 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5586 CC1H101JLZCNG CERAMIC 100P J 50V
C5587 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5588 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5589 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5590 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5591 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5592 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5593 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5594 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5595 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5596 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5597 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5598 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5599 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5600 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5602 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5603 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5605 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5606 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5608 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5611 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5612 CK1A105KLZBNG CERAMIC 1U K 10V
C5614 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5616 CK1A105KLZBNG CERAMIC 1U K 10V
C5617 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5618 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5619 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5620 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5621 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5622 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5623 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5624 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5625 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5626 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5627 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5629 CC1H560JLZCNG CERAMIC 56P J 50V
C5630 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5631 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5632 CK1A105KLZBNG CERAMIC 1U K 10V
C5635 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C5636 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C5638 CC1H100JLZCNG CERAMIC 10P J 50V
C5639 CC1H100JLZCNG CERAMIC 10P J 50V
C5640 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5642 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5643 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5644 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5645 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5646 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5648 CK1H392KLZBNG CERAMIC 3900P K 50V
C5649 CK1H393KLZBNG CERAMIC 0.039U K 50V
C5650 CK1A105KLZBNG CERAMIC 1U K 10V
C5700 CK1A105KLZBNG CERAMIC 1U K 10V
C5702 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5703 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5704 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5707 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5710 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5712 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5713 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5714 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5716 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5717 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5718 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5719 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5750 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5751 CEXLB1V470VDN ELECT 47U M 35V
C5800 CEXLB1H100VDN ELECT 10U M 50V
C5801 CEXLB1H100VDN ELECT 10U M 50V
C5802 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5803 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5804 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5805 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5806 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5807 CC1H120JLZCNG CERAMIC 12P J 50V
C5808 CC1H120JLZCNG CERAMIC 12P J 50V
C5809 CC1H120JLZCNG CERAMIC 12P J 50V
C5811 CC1H150JLZCNG CERAMIC 15P J 50V
C5812 CC1H150JLZCNG CERAMIC 15P J 50V
C5813 CC1H150JLZCNG CERAMIC 15P J 50V
C5815 CC1H270JLZCNG CERAMIC 27P J 50V
C5816 CC1H270JLZCNG CERAMIC 27P J 50V
C5817 CC1H270JLZCNG CERAMIC 27P J 50V
C5819 CC1H680JLZCNG CERAMIC 68P J 50V
C5820 CC1H680JLZCNG CERAMIC 68P J 50V
C5821 CC1H680JLZCNG CERAMIC 68P J 50V
C5901 CK1A474KLZBNG CERAMIC 0.47U K 10V
C5904 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5905 CEXLB1H100VDN ELECT 10U M 50V
C6050 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6051 CK1A105KLZBNG CERAMIC 1U K 10V
C6055 CK1A105KLZBNG CERAMIC 1U K 10V
C6056 CEXLB1V470VDN ELECT 47U M 35V
C6057 CK1A105KLZBNG CERAMIC 1U K 10V
C6060 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6061 CK1A105KLZBNG CERAMIC 1U K 10V
C6065 CK1A105KLZBNG CERAMIC 1U K 10V
C6066 CEXLB0J221VDN ELECT 220U M 6.3V
C6067 CEXLB0J102VDN ELECT 1000U M 6.3V
C6071 CK1A105KLZBNG CERAMIC 1U K 10V
C6072 CEXLB1V470VDN ELECT 47U M 35V
C6099 CEXLB0J221VDN ELECT 220U M 6.3V
C6100 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6102 CC1H101JLZCNG CERAMIC 100P J 50V
C6103 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6105 CEXLB1V471VDN ELECT 470U M 35V
C6108 CC1H220JLZCNG CERAMIC 22P J 50V
C6109 CK1H102KLZBNG CERAMIC 1000P K 50V
Schematic
Location Part No. Description

— 13 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C6110 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6111 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6112 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6113 CC1H220JLZCNG CERAMIC 22P J 50V
C6200 CEXLB1H100VDN ELECT 10U M 50V
C6201 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6204 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6205 CEXLB1H4R7VDN ELECT 4.7U M 5V
C6206 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6207 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6208 CEXLB1H4R7VDN ELECT 4.7U M 5V
C6209 CEXLB1H100VDN ELECT 10U M 50V
C6210 CEXLB1H100VDN ELECT 10U M 50V
C6213 CK1H222KLZBNG CERAMIC 2200P K 50V
C6214 CK1H222KLZBNG CERAMIC 2200P K 50V
C6271 CEXLB1H100VDN ELECT 10U M 50V
C6272 CEXLB1H100VDN ELECT 10U M 50V
C6273 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6274 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6275 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6276 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6277 CEXLB1H100VDN ELECT 10U M 50V
C6278 CEXLB1H100VDN ELECT 10U M 50V
C6279 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6280 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6332 CK1A105KLZBNG CERAMIC 1U K 10V
C6350 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6351 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6352 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6354 CEXLB1C101VDN ELECT 100U M 16V
C6355 CEXLB1H4R7VDN ELECT 4.7U M 5V
C6356 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6357 CK1A105KLZBNG CERAMIC 1U K 10V
C6500 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6503 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6504 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
DIODES
D801 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
D1221 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
D1222 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
D1261 DDRB551V-30-G DIODE RB551V-30 TE-17
D1611 DDD1FM3-----G DIODE D1FM3
D1612 DDD1FM3-----G DIODE D1FM3
D1671 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
D1681 DDD1FM3-----G DIODE D1FM3
D1683 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
D1901 DLSLR343MC3FN LED SLR-343MC3F
D2400 DDRB551V-30-G DIODE RB551V-30 TE-17
D3216 DDRB551V-30-G DIODE RB551V-30 TE-17
D6052 DZUDZS3.0B--G ZD UDZS3.0B-TE-17
D6053 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355 TE-17
ZD801 DZUDZS3.9B--G ZD UDZS-TE-173.9B
ZD802 DZUDZS6.2B--G ZENER DIODE UDZS6.2B TE-1
INTEGRATED CIRCUITS
IC001 QLA42205-E--N IC LA42205-E
IC800 QXXAVC974---M IC LC87F5932AU-QIP-E
QLE24C042M-EP IC LE24C042M-TLM-E
QXXAVC820---P IC AT24C04N-10SU-1.8
QXXAVC844---P IC CAT24C04WI-GT3
IC802 QTC7SET08FU-P IC TC7SET08FU
IC803 QTC7SH08FU--P IC TC7SH08FU
IC1220 QTC74HC123AFG IC TC74HC123AF
IC1240 QM52055FP---P IC M52055FP
IC1251 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1600 QBD9842FV---P IC BD9842FV-E2
IC1651 QMP2106DK---P IC MP2106DK
IC1661 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC1671 QXXAVC692---P IC PQ1LAX95MSPQ
IC1680 QLA5774MPE--P IC LA5774MP-DL-E
IC1690 QPST600DMT--P IC PST600DMT
IC2400 QXXAVC837---P IC AT24C02BN-10SU-1.8
QXXAVC986---P IC CAT24C02WI-GT3
IC3200 QNJW1142CV--P IC NJW1142CV
IC5500 QXXAVC968---M IC ZR39770
IC5510 QTC7SZ08FU--P IC TC7SZ08FU
IC5590 QTC7SH08FU--P IC TC7SH08FU
IC5591 QTC7SH08FU--P IC TC7SH08FU
IC5700 QXXAVC946---M IC HYB18T256161BF-25
IC5750 QXXAAJQ0875-- IC W25X32VSSIG N6CE
IC5900 QM51957BFP--P IC M51957BFP
IC6050 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6051 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6060 QXXAVC976---P IC PQ018EN02ZPH
IC6200 QCS4352-CZZ-P IC CS4352-CZZ
IC6270 QXXAVC944---P IC WM8781GEDS/R
IC6501 QTC7SET08FU-P IC TC7SET08FU
IC6502 QTC7SET08FU-P IC TC7SET08FU
COILS
L002 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L003 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L005 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L006 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L801 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L802 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L803 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L804 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1000 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1201 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1221 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W

— 14 —
Schematic
Location Part No. Description
L1241 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1261 1AV4L2GAR22JG INDUCTOR, 0.22U J
L1601 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1603 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1604 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1605 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1606 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1608 1LB4L26B0740G INDUCTOR, 220 OHM
L1609 1LB4L26B0740G INDUCTOR, 220 OHM
L1612 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1613 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1614 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1615 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1616 1AV4L2WK150MN INDUCTOR, 15U M
1LB4L26B1000N INDUCTOR, 15UH
L1617 1AV4L2WK150MN INDUCTOR, 15U M
1LB4L26B1000N INDUCTOR, 15UH
L1618 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1619 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1621 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1622 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1651 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1652 1AV4L2WK150MN INDUCTOR, 15U M
1LB4L26B1000N INDUCTOR, 15UH
L1653 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1661 1LB4L26B0740G INDUCTOR, 220 OHM
L1662 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1663 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1671 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1672 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1674 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1681 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1682 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1684 1AV4L2WK680MN INDUCTOR, 68U M
1LB4L26B1040N INDUCTOR, 68UH
L1690 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1691 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1692 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1693 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1694 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1695 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1696 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1697 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1698 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1699 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1700 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1701 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1702 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1703 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1704 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1706 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1707 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1724 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1725 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1727 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1728 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5501 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5502 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5505 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5506 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5507 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5508 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5509 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5510 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5511 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5513 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5514 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5515 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5516 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5517 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5519 1LB4L26B0740G INDUCTOR, 220 OHM
L5520 1LB4L26B0740G INDUCTOR, 220 OHM
L5521 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5524 1AV4L2GAR22JG INDUCTOR, 0.22U J
L5528 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5532 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L5750 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5800 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5801 1AV4L2GA150JG INDUCTOR, 15U J
L5802 1AV4L2GA150JG INDUCTOR, 15U J
L5803 1AV4L2GA150JG INDUCTOR, 15U J
L5805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5806 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5807 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5808 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5809 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5810 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5811 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5812 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6050 1LB4L26B0740G INDUCTOR, 220 OHM
L6051 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6052 1LB4L26B0740G INDUCTOR, 220 OHM
L6053 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6060 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6063 1LB4L26B0740G INDUCTOR, 220 OHM
L6064 1LB4L26B0740G INDUCTOR, 220 OHM
L6103 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6105 1AV4L26B1940G INDUCTOR, 120 OHM
1LB4L26B0700G INDUCTOR, 120 OHM
L6106 1AV4L26B1940G INDUCTOR, 120 OHM
1LB4L26B0700G INDUCTOR, 120 OHM
L6107 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6108 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6110 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6111 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6112 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6113 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6114 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6115 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6116 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
Schematic
Location Part No. Description

— 15 —
Schematic
Location Part No. Description Schematic Location Part No. Description
L6117 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6119 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6120 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6121 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6122 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6200 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6201 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6202 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6271 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6272 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6350 1AV4L3CY201MG IMPEDANCE, 200 OHM M
L6351 1AV4L3CY201MG IMPEDANCE, 200 OHM M
L6352 1AV4L3CY201MG IMPEDANCE, 200 OHM M
L6355 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6356 1LB4L26B0740G INDUCTOR, 220 OHM
L6357 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6358 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6366 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6367 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6368 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6369 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6500 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6506 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6507 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6508 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6509 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6510 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6511 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6512 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6513 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6514 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6515 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6516 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6517 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6601 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6602 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6603 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6604 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6605 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6606 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6607 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6608 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6609 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6610 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6611 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6612 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6613 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6614 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6615 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6616 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6617 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6618 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6619 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6620 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6621 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6622 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6623 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6624 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7001 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7002 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7003 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7005 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7006 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7007 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7008 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7009 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7010 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7011 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7012 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7013 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7014 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7015 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7016 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7017 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L7018 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q801 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q802 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q803 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q805 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q808 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F

— 16 —
Schematic
Location Part No. Description
Q809 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q810 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q811 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q813 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q814 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1006 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1007 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1201 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1202 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1203 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1204 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1241 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1261 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q1262 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1611 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1612 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Schematic
Location Part No. Description

— 17 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q1651 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1681 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q2400 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5800 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5801 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5802 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5804 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5805 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5806 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5901 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5902 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6333 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q6350 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6351 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6360 TMCH6306----P TR MCH6306-TL
Q6510 TXXAVB021---K TR UPA672T-T1-A
Q6600 TXXAVB021---K TR UPA672T-T1-A
RESISTORS
R001 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R002 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R003 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R004 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R007 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R801 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R802 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R803 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R804 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R805 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R806 RGF1002JTCANL MT-GLAZE 10K JA 1/10W

— 18 —
Schematic
Location Part No. Description
R807 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R808 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R809 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R810 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R811 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R812 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R813 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R814 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R815 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R817 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R818 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R820 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R821 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R823 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R824 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R828 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R829 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R830 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R831 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R832 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R833 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R834 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R835 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R836 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R839 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R840 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R841 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R842 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R843 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R844 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R847 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R848 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R850 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R851 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R855 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R856 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R857 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R860 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R866 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R867 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R869 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R870 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R871 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R873 RGF4703JTCANL MT-GLAZE 470K JA 1/10W
R875 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R876 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R879 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R880 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R881 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R882 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R883 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R884 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R886 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R887 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R888 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R889 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R891 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R892 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R893 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R894 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R897 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R900 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R901 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R902 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R904 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R905 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R906 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R907 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R908 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R909 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R910 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R911 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R912 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R913 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R914 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R915 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R916 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R917 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R918 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1000 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1002 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1004 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1005 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1007 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1008 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1009 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1010 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1011 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1012 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1013 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1014 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1019 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1021 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1025 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1031 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1037 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1043 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1049 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1051 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1052 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1053 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1054 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1055 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1056 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1057 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1058 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1059 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1060 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1061 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1062 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1063 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1064 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
Schematic
Location Part No. Description

— 19 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R1065 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1066 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1067 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1068 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1069 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1070 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1071 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1072 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1073 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1074 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1075 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1201 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1202 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1203 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1204 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1205 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1206 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1207 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1208 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1209 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1210 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1230 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1231 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1232 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1233 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1235 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1236 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1237 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1238 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1244 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1245 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1259 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1260 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1261 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1262 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1263 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1264 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1265 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1266 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1267 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1268 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1269 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1270 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1271 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1272 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1273 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1274 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1275 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1276 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1277 RGF15R0JTCANL MT-GLAZE 15 JA 1/10W
R1278 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1279 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1280 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1281 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1282 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1283 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1284 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1285 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1286 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1287 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1288 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1289 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1291 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1294 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1297 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1300 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1301 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1302 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1303 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1304 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1305 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1306 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1603 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1611 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1612 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1613 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1614 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1615 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1616 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1617 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1618 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1619 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1620 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1621 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1622 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1623 RN1R005JTFANL MT-FILM 0.005 JA 1W
R1624 RN1R005JTFANL MT-FILM 0.005 JA 1W
R1625 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1626 RGF1201FTCANL MT-GLAZE 1.2K FA 1/10
R1628 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1629 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1630 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1631 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1632 RGF8200FTCANL MT-GLAZE 820 FA 1/10
R1633 RGF4701FTCANL MT-GLAZE 4.7K FA 1/10W
R1653 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1654 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1655 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1660 RGF9101JTCANL MT-GLAZE 9.1K JA 1/10W
R1661 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1662 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1663 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1664 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1665 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1666 RGF4702FTCANL MT-GLAZE 47K FA 1/10W
R1669 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1671 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1672 RGF6801FTCANL MT-GLAZE 6.8K FA 1/10W
R1673 RGF5602FTCANL MT-GLAZE 56K FA 1/10W
R1674 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1681 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1682 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W

— 20 —
Schematic
Location Part No. Description
R1683 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1684 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1685 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1691 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R1692 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1694 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1696 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1703 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1704 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1705 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1706 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1707 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1708 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1901 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1902 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1903 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R1904 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1905 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1906 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1907 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1908 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1909 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1910 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1911 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R2400 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2401 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2402 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2403 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2404 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2405 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2406 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2407 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2408 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2409 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2410 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2412 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2413 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2414 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2415 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2416 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2417 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R2418 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R2419 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2420 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2421 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3200 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3201 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5505 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R5507 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5509 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5514 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5515 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5517 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R5518 RGF56R0JTCANL MT-GLAZE 56 JA 1/10W
R5519 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5520 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5521 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5522 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5523 RGF8200FTCANL MT-GLAZE 820 FA 1/10
R5524 RGF5600JTCANL MT-GLAZE 560 JA 1/10W
R5525 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5526 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5527 RGF27R0JTCANL MT-GLAZE 27 JA 1/10W
R5530 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5531 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5533 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5535 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5538 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5539 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5541 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5542 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5543 RGF3900FTCANL MT-GLAZE 390 FA 1/10W
R5544 RGF3900FTCANL MT-GLAZE 390 FA 1/10W
R5545 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5547 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5548 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R5549 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5550 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5551 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5552 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5553 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R5554 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5555 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R5556 RGF6202JTCANL MT-GLAZE 62K JA 1/10W
R5557 RGF18R0JTCANL MT-GLAZE 18 JA 1/10W
R5558 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5559 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5560 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5561 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5562 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5563 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5564 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5565 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5566 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5568 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5569 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5572 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5574 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5576 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5579 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5580 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5581 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5582 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5583 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5586 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5587 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5588 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5589 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5590 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R5591 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5592 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5593 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
Schematic
Location Part No. Description
