SAPIRHOME Z-1115-Q User manual

STAND MIXER
Z-1115-Q
INSTRUCTION MANUAL
Read all instructions before using this product for the first time.

APPLIANCE DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
1.
Swivel arm
2.
Release button
3.
Speed control knob
4.
Motor house
5.
Foot pad
6.
Motor spindle
7.
Lid
8.
Bowl cover
9.
Whisk
10.
Flat beater
11.
Kneading hook
12.
Mixing bowl
13.
Spatula
IMPORTANT SAFETY PRECAUTIONS
When using this electrical appliance, basic safety precautions should always be followed
including the following:
Read all instructions.
To protect against risk of electrical shock do not put the appliance, power cord or plug in
water or other liquid.
Close supervision is necessary when the appliance is used by or near children.
Unplug the appliance when not in use, changing accessory and before cleaning.
Avoid contacting moving parts.
If the supply cord is damaged, it must be replaced by manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard.
The use of attachments not recommended or sold by the manufacturer may cause fire,
electrical shock or injury.
Do not use outdoors.

Do not let cord to hang over edge of table or counter.
Keep hands and utensils away from moving blades or discs while processing food to
reduce risk of severe injury to person or damage to the food mixer.
Blades are sharp, handle carefully.
To reduce the risk of injury, never place cutting blades or discs on base.
Be certain it is securely locked in place before operating the appliance.
Never feed food by hand, always use food pusher.
Do not attempt to defeat the lid interlock mechanism.
Always operate the blender with the cap in place.
When blending non-liquid food, remove the centerpiece of the two-piece cap.
Turn off the machine before replace attachment.
Use the product and assembly the accessory as mentioned on user manual only.
Switch off the appliance before changing accessories or approaching parts, which move in
use.
This appliance is not intended for use by children or other persons without assistance or
supervision if their physical, sensory or mental capabilities prevent them from using it
safely.
Children should be supervised to ensure that they do not play with the appliance.
For Europe countries:
This appliance shall not be used by children. Keep the appliance and its cord out of reach
of children.
Appliances can be used by persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
Always disconnect the appliance from the supply if it is left unattended and before
assembling, disassembling or cleaning.
Save these instructions!
CONTROL PANEL SPEED SETTING
0 - Stop
Setting 1-6 - Operating speed
Setting 1 - Minimum speed - slow
Setting 6 - Maximum speed - fast
Setting P –Pulse function

SPEED SELECTION GUIDE
Accessories
Speed
setting
Time
Capacity
Kneading
Hook
1, 2
30s at
speed 1;
3-5min at
speed 2
1500g flour and
900ml water
Flat beater
2-4
5-7min
Whisk
5-6
5-7min
At least egg white of 3
eggs
No more than 18 eggs
OPERATING POSITIONS
Warning!
Operate the appliance only when the accessory/tool is attached according to this table and is
in the operating position.
Item
Position
Accessory
1.
2.
Set up Kneading Hook, Mixing Hook,
Whisk, according to your desire.
Risk of injury from the rotating tools!
While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the appliance is at a standstill and have been unplugged. When
switch off, the drive continues running briefly.
HOW TO USE KNEADING HOOK, FLAT BEATER AND WHISK
1.
1. Place the appliance on a flat surface, e.g. a
kitchen counter, and make sure it is standing
firmly.
2.
Turn the arm release button (2) clockwise, at
the same time lift the swivel arm (1) with hand
so that it locks into place with a click. The
swivel arm tilts up.
3.
Fit the bowl cover (8) onto the swivel arm (1)
and turn it clockwise, so that it locks into
position securely.
4.
1. Place the food in the mixing bowl (12).
2. Fit the mixing bowl in the recess on the
motor house (4).
3. Turn the mixing bowl clockwise, so it locks
into position.

5.
1. Put the splashguard to swivel arm, as shown
on the picture and ensure it is fixed well.
2. Fit the required accessory (10 with 9, 8 or
11) onto the motor spindle (6) on the
underside of the swivel arm (1).
3. A. The kneading hook (11) is used for
heavy dough, minced meat or other demanding
kneading jobs.
B. The flat beater (10) is used to mix
lighter types of dough.
C. The whisk (9) is used for whisking
cream, egg whites, etc.
4. Turn the accessory, so the pins on the
spindle are aligned with the depressions on the
accessory top edge. Press the accessory against
the swivel arm and turn it anti-clockwise at the
same time until the pins engage and the
accessory locks into position securely. The
accessory must not be loose nor should you be
able to pull it free.
6.
1. Lower the swivel arm so that it locks into
place with a click. The lid (8) must fit tightly
with the mixing bowl (12), otherwise it is
fitted incorrectly. The appliance is now ready
for use.
2. Plug the power cord into main power outlet
and switches it ON. Turn Speed control knob
to speed 1 (or any speed setting), the indicator
light will go on, the control panel will now be
illuminated.
3. Select the speed you want. Speed 1 is the
slowest and speed 6 is the fastest speed.
Recommended speeds, time and capacity are
shown in the table above.
4. If you need to scrape inside the mixing
bowl, wait until the accessory has stopped
completely. Use the spatula, never your
fingers.

7.
1. Switch off the appliance by pressing the
OFF button when you have finished mixing.
Switch off the appliance at the switch and
unplug it before you change the accessories, or
before you take the appliance apart or when
not in use.
2. Turn the swivel arm release button (2)
clockwise, at the same time lift the swivel arm
with hand so that it locks into place with a
click. The swivel arm (1) tilts up.
8.
8.1 8.2
1. Detach the accessory by turning it
clockwise.
2. Remove mixing bowl with prepared food
anti-clockwise.
IMPORTANT!
The temperature of water, which will be added into dough, should be at 40+/-5°C when
preparing for dough is on progress.
CLEANING AND MAINTENANCE
When cleaning the appliance, you should pay attention to the following points:
Remove plug from the mains socket, and allow the appliance to cool down before
cleaning it.
Do not immerse the motor section of the appliance in water and make sure no water enters
the appliance.
Clean the motor section by wiping it with a damp cloth. A little detergent can be added if
the appliance is heavily soiled.
Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning
agents to clean the appliance, as they may damage the outside surfaces of the appliance.
Take the appliance apart and clean all of the accessories separately. All of the accessories
can be cleaned in warm soapy water.
Be careful not to touch the blades or sharp parts during use and cleaning.
IMPORTANT! Allow to dry fully after cleaning before using again. Do not use the
appliance if it is damp.
After washing and drying, immediately place attachment into the protective sleeve for
storage.

CAPABILITY OF BOWL
1.5kg flour and 900ml water
APPLICATION EXAMPLES
Beating of egg-white
8 egg-whites in the bowl with the whisk at speed 6.
Beating of cream
600g cream with the flat beater in the bowl at speed 4.
Kneading of dough
1000g flour
200g chopped almonds
15g salt
28g butter
28g sugar
Approx. 500g water (temperature 40+/-5°C)
TECHNICAL SPECIFICATION
Operating voltage: AC 220-240V, ~50Hz
Power: 1900W
Table of contents
Other SAPIRHOME Mixer manuals
Popular Mixer manuals by other brands

Parkside
Parkside PFMR 1600 A1 Operation and safety notes translation of the original instructions

CHEFOOK

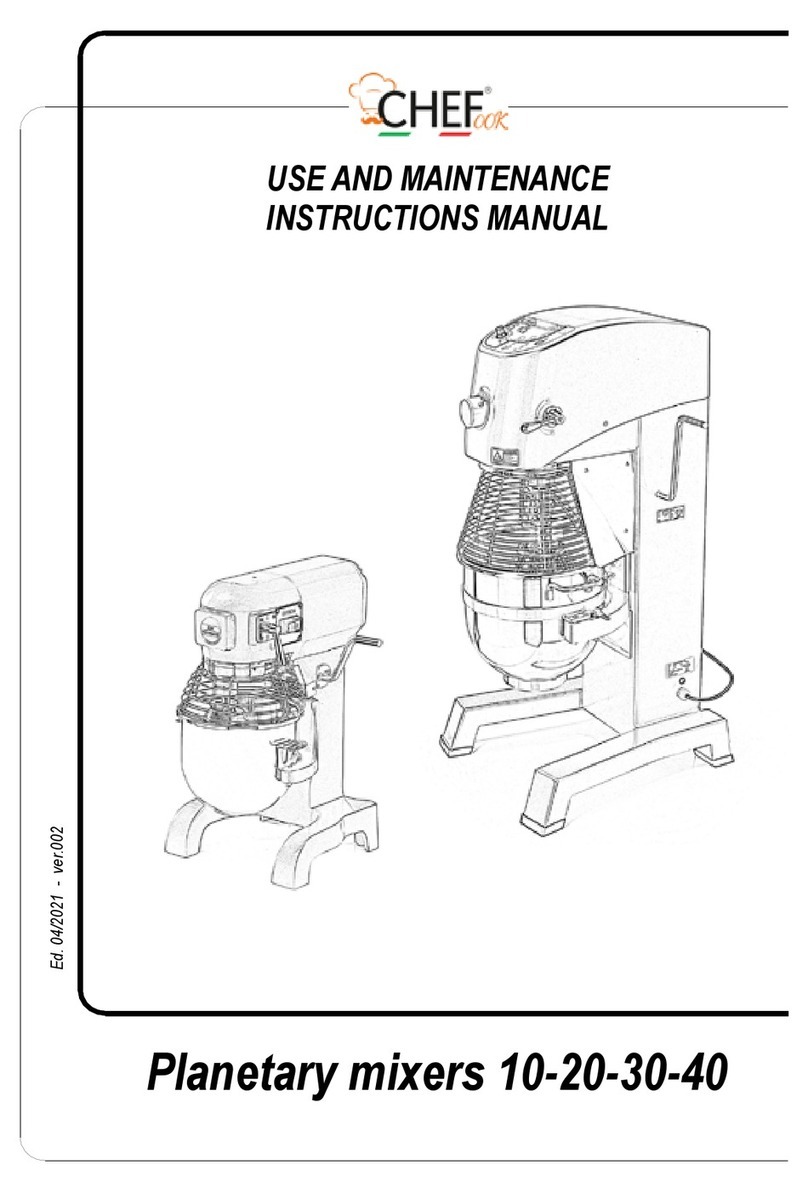

CHEFOOK PM 10 3V Use and maintenance

Prince Castle
Prince Castle SMW-22 operating instructions

Dynamic
Dynamic PMX 98 user guide

Ferm
Ferm PMM1010 instruction manual

DODA

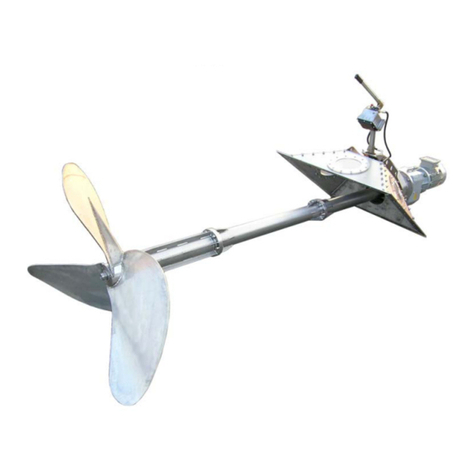

DODA BG80 Series Use and maintenance manual
