Sapphire Audio SRD24 User manual

24" Drawer Refrigerator
Operator’s Manual
SRD24 Indoor & Outdoor Models
SapphireAppliances.com | 866.754.6672
Clear Ice Machines •Wine •Refrigerators •Beverage Centers •Drawers
Adapng to Your Environment

Congratulations on your new SAPPHIRE Drawer Refrigerator. To ensure proper operation, please read this
Operator’s Manual carefully before using this product. Keep this manual in a safe place for future reference.
WARNING
California Proposition 65
Certain components in this product and its related accessories contain chemicals
known to the state of California to cause cancer, birth defects or other reproductive harm.
PRODUCT REGISTRATION INFORMATION
Please record your model’s information.You will need to know this information whenever you call to request information or service.
The model’s information appears on a serial number plate.
Model Number:
Serial Number:
You can register your appliance at:
SapphireAppliances.com
Or
Fill out the provided Warranty Registration Card and mail in.

Congratulations on your new SAPPHIRE Drawer Refrigerator. To ensure proper operation, please read this
Operator’s Manual carefully before using this product. Keep this manual in a safe place for future reference.
!WARNING
California Proposition 65
Certain components in this product and its related accessories contain chemicals
known to the state of California to cause cancer, birth defects or other reproductive harm.
PRODUCT REGISTRATION INFORMATION
Please record your model’s information.You will need to know this information whenever you call to request information or service.
The model’s information appears on a serial number plate.
Model Number:
Serial Number:
You can register your appliance at:
SapphireAppliances.com
Or
Fill out the provided Warranty Registration Card and mail in.

1
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
TABLE OF CONTENTS
SAFTEY...............................................................................................................................................3
SAFETY DEFINITIONS......................................................................................................................3
SAFETY PRECAUTIONS ..................................................................................................................3
SPECIFICATIONS..............................................................................................................................6
SAPPHIRE 24-INCH INDOOR DRAWER REFRIGERATOR..........................................................6
INSTALLING THE UNIT ....................................................................................................................7
REQUIRED CABINET OPENING .....................................................................................................9
BUILT-IN CABINET DIMENSIONS ...................................................................................................9
SAPPHIRE 24-Inch Indoor Cabinet Dimensions............................................................................9
ELECTRICAL CONNECTION..........................................................................................................10
AVOIDING USE OF EXTENSION CORDS.....................................................................................10
LEVELING THE UNIT....................................................................................................................... 11
CUSTOM DOOR PANEL..................................................................................................................12
Installing the Custom Door Panel.................................................................................................13
ANTI-TIP SYSTEM...........................................................................................................................14
INTEGRATED GRILL/PLINTH.........................................................................................................14
OPERATING THE UNIT...................................................................................................................15
USING THE CONTROLS.................................................................................................................15
Turning the Unit On ......................................................................................................................15
Turning the Unit Off......................................................................................................................16
Entering the Display of Menu Items..............................................................................................17
Lighting Options............................................................................................................................19
Lighting Options - Scheduling Nightlight.......................................................................................20
Lighting Options - Turning Nightlight Off.......................................................................................29
Setting Temperature .....................................................................................................................30

TABLE OF CONTENTS
2© 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
Entering Sabbath Mode................................................................................................................31
Exiting or Cancelling Sabbath Mode ............................................................................................33
Changing / Adjusting the Temperature..........................................................................................33
Default Temperature.....................................................................................................................34
Clearing Simple Error Codes........................................................................................................35
Other / Additional Error Codes......................................................................................................35
Manually Clearing Temp Out of Range Error Code......................................................................36
EXPECTING NORMAL SOUNDS ...................................................................................................37
DEALING WITH POWER FAILURE................................................................................................37
CARE AND MAINTENANCE...........................................................................................................38
CLEANING AND MAINTAINING THE UNIT...................................................................................38
Cleaning the Unit’s Exterior..........................................................................................................38
Cleaning the Unit’s Interior...........................................................................................................38
Extended Periods of Non-Use......................................................................................................39
Recommissioning the Unit............................................................................................................39
Starting Up the Unit......................................................................................................................39
Cleaning the Condenser...............................................................................................................39
TROUBLESHOOTING.....................................................................................................................41
DISPOSING THE UNIT....................................................................................................................42
WARRANTY......................................................................................................................................43

3
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
SAFETY
1
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION and NOTICE are used throughout this manual to highlight important
information. Be certain that the meanings of these alerts are known to all who operate and install the appliance.
!DANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
!WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
!CAUTION
Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation that can cause damage to the appliance and/or the environment, or cause the appliance
to operate improperly.
SAFETY PRECAUTIONS
POWER CORD PRECAUTIONS
• Do not use the appliance if the power cord is damaged. If the power cord is damaged, have a qualified
electrician replace the power cord.
• Never lift, carry or drag the appliance by the power cord.
• Do not connect or disconnect the electric plug when your hands are wet.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the outlet.

SAFETY
4© 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
INSTALLING PRECAUTIONS
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• To avoid a hazard due to instability of the appliance, the appliance must be installed in accordance with the
instructions.
MOVING PRECAUTIONS
• When moving the appliance, do not turn it upside-down and do not unlevel it more than
45 degrees.
• Do not move the appliance without emptying it and securing the door in the closed position.
OTHER PRECAUTIONS
• To ensure proper ventilation for the appliance, keep obstructions away from the front of the unit.
• Keep fingers out of the “pinch point” areas. Clearance between the door and cabinet are necessarily small.
Be careful closing the door when children are in the area.
• Do not touch the evaporator with your hand when the appliance is operating.
• Do not attempt to repair or replace any part of your appliance unless this manual specifically recommends it.
Have a qualified technician perform all other service on the unit.
• Children 8 years of age and older and people with reduced physical, sensory or mental capabilities or lack
of experience and knowledge can use this appliance if they have been given supervision or instruction
concerning use of the appliance in a safe way and they understand the hazards involved.
• Never allow children to operate, play with or crawl inside the appliance.
• Never allow children to clean and maintain the appliance without supervision.
• Do not use the appliance other than for its intended purpose.
• Do not touch the condenser surfaces. They are sharp and can be easily damaged.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
CLEANING AND MAINTENANCE PRECAUTIONS
• Never clean the appliance parts with flammable fluids. Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this appliance or any other appliances. The fumes can create a fire
hazard or explosion.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to
the food, or damage or discolor the interior.
• If the appliance will not be used for a long time, thoroughly clean it before the next use. Carefully follow
any instructions provided for cleaning or the use of sanitizing solution. Do not leave any solution inside the
appliance after cleaning.

SAFETY
5
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS ARE NOT
FOLLOWED.

6© 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
SPECIFICATIONS
2
SAPPHIRE 24-INCH INDOOR DRAWER REFRIGERATOR
FEATURES 24-INCH DRAWER
REFRIGERATOR
Electrical Requirement 115V/60Hz
Maximum Amp Fuse 15 amp
Net Capacity 4.6 cu-ft (130 L)
Temperature Setting 34°- 65°F (1°- 18°C)
Defrost Type Automatic

7
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
INSTALLING
THE UNIT
3
!WARNING
Fire/Explosion Hazard
DO NOT install in spaces containing gasoline engines, fuel tanks or fuel line fittings. This device
does not meet federal requirement for ignition protection.
IMPORTANT:
Electrical Tips
• This appliance must be installed with all electrical connections in accordance with state and local codes.
• This unit requires a standard electrical supply properly grounded in accordance with National Electrical Code
and local codes and ordinances.
• The fuse (or circuit breaker) size should be 15 amperes for 110V.
• The manufacturer recommends that you provide a separate circuit that services only your appliance. Use
receptacles that cannot be turned offby a switch or pull chain.
• Plug the appliance into a grounded three-prong outlet. Do not remove the grounding prong, do not use an
adapter, and do not use an extension cord.
• Do not kink, pinch or damage the power supply cord between the appliance and wall or cabinet.
• Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. Following
this step will reduce the possibility of a malfunction in the cooling system brought on by handling during
transportation.
• Make sure to install the unit on a level surface.
Tips on Moving and Setting up the Unit
!CAUTION
Tip Hazard
Be sure to use caution when working around an uninstalled unit. The unit is capable of tipping over
if it is not installed and properly anchored.
• Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
• Remove the packing materials and clean the appliance before using it.

INSTALLING THE UNIT
8© 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
Factors Affecting the Unit
OTE:N Do not use an appliance intended for indoor use outside. Only use an appliance that is intended for outdoor
use outdoors.
• Never keep the appliance next to ovens, grills or other high-heat resources.
• Keep the appliance on a hard, level surface that can support the unit when the unit is full. Keep the appliance
level to help ensure it works properly. You may need to make several adjustments to level the unit. If
necessary, adjust the height of the appliance by turning the feet. See “Leveling the Unit” on page 11.
• To ensure proper service access and ventilation, all SAPPHIRE units should not have the grill openings
covered. There are no additional requirements for venting at the top, side or rear of the unit.
• These units are to be installed under a counter. Follow the recommended spacing dimensions listed in this
manual. Place the electrical supply in the recommended location.

INSTALLING THE UNIT
9
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
REQUIRED CABINET OPENING
!WARNING
Fire/Explosion Hazard
DO NOT install in spaces containing gasoline engines, fuel tanks or fuel line fittings. This device
does not meet federal requirement for ignition protection. Failure to comply could result in injury or
death.
A built-in installation will allow you to install the appliance under a counter or in a kitchen cabinet if you respect
the required clearance space around the appliance. The appliance must be located to allow clearance for the
electrical connection in the rear of the unit.
BUILT-IN CABINET DIMENSIONS
A built-in unit is designed for zero clearance at the top and each side of the unit. The unit uses fan-forced
condenser cooling, which requires air circulation through the lower section of the unit.
OTE:N To ensure proper service access and ventilation, all SAPPHIRE units should not have the grill openings covered. There are no
additional requirements for venting at the top, side or rear of the unit.
SAPPHIRE 24-INCH INDOOR CABINET DIMENSIONS
Recommended location for electrical connection in either adjacent cabinet.
24.00"
(610 mm)
7.00"
(177 mm)
(864 mm)
"
"
"
"

INSTALLING THE UNIT
10 © 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
NOTICE
• If you remove the rubber feet from the bottom of the unit, reinstall the mounting screws into the bottom of
the cabinet to avoid damage to components mounted to the base pan.
• Ensure that the air path for the grill remains unrestricted. Any restriction of airflow through
the grill will disrupt normal operation of the unit, resulting in damage to components, and
voids warranty.
ELECTRICAL CONNECTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, you must properly ground this appliance. The power cord of this appliance features a three-
prong grounding plug that mates with a standard three-prong grounding wall outlet to minimize the possibility of
electric shock hazard from the appliance. Have a qualified electrician check the wall outlet and circuit to make
sure the outlet is properly grounded. It is your responsibility and obligation to have a standard two-prong wall
outlet replaced with a properly grounded three-prong wall outlet.
Always plug the appliance into its own individual electrical outlet. The voltage rating of the outlet must match
the rating label on the appliance. This match provides the best performance and also prevents overloading the
electrical circuits, which could cause a fire hazard from overheated wires.
Never unplug your appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from
the outlet.
Repair or replace immediately all power cords that have become frayed or damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either end.
When moving the appliance, take care not to damage the power cord.
If the supply cord suffers damage, have the manufacturer, its service agent, or similarly qualified persons replace
the supply cord to avoid a hazard.
AVOIDING USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, the manufacturer strongly recommends that you do
not use an extension cord with this appliance.

INSTALLING THE UNIT
11
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
LEVELING THE UNIT
The appliance requires leveling before it can work properly. If necessary, raise or lower the unit by turning the
four leveling feet on the bottom. The manufacturer recommends using a carpenter’s level to check the appliance.
NOTICE
It is extremely important that the appliance is level for optimum performance.
Adjust all four leveling feet evenly so that the top of the appliance is at the desired installation height and is level.
1. On a level surface, place a carpenter’s level on top of the appliance to see if it is level from front to back and
side to side.
2. Adjust the height of the leveling feet as follows:
• Turn the leveling feet to the right to lower that side of the appliance.
• Turn the leveling feet to the left to raise that side of the appliance.

INSTALLING THE UNIT
12 © 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
CUSTOM DOOR PANEL
A custom door panel/frame can be fabricated for the appliance. Handle hardware must also be provided, if
needed.
OTE:N Do not cover a glass door with a solid panel.
Finish all sides of the custom panel. They may be visible when the door is open.
24-INCH INDOOR PANELS
"
""
"
"
"
"
"
"
"
"
"
"
"
P

INSTALLING THE UNIT
13
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
INSTALLING THE CUSTOM DOOR PANEL
1. Remove the door from the unit.
2. Remove the door seal to gain access to the custom door panel mounting holes.
3. Align the top of the custom door panel flush with the top of the door.
4. Adjust the overlap of the custom door panel so it is equal on both sides of the door.
5. Secure the custom door panel to the door using six wood screws (provided).

INSTALLING THE UNIT
14 © 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
6. Reinstall the door seal. Be sure the seal is properly seated.
7. Reinstall the door to the unit.
ANTI-TIP SYSTEM
1. On built-in installations, once the appliance is in place and leveled, secure the two anti-tip brackets
underneath the countertop using the two provided screws.
2. If the brackets for the anti-tip system cannot be secured above the appliance and no wood is available,
Relocate the brackets for the anti-tip system to the side of the appliance for securing into an adjacent
cabinet.
INTEGRATED GRILL/PLINTH
1. An integrated grill/plinth can be fabricated if desired. The thickness of the panel should be between 1/4
in. to 3/8 in. (6 mm to 9 mm) and the height will vary between 3-5/16 in. to 4-5/16 in. (84 mm to 110 mm)
depending on your grill/plinth height.
OTE:N When nishing the grill/plinth, be sure to stain the front, back and all edges to prevent warping.
2. Apply double-sided tape to the surrounding edges of the integrated grill/plinth.
3. Remove the backing paper from the double-sided tape. Carefully align the grill/plinth over the integrated grill/
plinth and press it into position.
1/4 - 3/8 in.
(6-9 mm)
3-5/16 - 4-5/16 in.
(84-110 mm)
Double-Sided Tape
(Back Side)

15
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual
OPERATING
THE UNIT
4
USING THE CONTROLS
The control panel is located at the top of the appliance.
OTE:N You have 30 seconds to make a control change before the display reverts to the default screen.
OTE:N The clock time only displays if the user has set the NIGHTLIGHT function; otherwise the clock time does not appear on the screen.
TURNING THE UNIT ON
1. Press the ON/OFF button ( ).

OPERATING THE UNIT
16 © 2021 SAPPHIRE
SAPPHIRE Drawer Refrigerator
Operator’s Manual
2. The refrigerator powers up and displays the default temperature screen.
OTE:N The factory default temperature must be 38°F.
TURNING THE UNIT OFF
1. Press the ON/OFF button ( ) and hold for 3 seconds.
2. The refrigerator powers offand nothing displays.

OPERATING THE UNIT
17
© 2021 SAPPHIRE SAPPHIRE Drawer Refrigerator
Operator’s Manual

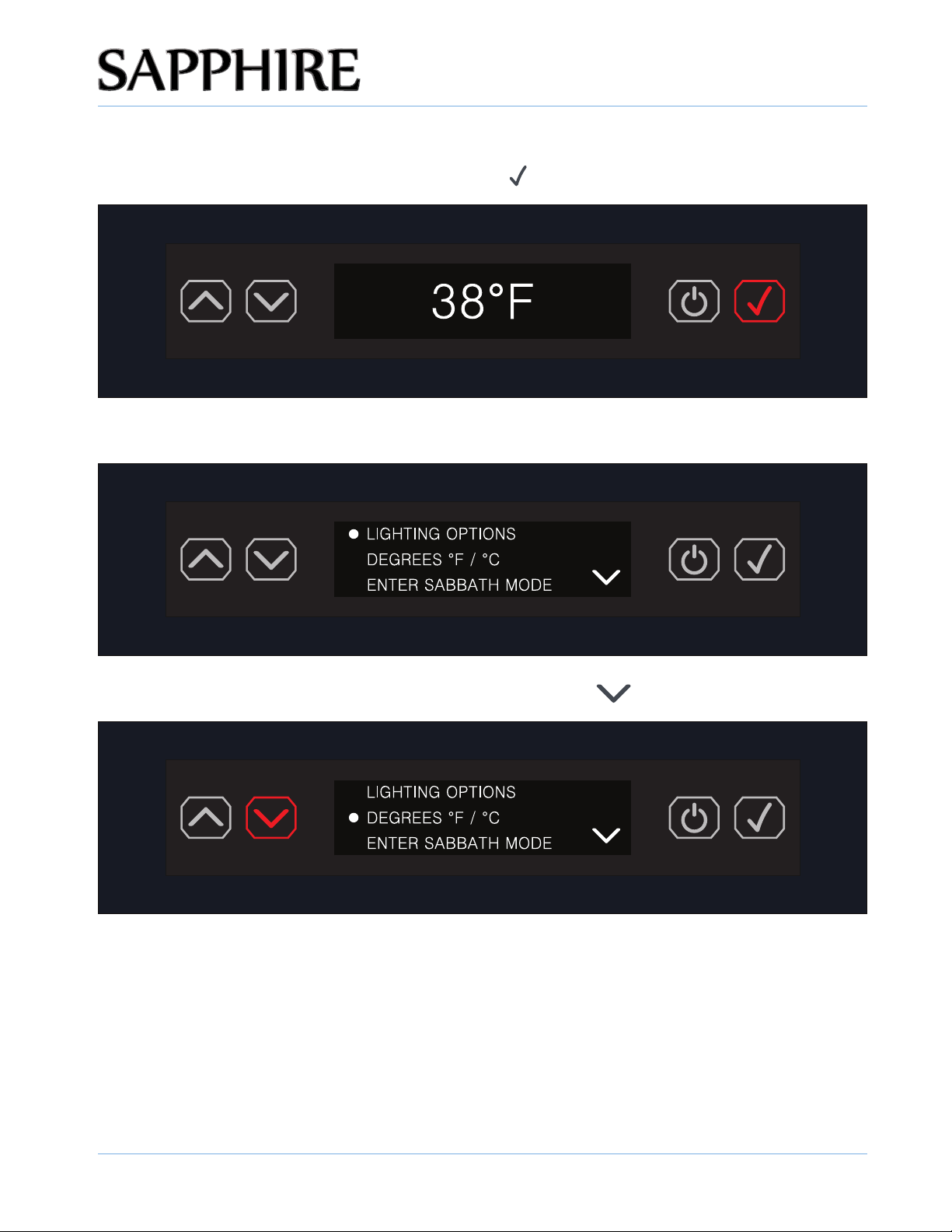

ENTERING THE DISPLAY OF MENU ITEMS
1. To enter the menu of settings, press the ENTER button ( ).
2. The display shows the first menu item, LIGHTING OPTIONS.
3. Scroll to the next menu item by pressing the DOWN ARROW button ( ).
