Saramonic CaMixer User manual
Saramonic’
Mini
Preamp
Audio
Mixer
Kit
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
CaMixer
Introduction
Manual
Introductions
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
The
mixer
features
one
mini
XLR
input
for
balanced
microphones
and
two
microphone/line
inputs
for
the
included
condenser
microphones
or
other
user-supplied
microphones.
A
volume
control
knob
and
level
meter
allow
easy
adjustment
of
the
input
level.
A
headphone
monitor
output
allows
you
to
monitor
the
input
and
playback
signal.
The
audio
quality
and
versatile
operation
of
the
CaMixer
make
it
ideal
for
both
professional
and
in-home
applications.
Highlights
¢
Two
1/8"(3.5
mm)
stereo
line/mic
inputs
One
mini
XLR
microphone
input
(a
mini-XLR
to
standard-XLR
cable
included)
+48V
phantom
power
One
1/8"(3.5
mm)
stereo
line
output
to
camera
One
1/8"(3.5
mm)
headphone
monitor
output
PLAY/REC
monitor
switch
Independent
L/R
level
meters
Volume
control
knob
Includes
two
plug-in
power
condenser
microphones
Power
provided
by
9V
battery
Specifications
INPUT
1
GAIN
15
dB
INPUT
2
GAIN
&
MINI
XLR
Jack
15dB
INPUT
1
&
INPUT
2
Power
5V
power
supplies
MINI
Jack
Phantom
Power
48V
power
supplies
Level
Meter
-18
dB
to
+3
dB
in 3
dB
increments
Power
Requirements
9V alkaline
or
lithium
battery
Frequency
Response
20
Hz
to
20
Khz
(+/-0.5
dB)
Noise
82
dB
@
1
kHz,
-30
dBu
input
Distortion
less
than
0.03%
@
1
kHz,
-30
dBu
input
Dimensions
L95xW35xH65mm
Weight
156
g
(5.5
oz.)
Components
48V
Phantom
Power/
Power
On
/
Power
Off
PLAY
/
REC
Monitor
Switch
Level
Meter
Headphone
Jack
Audio
Output
Condenser
Microphones
Cold
Shoe
Volume
Control
Knob
Mini
XLR
Microphone
Input
Microphone
Input
Saramonic’
Mini
Preamp
Audio
Mixer
Kit
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
CaMixer
Introduction
Manual
Introductions
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
The
mixer
features
one
mini
XLR
input
for
balanced
microphones
and
two
microphone/line
inputs
for
the
included
condenser
microphones
or
other
user-supplied
microphones.
A
volume
control
knob
and
level
meter
allow
easy
adjustment
of
the
input
level.
A
headphone
monitor
output
allows
you
to
monitor
the
input
and
playback
signal.
The
audio
quality
and
versatile
operation
of
the
CaMixer
make
it
ideal
for
both
professional
and
in-home
applications.
Highlights
¢
Two
1/8"(3.5
mm)
stereo
line/mic
inputs
One
mini
XLR
microphone
input
(a
mini-XLR
to
standard-XLR
cable
included)
+48V
phantom
power
One
1/8"(3.5
mm)
stereo
line
output
to
camera
One
1/8"(3.5
mm)
headphone
monitor
output
PLAY/REC
monitor
switch
Independent
L/R
level
meters
Volume
control
knob
Includes
two
plug-in
power
condenser
microphones
Power
provided
by
9V
battery
Specifications
INPUT
1
GAIN
15
dB
INPUT
2
GAIN
&
MINI
XLR
Jack
15dB
INPUT
1
&
INPUT
2
Power
5V
power
supplies
MINI
Jack
Phantom
Power
48V
power
supplies
Level
Meter
-18
dB
to
+3
dB
in 3
dB
increments
Power
Requirements
9V alkaline
or
lithium
battery
Frequency
Response
20
Hz
to
20
Khz
(+/-0.5
dB)
Noise
82
dB
@
1
kHz,
-30
dBu
input
Distortion
less
than
0.03%
@
1
kHz,
-30
dBu
input
Dimensions
L95xW35xH65mm
Weight
156
g
(5.5
oz.)
Components
48V
Phantom
Power/
Power
On
/
Power
Off
PLAY
/
REC
Monitor
Switch
Level
Meter
Headphone
Jack
Audio
Output
Condenser
Microphones
Cold
Shoe
Volume
Control
Knob
Mini
XLR
Microphone
Input
Microphone
Input
Saramonic’
Mini
Preamp
Audio
Mixer
Kit
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
CaMixer
Introduction
Manual
Introductions
The
Saramonic
CaMixer
is
a
compact
audio
interface
with
phantom
power
and
preamplifier,
ideal
for
DSLR
camera
video
production.
The
mixer
features
one
mini
XLR
input
for
balanced
microphones
and
two
microphone/line
inputs
for
the
included
condenser
microphones
or
other
user-supplied
microphones.
A
volume
control
knob
and
level
meter
allow
easy
adjustment
of
the
input
level.
A
headphone
monitor
output
allows
you
to
monitor
the
input
and
playback
signal.
The
audio
quality
and
versatile
operation
of
the
CaMixer
make
it
ideal
for
both
professional
and
in-home
applications.
Highlights
¢
Two
1/8"(3.5
mm)
stereo
line/mic
inputs
One
mini
XLR
microphone
input
(a
mini-XLR
to
standard-XLR
cable
included)
+48V
phantom
power
One
1/8"(3.5
mm)
stereo
line
output
to
camera
One
1/8"(3.5
mm)
headphone
monitor
output
PLAY/REC
monitor
switch
Independent
L/R
level
meters
Volume
control
knob
Includes
two
plug-in
power
condenser
microphones
Power
provided
by
9V
battery
Specifications
INPUT
1
GAIN
15
dB
INPUT
2
GAIN
&
MINI
XLR
Jack
15dB
INPUT
1
&
INPUT
2
Power
5V
power
supplies
MINI
Jack
Phantom
Power
48V
power
supplies
Level
Meter
-18
dB
to
+3
dB
in 3
dB
increments
Power
Requirements
9V alkaline
or
lithium
battery
Frequency
Response
20
Hz
to
20
Khz
(+/-0.5
dB)
Noise
82
dB
@
1
kHz,
-30
dBu
input
Distortion
less
than
0.03%
@
1
kHz,
-30
dBu
input
Dimensions
L95xW35xH65mm
Weight
156
g
(5.5
oz.)
Components
48V
Phantom
Power/
Power
On
/
Power
Off
PLAY
/
REC
Monitor
Switch
Level
Meter
Headphone
Jack
Audio
Output
Condenser
Microphones
Cold
Shoe
Volume
Control
Knob
Mini
XLR
Microphone
Input
Microphone
Input

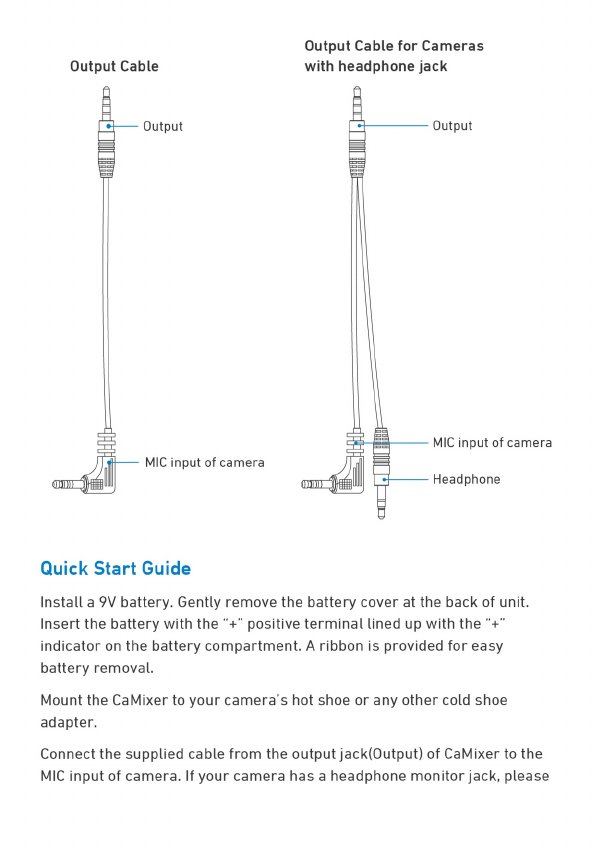

Output
Cable
for
Cameras
Output
Cable
with
headphone
jack
Output Output
MIC
input
of
camera
MIC
input
of
camera
Headphone
Quick
Start
Guide
Install
a
9V
battery.
Gently
remove
the
battery
cover
at
the
back
of
unit.
Insert
the
battery
with
the
“+”
positive
terminal
lined
up
with
the
“+”
indicator
on
the
battery
compartment.
A
ribbon
is
provided
for
easy
battery
removal.
Mount
the
CaMixer
to
your
camera’s
hot
shoe
or
any
other
cold
shoe
adapter.
Connect
the
supplied
cable
from
the
output
jack(Output)
of
CaMixer
to
the
MIC
input
of
camera.
If
your
camera
has
a
headphone
monitor
jack,
please
connect
the
cable
as
shown
in
the
and
select
PLAY
for
monitoring
the
playback
audio
from
camera.
Plug
in
the
supplied
condenser
microphones
or
other
user-supplied
XLR
microphones
or
audio
sources
to
the
inputs
of
CaMixer.
Turn
on
the
CaMixer.
Slide
the
power
switch
to
ON.
If
your
microphone
needs
phantom
power,
please
slide
the
power
switch
to
the
+48V
position
to
turn
on
the
phantom
power.
A
NOTE:
Please
turn
on
phantom
power
ONLY
if
the
microphone
clearly
say
it’s
needed,
as
the
current
may
damage
it.
Plug
an
earphone
into
the
monitor
jack
on
the
CaMixer
to
monitor
the
audio.
Be
sure
that
the
volume
control
is
set
low
before
recording
to
avoid
excessively
loud
audio
from
damaging
your
hearing.
Select
the
PLAY/REC
monitor
switch
Select
PLAY
for
monitoring
playback
audio
from
the
camera.
Select
REC
for
monitoring
audio
directly
from
the
microphone
or
audio
source
while
recording.
You
are
now
ready
to
record:
Adjust
the
volume
control
flexibly
to
get
the the
optimum
signal
levels.
If
you
hear
echoes
while
recording,
please
lower
the
volume
with
the
volume
control
knob.

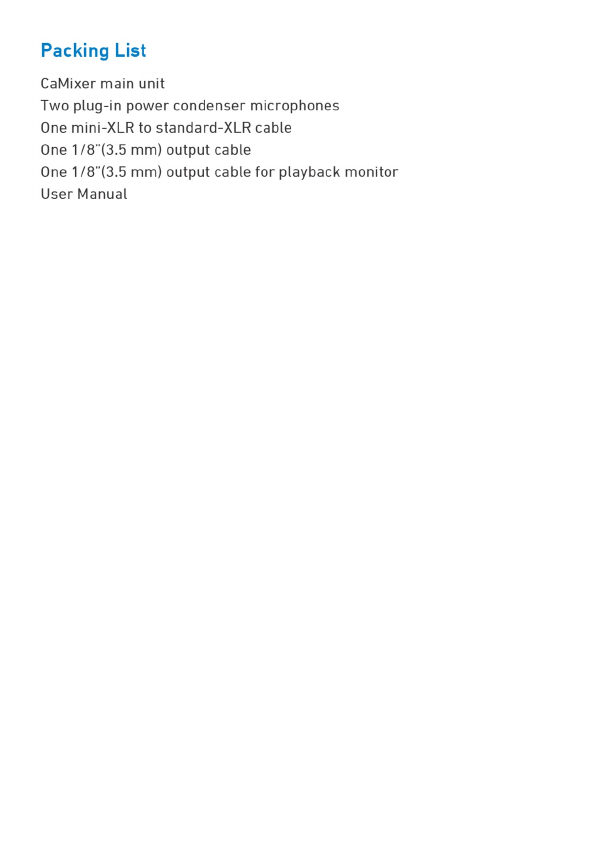

Packing
List
CaMixer
main
unit
Two
plug-in
power
condenser
microphones
One
mini-XLR
to
standard-XLR
cable
One
1/8"(3.5
mm)
output
cable
One
1/8"(3.5
mm)
output
cable
for
playback
monitor
User
Manual
Output
Cable
for
Cameras
Output
Cable
with
headphone
jack
Output Output
MIC
input
of
camera
MIC
input
of
camera
Headphone
Quick
Start
Guide
Install
a
9V
battery.
Gently
remove
the
battery
cover
at
the
back
of
unit.
Insert
the
battery
with
the
“+”
positive
terminal
lined
up
with
the
“+”
indicator
on
the
battery
compartment.
A
ribbon
is
provided
for
easy
battery
removal.
Mount
the
CaMixer
to
your
camera’s
hot
shoe
or
any
other
cold
shoe
adapter.
Connect
the
supplied
cable
from
the
output
jack(Output)
of
CaMixer
to
the
MIC
input
of
camera.
If
your
camera
has
a
headphone
monitor
jack,
please
connect
the
cable
as
shown
in
the
and
select
PLAY
for
monitoring
the
playback
audio
from
camera.
Plug
in
the
supplied
condenser
microphones
or
other
user-supplied
XLR
microphones
or
audio
sources
to
the
inputs
of
CaMixer.
Turn
on
the
CaMixer.
Slide
the
power
switch
to
ON.
If
your
microphone
needs
phantom
power,
please
slide
the
power
switch
to
the
+48V
position
to
turn
on
the
phantom
power.
A
NOTE:
Please
turn
on
phantom
power
ONLY
if
the
microphone
clearly
say
it’s
needed,
as
the
current
may
damage
it.
Plug
an
earphone
into
the
monitor
jack
on
the
CaMixer
to
monitor
the
audio.
Be
sure
that
the
volume
control
is
set
low
before
recording
to
avoid
excessively
loud
audio
from
damaging
your
hearing.
Select
the
PLAY/REC
monitor
switch
Select
PLAY
for
monitoring
playback
audio
from
the
camera.
Select
REC
for
monitoring
audio
directly
from
the
microphone
or
audio
source
while
recording.
You
are
now
ready
to
record:
Adjust
the
volume
control
flexibly
to
get
the the
optimum
signal
levels.
If
you
hear
echoes
while
recording,
please
lower
the
volume
with
the
volume
control
knob.
Packing
List
CaMixer
main
unit
Two
plug-in
power
condenser
microphones
One
mini-XLR
to
standard-XLR
cable
One
1/8"(3.5
mm)
output
cable
One
1/8"(3.5
mm)
output
cable
for
playback
monitor
User
Manual
Output
Cable
for
Cameras
Output
Cable
with
headphone
jack
Output Output
MIC
input
of
camera
MIC
input
of
camera
Headphone
Quick
Start
Guide
Install
a
9V
battery.
Gently
remove
the
battery
cover
at
the
back
of
unit.
Insert
the
battery
with
the
“+”
positive
terminal
lined
up
with
the
“+”
indicator
on
the
battery
compartment.
A
ribbon
is
provided
for
easy
battery
removal.
Mount
the
CaMixer
to
your
camera’s
hot
shoe
or
any
other
cold
shoe
adapter.
Connect
the
supplied
cable
from
the
output
jack(Output)
of
CaMixer
to
the
MIC
input
of
camera.
If
your
camera
has
a
headphone
monitor
jack,
please
connect
the
cable
as
shown
in
the
and
select
PLAY
for
monitoring
the
playback
audio
from
camera.
Plug
in
the
supplied
condenser
microphones
or
other
user-supplied
XLR
microphones
or
audio
sources
to
the
inputs
of
CaMixer.
Turn
on
the
CaMixer.
Slide
the
power
switch
to
ON.
If
your
microphone
needs
phantom
power,
please
slide
the
power
switch
to
the
+48V
position
to
turn
on
the
phantom
power.
A
NOTE:
Please
turn
on
phantom
power
ONLY
if
the
microphone
clearly
say
it’s
needed,
as
the
current
may
damage
it.
Plug
an
earphone
into
the
monitor
jack
on
the
CaMixer
to
monitor
the
audio.
Be
sure
that
the
volume
control
is
set
low
before
recording
to
avoid
excessively
loud
audio
from
damaging
your
hearing.
Select
the
PLAY/REC
monitor
switch
Select
PLAY
for
monitoring
playback
audio
from
the
camera.
Select
REC
for
monitoring
audio
directly
from
the
microphone
or
audio
source
while
recording.
You
are
now
ready
to
record:
Adjust
the
volume
control
flexibly
to
get
the the
optimum
signal
levels.
If
you
hear
echoes
while
recording,
please
lower
the
volume
with
the
volume
control
knob.
Packing
List
CaMixer
main
unit
Two
plug-in
power
condenser
microphones
One
mini-XLR
to
standard-XLR
cable
One
1/8"(3.5
mm)
output
cable
One
1/8"(3.5
mm)
output
cable
for
playback
monitor
User
Manual
Other manuals for CaMixer
1
Table of contents
Other Saramonic Music Mixer manuals
Saramonic
Saramonic SR-PAX2 User manual
Saramonic
Saramonic SR-PAX1 User manual
Saramonic
Saramonic SR-PAX1 User manual
Saramonic
Saramonic LavMic User manual
Saramonic
Saramonic SR-PAX2 User manual
Saramonic
Saramonic SR-PAX1 User manual
Saramonic
Saramonic SmartMixer User manual
Saramonic
Saramonic CaMixer User manual
