Saramonic Noisewall SR-BH600 User manual

NoiseWallSR-BH600
Plug Adaptor for
In-flight Use
Audio cable (1m)
User Manual
Micro USB charging cable (20cm)
Carrying Case

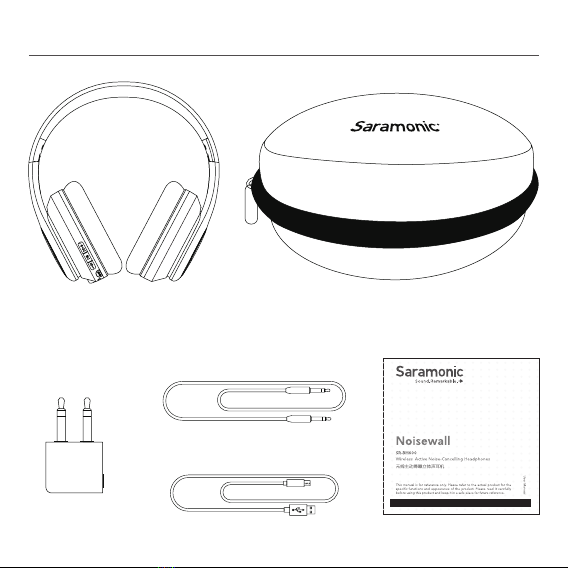

Contents

3.5mm AUX port
ANC Button
Volume Down / Next Song
Volume Up /
Previous Song
Multi-Function Button
Microphone
Charging Port
Bluetooth / ANC Indicator
Product Overview

specifiction are subject to change without notice
Model
Bluetooth Version
Range
Frequency Response
Profile
Supported Audio Format(s)
Input
Impedance
Driver
Battery Capacity
Charge Time (hours)
Playtime (hours)
ANC Mode Standby Time (hours)
Specifications
SR-BH600
V5.0
approx.30ft(10m)
20-20KHz
A2DP, AVRCP, HSP, HFP, CVC
SBC, AAC
5V-12V
32 Ω
Φ40mm
400mAh
approx. 2.5
approx.16 (Bluetooth with ANC off)
approx.12 (Bluetooth with ANC on)
40

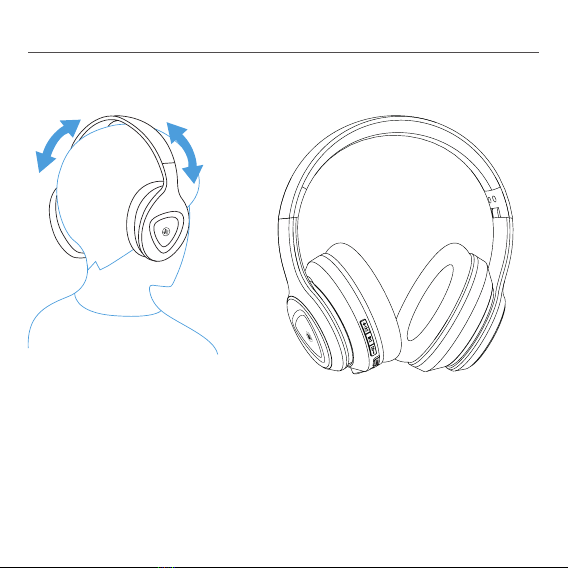

How to Wear
Open and wear the headphones, adjust the headphones to a comfortable
position in the direction shown by the above picture.
L R

Power On / Off
Power On
Power Off
Press and hold for 3 seconds
Press and hold for 3 seconds
Flashing red and
blue alternately
Flashing red

Pairing
Press and hold for 5 seconds
Flashing red and blue alternately
Select “Saramonic BH600” on your device
Voice prompts “connected”
Notes: The pairing mode will be lasted for 10 minutes. If there is no Bluetooth connection
with any device for more than 10 minutes, the headphone will automatically turn off.

Button Controls
Play / Pause
Answer / End a call
Activate Siri
Next Tack
Reject a call
Previous track
Call the latest number
Volume up
Volume down Press ×1
Press ×1
Press ×1
Press ×3
Press ×2
Press ×2
Press and hold for 3 seconds
Press and hold for 3 seconds
Press ×1

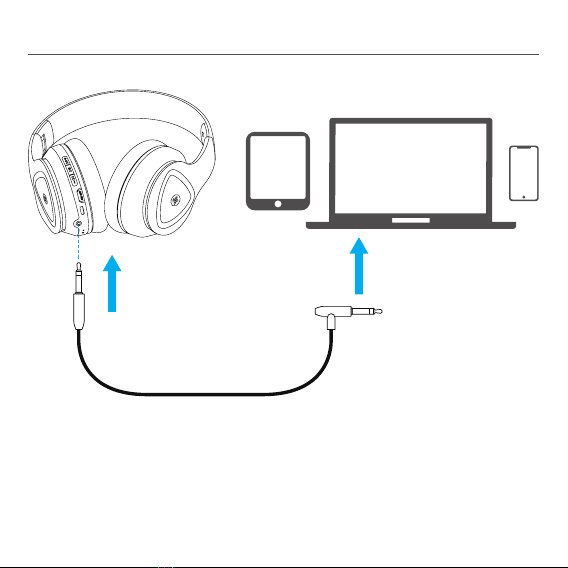

Aux-in
AUX AUX
Switching to AUX mode once plugging in an audio cable, and Bluetooth mode
will automatically turn off.
When using AUX mode, control audio playback, volume and call via the
connected device.

Bluetooth / ANC Indicator
ANC On Slide the switch to ON
Slide the switch to OFF NC LED indicator off
Steady green(NC LED indicator)
ANC Off
ANC On / Off

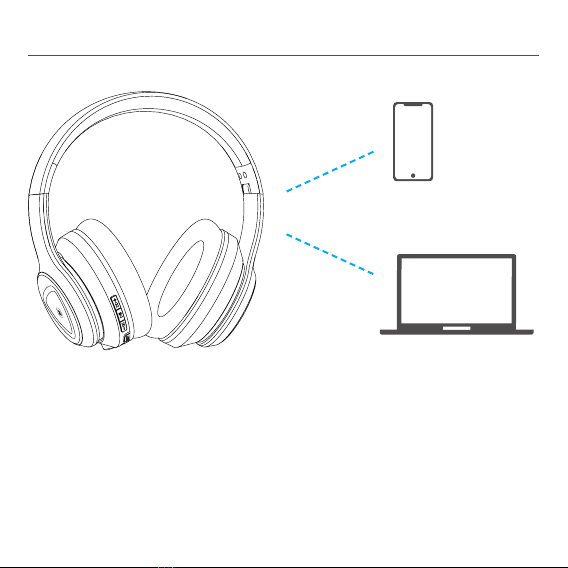

Connect an Additional Bluetooth Devices
1. Make sure the headphones are connected to the first Bluetooth device
successfully and music is not playing.
2. Hold the Multi-function Button until the headphones re-enter pairing mode
(the indicator light will flash red and blue alternately).
3. Pair the headphones with the second device according to "Easy Pairing" steps.

Charge the headphones
Blinking red (LED indicator) with a voice prompt “du-du”
Flashing red and blue for 1 second
Solid red (LED indicator)
Off (LED indicator)
Charging
Fully charged
Low battery shutdown
Low battery

Q&A
Q: Failed to connect devices with headphones?
A: Please ensure your headphones in pairing mode. Then delete the pairing
record on the Bluetooth devices and reconnect with headphones.
Q: Failed to turn on the headphones?
A: Please check the battery status of your headphones.
Q: Can I replace the battery in the headphones?
A: No. These headphones use a built-in non-detachable Li-Polymer battery
which can not be replaced.
Q: Can I use the headphones while driving?
A: For your safety, we strongly recommend you do not use headphones while
driving in order to avoid distractions.
Q: Why is the connection sometimes disconnected within 10 meters?
A: If there are many WiFi routers, 4G signals, high-power electrical appliances
and etc when using, it may be interfering with the Bluetooth connection. It can
be solved by changing the environment or reconnecting.
Q: No sound from my computer or mobile phone?
A: Please check if the output channel of your computer supports the A2DP
profile. Also check the volume settings on your headphones and computer/
mobile phone.
Q: Why am I unable control the volume of a track playing on my mobile phone's
APPs?

A: The configurations of various application softwares are different, the
headphones may not be completely compatible with some APPs.
Q: Why does Bluetooth turn off when I connect an audio cable?
A: This is one of BH600 special features. When the user inserts an audio cable
into the audio port, all Bluetooth feature buttons temporary stop working and
Bluetooth turns off.
The Bluetooth will be available again when pulling out the audio cable.
Q: Failed to turn the headphones on/off?
A: Please noted that ANC and Bluetooth are indicated by the same indicator
light, with a green light for ANC and a blue light for Bluetooth. If you need to
turn Bluetooth on/off, please make sure you already turn off the ANC.
Q: What should I do if the Bluetooth connecting function cannot close or open?
A: Please reset the Bluetooth function of the headphones by inserting an audio
cable into the audio port and removing it.

FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure.
requirement.The device can be used in portable exposure condition
without restriction

Safety Instructions
1. Read, follow and keep these instructions.
2. For the best possible experience, always use the product as described by the
manufacturer.
3. Always handle your headphones with care and protect them from external
damage.
4. Clean your headphones using a soft dry cloth. Never use water, cleaning
detergent, leather polish or other substances as they may damage your
headphones permanently.
5. Avoid exposure to extreme conditions such as very cold or hot temperatures,
mahnetic fields or damp environments.
6. Listening to music at high volume for prolonged periods of time can cause
permanent damage to your hearing.
7. Contains small parts and are not suitable for children age three (3) and below.
8. The headphones contain magnetic material.
9. The headphones contain a Lithium battery. If misused or damaged it can
become a hazard and is at risk of explosion.
10. Should a battery cell leak, do not allow the liquid to come in contact with
skin or eyes.
11. The headphones must be switched off before boarding an aircraft.
12. The headphones must not be disposed of with regular household waste.
Please dispose of in accordance with local regulations.
13. Do not use your headphones in the immediate proximity (10 cm) of a
pacemaker.
14. Do not subject the product and included accessories to abnormal wear and
tear.

15. Do not expose the headphones to temperatures below -20°C or above
+45°C.
16. Do not charge the headphones in temperatures below 0°C or above +45°C.
17. Do not attempt to burn the headphones. The battery could explode causing
injury and death.
18. Do not attempt to open, modify, disassemble, repair or in other way access
the internal structure of the headphones. They are not user serviceable.
19. Do not use or store the headphones near to a vehicle airbag due to risk of
injury.
20. Do not use headphones while driving, jogging or walking through traffic
areas. Headphones effectively isolate external sound and noise, which means
that when in use, you might not be able to hear your surroundings.
21. Do not drop, sit on or cause other unusual impact to the headphones.
22.Do not expose to fire, water or high voltage equipment.
23. Do not expose the product to rain or moisture.
24. Do not use the headphones near water, bathtubs, sinks, saunas, pools, other
liquids or moist areas.

包装清单
SR-BH600 耳机
航空转接头
3.5mm 耳机线
Micro USB 充电线 说明书
耳机便携包

产品结构
音量上升 / 上一曲
音量降低 / 下一曲
ANC（主动降噪）按键
3.5mm AUX 音频孔
充电口
蓝牙 / ANC （主动降噪功能）
多功能键
麦克风

参数
规格如有更改，恕不另行通知
型号 Saramonic SR-BH600
蓝牙版本 V5.0
操作距离 10m
频率响应 20-20KHz
支持协议 A2DP, AVRCP, HSP, HFP, CVC
支持音频格式 SBC, AAC
输出电压 5V-12V
阻抗 32 Ω
驱动单元 Φ40mm
电池容量 400mAh
充电时长 approx. 2.5
播放时长 16 小时（正常模式）
12 小时（ANC 自动降噪模式）
ANC 模式下待机时长 40
