Sase PDG 9500+ User manual

PDG 9500+ Manual
SASE Company, Inc.
Phone[phone] or Fax[phone]
www.SASECompany.com
Version 5
Ser.#: 2300 +
Date : 8/1/2018

Table of Contents
................................................... 1
...................................................
...................................................
Cover

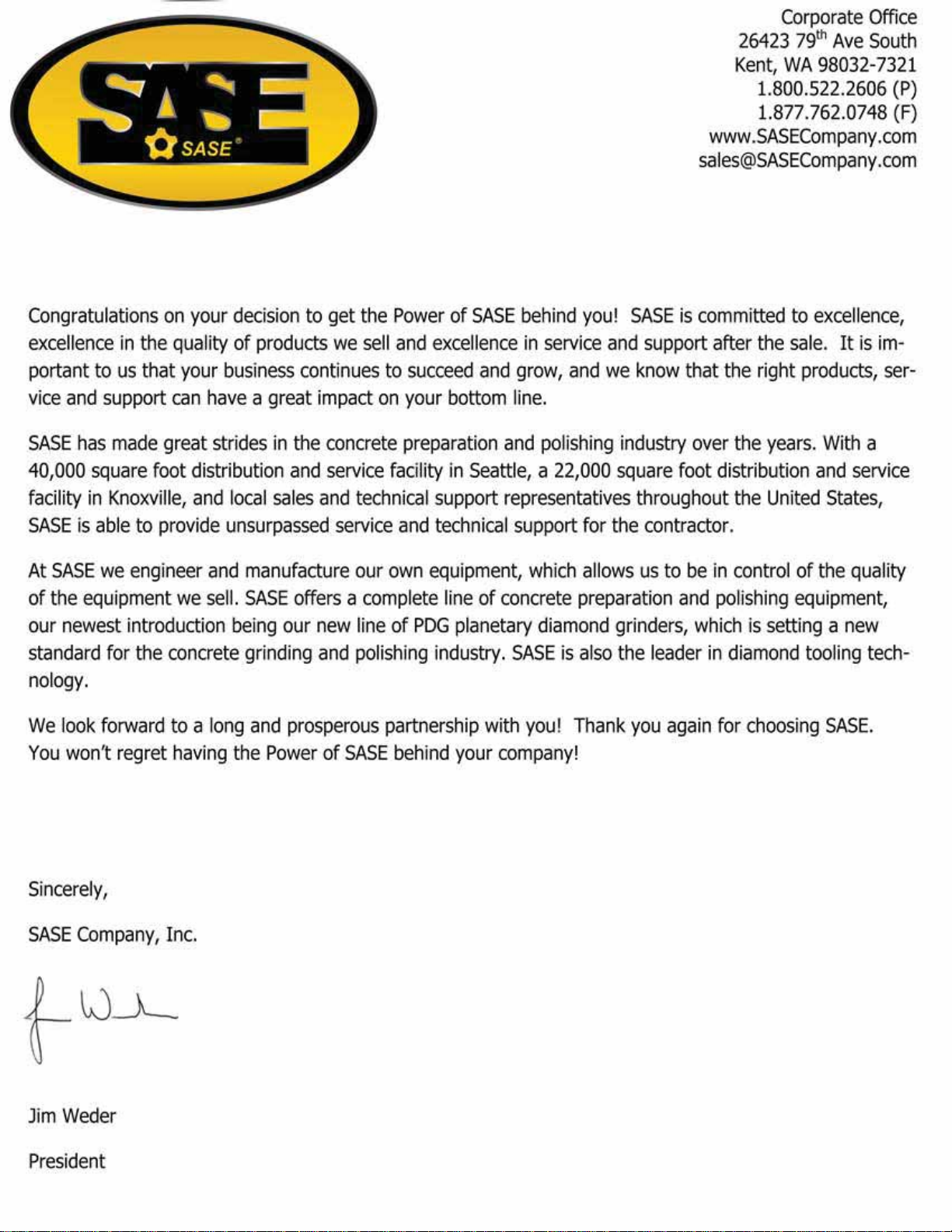

Letter from SASE
Safety Instructions
Introduction
Transportation
Storage
...................................................
3
6-7
7
Setup and Operation ...................................................
7
Changing of Diamonds ...................................................
Determining Diamond Selection.......................................
8-9
Plastics & Water System..................................................
10-11
Testing Stage ...................................................
12-13
Motor On Drum ...................................................
14-15
...................................................
16-17
...................................................
18-19
...................................................
20-21
...................................................
22-23
Frame without Drum
Handle Assembly
Basic Frame
Step View ...................................................
24-25
26-27
28-29
30-31
32-33
34-35
36-37
38-39
40-41
42-43
44-45
Flex Head
Tooling
Inverter
Operator Control Panel...................................................
Belt Paths
Technical Specifications...................................................
List of Fault or Alarm Indicators........................................
Certificate of Declaration and Conformity..........................
...................................................
...................................................
...................................................
...................................................
...................................................



Safety Instructions
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
WARNING! Dust forms when grinding which can cause injuries if
inhaled. Use an approved breathing mask. Always provide for
good ventilation while machine is in use.
Always wear:
Approved protective helmet.
Approved hearing protection.
Protective goggles or a visor.
Dust Mask
Dust forms when grinding, which can cause injuries if inhaled.
Always wear approved protective gloves.
Always wear sturdy non-slip boots with steel toe-caps.
WARNING
Under no circumstances may the machine be started without ob-
serving the safety instructions.
Should the user fail to comply with these, SASE Company Inc or its
representatives are free from all liability both directly and indirectly.
Read through these operating instructions and make sure that you
understand the contents before starting to use the machine.
Should you, after reading these safety instructions, still feel uncer-
tain about the safety risks involved you must not use the machine,
please contact your SASE representative for more information.


 Only qualified personnel should be allowed to operate machinery.
 Never use a machine that is faulty. Carry out the checks, mainte-
nance and service instructions described in this manual. All repairs
not covered in this manual must be performed by a repairer nomi-
nated by either the manufacturer or distributor.
 Always wear personal safety equipment such as sturdy non-slip
boots, ear protection, dust mask and approved eye protection.
 The machine should not be used in areas where potential for fire or
explosions exist.
 Machinery should only be started when grinding heads are resting
on the ground.
 The machine should not be started without the rubber dust skirt
attached. It is essential a good seal between floor and machine be
established for safety, especially when operating in dry grinding
applications.
 When changing the grinding discs ensure power supply to the unit
is OFF by engaging the Emergency Stop button and the power-plug
disconnected.
 The machine should not be lifted by handles, motor, chassis or
other parts. Transportation of the machine is best done on a pallet /
skid to which the machine must be firmly secured.
 Extreme caution must be used when moving machinery by hand on
an inclined plane. Even the slightest slope can cause forces/
momentum making the machinery impossible to brake manually.
 Never use the machine if you are tired, if you have consumed any
alcohol, or if you are taking medication that could affect your vision,
your judgment or your coordination.
 Never use a machine that has been modified in any way from its
original specification.
 Be on your guard for electrical shocks. Avoid having body contact
with lightning conductors/metal in the ground.
 Never drag the machine by means of the cord and never pull out
the plug by pulling the cord. Keep all cords and extension cords
away from water, oil and sharp edges.


Safety Instructions
 Check that the cord and extension cord are intact and in good condi-
tion. Never use the machine if the cord is damaged, hand it in to an
authorized service workshop for repair.
 Does not use a rolled up extension cord.
 Electrical cords must not exceed 200ft in length.
 The machine should be connected to an earthed outlet socket.
 Check that the mains voltage corresponds with that stated on the
rating plate on the machine.
 Ensure the cord is behind you when you start to use the machine so
that the cord will not be damaged.
WARNING
A t no time should lifting of machinery be attempted without
mechanical means such as a hoist or a forklift.
WARNING HIGH VOLTAGE!
Inspection and/or maintenance should be carried out
with the motor switched off and the plug discon-
nected.
This product is in accordance with applicable
EU directives


Introduction
The SASE PDG 8000 planetary diamond grinders are designed for wet or
dry grinding of marble, terrazzo, granite and concrete. Their applications
range from rough grinding through to a polished finish.
It is extremely important all users be familiar with the contents of this
manual before commencing operation of either machine. Failure to do so
may result in damage to machinery or expose operator to unnecessary
dangers.
IMPORTANT!
Only staff that has received the necessary training, both practically and
theoretically concerning their usage should operate the machinery.
Transportation
The machine comes equipped with an electronic system called a variable
speed drive or a frequency converter. The drive enables the variable
speed and direction component of the motor.
The drive is located in the steel cabinet mounted on the machine chassis.
As with all electronic equipment, the drives are sensitive to excessive
vibration, rough treatment and high levels of dust. Much care and atten-
tion has been given by SASE to ensure maximal protection is given to the
drive. Note the shock absorbing mounting system used to mount the
steel cabinet on the machine chassis/frame.
When transporting, it is important to ensure the machinery is properly
secured at all times to eliminate “bouncing” of the variable speed drive.
Ensure the chassis or frame section of the machine is secured down at
all times when in transit.
The machine should always be transported under cover limiting the ex-
posed to natural elements – in particular rain and snow.
WARNING
The machine should not be lifted by handle, motor, chassis or other
parts. Transportation of the machine is best done on a pallet/skid to
which the machine must be firmly secured.
Do not attempt to slide the tines/forks from a fork lift under grinding
heads unless on a pallet/skid.
Failure to do so can cause irreparable damage to grinding heads of
machine and internal parts.
IMPORTANT!
It is recommended that machinery be transported with a set
of diamonds attached at all times to ensure protection of
locking mechanism for diamond plates.
Storage
The machine should always be stored in a dry place when not in use.


Setup and Operation
Planetary rotation direction
The correlation between FWD/REV & Clockwise/Counter clockwise rota-
tion can be said as follows if looking at the grinding discs from under-
neath the machine:
REV-Clockwise.
FWD-Reverse.
As mentioned earlier, when the machine is in operation it will pull to one
side. The direction of pull is determined by the planetary head direction
of rotation. The head of the machine will pull to the right (and therefore,
will be felt on the right hip of the operator) when the planetary head is
set in the REVERSE direction.
This sideways pull can be very useful when grinding, particularly along a
wall. Set the machine so that it pulls towards the wall, and then control
the machine so it can just touch the wall. This will ensure a grind close
to the wall or object.
Direction is also a matter of personal preference, however to improve the
cutting efficiency of diamonds, change directions on a regular basis. This
will work both sides of the diamond crystals, keeping the abrasives as
sharp as possible by creating maximal exposure of the diamond crystal.
Once both a speed and direction have been nominated, switch on dust
extraction or vacuum device.
IMPORTANT!
It is highly recommended to use a SASE BULL 1250 Industrial
Vacuum system for complete dust control.

Changing of Diamonds
Different applications often require different selections of diamond
tooling. There will be many occasions when the grinding discs need
to be changed.
Following is a guide for this procedure.
Preparation
Press the Stop button and engage the Emergency Stop button.
As an extra precaution, unplug power cord to prevent unintentional
starting of the machine while changing disc, which could result in
serious injury.
WARNING
It is highly recommended to have a set of gloves ready, as diamonds
can get very hot, especially during dry grinding applications.
Changing
1.Set handle in upright position (Illustrated upper right).
2. Pull back on handle to lift grinding head off the ground (Illustrated
middle right).
3. Lay machine back on the ground (Illustrated bottom right)
4. Put on gloves.
5. Remove grinding disc from flex plate.
6. Check to ensure that all discs are secure.
7. Once new diamonds have been attached, reverse procedure to lower
machine to ground.
8. As new diamonds may be a different height than the set being previ-
ously used, re-adjust skirt to ensure good seal is established with the
floor.



Determining Diamond Selection
Diamond Background
Diamond abrasives usually consist of 2 components:
 Diamond powder (also known as diamond crystals or grit). By chang-
ing the size of the diamond powder or grit, we can change how
coarse or fi ne the scratches will be that are left behind from the
grinding process.
 A binding agent (metal or resin). Diamond powder is mixed and sus-
pended in either a metal or resin binding agent. When suspended in a
metal bond matrix, the finished product is referred to as a Metal Bond
or Sintered diamond segment. When suspended in a resin bond ma-
trix, the finished product is referred to as a Resin Bond diamond seg-
ment or pad
General Diamond Principles
Diamond Grit Size:
Changing the size of the diamond grit to a smaller particle/ grit size will
affect the performance of the diamond tool in the following ways:
 Create a finer scratch pattern.
 Increase the life of the diamond tool.
The opposite will occur when changing to a larger particle/grit size.
The Binding Agent/Metal Bond or Resin Bond:
Increasing hardness of bond will:
 Increase life of diamond tool.
 Decrease production rate.
 Cause diamond tool to leave finer scratches in dry - grinding
applications (when compared to a softer bond diamond tool with
the same diamond grit size).
A hard bond matrix should be used on a soft floor and a soft
bond matrix should be used on a hard floor.
Grinding disc set-up
The set-up of diamond segments on the grinding heads of the machine will
influence the performance of the machine, the productivity levels and also
the finished floor quality.
There are basically two types of diamond configurations that can be used
when grinding:
1. Half set of diamonds – when there are diamonds placed at three
alternating positions on the diamond holder discs. ( See pictures
on upper right).
2. Full set of diamonds – when there are diamonds placed at each
of the six positions on the diamond holder discs.
(See pictures on middle right).


  
 
     
r
 

  a   
  



Metal Bond Diamond Tooling
Quick Reference Guide




 
 



 









61414
10
9
1414
101010
7
Number 15 and 16 attach
number 6 / 7 to
the frame here
Number 8 is inserted into the plastic
half shells, creating threaded holes to
attach numbers 9 and 10
88
88
TOP VIEW
2
34 1
15
16
16
55 4
17
4
SIDE VIEW
19
Number 19 attaches number
18 to number 17 here.
Drill 2 holes into number 17 ~3mm bit
21
2020
13
12
11
18

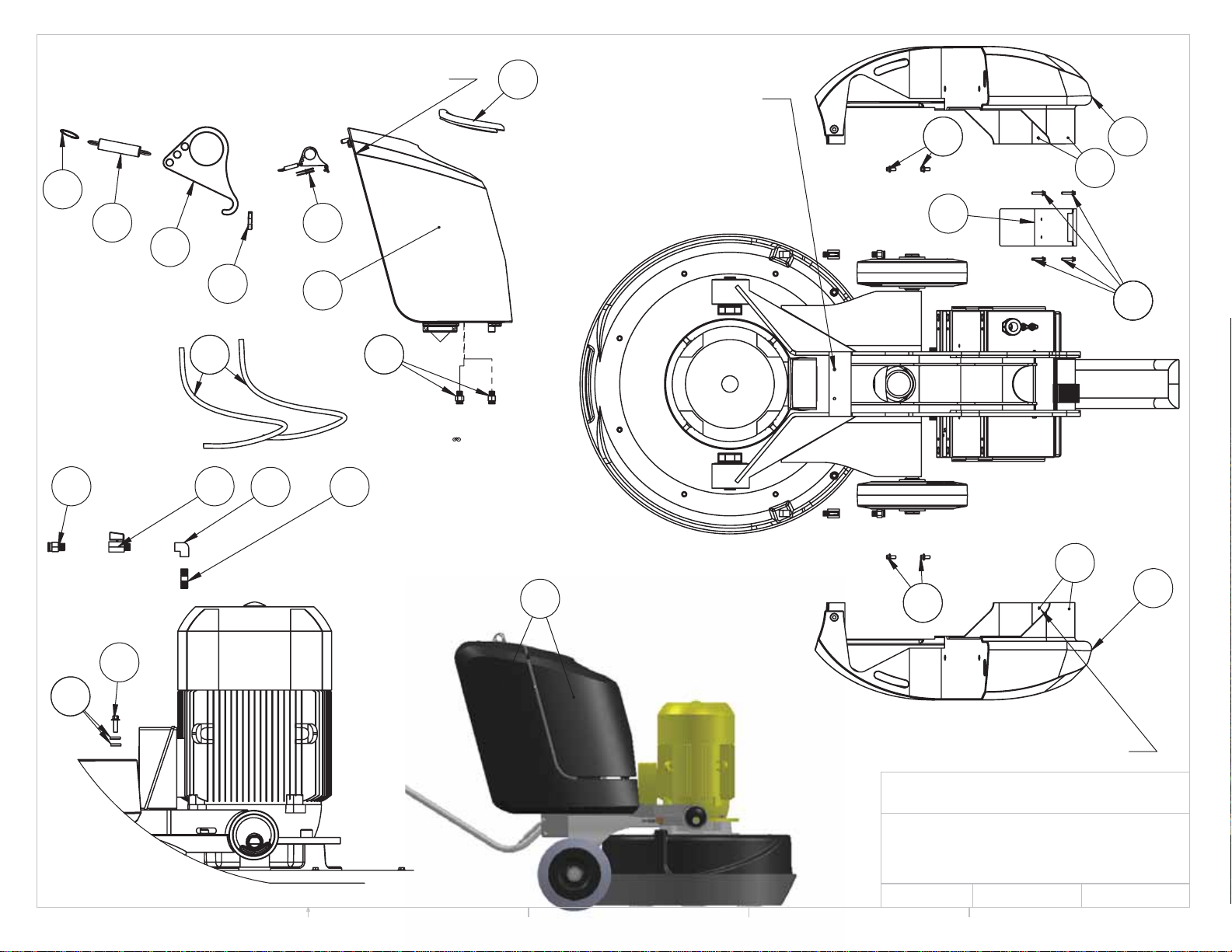

Plastics & Water System
SHEET 1 OF 1
SCALE: 1:1
WEIGHT:
5
4
3
2
1
3'*

Item No. Part No. Description Quantity
1 PDG.20267.00 NIPPLE, 1/4" X CLOSE GALV 2
2 PDG.20268.00 ELBOW, BRASS FEMALE 1/4 NPT X 1/4 NPT 2
3 PDG.20247.00 VALVE, 1/4 BALL 2
4 PDG.20246.00 FITTING, PUSHTO CONNECT 3/8 X 1/4 4
5 PDG.20262.00 TUBING, WATER 6 ft
6 PDG.80056.00 SHELL, RIGHT HAND 1
7 PDG.80057.00 SHELL, LEFT HAND 1
8NB.20.140 NUT, SLOTTED-BODY RIVET M6 4
9 PDG.80086.00 COVER, HALF SHELL 1
10 NB.11.112 SCREW, FLANGED HEX HEAD CAP M6-1.0 X 30 ZINC 4
11 NB.40.116 RING, EXTERNAL RETAINING 5/8' 18-8 SS SPIRAL 2
12 NB.91.101 SPRING, EXTENTION 0.375 X 0.0475 X 2.25 2
13 PDG.20282.00 HOOK, SPRING 2
14 NB.11.121 SCREW, FLANGED HEX HEAD CAP M8-1.25 X 16 NON-SERRATED ZINC 4
15 NB.11.900 SCREW, FLANGED SOCKET HEAD CAP M8-1.25 X 25 10.9 ZINC 2
16 NB.30.116 WASHER, FLAT M8 X 20 X 4 ZINC 6
17 PDG.80055.00 TANK, WATER 1
18 PDG.20283.00 HOOK, RING 2
19 NB.47.123 RIVET, BLIND 1/8 DIA 0.313 L 4
20 PDG.80081.00 DECAL SET, PDG 8000 1
21 PDG.20270.00 TRIM, FLEXIBLE 3/16" X 5/8" 3 ft
22 PDG.20395.00 ADAPTER, USB CHARGER (NOT DISPLAYED)(Arrow 6 is nearly pointing where it goes) 1
6/7 PDG.80056.00 Holes drilled for each nutcert, bolt, USB port used. Silicone around USB docks 1
10 NB.11.112 Holds on the back cover. 4
14 NB.11.121 Holds the front to the frame. 4
15 NB.11.900 Holds shape for tank spacing. 2
16 NB.30.116 Spacers to keep tank holes up where they need to be. 6
Plastics & Water System
Machines after 05/20/2015 get USB charging docks; starting with serial number : 05150994
Machines after serial number MMYY0350 incorporate "Roto-Molded" Plastic shells, previous versions used Fiber-Glass "Plastic"
shells. If you are upgrading to Roto-Molded You will need every part on this page except #14 and only 1 #10
Plastics & Water System

1
7
8
910
2
4
6
5
11
3
Back View
8

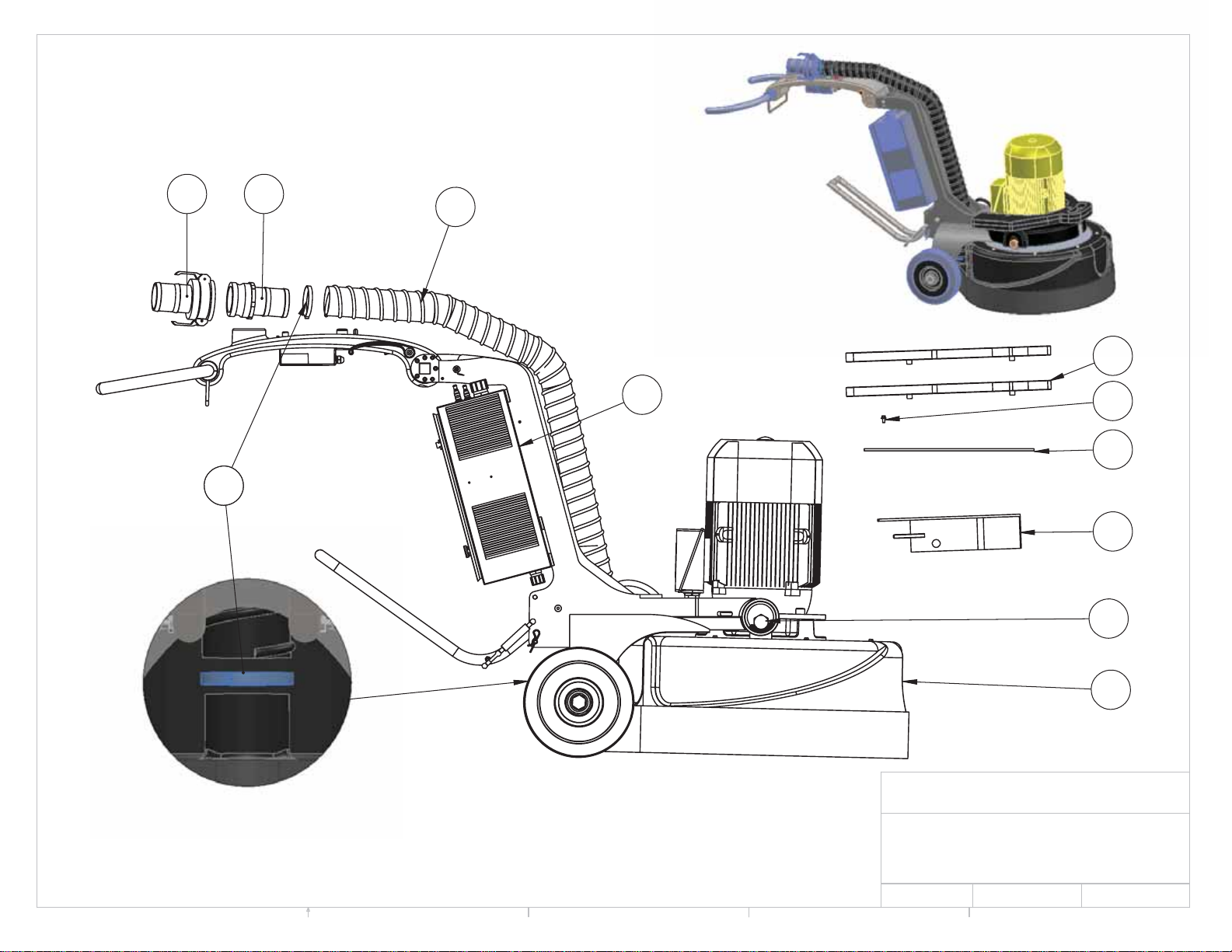

Testing Stage
SHEET 1 OF 1
SCALE: 1:1
WEIGHT:
5
4
3
2
1
3'*

Item No. Part No. Description Quantity
1 See Page 23 Frame with-out Drum Assembled 1
2 See Page 21 Motor On Drum Assembled 1
3NB.10.121 SCREW, HEX METAXENTRIC 1"-8 X 4" MODIFIED 2
4PDG.80085.00 RACK, WEIGHT 1
5PDG.83377.00 COVER, STEEL FRAME(NOW FLAT) 1
6NB.16.117 SCREW, FLANGED HEX HEAD CAP M6-1.0 X 12 NON-SERRATED ZINCED 2
7 VAC.HS3.00050 HOSE, BLACK PDG VACUUM 3.0" ID BY THE FOOT 6 ft
8 VAC.10095 CLAMP, 3" BLACK PDG VACUUM HOSE 2
9 VAC.10111 COUPLER, PLASTIC MALE FOR 3" VAC HOSE PART E 1
10 WVAC.10113 COUPLER, PLASTIC FEMALE FOR 3" VAC HOSE PART C 1
11 PDG.80065.00 WEIGHT, BALLAST 2
3NB.10.121 Red LocTite 263, Torque 100 Ft-Lb 2
6NB.16.117 Red LocTite 263 2
Testing Stage Supplement
Testing Stage

A
12
8
10
11
5
4
3
1
18
17
9
6
7
2
22
23
13
21
19
20
14
15
16
15
Motor On Drum
SHEET 1 OF 1
SCALE: 1:6
WEIGHT:
5
4
3
2
1
3'*

Item No. Part No. Description Quantity
1 PDG.80066.00 SHROUD, MOLDED VACUUM 1
2 PDG.20249.00 RUBBER, EPDM GASKET 8ft
3NB.11.108 SCREW, FLANGED HEX HEAD CAP M6 -1.0 X 16 8
4
PDG.80071.40
GASKET, MOTOR 2
5 PDG.80107.00 SPACER, MOTOR FOR COUPLING DESIGN PDG8K 1
6 HOL.U11899 MOTOR, 780 230-460V 15KW 50-60HZ SIEMENS(7/8/9 included) 1
7 HOL.U11970 Fan-Cover, MOTOR, 780 230-460V 15KW 50-60HZ SIEMENS(Part of #6) 0
8 HOL.900016 Fan-Blade, MOTOR, 780 230-460V 15KW 50-60HZ SIEMENS(Part of #6) 0
9NB.70.109 KEY, PARALLEL M5 X 20(Part of #6) 0
10 PDG.80100.50 COUPLER, CJ38/45 LOVEJOY 1
11 PDG.80099.00 BUSHING, SPYDER RED 1
12 NB.12.259 SCREW, SOCKET HEAD M16 -2 X 120 ZINC 4
13 NB.30.133 WASHER, LOCK M16 ZINC 4
14 PDG.20289.00 CABLE, GRIP 90 1
15 NB.32.103 WASHER, 1-1/4" X 1" 2
16 NB.20.149 3/4 inch Toothed nut 1
17 PDG.80067.00 SKIRT, RUBBER DUST 1
18 SEE PAGE 26 DRUM, COMPLETE 1
19 PDG.8A010.00 FLEX HEAD, COMPLETE WITH REDSPRING 3
20 NB.30.212 WASHER, LOCK M8 ZINC 9
21 NB.10.218 SCREW, SOCKET HEAD CAP M8-1.25 X 20 9
22 PDG.80183.10 PLATE, TOOLING MAGNETIC 3
23 NB.13.216 SCREW, FLAT HEAD SOCKET CAP M8-1.25 X 16 9
3NB.11.108 Butyl Flex used instead of LocTite to exclude moisture. 8
10 PDG.80100.50 Blue LocTite 242, used in set screw 1
12 NB.12.259 Blue LocTite 242, Torque 50 ft-lbf 4
21 NB.10.218 Blue LocTite 242 9
Motor on Drum
Motor on Drum Supplement
8
