Saunier Duval 050 EKI User manual

ENG
WITH AXIALS FAN OUTDOOR UNITS
Installation Manual
CEILING-FLOOR, CASSETTE
AND DUCTS

2
ENG
3
ENG
Having a policy of continuous product improvement, Saunier Duval reserves the right to modify
the specications, giving no prior warning.
Saunier Duval cannot anticipate all possible circumstances that could pose a potential risk.
This equipment has been designed and manufactured for air conditioning. The use of this equip-
ment for other domestic and industrial use shall be the responsibility of whoever plans this, or
installs or uses the equipment in such a manner..
Reproduction of this manual is forbidden without written permission.
For any queries, contact your nearest Saunier Duval supplier.
WARNINGS
These items must be tted and used in accordance with the Regulations and Standards in effect for
cooling, electrical and mechanical installations for where they are to be tted.
EXTREME OPERATION CONDITIONS
This air conditioner is designed for the following temperatures. Keep the unit operating within
these limits.
REFRIGERATION HEATING
Indoor
Outdoor 43ºC D.B.
0ºC D.B.
24ºC D.B.
-5ºC D.B.
32ºC D.B.
19ºC D.B.
27ºC D.B.
15ºC D.B.
(*) Range on remote controller: from 30ºC to 18ºC
(from 30ºC to 16ºC on the cable remote).

2
ENG
3
ENG
Prior to any intervention in the appliance,
installation, start-up, use and maintenance,
the staff in charge of these operations
must be familiar with all the instructions
and recommendations appearing in the
appliance installation manual, likewise the
elements in the technical dossier of the
product.
The staff in charge of the appliance recep-
tion must carry out a visual control to verify
the damages which might have occurred to
the appliance during transport.
Installation of the appliance close to a
heat source, combustible and corrosive
materials or the air intake conduit of an
adjacent building is prohibited.
The appliance is to be installed, maintained
and repaired by qualied staff pursuant to
the demands of the guidelines, current
regulations not to mention the training of
the professional him/herself.
Check that the mounting and fastening
devices are sufcient to withstand the
weight of the unit. If they are not, the unit
may fall and cause an accident.
Do not use any coolant other than R-407C.
The mixture of gases in the cooling cycle
can lead to damage or impaired perfor-
mance.
While connecting the outdoor unit, keep
the cabling conduit rigid. Faulty cable
tting can cause overheating, electrical
discharges or re at these connections.
Place the drainage hose in a suitable posi-
tion. An improperly tted hose will force
the water back to the room, thus damaging
the furniture.
During the appliance maintenance phase,
heat sources and cooling uids must be
controlled.
The system must always be earthed. If it is
not, this may lead to electrical discharges.
Prior to intervening the refrigeration circuit,
it is compulsory to stop the appliance for a
few minutes to reduce the compressor and
piping temperature, because during normal
functioning they may reach temperatures
exceeding 100ºC involve the risk of burns.
Any welding intervention is to be perfor-
med by qualied welders.
Use the voltage indicated in the manual.
Incorrect voltage may cause res or other
problems.
Always use original Saunier Duval spare
parts. Do not use components removed
from defective refrigeration appliances as
replacements.
It is expressly prohibited to carry out any
modications to the refrigeration circuit,
the cooling gas type indicated on the
characteristics place, likewise application
of the appliance outside those application
limits appearing in the documentation or
any other kind of modication. Any modi-
cation will cancel out the EC marking
pursuant to the PED (97/23/EC Guideline)
and the person who carries out the said
modication will be liable for the same.
1- SAFETY REGULATIONS
Installation, maintenance and repair

4
ENG
5
ENG
2- DIMENSIONS
MODEL H (mm)
050 EKI 261
065 EKI 263
085 EKI 263
105 EKI 420
130 EKI 420
Units in mm
Model A B C D E F
050 EKI 580 580 521 460 700 700
065 EKI 580 580 521 460 700 700
085 EKI 580 1089 521 995 700 1205
105 EKI 875 875 830 665 950 950
130 EKI 875 875 830 665 950 950
2.1 CEILING-FLOOR INDOOR UNITS (EFI)
2.2 CASSETTE INDOOR UNITS (EKI)
On tting trim make
sure air swing engine is
not placed below the cooling
pipes.
Units in mm
MODEL A B C D E F Kg
050 EFI 645 955 199 280 185 873 30
065 EFI 645 955 199 280 185 873 30
085 EFI 645 1.250 199 280 185 1.168 40
105 EFI 645 1.750 199 280 185 1.668 56

4
ENG
5
ENG
2- DIMENSIONS
Units in mm
Distances in cm
It’s advisable to respect
the specied minimum
distances around the
apparatus.
MODELS A B C D E F G H J K L Kg
050 EDI 1.000 525 240 878 156 940 170 1.040 246 34 100 29
065 EDI 1.000 525 240 878 156 940 180 1.040 260 34 100 29
085 EDI 1.010 666 279 900 196 950 250 1.050 335 34 100 40
105 EDI 1.210 666 279 1.100 196 1.150 250 1.250 335 34 100 47
130 EDI 1.310 700 320 1.100 196 1.250 252 1.350 335 34 60 53
180 EDI 1.400 840 361 1.047 225 1.305 305 1.405 455 34 100 60
2.3 DUCTS INDOOR UNITS (EDI)

6
ENG
7
ENG
2- DIMENSIONS

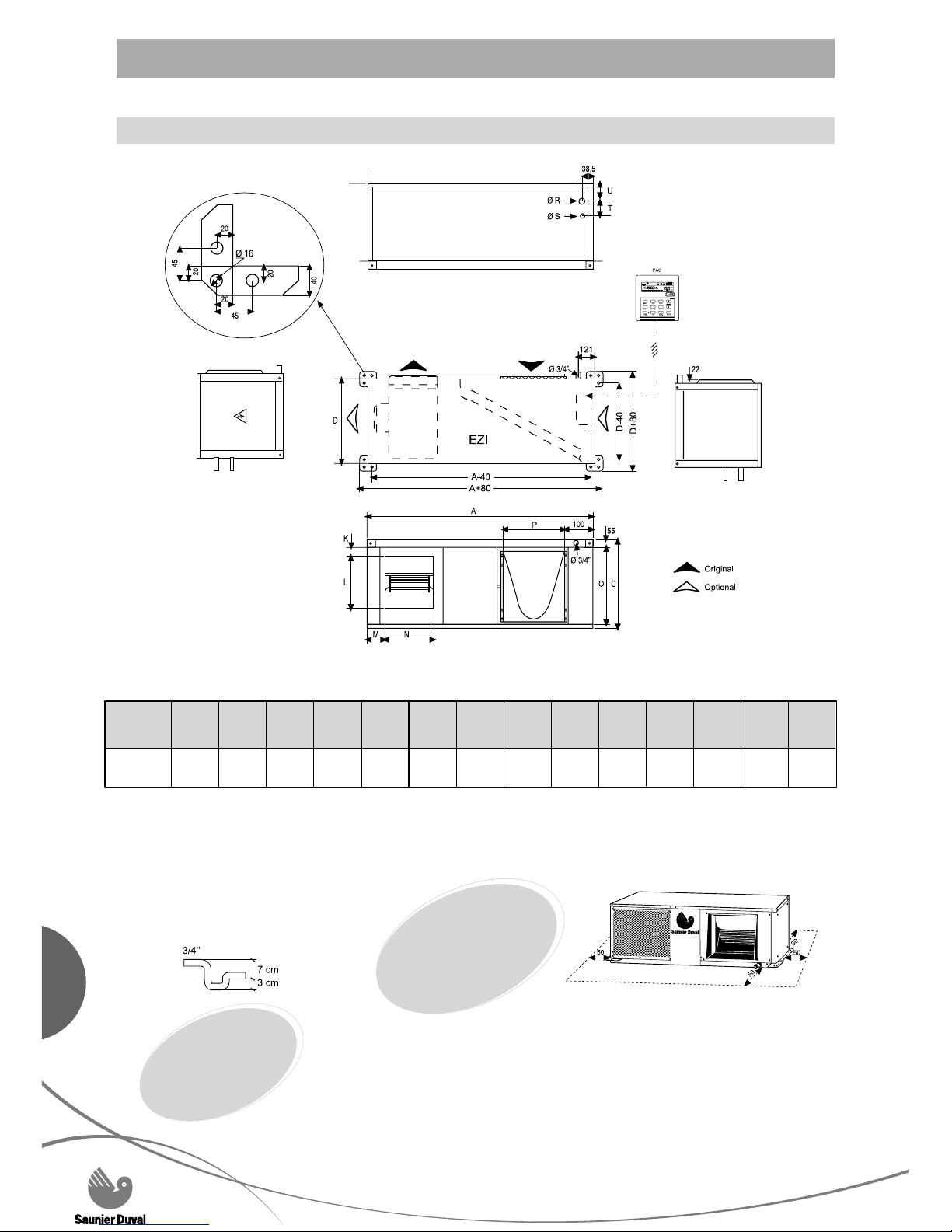

2.4 INDOOR UNITS (EZI)
Units in mm
It’s advisable to respect
the specied minimum
distances around the
apparatus.
Is very important the
positioning of a siphon
in each water-drainage.
Units in mm
MODELS A C D K L M N O P R S T U Kg.
230 EZI 1.660 650 660 147 364 125 331 600 575 50 38 200 110 111

6
ENG
7
ENG
Models
050 / 065
Models
105 / 105T / 130
Model
180
Model
085
180
Liq. 1/2"
Gas 7/8"
Units in mm
Model
120 M2

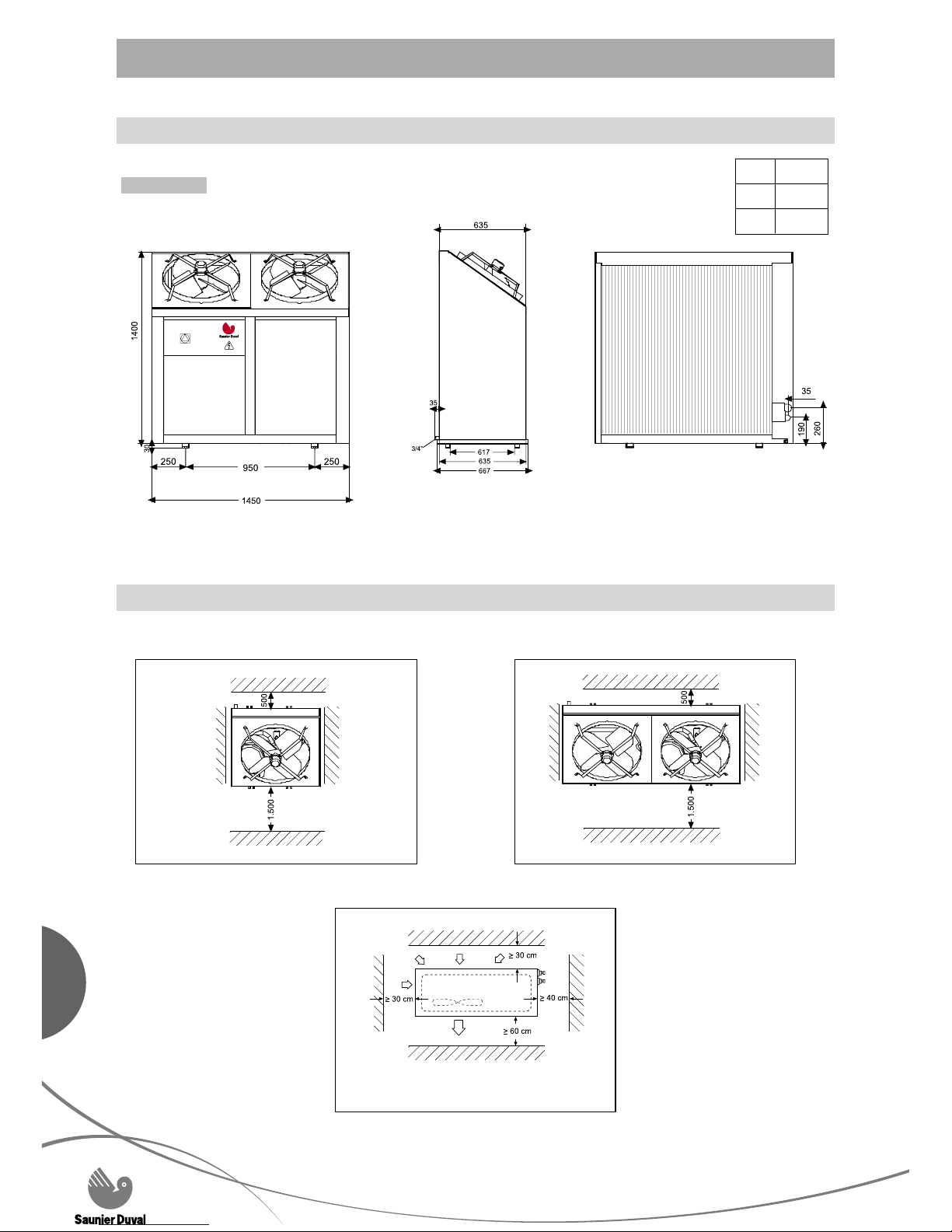

2- DIMENSIONS

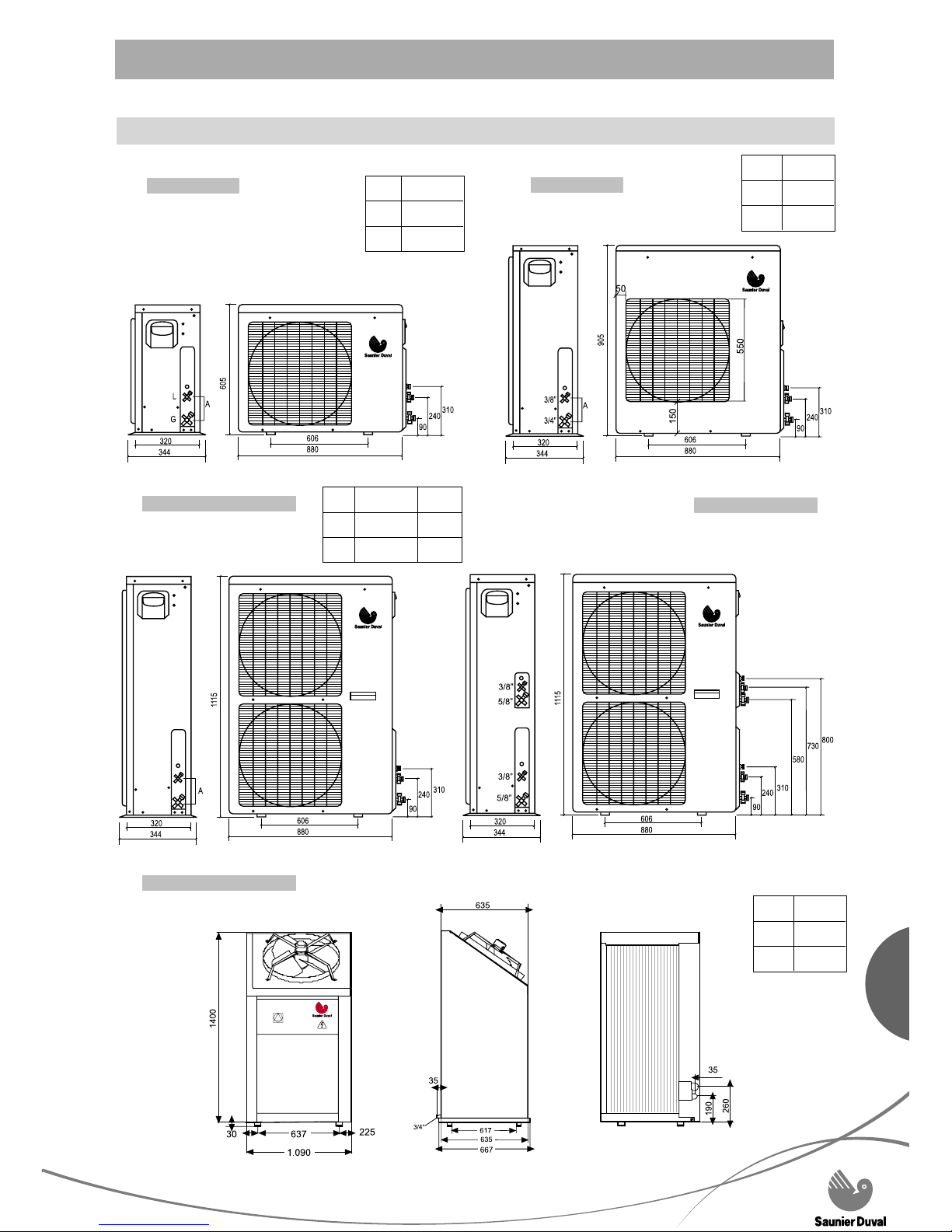

2.5 OUTDOOR UNITS
050 - 065
Liq. 3/8"
Gas 5/8"
085
Liq. 3/8"
Gas 3/4"
A 105 - 105T 130
Liq. 3/8" 1/2"
Gas 3/4" 3/4"
050
065

8
ENG
9
ENG
Model
230
Units in mm
Units in mm
Units in mm
230
Liq. 5/8"
Gas 1 1/8"
2- DIMENSIONS
2.5 OUTDOOR UNITS
2.5.1 OUTDOOR UNIT LOCATION
Location for a correct air ow

8
ENG
9
ENG
- When the direction are selected, drill 4” (100 mm)
dia. hole on the wall so that the hole is tilted
downward toward the outdoor for smooth water
ow. When
the pipe is
led out from
the rear,
make a hole
at the posi-
tion shown.
3- INDOOR UNIT INSTALLATION
3.1.1 INSTALLATION PROCEDURE
A. PREPARING INDOOR UNIT INSTALLATION
Remove the intake
grille and side
cover(s) by remo-
ving the tapping
screws.
B. FLOOR INSTALLATION
B.1 DRILLING FOR PIPING
Select piping and drain direction. The piping and
drain can be made in two directions.
- The drain hose can be connected to the drain
port either left or right side.
B.2 INSTALLING DRAIN HOSE
Be sure to arrange the drain hose so that it is
levelled lower than the drain port of the indoor
unit.
When the directions are installed, drill a 3 1/8” (80
mm) or 6” (150 mm) dia. hole on the wall so that
the hole is tilted downward toward the outdoor
for smooth water ow.
C. CEILING INSTALLATION
Using the distance between drilling holes as
shown below, drill holes for piping and anchor
bolts.
C.1 DRILLING FOR PIPING
Select piping
directions.
- Install the drain hose at the rear, it should not
be installed on the top.
3.1 CEILING-FLOOR: INDOOR UNITS

10
ENG
11
ENG
C.4 INSTALLING INDOOR UNIT
Reset the bolts as
shown below.
Apply the indoor unit
to hangers.

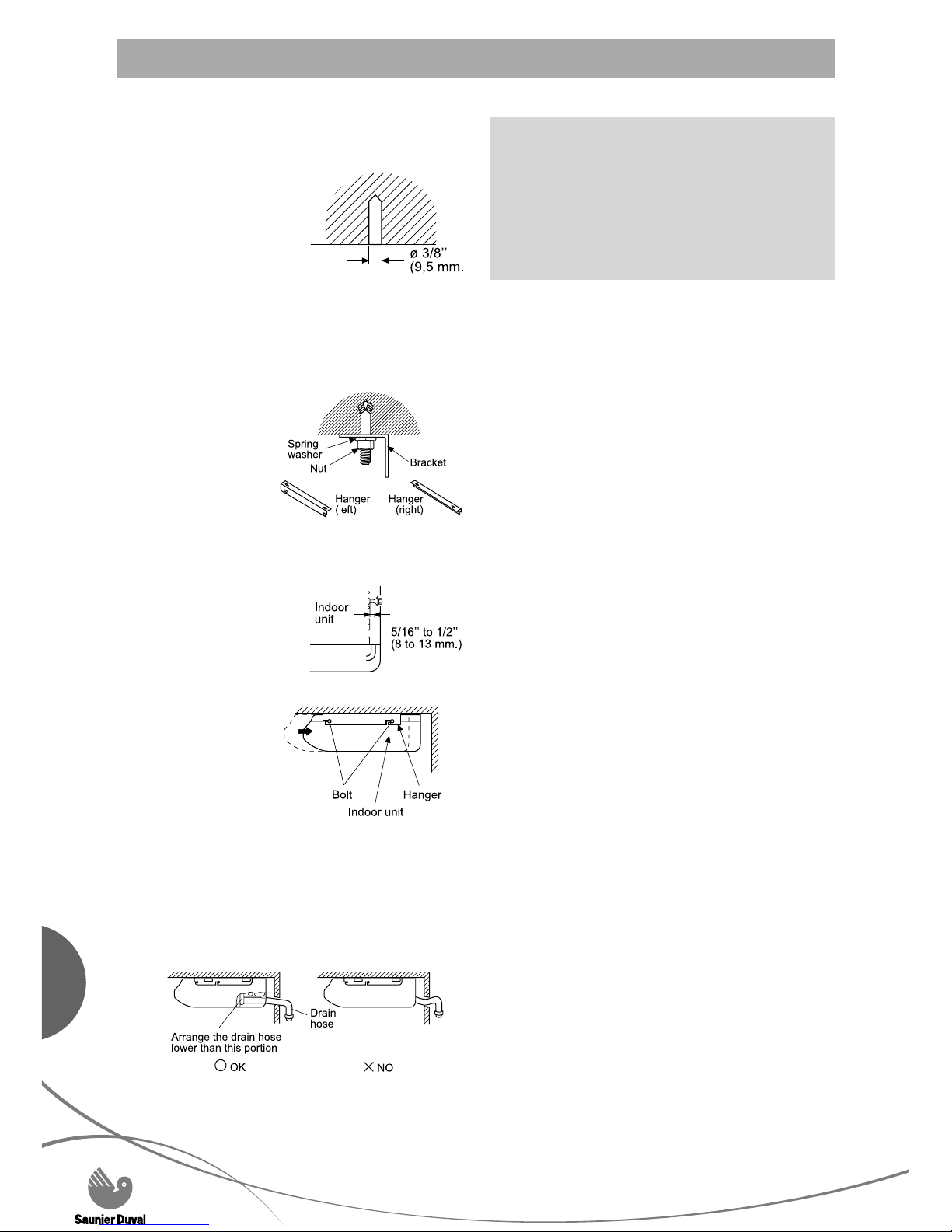

C.2 DRILLING HOLES FOR ANCHOR BOLTS AND
INSTALLING THE ANCHOR BOLTS
With a concrete drill,
drill four 3/8” (9,5
mm) dia. holes.
Insert the anchor
bolts into the drilled holes, and drive the pins
completely into the anchor bolts with a hammer.
C.3 INSTALLING HANGERS
Install the
hangers with nuts
and spring was-
hers.
Now, securely
tighten the bolts
in both sides.
C.5 INSTALL THE DRAIN HOSE
Be sure to arrange the drain hose so that its level
lower than the drain port of the indoor unit.
Always check that the drain cap is installed
to the unused drain port and is fastened
with the nylon fastener. If the drain cap is
not installed, or is not sufciently fastened
by the nylon fastener, water may drip
during the cooling operation.
3- INDOOR UNIT INSTALLATION

10
ENG
11
ENG
3- INDOOR UNIT INSTALLATION
3.2.1 INSTALL THE INDOOR UNIT IN A POSI-
TION:
- Having sufcient strength to carry the weight of
the indoor unit.
- Where the inlet and outlet grilles are not obstruc-
ted and the conditioned air is able to blow all over
the room.
- From where pipes can be easily run to the
outdoor unit.
- From where condensate can be easily run to
drain.
- Check the distance between the upper slab and
false ceiling to ensure the unit will suit the dis-
tance.
- Using the installation template open ceiling panels and install the suspension bolts.
3.2.2 INSTALLATION METHOD
- Ensure the ceiling is horizontally level, otherwise
condensate water cannot drain.
- The casing is xed to the slab with 4 drop rods.
The rods should have two nuts and washers to
lock the unit in position. The Cassette brackets
will then hook over the washers.
- When lifting the Cassette into position care
should be taken not to lift the unit by the drip
tray, which could be damaged.

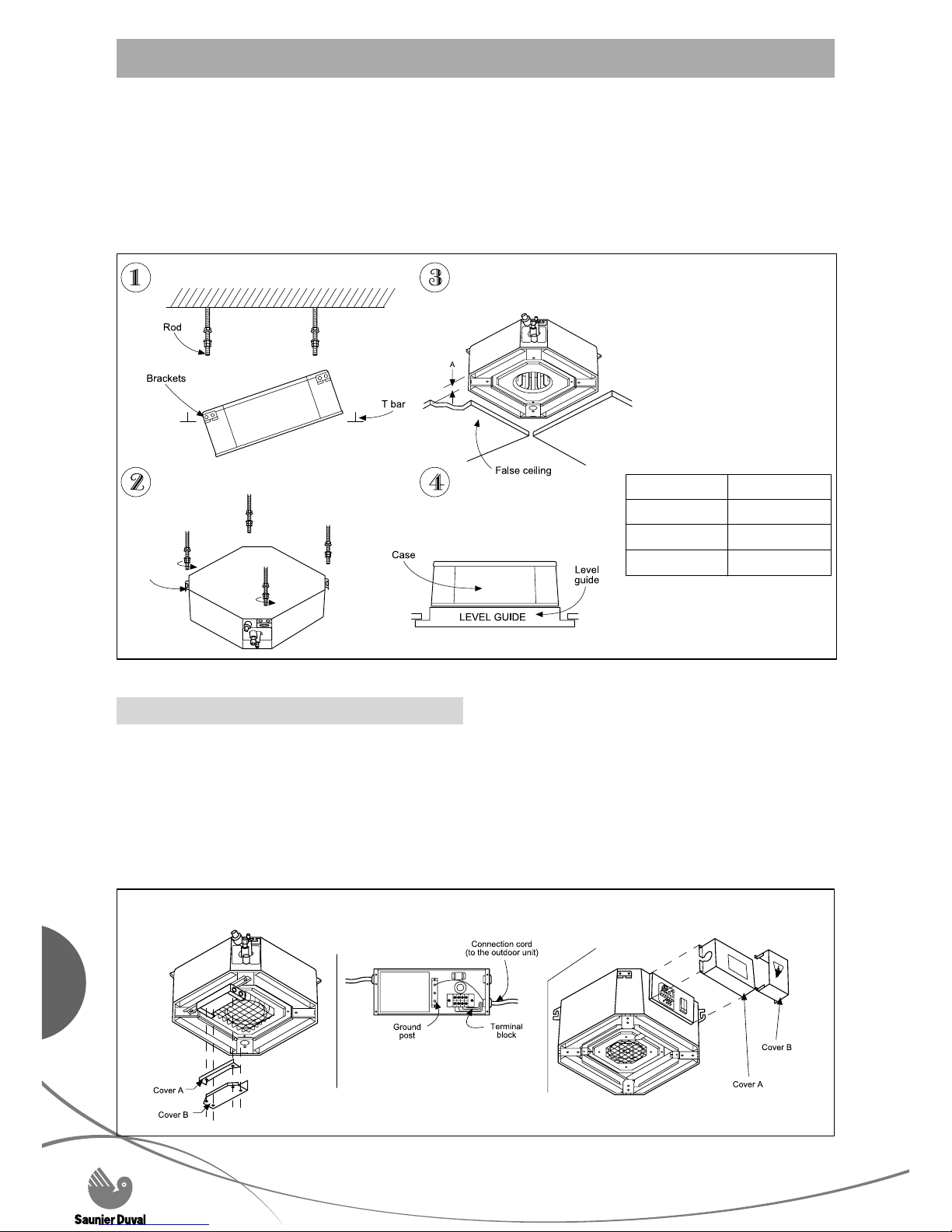

3.2 CASSETTE: INDOOR UNIT
- Ensure there is sufcient space around the
unit to service it.
- Lift unit (without the air panel) with care by its
four corners only. Do not lift unit by the conden-
sate drain discharge pipe or by the piping connec-
tions.
- Incline unit and insert it into the false ceiling.
Insert the rods into the brackets slot.
With false ceilings minimum height (see table), it
might be necessary to remove some T brackets of
the false ceiling.

12
ENG
13
ENG
MODEL A (mm)
050 / 065 EKI 3
085 EKI 3
105 / 130 EKI 83
- We recommend that screened cable be used in
electrically noisy areas.
- To avoid electro-magnetic control systeminterfe-
rence, always separate (5 VCC) low voltage signal
wires from (220 VCA) power line.
- Do not install the unit where electromagnetic
waves are directly radiated at the infra red receiver
105 / 130 EKI 050 / 065 / 085 EKI
3.2.3 INTERCONNECTING WIRING
- Using level guide, line up the unit with a spirit
level, and keep dimension between the ber
glass body and the lower part of the false cei-
ling.
3- INDOOR UNIT INSTALLATION
- Line up the unit to the supporting bars of the
false ceiling tightening the nuts and counternuts
of the threaded rods.
- After connection of the condensate drain piping
and piping connections, check again that the unit
is level.
on the unit.
- Install the unit and components as far as practical
(at least ve metres away from the electromagne-
tic wave source).
- Install a noise lter if any harmful noise exists in
the power supply.

12
ENG
13
ENG
- The side opening allows separate ductwork to
be installed for outside air intake and branch
ducting.
- Cut and remove anti-condensate insulating mate-
rial.
Indoor Unit:
- The unit is tted with a condensate pump with a
500 mm lift.
- The unit is provided with 22 mm bore exible
hose 300 mm long.
- The exible hose should be tted into a 22 mm
3.2.5 DRAIN PIPEWORK
3- INDOOR UNIT INSTALLATION
3.2.4 FRESH AIR RENEWAL AND BRANCH DUCTING
- Install your anges and conduits to casing. Con-
duits can be exible polyester with spring core or
corrugated aluminum externally coated (dia.4 in.)
with anti-condensate material (berglass 12-25
mm thickness).
polyvinyl tube and sealed. The 22 mm drain must
be installed with a downward slope.
- On completion the drain line should be insula-
ted.

14
ENG
15
ENG
3.3.3 INDOOR UNIT INSTALLATION
- Insert and screw down a nut on each supporting
rod.
- Lift the indoor unit and insert the rods in the
holes provided on the mounting brackets.
- Place a washer and nut on each of the rods.
- Level out the machine and x it tightening so that
nuts are pressed against each other.
- It is advisable to place a lock nut against the
lower nut on the suspension rods.
- This indoor unit has been originally designed for
installation on false ceilings. Where the unit is to
be mounted on a location with easy access, the
electric wiring bar must be protected to prevent
hazardous situations.
3.3.4 DRAIN PIPE INSTALLATION
- Special care should be taken when laying drain
tubing, otherwise if any problem occurs the con-
densed water of the evaporator could spill.
- Do not place the drain pipe in an upwards posi-
tion otherwise drain water would go back to the
unit and spill when the unit would stop.
- Do not connect the drain pipe to the sanitary
drains, waste water drains or any other drain
facility if a trap is not installed.
- When a common drain pipe is connected to other
indoor units, connection positions of each unit
should be at a higher level than the common
pipe. The common pipe length should be appro-
priate for the size and number of existing units.
3.3.5 SUSPENSION OF THE INDOOR UNIT
Hang up the indoor unit as shown in the gure below.
Parts supplied by the lter:
- Suspension Rod, Nut and Washer
3.3.1 INITIAL CHECK
- Install indoor unit allowing for enough clearance
around the unit so there is room for handling and
maintenance operations as shown below.
- Avoid any obstacles that could impair air take-up
or discharge ow.
- Do not install the indoor unit in a machinery
workshop or in a kitchen where oil or smoke
mist could ow into the indoor unit. Oil would
be deposited in the heat exchanger resulting in
a reduced unit performance. Also, internal plastic
parts could be deformed or they could even break
as a result.
- Note the following items when the indoor unit is
to be installed in a hospital or premises where
electromagnetic waves from medical equipment
may be present.
A) Do not install the indoor unit where electromag-
netic waves directly impinge on the electric box,
the remote control switch or the remote control
cable.
B) Install the unit as far as possible from the elec-
tromagnetic wave source. A 3 metre clearance
should be arranged.
C) Install a noise lter when the power supply pro-
duces disturbing noises.
D) Select nal location and direction of the indoor
unit paying special attention to tubes, cables and
maintenance.
E) When selecting the indoor unit location, the air
ducting network should be borne in mind in order
to facilitate distribution.
3.3.2 FIXING THE UNIT
- Use the appropriate fasteners for each structure
type paying special attention to any possible
transmission of vibrations and noise. Noise or
vibration proof items should be provided if it is
considered to be necessary.
NOTE:
Is very important the positio-
ning of a siphon in each water-
drainage.
400
200
500
3- INDOOR UNIT INSTALLATION
3.3 DUCTS: INDOOR UNIT

14
ENG
15
ENG
4.2 PIPE CONNECTION
4.1. OUTDOOR UNIT
- Install de outdoor unit in a place where it will be
free from being dirty or getting by rain as much
as possible.
- During heating operation, drain water ows from
the outdoor unit. Therefore, install the outdoor
unit in a place where the drain water ow will not
be obstructed. (Heat pump model only).
- Do not place animals and plants in the path of
the warm air.
- Take the air conditioner weight into account and
select a place where noise and vibration are
less.
- Select a place so that the warm air and noise
from the air conditioner do not disturb neigh-
bours.
- Provide the space so that the air ow is not bloc-
ked. Also for efcient operation, leave open three
or the four directions front, rear and both sides.
Type A height: Outdoor Unit above Indoor Unit.
Type B height: Outdoor Unit below Indoor Unit.
(1) Auxiliary siphons every 7 m.
NOTE:
In vertical layouts always place an oil trap (small siphon)
at the beginning of the vertical stretch. In the case of the
heat pump and with the outdoor unit below the indoor
unit place siphons every 7 m.
4.2.1 INSTALLATION DETAILS
4- OUTDOOR UNIT INSTALLATION
PIPE DETAILS
- When the outdoor unit will be exposed to strong
wind, fasten it with bolts at the places indicated
by the arrows.
- When installing the drain pipe, plug another hole
() in the bottom of the outdoor unit with drain
cap so there is no water leakage.

16
ENG
17
ENG
Option
4.3 PIPE LENGTH
ORIGIN DISTANCE IN LINEALS m.
Models Load R-407C (kg) Lines (‘‘) 15 m (4 curves) 20 m (6 curves) 30 m (8 curves) 50 m (6 curves) Max. Height (m)
Cool Heat Gas Liq. % Aprox. R-407C Oil % Aprox. R-407C Oil % Aprox. R-407C Oil % Aprox. R-407C Oil Over Under
(g) (g) (g) (g) (g) (g) (g) (g) IU IU
050 1,7 2,0
5/8” 3/8” 99 250 --- 98 400 --- 96 800 20 92 1.500 50
45 20
--- --- --- --- --- --- --- --- --- --- --- --- --- ---
065 1,6 1,9
5/8” 3/8” 98 250 --- 96 400 --- 92 800 --- 87 1.500 50
45 20
3/4” 3/8” 100 300 --- 99 500 --- 97 800 20 94 1.500 50
085 2,3 2,6
3/4” 3/8” 100 300 --- 97 500 --- 94 800 20 89 1.500 50
45 20
7/8” 3/8” 102 300 --- 101 500 --- 99 900 20 96 1.600 50
105 2,8 3,55
3/4” 3/8” 97 300 --- 95 500 --- 92 800 20 85 1.500 50
45 20
7/8” 3/8” 101 300 --- 100 500 --- 98 900 20 94 1.600 50
105T 2,8 3,55 3/4” 3/8” 97 300 --- 95 500 --- 91 800 20 85 1.500 50
45 20
7/8” 3/8” 101 300 --- 100 500 --- 98 900 20 94 1.600 50
130 3,8 4,2
3/4” 1/2” 96 500 --- 93 850 20 88 1.500 50 80 2.800 100
45 20
7/8” 1/2” 102 500 --- 100 900 20 97 1.500 50 91 2.900 100
180* -- 6,0
7/8” 1/2” 96 900 --- 93 1.500 20 88 2.700 50 80 5.100 100
45 20
7/8” 1/2” 102 900 --- 100 1.500 20 97 2.700 50 91 5.100 100
230* -- 8,4
1-1/8” 5/8”(1) 97 1.500 --- 95 2.500 --- 92 4.500 50 87 8.500 100
45 20
1-3/8” 5/8”(1) 102 1.800 --- 101 3.000 --- 99 5.400 50 97 10.200 100
(1) It isn’t necessary to isolate this line of liquid.
(* Without loading, value for 7.5 m. Model 180: 120 g/m; Model 230: 200 g/m)
4- OUTDOOR UNIT INSTALLATION

16
ENG
17
ENG
4.7 POWER
(1) The rate voltage of this product is monophase
(230V/1Ph/50 Hz) or triphase (400V/3Ph/50Hz).
(2) Perform wiring work in accordance with stan-
dards so that the room air conditioner can be
operated safely and positively.
4.8 ELECTRICAL WIRING
(1) Connect the connection cords  rmly to the
terminal block. Imperfect installation may
cause a re.
(2) If the indoor unit connection cord (to the
outdoor unit) and power supply are wired inco-
rrectly, the air conditioner may be damaged.
(3) Always connect the ground wire.
4.9 MAINTENANCE INSTRUCTIONS
- Never add oil to the appliance; the compressor
is lled with polyaldohol oil, a special oil which
cannot tolerate the presence of other oils.
- The instruments used for lling, pressure measu-
rements, emptying under vacuum and recovering
the uid, must be compatible and only used for
the R-407C uid.
- The weight of the refrigerant contained in the
storage bottle must be checked constantly. Do
not use it from the moment the remaining weight
is less than 10% of the total weight.
- In the case of a new charge do not use the char-
ging cylinder, use a balance and a dip pipe type
R-407C cylinder, charge the weight of R-407C as
per the value indicated on the unit’s identication
plate (for “split systems”, refer to the installation
instructions as the charge must consider the
length of the connecting lines).
- The charge must be undertaken in liquid phase.
- In the case of leakage, do not complete the
charge: recover the remaining refrigerant or
recycling and perform a total charge. Recovery,
recycling or the destruction of the uid must be
done in compliance with the laws in force in the
country concerned.
- If the refrigerant circuit is opened, you must
avoid the entry of air into the circuit as much as
possible, replace the lter drier and perform the
“vacuum operation” at a minimum level of 3.0
mbar (static).
4- OUTDOOR UNIT INSTALLATION
4.5 HEAT INSULATION ON THE PIPE JOINTS
- Put coupler heat insulator on the joints.
AIR PURGE
- Check if the piping connections are secure.
- Check that the stems of both 3- way valves are
closed fully.
- Operate the vacuum pump and start pump
down.
- Pump down the system for at least 15 minutes,
then check if the compound pressure gauge reads
- 100kPa (- 76 cm Hg, -1bar)
- At the end of pump down, close the low pressure
side gauge of the gauge manifold fully and stop
the vacuum pump.
- Slowly loosen the valve stem of the 3- way
valve.
- Firmly tighten both 3- way valves blank cap and
the charging port cap.
4.4 CHECKING THE PIPE CONNECTIONS FOR
GAS LEAKING
- For both the indoor and outdoor unit sides, check
the joints for gas leaking by the use of a gas
leakage detector without fail when the pipes are
connected.
ADDITIONAL CHARGE
- Refrigerant suitable for a piping length of 10 m. is
charged in the indoor unit at the factory.
- When the piping is longer than 10 m., additional
charging is necessary.
4.6 GAS LEAKAGE INSPECTION
WARNING!- After connecting the piping, check the
joints for gas leakage with gas leak detector.

18
ENG
19
ENG
5- WIRING DIAGRAMS
* Don’t forget the earth connection
Riht section mm2
MODELS Power Supply* Up to 25 m. Magnetothermique Differential
(V/Ph/Hz) Manoeuvre Force Type D 1Δn
050 230/1/50 1,5 1,5 10 A 0,03 A
065 230/1/50 1,5 2,5 20 A 0,03 A
085 230/1/50 1,5 4,0 25 A 0,03 A
105 230/1/50 1,5 4,0 32 A 0,03 A
105T 400/3/50 1,5 2,5 16 A 0,03 A
130 400/3/50 1,5 2,5 20 A 0,03 A
180 400/3/50 1,5 4,0 25 A 0,03 A
230 400/3/50 1,5 4,0 32 A 0,03 A
120 M2 230/1/50 1,5 4,0 32 A 0,03 A
050 / 065 / 085 / 105
105T / 130 / 180
230 120 M2

18
ENG
19
ENG
The installation of electric assault to the machine should have a Bipolar or Tetrapolar switch according to machine model,
(monophase or treephase), of at least 3 mm of separation among contacts (norm EN-60335-2-40).
To ensure that this appliance complies with EN-61000-3-11 standard verify that the service current supply capacity is >100A
at the interface point.
PAD WIRING DIAGRAM
THREE WIRES
Heat Pump Option
Cooling Only Option
Dry Auto Cool Heat Fan
Hour
Prog.
Dry Cool Fan
Hour
Prog.
5- WIRING DIAGRAMS
Connection
Thread
Black Thread
Red Thread
White Thread
Thread
Yellow Thread
Black Thread
Red Thread
White Thread
THREE WIRES
FOUR WIRES
FOUR WIRES

20
ENG
21
ENG
6- CONTROL UNITS DIAGRAMS
6.1 CEILING-FLOOR INDOOR UNITS
HTR Heater Relay AS Deflector Relay CN4 ON-OFF Switch Conn.
4WV 4-Way Valve Relay M-L-H Fan Relay TFULL Inner Jumper Float
ODH Outdoor Unit Fan Relay COMP Compressor Relay ROOM Room Temp. Sensor
WTP Condensation Pump Relay F1 Fuse ID I. Unit Coil Sensor
CN1 Louver Connector CN6 Receiver Connector OD O. Unit Coil Sensor
6.2 CASSETTE INDOOR UNITS
