en Operating instructions ............... 3
en Country specifics....................... 20

0020319945_00 Operating instructions 3
Operating instructions
Contents
1 Safety ............................................ 4
1.1 Action-related warnings ................. 4
1.2 Intended use .................................. 4
1.3 General safety information............. 5
2 Notes on the documentation ...... 8
2.1 Observing other applicable
documents ..................................... 8
2.2 Storing documents......................... 8
2.3 Validity of the instructions .............. 8
3 Product description..................... 8
3.1 Product design............................... 8
3.2 Main functions................................ 8
3.3 Permissible temperature ranges
for operation................................... 9
3.4 Data plate ...................................... 9
3.5 CE marking .................................... 9
3.6 Fluorinated greenhouse gases .... 10
3.7 Data sheet for filling the product
with refrigerant ............................. 10
4 Operation.................................... 10
4.1 Display ......................................... 10
4.2 Control elements.......................... 11
4.3 Inserting batteries ........................ 11
4.4 Switching the product on/off ........ 12
4.5 Select the operating mode........... 12
5 Operating and display
functions..................................... 12
5.1 Setting the time............................ 12
5.2 Switching the indoor unit display
lighting on/off ............................... 13
5.3 Changing the temperature
display unit................................... 13
5.4 Changing the temperature
display.......................................... 13
5.5 Setting the vertical air
distribution ................................... 13
5.6 Setting times ................................ 13
5.7 Setting the desired
temperature ................................. 13
5.8 Setting the fan speed................... 14
5.9 Blocking the remote control ......... 14
5.10 Activating SLEEP mode............... 14
5.11 Activating/deactivating TIMER
mode............................................ 14
5.12 Activating TURBO mode.............. 14
5.13 Activating/deactivating I FEEL
mode............................................ 14
5.14 Activating/deactivating the
energy-saving function................. 15
5.15 Activating/deactivating the WiFi
function ........................................ 15
5.16 Operating with several indoor
units ............................................. 15
5.17 Using limp home mode ................ 15
6 Care and maintenance .............. 15
6.1 Caring for the product .................. 15
6.2 Cleaning the indoor unit............... 15
6.3 Cleaning the outdoor unit............. 16
6.4 Cleaning the remote control......... 16
6.5 Cleaning the air filters .................. 16
6.6 Maintenance ................................ 16
7 Decommissioning...................... 17
7.1 Temporarily decommissioning
the product................................... 17
7.2 Permanently decommissioning
the product................................... 17
8 Recycling and disposal............. 17
9 Guarantee and customer
service ........................................ 17
9.1 Guarantee.................................... 17
9.2 Customer service......................... 17
Appendix ............................................... 18
A Troubleshooting ........................ 18

4Operating instructions 0020319945_00
1 Safety
1.1 Action-related warnings
Classification of action-re-
lated warnings
The action-related warnings
are classified in accordance
with the severity of the pos-
sible danger using the follow-
ing warning signs and signal
words:
Warning symbols and signal
words
Danger!
Imminent danger to life
or risk of severe personal
injury
Danger!
Risk of death from electric
shock
Warning.
Risk of minor personal
injury
Caution.
Risk of material or envir-
onmental damage
1.2 Intended use
There is a risk of injury or death
to the user or others, or of dam-
age to the product and other
property in the event of im-
proper use or use for which it
is not intended.
The product is designed for air
conditioning living and office
spaces.
Intended use includes the fol-
lowing:
–observance of the operating
instructions included for the
product and any other install-
ation components
–compliance with all inspection
and maintenance conditions
listed in the instructions.
This product can be used by
children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the product in a safe way
and understand the hazards in-
volved. Children must not play
with the product. Cleaning and
user maintenance work must
not be carried out by children
unless they are supervised.
Any other use that is not spe-
cified in these instructions, or
use beyond that specified in this
document, shall be considered
improper use. Any direct com-
mercial or industrial use is also
deemed to be improper. Any
use for storing food, plants or
other perishable food is also
viewed as improper use.
Caution.
Improper use of any kind is
prohibited.

0020319945_00 Operating instructions 5
1.3 General safety
information
1.3.1 Risk of death due to
changes
to the product or the
product environment
▶Never remove, bridge or
block the safety devices.
▶Do not tamper with any of the
safety devices.
▶Do not damage or remove
any tamper-proof seals on
components.
▶Do not make any changes:
–The product itself
–The water and electricity
supply lines
–to the expansion relief valve
–to the drain pipework
–to the air inlets and air out-
lets
–to the pipelines for the air
supply and air exhaust
–to constructional condi-
tions that may affect the
operational reliability of the
product
1.3.2 Danger caused by
improper operation
Improper operation may present
a danger to you and others, and
cause material damage.
▶Carefully read the enclosed
instructions and all other ap-
plicable documents, particu-
larly the "Safety" section and
the warnings.
▶Only carry out the activities
for which instructions are
provided in these operating
instructions.
1.3.3 Risk of injury and
material damage due to
maintenance and repairs
carried out incorrectly or
not carried out at all
▶Never attempt to carry out
maintenance work or repairs
on your product yourself.
▶Faults and damage should
be immediately rectified by a
competent person.
▶Adhere to the maintenance
intervals specified.
1.3.4 Risk of death from
electric shock
▶Do not handle the product
when your hands are wet or
moist.
1.3.5 Risk of injury caused by
refrigerant
Leaking refrigerant may lead to
serious eye injuries and to lack
of oxygen at the installation site.
▶Do not damage any unit com-
ponents that contain refriger-
ant.
▶Ensure that the air-condition-
ing unit's pipes are not dam-
aged by sharp or pointed ob-

6Operating instructions 0020319945_00
jects, and that the pipes are
not crushed or twisted.
▶If refrigerant has leaked, in-
form a qualified competent
person who will eliminate the
leak.
▶If refrigerant gets into
someone's eyes, seek med-
ical attention immediately.
▶Use protective gloves when
handling refrigerant.
1.3.6 Risk of injury caused by
the fan
The high speed of the fan may
lead to injuries.
▶Never place your fingers or
other objects into the air inlets
or outlets or between the fins
while the product is operating.
1.3.7 Risk of death caused by
fire
A refrigerant with low flammabil-
ity (safety assembly A2) is used
in the product.
▶Do not use any open flames
near the product.
▶Do not use any flammable
materials near the product;
in particular, do not use any
sprays or other combustible
gases.
1.3.8 Health hazard caused by
direct air flow
▶Do not point the air flow dir-
ectly at people, and espe-
cially not at children, disabled
people or elderly people.
1.3.9 Risk of environmental
damage caused by
refrigerant
The product contains a refriger-
ant that must not be allowed to
escape into the atmosphere.
▶Ensure that a competent per-
son who is qualified to work
with refrigerants services the
product and, after decommis-
sioning, recycles or disposes
of it.
1.3.10 Risk of faults or
malfunctions
▶Do not place any objects on
or close to the outdoor unit.
1.3.11 Batteries
▶Note the battery type, as de-
scribed in these instructions;
see section "Data plate".
▶Remove and insert batteries
as described in these instruc-
tions; see section "Changing
the batteries".
▶Do not recharge non-re-
chargeable batteries.
▶Remove rechargeable batter-
ies from the product before
charging them.
▶Do not combine batteries with
other battery types.
▶Do not combine new and
used batteries.

0020319945_00 Operating instructions 7
▶Insert the batteries, making
sure that the poles are the
right way round.
▶Remove the dead batteries
from the product and dispose
of them correctly.
▶Remove the batteries if you
intend to store the product
and not use it for an extended
period and/or to scrap it.
▶Do not short-circuit the con-
nection contacts in the pro-
duct's battery compartment.

8Operating instructions 0020319945_00
2 Notes on the
documentation
2.1 Observing other applicable
documents
▶You must observe all operating instruc-
tions enclosed with the system compon-
ents.
2.2 Storing documents
▶Keep this manual and all other applic-
able documents safe for future use.
2.3 Validity of the instructions
These instructions apply for the following
products only:
Unit –article number
SDHL1-025NWO outdoor unit 0010044017
SDHL1-030NWO outdoor unit 0010044018
SDHL1-045NWO outdoor unit 0010044019
SDHL1-060NWO outdoor unit 0010044020
SDHL1-025NWI indoor unit 0010044036
SDHL1-030NWI indoor unit 0010044037
SDHL1-045NWI indoor unit 0010044038
SDHL1-060NWI indoor unit 0010044039
3 Product description
3.1 Product design

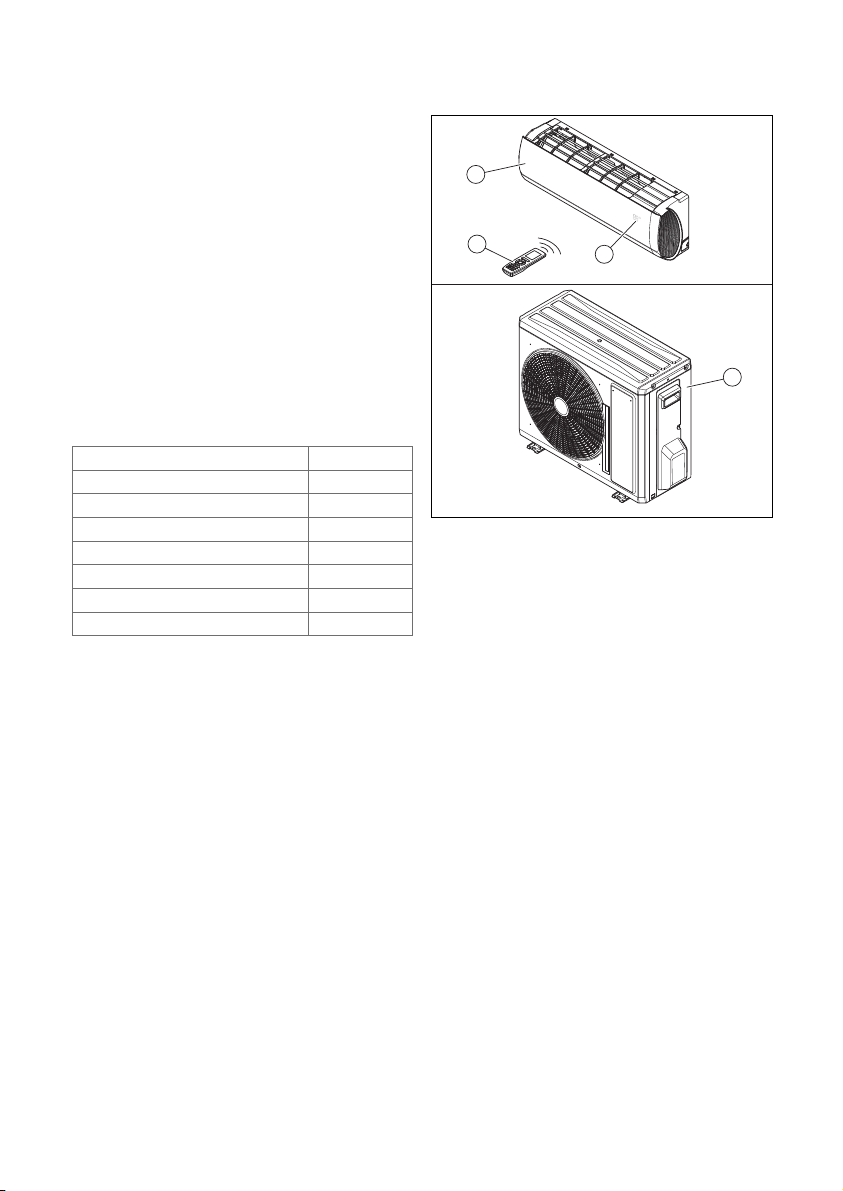

4
2
1
3
1 Indoor unit
2 Remote control
3 Temperature/
operating display
4 Outdoor unit
3.2 Main functions
The remote control controls the product's
heating, cooling, ventilation and dehumidi-
fication functions.
The remote control has a time-scheduling
function for switching the indoor unit on
and off in a time-controlled manner.
3.2.1 Heating
The room temperature sensor measures
the room temperature. If the room temper-
ature is lower than the desired temperat-
ure, the control activates the heating.
In heating mode, the indoor unit increases
the temperature of the room in which it is
installed.
3.2.2 Cooling
The room temperature sensor measures
the room temperature. If the room temper-
ature is higher than the desired temperat-
ure, the control activates the cooling.

0020319945_00 Operating instructions 9
In cooling mode, the indoor unit reduces
the temperature of the room in which it is
installed.
3.2.3 Ventilation
In ventilation mode, the air is circulated in
the room.
It is not possible to set the temperature in
ventilation mode.
3.2.4 Dehumidification
In dehumidification mode, the indoor unit
reduces the air humidity in the room in
which it is installed.
It is not possible to set the fan speed in
dehumidification mode. The fan runs at
minimum rotational speed.
3.3 Permissible temperature
ranges for operation
The indoor unit's cooling output/ heat out-
put varies depending on the environmental
temperature of the outdoor unit.
Cooling Heating
Outdoor
unit
−15 to 48 ℃ −15 to 24 ℃
Indoor unit 16 to 30 ℃16 to 30 ℃
3.4 Data plate
The data plate is mounted on the right-
hand side of the product at the factory.
Information
on the data
plate
Meaning
Cooling /
Heating
Cooling/heating mode
Rated Capa-
city
Rated power
Power Input Electrical input power
EER / COP Energy Efficiency Ratio /
Coefficient of Performance
A35 - A27(19)
/ A7(6) - A20
Check conditions for de-
termining the performance
data in accordance with EN
14511
Information
on the data
plate
Meaning
Pdesignc /
Pdesignh
(Average)
Cooling output/ heat output
(average) under test con-
ditions for calculating the
SEER / SCOP
SEER / SCOP
(Average)
Seasonal Energy Efficiency
Ratio / Seasonal Coefficient
of Performance (average)
Max. Power
Consumption /
Max. operating
current / IP
Max. power consumption /
Max. power consumption /
IP rating
220–240 V ~ /
50 Hz / 1 PH
Electrical connection:
Voltage / Frequency / Phase
Refrigerant Refrigerant
GWP Global warming potential
(Global Warming Potential)
Operating
Pressure / Hi
P/LoP
Permissible operating pres-
sure / high-pressure side /
low-pressure side
Net Weight Net weight
The product contains a
highly flammable fluid
(safety class A2L).
Read the instructions.
Barcode with serial number
3rd to 6th digits = production
date (year/week)
7th to 16th digit = product
article number
3.5 CE marking
The CE marking shows that the products
comply with the basic requirements of the
applicable directives as stated on the de-
claration of conformity.
The manufacturer hereby declares that the
type of radio equipment that is described
in these instructions complies with Direct-
ive 2014/53/EU. The complete text for the
EU Declaration of Conformity is available

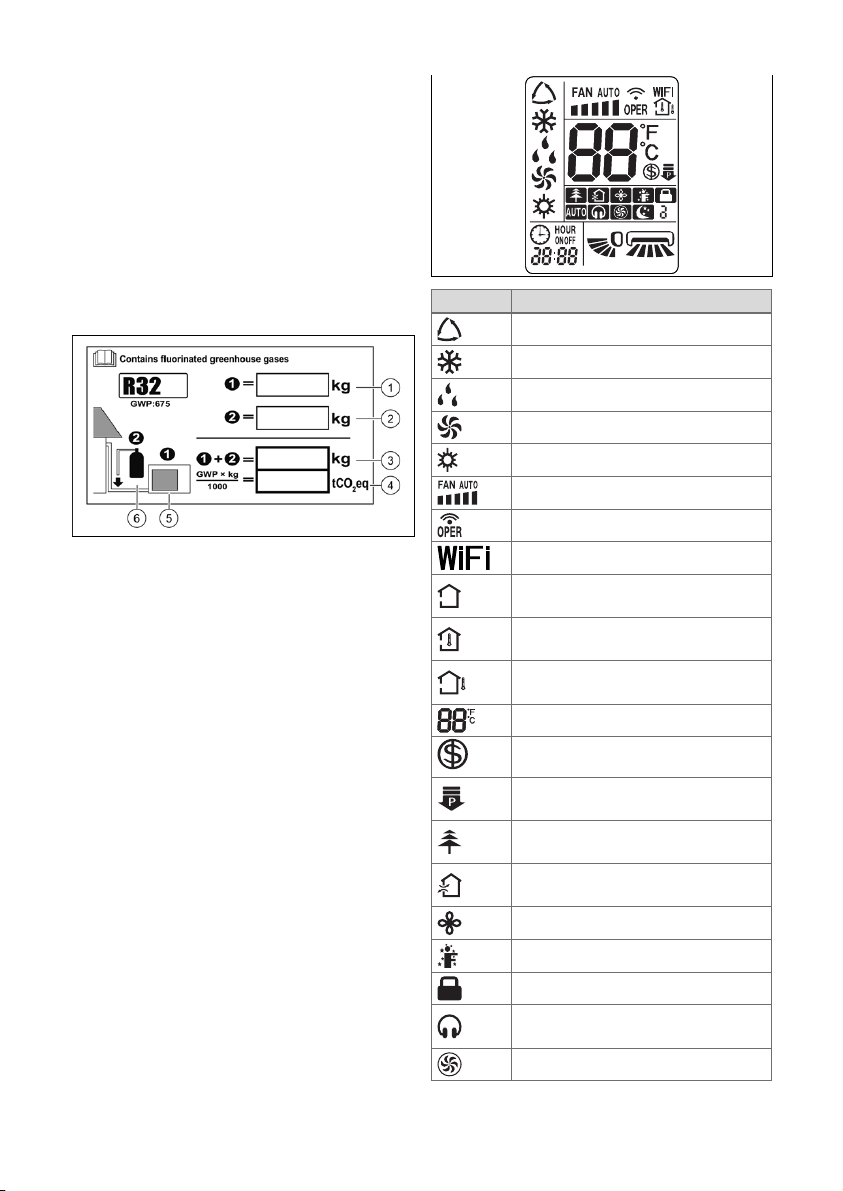

10 Operating instructions 0020319945_00
at: http://www.vaillant-group.com/doc/doc-
radio-equipment-directive/.
3.6 Fluorinated greenhouse gases
The product contains fluorinated green-
house gases in a hermetically sealed
device. As specified in the technical
specifications from the manufacturer,
the tested leak rate for the electrical
switchgear is less than 0.1% per year.
3.7 Data sheet for filling the
product with refrigerant
The outdoor unit on the product has
already been filled with refrigerant. The
data sheet provides information on filling
the product with refrigerant.
Once the installation is complete, the in-
staller must comply with the specifications
for filling with refrigerant that are included
in the data sheet.
4 Operation
The product is controlled via the remote
control.
4.1 Display
Symbol Description
Automatic mode
Cooling mode
Dehumidification mode
Ventilation mode
Heating mode
Fan function and speed
Data transfer
WLAN function activated
The desired temperature is dis-
played
The room temperature is dis-
played
The outdoor temperature is dis-
played (function not available)
Temperature display
Energy-saving function activated
Eco mode activated (function not
available)
Ionisation mode activated (func-
tion not available)
Fresh-air mode activated (function
not available)
Indoor unit overrun activated
I FEEL mode activated
Product is locked
Noise reduction mode activated
(function not available)
TURBO mode activated

0020319945_00 Operating instructions 11
Symbol Description
SLEEP mode activated
ON/OFF TIMER mode activated (start
time/end time)
Time
Function display for the vertical air
distribution system
Function display for the horizontal
air distribution (function not avail-
able)
4.2 Control elements
TURBO
FAN
MODE
ON/OFF
I FEEL T-ON T-OFF
TEMP CLOCK
LIGHT
WiFi
SLEEP
Button Description
Switching the product on/off
Activating/deactivating TURBO
mode
Select the operating mode
Selecting the fan speed
Increasing the set value
Reducing the set value
Selecting the vertical air distribu-
tion
Selecting horizontal air distribution
(function not available)
Activating/deactivating I FEEL
mode
Activating/deactivating TIMER
mode
Activating/deactivating ionisation
mode/fresh-air mode (function not
available)
Button Description
Displaying the desired/room tem-
perature
Setting the time
Activating/deactivating the display
lighting on the indoor unit
Activating/deactivating the WLAN
function
Activating/deactivating SLEEP
mode
4.3 Inserting batteries
Note
If you operate the product with the
remote control, point this directly at
the indoor unit.
The range of the remote control is
approx. 7 m. In rooms with fluor-
escent lamps cordless telephones,
the range may be reduced.
2
1
1. Remove the battery compartment
cover (1).
2. Insert two AAA (2) batteries. In doing
so, pay attention to the correct polarity
(see battery compartment).
3. Reattach the battery compartment
cover (1).
▽If the display does not switch on,
check whether the batteries have
been inserted correctly.

12 Operating instructions 0020319945_00
4.4 Switching the product on/off
▶Press to switch the product on
or off.
4.5 Select the operating mode
▶Press to switch through the oper-
ating modes and to select an operating
mode:
◁Automatic mode:
◁Cooling mode:
◁Heating mode:
◁Ventilation mode:
◁Dehumidification mode:
4.5.1 Automatic mode
In automatic mode, the product automatic-
ally selects cooling mode or heating mode,
depending on the room temperature.
The desired temperature is specified and
cannot be changed:
–In cooling mode, the desired temperat-
ure is 25 °C.
–In heating mode, the desired temperat-
ure is 20 °C.
The fan speed can be set via .
(→Page 14)
The vertical air distribution can be set via
. (→Page 13)
4.5.2 Cooling mode
In cooling mode, the indoor unit cools the
room to the set desired temperature.
The desired temperature can be set via
or . (→Page 13)
The fan speed can be set via .
(→Page 14)
The vertical air distribution can be set via
. (→Page 13)
Note
If the product runs for an extended
period at a higher air humidity in
cooling mode, water may drip out
of the outlet grille.
4.5.3 Heating mode
In heating mode, the indoor unit heats the
room to the set desired temperature.
The desired temperature can be set via
or . (→Page 13)
The fan speed can be set via .
(→Page 14)
The vertical air distribution can be set via
. (→Page 13)
4.5.4 Ventilation mode
In ventilation mode, the indoor unit circu-
lates the room air.
The room temperature is not changed
here.
The fan speed can be set via .
(→Page 14)
The vertical air distribution can be set via
. (→Page 13)
4.5.5 Dehumidification mode
In dehumidification mode, the indoor unit
reduces the air humidity.
The room temperature is not changed
here.
The fan speed can be set via .
(→Page 14)
The vertical air distribution can be set via
. (→Page 13)
5 Operating and display
functions
5.1 Setting the time
1. Press .
◁flashes on the display.
2. Set the time. (→Page 13)
3. Press to confirm the setting.

0020319945_00 Operating instructions 13

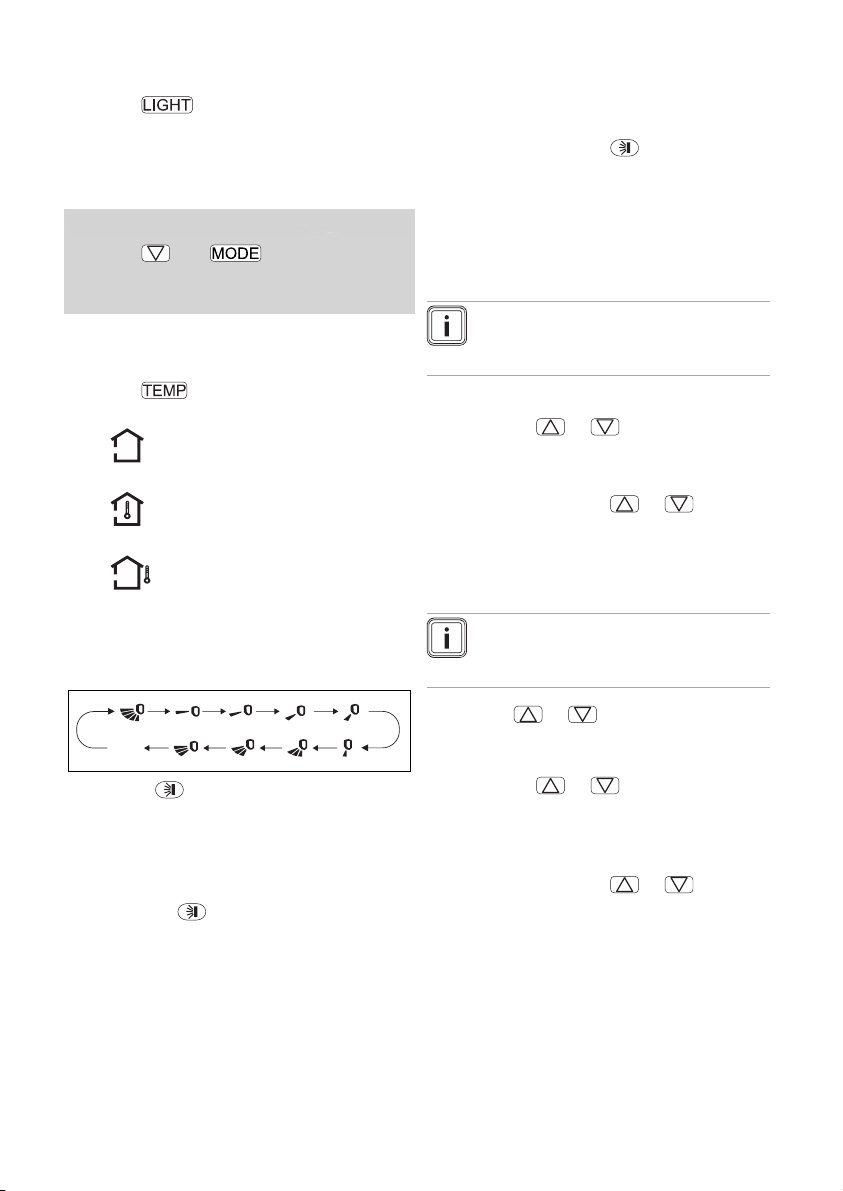

5.2 Switching the indoor unit
display lighting on/off
▶Press to switch the indoor unit's
display lighting on or off.
5.3 Changing the temperature
display unit
Condition: The product is switched off.
▶Press and at the same time
in order to display the temperature in
Celsius or Fahrenheit.
5.4 Changing the temperature
display
▶Press to display different temper-
atures on the display.
–: The desired temperature is
displayed
–: The room temperature is dis-
played
–: The outdoor temperature is
displayed (function not available)
5.5 Setting the vertical air
distribution
OFF
1. Press .
◁The function display for the ver-
tical air distribution appears on the
remote control display.
2. Alternatives 1:
▶Press again in order to switch
the through the various directions
for the vertical air distribution:
–Oscillating air flow across the
entire angle
–Air flow in a narrow area (differ-
ent angles can be selected)
–Oscillating air flow over a smaller
angle (different angles can be
selected)
2. Alternatives 2:
▶Press and hold .
◁The air flow oscillates across the
entire angle
▶Release the button to select the
current angle for the air flow.
5.6 Setting times
Note
This function is not available in all
operating modes.
1. Alternatives 1:
▶Press or to change the
times by one minute in each case.
1. Alternatives 2:
▶Press and hold or to
change the times more quickly.
5.7 Setting the desired
temperature
Note
This function is not available in all
operating modes.
1. Press or to set the desired
temperature.
2. Alternatives 1:
▶Press or again to change
the desired temperature by 1 de-
gree each time.
2. Alternatives 2:
▶Press and hold or to
change the desired temperature
more quickly.

14 Operating instructions 0020319945_00
5.8 Setting the fan speed
Note
This function is not available in all
operating modes.
1. Press to set the fan speed.
2. Press again to switch through the
five different speed levels.
5.9 Blocking the remote control
▶Press and at the same time to
lock or unlock the remote control.
◁The lock indicator appears on the
display for the locked remote control.
5.10 Activating SLEEP mode
Note
You can use SLEEP mode
to automatically adjust the room
temperature during the night. In
cooling mode/heating mode when
SLEEP mode is activated, the tem-
perature is raised/lowered by 1 °C
in one hour and by 2 °C after two
operating hours and then kept at
this value.
▶Press to activate/deactivate
SLEEP mode.
◁When SLEEP mode is activated,
appears on the display.
5.11 Activating/deactivating TIMER
mode
1. Ensure that the product is set to the
right time. (→Page 12)
2. Press .
◁Depending on the product's cur-
rent operating mode (switched
off/switched on), ON or OFF
flashes on the display.
3. Set the time. (→Page 13)
4. Press to confirm the set
start time or end time.
◁ON or OFF is shown permanently
on the display.
◁The switched-off product will
switch on at the set start time or
the switched-off product will be
switched off at the set end time.
5. Press to deactivate the
activated TIMER mode.
5.12 Activating TURBO mode
Note
TURBO mode is available in cool-
ing mode and in heating mode.
▶Press to activate/deactivate
TURBO mode.
◁In TURBO mode, the product works
at the maximum fan speed.
5.13 Activating/deactivating I FEEL
mode
Note
I FEEL mode uses the temperat-
ure sensor on the remote control to
better control the room temperat-
ure and the air flow.
1. Press to activate/deactivate I
FEEL mode.
◁When I FEEL mode is activated,
appears on the display.
Condition: I FEEL mode is activated
▶Ensure that the remote control:
–Is located close to you.
–Is located within range of the indoor
unit.
–Is not located close to a source of
heat or cold.

0020319945_00 Operating instructions 15
5.14 Activating/deactivating the
energy-saving function
Note
The energy-saving function auto-
matically regulates the room tem-
perature in heating mode/cooling
mode to 8 °C or 27 °C.
1. Select heating mode or cooling mode.
2. Press and hold and at
the same time to activate/deactivate
the energy-saving function.
◁In heating mode, appears on the
display.
5.15 Activating/deactivating the
WiFi function
1. Press to activate the WiFi func-
tion.
◁appears on the display.
Note
This function can only be used
with the appropriate access-
ory.
2. Press and hold for five seconds
to deactivate the WiFi function.
5.16 Operating with several indoor
units
If your air-conditioning system consists of
several indoor units, the temperature is set
independently for the individual rooms.
Ensure that all of the indoor units are set
to either cooling mode or heating mode so
that the installation works correctly.
5.17 Using limp home mode
Condition: Defective remote control
1
▶Open the front flap of the indoor unit.
▶Press the button (1) to switch on limp
home mode.
◁A beeping sound is made to indicate
that limp home mode is activated.
◁The product runs in automatic mode.
▶Press the button again to switch off the
product.
6 Care and maintenance
6.1 Caring for the product
▶Clean the casing with a damp cloth and
a little solvent-free soap.
▶Do not use sprays, scouring agents,
detergents, solvents or cleaning agents
that contain chlorine.
6.2 Cleaning the indoor unit
1. Wipe the indoor unit's casing with a
soft, dry cloth.
2. In the event of stubborn contamina-
tion, clean the casing with water and a
neutral cleaning agent.
–Keep the inside of the indoor unit
free from cleaning agents.

16 Operating instructions 0020319945_00
6.3 Cleaning the outdoor unit
1. Wipe the casing on the outdoor unit
using a dry cloth.
2. Remove any dirt from the surface of
the air inlet.
3. If the outdoor unit is located in a dusty
environment, clean the fins of the heat
exchanger at regular intervals using a
soft brush.
6.4 Cleaning the remote control
▶Only use a dry cloth to clean the remote
control.
6.5 Cleaning the air filters
Caution.
Risk of faults or malfunc-
tions!
Fragrance systems and anti-
odour systems in the filter or in
the inner extract air flow may
damage or contaminate the
heat exchanger.
▶If required, install these sys-
tems at the indoor unit's air
outlet.
▶Ensure that these systems
only become active once the
fan is switched on.
1. Clean the air filters at least every
three months.
A
B
C
1
2
2. Open the front flap on the indoor unit
(1) by pulling it upwards.
3. Pull the filters (2) downwards and out.
4. Clean the air filters using a vacuum
cleaner or warm water (max. 45 °C)
and a neutral cleaning agent.
5. Ensure that the filters are completely
dry before reinserting them in the in-
door unit.
6. Insert the filter as far as it will go so
that it completely clicks into place.
◁If the odours persist, you must re-
place the filters.
6.6 Maintenance
Annual inspection/maintenance of the
product by a competent person is a pre-
requisite for ensuring that the system is
constantly ready for operation, reliable and
has a long service life.

0020319945_00 Operating instructions 17
7 Decommissioning
7.1 Temporarily decommissioning
the product
▶Press the on/off button.
◁The display goes out.
7.2 Permanently decommissioning
the product
▶Employ an installer to permanently de-
commission the product. Consult an au-
thorised competent person.
7.2.1 Arranging disposal of
refrigerant
The product contains the refrigerant R32,
which must not be allowed to escape into
the atmosphere.
▶Refrigerant must only be disposed of by
a qualified installer.
8 Recycling and disposal
▶The competent person who installed
your product is responsible for the dis-
posal of the packaging.
If the product is labelled with this
mark:
▶In this case, do not dispose of the
product with the household waste.
▶Instead, hand in the product to a collec-
tion centre for waste electrical or elec-
tronic equipment.
If the product contains batteries that
are labelled with this mark, these batteries
may contain substances that are hazard-
ous to human health and the environment.
▶In this case, dispose of the batteries at
a collection point for batteries.
9 Guarantee and customer
service
9.1 Guarantee
You can find information about the manu-
facturer's guarantee in the appendix.
9.2 Customer service
The contact details for our customer ser-
vice are provided on the back page, in the
appendix or on our website.

18 Operating instructions 0020319945_00
Appendix
A Troubleshooting
Problem Possible causes Remedy
The remote con-
trol display does
not switch on
Check whether the batteries have been
inserted correctly.
Pay attention to the correct polar-
ity.
The batteries are discharged Change the batteries.
Always replace both batteries at
the same time.
The system does
not start immedi-
ately
The system does not immediately re-
start after a switch-off sequence.
For protection, the installation
remains switched off for at least
three minutes after it is stopped
each time. Switch it back on again
after this time.
The protective circuit is triggered in or-
der to protect the product if the plug is
pulled out of the plug socket and then
immediately plugged back in again.
The system does
not work at all
(fan cannot be
switched on)
The power supply cable is not connec-
ted
Plug the plug into the plug socket
and switch on the indoor unit.
The power has failed Re-establish the power supply to
the installation.
The fuse is defective Inform a competent person.
Insufficient cool-
ing or heating
Doors and/or windows open Close the doors and/or windows.
The heat source is located in the room
(lots of people in the room)
If possible, remove the heat
source.
The thermostat is set to a temperature
that is too high in cooling mode
Set the optimum temperature.
The thermostat is set to a temperature
that is too low in heating mode
Set the optimum temperature.
The air filter is dirty or blocked Clean the air filters.
Obstruction in front of the air inlet or air
outlet
Remove the obstruction in order
to guarantee sufficient air circula-
tion.
The room temperature does not reach
the defined level
Wait a moment.
Direct solar radiation through the win-
dow while the product is operating in
cooling mode
Protect the indoor unit against
solar radiation (e.g. hang curtains,
close blinds, etc.).
Noise emission During operation or when the unit is
switched off, you may hear a rustling
noise. The noise is at its loudest in the
first 2-3 minutes.
The cause of this rustling is the
refrigerant flowing into the unit.
The noise does not indicate that
there is a malfunction.
While the system is operating, a crack-
ling noise can be heard
The cause of this noise is temper-
ature changes and, linked to that,
the expansion or contraction of
the vessel. The noise does not in-
dicate that there is a malfunction.
A loud air noise while the system is op-
erating may be caused by contamina-
tion of the air filters
Clean the air filters thoroughly.

0020319945_00 Operating instructions 19
Problem Possible causes Remedy
Odours The system leaves odours circulating
in the room air (cigarette or furniture
odours)
No corrective measures
Build-up of mist
or steam
In heating mode or in low temperatures,
the outdoor unit may generate vapour
during the thawing process.
No corrective measures
The indoor unit's
screen shows
E07.
The individual indoor units for the air-
conditioning system are not configured
in the same operating mode.
Set all of the indoor units either to
cooling mode or to heating mode.

20 Country specifics 0020319945_00
Country specifics
1 Guarantee
Validity: Belgium
Informationen zur Herstellergarantie erfra-
gen Sie unter der auf der Rückseite ange-
gebenen Kontaktadresse.
Validity: Belgium
Pour obtenir des informations concernant
la garantie constructeur, veuillez contacter
l'adresse indiquée au verso.
Validity: Belgium
Informatie over de fabrieksgarantie kunt
u bij het aan de achterkant opgegeven
contactadres verkrijgen.
Validity: Spain
Saunier Duval le garantiza que su pro-
ducto dispondrá de la Garantía Legal y,
adicionalmente, de una Garantía Comer-
cial, en los términos y condiciones que
puede consultar a través de la página Web
www.saunierduval.es, o llamando al nú-
mero de teléfono 913 751 751.
Condiciones de Garantía:
Usted puede solicitar la activación de
su Garantía Comercial y la puesta en
marcha GRATUITA, si procede según su
producto, a su Servicio Técnico Oficial
Saunier Duval. Si lo prefiere, también
puede llamarnos al 910 77 99 11, o entrar
en www.saunierduval.es.
Solicitud de puesta en marcha y activación
de garantía:
Validity: Italy
1. Hermann Saunier Duval garantisce
la qualità, l’assenza di difetti e il rego-
lare funzionamento dei propri prodotti,
impegnandosi a eliminare ogni difetto
originario a titolo completamente gra-
tuito nel periodo coperto dalla pre-
sente Garanzia.
2. La presente Garanzia è offerta per
l’acquisto dei prodotti nuovi e dura
DUE ANNI dalla data di acquisto del
prodotto da parte dell’utente finale.
3. La presente Garanzia opera esclu-
sivamente per i prodotti Hermann
Saunier Duval commercializzati e in-
stallati in Italia, Repubblica di San Ma-
rino, stato Città del Vaticano e viene
prestata da Hermann Saunier Duval, i
cui riferimenti sono indicati in calce,
attraverso la propria Rete di Assi-
stenza Tecnica Ufficiale denominata
“Hermann Saunier Duval Service”.
4. Per far valere i diritti di cui alla pre-
sente Garanzia convenzionale l’utente
dovrà:
–far effettuare la Prima Accensione
Gratuita da un centro d’assistenza
Ufficiale per i seguenti prodotti: cal-
daie, termoregolazione, collettori
e bollitori solari, pompe di calore,
unità di ventilazione meccanica
controllata. All’atto della Prima Ac-
censione il CAT provvederà a re-
gistrare sulla Cartolina di Garan-
zia la data di acquisto del prodotto
da parte dell’utente attestata da un
titolo di acquisto e dalla dichiara-
zione di conformità, incaricandosi di
consegnarla a Vaillant Group Italia
S.p.A.
–compilare la Cartolina di Garanzia
e spedirla direttamente a Vaillant
Group Italia S.p.A, per i seguenti
prodotti: scaldabagni e condiziona-
tori. Per la validità della garanzia
farà fede il titolo di acquisto del pro-
dotto e la dichiarazione di confor-
