INSTALLATION MANUAL
Saunier Duval Clima, S.A.
SDC/H 050 D
SDC/H 070 D
SDC/H 085 D
SDC/H 105 D
SDC/H 105T D
SDC/H 130 D
SDC/H 160 D
SDC/H 120 M2D
ENGLISH
Safety Regulations .......................................................................................................3
Indoor unit installation
Indoor Unit Dimensions ............................................................................................................................. 4
Fixing the Unit ........................................................................................................................................... 5
Outdoor unit installation
Location..................................................................................................................................................... 6
Pipe lenght ................................................................................................................................................ 6
Dimensions ............................................................................................................................................... 6
Installation Details ................................................................................................................................ 7 - 8
Wiring Diagrams ...........................................................................................................9

3
ENGLISH
The installation shall be made by authorised personal only
1- SAFETY REGULATIONS
This unit should be installed and used in com-
pliance of the following:
- Low Voltage Electrotechnical Regulations
- Safety Regulations for Cooling Plants and Facilities
- Pressure Vessel Regulations
- Basic Building Standards
- Technical Building Standards
- Municipal Regulations
• Saunier Duval, along the lines of its continuos product
quality improvement policy, reserves the rights to modify
the specications without previous notice.
• Saunier Duval cannot foresee all circumstances that
could result in hazard potentials.
• This A.C. unit is designed exclusively for air conditio-
ning. Do not use this unit for any other purposes like
drying clothes, cooling foodstuff or any other heating or
cooling purposes.
• No part of this manual can be copied without written
permission.
• Should you have any queries, please contact your
nearest Saunier Duval distributor.
• This A.C. unit has been designed for the operating tem-
peratures specied below. Do not let it work outside
said ranges.
SUMMER
- OUTDOOR 0ºC Min. 43ºC Max.
- INDOOR 19ºC Min. 32ºC Max.
WINTER
- OUTDOOR -5ºC Min. 24ºC Max.
- INDOOR 15ºC Min. 27ºC Max.
IMPORTANT NOTES
EXTREME OPERATIONS CONDITIONS
• Do not allow the customer to t the air conditioning unit.
Installation of the unit must be carried out by either the
local distributor or a specialist tter. The tter is respon-
sible for any problems caused by a faulty installation.
• The installation instructions must be followed closely.
A faulty installation can lead to water leaks, electrical
discharges or res.
• Do not use any coolant other than R22. The mixture
of gases in the cooling cycle can lead to damage or
impaired performance.
• Check that the mounting and fastening devices are
sufcient to withstand the weight of the unit. If they are
not, the unit may fall and cause an accident.
• Ensure that all fastening devices and accessories are
used. Use of any items not shown can lead to water
leaks, electrical discharges or res.
• Carry out electrical connections in accordance with
local regulations and the instructions laid down in the
installation manual. Ensure that the proper cables have
been used. If they have not, this may cause electrical
discharges or res.
• While connecting the outdoor unit, keep the cabling
conduit rigid. Faulty cable tting can cause overhea-
ting, electrical discharges or re at these connections.
• The system must always be earthed. If it is not, this
may lead to electrical discharges.
• Do not t units in places which may be affected by
leaks of inammable gas. If the gas is in circulation
around the units, this may cause explosions.
• Place the drainage hose in a suitable position. An
improperly tted hose will force the water back to the
room, thus damaging the furniture.
• This air conditioning system is for home use only. Do
not use it for any unspecied applications: warehouses,
foodstuff depots, animals, plants, precision machinery,
works of art etc. These items may be damaged as a
result.
• Use the voltage shown. If this is not used, it may cause
a re or other problems.

4
ENGLISH
Decide the mounting position together with the customer as follows:
1. INDOOR UNIT
- Install the unit where the drain pipe can be easily installed.
- Take servicing, etc. into consideration and leave the spaces for the aftersale service.

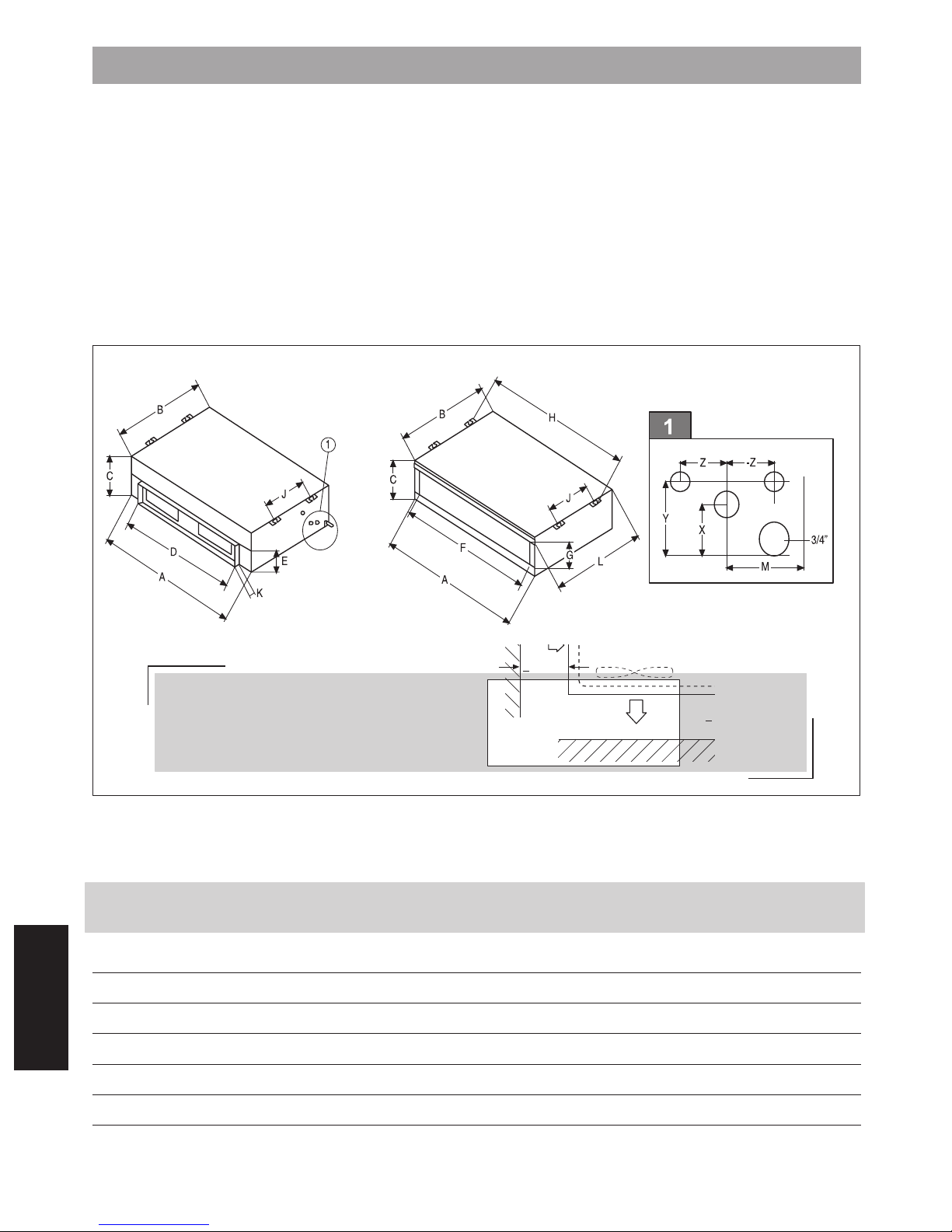

INDOOR UNIT DIMENSIONS
2- INDOOR UNIT INSTALLATION
MODELS A B C D E F G H J K L M X Y Z -Z Weight
(kg)
SDC/H 050 DI 800 525 230 690 146 740 170 840 275 34 539 91 67 87 63 -- 31
SDC/H 075 DI 1.000 525 230 878 146 940 170 1.040 275 34 539 91 67 53 92 -- 35
SDC/H 090 DI 1.010 666 295 866 196 950 235 1.050 335 34 680 99 70 99 73,5 -- 42
SDC/H 105 DI 1.210 700 295 1.100 196 1.150 235 1.250 335 34 714 99 70 99 73,5 -- 49
SDC/H 130 DI 1.210 675 295 1.000 180 1.150 190 1.250 335 24 690 99 80 110 80 -- 51
SDC/H 160 DI 1.400 840 361 1.047 225 1.305 305 1.405 455 34 854 208 157 100,5 -- 32,5 63
Units in mm.
- It is very important to place a siphon
at every drainage outlet.





5
ENGLISH
2.1 INITIAL CHECK

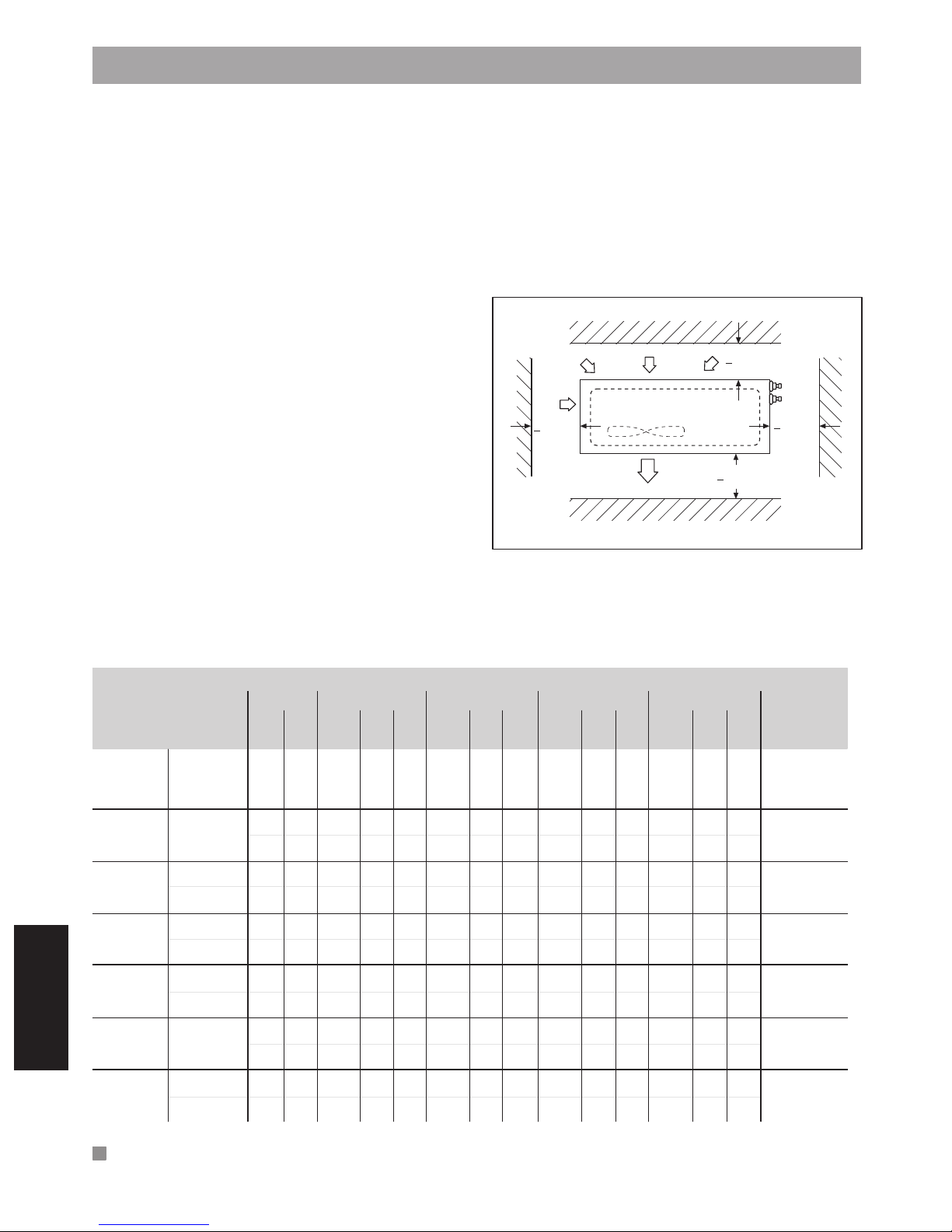

• Install indoor unit allowing for enough clearance around
the unit so there is room for handling and maintenance
operations as shown below:
• Avoid any obstacles that could impair air take-up or
discharge ow.
• Do not install the indoor nit in a machinery workshop or
in a kitchen where oil or smoke mist could ow into the
indoor unit. Oil would be deposited in the heat exchan-
ger resulting in a reduced unit performance. Also, inter-
nal plastic parts could be deformed or they could even
break as a result.
• Note the following items when the indoor unit is to be
installed in a hospital or premises where electromag-
netic waves from medical equipment may be present.
A) Do not install the indoor unit where electromagnetic
waves directly impinge on the electric box, the remote
control switch or the remote control cable.
B) Install the unit as far as possible from the electromag-
netic wave source. A 3 metre clearance should be
arranged.
C) Install a noise lter when the power supply produces
disturbing noises.
D) Select nal location and direction of the indoor unit
paying special attention to tubes, cables and mainte-
nance.
E) When selecting the indoor unit location, the air ducting
network should be borne in mind in order to facilitate
distribution.
• Do not install the indoor unit in an acid or alkaline envi-
ronment to preserve heat exchangers from any corro-
sion process.
2- INDOOR UNIT INSTALLATION
2.2 FIXING THE UNIT
- Use the appropriate fasteners for each structure type
paying special attention to any possible transmission
of vibrations and noise. Noise or vibration proof items
should be provided if it is considered to be necessary.
2.3 INDOOR UNIT INSTALLATION
• Insert and screw down a nut on each supporting rod.
• Lift the indoor unit and insert the rods in the holes pro-
vided on the mounting brackets.
• Place a washer and nut on each of the rods.
• Level out the machine and x it tightening so that nuts
are pressed against each other.
• It is advisable to place a lock nut against the lower nut
on the suspension rods.
2.4 DRAIN PIPE INSTALLATION
• Special care should be taken when laying drain tubing,
otherwise if any problem occurs the condensed water
of the evaporator could spill.
• Do not place the drain pipe in an upwards position
otherwise drain water would go back to the unit and
spill when the unit would stop.
• Do not connect the drain pipe to the sanitary drains,
waste water drains or any other drain facility if a trap is
not installed.
• When a common drain pipe is connected to other indoor
units, connection positions of each unit should be at a
higher level than the common pipe. The common pipe
length should be appropriate for the size and number
of existing units.
2.5 SUSPENSION OF THE INDOOR UNIT
Hang up the indoor unit as shown in the gure
below.
Parts supplied by the lter:
- Suspension Rod
- Nut
- Washer




6
ENGLISH
PIPE LENGHT
3- OUTDOOR UNIT INSTALLATION
1. OUTDOOR UNIT
(1) If possible, do not install the unit where it will be exposed to direct sunlight.
(2) Install de outdoor unit in a place where it will be free from being dirty or getting by rain as much as possible.
(3) During heating operation, drain water  ows from the outdoor unit. Therefore, install the outdoor unit in a place where
the drain water  ow will not be obstructed. (Heat pump model only).
(4) Do not place animals and plants in the path of the warm air.
(5) Take the air conditioner weight into account and select a place where noise and vibration are less.
(6) Select a place so that the warm air and noise from the air conditioner do not disturb neighbours.
(7) Provide the space so that the air ow is not bloc-
ked. Also for efcient operation, leave open three
or the four directions front, rear and both sides.
(8) When the outdoor unit will be exposed to strong
wind, fasten it with bolts at the places indicated by
the arrows.
(9) When installing the drain pipe, plug another hole ()
in the bottom of the outdoor unit with drain cap so
there is no water leakage.
Optional
Location for a correct air ow.
ORIGIN DISTANCE IN LINEALS m.
Models R22 (kg) Línes (‘‘) 15 m (4 curves) 20 m (6 curves) 30 m (8 curves) 50 m (6 curves) Máx. Height (m)
Cool Heat Gas Líq. % Aprox. R22 Oil % Aprox. R22 Oil % Aprox. R22 Oil % Aprox. R22 Oil Over Under
(g) (g) (g) (g) (g) (g) (g) (g) UI UI
SDH 050 D 1.500 5/8” 3/8” 99 250 --- 98 400 --- 96% 800 20 92 1.500 50 45 20
SDH 070 D 1.800
5/8” 3/8” 98 250 --- 96 400 --- 92 800 --- 87 1.500 50
45 20
3/4” 3/8” 100 300 --- 99 500 --- 97 800 20 94 1.500 50
SDH 085 D
1.700 3/4” 3/8” 98 300 --- 97 500 --- 94 800 20 89 1.500 50
45 20
2.000 7/8” 3/8” 102 300 --- 101 500 --- 99 900 20 96 1.600 50
SDH 105 D
2.800 3/4” 3/8” 97 300 --- 95 500 --- 92 800 20 85 1.500 50
45 20
3.200 7/8” 3/8” 101 300 --- 100 500 --- 98 900 20 94 1.600 50
SDH 105T D
2.800 3/4” 3/8” 97 300 --- 95 500 --- 91 800 20 85 1.500 50
45 20
3.200 7/8” 3/8” 101 300 --- 100 500 --- 98 900 20 94 1.600 50
SDH 130 D 3.800
3/4” 1/2” 96 500 --- 93 850 20 88 1.500 50 80 2.800 100
45 20
7/8” 1/2” 102 500 --- 100 900 20 97 1.500 50 91 2.900 100
SDH 160 D
3.800 7/8” 1/2” 97 500 --- 94 900 25 90 1.500 50 83 2.900 100
45 20
5.000 1-1/8” 1/2” 104 600 --- 103 900 25 101 1.600 50 97 3.000 100





7
ENGLISH
2- OUTDOOR UNIT INSTALLATION
- Set the unit on a strong stand, install protective
rubber pieces under it.
- Do not install the unit directly on the ground,
because it will cause trouble.
- Install the unit where it will not be tilted by more
than 5º.
Outdoor Unit Dimensions
Units in mm
3- OUTDOOR UNIT INSTALLATION
3. CHECKING THE PIPE CONNECTIONS FOR
GAS LEAKING
- For both the indoor and outdoor unit sides, check the
joints for gas leaking by the use of a gas leakage detec-
tor without fail when the pipes are connected.
4. HEAT INSULATION ON THE PIPE JOINTS
- Put coupler heat insulator on the joints.

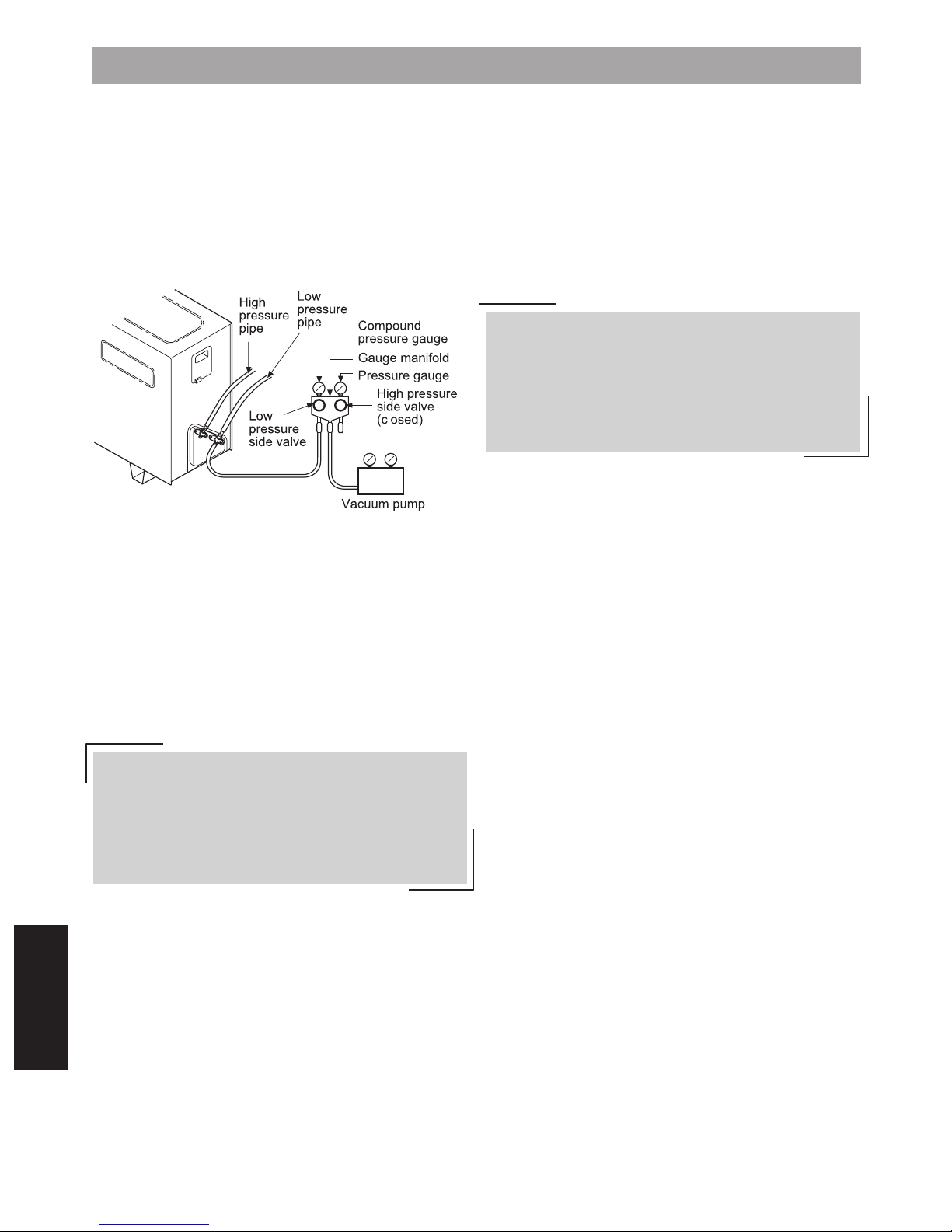

AIR PURGE
- Close the high pressure side valve fully.
- Check if the piping connections are secure.
- Check that the stems of both 3- way valves are closed
fully.
- Connect the gauge manifold service hose to the char-
ging port of the 3- way valve (side with the projection of
pushing in the valve core).
- Open the low pressure side valve of the gauge mani-
fold fully.
- Operate the vacuum pump and start pump down.
- Pump down the system for at least 15 minutes, then
check if the compound pressure gauge reads - 100kPa
(- 76 cm Hg, -1bar)
- At the end of pump down, close the low pressure side
gauge of the gauge manifold fully and stop the vacuum
pump.
- Slowly loosen the valve stem of the 3- way valve. When
the compound pressure gauge reading reaches 1- 2
kg/ cm2, retighten the valve stem and disconnect the
service hose from the 3- way valve charging port.
(If the stem of the 3- way valve is opened fully before
the service hose is disconnected, it may be difcult to
disconnect the service hose.)

8
ENGLISH
ADDITIONAL CHARGE
- Refrigerant suitable for a piping length of 10 m. Is char-
ged in the indoor unit at the factory.
- When the piping is longer than 10 m., additional char-
ging is necessary.
3- OUTOOR UNIT INSTALLATION
WARNING!
(1) When moving and installing the air conditioner,
do not mix gas other than the speci ed refrige-
rant (R-22) inside the refrigerant cycle.
(2) When adding refrigerant, add the refrigerant from
the charging port at the completion of work.
5- GAS LEAKAGE INSPECTION
WARNING!- After connecting the piping, check the
joints for gas leakage with gas leak detector.
6- POWER
(1) The rate voltage of this product is monophase
(230V/1Ph/50 Hz) / triphase (400V/3Ph/50Hz).
(2) Use a circuit breaker an receptacle matched to the
capacity of the room air conditioner.
7- ELECTRICAL WIRING
(1) Connect the connection cords  rmly to the ter-
minal block. Imperfect installation may cause a
 re.
(2) If the indoor unit connection cord (to the outdoor
unit) and power supply are wired incorrectly, the
air conditioner may be damaged.
(3) Always connect the ground wire.
- Fully open the valve stems of both 3- way valves using
a hexagon wrench. (After the valve stem begins to turn,
turn it with a torque of less than 2.9 N- m (30 kgf- cm)
until its stop turning.)
- Firmly tighten both 3- way valves blank cap and the
charging port cap.
(3) The circuit breaker is installed in the permanent wiring.
Always use circuit that can trip all the poles of the
wiring and has an isolation distance of at least 3 mm.
between the contacts of each pole.
(4) Perform wiring work in accordance with standards so
that the room air conditioner can be operated safely
and positively.

9
ENGLISH
4- WIRING DIAGRAMS
Riht section mm2
MODELS Power Supply* Up to 25 m. Magnetothermique Differential
(V/Ph/Hz) Manoeuvre Force Type D 1∆n
SDC/H 050 D 230/1/50 1,5 2,5 15 A 0,03 A
SDC/H 070 D 230/1/50 1,5 2,5 20 A 0,03 A
SDC/H 085 D 230/1/50 1,5 4,0 25 A 0,03 A
SDC/H 105 D 230/1/50 1,5 4,0 32 A 0,03 A
SDC/H 105 TD 400/3/50 1,5 2,5 10 A 0,03 A
SDC/H 130 D 400/3/50 1,5 2,5 16 A 0,03 A
SDC/H 160 D 400/3/50 1,5 4,0 16 A 0,03 A
SDC/H 120 M2D 230/1/50 1,5 6,0 32 A 0,03 A
SDC/H 050 / 070 / 085 / 105 D SDC/H 105T D / 130 D / 160 D
SDC/H 120 M2D
The installation of electric assault to the machine, it should
have a switch of Bipolar court or Tetrapolar according to
machine model, (monophase or treephase), of at least 3 mm
of separation among contacts (norm IN-60355-40).
* Don’t forget the earth connection
PAD WIRING DIAGRAM

www.saunierduval.es
XT220301/V01 - 9001871 Saunier Duval se reserva el derecho de introducir modicaciones sin previo aviso
