sauter TRA 410 User manual

ECC room thermostat
TRA 410, TRA 421
Technical manual

2/19
TRA 410, 421
P100015830 B

TRA 410, 421
3/19
Content
P100015830 A
Content
1 Safety instructions 5
1.1 Meaning of the safety instructions 5
2 General information 6
2.1 Introduction 6
2.2 Liability limitation 6
2.3 Intended use 6
3 Setting the setpoint temperature 7
4 Functions – settings – parameterisation 8
5 Connection diagrams 9
6 Dimension drawing 10
7 Overview of display 11
8 Description of operation 13
8.1 Description of the operating modes 13
8.2 Description of parameters for TRA 421 16
9 Troubleshooting 18
10 Disposal 18
11 Cleaning 18

4/19
TRA 410, 421
P100015830 B

TRA 410, 421
5/19P100015830 B
Safety instructions
1 Safety instructions
(Please follow the information in the operating instructions.
Failure to observe these instructions can cause functional impairments or even
damage the device.
(Failure to observe the instructions:
SAUTER will not accept any liability for damage caused by the failure to observe
these instructions.
!The device may only be opened by authorised, qualified personnel when it is dis-
connected from the power supply.
Only use the device when it is in a technically perfect condition.
Adhere to the ambient conditions specied in the tting instructions.
1.1 Meaning of the safety instructions
Compulsory note
!A compulsory note contains important information that must be observed. Non-ad-
herence can have serious consequences.
General note
(A general note contains information that helps you to better understand the topic
described.
Reference note
¦This note contains a reference to an external website.
èThis note contains a reference to one or more documents with further information
on this product.

6/19 P100015830 B
TRA 410, 421
General information
2 General information
2.1 Introduction
These operating instructions provide important information about handling
the electronic room thermostat. To allow safe working, all the specied safety
information and operating instructions must be adhered to.
The operating instructions must be read carefully before starting any work. They are
a part of the product and the company operating the system must keep them where
they can be accessed at all times.
2.2 Liability limitation
All of the data and information in these instructions has been assembled based on
the applicable standards and directives, the current state of the technology and our
many years of know how and experience.
The manufacturer will accept no liability for damage resulting from:
• Failure to observe the safety instructions
• Failure to observe the operating instructions
• Improper usage
• Use of untrained staff
• Unauthorised modications
• Technical changes
In all other cases, the obligations agreed to in the supply contract apply, as well
as the General Standard Terms and Conditions and delivery conditions of the
manufacturer, and the statutory regulations in force at the time the contract was
signed.
2.3 Intended use
The room thermostat controls, directly or via a control distributor, the connected
thermal actuators for unit valves in a unitary control system. Depending on the
model, it is suitable for 24 V or 230 V components.
Depending on the model, the device is suitable for
• xed installation
• recording the actual temperature (room temperature)
• setting the setpoint temperature
• controlling the actual temperature by activating positioning actuators in heating
or heating/cooling mode in an assigned area
• connecting an external sensor
All other uses, changes and modications are expressly forbidden and lead to risks
for which SAUTER is not liable.

TRA 410, 421
7/19P100015830 B
Setting the setpoint temperature
3 Setting the setpoint temperature
The setpoint temperature is set by turning the rotary knob to the left or the right.
1. Turn the rotary knob to the LEFT.
ÂThe temperature is decreased.
Or
1. Turn the rotary knob to the RIGHT.
ÂThe temperature is increased.

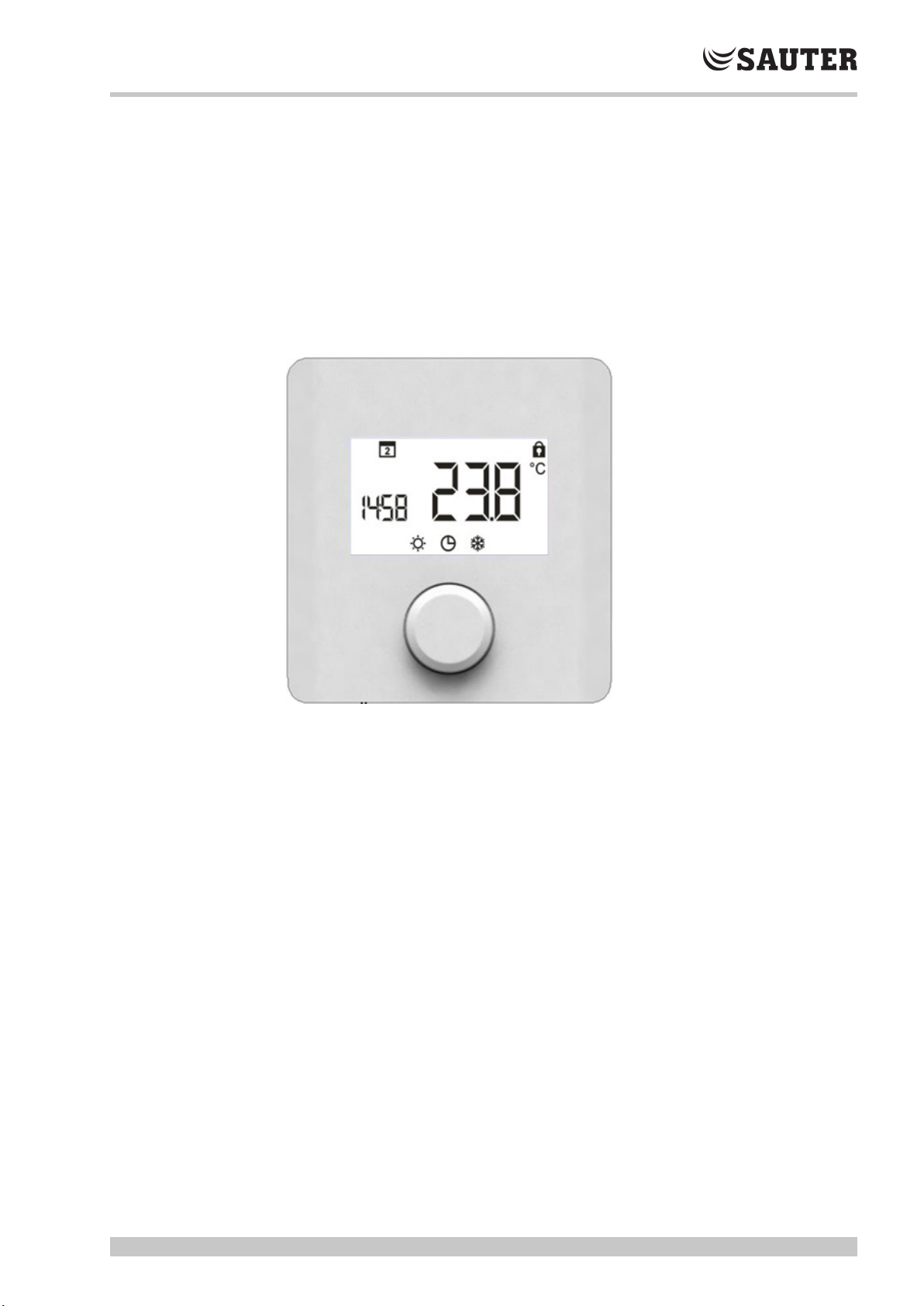

Fig.1 Front view of TRT 410, 421

8/19 P100015830 B
TRA 410, 421
Functions – settings – parameterisation
4 Functions – settings – parameterisation
The functions, settings and parameterisation of the room-temperature controller are
called up using the rotary knob/push button.
• You press the rotary knob to call up menus, activate or deactivate functions,
apply settings and change parameters.
• You turn the rotary knob to enter settings and select menus and functions.
The basic level and various menus are provided for simple operation and settings:
Standard display
In the standard display, all room-temperature controllers show the current
actual temperature and the active functions. The TRA421 also has a clock
function.
Operating modes
Contains all important basic functions and operating modes.
Settings
Contains advanced functions and many setting options.
Parameters
Contains various password-protected system parameters. The optimum bal-
ance of the overall system is attained via the corresponding settings.
Description of operation
The following table shows basic operation of the setting knob.
Adjust setpoint
Change operating mode
1x
Set functions and values
2x
Parameters for technicians
2x

TRA 410, 421
9/19P100015830 B
Connection diagrams
5 Connection diagrams
TRA410F210 TRA410F212
2pt
NTC
230 V
230 V
LN
‚
12 12 12
12
abcd
2pt
NTC
24 V
LS LSMM
‚
12 12 12
12
abcd
TRA421F210 TRA421F212
2pt
NTC
230 V
LL CO NNTC 22k
out
N
230 V
‚‚
12 12 12
12
abcd
2pt
NTC
24 V
LS LS CO MM NTC22k
out
MM
‚‚
12 12 12 12
abcd

10/19 P100015830 B
TRA 410, 421
Dimension drawing

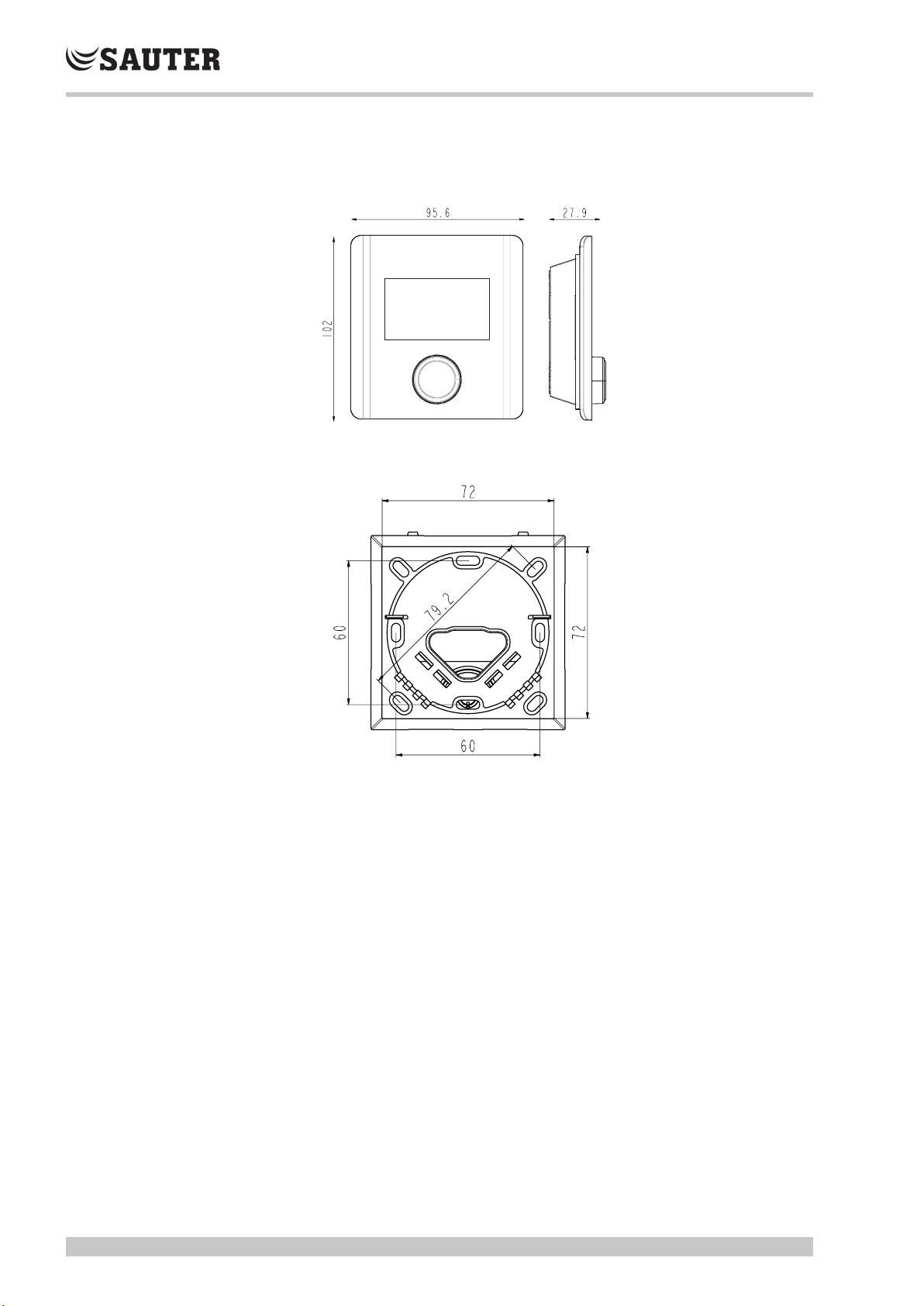

6 Dimension drawing

TRA 410, 421
11/19P100015830 B
Overview of display
7 Overview of display
1
2
1 Display
2 Rotary knob with
turning and pressing
mechanism
TRA 410 TRA 421 Symbol Description
P P Operating modes
P P Settings
PParameters
P P Heating
PCooling
P P Normal mode

12/19 P100015830 B
TRA 410, 421
Overview of display
TRA 410 TRA 421 Symbol Description
P P Reduced mode
P P Out of operation
P P ECO time programme, inter-
nal or external
PUnoccupied
PTime
PTime scale for time pro-
gramme; one unit = one hour
P P Current temperature, setpoint
temperature
P P
°C
Correction of effect of wall
temperature
P P ° Celsius temperature unit
P° Fahrenheit temperature unit
P P Minimum limitation of the
setpoint temperature
P P Maximum limitation of the
setpoint temperature
PConrm entry
P P Back
PWorking days
PWeekend
P P Operation locked
PStrength of display backlight

TRA 410, 421
13/19P100015830 B

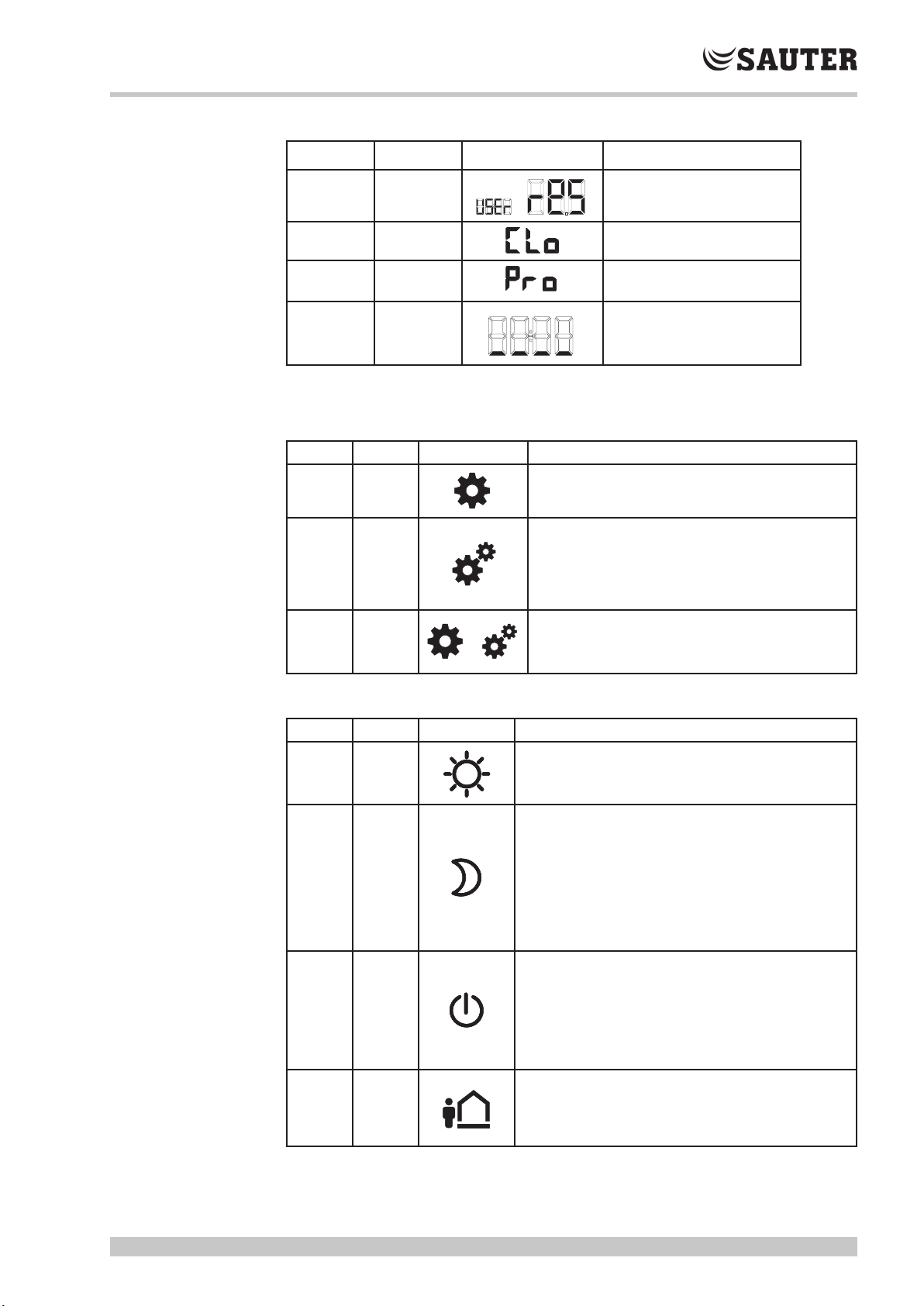

Description of operation
TRA 410 TRA 421 Symbol Description
PReset to factory settings
PTime and day programme
P“Setting” time programme
PSetting for min. oor temper-
ature
8 Description of operation
TRA 410 TRA 421 Symbol Procedure
P P Press to call up the menu.
Press to change to operating modes.
P P
Press to call up the menu.
Turn to go to “Settings”.
Press to change settings.
P
Press to call up the menu.
Turn to go to “Parameters”.
Press to change parameters.
8.1 Description of the operating modes
TRA 410 TRA 421 Symbol Procedure
P P
Press to conrm the selection.
TRA 410: Regulate to the dened setpoint temperature
TRA 421: Regulate to the preset setpoint temperature
in the “Settings” menu
P P
Press to conrm the selection.
Note: Decrease via the room thermostat or an external
signal or time programme. Both cannot be activated.
TRA 410: Decrease of 2 °C.
Note: When the decrease is selected, the Decrease
input is deactivated.
TRA 421: Regulate to the preset reduced temperature
in the “Settings” menu.
Note: When the decrease is selected, the time pro-
gramme for the decrease is deactivated.
P P
Switches off the room thermostat. The temperature
control is deactivated.
Switch on by pressing the rotary knob for 5 seconds.
Active functions are displayed. The last active function
is applied.
Note for TRA 421: The valve and frost protection re-
main active. The Pilot clock output remains active;
switching signals are forwarded.
P
Press to conrm the selection.
Set the number of days of absence by turning and
conrm the entry. The maximum number is 99 days.
The function is deactivated when the number of days
is set to 0 or the setpoint temperature is adjusted.

14/19 P100015830 B
TRA 410, 421

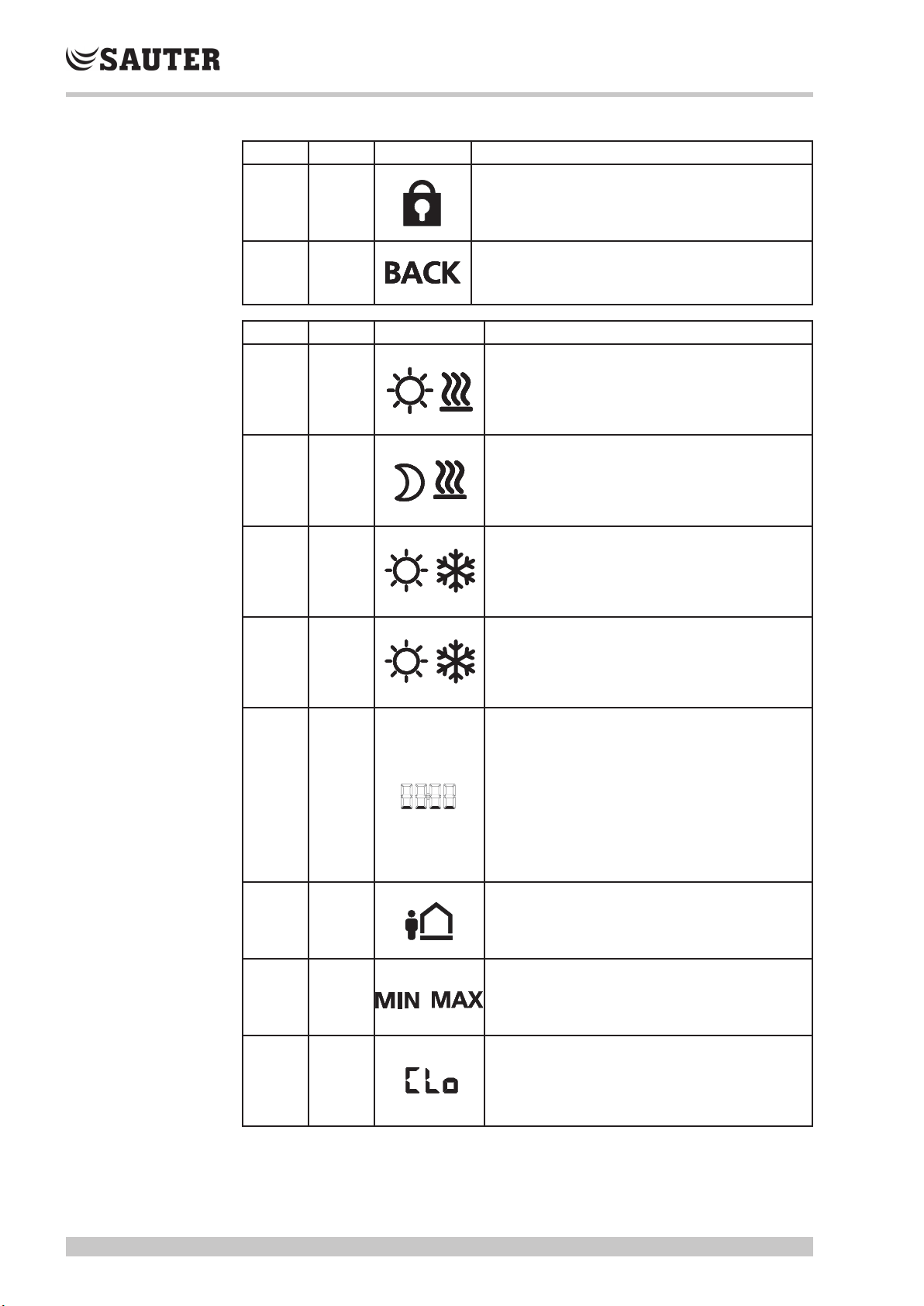

Description of operation
TRA 410 TRA 421 Symbol Procedure
P P
Press to conrm the selection.
The operation is locked.The standard display is shown.
Press the button for 5 seconds to unlock the operation.
A security code for the locking can be entered for TRA
421 - see parameters 030 and 031.
P P
Press to conrm the selection.
The menu is closed.
Note: Returns to the basic level if no setting is made
for 30 seconds.
TRA 410 TRA 421 Symbol Procedure
P
Set the comfort temperature in the normal heating
mode.
Factory setting: 21 °C
Press to conrm the selection.
Turn to set the setpoint temperature that you want.
Press to conrm the entry.
P
Set the setback temperature in the “Heating” ECO
mode.
Factory setting: 19 °C
Press to conrm the selection.
Turn to set the setpoint temperature that you want.
Press to conrm the entry.
P
Set the comfort temperature in the normal cooling
mode.
Factory setting: 21 °C
Press to conrm the selection.
Turn to set the setpoint temperature that you want.
Press to conrm the entry.
P
Set the setback temperature in the “Cooling” ECO
mode.
Factory setting: 23 °C
Press to conrm the selection.
Turn to set the setpoint temperature that you want.
Press to conrm the entry.
P
Set the min. oor temperature when a sensor is con-
nected and parameterised (parameter 040).
Factory setting: 3.0 = approx. 22 °C
Press to conrm the selection.
Turn to set to a value between 1 and 6.
1.0 = 18 °C and 6.0 = 28 °C.
Press to conrm the entry.
Note: This setting option is only displayed if the pa-
rameter for the oor sensor P040 is activated. This is
a comfort temperature. As soon as the oor temper-
ature has been reached, the internal sensor takes
over controlling the room.
P
Set the temperature for the absence function.
Factory setting: 16 °C
Press to conrm the selection.
Turn to set the temperature that you want.
Press to conrm the entry.
P P
Set the minimum and maximum temperature limit.
Factory setting: Min. 5 °C and max. 30 °C
Press to conrm the selection.
Turn to set the minimum/maximum temperature.
Press to conrm the entry.
P
Set the time and the weekdays.
Turn to set the hours, minutes and day. Press to con-
rm each entry. In the case of a power failure, the
time and weekday settings are stored for approx. 10
hours.

TRA 410, 421
15/19P100015830 B
Description of operation
TRA 410 TRA 421 Symbol Procedure
P
Set the time programmes.
Factory setting for weekly programme:
Programme 1: 06h00 to 08h00 comfort mode
Programme 2: 15h00 to 22h00 comfort mode
Note: The thin bar at the bottom shows the time
scale in hours. The six boxes stand for 6 hours
.
The thick bar at the top shows the comfort mode in
hours .
Press to conrm the selection. “Day” is shown in the
display , with the weekdays ashing.
Turn the button to select the weekdays (Mon-Sun),
working days (Mon-Fri), weekend (Sat-Sun) or indi-
vidual days.
Press to conrm.
P1 appears in the display . Four time pro-
grammes (P1 to P4) are available.
Conrm the time programme that you want.
Turn the button to select the starting point.
Press to conrm.
Turn the button to select the nishing point.
Press to conrm.
Turn to the right to call up the next time programme.
Turn to the left (BACK) to leave the time programme.
P P
Correction of effect of wall temperature.
Factory setting: 0 °C
Press to conrm the selection.
Turn to set the correction that you want (steps of
0.1 °C). The effect of the wall temperature can be
corrected by ±2 °C.
Press to conrm the entry.
P
Set the backlight of the display.
Factory setting: 50
Press to conrm the selection.
Turn to change or switch off the backlight:
0 = off
25 = level 1
50 = level 2
75 = level 3
100 = level 4
Press to conrm the entry.
P
Reset to factory settings.
Press to conrm the selection.
Turn to set to “YES”.
Press the rotary knob for 5 seconds.
A restart is performed: all of the settings made are
reset to the factory settings. The time and the week-
days have to be set again.
P P
Press to conrm the selection. The menu is closed.
Note: Returns to the basic level if no setting is made
for 30 seconds.

16/19 P100015830 B
TRA 410, 421
Description of operation
8.2 Description of parameters for TRA 421
Symbol Procedure
Changing parameters:
Select the “Parameters” menu by pressing and turning twice to the
right.
The “Code” symbol ashes.
Press to conrm the selection.
Enter the four-digit service code by turning and pressing.
Factory setting: 1234
Press to conrm the entry.
The symbol is displayed.
Press to conrm the entry.
The individual digits of the parameter number are entered by turn-
ing and pressing.
Press to conrm the entry.
Preset control algorithms for the following applications:
Factory setting: 0
0 = standard underoor heating
1 = low-energy underoor heating
2 = radiator
3 = passive convector (slow warm-up period)
4 = fan convector (fast warm-up period)
Activating/deactivating cooling lock
Factory setting: 0
0 = deactivated
1 = activated
Note: When the cooling lock is activated and the operating mode is
set to cooling, the heating mode is also inactive.
Protects the locking of the operation with a code:
Factory setting: 0
0 = deactivated
1 = activated
Note: The locking must be activated in the “Operating modes”
menu.
Change the code for locking operation.
Factory setting: 0000
Activating an external sensor.
Factory setting: 0
0 = internal sensor is operating
1 = external sensor is operating; internal sensor is deactivated
2 = input for external oor sensor is activated
Note: This is a comfort temperature. As soon as the oor temper-
ature has been reached, the internal sensor takes over controlling
the room. Set the setpoint temperature of the external sensor in
the “Settings” menu
Setting/correcting the oor temperature.
Factory setting: 0 °C
A difference in the actual oor temperature can be corrected.
Setting range -2 °C to +2 °C.
Set the duration of the backlight of the display.
Factory setting: 15 seconds
Determines the time period for which the display is illuminated after
operation.
Setting range: 0 to 30 seconds (in 5-second steps).

TRA 410, 421
17/19P100015830 B
Description of operation
Symbol Procedure
Display the status of the output signal.
Factory setting: 1
When the output for thermal actuators is active, the heating or
cooling symbol ashes slowly. If this output is inactive, the symbol
is displayed continuously.
0 = deactivated
1 = activated
Set the direction of operation of the room controller (NC or NO).
Factory setting: 0
The direction of operation of the room controller and the connected
thermal actuators can be dened.
0 = normally closed (NC)
1 = normally open (NO)
Set the frost-protection temperature.
Factory setting: 5 °C
Activates the frost-protection facility when the temperature falls be-
low the set temperature.
Setting range: 5 °C to 10 °C.
Activate the “optimised time programme” function.
Factory setting: 0
If the “optimised time programme” function is activated, the set-
point is reached at the dened time. In order to reach the setpoint,
heating or cooling mode is initiated in good time ahead of the de-
ned time.
0 = deactivated
1 = activated
Set the cycle time for the valve protection facility.
Factory setting: 14 days
Prevents the plug from sticking inside the valve.
Setting range: 0 to 28 days
Determining a pilot clock output.
Factory setting: 0
0 = Pilot clock output active by time program
1 = Pilot clock output is inactive according to time program
Pilot clock output active when operating mode “ECO” is slected;
Pilot clock output active when operating mode “Off” is selected
Note: If parameter P230 = 1, the time program for local reduced
temperature can be used.
Dening the actuation duration while the valve protection facility
is active.
Factory setting: 5 minutes
The actuation time can be optimised depending on the running
time of the thermal actuator.
Setting range: 0 to 10 minutes.
Change the service code for the service menu.
Factory setting: 1234
Note: In order to avoid unwanted access to the service parameters,
we recommend that the service code be changed by the installer
and documented securely.
The service code can be reset - see the settings in “Reset to fac-
tory settings”.

18/19 P100015830 B
TRA 410, 421
Troubleshooting
9 Troubleshooting
Fault/display Possible cause Action To be per-
formed by
Measured
temperature
from internal or
external sensor
outside meas-
uring range
Internal sensor/room sensor
fRemove external heat sources
in the immediate vicinity until the
sensor has cooled down.
fReposition the room sensor if
necessary.
fCheck the room thermostat/
external room sensor and replace
if necessary.
fCheck the connection of the
external sensor.
Qualied per-
sonnel
No signal from
external sensor
fNo external sensor present.
fExternal sensor does not
correspond to specications.
fDeactivate the external sensor in
parameter setting 040.
fCheck the external sensor and
replace if necessary.
Qualied per-
sonnel
Fault in internal
sensor
fSet to factory settings in the
“Settings” menu.
fIf the room thermostat is faulty it
must be replaced.
Operating
company
10 Disposal
The local, currently valid laws must be observed when disposing of the device.You
will nd more information on the materials and substances in the Declaration on
materials and the environment for this product.
11 Cleaning
Use a dry, solvent-free, soft cloth to clean the room thermostat. Make sure that no
setting has been changed during the cleaning.

© Fr. Sauter AG
Im Surinam 55
CH-4016 Basel
Tel. +41 61 - 695 55 55
Fax +41 61 - 695 55 10
www.sauter-controls.com
[e-mail]
Printed in Switzerland
