sauter TRA 410 User manual

ECC room thermostat
Electronic room thermostat for heating and heating/cooling with display
TRA 410, TRA 421
P100015830 C
Operating instructions

2/19
P100015830 C
TRA 410, 421

TRA 410, 421
3/19
P100015830 C
Contents
1 Safety instructions 4
1.1 Meaning of the safety instructions 4
2 General information 5
2.1 Introduction 5
2.2 Liability limitation 5
2.3 Intended use 5
3 Operation for the first time 6
3.1 Setting the setpoint temperature 6
3.2 Setting the time and the date 6
3.3 Setting the weekly switching programme 6
4 Functions – settings – parameterisation 8
5 Connection diagrams 9
6 Dimension drawing 10
7 Overview of display 10
8 Description of operation 12
8.1 Description of the operating modes 13
8.2 Description of changing setpoints 14
8.3 Description of service parameters for TRA 421 16
9 Troubleshooting 18
10 Disposal 18
11 Cleaning 18

4/19
P100015830 C
TRA 410, 421
Safety instructions
1 Safety instructions
(Please follow the information in the operating instructions.
Failure to observe these instructions can cause functional impairments or even
damage the device.
(Failure to observe the instructions:
SAUTER will not accept any liability for damage caused by the failure to observe
these instructions.
!The device may only be opened by authorised, qualified personnel when it is dis-
connected from the power supply.
Only use the device when it is in a technically perfect condition.
Adhere to the ambient conditions specified in the fitting instructions.
1.1 Meaning of the safety instructions
Compulsory note
!A compulsory note contains important information that must be observed. Non-ad-
herence can have serious consequences.
!
General note
(A general note contains information that helps you to better understand the topic
described.
(
Reference note
¦This note contains a reference to an external website.
èThis note contains a reference to one or more documents with further information
on this product.

TRA 410, 421
5/19
P100015830 C
General information
2 General information
2.1 Introduction
These operating instructions provide important information about handling
the electronic room thermostat. To allow safe working, all the specified safety
information and activity instructions must be adhered to.
The operating instructions must be read carefully before starting any work.
They are a part of the product and the company operating the system must keep
them where they can be accessed at all times.
2.2 Liability limitation
All of the data and information in these instructions has been assembled based
on the applicable standards and directives, the current state of the technology
and our many years of know how and experience.
The manufacturer will accept no liability for damage resulting from:
• Failure to observe the safety instructions
• Failure to observe the operating instructions
• Improper use
• Use of untrained staff
• Unauthorised modifications
• Technical changes
In all other cases, the obligations agreed to in the supply contract apply, as well
as the General Standard Terms and Conditions and delivery conditions of the
manufacturer, and the statutory regulations in force at the time the contract was
signed.
2.3 Intended use
The room thermostat controls, directly or via a control distributor, the connected
thermal actuators for unit valves in a unitary control system. Depending on the
model, it is suitable for 24 V or 230 V components.
Depending on the model, the device is suitable for
• fixed installation
• recording the actual temperature (room temperature)
• setting the setpoint temperature
• controlling the actual temperature by activating positioning actuators in
heating or heating/cooling mode in an assigned area
• connecting an external sensor
All other uses, changes and modifications are expressly forbidden and lead to
risks for which SAUTER is not liable.

6/19
P100015830 C
TRA 410, 421
Operation for the first time
3 Operation for the rst time
3.1 Setting the setpoint temperature
The setpoint temperature is set by turning the rotary knob to the left or the right.
1. Turn the rotary knob to the left.
ÂThe temperature is decreased.
or
1. Turn the rotary knob to the right.
ÂThe temperature is increased.

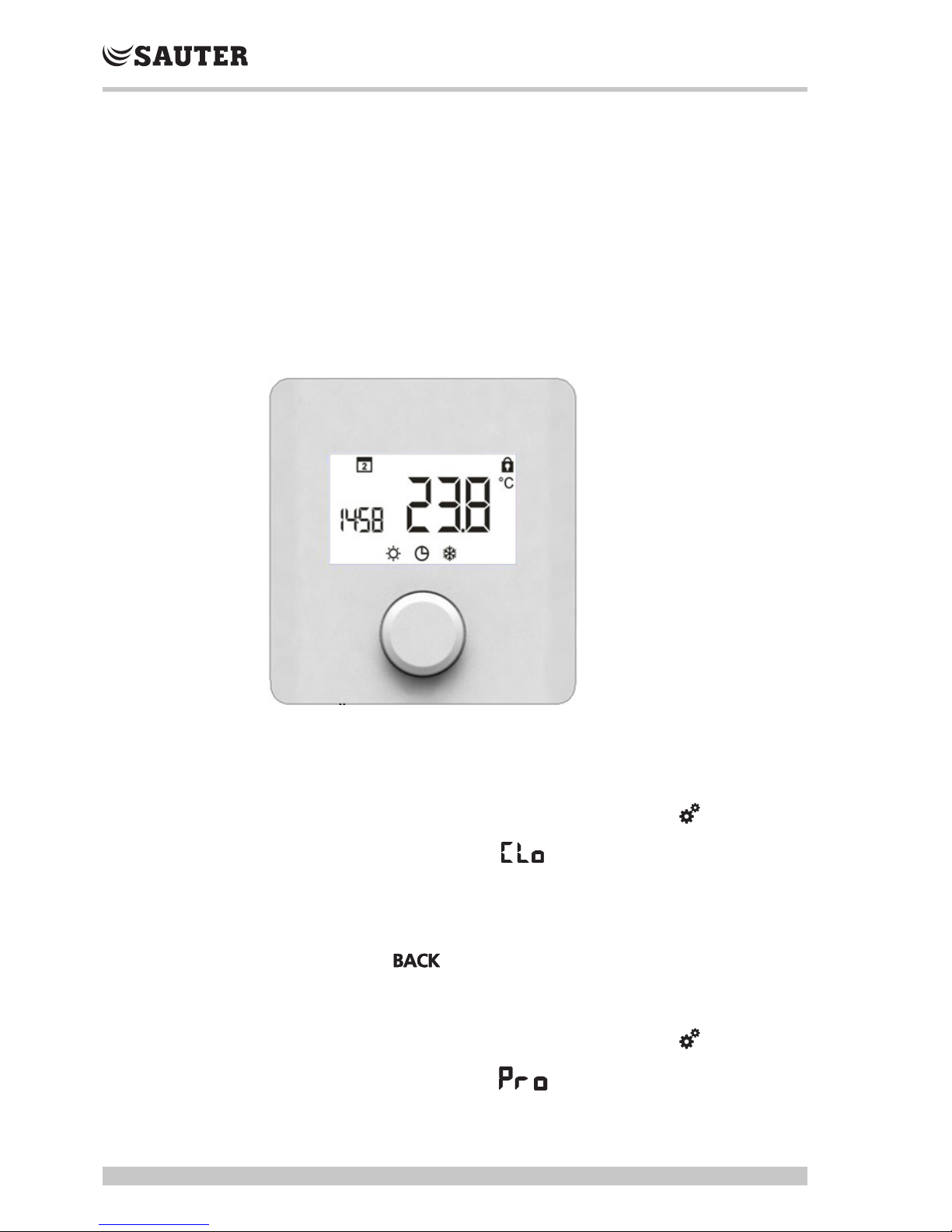

Fig.1 Front view of TRT 410, 421
3.2 Setting the time and the date
1. Press the rotary knob once
2. Turn the rotary knob once to the right until the setting level
3. Press the knob again to go to the setpoints
4. Turn until you reach the display
5. Press Âhours display flashes - enter setting
6. Press Âminutes display flashes - enter setting
7. Press Âdays display flashes - select day
8. Press Âthe time and day that you set flash - setting was successful
9. Turn knob until is displayed, then press knob
3.3 Setting the weekly switching programme
1. Press the rotary knob once
2. Turn the rotary knob once to the right until the setting level
3. Press the knob again to go to the setpoints
4. Turn until you reach the display
5. To confirm Âpress rotary knob.

TRA 410, 421
7/19
P100015830 C
Operation for the first time
(During the selection of the weekly switching programme , the current day
and the timeline flash.
6. appears in the display.
7. Select the weekly switching programme that you want by turning and pressing
the rotary knob:
flashes: weekly switching programme for Mon-Sun
flashes: weekly switching programme for Mon-Fri
flashes: weekly switching programme for Sat, Sun
flashes: weekly switching programme daily
8. appears in the display (switching command 1 for comfort mode).
Press and turn to select the switching commands P1…P4; define the
respective switch-on and switch-off points in 15-minute steps.
(A maximum of 4 switching commands (P1...P4) can be defined for each day.
(To delete a switching command, the switch-on and switch-off points must be set to
the same time.
9. You can leave the time programme by turning to and confirming.

8/19
P100015830 C
TRA 410, 421
Functions – settings – parameterisation
4 Functions – settings – parameterisation
The functions, settings and parameterisation of the room-temperature controller
are called up using the rotary knob with turning/pressing mechanisms:
• Pressing the rotary knob
• calls up menus,
• activates and deactivates functions,
• applies settings that have been made and
• changes parameters.
• You turn the rotary knob to enter settings and select menus and functions.
The basic level and various menus are provided for simple operation and
settings:
Standard display
In the standard display, all room-temperature controllers show the current
actual temperature and the active functions. The TRA421 also has a clock
function.
Operating modes
Contains all important basic functions and operating modes.
Setpoints
Contains advanced functions and many setting options for temperature, time,
weekly switching programme etc.
Service parameters
Contains various password-protected system parameters. The optimum
balance of the overall system is attained via the corresponding settings.
Description of operation
The following table shows basic operation of the setting knob.
Adjust setpoint
Change operating mode
1x
Change setpoints
2x
Service parameters for technicians
2x

TRA 410, 421
9/19
P100015830 C
Connection diagrams
5 Connection diagrams
TRA410F210 TRA410F212
2pt
NTC
230 V
230 V
LN
‚
12 12 12 12
abcd
L
N
2pt
NTC
24 V
LS LSMM
‚
12 12 12 12
abcd
LS
MM
TRA421F210 TRA421F212
2pt
NTC
230 V
LL CO NNTC 22k
out
N
230 V
‚‚
12 12 12
12
abcd
L
N
2pt
NTC
24 V
LS LS CO MM NTC 22k
out
MM
‚‚
12 12 12 12
abcd
LS
MM

10/19
P100015830 C
TRA 410, 421
Dimension drawing
6 Dimension drawing

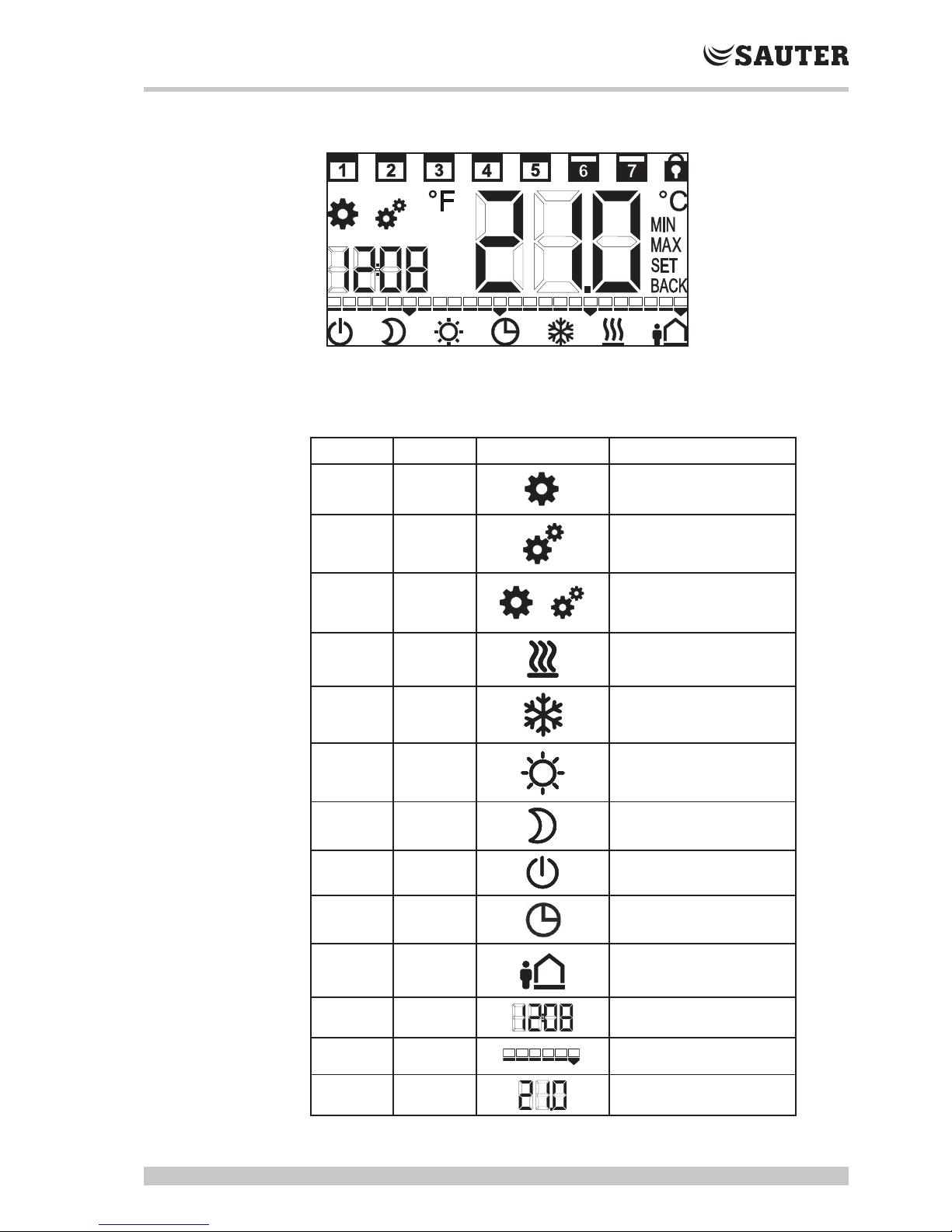

7 Overview of display
1
2
1 Display
2 Rotary knob with
turning/pressing
mechanism

TRA 410, 421
11/19
P100015830 C
Overview of display
TRA 410 TRA 421 Display symbol Description
P P Operating modes
P P Settings
PParameter
P P Heating
PCooling
P P Normal mode
P P Reduced mode
P P Out of operation
P P ECO time programme, inter-
nal or external
PUnoccupied
PTime
PTime scale for time pro-
gramme; one unit = one hour
P P Current temperature, setpoint
temperature

12/19
P100015830 C
TRA 410, 421
Description of operation
TRA 410 TRA 421 Display symbol Description
P P
°C
Correcting effect of wall tem-
perature
P P ° Celsius temperature unit
P° Fahrenheit temperature unit
P P Minimum limitation of the
setpoint temperature
P P Maximum limitation of the
setpoint temperature
PConfirm entry
P P Back
PWorking days
PWeekend
P P Operation locked
PBrightness of display back-
light
PReset to factory settings
PTime and day programme
PSet time programme
PSet min. floor temperature
8 Description of operation
TRA 410 TRA 421 Display symbol Procedure
P P Press to call up the menu.
Press to change to operating modes.

TRA 410, 421
13/19
P100015830 C
Description of operation
TRA 410 TRA 421 Display symbol Procedure
P P
Press to call up the menu.
Turn to go to the settings.
Press to change settings.
P
Press to call up the menu.
Turn to go to parameters.
Press to change parameters.

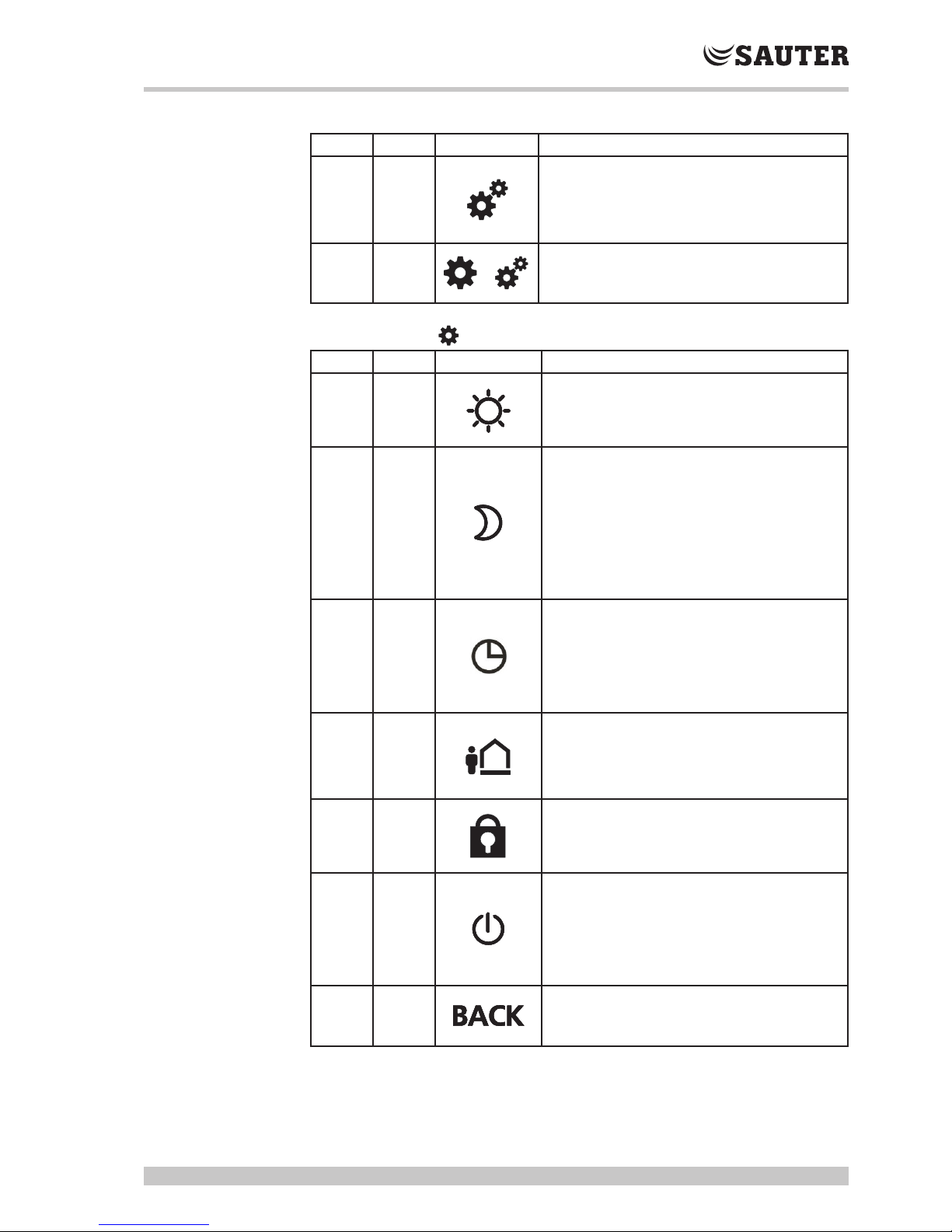

8.1 Description of the operating modes
TRA 410 TRA 421 Display symbol Procedure
P P
Press to confirm the selection.
TRA 410: Regulate to the defined setpoint temper-
ature.
TRA 421: Regulate to the preset setpoint tempera-
ture in the Settings menu.
P P
Press to confirm the selection.
Note: Decrease via the room thermostat or an ex-
ternal signal or time programme; it is not possible
to activate both.
TRA 410: Decrease of 2 °C
Note: When the decrease is selected, the Decrease
input is deactivated.
TRA 421: Regulate to the preset reduced tempera-
ture in the Settings menu.
Note: When the decrease is selected, the time pro-
gramme for the decrease is deactivated.
P P
Press to confirm the selection.
Note: Decrease via the room thermostat or an ex-
ternal signal or time programme; it is not possible
to activate both.
TRA 410: The signal of an external timer switches
the room thermostat to the ECO mode.
TRA 421: Internal time programme is activated; pi-
lot timer output is activated.
P
Press to confirm the selection.
Turn to set number of absence days; then confirm
entry; maximum 99 days.
The function is deactivated when the number of
days is set to 0 or the setpoint temperature is ad-
justed.
P P
Press to confirm the selection.
Operation is locked; the standard display is shown.
To unlock it, press the knob for 5 seconds; a se-
curity code for the locking can be entered for TRA
421 - see parameters 030 and 031.
P P
Switches the room thermostat off; the temperature
control is deactivated.
Press the rotary knob for 5 seconds to turn on; ac-
tive functions are displayed; last active function is
applied.
Note for TRA 421: The valve and frost-protection
functions remain active; pilot timer output remains
active; switching signals are forwarded.
P P
Press to confirm the selection.
The menu is closed.
Note: Returns to the basic level if no setting is
made for 30 seconds.

14/19
P100015830 C
TRA 410, 421
Description of operation
8.2 Description of changing setpoints
TRA 410 TRA 421 Display symbol Procedure
P
Set the comfort temperature in the normal heat-
ing mode
Factory setting: 21 °C
Press to confirm the selection.
Turn to set the setpoint temperature that you want.
Press to confirm the entry.
P
Set the setback temperature in the heating ECO
mode
Factory setting: 19 °C
Press to confirm the selection.
Turn to set the setpoint temperature that you want.
Press to confirm the entry.
P
Set the comfort temperature in the normal cool-
ing mode
Factory setting: 21 °C
Press to confirm the selection.
Turn to set the setpoint temperature that you want.
Press to confirm the entry.
P
Set the setback temperature in the cooling ECO
mode
Factory setting: 23 °C
Press to confirm the selection.
Turn to set the setpoint temperature that you want.
Press to confirm the entry.
P
Set the min. floor temperature when a sensor is
connected and parameterised (parameter 040)
Factory setting: 3.0 = approx. 22 °C
Press to confirm the selection.
Turn to set to a value between 1 and 6.
1.0 = 18 °C and 6.0 = 28 °C
Press to confirm the entry.
Note: This setting option is only displayed if the
parameter for the floor sensor P040, for the com-
fort temperature, is activated. As soon as the floor
temperature has been reached, the internal sensor
takes over controlling the room.
P
Set the temperature for the absence function
Factory setting: 16 °C
Press to confirm the selection.
Turn to set the temperature that you want.
Press to confirm the entry.
Note: The temperature must be adjusted for sum-
mer mode.
P P
Set the minimum and maximum temperature limit
Factory setting: Min. 5 °C and max. 30 °C
Press to confirm the selection.
Turn to set the minimum/maximum temperature.
Press to confirm the entry.
P
Set the time and the weekdays
Turn to set the hours, minutes and day. Press to
confirm the entry
In the case of a power failure, the time and weekday
settings are stored for approx. 10 hours

TRA 410, 421
15/19
P100015830 C
Description of operation
TRA 410 TRA 421 Display symbol Procedure
P
Set the weekly switching programme
Factory setting for weekly switching programme
(daily Mon-Sun):
• Switching command P1: 06h00 to 08h00 com-
fort mode
• Switching command P2: 15h00 to 22h00 com-
fort mode
• P3 and P4 are not preset and can be selected
freely.
The switching commands (switch-on and switch-
off points) must be programmed in ascending
sequence.
If you add a switching command before P1, then
P1 becomes P2 and the new command becomes
P1.
Note: The thin bar at the bottom shows the time
scale in hours; the six boxes stand for 6 hours
.
The thick bar at the top shows the comfort mode in
hours .
For settings, see section 3.3 Einstellen des Wochen-
schaltprogramms
P P
Correction effect of the wall temperature (only
internal sensor)
Factory setting: 0 °C
Press to confirm the selection.
Turn to set the correction that you want (steps of
0.1 °C).
The effect of the wall temperature can be corrected
by ±2 °C.
Press to confirm the entry.
P
Set the display backlight
Factory setting: 50
Press to confirm the selection.
Turn to change or switch off the backlight:
0 = off
25 = level 1
50 = level 2
75 = level 3
100 = level 4
Press to confirm the entry.
P
Reset to factory settings
Press to confirm the selection.
Turn to set to YES.
Press the rotary knob for 5 seconds.
A restart is performed: all of the settings made are
reset to the factory settings; the time and the week-
days must be set again.
P P
Back
Press to confirm the selection.
You quit the menu.
Note: Returns to the basic level if no setting is made
for 30 seconds.

16/19
P100015830 C
TRA 410, 421
Description of operation
8.3 Description of service parameters for TRA 421
Display symbol Procedure
Change parameters:
Press and turn twice to the right to select the Parameters menu.
The Code symbol flashes.
Press to confirm the selection.
Press and turn to enter the four-digit service code.
Factory setting: 1234
Press to confirm the entry.
The symbol is displayed.
Press to confirm the entry.
Press and turn to enter the individual digits of the parameter num-
ber.
Press to confirm the entry.
Preset control algorithm for the following applications:
Factory setting: 0
0 = standard underfloor heating
1 = low-energy underfloor heating
2 = radiator
3 = passive convector (slow warm-up period)
4 = fan convector (fast warm-up period)
Activate/deactivate the cooling lock
Factory setting: 0
0 = deactivated
1 = activated
Note: When the cooling lock is activated and the operating mode
is set to cooling (C/O active), the room thermostat cannot be used
for heating.
Protect the operation locking with a code:
Factory setting: 0
0 = deactivated
1 = activated
Note: The locking must be activated in the Operating modes
menu.
Change the code for locking the operation:
Factory setting: 0000
Activate an external sensor
Factory setting: 0
0 = internal sensor is operating
1 = external sensor is operating; internal sensor is deactivated
2 = input for external (floor) sensor is activated
Note: This is a comfort temperature. As soon as the floor temper-
ature has been reached, the internal sensor takes over controlling
the room. Setting the setpoint temperature of the external sensor
in the Settings menu.
Set/correct the floor temperature or the external sensor
Factory setting: 0 °C
A difference in the actual floor temperature can be corrected.
Setting range -2 °C to +2 °C.

TRA 410, 421
17/19
P100015830 C
Description of operation
Display symbol Procedure
Set the duration of the backlight of the display
Factory setting: 15 seconds
Determines the time period for which the display is illuminated
after operation.
Setting range: 0 to 30 seconds (in 5-second steps)
Display the status of the output signal
Factory setting: 0
When the output for thermal actuators is active, the heating or
cooling symbol flashes slowly. If this output is inactive, the symbol
is displayed continuously.
0 = deactivated
1 = activated
Set the direction of operation of the room controller (NC or NO)
Factory setting: 0
The direction of operation of the room controller and the connected
thermal actuators can be defined.
0 = normally closed (NC)
1 = normally open (NO)
Set the frost-protection temperature
Factory setting: 5 °C
Activates the frost-protection facility when the temperature falls
below the set temperature.
Setting range: 5 °C to 10 °C
Activate the optimised time programme function
Factory setting: 0
If the optimised time programme function is activated, the set-
point is reached at the defined time. In order to reach the setpoint,
heating or cooling mode is initiated in good time ahead of the de-
fined time.
0 = deactivated
1 = activated
Set the cycle time for the valve protection facility
Factory setting: 14 days
Prevents the plug from sticking inside the valve.
Setting range: 0 to 28 days
Define the actuation duration while the valve protection facility
is active
Factory setting: 5 minutes
The actuation time can be optimised depending on the running
time of the thermal actuator.
Setting range: 0 to 10 minutes.
Define the pilot timer output
Factory setting: 0
0 = pilot timer output active acc. to time programme
1 = pilot timer output inactive acc. to time programme
pilot timer output active when “ECO” operating mode is
selected;
pilot timer output active when “Switch-off” operating mode is
selected.
Note: When parameter P230 =1, the time programme can be used
for local decreasing.

18/19
P100015830 C
TRA 410, 421
Troubleshooting
Display symbol Procedure
Change the service code for the service menu
Factory setting: 1234
Note: In order to avoid unwanted access to the service parame-
ters, the service code should only be changed by the installer and
documented in a safe location.
Select Reset to reset the service code - see the settings in “Reset
to factory settings”.

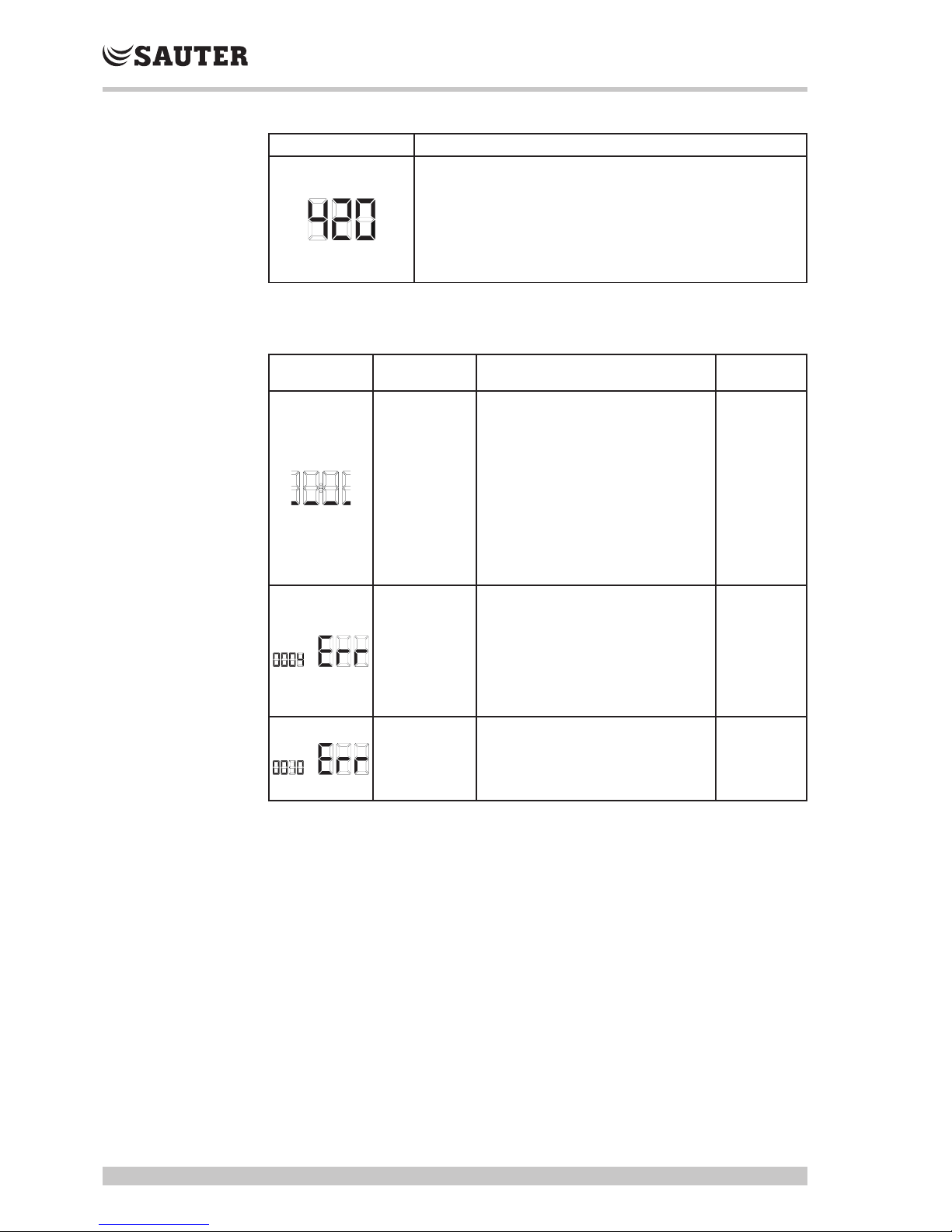

9 Troubleshooting
Fault/display Possible cause Action To be per-
formed by
Measured
temperature
from internal or
external sensor
outside meas-
uring range
Internal sensor/room sensor
fRemove external heat sources
in the immediate vicinity until the
sensor has cooled down.
fReposition the room sensor if
necessary.
fCheck the room thermostat/
external room sensor and
replace if necessary.
fCheck the connection of the
external sensor.
Qualified
personnel
No signal from
external sensor
fNo external sensor present.
fExternal sensor does not
correspond to specifications.
fDeactivate the external sensor in
parameter setting 040.
fCheck the external sensor and
replace if necessary.
Qualified
personnel
Fault in internal
sensor
fSet to factory settings in the
“Settings” menu.
fIf the room thermostat is faulty it
must be replaced.
Operating
company
10 Disposal
The local, currently valid laws must be observed when disposing of the device.
You will find more information on the materials and substances in the Declaration
on materials and the environment for this product.
11 Cleaning
Use a dry, solvent-free, soft cloth to clean the room thermostat. Make sure that
no setting is changed during the cleaning.

© Fr. Sauter AG
Im Surinam 55
CH-4016 Basel
Tel. +41 61 - 695 55 55
Fax +41 61 - 695 55 10
www.sauter-controls.com
[e-mail]
Printed in Switzerland
P100015830 Cwww.sauter-controls.com
