Savch SDV3- E Series Installation guide

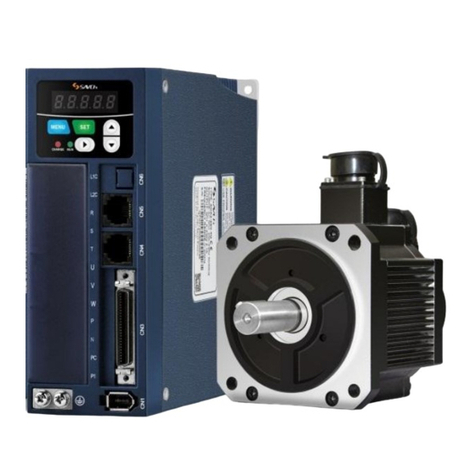

SDV3- E Series servo system
Quick manual

1. Safety precautions
DANGER
● Never connect wires while power on. Do not check components or signal for circuit board During operation.
● Do not dismantle or change servo motor drive wire, circuit or components.
● Make sure grounding terminals are correctly grounded.
CAUTION
● Do not perform a withstand voltage test for components of servo motor drive, it can cause semi-conductor
components to be damaged by high voltage.
● Never connect the output terminals U, V, W to AC power.
● CMOS IC on control circuit of the servo motor drive shall be damaged by electrostatic influence. Do not touch
main circuit board.
● Connect the output terminals U、V、W with wiring terminals U、V、W respectively, otherwise, it may cause
damage to the equipment due to the racing of the servo motor and injuries.
2. Products receiving
All products have been performed with strict test and inspection. After receiving the servo motor drive, the
following checks shall be performed.
●To check that SAVCH servo motor drive, an instruction manual is inside of the package.
●To check whether model number correspond with model and capacity your purchase order.
●To check whether there are damaged parts during transportation and deliver. If there are, do not connect with
power.
If any of the above checkpoints are not satisfactory, contact your SAVCH ELECTRIC representative for a quick
resolution.
3. Model description
Servo drive nameplate
Servo drive model

4. Servo drive dimension
Size1 Unit:mm
SDV3-2S0.4E~2S0.75E
Size2 Unit:mm
SDV3-2S1.0E~2S1.5E
SDV3-4T0.75E~4T2.0E

5. Basic wring diagram
SDV3-2S0.4E~2S0.75E
Installation Notes:
1.Check the L1,L2 power and connecting wire.
2.Check the servo motor output U, V, W terminal phase wires (Unable to run when the connection is wrong).
3.External connected regeneration resistor is the selective spare, adopt according to the actual needs.
4.CHARGE indicator is on means that the power is on. When the Power is turned off, there is still left with electric
in the main-circuit, so the cable should be removed only when all the indicators are off.

SDV3-2S1.0E~1.5E/4T0.75E~2.0E
Installation Notes:
1.Check the L1,L2,L3 power and connecting wire.
2.Check the servo motor output U, V, W terminal phase wires (Unable to run when the connection is wrong).
3.External connected regeneration resistor is the selective spare, adopt according to the actual needs.
4.CHARGE indicator is on means that the power is on. When the Power is turned off, there is still left with electric
in the main-circuit, so the cable should be removed only when all the indicators are off.

6. Interfaces
6.1 SDV3 Series TE terminal
Terminal
mark
Name of signal
Function
L1
Main circuit power supply
Connect to external AC power.
Single phase AC220V -15%~+10% 50/60Hz (connect to L1,L2)
Three phase AC380V -15%~+10% 50/60Hz
L2
L3
P+
DC bus positive terminal
When using an external regenerative resistor, a regenerative
resistor is added between the Pc and P+ terminals.
Pc
Regenerative resistor terminal
N-
DC bus negative terminal
For common DC bus applications, connect P+ and N- terminals.
U
Servo motor output
Connect with servo motor U、V、W.
V
W
PE
System protection grounding
Grounding terminal
6.2 Input/output terminal CN2
In addition to EtherCAT communication, the SDV3 servo drive also provides IO terminals to connect with other
devices, IO terminals connecting through a 26PIN connector, the layout of the plug is as follows:
Side Front Back
The specific functions of the signals are shown in the following table:
Name of signal
Pin.No
Function
Digital input
EI1
Input terminal 1
24
EI input terminal (corresponding sink/source signal)
input command signal terminal to servo motor
drive.
DC12 [V]~24 [V]/8 [mA](each point)
Optocoupler Insulated
EI2
Input terminal 2
6
EI3
Input terminal 3
15
EI4
Input terminal 4
14
EI5
Input terminal 5
4
COM
Input common port
5
Digital output
EOUT1
Output terminal1
21
EOUT output terminal (corresponding sink /source
signal) from the signal output terminal of servo
motor drive. Max DC24 [V]/50 [mA].
Optocoupler Insulated
EOUT2
Output terminal2
22
EOUT3
Output terminal3
23
OCM
Output common port
7
Power
IP24
Internal isolation power+24V
10
Internal isolation power ＋24V output
IG24
Internal isolation power 0V
19
Internal isolation power ＋24V grounding

6.3 EtherCAT port
The dual RJ45 terminal of the SDV3 E series servo drive is located at CN4 and CN5. CN4 is the EtherCAT
network input port, and CN5 is the network output port.
7. EtherCAT
7.1 Communication specification
Item
Specification
Physical layer
100BASE-TX
Connector
RJ45×2(input: CN4; output: CN5)
Baud rate
2x100Mbps(full duplex)
Frame data length
Maximum 1484 bytes
Sync manager
SM0:Mailbox output SM1:Mailbox input
SM2:Process data output SM3:Process data input
FMMU
FMMU0:Process data output FMMU1:Process data input FMMU2:Mailbox state
Distributed clock
64 bits
Sync mode
DC Synchronization(DC SYNC0) Free Run
Communication
object
SDO, PDO, EMCY
App layer protocol
CoE:CANopen over EtherCAT
7.2 Parameter list
SDV3 EtherCAT related parameter settings are shown in the table below：
Para
No.
Para name
Setting range
Default
value
Description
P1.01
Servo mode
0~9
9
EtherCAT mode
P2.25
Position
command
format
0: Normal PTP
1: Infinite length
0
The servo motor position is
limited by the object
0x607D
P4.01
ECAT
node ID
1~65535
1
Set node ID
P4.02
ECAT
node ID setting
0: Node ID is the value in the EEPROM
1: Node ID is the value of P4.01
0
Set the source of the node
ID

Para
No.
Para name
Setting range
Default
value
Description
P4.03
Data
synchronization
Detection
setting
0: no detection
1~99: Data loss alarm occurs when the
setting data is lost continuously
0
Synchronized data
detection setting under the
Cycle Synchronized Mode
P4.04
Data Loss
Processing
Settings
0: no processing
1: Update the position command with the
last interpolation data increment value
1
Processing settings when
position data is lost in the
cycle sync position mode
P4.09
Input shift time
setting
0~160
Input shift time = The parameter
value*62500
0
Adjust input shift time
P4.17
Object
monitoring
The top 4 bytes are object indexes
The lower 2 bytes are the sub index of
the object
604100h
Set the objects to be
monitored on dp-12
7.3 Operation panel indication
The E series servo drive will display the EtherCAT related status after power-on. The displayed status is divided
into three types, including ESM status, operation mode and operation status. The specific meaning is as shown
below:
ESI files and more information about SDV3-E series servo drivers and servo motors can be downloaded from the
Savch website (www.savch.net) or obtained by scanning the QR code below.
Thanks for choosing SAVCH servo system, if you have any questions about our products or services, please let
us know!
