Instruction manual
92310
Dax CCT Bollard
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
Care and Safety
Technical data
220-240V~, 50Hz
Supply
Voltage:
Bulb
Type: 20W LED module (SMD) CCT, 3000/4000/6000K
Conformity with all relevant EC Directive requirements.
This is a Class 1 product and must be earthed.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65.
IP 65
This product is not suitable for dimming.
Conformity with all relevant UKCA Directive requirements.
This product contains a light source of energy efficiency class E.
Non-replaceable control gear
Non-replaceable light source
V3 24/05/2022
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
UK Manufacturer: BH17 7BY
For further information, please visit https://www.lighting-info.co.uk/92310

Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting. Ensure other persons cannot
restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified electrician.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
This product is not suitable for location in or near a marine environment.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between connector and
the light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
The mains supply cable must have a minimum cross section area of 1.0mm2
Cables must be protected using suitable conduit or plastic trunking.
This product has special protection against the ingress of moisture and is IP65 rated.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note that the switch is turned off before installation.
This product must be mounted onto a concrete base or paving slab. It should be not directly installed in the soil.
You have correctly identified
the wires.
The connections are tight.
No loose strands have been
left out of the connection block.
Check that...
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
terminal block(not supplied) in the following way:
Wiring
SUPPLY LIGHT FITTING
BLUE (N)
NEUTRAL
EARTH
SWITCHED LIVE BROWN (L)
GREEN / YELLOW

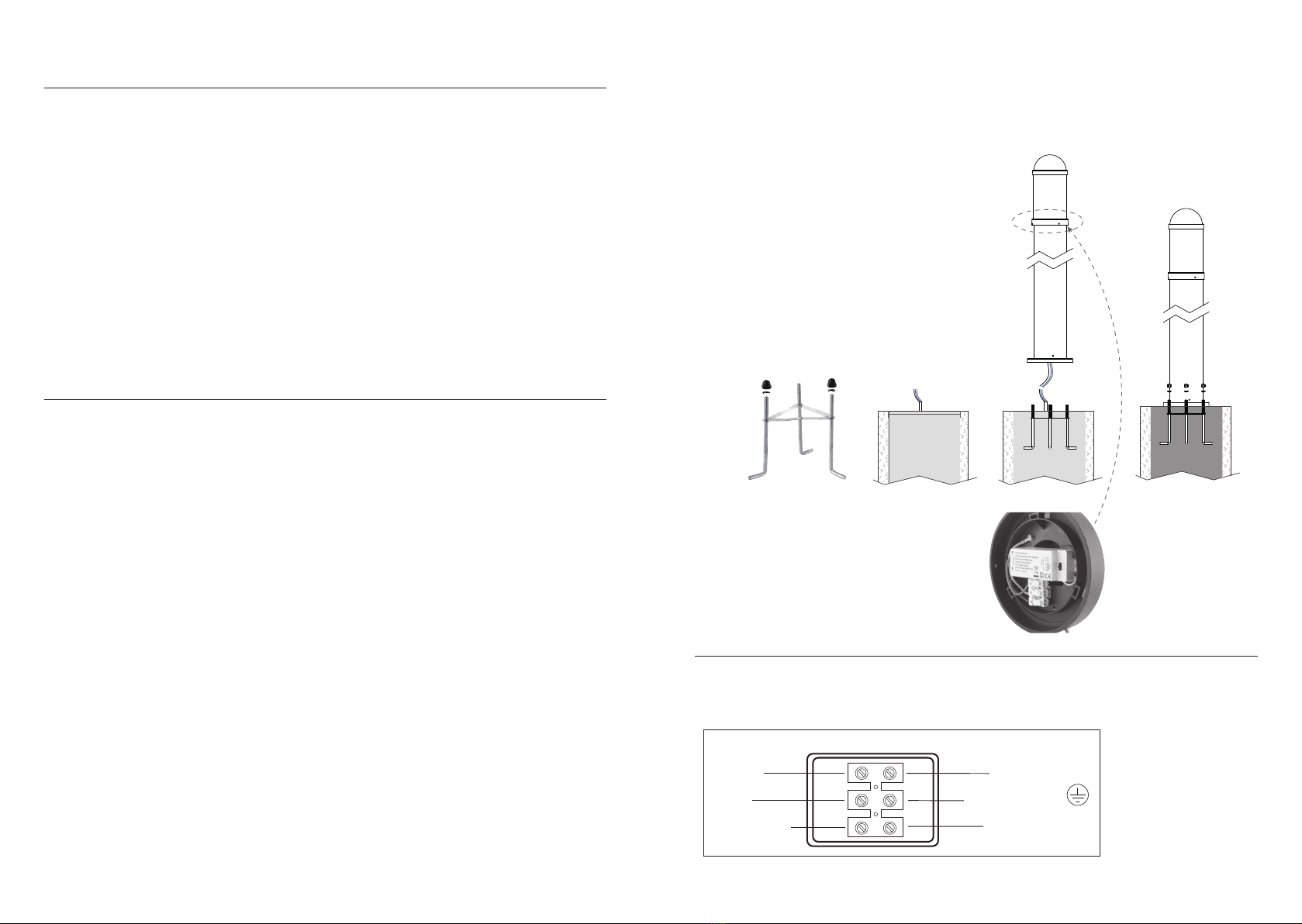

• Prepare the hole for the root kit. The foundation should be a minimum of 175mm diameter with a minimum depth 150mm.
• Pour cement into the hole, ensuring the cement is finished level
and smooth.
• Ensure a suitable amount of supply cable is exposed so the fitting can
be correctly wired after the foundation has been prepared. Insert the
anchor bolts into the wet cement ensure the top plate is resting level
on top of cement with the threads exposed.
• Wire as detailed wiring.
• Locate the base of the bollard over the anchor bolts and secure in
place using the supplied spring washers.
• Ensure that the cable is not snagged.
• Replace fuse or circuit breaker and switch on. Your light ready
now for use.
root kit
Min.Ø175mm
Min.150mm
This product is colour changing and can be either
warm white (3000K) or cool white (4000K) or
daylight white (6000K), the default setting is
cool white (4000K).
Before installing, need unscrew 3 screws to find out the
switch located on head of the lamp body then choose your
preferred colour by using the CCT switch.
