SBC Q.NET-5TX User manual

Document 27-667 │ Release ENG01 │ 2019-08-14
User Manual
Q.NET-5TX and Q-NET-8TX
Industrial Ethernet Rail Switch

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 0-1
Content
0
0 Content
0 Content
0.1 Document history ..................................................................................0-3
0.2 Trademarks ........................................................................................... 0-3
1 Safety instructions
1.1 General safety instructions ....................................................................1-1
1.2 Certied usage ...................................................................................... 1-1
1.3 Installation site requirements ................................................................ 1-1
1.4 Device casing ........................................................................................1-1
1.5 Qualication requirements for personnel .............................................. 1-2
1.6 National and international safety regulations ........................................ 1-2
1.7 Grounding the device ............................................................................ 1-2
1.8 Shielding ground ...................................................................................1-2
1.9 Requirements for connecting electrical wires ........................................ 1-3
1.10 Supply voltage .......................................................................................1-4
1.11 CE marking ........................................................................................... 1-4
1.12 FCC note ............................................................................................... 1-5
1.13 Recycling note ....................................................................................... 1-5
2 Description
2.1 General device description ....................................................................2-1
2.2 Device name and product code ............................................................ 2-1

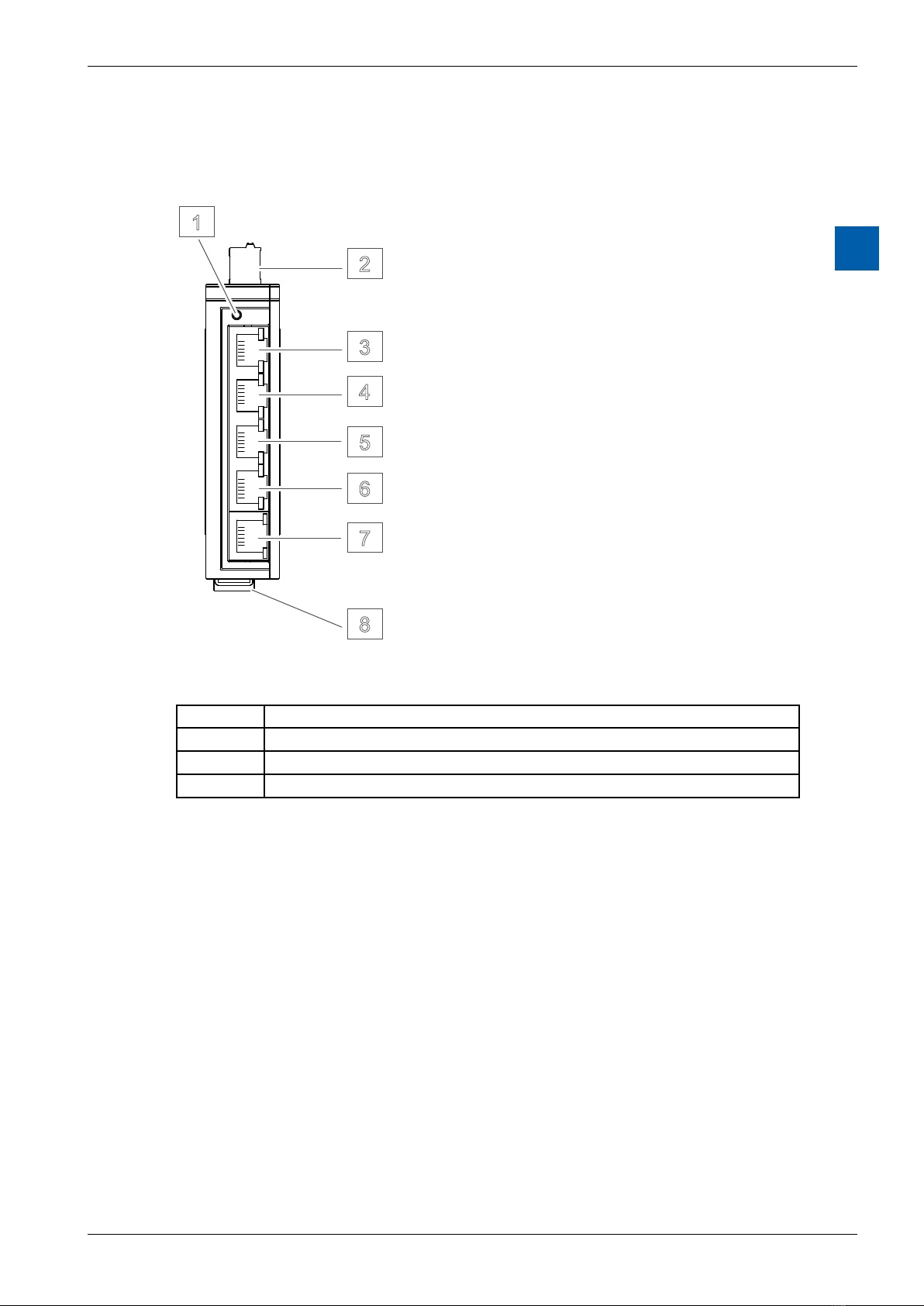

2.3 Device view ........................................................................................... 2-2
2.3.1 Q.NET-5TX ............................................................................................2-2

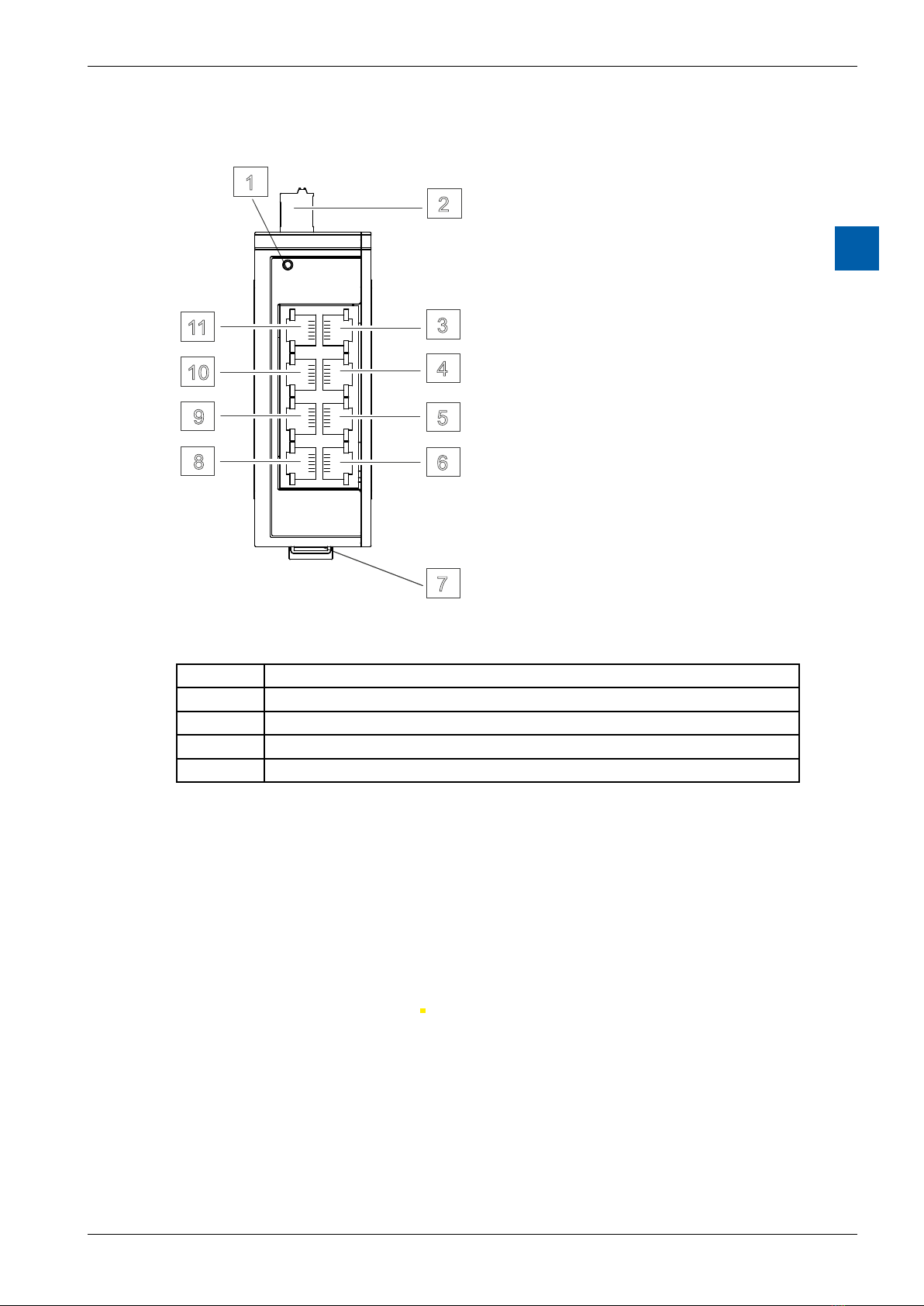

2.3.2 Q.NET-8TX ............................................................................................2-3
2.4 Power supply .........................................................................................2-3
2.5 Ethernet ports ........................................................................................2-4
2.5.1 10/100 Mbit/s twisted pair port ..............................................................2-4

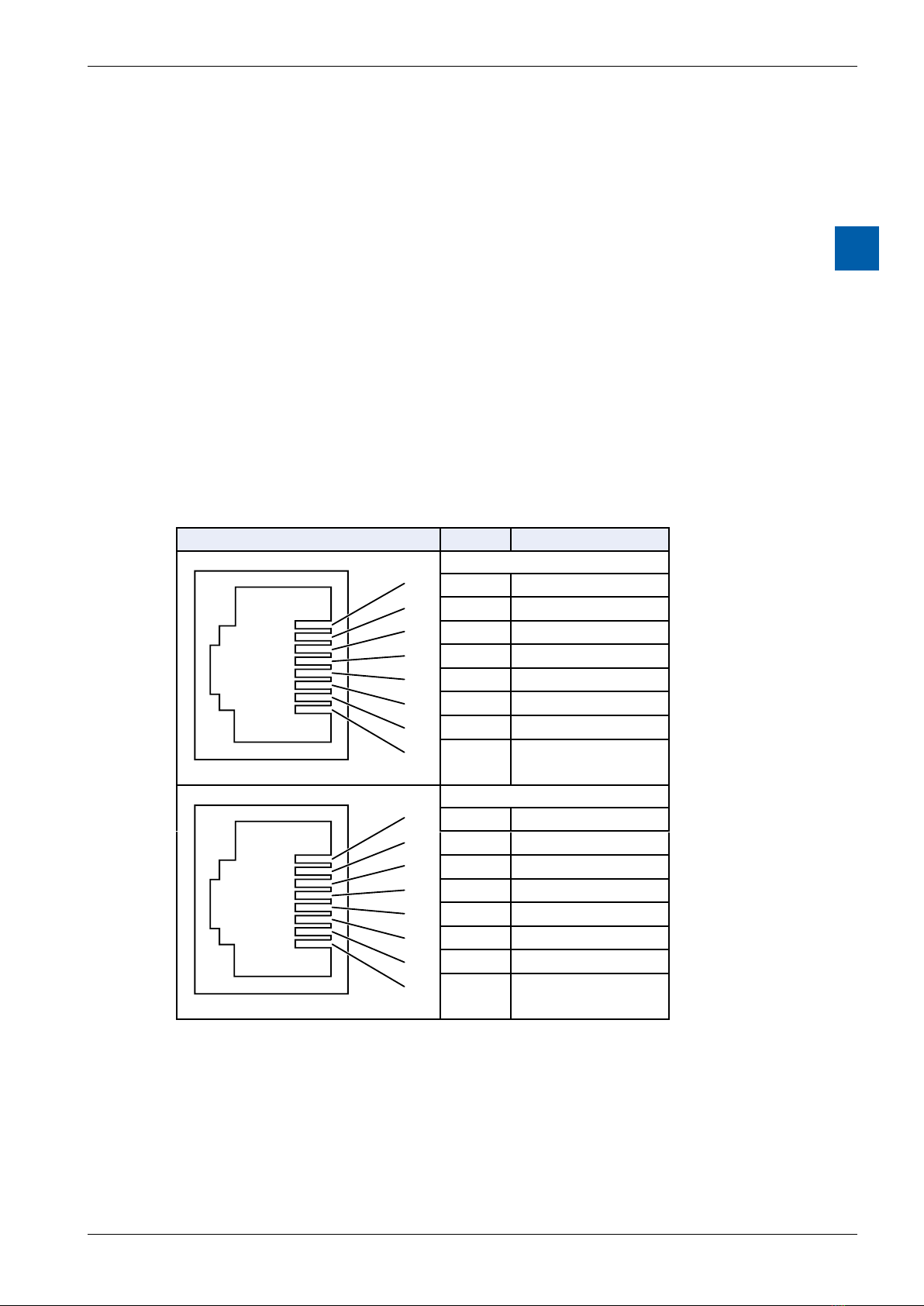

2.6 Pin assignments ....................................................................................2-4

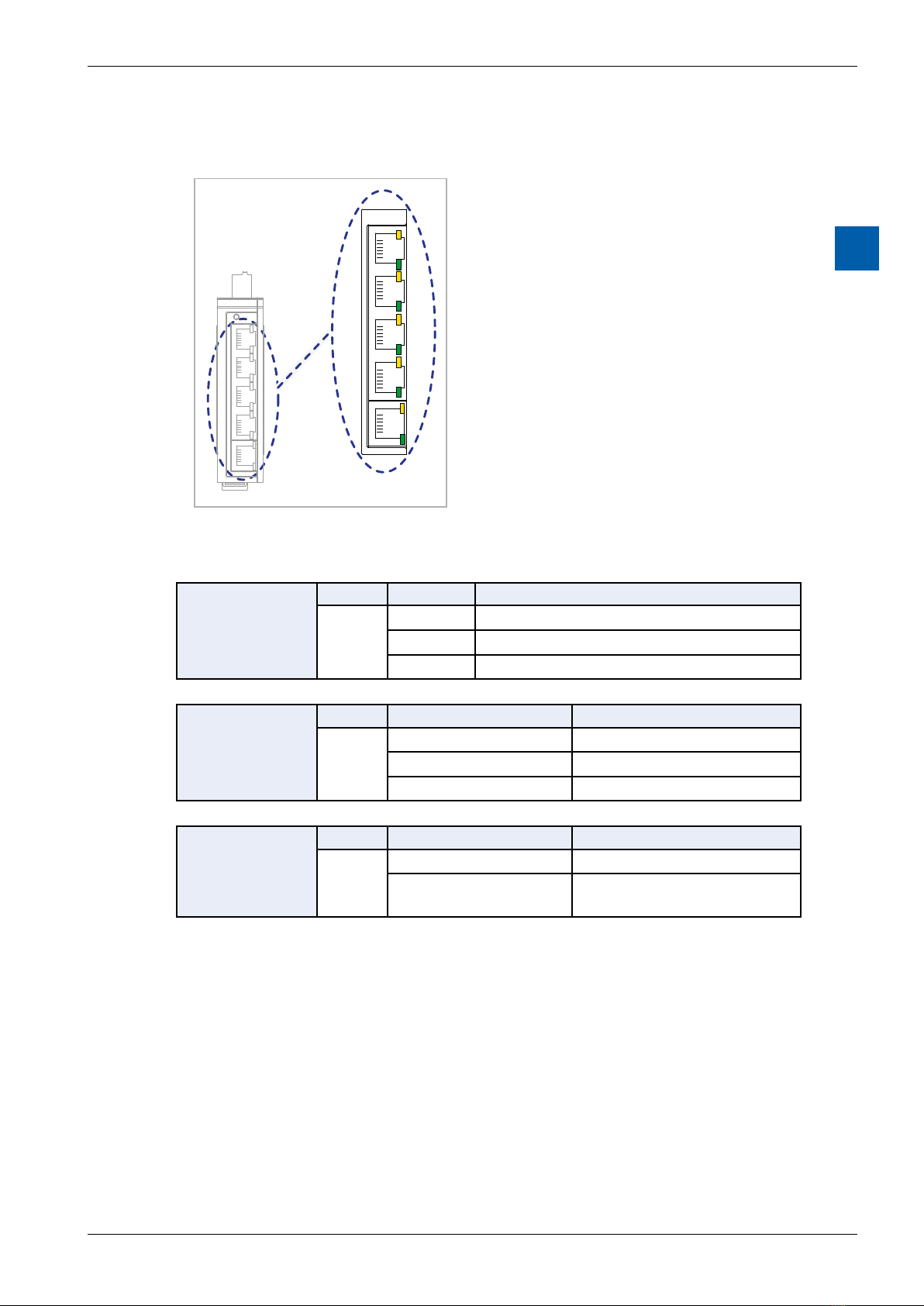

2.7 Display elements ................................................................................... 2-5
2.7.1 Device state .......................................................................................... 2-5
2.7.2 Port state ...............................................................................................2-6
3 Installation
3.1 Checking the package contents ............................................................ 3-1
3.2 Mounting the device .............................................................................. 3-2
3.2.1 Installing the device onto the DIN rail ....................................................3-2
3.3 Wiring the terminal block for the supply voltage and the grounding ........... 3-3
3.5 Operating the device ............................................................................. 3-4
3.6 Connecting data cables .........................................................................3-4
4 Monitoring the ambient air temperature
5 Maintenance and service

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 0-2
Content
0
6 Disassembly
6.1 Removing the device .............................................................................6-1
7 Technical data
7.1 General technical data ..........................................................................7-1
7.2 Dimension drawings ..............................................................................7-2
7.2.1 Q.NET-5TX ............................................................................................7-2
7.2.2 Q.NET-8TX ............................................................................................7-2
7.3 EMC and immunity ................................................................................7-3
7.4 Network range .......................................................................................7-3
7.5 Power consumption/power output at 24 V DC ......................................7-4
7.6 Scope of delivery ...................................................................................7-4
7.7 Underlying technical standards ............................................................. 7-4
A Appendix
A.1 Icons ......................................................................................................A-1
A.2 Contact ..................................................................................................A-2

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 0-3
Dokumentversionen | Handelsmarken und Warenzeichen
Content
0
0.1 Document history
Version Published Chapter Remarks
ENG01 2019-08-14 all First edition
0.2 Trademarks
Saia PCD® is a registered trademark of Saia-Burgess Controls AG.
Subject to technical changes in line with the latest technological developments.
Saia-Burgess Controls AG, 2019. © All rights reserved.
Published in Switzerland

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 1-1
1
Safety instructions
1 Safety instructions
1.1 General safety instructions
You operate this device with electricity. Improper usage of the device entails the
risk of physical injury or signicant property damage. The proper and safe opera-
tion of this device depends on proper handling during transportation, proper stor-
age and installation, and careful operation and maintenance procedures.
■ Before connecting any cable, read this document, and the safety instructions
and warnings.
■ Operate the device with undamaged components exclusively.
■ The device is free of any service components. In case of a damaged or mal-
functioning the device, turn o󰀨 the supply voltage and return the device to
Hirschmann for inspection.
1.2 Certiedusage
■ Use the product only for the application cases described in the Hirschmann
product information, including this manual.
■ Operate the product only according to the technical specications.
See „7 Technical data“ auf Seite 7-1
■ Connect to the product only components suitable for the requirements of the
specic application case.
1.3 Installation site requirements
■ Install the device in a re enclosure according to EN 60950-1.
1.4 Device casing
Only technicians authorized by the manufacturer are permitted to open the casing.
■ Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or
into the connection terminals for electric conductors. Do not touch the connec-
tion terminals.
■ Keep the ventilation slits free to ensure good air circulation.
See „7.1 General technical data“ auf Seite 7-1.
■ Install the device in the vertical position.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 1-2
1
Safety instructions
1.5 Qualicationrequirementsforpersonnel
■ Only allow qualied personnel to work on the device.
Qualied personnel have the following characteristics:
fQualied personnel are properly trained. Training as well as practical knowl-
edge and experience make up their qualications. This is the prerequisite for
grounding and labeling circuits, devices, and systems in accordance with cur-
rent standards in safety technology.
fQualied personnel are aware of the dangers that exist in their work.
fQualied personnel are familiar with appropriate measures against these haz-
ards in order to reduce the risk for themselves and others.
fQualied personnel receive training on a regular basis.
1.6 National and international safety regulations
Verify that the electrical installation meets local or nationally applicable safety
regulations.
1.7 Grounding the device
The device is grounded by means of a 3-pin terminal block.
■ Use a wire diameter for the ground conductor that is no smaller than the diam-
eter of the supply voltage connection, however of at least 0.5 mm² (AWG20).
1.8 Shielding ground
The shielding ground of the connectable twisted pair cables is connected
to the ground connection as a conductor.
■ Beware of possible short circuits when connecting a cable section with conduc-
tive shielding braiding.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 1-3
1
Requirements
Safety instructions
1.9 Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the requirements listed
are complied with.
General requirements for connecting electrical wires
The following requirements apply without restrictions:
fThe electrical wires are voltage-free.
fThe cables used are permitted for the temperature range of the application case.
fThe voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
fRelevant for North America:
Use 60/75 or 75 °C copper (Cu) wire only.
Requirements for connecting the supply voltage
The following requirements apply without restrictions:
fThe supply voltage corresponds to the voltage specied on the type plate of the
device.
fThe power supply conforms to overvoltage category I or II.
fThe power supply has an easily accessible disconnecting device (e.g., a switch or a
plug).
This disconnecting device is clearly identied. So in the case of an emergency, it is
clear which disconnecting device belongs to which power supply cable.
fThe power supply cable is suitable for the voltage, the current and the physical load.
SBC recommends a wire diameter of 0.5 mm² (AWG20).
fThe cross-section of the ground conductor is the same size as or bigger than the
cross-section of the power supply cables.
The following requirements apply alternatively:
Alternative 1 The power supply complies with the requirements for a limited power
source (LPS) as per EN 60950-1.
Alternative 2 Alle folgenden Voraussetzungen sind erfüllt:
fThe power supply complies with the requirements for a safety
extra-low voltage (SELV) as per IEC/EN 60950-1.
fA fuse suitable for DC voltage is located in the plus conductor of
the power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse:
See „7.1 General technical data“ auf Seite 7-1.
Alternative 3 Relevant for North America: The power supply complies with the
requirements as per NEC Class 2

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 1-4
1
Supply voltage | CE marking
Safety instructions
1.10 Supply voltage
The supply voltage is only connected with the ground connection via protective
elements.
1.11 CE marking
The labeled devices comply with the regulations contained in the following Euro-
pean directive(s):
● 2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.
● 2014/30/EU (EMC)
Directive of the European Parliament and the council for standardizing the regu-
lations of member states with regard to electromagnetic compatibility.
In accordance with the above-named EU directive(s), the EU conformity declara-
tion will be available to the relevant authorities at the following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Deutschland
Tel.: [phone]
The device can be used in the industrial sector.
fInterference immunity: EN 61000-6-2
fEmitted interference: EN 55022
You nd more information on technical standards here:
„7 Technical data“ auf Seite 7-1
The assembly guidelines provided in these instructions must be strictly adhered to
in order to observe the EMC threshold values.
Warning! This is a class A device. This device can cause interference in living areas, and
in this case the operator may be required to take appropriate measures.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 1-5
1
FCC note | Recycling note
Safety instructions
1.12 FCC note
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference; (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Appropriate testing has established that this device fullls the requirements of a
class A digital device in line with part 15 of the FCC regulations.
These requirements are designed to provide su󰀩cient protection against interfer-
ence when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these frequen-
cies. If it is not installed and used in accordance with this operating manual, it can
cause radio transmission interference. The use of this device in a residential area
can also cause interference, and in this case the user is obliged to cover the costs
of removing the interference.
1.13 Recycling note
After usage, this device must be disposed of properly as electronic waste, in ac-
cordance with the current disposal regulations of your county, state, and country.
WEEE Direc tive:
At theend of their useful lifethe packaging and
productshouldbedisposedofbyasuitable
recyclingcentre.
Do not dispose of with normal household waste.
Do not burn.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-1
2
General device description | Device name and product code
Description
2 Description
2.1 General device description
The SPIDER-SL devices are designed for the special requirements of industrial
automation. They meet the relevant industry standards, provide very high opera-
tional reliability, even under extreme conditions, and also long-term reliability and
exibility.
You have numerous options of combining the device characteristics.
2.2 Device name and product code
The device name corresponds to the product code. The product code is made up
of characteristics with dened positions. The characteristic values stand for spe-
cic product properties.
Code Characteristic value Description
Q.NET Produktereihe Industrial Ethernet Rail Switch
Data rate 10/100 Mbit/s
without PoE support
xTX Number of Twisted pair ports x = 5 or 8
Table 1: Device name and product code

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-2
2
Device view
Description
2.3 Device view
2.3.1 Q.NET-5TX
1
2
3
4
5
6
7
8
1LED display elements for device status
23-pin, pluggable terminal block for power supply
3 … 7 5 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8Rail lock gate for DIN rail mounting

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-3
2
Device view | Power supply
Description
2.3.2 Q.NET-8TX
1
7
11
10
9
8
3
4
5
6
2
1LED display elements for device status
23-pin, pluggable terminal block for power supply
3 … 6 4 × RJ45 socket for 10/100 Mbit/s twisted pair connections
7Rail lock gate for DIN rail mounting
8 … 11 4 × RJ45 socket for 10/100 Mbit/s twisted pair connections
2.4 Power supply
You have the following options to supply your device with voltage:
■Power supply via a 3-pin terminal block
For the power supply of the device, a 3-pin terminal block is available.
For further information see „3.3 Wiring the terminal block for the supply voltage
and the grounding“ auf Seite 3-3.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-4
2
Ethernet ports | Pin assignments
Description
2.5 Ethernet ports
2.5.1 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port o󰀨ers you the ability to connect network com-
ponents according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
fAutonegotiation
fAutopolarity
fAutocrossing
f100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
f10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
2.6 Pin assignments
RJ45 Pin 10/100 Mbit/s
1
2
3
4
5
6
7
8
MDI mode
1TX+
2TX−
3RX+
4—
5—
6RX−
7—
8—
1
2
3
4
5
6
7
8
MDI-X mode
1RX+
2RX−
3TX+
4—
5—
6TX−
7—
8—

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-5
2
Display elements
Description
2.7 Display elements
After the supply voltage is switched on, the device performs a self-test.
During this process, various LEDs light up.
2.7.1 Device state
This LED provides information on the status of the power supply.
Color Activity Meaning
Green Lights up Supply voltage is on
Device is ready for operation
None Supply voltage is too low
Device is not ready for operation

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 2-6
2
Display elements
Description
2.7.2 Port state
1
2
3
4
5
These LEDs provide port-related information.
LS/DA Color Activity Meaning
(link status/data) Green Lights up Device detects a valid link
Flashing Device is transmitting and/or receiving data
None Device detects an invalid or missing link
SP Color Activity Meaning
(data rate) Yellow Flashes 1 time a period 10 Mbit/s connection
Flashes 2 times a period 100 Mbit/s connection
Flashes 3 times a period 1000 Mbit/s connection
100 Mbit/s Color Activity Meaning
Yellow Lights up 100 Mbit/s connection
None Device detects an invalid or
missing link

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 3-1
3
Checking the package contents
Installation
3 Installation
The devices have been developed for practical application in a harsh industrial
environment.
On delivery, the device is ready for operation.
To congure a subdomain, follow these steps:
fChecking the package contents
fMounting the device
fWiring the terminal block for the supply voltage and the grounding
fOperating the device
fConnecting data cables
3.1 Checking the package contents
■ Check whether the package includes all items named in the section „7.6
Scope of delivery“ auf Seite 7-4.
■ Check the individual parts for transport damage.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 3-2
3
Mounting the device
Installation
3.2 Mounting the device
You have the following options for mounting your device:
fInstalling the device onto the DIN rail
fMounting on a at surface
3.2.1 Installing the device onto the DIN rail
Prerequisite:
The device is for mounting on a 35 mm DIN rail in accordance with DIN EN60715.
2
1
Proceed as follows:
■ Slide the upper snap-in guide of the device into the DIN rail.
■ Use a screwdriver to pull the rail lock gate downwards.
■ Snap in the device by releasing the rail lock slide.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 3-3
3
Wiring the terminal block for the supply voltage
Installation
3.3 Wiring the terminal block for the supply voltage and the grounding
WARNING
ELECTRIC SHOCK
Connect only a supply voltage that corresponds to the type plate of your device.
Never insert sharp objects (small screwdrivers, wires, etc.) into the connection terminals
for the supply voltage, and do not touch the terminals.
Failure to follow these instructions can result in death, serious injury, or equipment dam-
age.
A 3-pin terminal block is used for the grounding and for connecting the supply
voltage.
The supply voltage is only connected with the ground connection via protective
elements.
The shielding ground of the connectable twisted pair cables is connected to the
ground connection as a conductor.

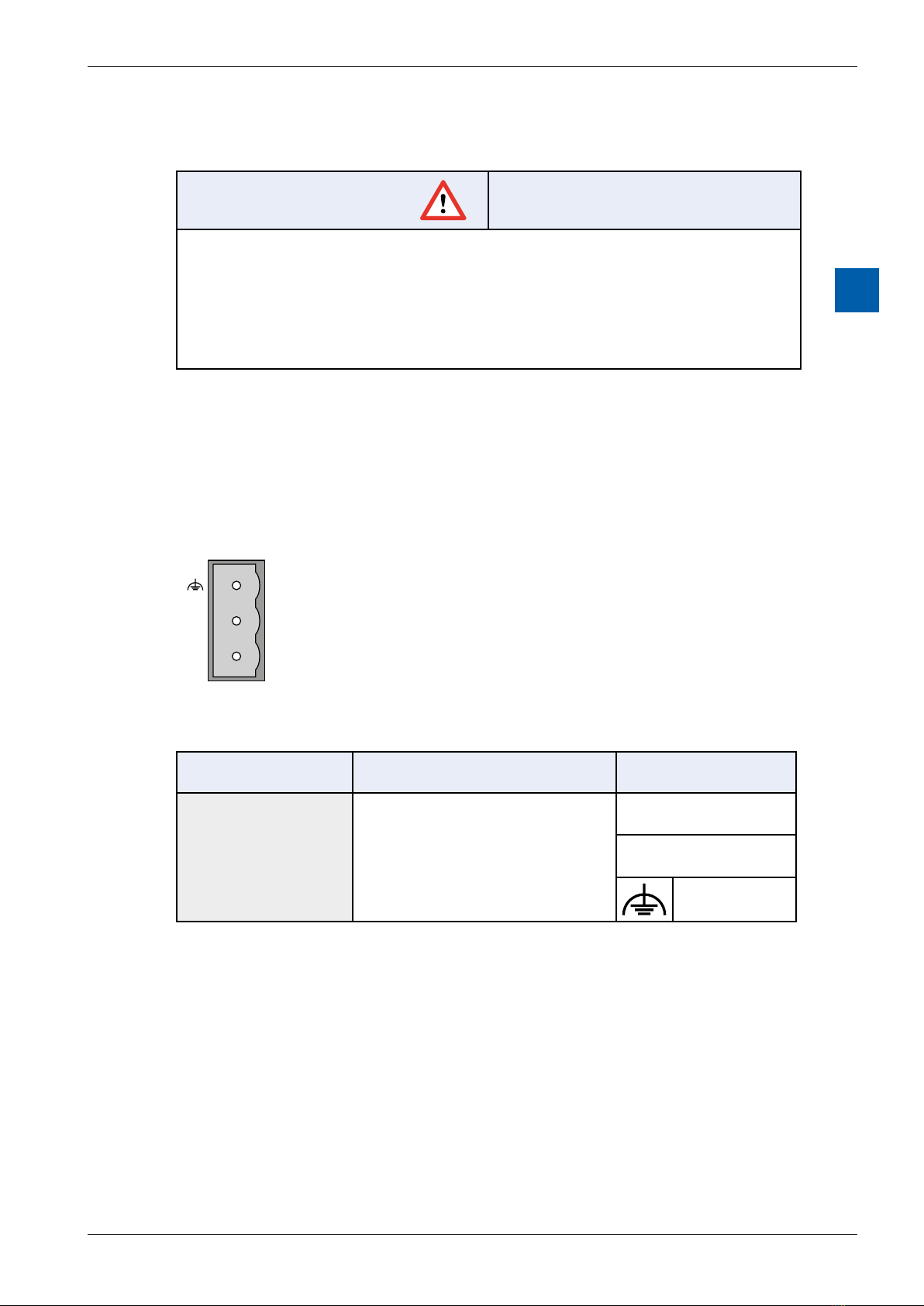

24
V
0 V
Figure 1: 3-pin, pluggable terminal block for power supply and grounding
Type of the voltages
that can be connected
Specicationofthesupplyvoltage Connections
Gleichspannung Nennspannungsbereich DC
12 V ... 24 V
Spannungsbereich DC
inklusive maximaler Toleranzen
9,6 V ... 32 V
24 V Pluspol der
Versorgungsspannung
0 V Minuspol der
Versorgungsspannung
Funktions-
erdeanschluss
Table 2: Type and specication of the supply voltage and pin assignment on the device
Proceed as follows:
■ Ensure the required conditions for connecting the supply voltage.
See „Requirements for connecting the supply voltage“ auf Seite 1-3.
■ Pull the terminal block o󰀨 the device.
■ Connect the ground connection.
■ Connect the power supply cables.
■ Plug the terminal block into the connection on the housing.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 3-4
3
Operating the device | Datenkabel anschließen
Installation
3.5 Operating the device
By connecting the supply voltage via the terminal block, you start the operation of
the device.
3.6 Connecting data cables
Note the following general recommendations for data cable connections in envi-
ronments with high electrical interference levels:
fKeep the length of the data cables as short as possible.
fUse optical data cables for the data transmission between the buildings.
fWhen using copper cables, provide a su󰀩cient separation between the power
supply cables and the data cables. Ideally, install the cables in separate cable
channels.
fVerify that power supply cables and data cables do not run parallel over longer
distances, and that ideally they are installed in separate cable channels. If re-
ducing the inductive coupling is necessary, verify that the power supply cables
and data cables cross at a 90° angle.
fUse shielded cables (SF/UTP cables as per ISO/IEC 11801:2002).
fBeware of possible short circuits when connecting a cable section with conduc-
tive shielding braiding.
■ Connect the data cables according to your requirements.

Saia-Burgess Controls AG
User Manual Q.NET-xTX │ Document 27-667 – Release ENG01 │ 2019-08-14 4-1
4
Monitoring the ambient air temperature
4 Monitoring the ambient air temperature
Operate the device below the specied maximum ambient air temperature exclu-
sively.
See „7.1 General technical data“ auf Seite 7-1.
The ambient air temperature is the temperature of the air at a distance of 2 in (5
cm) from the device. It depends on the installation conditions of the device, e.g.
the distance from other devices or other objects, and the output of neighboring
devices.
