Scag Power Equipment V-Ride II User manual

OPERATOR’S
MANUAL
Part No. 03419
Printed 9/17
Printed in USA
© 2017
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
Congratulations on owning a Scag mower! This manual contains the
operating instructions and safety information for your Scag mower. Reading
this manual can provide you with assistance in maintenance and adjustment
procedures to keep your mower performing to maximum efciency. The
specic models that this book covers are listed on the inside cover. Before
operating your machine, please read all the information enclosed.
Model: SVRII-36A-15FS
SVRII-36A-19FX
SVRII-48V-22FX
SVRII-52V-23FX
SVRII-52V-25CV-EFI
SVRII-61V-25FX
SVRII-61V-29CV-EFI

WARNING
FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT
IN SERIOUS INJURY OR DEATH.
• Read this manual completely as well as other manuals that came with your mower.
• ALWAYS FOLLOW OSHA APPROVED OPERATION.
• DO NOT operate on steep slopes.
• Under no circumstances should the machine be operated on slopes greater than 20
degrees. ALWAYS FOLLOW OSHA APPROVED OPERATION.
• Stay two cut widths away from slopes, drop offs, ditches and retaining walls.
• DO NOT back down a slope or ramp.
• DO NOT mow on wet grass. Wet grass reduces traction and steering control.
• Keep all shields in place, especially the grass discharge chute.
• Before performing any maintenance or service, stop the machine and remove the
spark plug wire and ignition key.
• If a mechanism becomes clogged, stop the engine before cleaning.
• Keep hands, feet and clothing away from power-driven parts.
• Keep others off the mower (only one person at a time)
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
HAZARD CONTROL AND ACCIDENT PREVENTION ARE DEPENDENT UPON THE AWARENESS,
CONCERN, PRUDENCE, AND PROPER TRAINING OF THE PERSONNEL INVOLVED IN THE
OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EQUIPMENT.
This manual covers the operating instructions and illustrated parts list for:
SVRII-36A-15FS with a serial number of M9500001 to M9599999
SVRII-36A-19FX with a serial number of M9600001 to M9699999
SVRII-48V-22FX with a serial number of M9700001 to M9799999
SVRII-52V-23FX with a serial number of M9800001 to M9899999
SVRII-52V-25CV-EFI with a serial number of M9900001 to M9999999
SVRII-61V-25FX with a serial number of N0000001 to N0099999
SVRII-61V-29CV-EFI with a serial number of N0100001 to N0199999
Always use the entire serial number listed on the serial number tag when referring to this product.

I
R
Table of Contents
Table of Contents
SECTION 1 - GENERAL INFORMATION...................................................................................1
1.1 INTRODUCTION...........................................................................................................................................1
1.2 DIRECTION REFERENCE ...........................................................................................................................1
1.3 SERVICING THE ENGINE AND DRIVE TRAIN COMPONENTS.................................................................1
1.4 SYMBOLS ....................................................................................................................................................2
SECTION 2 - SAFETY INFORMATION ......................................................................................3
2.1 INTRODUCTION...........................................................................................................................................3
2.2 SIGNAL WORDS ..........................................................................................................................................3
2.3 BEFORE OPERATION CONSIDERATIONS................................................................................................3
2.4 OPERATION CONSIDERATIONS................................................................................................................4
2.5 MAINTENANCE CONSIDERATIONS & STORAGE ....................................................................................6
2.6 USING A SPARK ARRESTOR.....................................................................................................................7
2.7 SPARK IGNITION SYSTEM .........................................................................................................................7
2.8 SAFETY AND INSTRUCTIONAL DECALS.................................................................................................8
SECTION 3 - SPECIFICATIONS ................................................................................................9
3.1 ENGINE ........................................................................................................................................................9
3.2 ELECTRICAL ...............................................................................................................................................9
3.3 ENGINE DECK .............................................................................................................................................9
3.4 CUTTER DECK ..........................................................................................................................................10
3.5 WEIGHTS AND DIMENSIONS ...................................................................................................................10
3.6 PRODUCTIVITY .........................................................................................................................................10
SECTION 4 - OPERATING INSTRUCTIONS ...........................................................................11
4.1 TIGER EYE INSTRUMENT IDENTIFICATION (EXCLUDES SVRII-36A) ..................................................11
4.2 CONTROLS IDENTIFICATION ..................................................................................................................13
4.3 SAFETY INTERLOCK SYSTEM ................................................................................................................13
4.4 INITIAL RUN-IN PROCEDURES................................................................................................................14
4.5 STARTING THE ENGINE ...........................................................................................................................14
4.6 GROUND TRAVEL AND STEERING .........................................................................................................14
4.7 ENGAGING THE DECK DRIVE (CUTTER BLADES)................................................................................15
4.8 HILLSIDE OPERATION..............................................................................................................................16
4.9 PARKING THE MOWER .............................................................................................................................16
4.10 AFTER OPERATION ................................................................................................................................17
4.11 REMOVING CLOGGED MATERIAL ........................................................................................................17
4.12 MOVING MOWER WITH ENGINE STOPPED..........................................................................................17
4.13 RECOMMENDATIONS FOR MOWING....................................................................................................17
4.14 ADJUSTING CUTTING HEIGHT.............................................................................................................18
SECTION 5 - TROUBLESHOOTING CUTTING CONDITIONS ...............................................19

II
R
Table of Contents
SECTION 6 - ADJUSTMENTS .................................................................................................22
6.1 PARKING BRAKE ADJUSTMENT ............................................................................................................22
6.2 TRAVEL ADJUSTMENT.............................................................................................................................22
6.3 THROTTLE CONTROL AND CHOKE ADJUSTMENTS ............................................................................24
6.4 BELT ADJUSTMENTS ...............................................................................................................................24
6.5 BELT ALIGNMENT.....................................................................................................................................24
6.6 CUTTER DECK ADJUSTMENTS ..............................................................................................................24
6.7 ELECTRIC CLUTCH ADJUSTMENT.........................................................................................................29
6.8 OPERATOR CUSHION AND REAR COVER REMOVAL ..........................................................................30
SECTION 7 - MAINTENANCE..................................................................................................31
7.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS ......................................................31
7.2 LUBRICATION............................................................................................................................................32
7.3 HYDRAULIC SYSTEM ...............................................................................................................................34
7.4 ENGINE OIL ...............................................................................................................................................35
7.5 ENGINE FUEL SYSTEM ............................................................................................................................36
7.6 ENGINE AIR CLEANER.............................................................................................................................37
7.7 BATTERY - ELECTRIC START MODELS..................................................................................................37
7.8 DRIVE BELTS.............................................................................................................................................38
7.9 CUTTER BLADES......................................................................................................................................38
7.10 TIRES........................................................................................................................................................40
7.11 BODY AND DECK....................................................................................................................................40
SECTION 8 - ILLUSTRATED PARTS LIST ..............................................................................41
8.1 SCAG APPROVED ATTACHMENTS AND ACCESSORIES......................................................................41
36A CUTTER DECK.........................................................................................................................................42
48V, 52V & 61V CUTTER DECKS....................................................................................................................44
SVRII CUTTER DECK CONTROLS.................................................................................................................46
SVRII SHEET METAL COMPONENTS............................................................................................................48
SVRII STEERING CONTROLS ........................................................................................................................50
SVRII FUEL SYSTEM ......................................................................................................................................52
SVRII-36A HYDRAULICS AND ENGINE COMPONENTS ..............................................................................54
SVRII-48V / 52V / 61V HYDRAULICS AND ENGINE COMPONENTS............................................................56
SVRII-36A ELECTRICAL SYSTEM .................................................................................................................58
SVRII-36A ELECTRICAL SYSTEM - RECOIL START MODELS....................................................................60
SVRII-48V / 52V / 61V ELECTRICAL SYSTEM...............................................................................................62
SVRII-36A HYDRAULIC PUMP .......................................................................................................................64
SVRII-48V / 52V / 61V HYDRAULIC PUMP.....................................................................................................66
REPLACEMENT DECALS AND INFORMATION PLATES .............................................................................68
SVRII-36 ELECTRICAL SCHEMATIC - RECOIL START MODELS................................................................70
SVRII-36 ELECTRICAL SCHEMATIC..............................................................................................................71
SVRII ELECTRICAL SCHEMATIC - ELECTRIC START MODELS.................................................................72
SVRII-EFI ELECTRICAL SCHEMATIC ............................................................................................................73
KAWASAKI ENGINE ADAPTER ELECTRICAL SCHEMATIC........................................................................74
LIMITED WARRANTY - COMMERCIAL EQUIPMENT................................................... INSIDE BACK COVER

1
R
Section 1
1.1 INTRODUCTION
Your mower was built to the highest standards in the
industry. However, the prolonged life and maximum
efficiency of your mower depends on you following the
operating, maintenance and adjustment instructions in
this manual.
If additional information or service is needed, contact your
Scag Power Equipment Dealer.
We encourage you to contact your dealer for repairs.
All Scag dealers are informed of the latest methods to
service this equipment and provide prompt and efficient
service in the field or at their service shop. They carry a
full line of Scag service parts.
- IMPORTANT -
The replacement of any part on this product
by other than the manufacturer's authorized
replacement part may adversely affect the
performance, durability or safety of this
product.
Use of other than original Scag replacement
parts will void the warranty.
When ordering parts, always give the model and serial

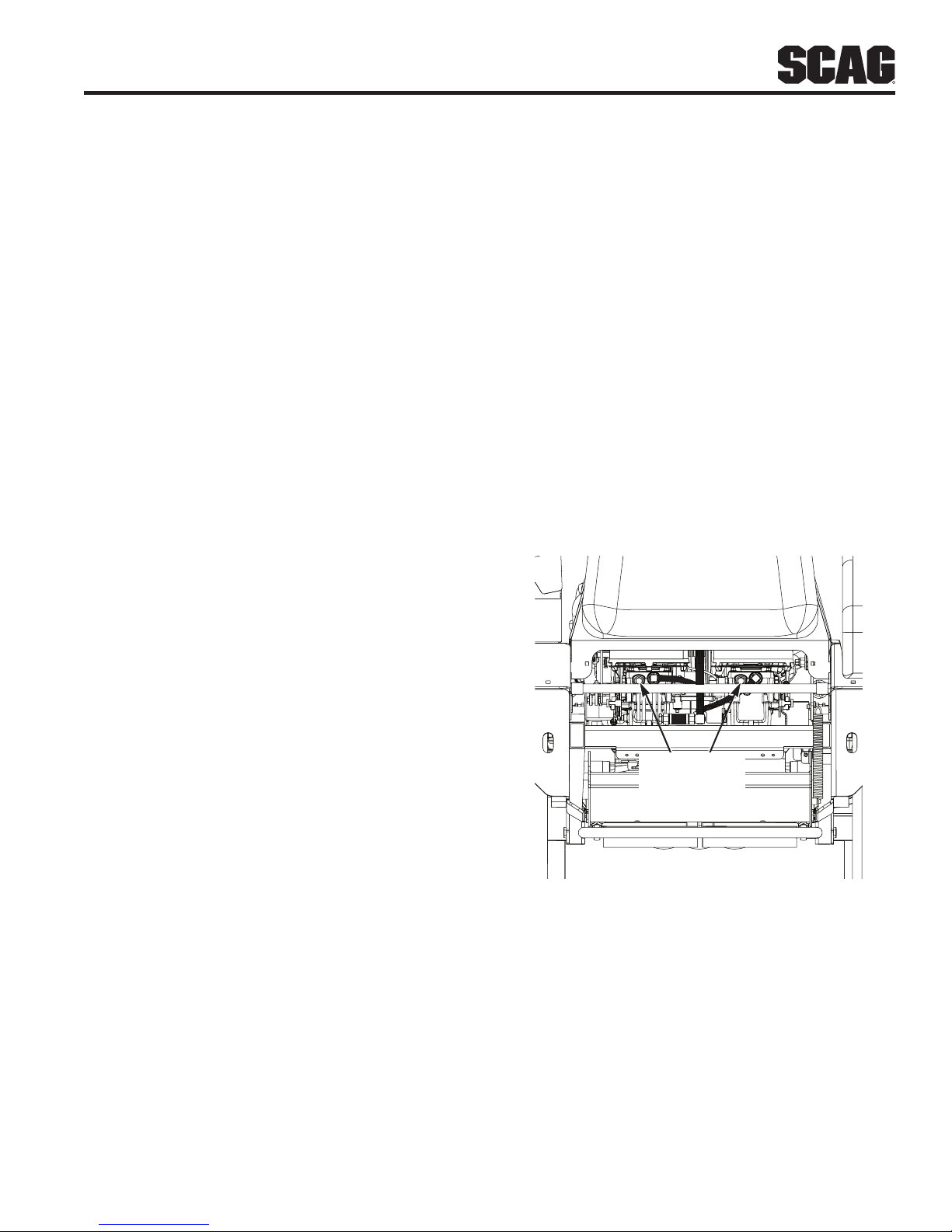

number of your mower. The serial number plate is located
on the frame of the machine between the engine and
hydraulic pump where shown in Figure 1-1.
R
MODEL
SERIAL
Division of Metalcraft of Mayville, Inc.
Mayville, Wisconsin 53050
Patents Issued and Pending
SERIAL NUMBER
PLATE LOCATION
Figure 1-1. Mower Serial Number Plate Location
GENERAL INFORMATION
USE ONLY SCAG APPROVED ATTACHMENTS AND
ACCESSORIES.
Attachments and accessories manufactured by companies
other than Scag Power Equipment are not approved for
use on this machine. See Section 8-1.
WARNING
For pictorial clarity, some illustrations and figures
in this manual may show shields, guards or plates
open or removed. Under no circumstances should
your mower be operated without these devices
in place.
All information is based upon product information available
at the time of approval for printing. Scag Power Equipment
reserves the right to make changes at any time without
notice and without incurring any obligation.
1.2 DIRECTION REFERENCE
The “Right” and “Left”, “Front” and “Rear” of the machine
are referenced from the operator’s right and left when in
the normal operating position and facing the forward travel
direction.
1.3 SERVICING THE ENGINE AND DRIVE
TRAIN COMPONENTS
The detail servicing and repair of the engine and
transmission are not covered in this manual; only routine
maintenance and general service instructions are
provided. For service of these components during the
limited warranty period, it is important to contact your
Scag dealer or find a local authorized servicing agent
of the component manufacturer. Any unauthorized work
done on these components during the warranty period
may void your warranty.

2
R
Section 1
1.4 SYMBOLS
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Choke Transmission
Parking Brake
48071S
Spinning Blade
On/Start Spring Tension on Idler
Off/Stop Oil
Falling Hazard Thrown Object Hazard
Fast Slow
Continuously Variable - Linear Cutting Element - Basic Symbol
481039S
Pinch Point Cutting Element - Engage
Hour meter/Elapsed Operating Hours Cutting Element - Disengage
Crush Hazard. CE Mark
Keep Bystanders Away Read Operator's Manual

3
R
Section 2
2.1 INTRODUCTION
Your mower is only as safe as the operator. Carelessness
or operator error may result in serious bodily injury
or death. Hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of the personnel involved in the operation,
transport, maintenance and storage of the equipment. Make
sure every operator is properly trained and thoroughly
familiar with all of the controls before operating the
mower. The owner/user can prevent and is responsible for
accidents or injuries occurring to themselves, other people
or property.
READ THIS OPERATOR’S MANUAL BEFORE
ATTEMPTING TO START YOUR MOWER.
A replacement manual is available from your authorized
Scag Service Dealer or by contacting Scag Power
Equipment, Service Department at P.O. Box 152, Mayville,
WI 53050 or contact us via the Internet at www.scag.com.
The manual for this machine can be downloaded by using
the model and serial number or use the contact form to
make your request. Please indicate the complete model
and serial number of your Scag product when requesting
replacement manuals.
2.2 SIGNAL WORDS
This symbol means “Attention! Become Alert! Your
Safety is Involved!" The symbol is used with the following
signal words to attract your attention to safety messages
found on the decals on the machine and throughout this
manual. The message that follows the symbol contains
important information about safety. To avoid injury and
possible death, carefully read the message! Be sure to fully
understand the causes of possible injury or death.
SIGNAL WORD:
It is a distinctive word found on the safety decals on the
machine and throughout this manual that alerts the viewer
to the existence and relative degree of the hazard.
DANGER
The signal word “DANGER” denotes that an extremely
hazardous situation exists on or near the machine that
could result in high probability of death or irreparable injury
if proper precautions are not taken.
WARNING
The signal word “WARNING” denotes that a hazard exists
on or near the machine that can result in injury or death if
proper precautions are not taken.
CAUTION
The signal word “CAUTION” is a reminder of safety practices
on or near the machine that could result in personal injury
if proper precautions are not taken.
Your safety and the safety of others depends significantly
upon your knowledge and understanding of all correct
operating practices and procedures of this machine.
2.3 BEFORE OPERATION
CONSIDERATIONS
WARNING
Check all hydraulic connections for tightness.
Inspect all hydraulic hoses and / or lines to ensure
they are in good condition before operating.
1. NEVER allow children to operate this mower. Do not
allow adults to operate this machine without proper
instructions.
2. Do not mow when children and/or others are
present. Keep children out of the mowing area and
in the watchful care of a responsible adult other than
the operator. Be alert and turn machine off if a child
enters the area.
SAFETY INFORMATION

4
R
Section 2
3. DO NOT allow children to ride or play on the
machine, it is not a toy.
4. Clear the area to be mowed of objects that could be
picked up and thrown by the cutter blades.
5. DO NOT carry passengers.
6. DO NOT operate the machine under the influence of
alcohol or drugs.
7. If the operator(s) or mechanic(s) cannot read
English, it is the owner's responsibility to explain this
material to them.
8. DO NOT wear loose fitting clothing. Loose clothing,
jewelry or long hair could get tangled in moving
parts. Do not operate the machine wearing shorts;
always wear adequate protective clothing including
long pants. Wearing safety glasses, safety shoes and
a helmet is advisable and is required by some local
ordinances and insurance regulations.
WARNING
Always wear hearing protection. Operating this
machine over prolonged periods of time can
cause loss of hearing.
9. Keep the machine and attachments in good
operating condition. Keep all shields and safety
devices in place. If a shield, safety device or decal
is defective or damaged, repair or replace it before
operating the machine.
WARNING
This machine is equipped with an interlock system
intended to protect the operator and others from
injury. This is accomplished by preventing the
engine from starting unless the deck drive is
disengaged, the parking brake is engaged, the
steering control levers are in the neutral position
and the operator is in the operator position.
The interlock system shuts off the engine if the
operator leaves the operator platform with the
steering control levers not in the neutral position
and/or the cutter blades engaged and the parking
brake not engaged.
10. Be sure the interlock switches are functioning
correctly.
11. Fuel is flammable; handle it with care. Fill the fuel
tank outdoors. Never fill it indoors. Use a funnel or
spout to prevent spillage. Clean up any spillage
before starting the engine.
12. DO NOT add fuel to a running or hot engine. Allow
the engine to cool for several minutes before adding
fuel. Never fuel indoors or inside enclosed trailers.
13. Keep flammable objects (cigarettes, matches, etc.),
open flames and sparks away from the fuel tank and
fuel container. Use only approved containers.
14. Equipment must comply with the latest requirements
per SAE J137 and/or ANSI/ASAE S279 when driven
on public roads.
15. Do not operate without the side discharge chute
installed and in the down position or with an optional
grass catcher or mulch plate completely installed.
16. Check the blade mounting bolts at frequent intervals
for proper tightness.
17. Make sure all hydraulic fluid connections are tight
and all hydraulic hoses and lines are in good
condition before starting the machine.
2.4 OPERATION CONSIDERATIONS
1. Know the function of all controls and how to stop
quickly.
WARNING
DO NOT operate on steep slopes. Under no
circumstances should the machine be operated
on slopes greater than 20 degrees. See Figure
2-1 to determine approximate slope of area to
be mowed. ALWAYS FOLLOW OSHA APPROVED
OPERATION.
2. Reduce speed and exercise extreme caution on
slopes and in sharp turns to prevent tipping or loss
of control. Be especially cautious when changing
directions on slopes.
3. Stay two cut widths away from slopes, drop offs,
ditches and retaining walls.
4. To prevent tipping or loss of control, start and stop
smoothly, avoid unnecessary turns and travel at
reduced speed.
5. Immediately apply the parking brake if you lose
steering control while operating. Inspect the machine
and correct the problem before continuing to operate.

5
R
Section 2
6. When using any attachment, never direct the
discharge of material toward bystanders or allow
anyone near the machine while in operation.
7. Start the engine with the operator in the operating
position, cutter blades are disengaged, parking
brake is engaged, and the neutral lever is in neutral.
8. If the mower discharge ever plugs, shut off the
engine, remove the ignition key, and wait for all
movement to stop before removing the obstruction.
WARNING
DO NOT use your hand to dislodge the clogged
discharge chute. Use a stick or other device to
remove clogged material after the engine has
stopped running and the blades have stopped
turning.
9. Be alert for holes, rocks, roots and other hidden
hazards in the terrain. Keep away from any drop
offs. Beware of overhead obstructions (low limbs,
etc.), underground obstacles (sprinklers, pipes, tree
roots, etc.). Cautiously enter a new area. Be alert for
hidden hazards.
10. Disengage power to cutter deck before backing up.
Do not mow in reverse unless absolutely necessary
and then only after observation of the entire area
behind the mower. If you must mow in reverse,
maintain a constant lookout to the rear of the
machine and mow slowly.
11. DO NOT turn sharply. Use care when backing up.
12. Disengage power to cutter deck before crossing
roads, walks or gravel drives.
13. Mow only in daylight or good artificial light.
14. NEVER raise the deck with the blades engaged.
15. Take all possible precautions when leaving the
machine unattended, such as disengaging the
mower, stopping the engine, and removing the key.
16. Disengage power to the attachments when
transporting or when not in use.
17. The machine and attachments should be stopped
and inspected for damage after striking a foreign
object, and damage should be repaired before
restarting and operating the machine.
5
o
10
o
15
o
20
o
Figure 2-1. Slope Angle Graph
CAUTION
Do not touch the engine or the muffler while the
engine is running or immediately after stopping.
These areas may be hot enough to cause a
burn.
DANGER
DO NOT run the engine inside a building or
a confined area without proper ventilation.
Exhaust fumes are hazardous and contain
carbon monoxide which can cause brain injury
and death.
18. Keep hands and feet away from cutter blades and
moving parts. Contact can injure.
19. Transport the mower using a heavy duty trailer
or truck. Ensure the trailer or truck has all of the
necessary lighting and markings as required by
laws, codes, and ordinances. Secure a trailer with a
safety chain.
20. Be cautious when loading and unloading onto
trailers or trucks. Use only a full width ramp. Always
back on and drive off a trailer.
21. When transporting the mower, make sure the neutral
lock lever is in neutral lock, the engine is off with the
key removed, the parking brake is engaged and the
wheels have been blocked.

6
R
Section 2
22. Tie the mower down securely using the tie down
points located on the front and rear of the machine.
See Figure 2-2 and 2-3. Secure using straps, chains,
cable, or ropes. Both front and rear straps must be
directed down and outward from machine.
TIE DOWN
POINT
TIE DOWN
POINT
Figure 2-2. Front Tie Down Points
TIE DOWN
POINT
TIE DOWN
POINT
Figure 2-3. Rear Tie Down Points
23. Use care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
24. NEVER leave the machine running unattended.
2.5 MAINTENANCE CONSIDERATIONS &
STORAGE
1. Never make adjustments to the machine with the
engine running unless specifically instructed to do
so. If the engine is running, keep hands, feet, and
clothing away from moving parts.
2. Place the control levers in the neutral position,
engage the parking brake, stop engine and remove
key or disconnect spark plug wire to prevent
accidental starting of the engine when servicing or
adjusting the machine. Wait for all movement to stop
before adjusting, cleaning or repairing.
3. Remove spark plug wire before making any repairs.
4. Keep all nuts, bolts and screws tight, to ensure the
machine is in safe working condition. Check blade
mounting bolts frequently to be sure they are tight.
5. Do not change the engine governor settings or
overspeed the engine. See the engine operator's
manual for information on engine settings.
6. To reduce fire hazard, keep the cutting units, drives,
muffler and engine free of grass, leaves, excessive
grease, oil and dirt.
7. Park the machine on level ground.
8. NEVER allow untrained personnel to service the
machine.
9. Use care when checking blades. Use a Blade Buddy,
wrap the blade(s) or wear gloves and USE CAUTION
when servicing blades. Only replace blades. NEVER
straighten or weld blades.
10. Keep all parts in good working condition. Replace all
worn or damaged decals.
11. Use jack stands to support components when
required.
12. Carefully release pressure from components with
stored energy.
