Scag Power Equipment SWZ User manual

OPERATOR'SMANUAL
FROM SERIAL NUMBER 60001 TO 69999
MODELSWZ

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and
remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came
with your mower.
* Keep others off the tractor (only one person at a time).
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
WARNING
This manual covers the operating instructions
and illustrated parts list for:
All SWZ Machines
with a serial number of xxx60001- xxx69999
Always use the entire serial number listed on the serial number
tag when referring to this product.

1
Your mower was built to the highest stan-
dardsintheindustry.However,yourmoweris
only as safe as the operator. Carelessness or
operator error may result in serious bodily
injury or death. Hazard control and accident
prevention are dependent upon the aware-
ness, concern, prudence, and proper training
of the personnel involved in the operation,
transport, maintenance, and storage of the
equipment. Makesureeveryoperatorisprop-
erly trained and thoroughly familiar with all of
the controls before operating the equipment.
- Scag Power Equipment -
GENERAL SAFETY INSTRUCTIONS
•READ THIS OPERATOR'S MANUAL and
instructions furnished with attachments.
•A replacement manual is available from your
authorized Scag Service Dealer or by contacting
Scag Power Equipment, Service Department at
P.O. Box 152, Mayville, WI 53050. Please
indicate the complete model number and serial
number of your Scag product.
•Perform only those maintenance instructions de-
scribed in this manual. If major repairs are ever
needed or assistance is desired, contact an autho-
rized Scag dealer. To ensure optimum perfor-
mance and safety, always purchase genuine Scag
replacement parts and accessories. NEVER use
“WILL FIT” replacement parts and accessories
made by another manufacturer. THE USE OF
UNAPPROVED REPLACEMENT PARTS
OR ACCESSORIES COULD VOID THE
WARRANTY.
EQUIPMENT SAFETY
•Know the controls and how to stop quickly.
•Clear the work area of objects (wires, rocks, etc.)
that might be picked up and thrown.
•Disengage power to attachments when transport-
ing or not in use.
•DO NOT change the engine governor settings or
overspeed the engine.
•Take all possible precautions when leaving the
machine unattended, such as disengaging the
mower PTO engagement switch, stopping the
engine, and removing the key.
•Keep the machine and attachments in good oper-
ating condition, and keep safety devices and
shields in place and in working condition.
•Keep all nuts, bolts, and screws tight to be sure
the equipment is in safe working condition.
•NEVER store the equipment with gasoline in
the tank inside a building where fumes may
reach an open flame or spark. Allow the engine
to cool before storing in any enclosure.
•The machine and attachments should be stopped
and inspected for damage after striking a foreign
object, and the damage should be repaired before
restarting and operating the equipment.
•The discharge chute must be installed and in the
down position on the side discharge mower except
when optional grass catcher is completely in-
stalled. If the mower discharge ever plugs, shut
the engine off and wait for all movement to stop
before removing obstruction.
•Clean grass, leaves, and lubricant spills from
surfaces after use to prevent spontaneous com-
bustion.

2
•When using the mower, proceed as follows:
1. Mow only in daylight or in good artificial
light.
2. Never make a cutting height adjustment
while the engine is running.
3. Shut the engine off and remove key when
removing the grass catcher or unclogging
chute.
4. Check the blade mounting bolts for proper
tightness at frequent intervals.
•Do not touch engine or muffler while engine is
running or soon after it is stopped. These areas
could be hot enough to cause a burn.
•Only use Scag approved riding attachments.
Scag Approved Attachments:
RS-ZT
Using unapproved attachments, (especially
"stand-up" riding attachments) may be hazardous.
WARNING:
DO NOT operate on steep slopes. Reduce speed
and use extreme caution. ALWAYS FOLLOW
OSHA-APPROVED OPERATION.
•Watch out for traffic when crossing roads or oper-
ating near roadways.
•Handle gasoline with care - it is highly flammable
•Use an approved gasoline container. Never remove
the fuel cap or add gasoline to a running or hot engine
or an engine that has not been allowed to cool for
several minutes after running. Never fill the tank
indoors and always clean up spilled gasoline.
WARNING
FALLING HAZARD
USE ONLY SCAG APPROVED
RIDING ATTACHMENTS
SEE OPERATOR'S MANUAL
481109
OPERATOR SAFETY
•NEVER operate the machine without approved
ventilation. Exhaust fumes are dangerous. DO
NOT run the engine indoors.
•DO NOT allow children to operate the machine.
Do not allow adults to operate the machine
without proper instruction.
•DO NOT mow when children and others are
around. When using any attachments, never di-
rect the discharge of material toward bystanders
nor allow anyone near the machine while in
operation.
•Before attempting to start the engine, follow all
starting instructions.
•BEFORE leaving the operator’s position, disen-
gage power to attachments.
•Before making any repairs or adjustments, dis-
engage power to attachments. STOP THE EN-
GINE AND REMOVE KEY.
•DO NOT operate the machine while wearing san-
dals, tennis shoes, sneakers or shorts. Always wear
long pants and substantial shoes. NEVER wear
loose fitting clothing which could get caught in
moving parts. Wearing safety glasses and safety
shoes is advisable and required by some local
ordinances and insurance regulations.
•Do not stop or start suddenly. WHEN OPERAT-
ING ON A SLOPE, TRAVEL ACROSS THE
GRADE, WHENEVER POSSIBLE, NEVER
UP OR DOWN.
•Reduce speed and exercise extreme caution on
slopes and in sharp turns to prevent tipping or loss
of control. Be especially cautious when changing
direction on slopes.
•Stay alert for holes, rocks, and roots in the terrain
and other hidden hazards. Keep away from drop-
offs.

3
HYDRAULIC SAFETY
•Keep body and hands away from pin holes or nozzles
that eject hydraulic fluid under high pressure. Use
paper or cardboard and not hands to search for leaks.
•Hydraulic fluid escaping under high pressure may
have sufficient force to penetrate skin and cause
serious injury. If foreign fluid is injected into the skin,
it must be surgically removed within a few hours by a
doctor familiar with this form of injury or gangrene
may result.
•Make sure all hydraulic fluid connections are tight and
all hydraulic hoses and lines are in good condition
before starting the machine.
•Hydraulic fluid is under high pressure. If you need
service on your hydraulic system, please see your
authorized Scag dealer.
INITIAL RUN-IN
First Day of Use or approximately 10 hours.
3Check for proper operation of the safety interlocks.
3Check belts for proper tension at 2, 4 and 8
hours; adjust as needed.
3Check speed control neutral adjustment. Adjust if
necessary, (see Adjustments, page 9) so that
engine will not start unless speed control lever is in
neutral and blade clutch is disengaged.
3Check steering control neutral and adjust, if
needed, as indicated in the Adjustments Section.
3Check tires for proper pressure (see Adjustments,
page 9).
3Check for loose hardware. Tighten as needed.
3Grease machine fittings:
•2 caster wheel bearings
•2 caster wheel pivots
•2 or 3 spindles (bearings)
•1 or 2 deck idler pivot arms
•1 engine idler arm pivot
•2 speed control shafts
•2 neutral cam weldments
•2 pivot weldments, pump control

4
Fuel Valve
(Open position is Down)
SGB108
1. Open the fuel valve.
SGB108
2. Pull speed control lever to NEUTRAL position.
3. Pull the mower PTO engagement switch down to STOP
position.
-NOTE-
Neutral latches must be in NEUTRAL
LOCK position for startup.
4. Turn key switch on.
-NOTE-
Some engines are recoil start models, oth-
ers are electric; manual choke locations
will vary.
BEFORE STARTING
3Check belts for:
•Proper tension
•Fraying and wear
•Twisting
•Cracking
3Check initial tension of the cutter blade drive belts.
If belts are not properly tensioned, see Adjustments,
page 6&7.
3Check oil levels in the engine and hydraulic
reservoir.
3Fill the fuel tank with clean, fresh lead-free gasoline.
-NOTE-
For best engine performance, SCAG rec-
ommends using gasoline with an octane
rating no less than 87.
TO START ENGINE
-NOTE-
Read and understand the instructions on
safety before attempting to operate the
mower.
ON
OFF
CHOKE
FAST
SLOW
START
STOP
NEUTRAL
FAST
SLOW
Starting Engine
Blade Clutch In
Stop Position
Key Switch On
Neutral Latch Position
(both handles)
Speed Control
In Neutral Throttle
Adjustment
SGB104

5
TO START ENGINE - cont'd
5. Start engine and choke as required. Adjust throttle to
desired engine speed.
6. Pull out and push up the mower PTO engagement switch
to engage the cutter deck.
MOWER OPERATION
-NOTE-
If you are not familiar with the operation of
the hydrostatic drive and zero turn feature,
practice turning and maneuvering with the
hand controls before engaging the blades.
Choke
SGB114
Kohler And Briggs & Stratton
Drive
Position
Neutral Position
Steering
Control
Lever
Steering
Control
Rod
Neutral LatchShift Lever
1. With steering control lever in neutral, move the speed
control lever into the first notch from the neutral position
for initial operation.
2. While squeezing steering control levers with both hands,
release both neutral latches. When steering control
levers are released into drive position, mower will travel
straight.
-NOTE-
The zero turn feature is shown by squeezing
up full on one steering control lever while
releasing the other. The wheel on the side
the lever is squeezed, will turn in reverse.
3. To make a right turn, squeeze up on the RH lever; to turn
left, squeeze up on the LH lever.
4. Shift speed control lever for desired mowing speed.
-NOTE-
Top speed is suggested only for transport!
5. TO STOP wheel drive, squeeze both steering levers to
the neutral position and lock with the neutral latch. Then
move speed control lever to neutral position.
-NOTE-
Be sure area is clear before backing up.
6. To move the machine in reverse, squeeze up on
both steering control levers.
7. When operating on a slope, travel across the grade,
never up and down.
8. Before turning the engine off, be certain the blade
clutch switch is in the OFF position, neutral latches
are in NEUTRAL position, and speed control lever
is in NEUTRAL.

6
CAUTION:
Stop engine and remove key from ignition before
making any adjustments. Wait for all moving parts
to come to a complete stop before beginning work.
BELT TENSION
-NOTE-
The Hydro Drive Belt is spring-loaded and
does not require adjustment.
To adjust the cutter deck drive and blade belts:
1. Remove the belt cover.

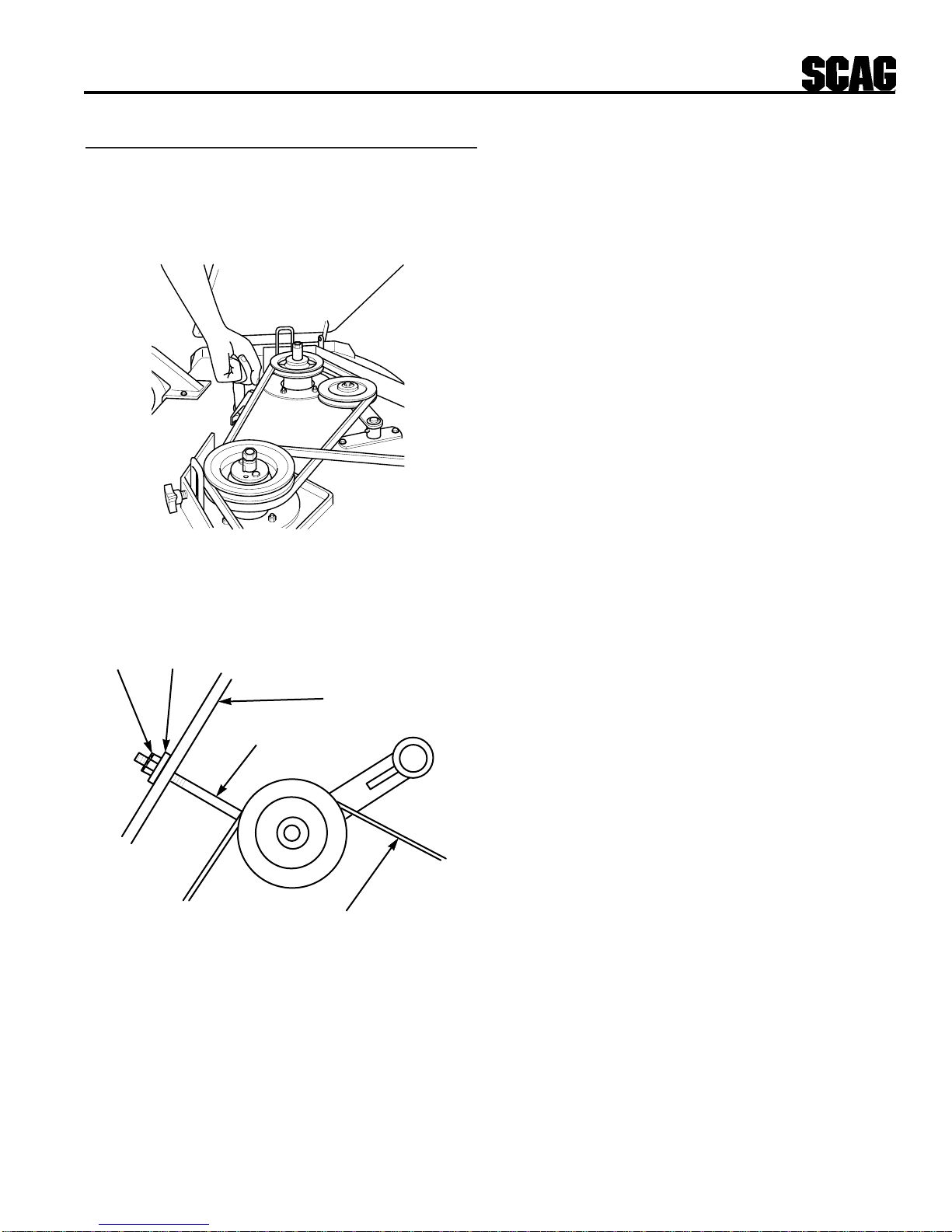

2. To adjust the cutter deck drive belt: Adjust the nut so that
the belt moves 1/2" with 10 pounds of pressure. (See
figure below).
Cutter Deck Drive Belt Tension Alignment-
Idler - L.H.
ADJUSTMENTS
AFTER OPERATION
1. Shut off engine.
2. Recheck cutter drive belts for proper tension, align-
ment, and any signs of rubbing. Correct and adjust as
necessary.

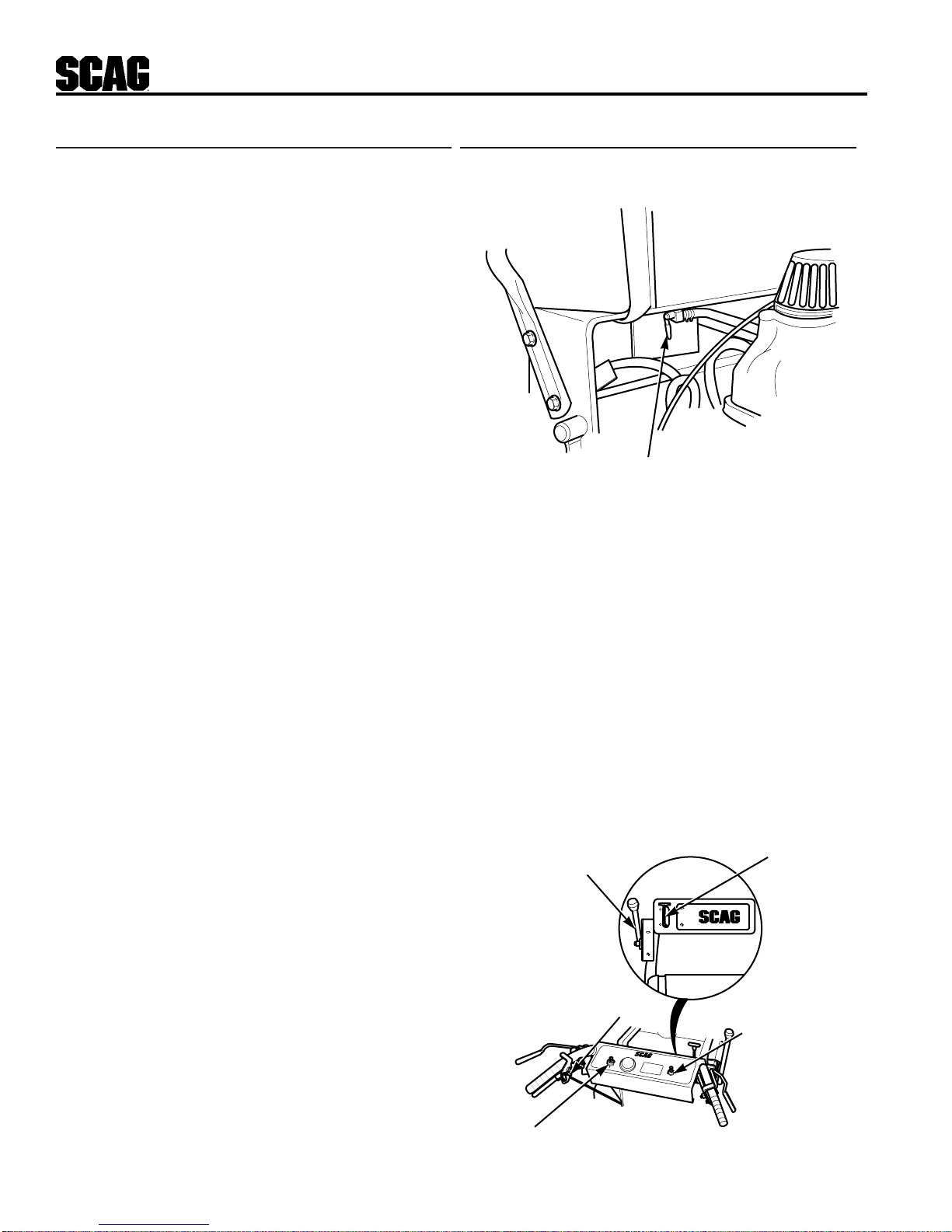

To "freewheel" or move the mower around without the
engine running, rotate both dump valve levers located
at the back of the pumps to "freewheel" positions,
approximately 1/2 a turn (see figure below). Levers
must be returned to original position to operate the
mower.
Dump Valve Levers
(normal position)
SGB112
-NOTE-
Bolts will not always be in this position.
To close the dump valve, rotate until bolt
stops.
RH Belt Tension
Adjustment Idler Engaugement Idler
Tension Check
Point
Nut
"J" Bolt Belt
End Of L-Shaped
Bracket
Washer
sgb004

7
CUTTER DECK ADJUSTMENTS
Due to the many conditions that exist, it is
difficult to suggest a setting that will work for every
lawn. There are, however, two adjustments that
should be made on the cutter deck: pitch and
height.
PITCH is the angle of the blades (comparing
front to rear). A 1/4" downward pitch (front of
deck down) is recommended for better cutting
performance.
HEIGHT is the nominal distance that the
blade is off the ground. This measurement is made
with the blades pointed side to side and distance is
measured between cutting tip and ground.
Adjusting the blade height can be done by
moving any number of the five smaller spacers on
the blade mounting bolts to the top of the spindle
shaft or below the spindle shaft. All blades should
be positioned equally (see Spindle Illustration, p. 8).
ADJUSTMENTS (cont'd)
3. To adjust the blade drive belt: Using a belt tension
gauge, check the belt tension so that the belt moves 1/2"
with 10 pounds of pressure.
Adjust the tension by tightening or loosening the J-bolt.
BELT ALIGNMENT
Belt alignment is important for proper performance of your
Scag mower. If you experience frequent belt wear or
breakage, see your authorized Scag service dealer for belt
adjustment.
Blade Drive Belt Tension Check
4. Replace the belt covers.
Belt Tension Adjustment - Idler, R.H.
"J" Bolt
Nut
Belt
Deck
Washer

8
For cutting in the lowest position, mount the
cutter deck in the top hole (A). For cutting in
the highest position, mount the deck in the
lowest hole (C). Setting the cutter deck height
will be determined by the type of cutting
conditions.
Caster spacers also can be repositioned to
change cutting heights and to change the pitch
of the deck (see figure below).
To adjust caster spacers, raise the deck and
remove pin and caster wheel. Reposition
caster spacers as needed then replace caster,
top spacers and pin. Make the same adjust-
ments on the other caster wheel.

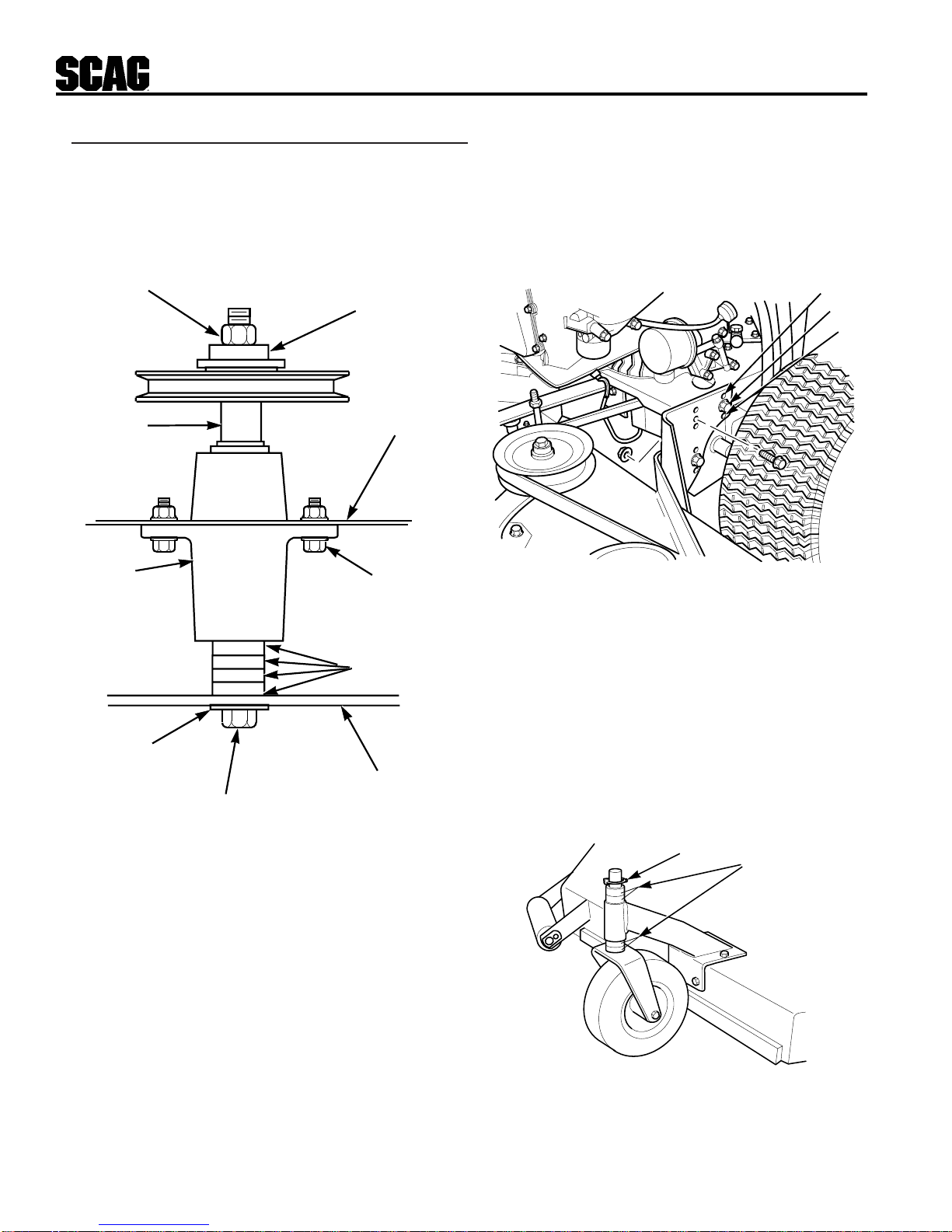

TAPERED BEARING SPINDLE ASSEMBLY
The cutter deck is shipped with one spacer on top
of spindle and four underneath (see figure below).
-NOTE-
For best results, keep the cutter deck
high in relation to the engine deck and
the blades low in the cutter deck; ie. 3 or
4 spacers below the spindle shaft.
Additional range to the cutting height can be
achieved by repositioning the cutter deck in
relationship to the engine deck. This adjustment
also effects the pitch of the deck. There are three
positions for mounting the cutter deck (see figure
following column).
ADJUSTMENTS (cont'd)
Hex Nut-Torque
to 75 Lb-Ft Cutter Blade
Spacer 1/4"
Spindle
Shaft Cutter
Deck
Spindle
Assembly Hex Head
Bolt / Nut
Cutter Blade
Spacers1/4"
Washer
Hex Head Bolt Cutter Blade
ABC
Spacers
Pin
Repositioning Caster Spacers
Repositioning The Cutter Deck

9
ADJUSTMENTS (cont'd)
BLADE HEIGHT ADJUSTMENT
-Note-
For best cut and discharge a minimum of
three spacers should be between the blade
and spindle. (see page 8)
NEUTRAL ADJUSTMENT
TIRE PRESSURES
Caster Wheels 25 PSI
Drive Wheels 15 PSI
NEUTRAL ADJUSTMENT
-NOTE-
This is the only adjustment to properly
set neutral.
1. Move the mower to a secure area away from
bystanders and preferably, facing a wall. Raise the
drive wheels off the ground. Block caster wheels.
CAUTION
Do not try to adjust neutral with the speed
control rods or the speed adjustment cam.

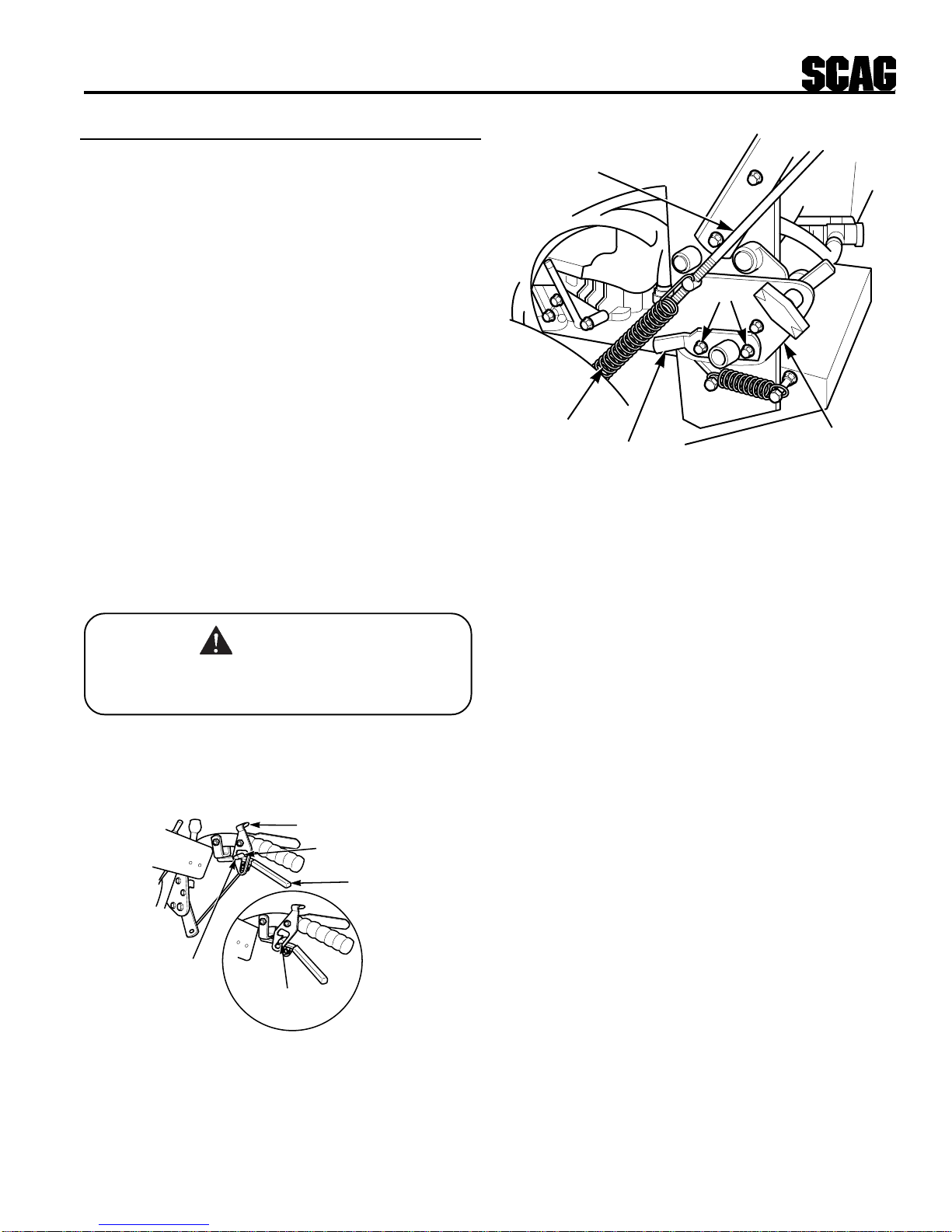

2. Remove the speed control spring and the steering
control rod from the machine by removing the hairpin
at the swivel and at the handle. (See figure below).
3. Start engine and let it warm up for a few minutes.
4. Loosen the wing nut and let the speed adjustment
bearing lever fall away from the cam.
Drive
Position
Neutral Position
Steering
Control
Lever
Steering
Control
Rod
Neutral Latch
Steering Control
Rod
Spring Handle Bellcrank
SC160G
Bolts
6. Tighten the bolts on the neutral adjustment handle.
When tightening the bolts, hold the bellcrank to
prevent it from rotating and throwing off the neutral
adjustment.
7. Turn off engine.

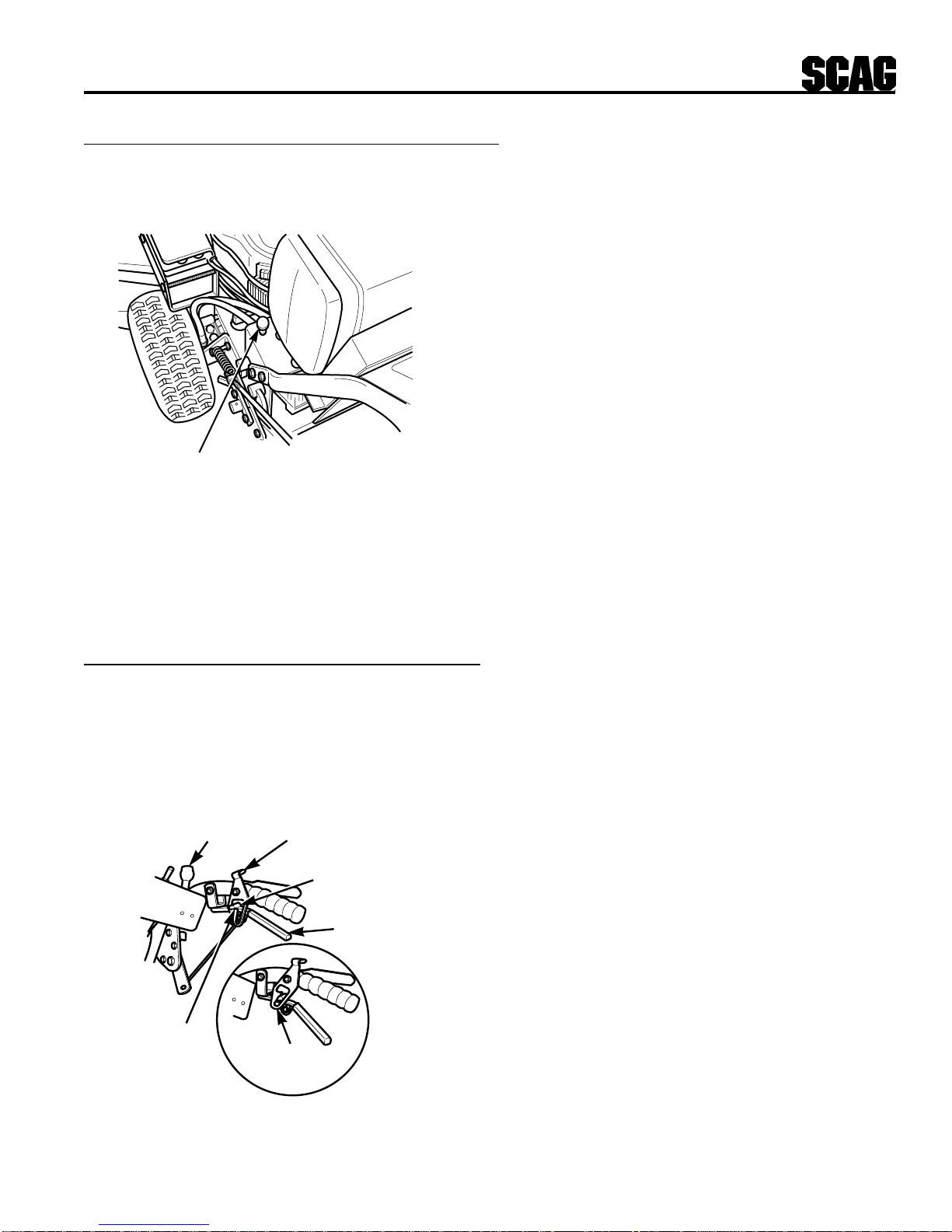

STEERING CONTROL ROD ADJUSTMENT
-NOTE-
This adjustment is made to allow the steer-
ing control lever to be moved out of the
neutral latch without engaging reverse.
1. Connect BOTH steering control rods into the steering
control lever up on the handles. Do not install the
hair pin through the rod at this time.
2. Put the steering control lever control rod into the
neutral latch. (See figure on page 10).
5. Observe the drive wheels. If they rotate, loosen
the bolts on the neutral adjustment handle and
move the handle up or down until the wheels are
in neutral (up for reverse and down for forward).
(See figure above).

10
-NOTE-
Make sure that the adjustments on page 9 have
been completed, the neutral latch is engaged
and that the speed shift lever is in neutral.
1. Place the speed adjustment bearing lever where the
bearing just contacts the speed adjustment cam. (See
figure below).
TRACKING STRAIGHT ADJUSTMENT
-NOTE-
Before making this adjustment be sure that
the tire pressure has been checked and that
it is correct. (See page 9)
-NOTE-
This adjustment will allow the machine to
travel in a straight line at the normal oper-
ating speed.
ADJUSTMENTS (cont'd)
Drive
Position
Neutral Position
Steering
Control
Lever
Steering
Control
Rod
Neutral Latch
3. Turn the swivel joint on the steering control rod
until the swivel joint lines up in the center of the
slot in the bellcrank. This will allow the control rod
to be moved back when shifting out of neutral and
not move the bellcrank.
4. Remove the steering control rod from the mower.
Install the speed control spring onto the swivel joint
and then connect the control rod back to the
machine.
-NOTE-
Make sure that the swivel joint does not
turn on the control rod while you are
doing this.
5. Install the hair pins into the control rod up at the
handle and into the swivel joint.
Steering Control Rod
Speed Control Spring Bellcrank
SC161G
Swivel
Joint
Speed Adjustment
Cam
Bearing
Speed
Adjustment
Bearing Lever
4. Tighten the wing nut securing the speed adjustment
bearing lever and repeat on other side.
5. Put the machine on a flat level surface (preferably on
grass) and start engine.
6. Place speed adjustment hand lever into the forward
speed used most often and see if machine tracks
straight.
7. If machine pulls to one side, put the speed adjust-
ment hand lever back into neutral and shut off
engine.
WARNING:
Never move the bearing forward beyond just
touching the cam, or reverse will be engaged
unintentionally.
8. If the machine pulls to the left, on the left side of the
bell crank, loosen the wing nut and move the adjust-
ment bearing lever 1/16" away from the cam and
retighten the bolts. Restart engine and check
tracking.

11
ADJUSTMENTS (cont'd)
9. The farther the adjustment bearing lever is moved
away from the cam, the faster that side will drive.
Continue adjusting the bearing lever until the mower
tracks in a straight line.
10. Conversely, if the machine turns to the right, adjust
the right bearing lever away from the cam.
11. Contact your Scag servicing dealer if you cannot
adjust the tracking properly.
CUTTER BLADES
X
X Must NOT Exceed
1/3 Blade Width
300
Angle Blade Back
Do Not Cut In
Do not sharpen beyond 1/3 of the width of the blade.
Suggestion: Dress the blade with a file. Using a wheel
grinder may burn the blade. Check the balance of the blade.
If blades are out of balance, vibration and premature wear
can occur. See your authorized Scag dealer for blade balance
tools.

12
LUBRICATION & MAINTENANCE
8 Hours (Daily)
Break-In
(1st 10 Hours)
40 Hours (Weekly)
200 Hours (Monthly)
X
X
X
X
X
X
X
X
X
X
X
100 Hours (Biweekly)
PROCEDURE
Check all hardware for proper tightness
Change engine oil and filter at 5 hours
Check hydrostatic oil filter at 20 hours
Check belts for proper adjustment
Check engine oil
Clean blower screen
Remove debris from under belt cover
Sharpen cutter blades
Grease spindle bearings *
Clean air filter
Check battery acid level
Check tire pressure
Grease caster wheel bearings
Grease caster wheel pivots
Grease idler arm pivots
Change engine oil and filter
Replace air filter
Check all hardware for proper tightness
Clean and adjust spark plugs
Drain Hydraulic System and replace fluid
Change hydrostatic oil filter
X
X
X
X
X
X
X
X
X
X
Add oil as needed - SAE 10W30
Check after 2,4,8 hours of running
Do not over fill
MORE OFTEN IF NEEDED
MORE OFTEN IF NEEDED
MORE OFTEN IF NEEDED
+ US Lithium MP White Grease 2125
MORE OFTEN IF NEEDED
Distilled water only
Add or adjust as needed
Chassis grease
Chassis grease
Chassis grease
See engine manufacturer information
MORE OFTEN IF NEEDED
See engine mfg. information
Use SAE 10W30 motor oil
Clean area before removing filter
COMMENTS
* Depending on climate and environment, lubrication may be required every 8 to 40 hours.
Grease spindle until grease comes out the grease relief valve.
+ Compatible Greases: US Lithium MP White Grease 2125
Mobilux #2 found at Mobil Service Stations
Ronex MP found at Exxon Service Stations
Super Lube MEP #2 & Super Stay-M #2 found at Conoco Service Stations
Shell Alvania #2 found at Shell Service Stations
Lidok EP #2 found at industrial shops

13

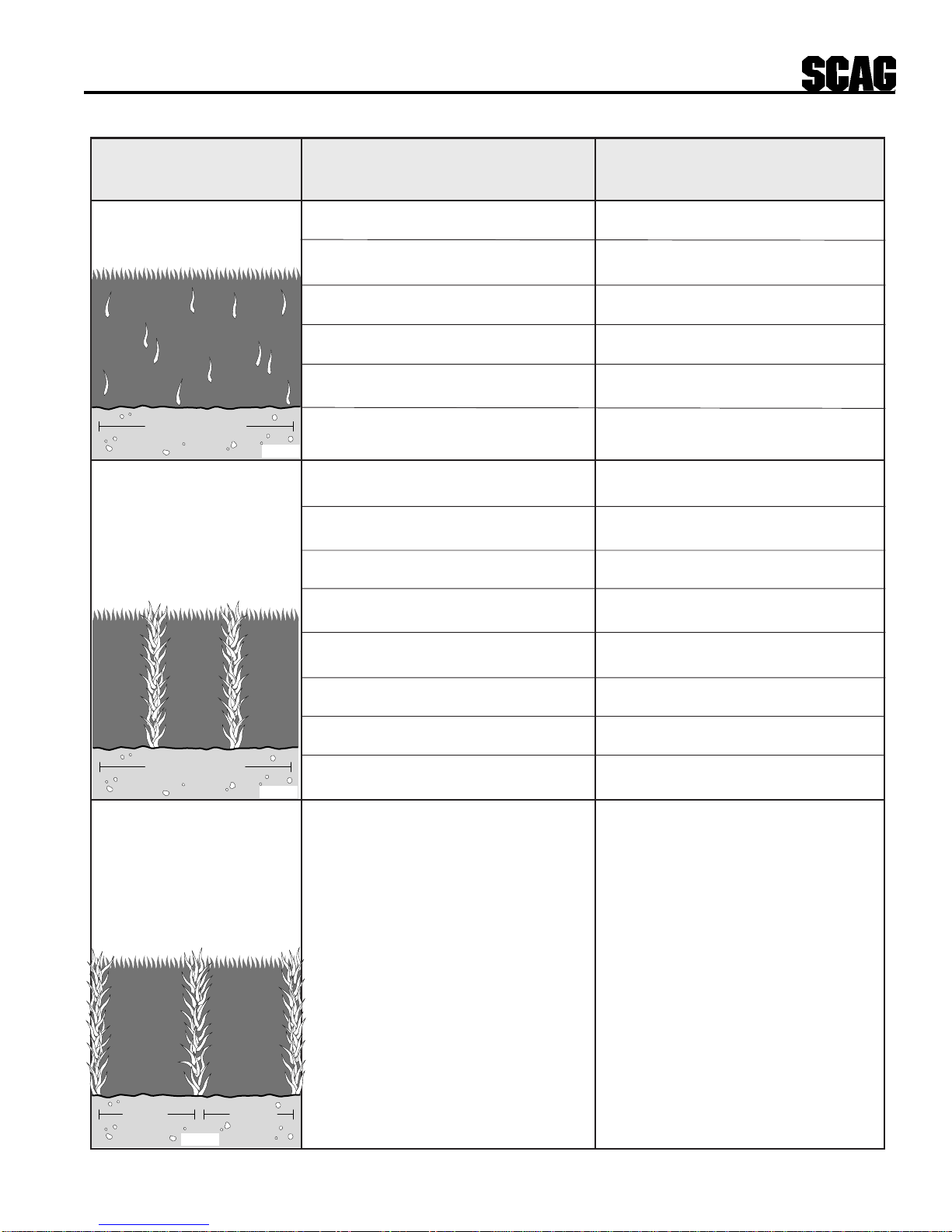

Stringers - Occasional Low engine RPM Run engine at full 3600 RPM
Blades of Uncut
Grass Ground speed too fast Slow speed to adjust for conditions
Wet grass Cut grass after it has dried out
Dull blades, incorrect sharpening Sharpen blades
Deck plugged, grass accumulation Clean underside of deck
Belts slipping Adjust belt tensions
Streaking - Strips of Dull, worn blades Sharpen blades
Uncut Grass in Cutting
Path Incorrect blade sharpening Sharpen blades
Low engine RPM Run engine at full 3600 RPM
Beltslipping Adjust belt tension
Deck plugged, grass accumulation Clean underside of deck
Ground speed too fast Slow speed to adjust for conditions
Wet grass Cut grass after it has dried out
Bent blades Replace blades
Width of Deck
SGB018
CONDITION CAUSE CURE
Width of Deck
SGB020
Width
of
Deck
Width
of
Deck
SGB019
Streaking - Strips of Not enough overlapping Increase the overlap of each
Uncut Grass Between between rows pass
Cutting Paths
TROUBLESHOOTING CUTTING CONDITIONS

14
CONDITION
TROUBLESHOOTING
CAUSE CURE
Sloping Ridge Across Tire pressures not equal Check and adjust tire pressure
Width of Cutting Path Wheels uneven Check and adjust tire pressure
Deck mounted incorrectly See your authorized SCAG dealer
Uneven Cut on Flat Lift worn off of blade Replace blade
Ground - Wavy
High-Low Blade upside down Mount with cutting edge toward
Appearance, ground
Scalloped Cut, or
Rough Contour Deck plugged,grass accumulation Clean underside of deck
Too much blade angle (deck pitch) Adjust pitch and level
Deck mounted improperly See your authorized SCAG dealer
Bent spindle area See your authorized SCAG dealer
Dullblade Sharpenblade
Uneven Cut on Uneven ground May need to reduce ground speed,
Uneven Ground - raise cutting height, and/or change
Wavy Appearance, direction of cut
High-Low Scalloped
Cut, or Rough Contour
Width of Deck
SGB020
Width of Deck
SGB021
Width of Deck
SGB023

15
Scalping - Blades Low tire pressures Check and adjust pressures
Hitting Dirt or
Cutting Very Close to Ground speed too fast Slow speed to adjust for conditions
the Ground Cutting too low May need to reduce ground speed,
raise cutting height, change direction
of cut, and/or change pitch and level
Rough terrain May need to reduce ground speed,
raise cutting height, and/or change
direction of cut
Ground speed too fast Slow speed to adjust for conditions
Wet grass Cut grass after it has dried out
Step Cut Blades not mounted evenly Adjust pitch and level
Ridge in Center of
Cutting Path Bentblade Replace blade
Internalspindlefailure See your authorized SCAG dealer
Mounting of spindle incorrect See your authorized SCAG dealer
Slope Cut - Sloping Bent spindlemounting area See your authorized SCAG dealer
Ridges Across Width
of Cutting Path Internalspindlefailure See your authorized SCAG dealer
Bent deck housing See your authorized SCAG dealer
TROUBLESHOOTING
CONDITION CAUSE CURE
Width of Deck
SGB024
Width of Deck
SGB025
Width of Deck
SGB022

16
TECHNICAL SPECIFICATIONS
ENGINES
General Type: Heavy duty industrial/commercial
Brand: Kohler, Kawasaki, Briggs & Stratton
Models: Kohler CV14T, CVE 20;Kaw. FC420V;B&S 303776, 350777
Horsepower: Kohler 14HP& 20HP; Kaw. 14HP; B&S 16HP & 18HP
Type: 4 cycle gas, vertical shaft engines
Displacement: Kohler: 14HP = 398cc, 20 HP= 624 cc
Kawasaki: 14HP = 423cc
B & S 16HP = 480 cc, 18HP = 570cc
Cylinders: Varied - see manufacturer's specifications
Governor: Mechanical type governor with variable speed control set
at 3600 rpm (+75 rpm), idle set at 1200 rpm (+75 rpm)
Exhaust Group: Single exhaust canister muffler
Fuel Pump Group: Varied - See manufacturer's specifications
Oil Pump Group: Varied - See manufacturer's specifications
Valve Group: Varied - See manufacturer's specifications
Starter/Electrical: Electronic Ignition with recoil starter or 12 volt battery with
alternator, solid state ignition with key start
Charging System: 15 amp
ENGINE DECK
Thickness: 7 gauge steel
Fuel Tank: 5 gallon (19.0 litres) seamless polyethylene
Drive Wheels/Tires: 16x6.50-8 four-ply pneumatic tubeless, radius edge
Brakes: Dynamic breaking through hydro drive system
Axles: 1" tapered
Handle Bars: 1-1/4" diameter
DRIVE SYSTEM
Type: Hydro drive with two variable displacement pumps and two
cast-iron high torque motors
Hydro Pumps: Two Hydro-Gear Model BDP 10L pumps with dump valves for
movement without running the engine
Drive Wheel Motors: Two 12 cu. inch cast-iron high torque motors
Hydro Fluid Cooling Group: Heavy-duty cooling radiator, 7 qt. capacity cooling
reservoir, uses, SAE 10W30 fluid and 10 micron filter
Steering / Travel Control:: Independent handle controls for each wheel, squeeze to move
from forward to neutral to reverse, neutral lock lever, speed
range controlled with single lever (patented design), in-field
tracking adjustment with no tools necessary
Dump Valves: Allows for movement without engine running
Axles: 1" tapered motor shafts
Wire Harness: 14 gauge wire
Safety Group: Handle actuated operator presence system (patented design),
blade / clutch and transmission interlock to engine kill
Forward Speed Range: 0 to 7.4 mph
Reverse Speed Range: 0 to 3.0 mph
Date of Issue: July 27, 1995
SpecificationsSubjecttoChangeWithoutNotice

17
TECHNICAL SPECIFICATIONS (CON'T)
CUTTER DECKS SWM 36, SWM 48, SWM 52, SWM 61, SWM 72
Type: Out-front design with anti-scalp rollers
Construction: SWM36,48: 7-gauge steel with 7-gauge (3/16") steel skirt
SWM52,61,72:10-gauge steel with 7-gauge (3/16") steel skirt
Cutting Width: 35.5" (90.2 cm), 48.0 (122.0 cm), 52.0 " (132.0 cm),
61.0 " (155.0 cm), 71.5" (181.6 cm)
Cutting Height Adjustment: Adjustable from 1-3/4" to 4-1/4" in 1/4" increments
Cutter Blades: .204 thick, milled edge, 5150 alloy steel
SWM 36: Two (2) 18" SWM 48: Three (3) 16.5"
SWM 52: Three (3) 18"SWM 61: Three (3) 21"
SM72: Three (3) 24" blades
Blade Engagement: Electric blade brake clutch with instrument panel switch
Discharge Opening: Extra wide 11.5", 13.75 " discharge opening with hinged
chute
Caster Wheels: 9.4 x 3.5 smooth tread flotation, inner tubes, split rims, roller
bearings, with quick pin removal
Spindles: Cast housing, taper roller bearing, low maintenance with
top access grease fitting and grease overfill relief poppet
Spindle Pulleys: Cast-iron with easily removed taper hubs
Idler Pulley: 5" diameter pulley, welded and riveted construction,
1-3/8" O.D. Bearing
Idler Arm: Heavy duty idler arm of 1/4" channel steel
Cutter Deck Belts: B-section with Kevlar cord
ADDITIONAL SPECIFICATIONS
OPTIONAL ITEMS/ATTACHMENTS
Fabric Grass Catcher: GC-F4 Grass Catcher with 4 cubic ft. capacity
Metal Grass Catcher: GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull
dump or pick-up and dump
Steerable Sulky: RS-ZT Steerable Sulky withpadded seat and full articulation
for zero-radius turning
Mulching Plate: Steel plate fits over discharge opening. No blade change or
or removal required. Installs and removes in the field.
APPROXIMATE DIMENSIONS SWM36 SWM48 SWM52 SWM61 SWM72
Length: 74.0" 74.0" 74.0" 76.0" 76.0"
Length with Grass Catcher: 74.0" 74.0" 74.0" 76.0" 76.0"
Tracking Width: 37.0" 42.0" 42.0" 42.0" 42.0"
Width: 54.5" 60.0" 60.0" 70.0" 81.0"
Width (with discharge chute up): 37.5" 53.0" 53.0" 63.0" 74.0"
With with grass catcher: 55.0" 69.0" 69.0" 80.0" 91.0"
Height: 40.5" 40.5" 40.5" 40.5" 40.5"
Height with grass catcher: 40.5" 40.5" 40.5" 40.5" 40.5"
Weight 510 lbs. 550 lbs. 590 lbs. 625 lbs. 695lbs.
Weight with grass catcher: 550 lbs. 590 lbs. 630 lbs. 665lbs. 730 lbs.
Turning Radius: Zero Zero Zero Zero Zero
Date of Issue: July 27, 1995
SpecificationsSubjectToChangeWithoutNotice

18
32" & 36" CUTTER DECKS
19
20
21
22
21
20
24 23
18
25
37
26
27
28
29
30 31
33 4
34 32 31
35
14 1
36 38
45
11
43
42
44
45
43
46
44
11 59
60
58
9
48
2
14
58
22
42
50
52
51
49
41
49
SC409G
8
62
5
22
3
65
63
6
66
67
64
5
39 41
41
A
A
57
14
56
40
55
35
11
10
17
16
15
15A
12
11
13
37
754
55
53
61
47
40
46A
39A
1A
