1. Welcome
Welcome
Thank you for purchasing this Scandium appliance.
To achieve the optimal performance from your appliance, and to avoid the risk of accident or damage, it is
essential to read this manual before installation and rst time use.
This guide contains important information on the use and maintenance of the appliance, as well as important
safety notes.
Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving
the manufacturer.
Please keep this instruction manual in a safe place so you can refer to it at any time.
ATTENTION
Installation, regulation or maintenance, of both gas and electric appliances, should
only be executed by qualied and authorised personnel who are aware of the
installation regulations in force.
Please make sure to read this booklet carefully, containing general instructions for the
Installation, Operation and Maintenance of your appliance, before installation and
operation.
It is extremely useful to know, in detail, the best way of operating and maintaining
this appliance so you can enjoy its benets and be assure of the best results.
Please keep this instruction booklet with the appliance in case you pass it on to
someone else.
IMPORTANT: Upon collection or delivery of the appliance, any damage or defects MUST be reported
within 48 hours to the retailer or the customer service centre, or no claim will be recognised.

Page 4
2. Your Safety — General Warnings
WARNING: It is important that this instruction book be retained with the appliance for future reference.
Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that
the new owner can get to know the functions of the appliance and the relevant warnings. These warnings are
provided in the interest of safety. You MUST read them carefully before installing or using the appliance.
Grounding Instructions
• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the
risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped
with a cord having an equipment grounding conductor and a 10amp grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all
local codes and ordinances.
• WARNING: Improper connection of the equipment-grounding conductor can result in the risk of an electric
shock.
• WARNING: Do not modify the plug provided with the appliance if it does not t the outlet. Have a proper
outlet installed by a qualied electrician.
Proper Use
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very
carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on the door when it is open. The appliance could tip forward.
• When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal;
- WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position.
• Check that the detergent compartment is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not
marked, check the manufacturer’s recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out
of the reach of children.
• Keep children away from detergent and rinse aid, keep child away from the open door of the dishwasher,
there could still be some detergent left inside.
• This appliance is not intended for use by persons (including children with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.

Page 5
2. Your Safety — General Warnings
• Children should be supervised to ensure that they do not play with the appliance.
• Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact
with skin and eyes and keep children away from the dishwasher when the door is open.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding
it.
• Please dispose of packing materials properly.
• Use the dishwasher only for its intended function.
• During installation, the electrical supply cord must not be excessively or dangerously bent or attened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets. Old hose sets should not be
reused.
• The maximum number of place settings to be washed is 12.
• The maximum permissible inlet water pressure is 1Mpa.
• The minimum permissible inlet water pressure is 0.04Mpa.

Page 6
3. Appliance Description
1
101
Back View
Front view
Main Fil ter
Detergent Dispenser
Cup Shelf
Cutlery Basket
Coarse Filter
Rinse Aid Dispenser
Inlet pipe connector
Drain pipe connector
Lower Basket
Spra y Arms
Upper Basket
1
5
6
7
8
9
10
11
3
2
4
1
2
3
4
5
6
7
8
9
Dishwasher Features
Front View Back View
1. Upper basket
2. Spray arms
3. Lower basket
4. Main lter
5. Detergent dispenser
6. Cup shelf
7. Cutlery basket
8. Coarse lter
9. Rinse aid dispenser
10. Drain pipe connector
11. Inlet pipe connector
10 11

Page 7
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.

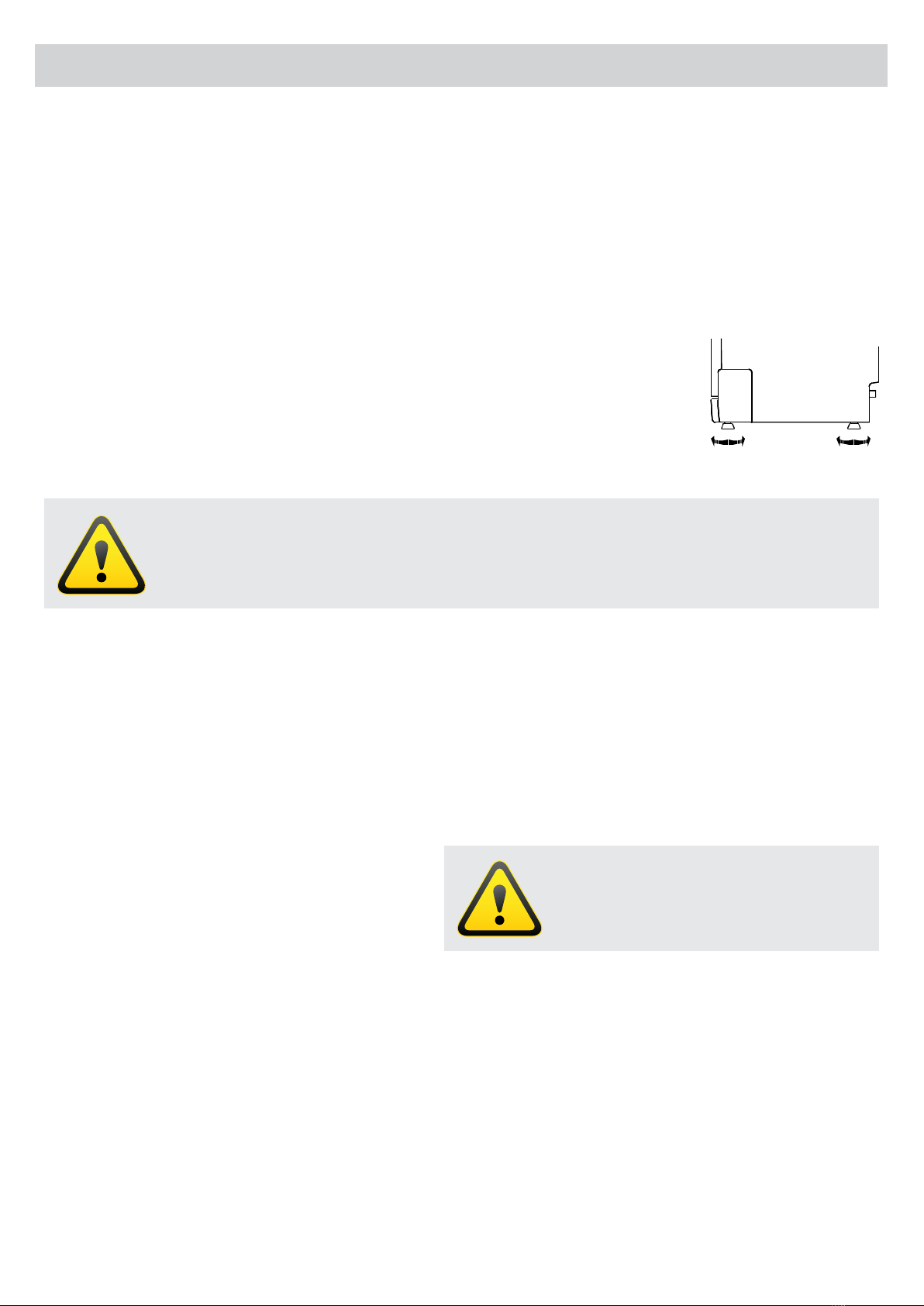

Levelling the Appliance
Once the appliance is positioned for levelling, the height of the dishwasher may be
altered by adjusting the level of the feet. The appliance should not be inclined more
than 2˚.
About Power Connection
4. Installation
WARNING
• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.
Electrical Requirements
Check the rating label for the rating voltage and connect the dishwasher to the appropriate power supply.
Electrical Connection
Ensure the voltage and frequency of the power corresponds to the rating plate. Only insert the plug into an
electrical socket which is earthed properly.
Grounding Instructions
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance
for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor
and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local standards and requirements.
WARNING
Insure proper ground exists before use.

Page 8
Water Connection
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water pipes are new or have not been used for
an extended period of time, let the water run to make sure that the water is clear. This
precaution is needed to avoid the risk of the water inlet to be blocked and damaging
the appliance.
Drain Hose Connection
Insert the drain hose into a drain pipe with a minimum diameter
of 4 cm, or let it run into the sink, making sure to avoid bending
or crimping. Use the special plastic support that comes with the
appliance. The free end of the hose must be at a height between
40 and 100cm and must not be immersed in water.
4. Installation
FRONT VIEW
Inlet pipe connector Drain pipe connector
SINK
DISHWASHER
Min 100mm
WARNING
• Improper connection of the equipment earthing conductor can result in the risk of an electric
shock.
• Check with a qualied electrician or service representative if you are in doubt whether the
appliance is properly earthed.
• Do not modify the plug provided with the appliance. If the plug does not t properly to the
outlet, please have a qualied electrician install a proper outlet.
WARNING
Turn off tab after use.

Page 9
4. Installation
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the oor, the excess water in the hoses cannot be drained directly into the
sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside
and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly tted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon Connection
The waste connection must be at a height of between 40cm (minimum) and 100cm (maximum) from the
bottom of the dishwasher. The water drain hose should be xed by a hose clip.
Before First Use
The following things should be checked before starting the dishwasher.
• The dishwasher is level and xed properly
• The inlet valve is open
• No leakage at the connections of drainage hose and cold water supply.
• 10amp plug is correctly connected.
• The power is switched on
• The inlet and drain hoses are not kinked or knotted.
• All packing materials and protective lm should be taken out from the dishwasher

Page 10
5. Operation
Quick Operation Guide
For detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance Press the On/Off button to switch on the appliance. Open the door.
Fill the detergent
dispenser
Compartment A
Fill main-wash detergent.
Compartment B
Fill pre-wash detergent.
(Follow the user instructions!)
Check the rinse aid level Mechanical indicator C
Electric indicator on control panel (if provided).
Load the baskets Scrape off any large amount of leftover food. Soften remnants of burnt food
in pans, then load the baskets. Refer to the dishwasher loading instructions.
Select a program
Press the Program button until the selected program lights up.
( See the section entitled“Operation instruction”)
Running the dishwasher Close the door, turn on the water tap and press the Start/Reset button.
The machine will start working after about 10 seconds.
